vue 加载 cesium

环境

我的环境 (不一定要按我的版本来)
node node -v
v10.16.1
webpack webpack -v
4.39.1
vue-cli 版本 vue -V 大写V
2.0+
npm npm -v
6.7.0

构建项目

打开命令行窗口 cd 跳转到你要创建项目的文件夹下

C:\user\Administrator>cd 对应的文件目录

vue init webpack vue-cesium-dome

回车
。。。

。。。

cd vue-cesium-dome
npm run dev

复制 http://localhost:8082

安装 cesium

ctrl + c
npm install cesium --save  //--save 可以在package.json 的 dependencies 看到你安装的 cesium 版本

npm run dev

config配置

build/webpack.base.conf.js

module.exports = {
...

	output: {
		path: config.build.assetsRoot,
	    filename: '[name].js',
	    publicPath: process.env.NODE_ENV === 'production'
	      ? config.build.assetsPublicPath
	      : config.dev.assetsPublicPath,
	    //cesium配置
	    sourcePrefix:''
	    // ---end---
	},
	//cesium配置
   	amd: {
    	toUrlUndefined: true
  	},
  	// ---end---

	resolve: {
	    extensions: ['.js', '.vue', '.json'],
	    alias: {
	      'vue$': 'vue/dist/vue.esm.js',
	      '@': resolve('src'),

		  //cesium配置
	      'cesium': path.resolve(__dirname, '../node_modules/cesium/Source')
	      // ---end---
    },

	module: {
		rules: [..],
		//cesium配置
	    unknownContextRegExp: /^.\/.*$/, //解决Error: Cannot find module "."该错误
    	unknownContextCritical: true //让Webpack打印载入特定库时候的警告。
	    // ---end---
	}
...
}

build/webpack.dev.conf.js

//cesium配置
const cesiumSource = 'node_modules/cesium/Source'
const cesiumWorkers = '../Build/Cesium/Workers'
// ---end---
devServer: {
	....
	disableHostCheck:true // 解决错误 Invalid Host/Origin header  [WDS] Disconnected
},
plugins: [
	// copy custom static assets
    new CopyWebpackPlugin([
      {
        from: path.resolve(__dirname, '../static'),
        to: config.dev.assetsSubDirectory,
        ignore: ['.*']
      }
    ]),
    //cesium配置
    new CopyWebpackPlugin([{
      from: path.join(cesiumSource, cesiumWorkers),
      to: 'Workers'
    }]),
    new CopyWebpackPlugin([{
      from: path.join(cesiumSource, 'Assets'),
      to: 'Assets'
    }]),
    new CopyWebpackPlugin([{
      from: path.join(cesiumSource, 'Widgets'),
      to: 'Widgets'
    }]),
    new CopyWebpackPlugin([{
      from: path.join(cesiumSource, 'ThirdParty/Workers'),
      to: 'ThirdParty/Workers'
    }]),
    new webpack.DefinePlugin({
      // Define relative base path in cesium for loading assets
      CESIUM_BASE_URL: JSON.stringify('')
    })
    // ---end---
]

build/webpack.prod.conf.js

//cesium配置
const cesiumSource = 'node_modules/cesium/Source'
const cesiumWorkers = '../Build/Cesium/Workers'
// ---end---

plugins: [
	// copy custom static assets
    new CopyWebpackPlugin([
      {
        from: path.resolve(__dirname, '../static'),
        to: config.build.assetsSubDirectory,
        ignore: ['.*']
      }
    ]),

	//cesium配置
    new CopyWebpackPlugin([{
      from: path.join(cesiumSource, cesiumWorkers),
      to: 'Workers'
    }]),
    new CopyWebpackPlugin([{
      from: path.join(cesiumSource, 'Assets'),
      to: 'Assets'
    }]),
    new CopyWebpackPlugin([{
      from: path.join(cesiumSource, 'Widgets'),
      to: 'Widgets'
    }]),
    new CopyWebpackPlugin([{
      from: path.join(cesiumSource, 'ThirdParty/Workers'),
      to: 'ThirdParty/Workers'
    }]),
    new webpack.DefinePlugin({
      // Define relative base path in cesium for loading assets
      //定义 Cesium 从哪里加载资源，如果使用默认的''，却变成了绝对路径了，所以这里使用'./',使用相对路径
      CESIUM_BASE_URL: JSON.stringify('./')
    })
    //---end---
]

路由配置

/router/inex.js

import Vue from 'vue'
import Router from 'vue-router'
import HelloWorld from '@/components/HelloWorld'
import cesiumViewer from '@/components/cesiumViewer'

Vue.use(Router)

export default new Router({
  routes: [
    {
      path: '/',
      name: 'HelloWorld',
      component: HelloWorld
    },
    {
      path: '/cesiumViewer',
      name: 'cesiumViewer',
      component: cesiumViewer
    }
  ]
})

创建组件 cesiumViewer.vue src/components下

<template>
    <div id="cesiumContainer"></div>
</template>
<script type="text/javascript">
    import Cesium from 'cesium/Cesium'
    import widgets from 'cesium/Widgets/widgets.css'
    export default {
        name: "cesiumViewer",
        mounted() {
            var viewer = new Cesium.Viewer('cesiumContainer',{
                geocoder:false,
                homeButton:false,
                timeline:false,
                animation:false,
                sceneModePicker:false,
                baseLayerPicker:false,
                navigationHelpButton:false,
            })
            viewer.cesiumWidget.creditContainer.style.display = "none";//去cesium logo水印
        }
    };
</script>
<style scoped>

</style>



holleword.vue 展示

<template>
  <div class="hello">
    <div class="title">
      <div>{{ msg }}</div>
      <div>Essential Links</div>

      <router-link to="./cesiumViewer">cesium</router-link>
    </div>

    <div class="cesCont">
      <cesiumViewer></cesiumViewer>
    </div>
  </div>
</template>

<script>
import cesiumViewer from './cesiumViewer'
export default {
  name: 'HelloWorld',
  data () {
    return {
      msg: 'Welcome to Your Vue.js App'
    }
  },
  components:{
    cesiumViewer
  }
}
</script>

<style scoped>
  .hello{
    height:100%;
  }
  .cesCont{
    height:800px;
  }
  .title{
    padding:15px 0;
    font-size:20px;
  }
</style>

app.vue 全局样式设置

<template>
  <div id="app">
    <router-view/>
  </div>
</template>

<script>
export default {
  name: 'App'
}
</script>

<style>
#cesiumContainer {
  width: 100%;
  height: 100%;
  margin: 0;
  padding: 0;
  overflow: hidden;
}
html,body,#app{
  width: 100%;
  height: 100%;
}
#app {
  font-family: 'Avenir', Helvetica, Arial, sans-serif;
  -webkit-font-smoothing: antialiased;
  -moz-osx-font-smoothing: grayscale;
  text-align: center;
  color: #2c3e50;
}
body,ul,li{
  margin: 0;padding: 0;
}
</style>

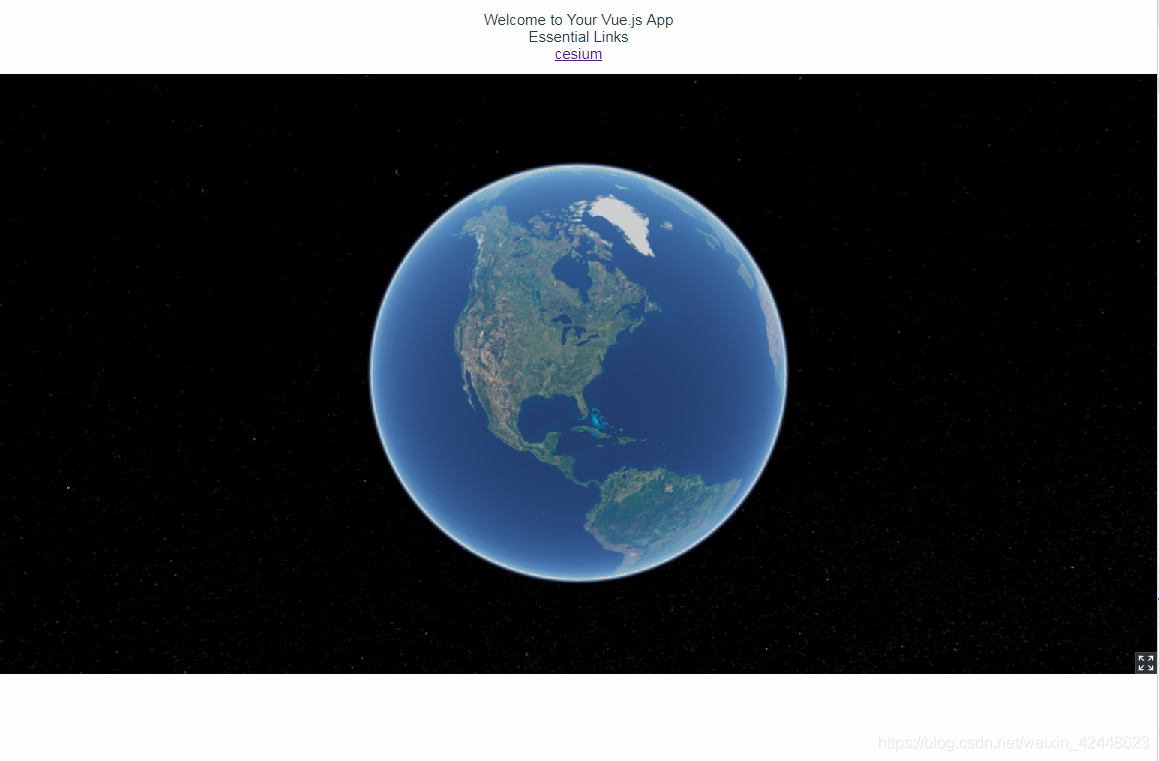

结果

在浏览器 输入 http://localhost:8082
如果8080 被占用 请试81，82

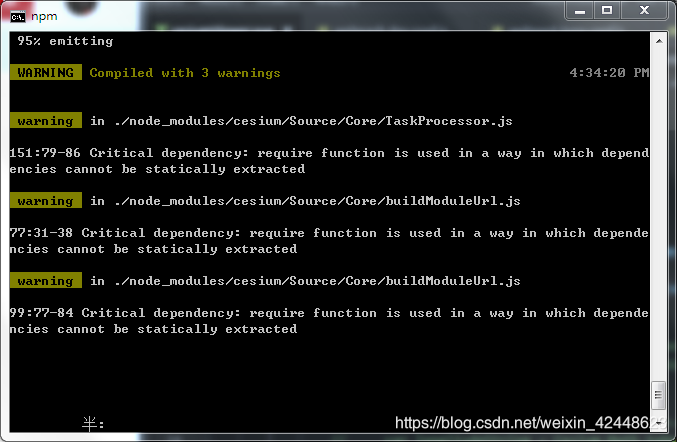

因为 有三个警告 地址没有打印出来 （这个警告我暂时去不了）
