MyBatis学习之实现Interceptor接口支持功能扩展

前言

• 场景

  mybatis中，如何实现在不侵入原有业务代码的情况下拦截sql，执行特定的某些逻辑。如：分页工具PageHelper、敏感信息加密或多数据库适配等。

• 基本介绍

  在mybatis中也为开发者预留了拦截器接口Interceptor，通过实现自定义拦截器这一功能，可以实现我们自己的插件，允许用户在不改动mybatis的原有逻辑的条件下，实现自己的逻辑扩展。

使用说明

• 拦截接口

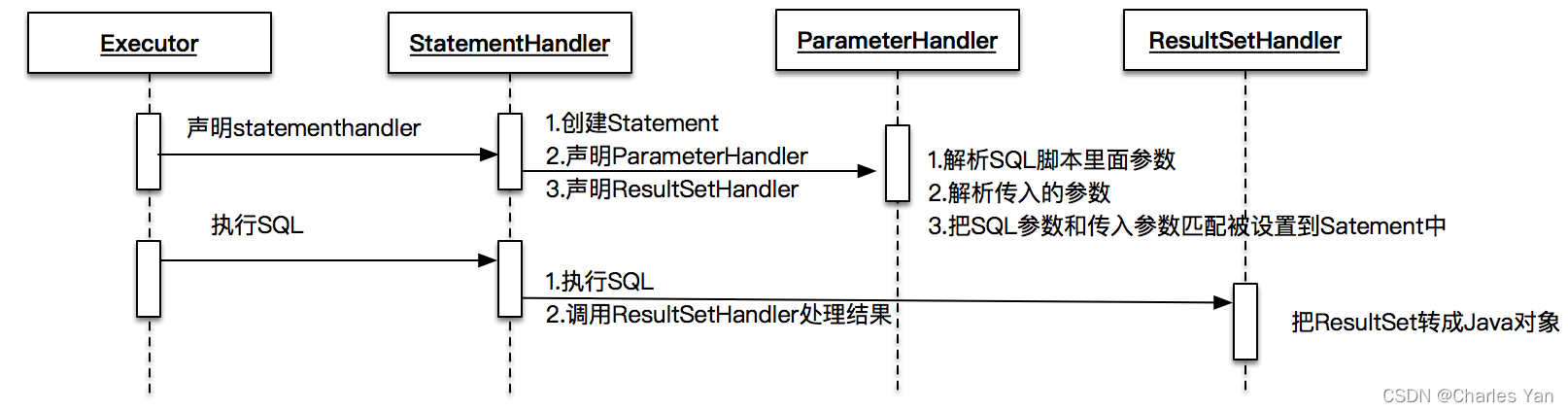

  Executor、StatementHandler、ParameterHandler和ResultSetHandler接口所有方法。ParameterHandler主要解析参数，为Statement设置参数，ResultSetHandler主要是负责把ResultSet转换成Java对象。



• 内容说明

  Interceptor接口、Invocation调用类、@Intercepts和@Signature注解。

Interceptor接口

• 源码分析


      public interface Interceptor {
          // 该方法就是MyBatis在使用前面提到的四个接口中的方法时进行回调的方法。
          Object intercept(Invocation invocation) throws Throwable;

          // 用来为目标对象创建代理对象的方法，通常不需要覆写。
          default Object plugin(Object target) {
              return Plugin.wrap(target, this);
          }

          // 设置一些属性
          default void setProperties(Properties properties) {
          }
      }





Invocation类

• 源码分析


      public class Invocation {

          private final Object target; // 目标对象
          private final Method method; // 执行方法
          private final Object[] args; // 方法参数

          public Invocation(Object target, Method method, Object[] args) {
              this.target = target;
              this.method = method;
              this.args = args;
          }

          public Object getTarget() {
              return target;
          }

          public Method getMethod() {
              return method;
          }

          public Object[] getArgs() {
              return args;
          }

          // 执行目标方法
          public Object proceed() throws InvocationTargetException, IllegalAccessException {
              return method.invoke(target, args);
          }

      }





@Intercepts和@Signature注解

• @Intercepts

  @Intercepts注解只有一个属性，即value，其返回值类型是一个@Signature类型的数组，表示我们可以配置多个@Signature注解。

• @Signature

  @Signature注解其实就是一个方法签名，其共有三个属性，分别为：

  type指接口的class，
  method指接口中的方法名，
  args指的是方法参数类型(该属性返回值是一个数组)。

  举例说明

  比如：我们需要代理Executor的query方法，而查询方法有2个，一个有（CacheKey cacheKey, BoundSql boundSql）参数，另外一个没有，如果我们要代理的是没有这2个参数的方法，那么需要在配置中的args参数里就不写这2个参数

• 源码分析


      public @interface Intercepts {
          /**
          * 方法签名
          */
          Signature[] value();
      }

      public @interface Signature {
          /**
          * 用来指定接口类型
          */
          Class<?> type();

          /**
          * 用来指定方法名
          */
          String method();

          /**
          * 用来指定方法参数
          */
          Class<?>[] args();
      }




代码示例

需求描述

• 敏感信息密文加密

  对于新增和修改，如果有username和phone字段，则需要动态添加字段username_enc和phone_enc为对应字段的密文，并保存到数据库。

实现流程

• 引入依赖


      <?xml version="1.0"?>
      <project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
              xsi:schemaLocation="http://maven.apache.org/POM/4.0.0
          http://maven.apache.org/xsd/maven-4.0.0.xsd">
          <modelVersion>4.0.0</modelVersion>
          <parent>
              <groupId>org.springframework.boot</groupId>
              <artifactId>spring-boot-starter-parent</artifactId>
              <!--<version>2.2.5.RELEASE</version>-->
              <version>1.5.5.RELEASE</version>
              <relativePath/>
          </parent>
          <groupId>com.example</groupId>
          <artifactId>test-shardingsphere</artifactId>
          <version>0.0.1-SNAPSHOT</version>
          <packaging>jar</packaging>
          <description>Demo project for Spring Boot</description>
          <dependencies>
              <!--swagger ui-->
              <dependency>
                  <groupId>io.springfox</groupId>
                  <artifactId>springfox-swagger2</artifactId>
                  <version>2.9.2</version>
              </dependency>
              <dependency>
                  <groupId>io.springfox</groupId>
                  <artifactId>springfox-swagger-ui</artifactId>
                  <version>2.9.2</version>
              </dependency>
              <!--springboot-->
              <dependency>
                  <groupId>org.springframework.boot</groupId>
                  <artifactId>spring-boot-starter-web</artifactId>
              </dependency>
              <dependency>
                  <groupId>org.springframework.boot</groupId>
                  <artifactId>spring-boot-configuration-processor</artifactId>
              </dependency>
              <!--mybatis starter-->
              <dependency>
                  <groupId>org.mybatis.spring.boot</groupId>
                  <artifactId>mybatis-spring-boot-starter</artifactId>
                  <version>1.3.2</version>
              </dependency>
              <dependency>
                  <groupId>mysql</groupId>
                  <artifactId>mysql-connector-java</artifactId>
                  <version>5.1.41</version>
              </dependency>
              <!--lombok-->
              <dependency>
                  <groupId>org.projectlombok</groupId>
                  <artifactId>lombok</artifactId>
                  <version>1.16.10</version>
              </dependency>
              <dependency>
                  <groupId>org.aspectj</groupId>
                  <artifactId>aspectjrt</artifactId>
                  <version>1.8.13</version>
              </dependency>
              <dependency>
                  <groupId>org.springframework.boot</groupId>
                  <artifactId>spring-boot-starter-aop</artifactId>
              </dependency>
              <!--sql解析-->
              <dependency>
                  <groupId>com.github.jsqlparser</groupId>
                  <artifactId>jsqlparser</artifactId>
                  <version>3.1</version>
              </dependency>
          </dependencies>

          <build>
              <plugins>
                  <plugin>
                      <groupId>org.springframework.boot</groupId>
                      <artifactId>spring-boot-maven-plugin</artifactId>
                      <executions>
                          <execution>
                              <goals>
                                  <goal>repackage</goal>
                              </goals>
                          </execution>
                      </executions>
                  </plugin>
                  <plugin>
                      <groupId>org.mybatis.generator</groupId>
                      <artifactId>mybatis-generator-maven-plugin</artifactId>
                      <version>1.3.2</version>
                      <configuration> <!--配置文件的位置-->
                          <configurationFile>src/main/resources/generatorConfig.xml<configurationFile>
                          <verbose>true</verbose>
                          <overwrite>true</overwrite>
                      </configuration>
                      <executions>
                          <execution>
                              <id>Generate MyBatis Artifacts</id>
                              <goals>
                                  <goal>generate</goal>
                              </goals>
                          </execution>
                      </executions>
                      <dependencies>
                          <dependency>
                              <groupId>org.mybatis.generator</groupId>
                              <artifactId>mybatis-generator-core</artifactId>
                              <version>1.3.2</version>
                          </dependency>
                      </dependencies>
                  </plugin>
              </plugins>
          </build>
      </project>






• 自定义拦截器



      /**
      *
      */
      @Intercepts({
              @Signature(type = Executor.class, method = "update", args = { MappedStatement.class, Object.class }),
              @Signature(type = Executor.class, method = "query", args={MappedStatement.class, Object.class, RowBounds.class, ResultHandler.class})
      })
      @Slf4j
      public class MyBatisInterceptor implements Interceptor{

          @Override
          public Object intercept(Invocation invocation) throws Throwable {
              // 拦截sql
              //被代理对象的被代理方法参数，如Executor的update方法，那么args[0]为MappedStatement类型对象，args[1]为类型object对象
              //args[1]具体为什么对象呢：当前执行查询的mapper方法对应的参数及其值
              //如：当前我执行的是UserMapper的findUser(@Param("user")User oneUser)，那么这里的args[1]为一个map，key为user，值为形参oneUser对应的的值
              Object[] args = invocation.getArgs();
              MappedStatement statement = (MappedStatement) args[0];

              Object parameterObject = args[1];
              BoundSql boundSql = statement.getBoundSql(parameterObject);
              String sql = boundSql.getSql();
              if (sql==null||"".equals(sql)) {
                  return invocation.proceed();
              }

              // 重写sql
              resetSql2Invocation(invocation,sql);

              return invocation.proceed();

          }


          private void resetSql2Invocation(Invocation invocation,String sql) throws SQLException {
              final Object[] args = invocation.getArgs();
              MappedStatement statement = (MappedStatement) args[0];
              MapperMethod.ParamMap parameterObject = (MapperMethod.ParamMap)args[1];
              final BoundSql boundSql = statement.getBoundSql(parameterObject);
              List<ParameterMapping> parameterMappings = boundSql.getParameterMappings();
              //根据不同的sql类型重新构建新的sql语句
              String newsql = "";
              MyOperationType myOperationType = null;
              switch (statement.getSqlCommandType()) {
                  case INSERT:
                      myOperationType = new MyInsertOperationType();
                      newsql = myOperationType.handle(statement,parameterMappings, parameterObject, sql);
                      break;
                  case UPDATE:
                      myOperationType = new MyUpdateOperationType();
                      newsql = myOperationType.handle(statement,parameterMappings, parameterObject, sql);
                      break;
                  case DELETE:
                      myOperationType = new MyDeleteOperationType();
                      newsql = myOperationType.handle(statement,parameterMappings, parameterObject, sql);
                      break;
                  case SELECT:
                      myOperationType = new MySelectOperationType();
                      newsql = myOperationType.handle(statement,parameterMappings, parameterObject, sql);
                      break;
                  default:
                      break;
              }

              // 重新new一个查询语句对像
              BoundSql newBoundSql = new BoundSql(statement.getConfiguration(), newsql, parameterMappings,
                      parameterObject);
              // 把新的查询放到statement里
              MappedStatement newStatement = copyFromMappedStatement(statement, new BoundSqlSqlSource(newBoundSql));

              // 重新设置新的参数
              args[0] = newStatement;
              System.out.println("sql语句："+newsql);
          }
          //构造新的statement
          private MappedStatement copyFromMappedStatement(MappedStatement ms, SqlSource newSqlSource) {
              MappedStatement.Builder builder = new MappedStatement.Builder(ms.getConfiguration(), ms.getId(), newSqlSource,
                      ms.getSqlCommandType());
              builder.resource(ms.getResource());
              builder.fetchSize(ms.getFetchSize());
              builder.statementType(ms.getStatementType());
              builder.keyGenerator(ms.getKeyGenerator());
              if (ms.getKeyProperties() != null && ms.getKeyProperties().length != 0) {
                  StringBuilder keyProperties = new StringBuilder();
                  for (String keyProperty : ms.getKeyProperties()) {
                      keyProperties.append(keyProperty).append(",");
                  }
                  keyProperties.delete(keyProperties.length() - 1, keyProperties.length());
                  builder.keyProperty(keyProperties.toString());
              }
              builder.timeout(ms.getTimeout());
              builder.parameterMap(ms.getParameterMap());
              builder.resultMaps(ms.getResultMaps());
              builder.resultSetType(ms.getResultSetType());
              builder.cache(ms.getCache());
              builder.flushCacheRequired(ms.isFlushCacheRequired());
              builder.useCache(ms.isUseCache());

              return builder.build();
          }

          @Override
          public Object plugin(Object target) {
              return Plugin.wrap(target, this);
          }

          @Override
          public void setProperties(Properties properties) {
              // TODO Auto-generated method stub

          }

          class BoundSqlSqlSource implements SqlSource {
              private BoundSql boundSql;

              public BoundSqlSqlSource(BoundSql boundSql) {
                  this.boundSql = boundSql;
              }

              @Override
              public BoundSql getBoundSql(Object parameterObject) {
                  return boundSql;
              }
          }

      }







• MyBatis拦截器配置


      @Configuration
      public class MyBatisConfig {
          @Autowired
          private SqlSessionFactory sqlSessionFactory;

          @PostConstruct
          public void addMySqlInterceptor() {
              MyBatisInterceptor interceptor = new MyBatisInterceptor();
              sqlSessionFactory.getConfiguration().addInterceptor(interceptor);
          }
      }




• jsqlparser重写sql

  MyOperationType接口



      public interface MyOperationType {

          String handle(MappedStatement statement,List<ParameterMapping> parameterMappings, MapperMethod.ParamMap parameterObject, String sql);

          default boolean isNotIn(ParameterMapping parameterMapping,List<ParameterMapping> parameterMappings){
              if(parameterMappings!=null){
                  for(ParameterMapping it:parameterMappings){
                      if(it.getProperty().equals(parameterMapping.getProperty())){
                          return false;
                      }
                  }
              }
              return true;
          }

          default List<String> encList(String tableName,List<Column> columns){
              List<String> result = new ArrayList<>();
              List<String> list = getEncMap().get(tableName);
              if(list!=null&&columns!=null){
                  for(Column col:columns){
                      if(list.contains(col.getColumnName())){
                          result.add(col.getColumnName());
                      }
                  }
              }
              return result;
          }

          default String getColumnValue(MapperMethod.ParamMap parameterObject,List<ParameterMapping> parameterMappings,List<Column> columns,String column){
              if(columns!=null){
                  for(int i=0;i<columns.size();i++){
                      Column col = columns.get(i);
                      if(column.equals(col.getColumnName())){
                          ParameterMapping parameterMapping = parameterMappings.get(i);
                          String property = parameterMapping.getProperty();
                          Object result = parameterObject.get(property);
                          return (String)result;
                      }
                  }
              }
              return null;
          }
          Map<String,List<String>> getEncMap();
      }





  MyDefaultOperationType抽象类


      public abstract class MyDefaultOperationType implements MyOperationType{
          Map<String,List<String>> encMaps = new HashMap<>();

          /**
          * 假设只对t_user表的username和phone2个字段进行加密存储
          */
          public MyDefaultOperationType(){
              encMaps.put("t_user", Arrays.asList("username","phone"));
          }

          @Override
          public Map<String, List<String>> getEncMap() {
              return encMaps;
          }
      }





  MyInsertOperationType新增操作类型子类


      public class MyInsertOperationType extends MyDefaultOperationType{
          @Override
          public String handle(MappedStatement mystatement,List<ParameterMapping> parameterMappings, MapperMethod.ParamMap parameterObject, String sql) {
              try {
                  //解析sql语句
                  Statement statement = CCJSqlParserUtil.parse(sql);
                  //强制转换成insert对象
                  Insert insert = (Insert) statement;
                  //从insert中获取表名
                  Table table = insert.getTable();
                  //从insert中获取字段名
                  List<Column> columns = insert.getColumns();

                  List<String> needEncs = encList(table.getName(), columns);
                  if (!needEncs.isEmpty()) {
                      ExpressionList list = (ExpressionList) insert.getItemsList();

                      for(String col:needEncs) {
                          String newCol = col+"_enc";
                          Column miwen = new Column(newCol);
                          //在insert里添加一个字段
                          columns.add(miwen);
                          //在insert的value里添加一个占位符？
                          list.getExpressions().add(new JdbcParameter());

                          //将新增的字段添加到mybatis框架的字段集合中
                          ParameterMapping parameterMapping = new ParameterMapping.Builder(mystatement.getConfiguration(),newCol,String.class).build();
                          if(isNotIn(parameterMapping,parameterMappings)) {
                              parameterMappings.add(parameterMapping);
                          }
                          //添加参数值
                          parameterObject.put(newCol, getColumnValue(parameterObject,parameterMappings,columns,col)+"123");
                      }

                      insert.setItemsList(list);
                  }
                  return insert.toString();
              }catch (Exception e){
                  throw new RuntimeException("解析sql异常",e);
              }
          }
      }






  MyUpdateOperationType修改操作类型子类


      public class MyUpdateOperationType extends MyDefaultOperationType {
          @Override
          public String handle(MappedStatement mystatement,List<ParameterMapping> parameterMappings, MapperMethod.ParamMap parameterObject, String sql) {
              try {
                  Statement statement = CCJSqlParserUtil.parse(sql);
                  Update update = (Update)statement;
                  Table table = update.getTable();
                  List<Column> columns = update.getColumns();

                  List<String> needEncs = encList(table.getName(), columns);
                  if (!needEncs.isEmpty()) {
                      List<Expression> expressions = update.getExpressions();

                      for(String col:needEncs) {
                          String newCol = col+"_enc";
                          Column miwen = new Column(table,newCol);

                          Expression expression = new JdbcParameter();
                          expressions.add(expression);

                          //添加参数key
                          ParameterMapping parameterMapping = new ParameterMapping.Builder(mystatement.getConfiguration(),newCol,String.class).build();
                          if(isNotIn(parameterMapping,parameterMappings)) {
                              int index = parameterMappings.size()-(parameterMappings.size()- columns.size());
                              parameterMappings.add(index,parameterMapping);
                          }
                          columns.add(miwen);

                          //添加参数值
                          parameterObject.put(newCol, getColumnValue(parameterObject,parameterMappings,columns,col)+"123");
                      }

                      Expression where = update.getWhere();
                      EqualsTo status = new EqualsTo();
                      status.setLeftExpression(new Column(table, "status"));
                      StringValue stringValue = new StringValue("0");
                      status.setRightExpression(stringValue);
                      if(where!=null) {
                          AndExpression lastwhere = new AndExpression(where, status);
                          update.setWhere(lastwhere);
                      }else{
                          update.setWhere(status);
                      }

                      update.setExpressions(expressions);
                  }
                  return update.toString();
              }catch (Exception e){
                  throw new RuntimeException("解析sql异常",e);
              }
          }
      }



  MyDeleteOperationType删除操作类型子类

      public class MyDeleteOperationType extends MyDefaultOperationType {
          @Override
          public String handle(MappedStatement mystatement,List<ParameterMapping> parameterMappings, MapperMethod.ParamMap parameterObject, String sql) {
              try {
                  Statement statement = CCJSqlParserUtil.parse(sql);
                  Delete delete = (Delete) statement;
                  Table table = delete.getTable();

                  Update update = new Update();
                  update.setTable(table);
                  update.setColumns(Arrays.asList(new Column(table,"status")));
                  update.setExpressions(Arrays.asList(new StringValue("1")));
                  update.setWhere(delete.getWhere());

                  return update.toString();
              }catch (Exception e){
                  throw new RuntimeException("解析sql异常",e);
              }
          }
      }



  MySelectOperationType查询操作类型子类


      public class MySelectOperationType extends MyDefaultOperationType {
          @Override
          public String handle(MappedStatement mystatement,List<ParameterMapping> parameterMappings, MapperMethod.ParamMap parameterObject, String sql) {
              try {
                  Statement statement = CCJSqlParserUtil.parse(sql);
                  Select select = (Select) statement;
                  PlainSelect plain = (PlainSelect) select.getSelectBody();

                  FromItem fromItem = plain.getFromItem();
                  String tableName = fromItem.toString();
                  Table table = new Table();
                  table.setAlias(fromItem.getAlias());
                  table.setName(tableName);

                  Expression where = plain.getWhere();
                  EqualsTo status = new EqualsTo();
                  status.setLeftExpression(new Column(table, "status"));
                  StringValue stringValue = new StringValue("0");
                  status.setRightExpression(stringValue);
                  if(where!=null) {
                      AndExpression lastwhere = new AndExpression(where, status);
                      plain.setWhere(lastwhere);
                  }else{
                      plain.setWhere(status);
                  }
                  return select.toString();
              }catch (Exception e){
                  throw new RuntimeException("解析sql异常",e);
              }
          }
      }




总结

• 流程说明

  MyBatis中的拦截器机制其实就是基于JDK的动态代理实现，在创建完目标对象后，循环用户注册的所有拦截器实现，然后对每个拦截器的@Intercepts中@Signature注解中配置的类型来和目标对象所实现的接口进行匹配，如果匹配上了，则说明目标对象是当前拦截器所关注的。

  在代理对象执行的时候，对目标方法进行拦截判断是不是当前拦截器所关注的方法，如果是则执行拦截器的intercept方法，否则直接执行目标方法。

其他

• MappedStatement

  SQL映射语句（Mapper.xml文件每一个方法对应一个MappedStatement对象）

参考链接

• MyBatis中拦截器(Interceptor)实现原理分析

  https://blog.csdn.net/m0_43448868/article/details/112184232

• Mybatis执行SQL的4大基础组件详解

  https://blog.csdn.net/prestigeding/article/details/90578125

• mybatis拦截器，并使用jsqlparser重写sql

  https://blog.csdn.net/zhaocuit/article/details/120913046

• #私藏项目实操分享# Mybatis自定义拦截器与插件开发

  https://blog.51cto.com/u_15363374/4838804
