7-2基于Kmeans和DBSCAN算法的啤酒成分分析实战

beer数据集 聚类分析

import pandas as pd

beer = pd.read_csv('./data/data.txt', sep=' ')
print(beer)

                    name  calories  sodium  alcohol  cost
0              Budweiser       144      15      4.7  0.43
1                Schlitz       151      19      4.9  0.43
2              Lowenbrau       157      15      0.9  0.48
3            Kronenbourg       170       7      5.2  0.73
4               Heineken       152      11      5.0  0.77
5          Old_Milwaukee       145      23      4.6  0.28
6             Augsberger       175      24      5.5  0.40
7   Srohs_Bohemian_Style       149      27      4.7  0.42
8            Miller_Lite        99      10      4.3  0.43
9        Budweiser_Light       113       8      3.7  0.40
10                 Coors       140      18      4.6  0.44
11           Coors_Light       102      15      4.1  0.46
12        Michelob_Light       135      11      4.2  0.50
13                 Becks       150      19      4.7  0.76
14                 Kirin       149       6      5.0  0.79
15     Pabst_Extra_Light        68      15      2.3  0.38
16                 Hamms       139      19      4.4  0.43
17   Heilemans_Old_Style       144      24      4.9  0.43
18   Olympia_Goled_Light        72       6      2.9  0.46
19         Schlitz_Light        97       7      4.2  0.47

X = beer[['calories', 'sodium', 'alcohol', 'cost']]

K-means聚类算法

from sklearn.cluster import KMeans

km = KMeans(n_clusters=3).fit(X)
km2 = KMeans(n_clusters=2).fit(X)

km.labels_

array([0, 0, 0, 0, 0, 0, 0, 0, 2, 2, 0, 2, 0, 0, 0, 1, 0, 0, 1, 2])

beer['cluster'] = km.labels_
beer['cluster2'] = km2.labels_
beer.sort_values('cluster')

	name	calories	sodium	alcohol	cost	cluster	cluster2
0	Budweiser	144	15	4.7	0.43	0	0
1	Schlitz	151	19	4.9	0.43	0	0
2	Lowenbrau	157	15	0.9	0.48	0	0
3	Kronenbourg	170	7	5.2	0.73	0	0
4	Heineken	152	11	5.0	0.77	0	0
5	Old_Milwaukee	145	23	4.6	0.28	0	0
6	Augsberger	175	24	5.5	0.40	0	0
7	Srohs_Bohemian_Style	149	27	4.7	0.42	0	0
17	Heilemans_Old_Style	144	24	4.9	0.43	0	0
10	Coors	140	18	4.6	0.44	0	0
16	Hamms	139	19	4.4	0.43	0	0
12	Michelob_Light	135	11	4.2	0.50	0	0
13	Becks	150	19	4.7	0.76	0	0
14	Kirin	149	6	5.0	0.79	0	0
18	Olympia_Goled_Light	72	6	2.9	0.46	1	1
15	Pabst_Extra_Light	68	15	2.3	0.38	1	1
9	Budweiser_Light	113	8	3.7	0.40	2	1
8	Miller_Lite	99	10	4.3	0.43	2	1
11	Coors_Light	102	15	4.1	0.46	2	1
19	Schlitz_Light	97	7	4.2	0.47	2	1

from pandas.tools.plotting import scatter_matrix
%matplotlib inline

cluster_centers = km.cluster_centers_
cluster2_centers = km2.cluster_centers_

beer.groupby('cluster').mean()

	calories	sodium	alcohol	cost	cluster2
cluster
0	150.00	17.0	4.521429	0.520714	0
1	70.00	10.5	2.600000	0.420000	1
2	102.75	10.0	4.075000	0.440000	1

beer.groupby('cluster2').mean()

	calories	sodium	alcohol	cost	cluster
cluster2
0	150.000000	17.000000	4.521429	0.520714	0.000000
1	91.833333	10.166667	3.583333	0.433333	1.666667

centers = beer.groupby('cluster').mean().reset_index()

import matplotlib.pyplot as plt

plt.rcParams['font.size'] = 14

import numpy as np

colors = np.array(['red', 'green', 'blue', 'yellow'])

plt.scatter(beer['calories'], beer['alcohol'], c = colors[beer['cluster']])
plt.scatter(centers.calories, centers.alcohol, linewidths=3, marker='+', s=300, c='black')

plt.xlabel('calories')
plt.ylabel('alcohol')

Text(0, 0.5, 'alcohol')

scatter_matrix(beer[["calories","sodium","alcohol","cost"]],s=100, alpha=1, c=colors[beer["cluster"]], figsize=(10,10))
plt.suptitle("With 3 centroids initialized")

C:\ProgramData\Anaconda3\lib\site-packages\ipykernel_launcher.py:1: FutureWarning: 'pandas.tools.plotting.scatter_matrix' is deprecated, import 'pandas.plotting.scatter_matrix' instead.
  """Entry point for launching an IPython kernel.





Text(0.5, 0.98, 'With 3 centroids initialized')

scatter_matrix(beer[['calories','sodium','alcohol','cost']],s=100, alpha=1, c=colors[beer['cluster2']], figsize=(10,10))
plt.suptitle('With 2 centroids initialized')

C:\ProgramData\Anaconda3\lib\site-packages\ipykernel_launcher.py:1: FutureWarning: 'pandas.tools.plotting.scatter_matrix' is deprecated, import 'pandas.plotting.scatter_matrix' instead.
  """Entry point for launching an IPython kernel.





Text(0.5, 0.98, 'With 2 centroids initialized')

数据标准化或归一化

from sklearn.preprocessing import StandardScaler

scaler = StandardScaler()
X_scaled = scaler.fit_transform(X)
X_scaled

C:\ProgramData\Anaconda3\lib\site-packages\sklearn\preprocessing\data.py:625: DataConversionWarning: Data with input dtype int64, float64 were all converted to float64 by StandardScaler.
  return self.partial_fit(X, y)
C:\ProgramData\Anaconda3\lib\site-packages\sklearn\base.py:462: DataConversionWarning: Data with input dtype int64, float64 were all converted to float64 by StandardScaler.
  return self.fit(X, **fit_params).transform(X)





array([[ 0.38791334,  0.00779468,  0.43380786, -0.45682969],
       [ 0.6250656 ,  0.63136906,  0.62241997, -0.45682969],
       [ 0.82833896,  0.00779468, -3.14982226, -0.10269815],
       [ 1.26876459, -1.23935408,  0.90533814,  1.66795955],
       [ 0.65894449, -0.6157797 ,  0.71672602,  1.95126478],
       [ 0.42179223,  1.25494344,  0.3395018 , -1.5192243 ],
       [ 1.43815906,  1.41083704,  1.1882563 , -0.66930861],
       [ 0.55730781,  1.87851782,  0.43380786, -0.52765599],
       [-1.1366369 , -0.7716733 ,  0.05658363, -0.45682969],
       [-0.66233238, -1.08346049, -0.5092527 , -0.66930861],
       [ 0.25239776,  0.47547547,  0.3395018 , -0.38600338],
       [-1.03500022,  0.00779468, -0.13202848, -0.24435076],
       [ 0.08300329, -0.6157797 , -0.03772242,  0.03895447],
       [ 0.59118671,  0.63136906,  0.43380786,  1.88043848],
       [ 0.55730781, -1.39524768,  0.71672602,  2.0929174 ],
       [-2.18688263,  0.00779468, -1.82953748, -0.81096123],
       [ 0.21851887,  0.63136906,  0.15088969, -0.45682969],
       [ 0.38791334,  1.41083704,  0.62241997, -0.45682969],
       [-2.05136705, -1.39524768, -1.26370115, -0.24435076],
       [-1.20439469, -1.23935408, -0.03772242, -0.17352445]])

km = KMeans(n_clusters=3).fit(X_scaled)

beer['scaled_cluster'] = km.labels_
beer.sort_values('scaled_cluster')

	name	calories	sodium	alcohol	cost	cluster	cluster2	scaled_cluster
0	Budweiser	144	15	4.7	0.43	0	0	0
1	Schlitz	151	19	4.9	0.43	0	0	0
17	Heilemans_Old_Style	144	24	4.9	0.43	0	0	0
16	Hamms	139	19	4.4	0.43	0	0	0
5	Old_Milwaukee	145	23	4.6	0.28	0	0	0
6	Augsberger	175	24	5.5	0.40	0	0	0
7	Srohs_Bohemian_Style	149	27	4.7	0.42	0	0	0
10	Coors	140	18	4.6	0.44	0	0	0
15	Pabst_Extra_Light	68	15	2.3	0.38	1	1	1
12	Michelob_Light	135	11	4.2	0.50	0	0	1
11	Coors_Light	102	15	4.1	0.46	2	1	1
9	Budweiser_Light	113	8	3.7	0.40	2	1	1
8	Miller_Lite	99	10	4.3	0.43	2	1	1
2	Lowenbrau	157	15	0.9	0.48	0	0	1
18	Olympia_Goled_Light	72	6	2.9	0.46	1	1	1
19	Schlitz_Light	97	7	4.2	0.47	2	1	1
13	Becks	150	19	4.7	0.76	0	0	2
14	Kirin	149	6	5.0	0.79	0	0	2
4	Heineken	152	11	5.0	0.77	0	0	2
3	Kronenbourg	170	7	5.2	0.73	0	0	2

beer.groupby('scaled_cluster').mean()

	calories	sodium	alcohol	cost	cluster	cluster2
scaled_cluster
0	148.375	21.125	4.7875	0.4075	0.00	0.00
1	105.375	10.875	3.3250	0.4475	1.25	0.75
2	155.250	10.750	4.9750	0.7625	0.00	0.00

pd.scatter_matrix(X, c=colors[beer.scaled_cluster], alpha=1, figsize=(10,10), s=100)

C:\ProgramData\Anaconda3\lib\site-packages\ipykernel_launcher.py:1: FutureWarning: pandas.scatter_matrix is deprecated, use pandas.plotting.scatter_matrix instead
  """Entry point for launching an IPython kernel.





array([[<matplotlib.axes._subplots.AxesSubplot object at 0x0000000010717630>,
        <matplotlib.axes._subplots.AxesSubplot object at 0x00000000102F2668>,
        <matplotlib.axes._subplots.AxesSubplot object at 0x000000000FFDE8D0>,
        <matplotlib.axes._subplots.AxesSubplot object at 0x000000000FFCFD68>],
       [<matplotlib.axes._subplots.AxesSubplot object at 0x000000001072F208>,
        <matplotlib.axes._subplots.AxesSubplot object at 0x0000000010729470>,
        <matplotlib.axes._subplots.AxesSubplot object at 0x00000000105FA6D8>,
        <matplotlib.axes._subplots.AxesSubplot object at 0x0000000010690DD8>],
       [<matplotlib.axes._subplots.AxesSubplot object at 0x0000000010690E10>,
        <matplotlib.axes._subplots.AxesSubplot object at 0x00000000106242B0>,
        <matplotlib.axes._subplots.AxesSubplot object at 0x0000000010330518>,
        <matplotlib.axes._subplots.AxesSubplot object at 0x000000001033B780>],
       [<matplotlib.axes._subplots.AxesSubplot object at 0x00000000105A89E8>,
        <matplotlib.axes._subplots.AxesSubplot object at 0x00000000102A0C50>,
        <matplotlib.axes._subplots.AxesSubplot object at 0x00000000102BEEB8>,
        <matplotlib.axes._subplots.AxesSubplot object at 0x0000000010574160>]],
      dtype=object)

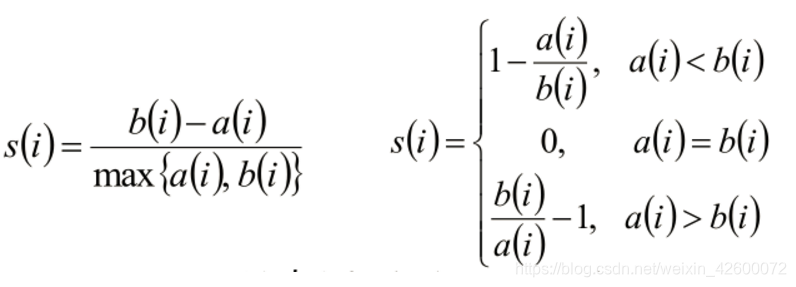

聚类评估：轮廓系数（Silhouette Coefficient ）

 - 计算样本i到同簇其他样本的平均距离ai。ai 越小，说明样本i越应该被聚类到该簇。将ai 称为样本i的簇内不相似度。 - 计算样本i到其他某簇Cj 的所有样本的平均距离bij，称为样本i与簇Cj 的不相似度。定义为样本i的簇间不相似度：bi =min{bi1, bi2, ..., bik}

• si接近1，则说明样本i聚类合理
• si接近-1，则说明样本i更应该分类到另外的簇
• 若si 近似为0，则说明样本i在两个簇的边界上。

from sklearn import metrics

score = metrics.silhouette_score(X,beer.cluster)
score_scaled = metrics.silhouette_score(X, beer.scaled_cluster)
print(score, score_scaled)

0.6731775046455796 0.1797806808940007

scores = []
for k in range(2,20):
    labels = KMeans(n_clusters=k).fit(X).labels_
    score = metrics.silhouette_score(X, labels)
    scores.append(score)

scores

[0.6917656034079486,
 0.6731775046455796,
 0.5857040721127795,
 0.4225487335172022,
 0.4559182167013378,
 0.43776116697963136,
 0.38946337473126,
 0.39746405172426014,
 0.3915697409245163,
 0.3413109618039333,
 0.3459775237127248,
 0.31221439248428434,
 0.30707782144770296,
 0.31834561839139497,
 0.2849514001174898,
 0.23498077333071996,
 0.1588091017496281,
 0.08423051380151177]

plt.plot(list(range(2,20)), scores)
plt.xlabel("Number of Clusters Initialized")
plt.ylabel("Sihouette Score")

Text(0, 0.5, 'Sihouette Score')

DBSCAN聚类

from sklearn.cluster import DBSCAN

db = DBSCAN(eps=10, min_samples=2).fit(X)  #半径为10，密度为2

labels = db.labels_

beer['cluster_db'] = labels
beer.sort_values('cluster_db')

	name	calories	sodium	alcohol	cost	cluster	cluster2	scaled_cluster	cluster_db
9	Budweiser_Light	113	8	3.7	0.40	2	1	1	-1
3	Kronenbourg	170	7	5.2	0.73	0	0	2	-1
6	Augsberger	175	24	5.5	0.40	0	0	0	-1
17	Heilemans_Old_Style	144	24	4.9	0.43	0	0	0	0
16	Hamms	139	19	4.4	0.43	0	0	0	0
14	Kirin	149	6	5.0	0.79	0	0	2	0
13	Becks	150	19	4.7	0.76	0	0	2	0
12	Michelob_Light	135	11	4.2	0.50	0	0	1	0
10	Coors	140	18	4.6	0.44	0	0	0	0
0	Budweiser	144	15	4.7	0.43	0	0	0	0
7	Srohs_Bohemian_Style	149	27	4.7	0.42	0	0	0	0
5	Old_Milwaukee	145	23	4.6	0.28	0	0	0	0
4	Heineken	152	11	5.0	0.77	0	0	2	0
2	Lowenbrau	157	15	0.9	0.48	0	0	1	0
1	Schlitz	151	19	4.9	0.43	0	0	0	0
8	Miller_Lite	99	10	4.3	0.43	2	1	1	1
11	Coors_Light	102	15	4.1	0.46	2	1	1	1
19	Schlitz_Light	97	7	4.2	0.47	2	1	1	1
15	Pabst_Extra_Light	68	15	2.3	0.38	1	1	1	2
18	Olympia_Goled_Light	72	6	2.9	0.46	1	1	1	2

beer.groupby('cluster_db').mean()

	calories	sodium	alcohol	cost	cluster	cluster2	scaled_cluster
cluster_db
-1	152.666667	13.000000	4.800000	0.510000	0.666667	0.333333	1.000000
0	146.250000	17.250000	4.383333	0.513333	0.000000	0.000000	0.666667
1	99.333333	10.666667	4.200000	0.453333	2.000000	1.000000	1.000000
2	70.000000	10.500000	2.600000	0.420000	1.000000	1.000000	1.000000

pd.scatter_matrix(X, c=colors[beer.cluster_db], figsize=(10,10), s=100)

C:\ProgramData\Anaconda3\lib\site-packages\ipykernel_launcher.py:1: FutureWarning: pandas.scatter_matrix is deprecated, use pandas.plotting.scatter_matrix instead
  """Entry point for launching an IPython kernel.





array([[<matplotlib.axes._subplots.AxesSubplot object at 0x00000000107B6F98>,
        <matplotlib.axes._subplots.AxesSubplot object at 0x0000000010542C18>,
        <matplotlib.axes._subplots.AxesSubplot object at 0x000000001042E278>,
        <matplotlib.axes._subplots.AxesSubplot object at 0x00000000107C0208>],
       [<matplotlib.axes._subplots.AxesSubplot object at 0x00000000109376D8>,
        <matplotlib.axes._subplots.AxesSubplot object at 0x0000000010984940>,
        <matplotlib.axes._subplots.AxesSubplot object at 0x0000000012022BA8>,
        <matplotlib.axes._subplots.AxesSubplot object at 0x000000001206C438>],
       [<matplotlib.axes._subplots.AxesSubplot object at 0x000000001206C470>,
        <matplotlib.axes._subplots.AxesSubplot object at 0x0000000011F848D0>,
        <matplotlib.axes._subplots.AxesSubplot object at 0x0000000011F04B38>,
        <matplotlib.axes._subplots.AxesSubplot object at 0x0000000012093DA0>],
       [<matplotlib.axes._subplots.AxesSubplot object at 0x00000000121A6048>,
        <matplotlib.axes._subplots.AxesSubplot object at 0x0000000011F672B0>,
        <matplotlib.axes._subplots.AxesSubplot object at 0x00000000120E5518>,
        <matplotlib.axes._subplots.AxesSubplot object at 0x00000000107AA780>]],
      dtype=object)
