Dev GridControl 表头字体颜色 表头背景颜色 字体颜色 选中行颜色 表体颜色 表格线颜色 选中单元格颜色 空白区域颜色

Dev GridControl 表头字体颜色 表头背景颜色 字体颜色 选中行颜色 表体颜色 表格线颜色 选中单元格颜色 空白区域颜色

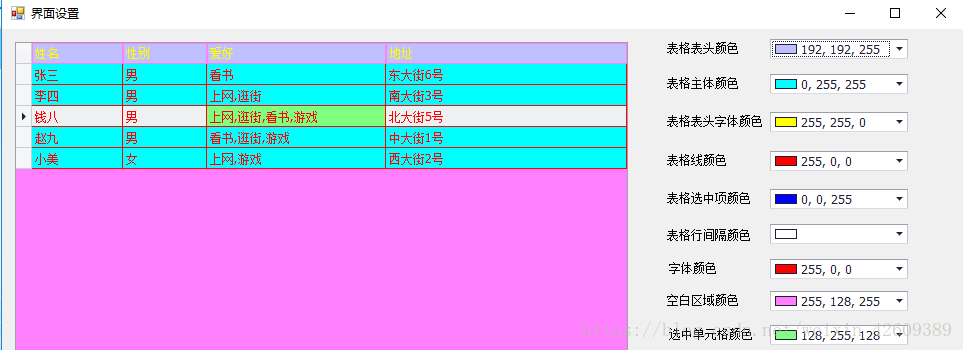

效果图

表头字体颜色

for (int i = 0; i < this.gridView1.Columns.Count; i++)
{
this.gridView1.Columns[i].AppearanceHeader.ForeColor = Color.Red;
}

表头背景颜色

for (int i = 0; i < this.gridView1.Columns.Count; i++)
{
this.gridView1.Columns[i].AppearanceHeader.BackColor = Color.Red;
this.gridView1.Columns[i].AppearanceHeader.BackColor2 = Color.Red;
}
在form1构造方法中加入 gridView1.CustomDrawColumnHeader+= OnCustomDrawColumnHeader; 添加方法代码如下
private void OnCustomDrawColumnHeader(object sender, ColumnHeaderCustomDrawEventArgs e)
{
//背景颜色没有设置且为空，则默认
if (e.Column == null || (e.Column.AppearanceHeader.BackColor == Color.Empty && !e.Column.AppearanceHeader.Options.UseBackColor))
return;
Rectangle rect = e.Bounds;
rect.Inflate(-1, -1);
// 填充表头背景颜色
e.Graphics.FillRectangle(new SolidBrush(e.Column.AppearanceHeader.BackColor), rect);
// 填充表头字体颜色
e.Appearance.DrawString(e.Cache, e.Info.Caption, e.Info.CaptionRect);
e.Handled = true;
}

字体颜色

form1构造函数中加入：this.gridView1.RowCellStyle += new DevExpress.XtraGrid.Views.Grid.RowCellStyleEventHandler(this.gridView1_RowCellStyle); 添加方法代码如下
private void gridView1_RowCellStyle(object sender, DevExpress.XtraGrid.Views.Grid.RowCellStyleEventArgs e)
{
e.Appearance.ForeColor = Color.Red;
}
//获取焦点（只有获取焦点后才会改变颜色）
this.gridControl1.Focus();

选中行颜色

this.gridView1.Appearance.FocusedRow.BackColor = Color.Red;
this.gridView1.Appearance.FocusedRow.BackColor2 = Color.Red;

表体颜色

1、首先开启gridControl 奇偶行外观
this.gridView1.OptionsView.EnableAppearanceEvenRow = true;
this.gridView1.OptionsView.EnableAppearanceOddRow = true;
2、 再改变表体颜色
this.gridView1.Appearance.OddRow.BackColor = Color.Red;
this.gridView1.Appearance.OddRow.BackColor2 = Color.Red;
this.gridView1.Appearance.EvenRow.BackColor = Color.Red;
this.gridView1.Appearance.EvenRow.BackColor2 = Color.Red;

表格线颜色

this.gridView1.Appearance.HorzLine.BackColor= Color.Red;
this.gridView1.Appearance.HorzLine.BackColor2 = Color.Red;
this.gridView1.Appearance.VertLine.BackColor = Color.Red;
this.gridView1.Appearance.VertLine.BackColor2 = Color.Red;

选中单元格颜色

this.gridView1.Appearance.FocusedCell.BackColor = Color.Red;
this.gridView1.Appearance.FocusedCell.BackColor2 = Color.Red;

空白区域颜色

gridView1.Appearance.Empty.BackColor = Color.Red;
