在我们使用G6做知识图谱,topo图时,业务场景一般会涉及到告警的节点要有突出标识,所谓红点,因为G6内置是不自带此功能的(虽然Graphin是可以直接用的,但基于G6的react框架),这样我们可以通过自定义节点来实现

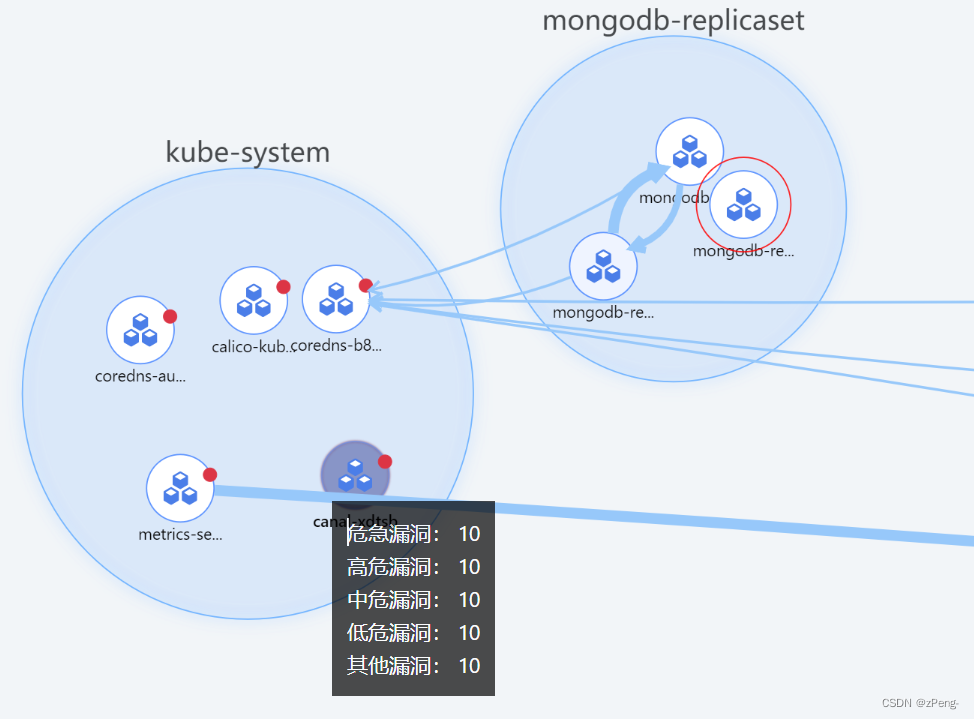

效果图
实现逻辑:
// 自定义节点
G6.registerNode(
'markedNode',
{
afterDraw: (cfg, group) => {
// 根据业务场景具体实现
if (cfg.model.vul_stat.critical_count > 0) {
group.addShape("circle", {
attrs: {
x: 22,
y: -10,
r: 5,
fill: '#DC3545',
lineWidth: 0.5,
cursor: "pointer",
stroke: '#DC3545',
},
name: "tag-circle"
});
}
// 根据业务场景具体实现
if (cfg.model.state == 'quarantined') {
group.addShape('circle', {
attrs: {
x: 0,
y: 0,
r: 35,
fillOpacity: 0.9,
stroke: "red",
strokeOpacity: 0.85,
lineWidth: 1,
label: 2,
},
draggable: true,
name: 'stroke-shape',
visible: false,
});
}
const stroke = group.find((e) => e.get('name') === 'stroke-shape');
stroke && stroke.show();
},
},
'circle',
);
defaultNode: {
type: 'markedNode',
},
自定义就可以多加很多判断,添加很多逻辑~~
