ELB & ASG

Scalability:
- Vertical Scalability: increasing the size of instance, e.g. t2.micro -> t2.large(non-distributes system like database)
- Horizontal Scalability: increasing the number of instance(distributed system like web/modern app)
High Availability: running system in at least 2 data centers(AZs) to survive a data center loss

Load Balance: servers that forward traffic to multiple servers downstream like EC2 instances

spread load across multiple downstream instances
expose a single point of access(DNS) to application
seamlessly handle failures of downstream instances
do regular health checks to instances
provide SSL termination(HTTPS) for your websites
enforce stickiness with cookies
high availability across zones
separate public traffic from private traffic

4 Types of Managed Load Balancers:

Classic Load Balancer(old generation): HTTP, HTTPS, TCP, SSL(secure TCP)
Application Load Balancer: HTTP, HTTPS, WebSocket
Network Load Balancer: TCP, TLS(secure TCP), UDP
Gateway Load Balancer - GWLB: operates at layer 3 (network layer) - IP Protocol

1. ELB (Elastic Load Balancer)

an ELB is a managed load balancer: AWS guarantees it will work, upgrades, maintenance, high availability
ELBs cost less than to set up our own load balancer
ELB is integrated with many AWS offerings / services
health checks enable load balancers to know if instances it forwards to are available to reply request
Only Network Load Balancer provides both static DNS name and static IP. While, Application Load Balancer provides a static DNS name but it does NOT provide a static IP.

2. CLB (Classic Load Balancer)

supports TCP(layer 4), HTTP & HTTPS(layer 7)
health checks are TCP or HTTP based
fix hostname

3. ALB (Application Load Balancer)

layer 7 (HTTP)
load balancing to multiple HTTP applications across machines
load balancing to multiple applications on the same machine
support for HTTP/2 and WebSocket
support Redirect (e.g. from HTTP to HTTPS)
routing tables to different target groups:
- routing based on path in URL (example.com/users & example.com/posts)
- routing based on hostname in URL (one.example.com & other.example.com)
- routing based on query string, headers (example.com/users?id=123&order=false)
ALB is a great fit for micro services & container-based application
has a port mapping feature to redirect to a dynamic port in ECS
in comparison, we’d need multiple Classic Load Balancer per application
Target Groups: ALB can route to multiple Target Groups, and Health Checks are at the Target Group level
- EC2 instance - HTTP
- ECS tasks - HTTP
- lambda functions
- IP address - must be private IPs
fixed hostname
the application servers don’t see the IP of the client directly, check from header:
- true IP -> X-Forwarded-For
- port -> X-Forwarded-Port
- proto -> X-Forwarded-Proto

4. NLB (Network Load Balancer)

layer 4 (TCP & UDP)
handle millions of request per second & less latency
has one static IP per AZ, and supports assigning Elastic IP(helpful for whitelisting specific IP)
used for extreme performance, TCP or UDP traffic
not free
Target Groups:
- EC2 Instances
- IP Addresses - must be private IPs
- ALB

5. GWLB (Gateway Load Balancer)

deploy, scale and manage a fleet of 3rd party network virtual appliances in AWS like firewalls, intrusion detection. etc
layer 3 (Network Layer) - IP Packets
two functions:
- Transparent Network Gateway: single entry/exit for all traffic
- Load Balancer: distributes traffic to your virtual appliances
use the GENEVE protocol on port 6081
Target Groups:
- EC2 Instances
- IP Addresses - must be private IPs

6. Sticky Sessions (Session Affinity)

to implement stickiness so that the same client is always redirected to the same instance behind a load balancer
works for CLB & ALB
“cookie” used for stickiness has expiration date
make sure the user doesn’t lose the session data
may bring imbalance to the load over the backend EC2 instances
Cookie Names:
- Application-based Cookies:
  - Custom Cookie
    - generated by target
    - can include any custom attributes required by the application
    - cookie name must be specified individually for each target group
    - don’t use AWSALB, AWSALBAPP, AWSALBTG(reserved for use by the ELB)
  - Application Cookie:
    - generated by the load balancer
    - cookie name is AWSALBAPP
- Duration-based Cookies:
  - cookie generated by the load balancer
  - cookie name is AWSALB for ALB, AWSELB for CLB

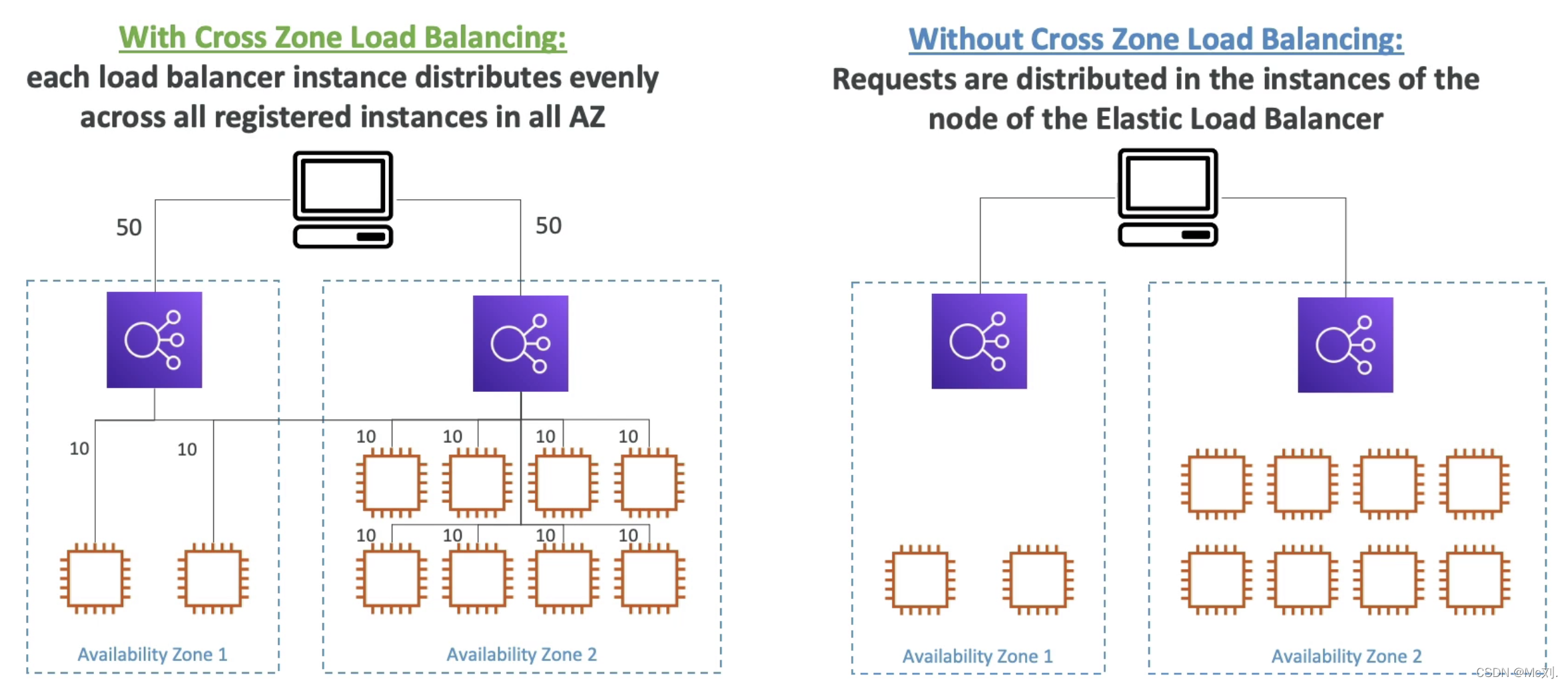

7. Cross-Zone Load Balancing

each load balancer instance distributes evenly across all registered instances in all AZ
3 types:
- Application Load Balancer: always on & no charges for inter AZ data
- Network Load Balancer: disabled by default & need pay for inter AZ data if enabled
- Classic Load Balancer: disabled by default & no charges for inter AZ data if enabled

8. SSL & TLS

an SSL Certificate allows traffic between your clients and your load balancer to be encrypted in transit(in-flight encryption)
SSL (Secure Sockets Layer): used to encrypt connections
TLS (Transport Layer Security): a newer version
public SSL certificates are issued by CA (Certificate Authorities)
SSL certificates have an expiration date(you set) and must be renewed
For Load Balancers:
- CLB: support only one SSL certificate, must use multiple CLB for multiple hostname with multiple SSL certificates
- ALB & NLB: support multiple listeners with multiple SSL certificates, use SNI to make it work

8.1 SNI (Server Name Indication)

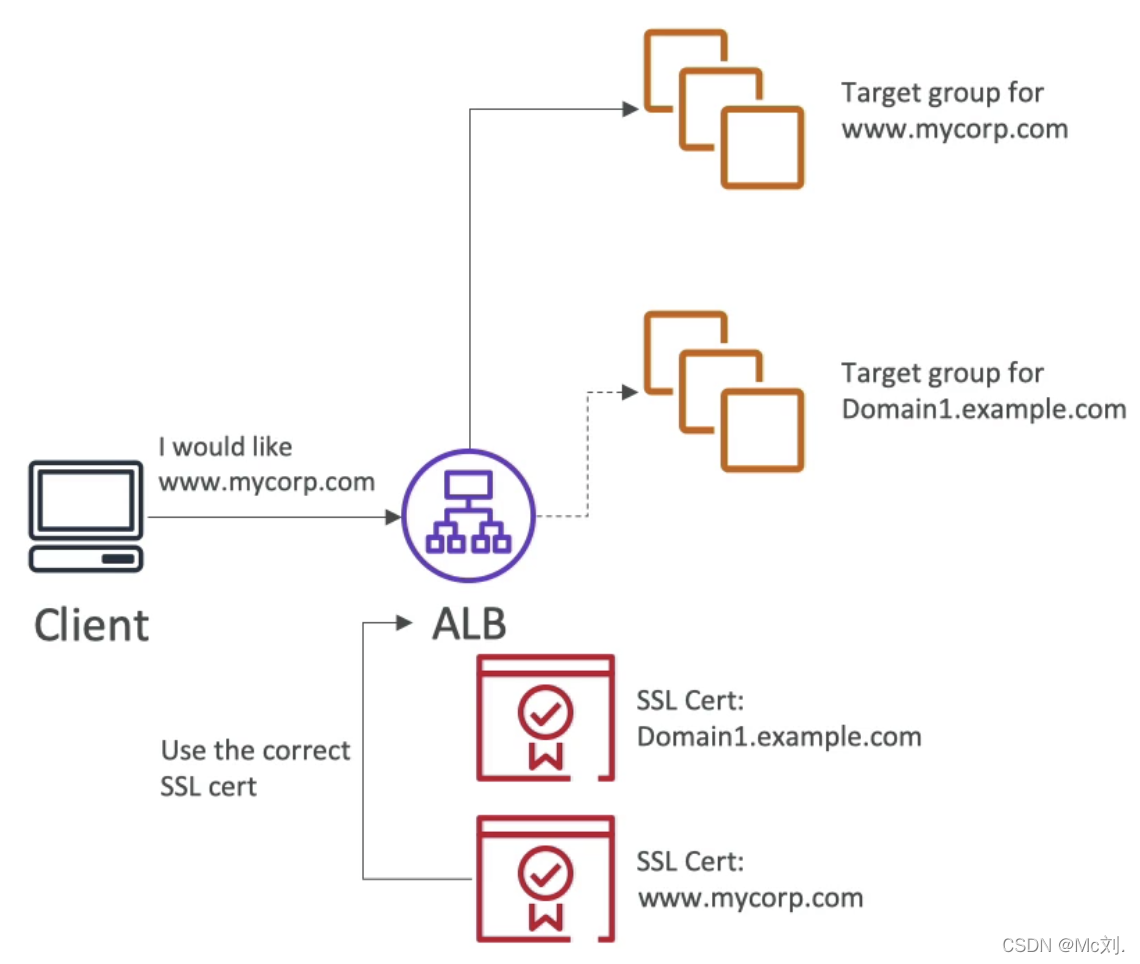

solves the problem of loading multiple SSL certificates onto one web server (to serve multiple websites)
requires the client to indicate the hostname of the target server in the initial SSL handshake
the server will find the correct certificate, or return the default one
only works for ALB & NLB, CloudFront, does not work for CLB

9. Connection Draining

Feature Naming:
- Connection Draining - for CLB
- Deregistration Delay - for ALB & NLB
time to complete “in-flight” request while the instance is de-registering or unhealthy
stops sending new requests to the EC2 instance which is de-registering
set to a low value if you requests are short

10. Auto Scaling Groups

Scale Out -> adding instances
Scale In -> removing instances
attributes:
- a launch configuration:
  - AMI + Instance Type
  - EC2 User Data
  - EBS Volumes
  - Security Groups
  - SSH Key Pair
- Min Size / Max Size / Initial Capacity
- Network + Subnet Information
- Load Balancer Information
- Scaling Policies: defines what will trigger a scale in and a scale out
scaling policies can be on CPU, Network and custom metrics or on a schedule
ASGs use launch configurations or templates, to update an ASG, must provide a new template or configuration
IAM roles attached to an ASG will get assigned to EC2 instances
ASG are free, but the underlying resources being launched need to be paid

10.1 Scaling Policies

Dynamic Policies:
- Target Tracking Scaling: most simple and easy to set-up, like average ASG GPU to stay around 40%
- Simple / Step Scaling: when a CloudWatch alarm is triggered(CPU > 70%), then add 2 units
- Scheduled Actions: scaling based on known usage patterns
- Predictive Scaling: continuously forecast load and schedule scaling ahead
Good Metrics:
- CPUUtilization: average CPU utilization across your instances
- RequestCountPerTarget: to make sure the number of requests per EC2 instances is stable
- Average Network In / Out: if your application is network bound
- Any Custom Metric: that you push using CloudWatch
Scaling Cooldown:
- after a scaling activity happens, you’re in a cooldown period (default 300 seconds)
- during the cooldown period, the ASG will not launch or terminate additional instances to allow for metrics to stabilize

Route 53

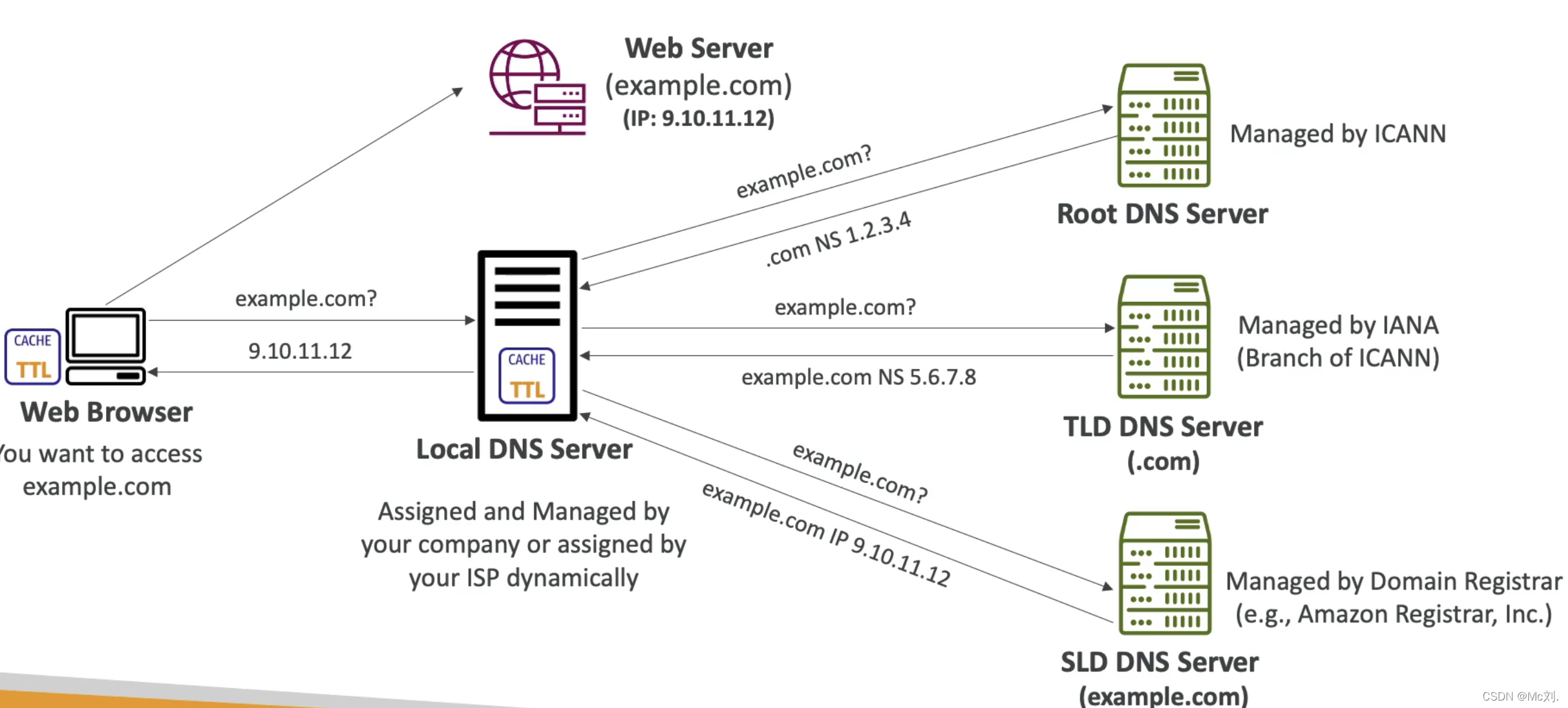

DNS: Domain Name System which translates the human friendly hostnames into the machine IP addresses
- it uses the hierarchical naming structure like .com, example.com, www.example.com
- Terminologies:
  - Domain Registrar(域名注册商): Amazon Route53, GoDaddy…
  - DNS Records: A, AAAA, CNAME, NS…
  - Zone File: contains DNS records
  - Name Server: resolves DNS queries(Authoritative or Non-Authoritative)
  - Root: .
  - Top Level Domain(TLD): .com.
  - Second Level Domain(SLD): .example.com.
  - Sub Domain: .www.example.com.
  - Domain Name: api.www.example.com.
  - Protocol: http
  - Fully Qualified Domain Name(FQDN): http://api.www.example.com.

1. Route 53 Overview

Route 53 is the only AWS service which provides 100% availability SLA
how you want to route traffic for a domain
each record contains:
- Domain/ Subdomain Name: e.g., example.com
- Record Type: e.g., A or AAAA
- Value: e.g., 12.34.56.78
- Routing Policy: how Route53 responds to queries
- TTL: amount of time the record cached at DNS Resolvers
supports the following DNS record types:
- A: maps a hostname to IPv4
- AAAA: maps a hostname to IPv6
- CNAME: maps a hostname to another hostname
  - the target is a domain name which must have an A or AAAA record
  - can’t create a CNAME record for the top node of a DNS namespace like example.com, but can create for www.example.com
- NS: Name Servers for the Hosted Zone, controls how traffic is routed for a domain
Hosted Zone is a container for records that define how to route traffic to a domain and its subdomains
- Public Hosted Zone: contains records that specify how to route traffic on the Internet (public domain names)
- Private Hosted Zone: contains records that specify how to route traffic within one or more VPCs (private domain names)
Records TTL (Time To Live): within the TTL, the client would not query the DNS server again, it is mandatory for each DNS record except for Alias record
CNAME vs Alias
- CNAME:
  - points to a hostname to any other hostname (app.mydomain.com -> blabla.anything.com)
  - only for non root domain like sth.mydomain.com
- Alias:
  - points to a hostname to an AWS Resource (app.mydomain.com -> blabla.amazonaws.com)
  - works for both root domain and non root domain
  - free
  - native health check
  - always of type A/AAAA for AWS resources
  - can’t set the TTL
  - cannot set an Alias record for an EC2 DNS name
Health Check is only for public resources, you can create a CloudWatch Metric and associate a CloudWatch Alarm, then create a Health Check that checks the alarm itself

2. Routing Policy

2.1 Simple

route traffic to a single resource
can specify multiple values in the same record, if multiple values are returned, a random one is chosen by the client
when alias enabled, specify only one AWS resource
can’t be associated with health checks

2.2 Weighted

control the percentage of the requests that go to each specific resource
assign each record to a relative weight:
- traffic = weight for a specific record / sum of all the weights for all records
- weights don’t need to sum up to 100
DNS records must have the same name and type
can be associated with health checks
assign a weight of 0 to a record to stop sending traffic to a resource
if all records have weight of 0, then all records will be returned equally

2.3 Latency-based

redirect to the resource that has the least latency close to us
latency is based on traffic between user and AWS regions
can be associated with health check (has a failover capability)

2.4 Failover

在这里插入图片描述

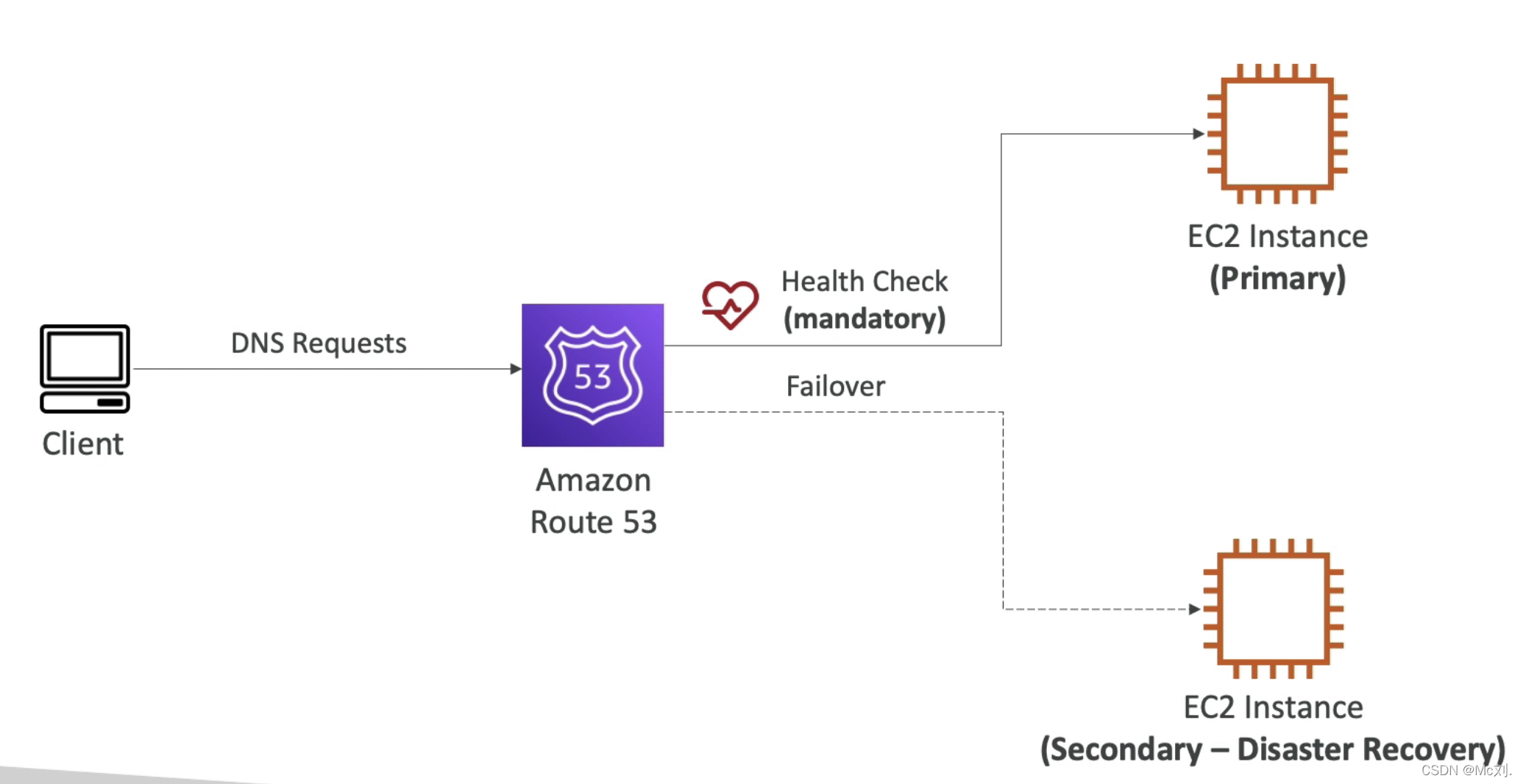

It will direct to the secondary EC2 instance if the primary EC2 instance failed the health check.

2.5 Geolocation

different from latency-based
based on user location
should create a default record in case there’s no match on location
use cases: website localization, restrict content distribution, load balancing…
can be associated with health checks

2.6 Geoproximity

based on both user and resource location
shift more traffic to resources based on the defined bias
to change the size of geographic region, specify bias values:
- to expand(1 to 99) - more traffic to resources
- to shrink(-1 to -99) - less traffic to resources
resources can be:
- AWS resources: specify AWS region
- non-AWS resources: specify latitude and longitude
must use Route53 Traffic Flow(advanced) to use this feature

Traffic Flow

visual editor to manage complex routing decision trees
configurations can be saved as Traffic Flow Policy:
- can be applied to different Route 53 Hosted Zone (different domain names)
- supports versioning

2.7 Multi-Value

use when routing traffic to multiple resources
Route 53 return multiple values / resources
can be associated with health checks (returns only values for healthy resources)
up to 8 healthy records are returned for each Multi-Value query
is not a substitute for ELB
