Consumer消息接收
消费者启动
org.apache.rocketmq.client.consumer.DefaultMQPushConsumer#start
public void start() throws MQClientException {
setConsumerGroup(NamespaceUtil.wrapNamespace(this.getNamespace(), this.consumerGroup));
this.defaultMQPushConsumerImpl.start();
if (null != traceDispatcher) {
try {
traceDispatcher.start(this.getNamesrvAddr(), this.getAccessChannel());
} catch (MQClientException e) {
log.warn("trace dispatcher start failed ", e);
}
}
}org.apache.rocketmq.client.impl.consumer.DefaultMQPushConsumerImpl#start
public synchronized void start() throws MQClientException {
switch (this.serviceState) {
case CREATE_JUST:
log.info("the consumer [{}] start beginning. messageModel={}, isUnitMode={}", this.defaultMQPushConsumer.getConsumerGroup(),
this.defaultMQPushConsumer.getMessageModel(), this.defaultMQPushConsumer.isUnitMode());
this.serviceState = ServiceState.START_FAILED;
//①检查消费者参数
this.checkConfig();
//②拷贝订阅信息 如果是集群消费模式 将会给每个主题都创建一个重试主题 %RETRY% + topic
this.copySubscription();
//③如果是集群消费模式将消费者的实例名转成pid
if (this.defaultMQPushConsumer.getMessageModel() == MessageModel.CLUSTERING) {
//将实例名转成pid
this.defaultMQPushConsumer.changeInstanceNameToPID();
}
//④ 创建或者获取MQClientInstance实例 同一个jvm下的消费者默认公用一个MQClientInstance实例
this.mQClientFactory = MQClientManager.getInstance().getOrCreateMQClientInstance(this.defaultMQPushConsumer, this.rpcHook);
// ⑤ 给rebalanceImpl设置消费组、消费模式、队列分配策略、MQClientInstance实例
this.rebalanceImpl.setConsumerGroup(this.defaultMQPushConsumer.getConsumerGroup());
this.rebalanceImpl.setMessageModel(this.defaultMQPushConsumer.getMessageModel());
this.rebalanceImpl.setAllocateMessageQueueStrategy(this.defaultMQPushConsumer.getAllocateMessageQueueStrategy());
this.rebalanceImpl.setmQClientFactory(this.mQClientFactory);
//⑥ 创建拉取消息api包装类
this.pullAPIWrapper = new PullAPIWrapper(
mQClientFactory,
this.defaultMQPushConsumer.getConsumerGroup(), isUnitMode());
this.pullAPIWrapper.registerFilterMessageHook(filterMessageHookList);
//⑦ 设置offsetStore 用来保存当前消费者的消费进度
if (this.defaultMQPushConsumer.getOffsetStore() != null) {
this.offsetStore = this.defaultMQPushConsumer.getOffsetStore();
} else {
switch (this.defaultMQPushConsumer.getMessageModel()) {
case BROADCASTING:
//广播模式使用本地文件存储消费进度
this.offsetStore = new LocalFileOffsetStore(this.mQClientFactory, this.defaultMQPushConsumer.getConsumerGroup());
break;
case CLUSTERING:
//集群模式使用broker存储消费进度
this.offsetStore = new RemoteBrokerOffsetStore(this.mQClientFactory, this.defaultMQPushConsumer.getConsumerGroup());
break;
default:
break;
}
this.defaultMQPushConsumer.setOffsetStore(this.offsetStore);
}
//⑧ 加载消费进度 广播模式从文件中加载出消费进度、集群模式空实现
this.offsetStore.load();
//⑨ 创建消息消费服务，该服务可以提交消息拉取任务，并根据消息监听器来处理消息
if (this.getMessageListenerInner() instanceof MessageListenerOrderly) {
//顺序消费
this.consumeOrderly = true;
//创建consumeMessageService为并发消费服务
this.consumeMessageService =
new ConsumeMessageOrderlyService(this, (MessageListenerOrderly) this.getMessageListenerInner());
} else if (this.getMessageListenerInner() instanceof MessageListenerConcurrently) {
//并发消费
this.consumeOrderly = false;
//创建consumeMessageService为并发消费服务
this.consumeMessageService =
new ConsumeMessageConcurrentlyService(this, (MessageListenerConcurrently) this.getMessageListenerInner());
}
//⑩ 启动消息消费服务
this.consumeMessageService.start();
//11 注册消费者，groupName需要唯一，如果之前同一个jvm中已经注册了相同的groupName，那么将抛出异常
boolean registerOK = mQClientFactory.registerConsumer(this.defaultMQPushConsumer.getConsumerGroup(), this);
if (!registerOK) {
this.serviceState = ServiceState.CREATE_JUST;
this.consumeMessageService.shutdown(defaultMQPushConsumer.getAwaitTerminationMillisWhenShutdown());
throw new MQClientException("The consumer group[" + this.defaultMQPushConsumer.getConsumerGroup()
+ "] has been created before, specify another name please." + FAQUrl.suggestTodo(FAQUrl.GROUP_NAME_DUPLICATE_URL),
null);
}
//12 启动mQClientFactory
mQClientFactory.start();
log.info("the consumer [{}] start OK.", this.defaultMQPushConsumer.getConsumerGroup());
this.serviceState = ServiceState.RUNNING;
break;
case RUNNING:
case START_FAILED:
case SHUTDOWN_ALREADY:
throw new MQClientException("The PushConsumer service state not OK, maybe started once, "
+ this.serviceState
+ FAQUrl.suggestTodo(FAQUrl.CLIENT_SERVICE_NOT_OK),
null);
default:
break;
}
//13 跟新消费者的主题路由信息 获取该主题在哪些broker上，broker的ip，以及主题有哪些队列
this.updateTopicSubscribeInfoWhenSubscriptionChanged();
this.mQClientFactory.checkClientInBroker();
//14 发送心跳信息 将消费者和生产者元信息都发给broker
this.mQClientFactory.sendHeartbeatToAllBrokerWithLock();
//15 唤醒消费者负载均衡线程 立刻进行一次负载均衡启动消息拉取
this.mQClientFactory.rebalanceImmediately();
}消息拉取
Consumer分为两种，PullConsumer和PushConsumer。
- Push方式里，consumer把轮询过程封装了，并注册MessageListener监听器，取到消息后，唤醒MessageListener的consumeMessage()来消费，对用户而言，感觉消息是被推送过来的。
- Pull方式里，取消息的过程需要用户自己写，首先通过打算消费的Topic拿到MessageQueue的集合，遍历MessageQueue集合，然后针对每个MessageQueue批量取消息，一次取完后，记录该队列下一次要取的开始offset，直到取完了，再换另一个MessageQueue。

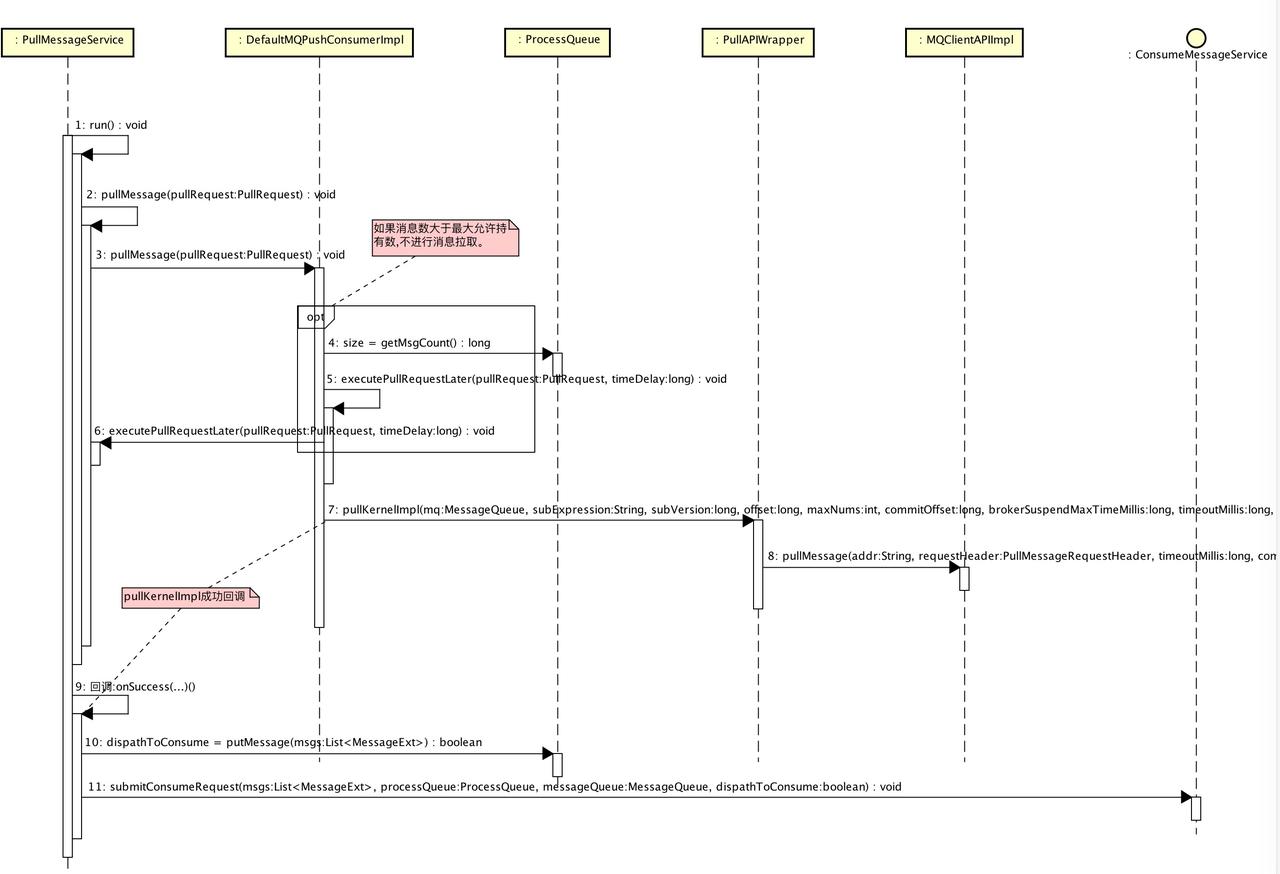

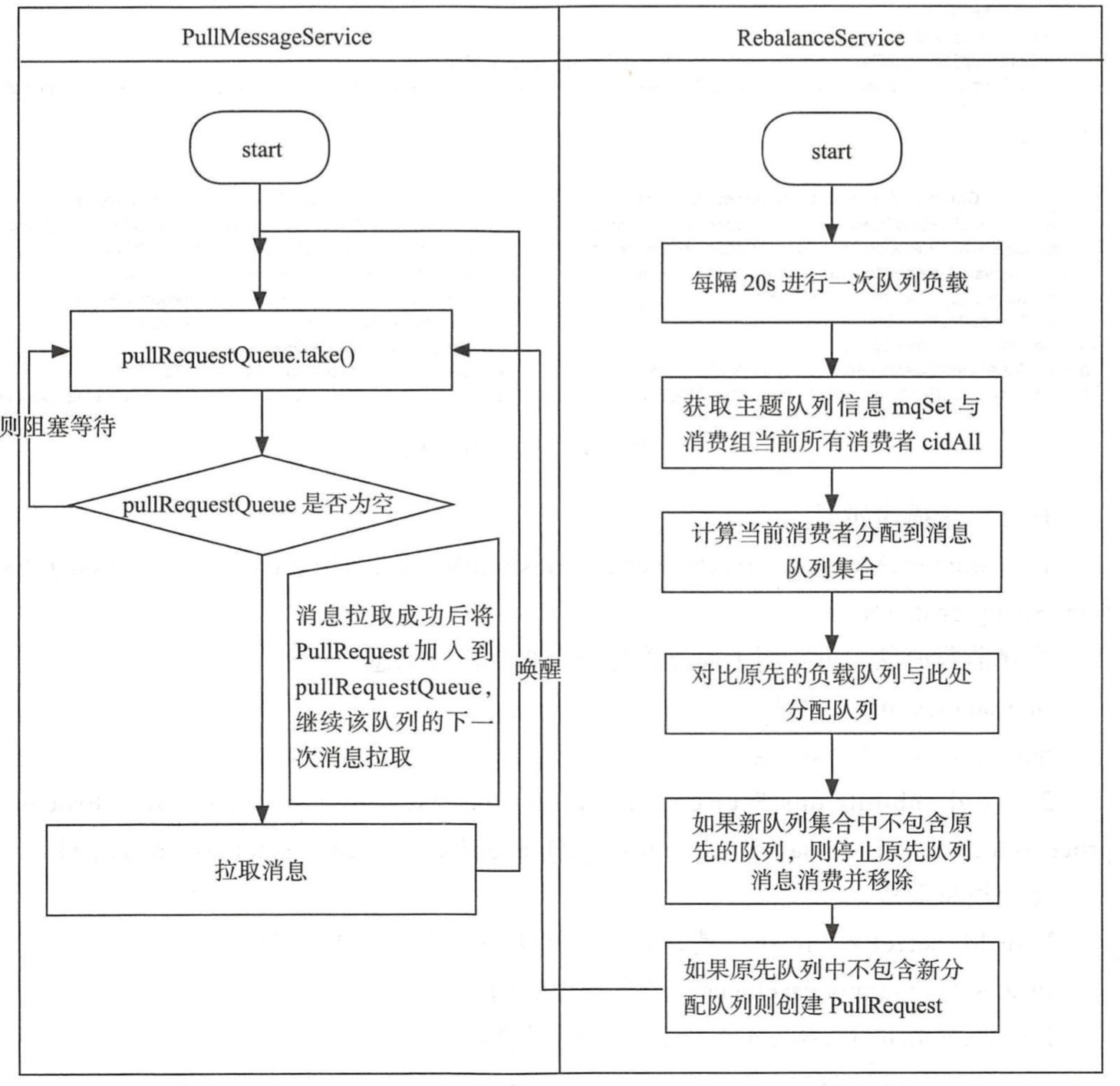

org.apache.rocketmq.client.impl.consumer.PullMessageService#run 消息拉取服务线程
public void run() {
log.info(this.getServiceName() + " service started");
while (!this.isStopped()) {//检测一下其运行状态
try {
//从pullRequestQueue中获取一个PullRequest消息拉取任务，如果pullRequestQueue 为空，则线程将阻塞，直到有拉取任务被放入
PullRequest pullRequest = this.pullRequestQueue.take();
this.pullMessage(pullRequest);
} catch (InterruptedException ignored) {
} catch (Exception e) {
log.error("Pull Message Service Run Method exception", e);
}
}
log.info(this.getServiceName() + " service end");
}org.apache.rocketmq.client.impl.consumer.PullMessageService#pullMessage
private void pullMessage(final PullRequest pullRequest) {
final MQConsumerInner consumer = this.mQClientFactory.selectConsumer(pullRequest.getConsumerGroup());
if (consumer != null) {
DefaultMQPushConsumerImpl impl = (DefaultMQPushConsumerImpl) consumer;
impl.pullMessage(pullRequest);
} else {
log.warn("No matched consumer for the PullRequest {}, drop it", pullRequest);
}
}根据消费组名从MQClientlnstance中获取消费者内部实现类 MQConsumerlnner，令人意外的是这里将consumer强制转换为 DefaultMQPushConsumerlmpl，也就是PullMessageService，该线程只为PUSH模式服务， 那拉模式如何拉取消息呢 ?其实 细想也不难理解，PULL 模式 ，RocketMQ只需要提供拉取消息API 即可， 具体由应用程序显示调用拉取API。
消息拉取分为 3 个主要步骤。
1)消息拉取客户端消息拉取请求封装 。
2)消息服务器查找并返回消息。
3)消息拉取客户端处理返回的消息。
org.apache.rocketmq.client.impl.consumer.DefaultMQPushConsumerImpl#pullMessage
public void pullMessage(final PullRequest pullRequest) {
//1.获取处理队列ProcessQueue
final ProcessQueue processQueue = pullRequest.getProcessQueue();
//2.如果dropped=true，那么return
if (processQueue.isDropped()) {
log.info("the pull request[{}] is dropped.", pullRequest.toString());
return;
}
//3.然后更新该消息队列最后一次拉取的时间
pullRequest.getProcessQueue().setLastPullTimestamp(System.currentTimeMillis());
try {
//4.如果消费者 服务状态不为ServiceState.RUNNING，默认延迟3秒再执行
this.makeSureStateOK();
} catch (MQClientException e) {
log.warn("pullMessage exception, consumer state not ok", e);
//4.1 延迟执行放入pullRequest操作
this.executePullRequestLater(pullRequest, PULL_TIME_DELAY_MILLS_WHEN_EXCEPTION);
return;
}
//5.是否暂停，如果有那么延迟3s执行，目前我没有发现哪里有调用暂停，可能是为以后预留
if (this.isPause()) {
log.warn("consumer was paused, execute pull request later. instanceName={}, group={}", this.defaultMQPushConsumer.getInstanceName(), this.defaultMQPushConsumer.getConsumerGroup());
this.executePullRequestLater(pullRequest, PULL_TIME_DELAY_MILLS_WHEN_SUSPEND);
return;从 PullRequest 中获取 ProcessQueue，如果处理队列当前状态未被丢弃，则更新 ProcessQueue 的 lastPullTimestamp 为 当前时间戳;如果当前消费者被挂起，则将拉取任务延迟 1s 再次放入到 PullMessageService 的拉取任务队列中，结束本次消息拉取 。
//6.消息的拉取会有流量控制，当processQueue没有消费的消息的数量达到（默认1000个）会触发流量控制
long cachedMessageCount = processQueue.getMsgCount().get();
long cachedMessageSizeInMiB = processQueue.getMsgSize().get() / (1024 * 1024);
if (cachedMessageCount > this.defaultMQPushConsumer.getPullThresholdForQueue()) {
//PullRequest延迟50ms后，放入LinkedBlockQueue中，每触发1000次打印一次警告
this.executePullRequestLater(pullRequest, PULL_TIME_DELAY_MILLS_WHEN_FLOW_CONTROL);
if ((queueFlowControlTimes++ % 1000) == 0) {
log.warn(
"the cached message count exceeds the threshold {}, so do flow control, minOffset={}, maxOffset={}, count={}, size={} MiB, pullRequest={}, flowControlTimes={}",
this.defaultMQPushConsumer.getPullThresholdForQueue(), processQueue.getMsgTreeMap().firstKey(), processQueue.getMsgTreeMap().lastKey(), cachedMessageCount, cachedMessageSizeInMiB, pullRequest, queueFlowControlTimes);
}
return;
}
//7.当processQueue中没有消费的消息体总大小 大于(默认100m)时，触发流控，
if (cachedMessageSizeInMiB > this.defaultMQPushConsumer.getPullThresholdSizeForQueue()) {
this.executePullRequestLater(pullRequest, PULL_TIME_DELAY_MILLS_WHEN_FLOW_CONTROL);
if ((queueFlowControlTimes++ % 1000) == 0) {
log.warn(
"the cached message size exceeds the threshold {} MiB, so do flow control, minOffset={}, maxOffset={}, count={}, size={} MiB, pullRequest={}, flowControlTimes={}",
this.defaultMQPushConsumer.getPullThresholdSizeForQueue(), processQueue.getMsgTreeMap().firstKey(), processQueue.getMsgTreeMap().lastKey(), cachedMessageCount, cachedMessageSizeInMiB, pullRequest, queueFlowControlTimes);
}
return;
}
//8.如果不是顺序消息，判断processQueue中消息的最大间距，就是消息的最大位置和最小位置的差值如果大于默认值2000，那么触发流控
if (!this.consumeOrderly) {
if (processQueue.getMaxSpan() > this.defaultMQPushConsumer.getConsumeConcurrentlyMaxSpan()) {
this.executePullRequestLater(pullRequest, PULL_TIME_DELAY_MILLS_WHEN_FLOW_CONTROL);
if ((queueMaxSpanFlowControlTimes++ % 1000) == 0) {
log.warn(
"the queue's messages, span too long, so do flow control, minOffset={}, maxOffset={}, maxSpan={}, pullRequest={}, flowControlTimes={}",
processQueue.getMsgTreeMap().firstKey(), processQueue.getMsgTreeMap().lastKey(), processQueue.getMaxSpan(),
pullRequest, queueMaxSpanFlowControlTimes);
}
return;
}
//9.获取主题订阅信息
final SubscriptionData subscriptionData = this.rebalanceImpl.getSubscriptionInner().get(pullRequest.getMessageQueue().getTopic());
//10.调用pullKernelImpl真正拉取消息
this.pullAPIWrapper.pullKernelImpl(
pullRequest.getMessageQueue(), // 消息消费队列
subExpression,//消息订阅子模式subscribe( topicName, "模式")
subscriptionData.getExpressionType(),
subscriptionData.getSubVersion(),// 版本
pullRequest.getNextOffset(),//拉取位置
this.defaultMQPushConsumer.getPullBatchSize(),//从broker端拉取多少消息
sysFlag,// 系统标记，FLAG_COMMIT_OFFSET FLAG_SUSPEND FLAG_SUBSCRIPTION FLAG_CLASS_FILTER
commitOffsetValue,// 当前消息队列 commitlog日志中当前的最新偏移量（内存中）
BROKER_SUSPEND_MAX_TIME_MILLIS, // 允许的broker 暂停的时间，毫秒为单位，默认为15s
CONSUMER_TIMEOUT_MILLIS_WHEN_SUSPEND, // 超时时间,默认为30s
CommunicationMode.ASYNC, // 超时时间,默认为30s
pullCallback // pull 回调
);org.apache.rocketmq.client.impl.consumer.PullAPIWrapper#pullKernelImpl
public PullResult pullKernelImpl(
final MessageQueue mq,
final String subExpression,
final String expressionType,
final long subVersion,
final long offset,
final int maxNums,
final int sysFlag,
final long commitOffset,
final long brokerSuspendMaxTimeMillis,
final long timeoutMillis,
final CommunicationMode communicationMode,
final PullCallback pullCallback
) throws MQClientException, RemotingException, MQBrokerException, InterruptedException {
//查找broker信息
FindBrokerResult findBrokerResult =
this.mQClientFactory.findBrokerAddressInSubscribe(mq.getBrokerName(),
this.recalculatePullFromWhichNode(mq), false);
//如果没有找到对应的broker，那么重新从nameServer拉取信息
if (null == findBrokerResult) {
this.mQClientFactory.updateTopicRouteInfoFromNameServer(mq.getTopic());
findBrokerResult =
this.mQClientFactory.findBrokerAddressInSubscribe(mq.getBrokerName(),
this.recalculatePullFromWhichNode(mq), false);
}
if (findBrokerResult != null) {
{
// check version
if (!ExpressionType.isTagType(expressionType)
&& findBrokerResult.getBrokerVersion() < MQVersion.Version.V4_1_0_SNAPSHOT.ordinal()) {
throw new MQClientException("The broker[" + mq.getBrokerName() + ", "
+ findBrokerResult.getBrokerVersion() + "] does not upgrade to support for filter message by " + expressionType, null);
}
}
int sysFlagInner = sysFlag;
if (findBrokerResult.isSlave()) {
sysFlagInner = PullSysFlag.clearCommitOffsetFlag(sysFlagInner);
}
PullMessageRequestHeader requestHeader = new PullMessageRequestHeader();
requestHeader.setConsumerGroup(this.consumerGroup);
requestHeader.setTopic(mq.getTopic());
requestHeader.setQueueId(mq.getQueueId());
requestHeader.setQueueOffset(offset);
requestHeader.setMaxMsgNums(maxNums);
requestHeader.setSysFlag(sysFlagInner);
requestHeader.setCommitOffset(commitOffset);
requestHeader.setSuspendTimeoutMillis(brokerSuspendMaxTimeMillis);
requestHeader.setSubscription(subExpression);
requestHeader.setSubVersion(subVersion);
requestHeader.setExpressionType(expressionType);
//如果消息过滤模式为类过滤，则需要根据主题名称、broker地址找到注册在Broker上的FilterServer地址，从FilterServer上拉取消息，否则从Broker上拉取消息
String brokerAddr = findBrokerResult.getBrokerAddr();
if (PullSysFlag.hasClassFilterFlag(sysFlagInner)) {
brokerAddr = computePullFromWhichFilterServer(mq.getTopic(), brokerAddr);
}
PullResult pullResult = this.mQClientFactory.getMQClientAPIImpl().pullMessage(
brokerAddr,
requestHeader,
timeoutMillis,
communicationMode,
pullCallback);
return pullResult;
}
throw new MQClientException("The broker[" + mq.getBrokerName() + "] not exist", null);
}org.apache.rocketmq.client.impl.MQClientAPIImpl#pullMessage
public PullResult pullMessage(
final String addr,
final PullMessageRequestHeader requestHeader,
final long timeoutMillis,
final CommunicationMode communicationMode,
final PullCallback pullCallback
) throws RemotingException, MQBrokerException, InterruptedException {
RemotingCommand request = RemotingCommand.createRequestCommand(RequestCode.PULL_MESSAGE, requestHeader);
switch (communicationMode) {
case ONEWAY:
assert false;
return null;
case ASYNC:
this.pullMessageAsync(addr, request, timeoutMillis, pullCallback);
return null;
case SYNC:
return this.pullMessageSync(addr, request, timeoutMillis);
default:
assert false;
break;
}
return null;
}org.apache.rocketmq.client.impl.MQClientAPIImpl#pullMessageAsync
private void pullMessageAsync(
final String addr,
final RemotingCommand request,
final long timeoutMillis,
final PullCallback pullCallback
) throws RemotingException, InterruptedException {
this.remotingClient.invokeAsync(addr, request, timeoutMillis, new InvokeCallback() {
@Override
public void operationComplete(ResponseFuture responseFuture) {
RemotingCommand response = responseFuture.getResponseCommand();
if (response != null) {
try {
//根据response结果得到PullResult
PullResult pullResult = MQClientAPIImpl.this.processPullResponse(response, addr);
assert pullResult != null;
//调pullCallback回调方法
pullCallback.onSuccess(pullResult);
} catch (Exception e) {
pullCallback.onException(e);
}
} else {
if (!responseFuture.isSendRequestOK()) {
pullCallback.onException(new MQClientException("send request failed to " + addr + ". Request: " + request, responseFuture.getCause()));
} else if (responseFuture.isTimeout()) {
pullCallback.onException(new MQClientException("wait response from " + addr + " timeout :" + responseFuture.getTimeoutMillis() + "ms" + ". Request: " + request,
responseFuture.getCause()));
} else {
pullCallback.onException(new MQClientException("unknown reason. addr: " + addr + ", timeoutMillis: " + timeoutMillis + ". Request: " + request, responseFuture.getCause()));
}
}
}
});
}org.apache.rocketmq.client.impl.MQClientAPIImpl#pullMessageSync
private PullResult pullMessageSync(
final String addr,
final RemotingCommand request,
final long timeoutMillis
) throws RemotingException, InterruptedException, MQBrokerException {
RemotingCommand response = this.remotingClient.invokeSync(addr, request, timeoutMillis);
assert response != null;
return this.processPullResponse(response, addr);
}org.apache.rocketmq.client.impl.MQClientAPIImpl#processPullResponse
private PullResult processPullResponse(
final RemotingCommand response,
final String addr) throws MQBrokerException, RemotingCommandException {
PullStatus pullStatus = PullStatus.NO_NEW_MSG;
switch (response.getCode()) {
case ResponseCode.SUCCESS:
pullStatus = PullStatus.FOUND;
break;
case ResponseCode.PULL_NOT_FOUND:
pullStatus = PullStatus.NO_NEW_MSG;
break;
case ResponseCode.PULL_RETRY_IMMEDIATELY:
pullStatus = PullStatus.NO_MATCHED_MSG;
break;
case ResponseCode.PULL_OFFSET_MOVED:
pullStatus = PullStatus.OFFSET_ILLEGAL;
break;
default:
throw new MQBrokerException(response.getCode(), response.getRemark(), addr);
}
PullMessageResponseHeader responseHeader =
(PullMessageResponseHeader) response.decodeCommandCustomHeader(PullMessageResponseHeader.class);
//根据响应结果解码成 PullResultExt对象
return new PullResultExt(pullStatus, responseHeader.getNextBeginOffset(), responseHeader.getMinOffset(),
responseHeader.getMaxOffset(), null, responseHeader.getSuggestWhichBrokerId(), response.getBody());
}MQCiientAPIImpl#pullMessageAsync, NettyRemotingClient在收到服务端响应结构后会回调PullCallback的onSuccess或 onException, PullCallBack对象在 DefaultMQPushConsumerlmpl#pullMessage中创建
PullCallback pullCallback = new PullCallback() {
@Override
public void onSuccess(PullResult pullResult) {
if (pullResult != null) {
pullResult = DefaultMQPushConsumerImpl.this.pullAPIWrapper.processPullResult(pullRequest.getMessageQueue(), pullResult,
subscriptionData);
switch (pullResult.getPullStatus()) {
case FOUND:
long prevRequestOffset = pullRequest.getNextOffset();
//更新 PullRequest的下一次拉取偏移量
pullRequest.setNextOffset(pullResult.getNextBeginOffset());
long pullRT = System.currentTimeMillis() - beginTimestamp;
DefaultMQPushConsumerImpl.this.getConsumerStatsManager().incPullRT(pullRequest.getConsumerGroup(),
pullRequest.getMessageQueue().getTopic(), pullRT);
long firstMsgOffset = Long.MAX_VALUE;
if (pullResult.getMsgFoundList() == null || pullResult.getMsgFoundList().isEmpty()) {
//立即将PullReqeuest放入到PullMessageService的pullRequestQueue，以便PullMessageSerivce能及时唤醒并再次执行消息拉取。
DefaultMQPushConsumerImpl.this.executePullRequestImmediately(pullRequest);
} else {
firstMsgOffset = pullResult.getMsgFoundList().get(0).getQueueOffset();
DefaultMQPushConsumerImpl.this.getConsumerStatsManager().incPullTPS(pullRequest.getConsumerGroup(),
pullRequest.getMessageQueue().getTopic(), pullResult.getMsgFoundList().size());
boolean dispatchToConsume = processQueue.putMessage(pullResult.getMsgFoundList());
DefaultMQPushConsumerImpl.this.consumeMessageService.submitConsumeRequest(
pullResult.getMsgFoundList(),
processQueue,
pullRequest.getMessageQueue(),
dispatchToConsume);
if (DefaultMQPushConsumerImpl.this.defaultMQPushConsumer.getPullInterval() > 0) {
DefaultMQPushConsumerImpl.this.executePullRequestLater(pullRequest,
DefaultMQPushConsumerImpl.this.defaultMQPushConsumer.getPullInterval());
} else {
DefaultMQPushConsumerImpl.this.executePullRequestImmediately(pullRequest);
}
}
if (pullResult.getNextBeginOffset() < prevRequestOffset
|| firstMsgOffset < prevRequestOffset) {
log.warn(
"[BUG] pull message result maybe data wrong, nextBeginOffset: {} firstMsgOffset: {} prevRequestOffset: {}",
pullResult.getNextBeginOffset(),
firstMsgOffset,
prevRequestOffset);
}
break;
case NO_NEW_MSG:
case NO_MATCHED_MSG:
pullRequest.setNextOffset(pullResult.getNextBeginOffset());
DefaultMQPushConsumerImpl.this.correctTagsOffset(pullRequest);
DefaultMQPushConsumerImpl.this.executePullRequestImmediately(pullRequest);
break;
case OFFSET_ILLEGAL:
log.warn("the pull request offset illegal, {} {}",
pullRequest.toString(), pullResult.toString());
pullRequest.setNextOffset(pullResult.getNextBeginOffset());
pullRequest.getProcessQueue().setDropped(true);
DefaultMQPushConsumerImpl.this.executeTaskLater(new Runnable() {
@Override
public void run() {
try {
DefaultMQPushConsumerImpl.this.offsetStore.updateOffset(pullRequest.getMessageQueue(),
pullRequest.getNextOffset(), false);
DefaultMQPushConsumerImpl.this.offsetStore.persist(pullRequest.getMessageQueue());
DefaultMQPushConsumerImpl.this.rebalanceImpl.removeProcessQueue(pullRequest.getMessageQueue());
log.warn("fix the pull request offset, {}", pullRequest);
} catch (Throwable e) {
log.error("executeTaskLater Exception", e);
}
}
}, 10000);
break;
default:
break;
}
}
}
@Override
public void onException(Throwable e) {
if (!pullRequest.getMessageQueue().getTopic().startsWith(MixAll.RETRY_GROUP_TOPIC_PREFIX)) {
log.warn("execute the pull request exception", e);
}
DefaultMQPushConsumerImpl.this.executePullRequestLater(pullRequest, pullTimeDelayMillsWhenException);
}
};长轮询机制
服务端接收到新消息请求后，如果队列里没有新消息，并不急于返回，通过一个循环不断查看状态，每次waitForRunning一段时间（默认是5秒），然后再Check。Broker默认最长阻塞时间为15秒，默认情况下当Broker一直没有新消息，第三次Check的时候，等待时间超过最长阻塞时间，就返回空结果。在等待的过程中，Broker收到了新的消息后会直接返回请求结果。
“长轮询”的核心是，Broker端hold住客户端过来的请求一小段时间。在这段时间内有新的消息到达，就利用现有的连接立即返回消息给Consumer。
org.apache.rocketmq.broker.processor.PullMessageProcessor#processRequest(io.netty.channel.Channel, org.apache.rocketmq.remoting.protocol.RemotingCommand, boolean)
case ResponseCode.PULL_NOT_FOUND:
if (brokerAllowSuspend && hasSuspendFlag) {
long pollingTimeMills = suspendTimeoutMillisLong;
//不是长轮询拉取消息获取短轮询的超时时间
if (!this.brokerController.getBrokerConfig().isLongPollingEnable()) {
pollingTimeMills = this.brokerController.getBrokerConfig().getShortPollingTimeMills();
}
String topic = requestHeader.getTopic();
long offset = requestHeader.getQueueOffset();
int queueId = requestHeader.getQueueId();
PullRequest pullRequest = new PullRequest(request, channel, pollingTimeMills,
this.brokerController.getMessageStore().now(), offset, subscriptionData, messageFilter);
//暂停消息拉取服务
this.brokerController.getPullRequestHoldService().suspendPullRequest(topic, queueId, pullRequest);
response = null;
break;
}org.apache.rocketmq.broker.longpolling.PullRequestHoldService#suspendPullRequest
public void suspendPullRequest(final String topic, final int queueId, final PullRequest pullRequest) {
//根据 消 息 主题与消息 队 列 构 建 key
String key = this.buildKey(topic, queueId);
ManyPullRequest mpr = this.pullRequestTable.get(key);
if (null == mpr) {
mpr = new ManyPullRequest();
ManyPullRequest prev = this.pullRequestTable.putIfAbsent(key, mpr);
if (prev != null) {
mpr = prev;
}
}
mpr.addPullRequest(pullRequest);
}org.apache.rocketmq.broker.longpolling.PullRequestHoldService#run
public void run() {
log.info("{} service started", this.getServiceName());
while (!this.isStopped()) {
try {
//如果开启长轮询，每 5s 尝试 一 次，判断新消息是否到达
if (this.brokerController.getBrokerConfig().isLongPollingEnable()) {
this.waitForRunning(5 * 1000);
} else {
//没有开启长轮询，默认等待1秒再次尝试
this.waitForRunning(this.brokerController.getBrokerConfig().getShortPollingTimeMills());
}
long beginLockTimestamp = this.systemClock.now();
this.checkHoldRequest();
long costTime = this.systemClock.now() - beginLockTimestamp;
if (costTime > 5 * 1000) {
log.info("[NOTIFYME] check hold request cost {} ms.", costTime);
}
} catch (Throwable e) {
log.warn(this.getServiceName() + " service has exception. ", e);
}
}
log.info("{} service end", this.getServiceName());
}org.apache.rocketmq.broker.longpolling.PullRequestHoldService#checkHoldRequest
private void checkHoldRequest() {
//遍历拉取任务表
for (String key : this.pullRequestTable.keySet()) {
String[] kArray = key.split(TOPIC_QUEUEID_SEPARATOR);
if (2 == kArray.length) {
String topic = kArray[0];
int queueId = Integer.parseInt(kArray[1]);
//通过topic和queueID获取到该消息队列的最大偏移量
final long offset = this.brokerController.getMessageStore().getMaxOffsetInQueue(topic, queueId);
try {
this.notifyMessageArriving(topic, queueId, offset);
} catch (Throwable e) {
log.error("check hold request failed. topic={}, queueId={}", topic, queueId, e);
}
}
}
}org.apache.rocketmq.broker.longpolling.PullRequestHoldService#notifyMessageArriving(java.lang.String, int, long, java.lang.Long, long, byte[], java.util.Map<java.lang.String,java.lang.String>)
public void notifyMessageArriving(final String topic, final int queueId, final long maxOffset, final Long tagsCode,
long msgStoreTime, byte[] filterBitMap, Map<String, String> properties) {
String key = this.buildKey(topic, queueId);
ManyPullRequest mpr = this.pullRequestTable.get(key);
if (mpr != null) {
List<PullRequest> requestList = mpr.cloneListAndClear();
if (requestList != null) {
List<PullRequest> replayList = new ArrayList<PullRequest>();
for (PullRequest request : requestList) {
long newestOffset = maxOffset;
if (newestOffset <= request.getPullFromThisOffset()) {
newestOffset = this.brokerController.getMessageStore().getMaxOffsetInQueue(topic, queueId);
}
//如果队列最大偏移量大于 pullFromThisOffset 说明有新的消息到达，先简单对消息根据 tag,属性进行一次消息过滤，如果 tag,属性为空，则消息过滤器会返回true,然后 executeRequestWhenWakeup进行消息拉取，结束长轮询。
if (newestOffset > request.getPullFromThisOffset()) {
boolean match = request.getMessageFilter().isMatchedByConsumeQueue(tagsCode,
new ConsumeQueueExt.CqExtUnit(tagsCode, msgStoreTime, filterBitMap));
// match by bit map, need eval again when properties is not null.
if (match && properties != null) {
match = request.getMessageFilter().isMatchedByCommitLog(null, properties);
}
if (match) {
try {
this.brokerController.getPullMessageProcessor().executeRequestWhenWakeup(request.getClientChannel(),
request.getRequestCommand());
} catch (Throwable e) {
log.error("execute request when wakeup failed.", e);
}
continue;
}
}
//如果挂起时间超过 suspendTimeoutMillisLong，则超时，结束长轮询，调用executeRequestWhenWakeup 进行消息拉取，并返回结果到客户端。
if (System.currentTimeMillis() >= (request.getSuspendTimestamp() + request.getTimeoutMillis())) {
try {
this.brokerController.getPullMessageProcessor().executeRequestWhenWakeup(request.getClientChannel(),
request.getRequestCommand());
} catch (Throwable e) {
log.error("execute request when wakeup failed.", e);
}
continue;
}
replayList.add(request);
}
// 如果待拉取偏移量大于消息消费队列最大偏移量，并且未超时，调用 mpr.addPullRequest(replayList) 将拉取任务重新放入，待下一次检测。
if (!replayList.isEmpty()) {
mpr.addPullRequest(replayList);
}
}
}
}消息负载均衡
消费者启动过程中会启动RebalanceService
org.apache.rocketmq.client.impl.consumer.RebalanceService#run
public void run() {
log.info(this.getServiceName() + " service started");
while (!this.isStopped()) {
this.waitForRunning(waitInterval);
this.mqClientFactory.doRebalance();
}
log.info(this.getServiceName() + " service end");
}org.apache.rocketmq.client.impl.factory.MQClientInstance#doRebalance
public void doRebalance() {
//循环遍历每个消费组获取 MQConsumeInner 对象（其实就是 DefaultMQPushConsumerImpl 或 DefaultMQPullConsumerImpl 对象），并执行其 doRebalance 方法。
for (Map.Entry<String, MQConsumerInner> entry : this.consumerTable.entrySet()) {
MQConsumerInner impl = entry.getValue();
if (impl != null) {
try {
impl.doRebalance();
} catch (Throwable e) {
log.error("doRebalance exception", e);
}
}
}
}org.apache.rocketmq.client.impl.consumer.RebalanceImpl#doRebalance
public void doRebalance(final boolean isOrder) {
Map<String, SubscriptionData> subTable = this.getSubscriptionInner();
if (subTable != null) {
for (final Map.Entry<String, SubscriptionData> entry : subTable.entrySet()) {
final String topic = entry.getKey();
try {
//按topic负载均衡
this.rebalanceByTopic(topic, isOrder);
} catch (Throwable e) {
if (!topic.startsWith(MixAll.RETRY_GROUP_TOPIC_PREFIX)) {
log.warn("rebalanceByTopic Exception", e);
}
}
}
}
//负载均衡后，移除当前topic不再需要消费的MessageQueue信息
this.truncateMessageQueueNotMyTopic();
}org.apache.rocketmq.client.impl.consumer.RebalanceImpl#rebalanceByTopic
private void rebalanceByTopic(final String topic, final boolean isOrder) {
switch (messageModel) {
case BROADCASTING: {
Set<MessageQueue> mqSet = this.topicSubscribeInfoTable.get(topic);
if (mqSet != null) {
boolean changed = this.updateProcessQueueTableInRebalance(topic, mqSet, isOrder);
if (changed) {
this.messageQueueChanged(topic, mqSet, mqSet);
log.info("messageQueueChanged {} {} {} {}",
consumerGroup,
topic,
mqSet,
mqSet);
}
} else {
log.warn("doRebalance, {}, but the topic[{}] not exist.", consumerGroup, topic);
}
break;
}
case CLUSTERING: {
// 获取topic下的所有queue元数据信息
Set<MessageQueue> mqSet = this.topicSubscribeInfoTable.get(topic);
// 获取topic下的所有consumer
List<String> cidAll = this.mQClientFactory.findConsumerIdList(topic, consumerGroup);
if (null == mqSet) {
if (!topic.startsWith(MixAll.RETRY_GROUP_TOPIC_PREFIX)) {
log.warn("doRebalance, {}, but the topic[{}] not exist.", consumerGroup, topic);
}
}
if (null == cidAll) {
log.warn("doRebalance, {} {}, get consumer id list failed", consumerGroup, topic);
}
if (mqSet != null && cidAll != null) {
List<MessageQueue> mqAll = new ArrayList<MessageQueue>();
mqAll.addAll(mqSet);
Collections.sort(mqAll);
Collections.sort(cidAll);
AllocateMessageQueueStrategy strategy = this.allocateMessageQueueStrategy;
List<MessageQueue> allocateResult = null;
try {
allocateResult = strategy.allocate(
this.consumerGroup,
this.mQClientFactory.getClientId(),
mqAll,
cidAll);
} catch (Throwable e) {
log.error("AllocateMessageQueueStrategy.allocate Exception. allocateMessageQueueStrategyName={}", strategy.getName(),
e);
return;
}
Set<MessageQueue> allocateResultSet = new HashSet<MessageQueue>();
if (allocateResult != null) {
allocateResultSet.addAll(allocateResult);
}
boolean changed = this.updateProcessQueueTableInRebalance(topic, allocateResultSet, isOrder);
if (changed) {
log.info(
"rebalanced result changed. allocateMessageQueueStrategyName={}, group={}, topic={}, clientId={}, mqAllSize={}, cidAllSize={}, rebalanceResultSize={}, rebalanceResultSet={}",
strategy.getName(), consumerGroup, topic, this.mQClientFactory.getClientId(), mqSet.size(), cidAll.size(),
allocateResultSet.size(), allocateResultSet);
this.messageQueueChanged(topic, mqSet, allocateResultSet);
}
}
break;
}
default:
break;
}
}负载均衡算法

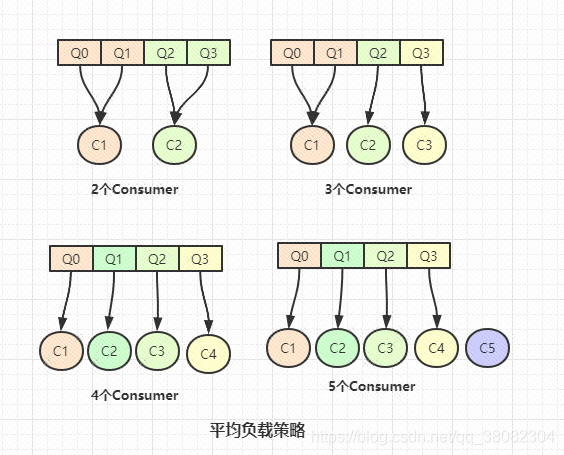

- AllocateMessageQueueAveragely
平均负载策略，RocketMQ默认使用的就是这种方式，如果某个Consumer集群，订阅了某个Topic，Topic下面的这些MessageQueue会被平均分配给集群中的Consumer

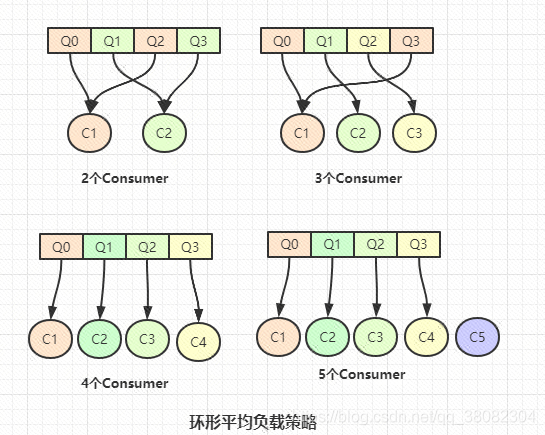

- AllocateMessageQueueAveragelyByCircle
环形平均分配，这个和平均分配唯一的区别就是，再分队列的时候，平均队列是将属于自己的MessageQueue全部拿走，而环形平均则是，一人拿一个，拿到的Queue不是连续的。
- AllocateMessageQueueByConfig
手动配置策略，用户自定义配置，用户在创建Consumer的时候，可以设置要使用的负载策略，如果我们设置为AllocateMessageQueueByConfig方式时，我们可以自己指定需要监听的MessageQueues，它维护了一个List messageQueueList，我们可以往这里面塞目标的MessageQueues，策略了解一下就行，具体设置代码如下
DefaultMQPushConsumer consumer = new DefaultMQPushConsumer("testGroup");
consumer.setNamesrvAddr("127.0.0.1:9876");
//订阅topic
consumer.subscribe("testMsg","*");
//注册消息监听
consumer.registerMessageListener(new MessageListenerConcurrently() {
@Override
public ConsumeConcurrentlyStatus consumeMessage(List<MessageExt> msgs, ConsumeConcurrentlyContext context) {
// do job
return ConsumeConcurrentlyStatus.CONSUME_SUCCESS;
}
});
//用户自定义queue策略
AllocateMessageQueueByConfig allocateMessageQueueByConfig = new AllocateMessageQueueByConfig();
//指定MessageQueue
allocateMessageQueueByConfig.setMessageQueueList(Arrays.asList(new MessageQueue("testMsg","broker-a",0)));
//设置consumer的负载策略
consumer.setAllocateMessageQueueStrategy(allocateMessageQueueByConfig);
//启动consumer

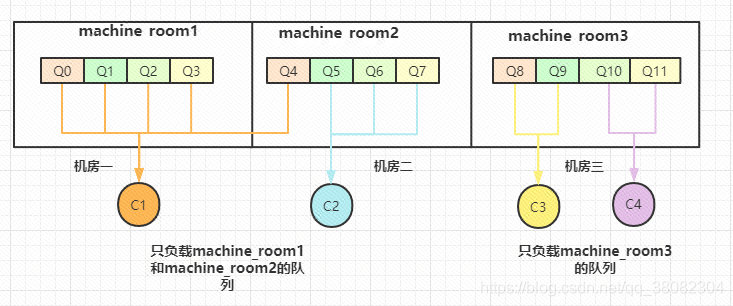

consumer.start();- AllocateMessageQueueByMachineRoom
机房负载策略，其实这个策略就是当前Consumer只负载处在指定的机房内的MessageQueue，还有brokerName的命名必须要按要求的格式来设置： 机房名@brokerName
DefaultMQPushConsumer consumer = new DefaultMQPushConsumer("testGroup");
consumer.setNamesrvAddr("127.0.0.1:9876");
//订阅topic
consumer.subscribe("testMsg","*");
//注册消息监听
consumer.registerMessageListener(new MessageListenerConcurrently() {
@Override
public ConsumeConcurrentlyStatus consumeMessage(List<MessageExt> msgs, ConsumeConcurrentlyContext context) {
// do job
return ConsumeConcurrentlyStatus.CONSUME_SUCCESS;
}
});
AllocateMessageQueueByMachineRoom allocateMachineRoom = new AllocateMessageQueueByMachineRoom();
//指定机房名称 machine_room1、machine_room2
allocateMachineRoom.setConsumeridcs(new HashSet<>(Arrays.asList("machine_room1","machine_room2")));
//设置consumer的负载策略
consumer.setAllocateMessageQueueStrategy(allocateMachineRoom);
//启动consumer
consumer.start();源码
public List<MessageQueue> allocate(String consumerGroup, String currentCID, List<MessageQueue> mqAll,
List<String> cidAll) {
List<MessageQueue> result = new ArrayList<MessageQueue>();
//当前consumer的下标
int currentIndex = cidAll.indexOf(currentCID);
if (currentIndex < 0) {
return result;
}
//符合机房条件的队列
List<MessageQueue> premqAll = new ArrayList<MessageQueue>();
for (MessageQueue mq : mqAll) {
//brokerName命名规则 machine_room1@broker-a
String[] temp = mq.getBrokerName().split("@");
//判断是否符合指定的机房条件
if (temp.length == 2 && consumeridcs.contains(temp[0])) {
premqAll.add(mq);
}
}
//分配到的队列数
int mod = premqAll.size() / cidAll.size();
//取模
int rem = premqAll.size() % cidAll.size();
//当前分配到的第一个队列索引
int startIndex = mod * currentIndex;
//分配到的最后一个队列索引
int endIndex = startIndex + mod;
//取startIndex到endIndex的队列
for (int i = startIndex; i < endIndex; i++) {
result.add(premqAll.get(i));
}
//MessageQueue数量和Consumer不是整数倍时 有点像平均分配因为队列下标取到的也是连续的
if (rem > currentIndex) {
result.add(premqAll.get(currentIndex + mod * cidAll.size()));
}
return result;
}总结一下源码的意思：
1. 首先筛选出当前Topic处在指定机房的队列
2. 筛选出队列后，按照平均负载策略进行具体的分配（算法极其相似）

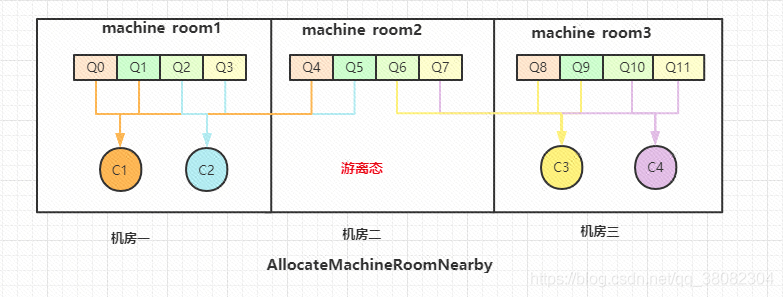

- AllocateMachineRoomNearby
就近机房分配策略，这个策略我个人感觉是AllocateMessageQueueByMachineRoom的改进版本，因为这个策略的处理方式要比AllocateMessageQueueByMachineRoom更加灵活，还考虑到了那些同机房只有MessageQueue却没有Consumer的情况，下面我们来具体讲这个策略。使用该策略需要自己定义一个类，来区分每个broker处于哪个机房，该策略RocketMQ有个测试单元，我稍微改造了一下，就是把这个类提出来了。
public class MyMachineResolver implements AllocateMachineRoomNearby.MachineRoomResolver {
/**
* 判断当前broker处于哪个机房
* @param messageQueue
* @return
*/
@Override
public String brokerDeployIn(MessageQueue messageQueue) {
return messageQueue.getBrokerName().split("-")[0];
}
/**
* 判断consumer处于哪个机房
* @param clientID
* @return
*/
@Override
public String consumerDeployIn(String clientID) {
return clientID.split("-")[0];
}
}我们从代码中，可以看出来需要在设置brokerName和Consumer的Id的时候需要加上机房名称，eg：hz_aliyun_room1-broker-a、hz_aliyun_root1-Client1。我们先看一下在代码里面怎么使用这个同机房分配策略
DefaultMQPushConsumer consumer = new DefaultMQPushConsumer("testGroup");
consumer.setNamesrvAddr("127.0.0.1:9876");
//订阅topic
consumer.subscribe("testMsg","*");
//注册消息监听
consumer.registerMessageListener(new MessageListenerConcurrently() {
@Override
public ConsumeConcurrentlyStatus consumeMessage(List<MessageExt> msgs, ConsumeConcurrentlyContext context) {
// do job
return ConsumeConcurrentlyStatus.CONSUME_SUCCESS;
}
});
//用户同机房分配策略
consumer.setAllocateMessageQueueStrategy(new AllocateMachineRoomNearby(new AllocateMessageQueueAveragely()
,new MyMachineResolver()));
//启动consumer
consumer.start();我们可以看到，我们创建这个同机房分配策略的时候，还加了一个平均分配的策略进去，它本身就是一个策略，为啥还要传另一个策略。（该策略只会讲MessageQueue和Consumer按机房进行分组，分组以后具体的负载，就是通过我们传的另外一个负载策略来分配的）我们到源码里面去看，后面会解释到
//消息队列按机房分组
Map<String/*machine room */, List<MessageQueue>> mr2Mq = new TreeMap<String, List<MessageQueue>>();
for (MessageQueue mq : mqAll) {
//这里调用我们自己定义的类方法，得到broker的机房的名称
String brokerMachineRoom = machineRoomResolver.brokerDeployIn(mq);
//机房不为空，将broker放到分组中
if (StringUtils.isNoneEmpty(brokerMachineRoom)) {
if (mr2Mq.get(brokerMachineRoom) == null) {
mr2Mq.put(brokerMachineRoom, new ArrayList<MessageQueue>());
}
mr2Mq.get(brokerMachineRoom).add(mq);
} else {
throw new IllegalArgumentException("Machine room is null for mq " + mq);
}
}//consumer按机房分组
Map<String/*machine room */, List<String/*clientId*/>> mr2c = new TreeMap<String, List<String>>();
for (String cid : cidAll) {
//这里调用我们自己定义的类方法，得到broker的机房的名称
String consumerMachineRoom = machineRoomResolver.consumerDeployIn(cid);
if (StringUtils.isNoneEmpty(consumerMachineRoom)) {
if (mr2c.get(consumerMachineRoom) == null) {
mr2c.put(consumerMachineRoom, new ArrayList<String>());
}
mr2c.get(consumerMachineRoom).add(cid);
} else {
throw new IllegalArgumentException("Machine room is null for consumer id " + cid);
}
}
//当前consumer分到的所有MessageQueue
List<MessageQueue> allocateResults = new ArrayList<MessageQueue>();
//1.给当前consumer分当前机房的那些MessageQeueue
String currentMachineRoom = machineRoomResolver.consumerDeployIn(currentCID);
//得到当前机房的MessageQueue
List<MessageQueue> mqInThisMachineRoom = mr2Mq.remove(currentMachineRoom);
//得到当前机房的Consumer
List<String> consumerInThisMachineRoom = mr2c.get(currentMachineRoom);
if (mqInThisMachineRoom != null && !mqInThisMachineRoom.isEmpty()) {
//得到当前机房所有MessageQueue和Consumers后根据指定的策略再负载
allocateResults.addAll(allocateMessageQueueStrategy.allocate(consumerGroup, currentCID, mqInThisMachineRoom, consumerInThisMachineRoom));
}
//2.如果该MessageQueue的机房 没有同机房的consumer,将这些MessageQueue按配置好的备用策略分配给所有的consumer
for (String machineRoom : mr2Mq.keySet()) {
if (!mr2c.containsKey(machineRoom)) {
//添加分配到的游离态MessageQueue
allocateResults.addAll(allocateMessageQueueStrategy.allocate(consumerGroup, currentCID, mr2Mq.get(machineRoom), cidAll));
}
}总结一下源码的意思
- 分别给MessageQueue和Consumer按机房分组
- 得到当前Consumer所在机房的所有Consumer和MessageQueue
- 通过设置的负载策略，再进行具体的负载，得到当前Consumer分到的MessageQueue
- 如果存在MessageQueue的某个机房中，没有和MessageQueue同机房的Consumer，将这些MessageQueue按配置的负载策略分配给集群中所有的Consumer去负载
- 最终该Consumer分到的MessageQueue会包含同机房分配到的和部分游离态分配的
先同机房的Consumer和MessageQueue进行负载，这里按照平均负载来分（我们创建机房就近策略使用的是平均负载），然后将游离态的通过设置的负载策略来分。
- AllocateMessageQueueConsistentHash

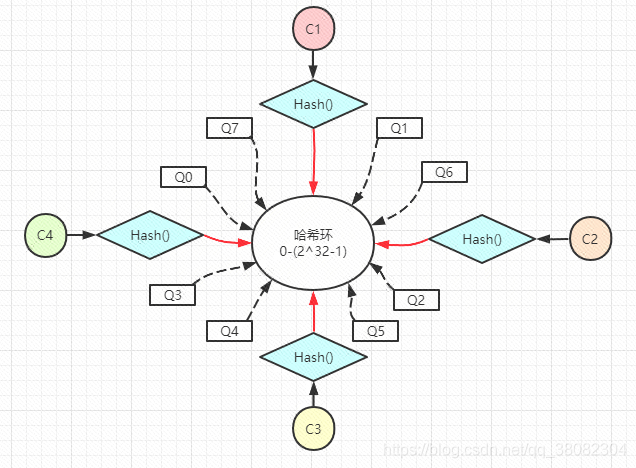

一致性哈希分配策略
一致性哈希有一个哈希环的概念，哈希环由数值 0到2^32-1 组成，不管内容多长的字符，经过哈希计算都能得到一个等长的数字，最后都会落在哈希环上的某个点，哈希环上的点都是虚拟的，比如我们这里使用Consumer的Id来进行哈希计算，得到的这几个是物理的点，然后把得到的点存到TreeMap里面，然后将所有的MessageQueue依次进行同样的哈希计算，得到距离MessageQueue顺时针方向最近的那个Consumer点，这个就是MessageQeueu最终归属的那个Consumer。
//将所有consumer变成节点 到时候经过hash计算 分布在hash环上
Collection<ClientNode> cidNodes = new ArrayList<ClientNode>();
for (String cid : cidAll) {
cidNodes.add(new ClientNode(cid));
}
final ConsistentHashRouter<ClientNode> router;
//构建哈希环
if (customHashFunction != null) {
router = new ConsistentHashRouter<ClientNode>(cidNodes, virtualNodeCnt, customHashFunction);
} else {
//默认使用MD5进行Hash计算
router = new ConsistentHashRouter<ClientNode>(cidNodes, virtualNodeCnt);
}
List<MessageQueue> results = new ArrayList<MessageQueue>();
for (MessageQueue mq : mqAll) {
//对messageQueue进行hash计算，找到顺时针最近的consumer节点
ClientNode clientNode = router.routeNode(mq.toString());
//判断是否是当前consumer
if (clientNode != null && currentCID.equals(clientNode.getKey())) {
results.add(mq);
}
}问题 1: PullRequest对象在什么时候创建并加入到 pullRequestQueue 中以便唤醒PullMessageService 线程 ？
A1：Rebalanceservice线程每隔 20s对消费者订阅的主题进行一次队列重新分配，每一次分配都会获取主题的所有队列、从 Broker服务器实时查询当前该主题该消费组内消费者列 表， 对新分配的消息队列会创建对应的 PullRequest对象。 在一个 JVM进程中，同一个消 费组同一个队列只会存在一个 PullRequest对象。
问题 2: 集群内多个消费者是如何负载主题下的多个消费队列 ，并且如果有新的消费者加入时，消息队列又会如何重新分布。
A2：由于每次进行队列重新负载时会从 Broker实时查询出当前消费组内所有消费者，并且对消息队列、消费者列表进行排序，这样新加入的消费者就会在队列重新分布时分配到消费队列从而消费消息。
RocketMQ消息拉取由PullMessageService与RebalanceService共同协作完成
消息消费过程
PullMessageService负责对消息队列进行消息拉取，从远端服务器拉取消息后将消息存入ProcessQueue消息队列处理队列中，然后调用ConsumeMessageService#submitConsumeRequest方法进行消息消费，使用线程池来消费消息，确保了消息拉取与消息消费的解耦。
消息消费分为并发消费、顺序消费

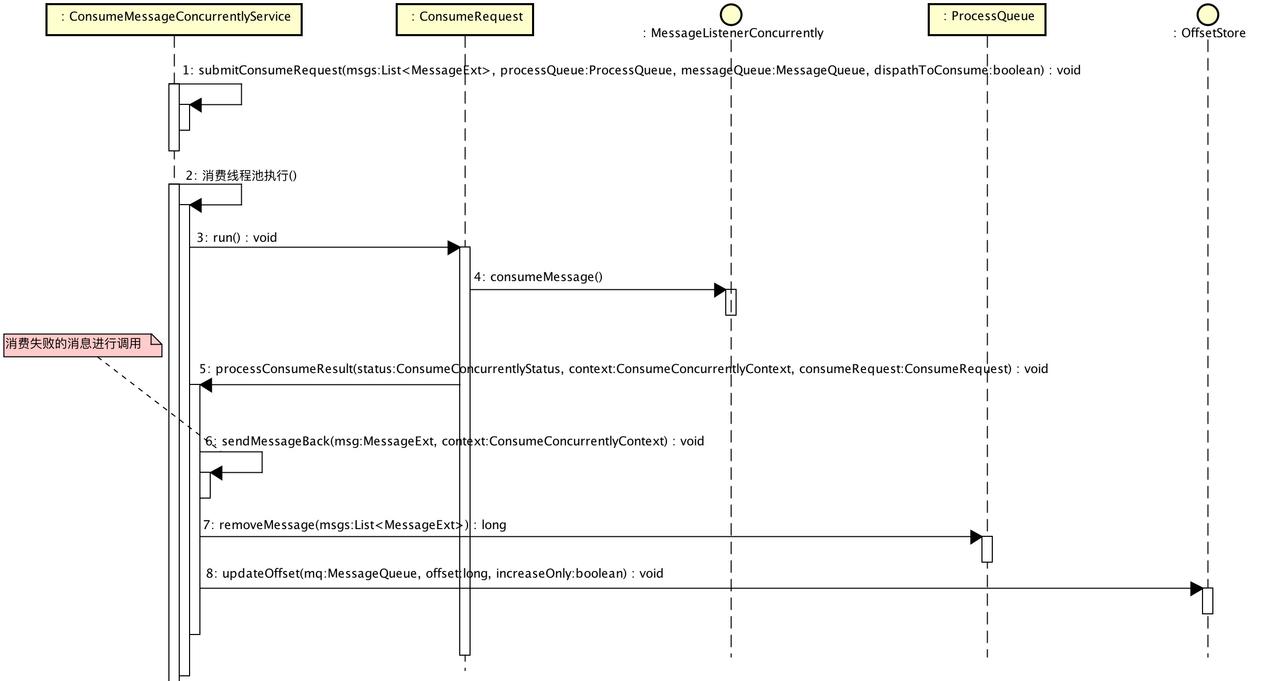

并发消费
org.apache.rocketmq.client.impl.consumer.ConsumeMessageConcurrentlyService#submitConsumeRequest
public void submitConsumeRequest(
final List<MessageExt> msgs,
final ProcessQueue processQueue,
final MessageQueue messageQueue,
final boolean dispatchToConsume) {
//消费批次数量，一个消息消费任务ConsumeRequest中包含的消息数量，默认为1
final int consumeBatchSize = this.defaultMQPushConsumer.getConsumeMessageBatchMaxSize();
if (msgs.size() <= consumeBatchSize) {
ConsumeRequest consumeRequest = new ConsumeRequest(msgs, processQueue, messageQueue);
try {
//将消息消费任务提交到线程池
this.consumeExecutor.submit(consumeRequest);
} catch (RejectedExecutionException e) {
//当线程池拒绝该任务，即线程池满了之后，延迟5秒后重新投递
this.submitConsumeRequestLater(consumeRequest);
}
} else {
//当消息数量大于consumeBatchSize时，则对消息进行拆分，每个任务分配consumeBatchSize条消息
for (int total = 0; total < msgs.size(); ) {
List<MessageExt> msgThis = new ArrayList<MessageExt>(consumeBatchSize);
for (int i = 0; i < consumeBatchSize; i++, total++) {
if (total < msgs.size()) {
msgThis.add(msgs.get(total));
} else {
break;
}
}
// 提交拆分消费请求
ConsumeRequest consumeRequest = new ConsumeRequest(msgThis, processQueue, messageQueue);
try {
this.consumeExecutor.submit(consumeRequest);
} catch (RejectedExecutionException e) {
// 如果被拒绝，则将当前拆分消息+剩余消息提交延迟消费请求。
for (; total < msgs.size(); total++) {
msgThis.add(msgs.get(total));
}
this.submitConsumeRequestLater(consumeRequest);
}
}
}
}消费任务提交到线程池后，ConsumeRequest开始执行任务
org.apache.rocketmq.client.impl.consumer.ConsumeMessageConcurrentlyService.ConsumeRequest#run
public void run() {
//进入具体消息消费时会先检查 processQueue的dropped，如果设置为true， 则停止该队列的消费，在进行消息重新负载时如果该消息队列被分配给消费组内其他消费者后，
// 需要dropped设置为true， 阻止消费者继续消费不属于自己的消息队列
if (this.processQueue.isDropped()) {
log.info("the message queue not be able to consume, because it's dropped. group={} {}", ConsumeMessageConcurrentlyService.this.consumerGroup, this.messageQueue);
return;
}
//获取消息消费监听器，我们构建消费者实例时通过registerMessageListener()方法注册自定义的消息消费监听
//即执行我们实际业务的处理程序
MessageListenerConcurrently listener = ConsumeMessageConcurrentlyService.this.messageListener;
ConsumeConcurrentlyContext context = new ConsumeConcurrentlyContext(messageQueue);
ConsumeConcurrentlyStatus status = null;
defaultMQPushConsumerImpl.resetRetryAndNamespace(msgs, defaultMQPushConsumer.getConsumerGroup());
//执行消息消费前置钩子函数
//通过 consumer.getDefaultMQPushConsumerImpl().registerConsumeMessageHook() 方法进行注册钩子函数
ConsumeMessageContext consumeMessageContext = null;
if (ConsumeMessageConcurrentlyService.this.defaultMQPushConsumerImpl.hasHook()) {
consumeMessageContext = new ConsumeMessageContext();
consumeMessageContext.setNamespace(defaultMQPushConsumer.getNamespace());
consumeMessageContext.setConsumerGroup(defaultMQPushConsumer.getConsumerGroup());
consumeMessageContext.setProps(new HashMap<String, String>());
consumeMessageContext.setMq(messageQueue);
consumeMessageContext.setMsgList(msgs);
consumeMessageContext.setSuccess(false);
ConsumeMessageConcurrentlyService.this.defaultMQPushConsumerImpl.executeHookBefore(consumeMessageContext);
}
long beginTimestamp = System.currentTimeMillis();
boolean hasException = false;
ConsumeReturnType returnType = ConsumeReturnType.SUCCESS;
try {
if (msgs != null && !msgs.isEmpty()) {
for (MessageExt msg : msgs) {
MessageAccessor.setConsumeStartTimeStamp(msg, String.valueOf(System.currentTimeMillis()));
}
}
//调用具体的消息消费程序，并获取返回的执行结果
status = listener.consumeMessage(Collections.unmodifiableList(msgs), context);
} catch (Throwable e) {
log.warn(String.format("consumeMessage exception: %s Group: %s Msgs: %s MQ: %s",
RemotingHelper.exceptionSimpleDesc(e),
ConsumeMessageConcurrentlyService.this.consumerGroup,
msgs,
messageQueue), e);
hasException = true;
}
long consumeRT = System.currentTimeMillis() - beginTimestamp;
if (null == status) {
if (hasException) {
returnType = ConsumeReturnType.EXCEPTION;
} else {
returnType = ConsumeReturnType.RETURNNULL;
}
} else if (consumeRT >= defaultMQPushConsumer.getConsumeTimeout() * 60 * 1000) {
returnType = ConsumeReturnType.TIME_OUT;
} else if (ConsumeConcurrentlyStatus.RECONSUME_LATER == status) {
returnType = ConsumeReturnType.FAILED;
} else if (ConsumeConcurrentlyStatus.CONSUME_SUCCESS == status) {
returnType = ConsumeReturnType.SUCCESS;
}
if (ConsumeMessageConcurrentlyService.this.defaultMQPushConsumerImpl.hasHook()) {
consumeMessageContext.getProps().put(MixAll.CONSUME_CONTEXT_TYPE, returnType.name());
}
if (null == status) {
log.warn("consumeMessage return null, Group: {} Msgs: {} MQ: {}",
ConsumeMessageConcurrentlyService.this.consumerGroup,
msgs,
messageQueue);
status = ConsumeConcurrentlyStatus.RECONSUME_LATER;
}
//执行消息消费后置钩子函数
if (ConsumeMessageConcurrentlyService.this.defaultMQPushConsumerImpl.hasHook()) {
consumeMessageContext.setStatus(status.toString());
consumeMessageContext.setSuccess(ConsumeConcurrentlyStatus.CONSUME_SUCCESS == status);
ConsumeMessageConcurrentlyService.this.defaultMQPushConsumerImpl.executeHookAfter(consumeMessageContext);
}
ConsumeMessageConcurrentlyService.this.getConsumerStatsManager()
.incConsumeRT(ConsumeMessageConcurrentlyService.this.consumerGroup, messageQueue.getTopic(), consumeRT);
//如果在消息消费过程中，该队列被分配给了其它消费者，则不对消费结果进行处理。
//因此可能会造成消息重复消费，因此需要用户自己在业务端自行实现重复消费限制
if (!processQueue.isDropped()) {
//对消费结果进行处理
ConsumeMessageConcurrentlyService.this.processConsumeResult(status, context, this);
} else {
log.warn("processQueue is dropped without process consume result. messageQueue={}, msgs={}", messageQueue, msgs);
}
}- 校验当前消息队列是否已被移除，避免重复消费
- 执行消息消费前置钩子函数
- 调用MessageListener来执行用户注册的实际消息消费过程
- 对消息消费返回结果进行处理以及消息消费是否超时判断
- 执行消息消费后置钩子函数
- 执行消息消费结果处理程序，包括消息重试，offset提交等
消费结果处理及提交
org.apache.rocketmq.client.impl.consumer.ConsumeMessageConcurrentlyService#processConsumeResult
public void processConsumeResult(
final ConsumeConcurrentlyStatus status,
final ConsumeConcurrentlyContext context,
final ConsumeRequest consumeRequest
) {
int ackIndex = context.getAckIndex();
if (consumeRequest.getMsgs().isEmpty())
return;
switch (status) {
//根据消息监听器返回的结果，计算ackIndex
case CONSUME_SUCCESS:
if (ackIndex >= consumeRequest.getMsgs().size()) {
ackIndex = consumeRequest.getMsgs().size() - 1;
}
int ok = ackIndex + 1;
int failed = consumeRequest.getMsgs().size() - ok;
this.getConsumerStatsManager().incConsumeOKTPS(consumerGroup, consumeRequest.getMessageQueue().getTopic(), ok);
this.getConsumerStatsManager().incConsumeFailedTPS(consumerGroup, consumeRequest.getMessageQueue().getTopic(), failed);
break;
case RECONSUME_LATER:
ackIndex = -1;
this.getConsumerStatsManager().incConsumeFailedTPS(consumerGroup, consumeRequest.getMessageQueue().getTopic(),
consumeRequest.getMsgs().size());
break;
default:
break;
}
switch (this.defaultMQPushConsumer.getMessageModel()) {
case BROADCASTING:
//广播模式下，消息消费失败后不会重新消费，而是打印warn级别日志提醒
for (int i = ackIndex + 1; i < consumeRequest.getMsgs().size(); i++) {
MessageExt msg = consumeRequest.getMsgs().get(i);
log.warn("BROADCASTING, the message consume failed, drop it, {}", msg.toString());
}
break;
case CLUSTERING:
List<MessageExt> msgBackFailed = new ArrayList<MessageExt>(consumeRequest.getMsgs().size());
//集群模式下，如果该批消息消费失败，则把该批消息投递到重试队列
for (int i = ackIndex + 1; i < consumeRequest.getMsgs().size(); i++) {
MessageExt msg = consumeRequest.getMsgs().get(i);
//将消息发送到重试队列
boolean result = this.sendMessageBack(msg, context);
if (!result) {
msg.setReconsumeTimes(msg.getReconsumeTimes() + 1);
msgBackFailed.add(msg);
}
}
//如果有消息投递到重试队列失败，则将该消息从当前consumeRequest中移除，并重新提交到消息消费服务，延迟5S后重新消费。
if (!msgBackFailed.isEmpty()) {
consumeRequest.getMsgs().removeAll(msgBackFailed);
this.submitConsumeRequestLater(msgBackFailed, consumeRequest.getProcessQueue(), consumeRequest.getMessageQueue());
}
break;
default:
break;
}
//从processQueue中移除这批消息，并返回移除这些消息后processQueue中最小的消息偏移量，然后用该offset更新消息消费进度
long offset = consumeRequest.getProcessQueue().removeMessage(consumeRequest.getMsgs());
if (offset >= 0 && !consumeRequest.getProcessQueue().isDropped()) {
//更新消费偏移量
this.defaultMQPushConsumerImpl.getOffsetStore().updateOffset(consumeRequest.getMessageQueue(), offset, true);
}
}顺序消费
org.apache.rocketmq.client.impl.consumer.ConsumeMessageOrderlyService#submitConsumeRequest
public void submitConsumeRequest(
final List<MessageExt> msgs,
final ProcessQueue processQueue,
final MessageQueue messageQueue,
final boolean dispathToConsume) {
if (dispathToConsume) {
ConsumeRequest consumeRequest = new ConsumeRequest(processQueue, messageQueue);
this.consumeExecutor.submit(consumeRequest);
}
}org.apache.rocketmq.client.impl.consumer.ConsumeMessageOrderlyService.ConsumeRequest#run
public void run() {
if (this.processQueue.isDropped()) {
log.warn("run, the message queue not be able to consume, because it's dropped. {}", this.messageQueue);
return;
}
//消费时会对该消息队列加锁，因此一个消息队列同一时刻只会被一个线程访问，保证了同一个队列内部消费的顺序。
final Object objLock = messageQueueLock.fetchLockObject(this.messageQueue);
synchronized (objLock) {
if (MessageModel.BROADCASTING.equals(ConsumeMessageOrderlyService.this.defaultMQPushConsumerImpl.messageModel())
|| (this.processQueue.isLocked() && !this.processQueue.isLockExpired())) {
final long beginTime = System.currentTimeMillis();
for (boolean continueConsume = true; continueConsume; ) {
//判断该消息队列是否已经被移除
if (this.processQueue.isDropped()) {
log.warn("the message queue not be able to consume, because it's dropped. {}", this.messageQueue);
break;
}
//是否获得当前消息队列的锁，如果没有则尝试获取锁之后重新消费，如果获取锁失败则延迟3S之后重新提交
if (MessageModel.CLUSTERING.equals(ConsumeMessageOrderlyService.this.defaultMQPushConsumerImpl.messageModel())
&& !this.processQueue.isLocked()) {
log.warn("the message queue not locked, so consume later, {}", this.messageQueue);
ConsumeMessageOrderlyService.this.tryLockLaterAndReconsume(this.messageQueue, this.processQueue, 10);
break;
}
//锁如果已经过期也重新执行获得锁的操作
if (MessageModel.CLUSTERING.equals(ConsumeMessageOrderlyService.this.defaultMQPushConsumerImpl.messageModel())
&& this.processQueue.isLockExpired()) {
log.warn("the message queue lock expired, so consume later, {}", this.messageQueue);
ConsumeMessageOrderlyService.this.tryLockLaterAndReconsume(this.messageQueue, this.processQueue, 10);
break;
}
long interval = System.currentTimeMillis() - beginTime;
//顺序消费时，循环地从处理队列中获取consumeBatchSize个消息进行消费，直至没有消息，
// 每次循环都会判断本次消费任务是否已消费超时，如果超时则重新提交消费该批消息
//顺序消费时，每个ConsumeRequest任务是根据消费时间来限制的，当一个任务消费时间达到阈值(60S)
//则停止本次任务，让出线程池资源。
if (interval > MAX_TIME_CONSUME_CONTINUOUSLY) {
ConsumeMessageOrderlyService.this.submitConsumeRequestLater(processQueue, messageQueue, 10);
break;
}
final int consumeBatchSize =
ConsumeMessageOrderlyService.this.defaultMQPushConsumer.getConsumeMessageBatchMaxSize();
//每次从处理队列中按消费批处理数量来一次取出对应数量的消息，如果获取消息为空，则表明消息已经消费完了。则结束本次任务
List<MessageExt> msgs = this.processQueue.takeMessags(consumeBatchSize);
defaultMQPushConsumerImpl.resetRetryAndNamespace(msgs, defaultMQPushConsumer.getConsumerGroup());
if (!msgs.isEmpty()) {
final ConsumeOrderlyContext context = new ConsumeOrderlyContext(this.messageQueue);
ConsumeOrderlyStatus status = null;
ConsumeMessageContext consumeMessageContext = null;
if (ConsumeMessageOrderlyService.this.defaultMQPushConsumerImpl.hasHook()) {
consumeMessageContext = new ConsumeMessageContext();
consumeMessageContext
.setConsumerGroup(ConsumeMessageOrderlyService.this.defaultMQPushConsumer.getConsumerGroup());
consumeMessageContext.setNamespace(defaultMQPushConsumer.getNamespace());
consumeMessageContext.setMq(messageQueue);
consumeMessageContext.setMsgList(msgs);
consumeMessageContext.setSuccess(false);
// init the consume context type
consumeMessageContext.setProps(new HashMap<String, String>());
ConsumeMessageOrderlyService.this.defaultMQPushConsumerImpl.executeHookBefore(consumeMessageContext);
}
long beginTimestamp = System.currentTimeMillis();
ConsumeReturnType returnType = ConsumeReturnType.SUCCESS;
boolean hasException = false;
try {
//申请消费锁，每个处理队列持有一个Lock对象，保证消息消费时，一个处理队列不会被并发消费
this.processQueue.getLockConsume().lock();
if (this.processQueue.isDropped()) {
log.warn("consumeMessage, the message queue not be able to consume, because it's dropped. {}",
this.messageQueue);
break;
}
//调用真正的消息消费逻辑
status = messageListener.consumeMessage(Collections.unmodifiableList(msgs), context);
} catch (Throwable e) {
log.warn("consumeMessage exception: {} Group: {} Msgs: {} MQ: {}",
RemotingHelper.exceptionSimpleDesc(e),
ConsumeMessageOrderlyService.this.consumerGroup,
msgs,
messageQueue);
hasException = true;
} finally {
this.processQueue.getLockConsume().unlock();
}
if (null == status
|| ConsumeOrderlyStatus.ROLLBACK == status
|| ConsumeOrderlyStatus.SUSPEND_CURRENT_QUEUE_A_MOMENT == status) {
log.warn("consumeMessage Orderly return not OK, Group: {} Msgs: {} MQ: {}",
ConsumeMessageOrderlyService.this.consumerGroup,
msgs,
messageQueue);
}
long consumeRT = System.currentTimeMillis() - beginTimestamp;
if (null == status) {
if (hasException) {
returnType = ConsumeReturnType.EXCEPTION;
} else {
returnType = ConsumeReturnType.RETURNNULL;
}
} else if (consumeRT >= defaultMQPushConsumer.getConsumeTimeout() * 60 * 1000) {
returnType = ConsumeReturnType.TIME_OUT;
} else if (ConsumeOrderlyStatus.SUSPEND_CURRENT_QUEUE_A_MOMENT == status) {
returnType = ConsumeReturnType.FAILED;
} else if (ConsumeOrderlyStatus.SUCCESS == status) {
returnType = ConsumeReturnType.SUCCESS;
}
if (ConsumeMessageOrderlyService.this.defaultMQPushConsumerImpl.hasHook()) {
consumeMessageContext.getProps().put(MixAll.CONSUME_CONTEXT_TYPE, returnType.name());
}
if (null == status) {
status = ConsumeOrderlyStatus.SUSPEND_CURRENT_QUEUE_A_MOMENT;
}
if (ConsumeMessageOrderlyService.this.defaultMQPushConsumerImpl.hasHook()) {
consumeMessageContext.setStatus(status.toString());
consumeMessageContext
.setSuccess(ConsumeOrderlyStatus.SUCCESS == status || ConsumeOrderlyStatus.COMMIT == status);
ConsumeMessageOrderlyService.this.defaultMQPushConsumerImpl.executeHookAfter(consumeMessageContext);
}
ConsumeMessageOrderlyService.this.getConsumerStatsManager()
.incConsumeRT(ConsumeMessageOrderlyService.this.consumerGroup, messageQueue.getTopic(), consumeRT);
continueConsume = ConsumeMessageOrderlyService.this.processConsumeResult(msgs, status, context, this);
} else {
continueConsume = false;
}
}
} else {
if (this.processQueue.isDropped()) {
log.warn("the message queue not be able to consume, because it's dropped. {}", this.messageQueue);
return;
}
ConsumeMessageOrderlyService.this.tryLockLaterAndReconsume(this.messageQueue, this.processQueue, 100);
}
}
}- 顺序消费时，会按照处理队列来对消费任务进行加锁，避免并发消费导致顺序不一致。
- 消费开始前，会判断当前消费者是否获得消息队列的锁，以及锁是否过期。并执行获取锁的操作之后重新投递任务。
- 顺序消费时，每次拉取到的消息会放入一个ConsumeRequest任务中提交到线程池，消费时，每次从处理队列获取一定数量的消息进行消费。而不是按照本次拉取的消息维度来进行消费。
public boolean processConsumeResult(
final List<MessageExt> msgs,
final ConsumeOrderlyStatus status,
final ConsumeOrderlyContext context,
final ConsumeRequest consumeRequest
) {
boolean continueConsume = true;
long commitOffset = -1L;
if (context.isAutoCommit()) {
switch (status) {
case COMMIT:
case ROLLBACK:
log.warn("the message queue consume result is illegal, we think you want to ack these message {}",
consumeRequest.getMessageQueue());
case SUCCESS:
commitOffset = consumeRequest.getProcessQueue().commit();
this.getConsumerStatsManager().incConsumeOKTPS(consumerGroup, consumeRequest.getMessageQueue().getTopic(), msgs.size());
break;
case SUSPEND_CURRENT_QUEUE_A_MOMENT:
this.getConsumerStatsManager().incConsumeFailedTPS(consumerGroup, consumeRequest.getMessageQueue().getTopic(), msgs.size());
//检查消息的重试次数
if (checkReconsumeTimes(msgs)) {
consumeRequest.getProcessQueue().makeMessageToConsumeAgain(msgs);
this.submitConsumeRequestLater(
consumeRequest.getProcessQueue(),
consumeRequest.getMessageQueue(),
context.getSuspendCurrentQueueTimeMillis());
continueConsume = false;
} else {
commitOffset = consumeRequest.getProcessQueue().commit();
}
break;
default:
break;
}
} else {
switch (status) {
case SUCCESS:
this.getConsumerStatsManager().incConsumeOKTPS(consumerGroup, consumeRequest.getMessageQueue().getTopic(), msgs.size());
break;
case COMMIT:
commitOffset = consumeRequest.getProcessQueue().commit();
break;
case ROLLBACK:
consumeRequest.getProcessQueue().rollback();
this.submitConsumeRequestLater(
consumeRequest.getProcessQueue(),
consumeRequest.getMessageQueue(),
context.getSuspendCurrentQueueTimeMillis());
continueConsume = false;
break;
case SUSPEND_CURRENT_QUEUE_A_MOMENT:
this.getConsumerStatsManager().incConsumeFailedTPS(consumerGroup, consumeRequest.getMessageQueue().getTopic(), msgs.size());
if (checkReconsumeTimes(msgs)) {
consumeRequest.getProcessQueue().makeMessageToConsumeAgain(msgs);
this.submitConsumeRequestLater(
consumeRequest.getProcessQueue(),
consumeRequest.getMessageQueue(),
context.getSuspendCurrentQueueTimeMillis());
continueConsume = false;
}
break;
default:
break;
}
}
if (commitOffset >= 0 && !consumeRequest.getProcessQueue().isDropped()) {
this.defaultMQPushConsumerImpl.getOffsetStore().updateOffset(consumeRequest.getMessageQueue(), commitOffset, false);
}
return continueConsume;
}
1841
被折叠的 条评论
为什么被折叠?
到【灌水乐园】发言
