文章目录
在前置的学习过程中遇到了tensorflow的一些问题,就想着用进程或者线程来解决。但是使用过程中出现了不少bug,才有了本文
概述
Process跟Thread的一些区别如下(不一定全面,只是自己使用中总结的):
(下文中会用代码说明)
- 首先是内存共享的问题。Thread创建的子线程可以直接使用主线程的变量数据;而Process创建的子进程跟主进程是完全隔离的,如果要用到主进程的变量,就必须作为参数传入,即使将所需变量设置为global也无效(因为设置为global也只是对于主进程而言的,对于子进程是invisible,二者数据不共享)
- 其次,如果在Thread中使用matplotlib进行绘图,则会出现:
UserWarning: Starting a Matplotlib GUI outside of the main thread will likely fail.
;使用Process则不会有此Warning。
(解决方法见:另一篇文章:pyplot.plot使用遇到:UserWarning: Starting a Matplotlib GUI outside of the main thread will likely fail) - 创建进程较为耗时,而且创建Process的过程中CPU占用率较高,因为创建的进程都会有一份数据的拷贝,相互之间互不影响;而创建线程就会简单很多,创建很快而且CPU占用几乎没有
- 要注意的是,正是因为线程有数据共享,如果多线程要修改同一变量,就会产生问题;如果子线程只是使用变量,但要使用的变量会不断改变,也会存在问题
- 本次实验使用Process / Thread本意就是为了尽量减少内存开销,创建的都是单个子进程 / 子线程。如果真是要进行并行计算,要看情况来选择Process还是Thread。因为python中有GIL(全局解释器锁,是CPython的机制),它确保同一时刻只有一个线程在执行 Python bytecode,所以即便开了多线程,同一时刻也只能有一个线程执行运算,是“伪并行”。而Process可以在多个CPU核上同时执行运算。所以:对于多个计算密集型的任务(比如做矩阵运算,解码高清视频等),使用Process更好;而对于多个IO密集型(CPU 使用率较低,程序中会存在大量的 I/O 操作占用时间)的任务(比如文件读取、网络通信等),因为CPU占用率低,多进程与多线程差别不大,但是由于线程的创建与切换更加方便,所以使用Thread更好
代码详解
# 后续代码用到的:
from multiprocessing import Process
from threading import Thread
import numpy as np
import matplotlib.pyplot as plt
代码部分一:
下面代码可以说明上述的前两点
使用Thread:
def func():
plt.figure(figsize=(8, 8))
plt.plot(x, label='x')
plt.plot(y, label='y')
plt.legend(loc='upper left')
print(loop)
plt.savefig(str(loop) + '_thread_class_test.png')
plt.clf()
if __name__ == '__main__':
for loop in range(5):
x = np.random.randint(1, 10, 10)
y = np.random.randint(1, 10, 10)
t = Thread(target=func, args=())
t.start()
t.join()
上述代码可以正常运行。使用Thread时,虽然并没有将任何变量传入子线程,但子线程是可以看得到主线程的变量的。
同时可以发现,会有 UserWarning: Starting a Matplotlib GUI outside of the main thread will likely fail.
的提示
如果不想此Warning提示,解决方法见:另一篇文章:pyplot.plot使用遇到:UserWarning: Starting a Matplotlib GUI outside of the main thread will likely fail
使用Process:
def func():
plt.figure(figsize=(8, 8))
plt.plot(x, label='x')
plt.plot(y, label='y')
plt.legend(loc='upper left')
print(loop)
plt.savefig(str(loop) + '_thread_class_test.png')
plt.clf()
if __name__ == '__main__':
for loop in range(5):
x = np.random.randint(1, 10, 10)
y = np.random.randint(1, 10, 10)
p = Process(target=func, args=())
p.start()
p.join()
发现会直接报错:xxx is not defined
只有把需要的参数都放入args中,才不会报错:
更改:p = Process(target=func, args=(loop, x, y))
同时要记得,更改func函数的形参列表
如果把loop设置为全局变量,对于子进程也是没有用的。可以尝试:
def func(x, y):
...
global loop
print(loop)
plt.savefig(str(loop) + '_thread_class_test.png')
plt.clf()
if __name__ == '__main__':
global loop
for loop in range(5):
...
# 此处将x,y作为了传入参数
p = Process(target=func, args=(x, y))
...
会直接报错:'loop' is not defined
代码部分二:
下面说明第三点
使用Thread
def func(loop):
total = 0
for i in range(50):
total += i
time.sleep(100)
print(loop)
if __name__ == '__main__':
threads = []
start = time.time()
for loop in range(1000):
t = Thread(target=func, args=(loop, ))
t.start()
threads.append(t)
end = time.time()
print('创建线程共用时: {} s'.format(end - start))
for i in range(1000):
threads[i].join()
输出:
创建线程共用时: 0.14698576927185059 s

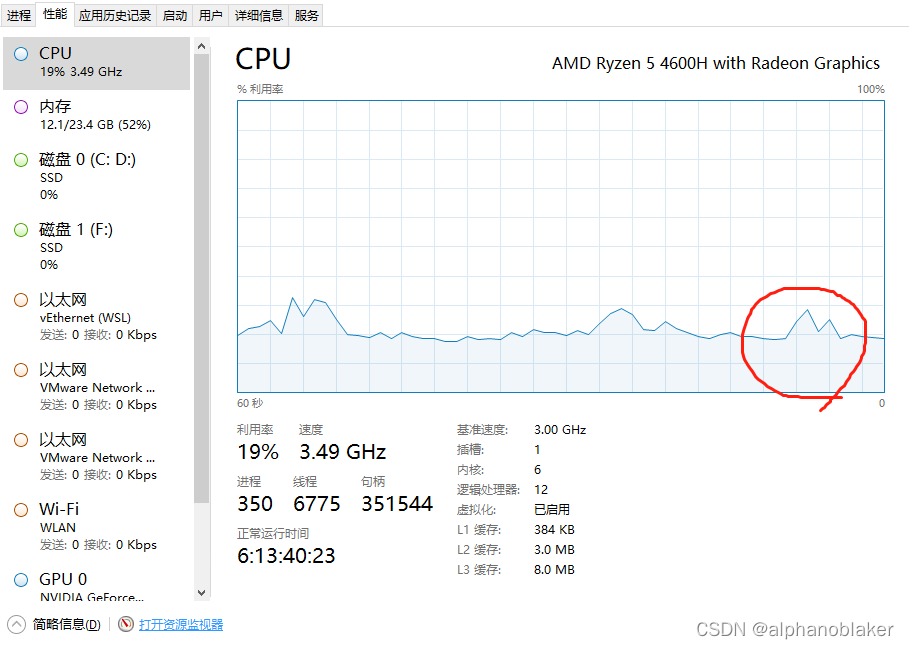

对应的CPU情况如下:
使用Process
def func(loop):
total = 0
for i in range(50):
total += i
time.sleep(100)
if __name__ == '__main__':
procs = []
start = time.time()
for loop in range(1000):
p = Process(target=func, args=(loop, ))
p.start()
# p.join()
procs.append(p)
# print(threading.active_count())
end = time.time()
print('创建进程共用时: {} s'.format(end - start))
for i in range(1000):
procs[i].join()
输出:
创建进程共用时: 22.241607666015625 s

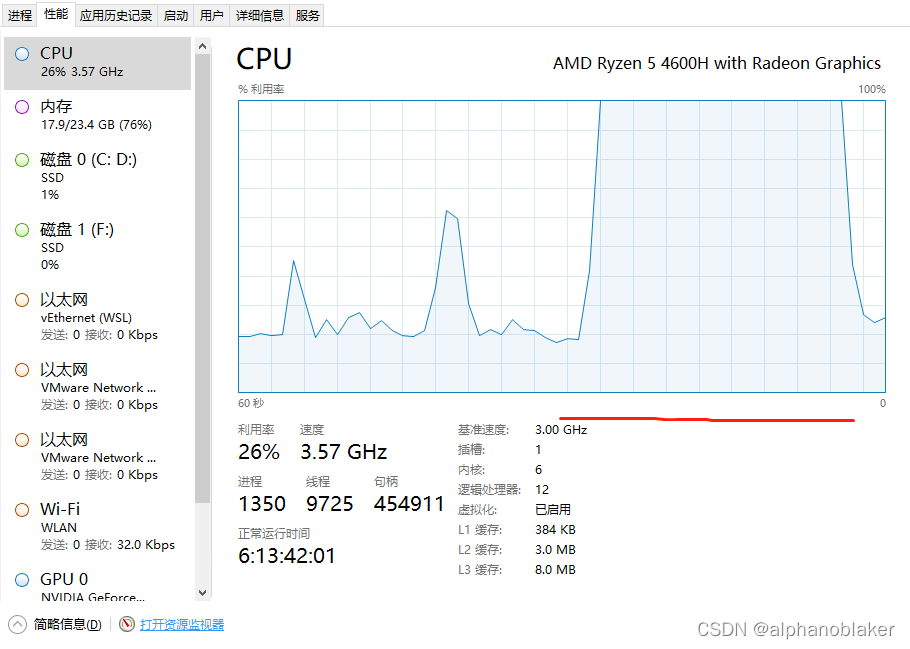

对应的CPU情况如下:
注意:进程的结束也是挺消耗资源的,上述代码在结束进程时也花了好一会儿,而且
代码部分三:
第三点的补充说明以及第四点的前一部分见:链接
下面代码为了说明第四点的后一部分。(简单修改上述代码即可)
使用Thread
def func():
time.sleep(1)
print(loop)
if __name__ == '__main__':
threads = []
for loop in range(100):
t = Thread(target=func, args=())
t.start()
threads.append(t)
for i in range(100):
threads[i].join()
期望输出:0 1 2 ... 99
实际输出:99 99 99 ... 99
这就是使用多Thread可能遇到的一个问题,因为子线程直接使用主线程中的loop变量,而不是作为参数传入,而loop变量一直在改变,导致与期望的输出不一致(这种问题很容易遇到,比如每个子线程要用循环变量loop作为子线程中保存文件名的一部分,而没有直接传入loop变量,最后就可能导致100个子线程最终只保存了一个文件)
使用Process
Process不存在此问题,Process必须传入参数然后会拷贝一份
代码部分四:
下面使用Thread和Process对IO密集型和计算密集型任务进行简单地对比
IO密集型任务(以文件读写为例)
注意,本部分在func函数中添加了暂停部分:time.sleep(1),以模拟在读和写之间存在的其他的操作
首先,使用一个空函数func来测试创建、终止多线程和多进程耗费的时间:
def func(loop):
sleep(1)
return
函数body部分与下面的相同,for循环使用的是os.cpu_count()(我的机器是12个逻辑核心)
先是用Thread:
输出:
使用多线程耗时: 1.0146193504333496 s
然后用Process:
输出:
使用多进程耗时: 6.255192995071411 s
然后是多线程多进程进行文件读写
使用Thread
首先使用单线程来进行文件读写,作为对比
将for循环改为range(1)即可
输出结果:
单线程耗时: 1.0627291202545166 s
接下来使用多线程:
def func(loop):
with open('test.log', 'r') as f_in:
# test.log文件大小为 5291 KB
f_str = ''.join(f_in.readlines())
time.sleep(1)
with open('test_' + str(loop) + '.txt', 'w+') as f_out:
f_out.write(f_str)
if __name__ == '__main__':
threads = []
start = time.time()
for loop in range(os.cpu_count()):
t = Thread(target=func, args=(loop, ))
t.start()
threads.append(t)
for i in range(len(procs)):
threads[i].join()
end = time.time()
print('多线程耗时: {} s'.format(end - start))
输出:
使用多线程耗时: 1.51499342918396 s

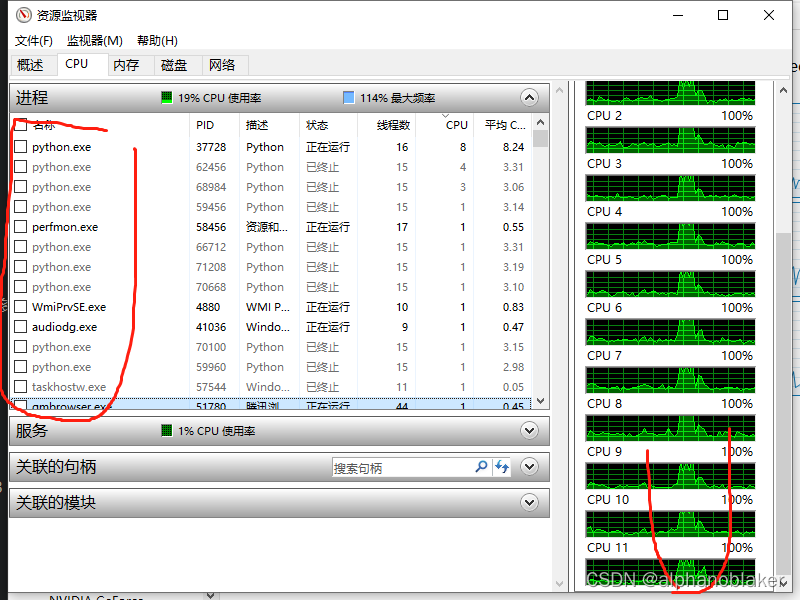

cpu核心的资源监视情况:
使用Process
首先使用单进程来作为对比
将for循环改为range(1)
输出结果:
使用单进程耗时: 2.5278077125549316 s
接下来使用多进程:
def func(loop):
with open('tf_gpu_test.log', 'r') as f_in:
# test.log文件大小为 5291 KB
f_str = ''.join(f_in.readlines())
time.sleep(1)
with open('test_' + str(loop) + '.txt', 'w+') as f_out:
f_out.write(f_str)
if __name__ == '__main__':
procs = []
start = time.time()
for loop in range(os.cpu_count()):
p = Process(target=func, args=(loop, ))
p.start()
procs.append(p)
for i in range(len(procs)):
procs[i].join()
end = time.time()
print('使用多进程耗时: {} s'.format(end - start))
使用多进程耗时: 6.341761112213135 s
cpu核心的资源监视情况:
结论
经过对比可以发现,不考虑创建和终止(因为实际使用中,创建之后一般就一直运行,很久之后才会终止),多进程、多线程实际处理花费的时间接近,但是可以看到,正如 代码部分二 中的结果,进程的创建、终止会消耗很多资源。所以对于IO密集型任务,使用多线程Thread更好
计算密集型任务(以矩阵运算为例)
将上述func函数修改为进行矩阵运算的即可:
一次func函数要做10^13数量级的运算
def func(loop):
for i in range(10):
x = np.random.randint(0, 10, size=(10 ** 4, 10 ** 4))
# 进行矩阵乘法
x = x * x
# print(i)
main部分的代码分别对应即可,与上文相同
使用Thread:
使用单线程耗时:14.035309076309204 s
使用多线程耗时:148.3268826007843 s

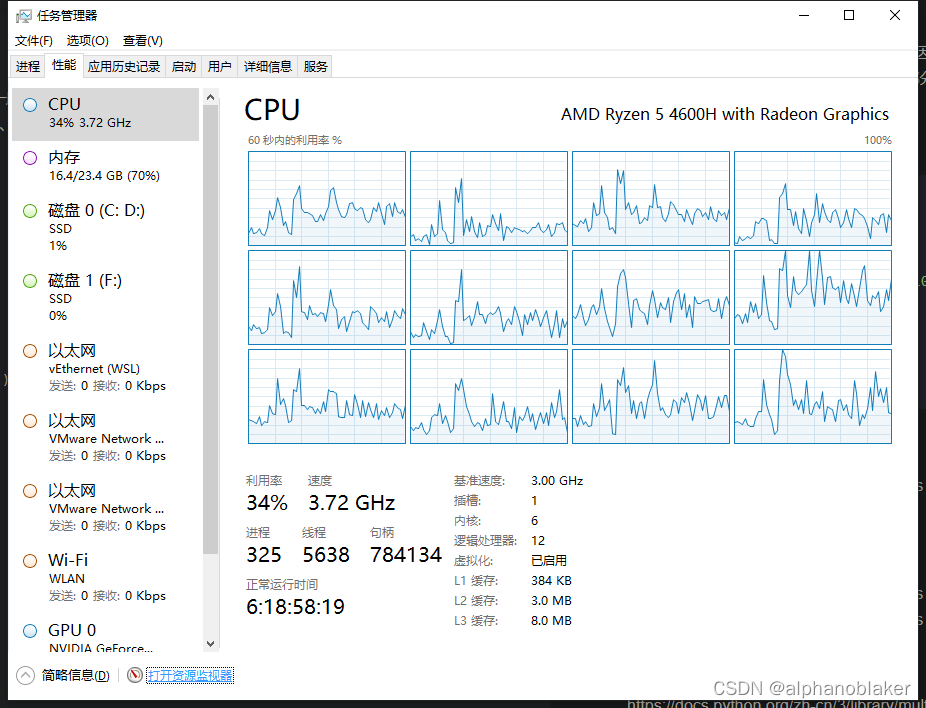

CPU情况如下:
使用Process:
使用单进程耗时:15.407793760299683 s
使用多进程耗时:29.029470443725586 s

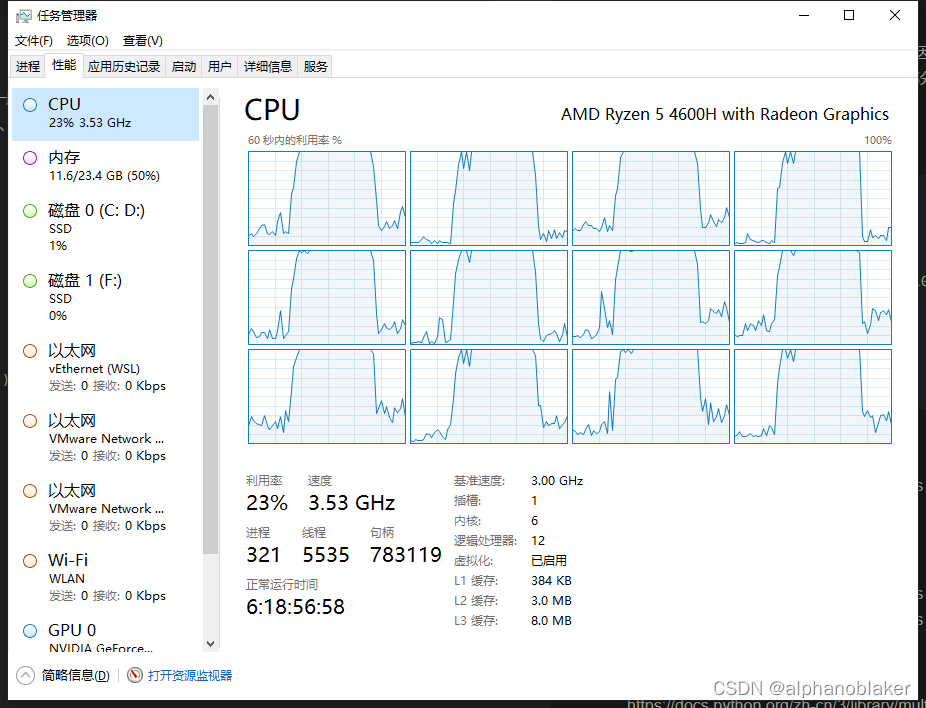

CPU情况如下:
结论
无论是从实际耗时的输出结果,还是从CPU的使用率上都能明显看出,在计算密集型任务中,使用Process多进程可以真正实现并行计算,而使用Thread多线程实际上只是并发(而且是只使用了一个CPU逻辑核心,总共有12个),而无法进行并行计算。所以,对于计算密集型任务,使用Process进行并行计算的优势很明显
参考
https://docs.python.org/zh-cn/3/library/multiprocessing.html
https://docs.python.org/zh-cn/3/library/threading.html
https://www.liaoxuefeng.com/wiki/1016959663602400/1017629247922688
