DefaultSingletonBeanRegistry 源码分析
说明
- 本文基于 jdk 8, spring-framework 5.2.x 编写。
- @author JellyfishMIX - github / blog.jellyfishmix.com
- LICENSE GPL-2.0
类层次

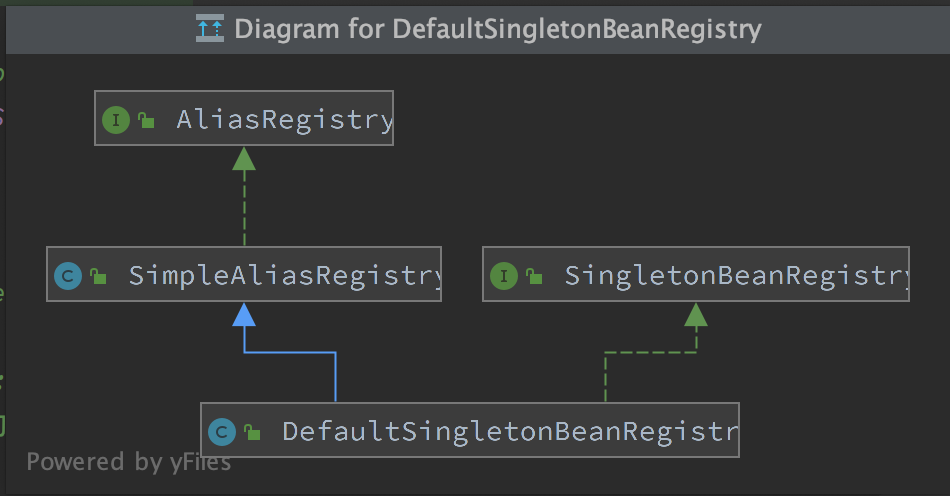

向上继承、实现关系:
向上向下所属层次:
类签名:
/**
* Generic registry for shared bean instances, implementing the
* {@link org.springframework.beans.factory.config.SingletonBeanRegistry}.
* Allows for registering singleton instances that should be shared
* for all callers of the registry, to be obtained via bean name.
*
* <p>Also supports registration of
* {@link org.springframework.beans.factory.DisposableBean} instances,
* (which might or might not correspond to registered singletons),
* to be destroyed on shutdown of the registry. Dependencies between
* beans can be registered to enforce an appropriate shutdown order.
*
* <p>This class mainly serves as base class for
* {@link org.springframework.beans.factory.BeanFactory} implementations,
* factoring out the common management of singleton bean instances. Note that
* the {@link org.springframework.beans.factory.config.ConfigurableBeanFactory}
* interface extends the {@link SingletonBeanRegistry} interface.
*
* <p>Note that this class assumes neither a bean definition concept
* nor a specific creation process for bean instances, in contrast to
* {@link AbstractBeanFactory} and {@link DefaultListableBeanFactory}
* (which inherit from it). Can alternatively also be used as a nested
* helper to delegate to.
*
* @author Juergen Hoeller
* @since 2.0
* @see #registerSingleton
* @see #registerDisposableBean
* @see org.springframework.beans.factory.DisposableBean
* @see org.springframework.beans.factory.config.ConfigurableBeanFactory
*/
public class DefaultSingletonBeanRegistry extends SimpleAliasRegistry implements SingletonBeanRegistry {
关键属性
/**
* Cache of singleton objects: bean name to bean instance.
*
* 单例对象的缓存,key-value: beanName -> bean 实例
* 第一级缓存,存放创建完成且初始化完成的 bean
* 一级缓存 singletonObjects,在方法中可能会加 synchronized 锁,称为 full singleton lock
*/
private final Map<String, Object> singletonObjects = new ConcurrentHashMap<>(256);
/**
* Cache of singleton factories: bean name to ObjectFactory.
*
* 单例工厂的缓存,key-value: beanName -> ObjectFactory
* ObjectFactory 可以理解为是用于创建 bean 的回调函数。需要的时候,会调用 ObjectFactory#getObject 去创建 bean
* 第三级缓存,存放 bean 的工厂类
*/
private final Map<String, ObjectFactory<?>> singletonFactories = new HashMap<>(16);
/**
* Cache of early singleton objects: bean name to bean instance.
*
* 早期单例对象的缓存,key-value: beanName -> bean 实例
* 第二级缓存,存放半成品 bean。半成品 bean 只是创建了,内存地址分配好了,但是依赖注入还没有做
*/
private final Map<String, Object> earlySingletonObjects = new ConcurrentHashMap<>(16);
一级缓存 singletonObjects,在方法中可能会加 synchronized 锁,称为 full singleton lock。DefaultSingletonBeanRegistry 保证线程安全的写法比较简单粗暴,只要想保证线程安全,就给一级缓存加锁,synchronized (this.singletonObjects) {},即 full singleton lock。
三级缓存
这三级 singletonBean 的缓存很重要。简单来说:
- 一级缓存 singletonObjects 中存放的是创建完成且初始化完成的 bean。
- 二级缓存 earlySingletonObjects 存放的只是半成品 bean。半成品 bean 只是创建了,内存地址分配好了,但是依赖注入还没有做。
- 三级缓存 singletonFactories 中存放的是用于创建 bean 的回调函数。需要的时候,会调用 ObjectFactory#getObject 去创建 bean。
三级缓存是为了解决循环依赖问题。
其它属性
/**
* Set of registered singletons, containing the bean names in registration order.
*
* 一组已注册的单例,包含按注册顺序排列的 beanName
*/
private final Set<String> registeredSingletons = new LinkedHashSet<>(256);
/**
* Names of beans that are currently in creation.
*
* 正在创建的单例的 beanName 的集合
*/
private final Set<String> singletonsCurrentlyInCreation =
Collections.newSetFromMap(new ConcurrentHashMap<>(16));
/**
* Names of beans currently excluded from in creation checks.
*
* 创建时不检查的 bean 的集合
*/
private final Set<String> inCreationCheckExclusions =
Collections.newSetFromMap(new ConcurrentHashMap<>(16));
/**
* Collection of suppressed Exceptions, available for associating related causes.
*
* 异常集合
*/
@Nullable
private Set<Exception> suppressedExceptions;
/**
* Flag that indicates whether we're currently within destroySingletons.
*
* 当前是否在销毁 bean 中
*/
private boolean singletonsCurrentlyInDestruction = false;
/**
* Disposable bean instances: bean name to disposable instance.
*
* 一次性 bean 实例
*/
private final Map<String, Object> disposableBeans = new LinkedHashMap<>();
/**
* Map between containing bean names: bean name to Set of bean names that the bean contains.
*
* 内部 bean 和外部 bean 之间关系
*/
private final Map<String, Set<String>> containedBeanMap = new ConcurrentHashMap<>(16);
/**
* Map between dependent bean names: bean name to Set of dependent bean names.
*
* 指定 bean 与依赖指定 bean 的集合,比如 bcd 依赖 a,那么就是 key 为 a,bcd 为 value
*/
private final Map<String, Set<String>> dependentBeanMap = new ConcurrentHashMap<>(64);
/**
* Map between depending bean names: bean name to Set of bean names for the bean's dependencies.
*
* 指定 bean 与指定 bean 依赖的集合,比如 a 依赖 bcd,那么就是 key 为 a,bcd 为 value
*/
private final Map<String, Set<String>> dependenciesForBeanMap = new ConcurrentHashMap<>(64);
registerSingleton 方法
/**
* 把一个对象注册为 bean
*
* @param beanName the name of the bean
* @param singletonObject the existing singleton object
* @throws IllegalStateException
*/
@Override
public void registerSingleton(String beanName, Object singletonObject) throws IllegalStateException {
Assert.notNull(beanName, "Bean name must not be null");
Assert.notNull(singletonObject, "Singleton object must not be null");
// synchronized 锁住 singletonObjects,保证对其操作的原子性
synchronized (this.singletonObjects) {
Object oldObject = this.singletonObjects.get(beanName);
// 如果 singletonObjects 不为空,说明之前已经注册过这个 bean 了,按照单例模式的要求,不能再次注册,因此抛出异常。
if (oldObject != null) {
throw new IllegalStateException("Could not register object [" + singletonObject +
"] under bean name '" + beanName + "': there is already object [" + oldObject + "] bound");
}
// 单例 bean 加入到缓存中
addSingleton(beanName, singletonObject);
}
}
把一个对象注册为单例 bean。真正添加 bean 实例至 map 中调用 addSingleton 方法。
addSingleton 方法
/**
* Add the given singleton object to the singleton cache of this factory.
*
* 单例 bean 加入到缓存中
*
* <p>To be called for eager registration of singletons.
* @param beanName the name of the bean
* @param singletonObject the singleton object
*/
protected void addSingleton(String beanName, Object singletonObject) {
// synchronized 锁住 singletonObjects,保证对其操作的原子性
synchronized (this.singletonObjects) {
// 加入单例对象缓存
this.singletonObjects.put(beanName, singletonObject);
// 既然加入了 singletonObjects,说明 bean 对象已经完全创建完毕。singletonFactories 和 earlySingletonObjects 就不再持有。
this.singletonFactories.remove(beanName);
this.earlySingletonObjects.remove(beanName);
// 加入已经注册的 map
this.registeredSingletons.add(beanName);
}
}
单例 bean 加入到一级缓存 singletonObjects 中,同时维护各级缓存。
addSingletonFactory 方法
/**
* Add the given singleton factory for building the specified singleton
* if necessary.
*
* 增加一个指定的 Singleton ObjectFactory 回调函数
*
* <p>To be called for eager registration of singletons, e.g. to be able to
* resolve circular references.
* @param beanName the name of the bean
* @param singletonFactory the factory for the singleton object
*/
protected void addSingletonFactory(String beanName, ObjectFactory<?> singletonFactory) {
Assert.notNull(singletonFactory, "Singleton factory must not be null");
// synchronized 锁住 singletonObjects,保证对其操作的原子性
synchronized (this.singletonObjects) {
// 如果 singletonObjects 中已经有 beanName 对应的 bean,说明此 bean 已完全实例化完毕,无需 ObjectFactory
if (!this.singletonObjects.containsKey(beanName)) {
// singletonFactories 增加一个回调函数
this.singletonFactories.put(beanName, singletonFactory);
// 半实例化缓存中移除 beanName 对应的 bean。此 bean 以后将会调用 ObjectFactory 回调函数进行创建。
this.earlySingletonObjects.remove(beanName);
// 已注册的 beanName map 中加入 beanName
this.registeredSingletons.add(beanName);
}
}
}
增加一个指定的 Singleton ObjectFactory 回调函数,同时维护各级缓存。
getSingleton(String beanName, boolean allowEarlyReference) 方法
/**
* Return the (raw) singleton object registered under the given name.
* <p>Checks already instantiated singletons and also allows for an early
* reference to a currently created singleton (resolving a circular reference).
* @param beanName the name of the bean to look for
* @param allowEarlyReference whether early references should be created or not
* @return the registered singleton object, or {@code null} if none found
*/
@Nullable
protected Object getSingleton(String beanName, boolean allowEarlyReference) {
/*
* Quick check for existing instance without full singleton lock
*
* 快速检查一下一级缓存,看看有没有存在的实例。这样先避免使用 singletonObjects 加锁导致降低效率。
*/
Object singletonObject = this.singletonObjects.get(beanName);
if (singletonObject == null && isSingletonCurrentlyInCreation(beanName)) {
// 快速检查一下二级缓存,看看有没有存在的实例半成品。这样先避免使用 singletonObjects 加锁导致降低效率。
singletonObject = this.earlySingletonObjects.get(beanName);
if (singletonObject == null && allowEarlyReference) {
synchronized (this.singletonObjects) {
// Consistent creation of early reference within full singleton lock
singletonObject = this.singletonObjects.get(beanName);
// 双检锁中的第二处检查
if (singletonObject == null) {
singletonObject = this.earlySingletonObjects.get(beanName);
// 双检锁中的第二处检查
if (singletonObject == null) {
// 获得用于创建 bean 的回调函数(ObjectFactory)
ObjectFactory<?> singletonFactory = this.singletonFactories.get(beanName);
if (singletonFactory != null) {
// 使用 singletonFactory#getObject 方法创建 singletonObject
singletonObject = singletonFactory.getObject();
// 半成品 bean 放入二级缓存中
this.earlySingletonObjects.put(beanName, singletonObject);
// 三级缓存移除回调函数
this.singletonFactories.remove(beanName);
}
}
}
}
}
}
return singletonObject;
}
getSingleton 首先快速检查一下一级缓存和二级缓存,看看有没有存在的实例。这样先避免对 singletonObjects 加锁导致降低效率。对于 singletonObjects 和 earlySingletonObjects 都会有双检锁去判断。
如果一级缓存和二级缓存中没有存在的实例,那就看看三级缓存中有没有构造函数。如果三级缓存中有 beanName 对应的构造函数,使用 ObjectFactory#getObject 方法创建 singletonObject。如果一级二级三级缓存中都没有,则会返回 null。
getSingleton(String beanName, ObjectFactory<?> singletonFactory) 方法
/**
* Return the (raw) singleton object registered under the given name,
* creating and registering a new one if none registered yet.
*
* 通过 singletonFactory 回调函数获取 singleton bean 实例
*
* @param beanName the name of the bean
* @param singletonFactory the ObjectFactory to lazily create the singleton
* with, if necessary
* @return the registered singleton object
*/
public Object getSingleton(String beanName, ObjectFactory<?> singletonFactory) {
Assert.notNull(beanName, "Bean name must not be null");
// 对 singletonObjects 加锁,保证一套操作的原子性,线程安全
synchronized (this.singletonObjects) {
// 先尝试去 singletonObjects 中获取 bean
Object singletonObject = this.singletonObjects.get(beanName);
// singletonObjects 中未获取到对应的 bean
if (singletonObject == null) {
// 当前工厂的 bean 正在销毁中时,不支持获取 bean
if (this.singletonsCurrentlyInDestruction) {
throw new BeanCreationNotAllowedException(beanName,
"Singleton bean creation not allowed while singletons of this factory are in destruction " +
"(Do not request a bean from a BeanFactory in a destroy method implementation!)");
}
if (logger.isDebugEnabled()) {
logger.debug("Creating shared instance of singleton bean '" + beanName + "'");
}
// singleton 的前置处理。根据 singletonFactory 创建 bean 之前,先检查对应的 bean 是否已经处于创建中
beforeSingletonCreation(beanName);
boolean newSingleton = false;
// 判断之前是否有被抑制的异常
boolean recordSuppressedExceptions = (this.suppressedExceptions == null);
// 把之前被抑制的异常用一个 LinkedHashSet 盛放
if (recordSuppressedExceptions) {
this.suppressedExceptions = new LinkedHashSet<>();
}
try {
// 调用 singletonFactory#getObject 创建 singleton bean
singletonObject = singletonFactory.getObject();
newSingleton = true;
}
catch (IllegalStateException ex) {
// Has the singleton object implicitly appeared in the meantime -> 在此期间是否隐式出现单例对象。比如 singletonFactory#getObject 把对象创建后自行放入了 singletonObjects
// if yes, proceed with it since the exception indicates that state. 如果是,请继续操作,否则继续抛出异常
singletonObject = this.singletonObjects.get(beanName);
if (singletonObject == null) {
throw ex;
}
}
catch (BeanCreationException ex) {
// 记录之前被抑制的异常,和本次异常一起抛出
if (recordSuppressedExceptions) {
for (Exception suppressedException : this.suppressedExceptions) {
ex.addRelatedCause(suppressedException);
}
}
throw ex;
}
finally {
// 重置抑制异常记录,即清除之前记录过的抑制异常
if (recordSuppressedExceptions) {
this.suppressedExceptions = null;
}
// singleton 的创建后置处理
afterSingletonCreation(beanName);
}
// 如果是新增了一个 singleton bean,将单例 bean 加入到缓存中
if (newSingleton) {
addSingleton(beanName, singletonObject);
}
}
return singletonObject;
}
}
通过 singletonFactory 回调函数获取 singleton bean 实例。创建 singleton bean 实例时,是调用 ObjectFactory#getObject 创建的。
remove 方法
/**
* Remove the bean with the given name from the singleton cache of this factory,
* to be able to clean up eager registration of a singleton if creation failed.
*
* 各级缓存中都根据 beanName 移除对应的 singleton
*
* @param beanName the name of the bean
* @see #getSingletonMutex()
*/
protected void removeSingleton(String beanName) {
// 对一级缓存加锁,然后在各级原子化移除
synchronized (this.singletonObjects) {
this.singletonObjects.remove(beanName);
this.singletonFactories.remove(beanName);
this.earlySingletonObjects.remove(beanName);
this.registeredSingletons.remove(beanName);
}
}
各级缓存中都根据 beanName 移除对应的 singleton,这里为了保证各级缓存 remove 的原子性,外面对一级缓存加了一个 synchronized 锁。
singleton 创建前后回调函数
/**
* Callback before singleton creation.
*
* singleton 创建的前置处理
*
* <p>The default implementation register the singleton as currently in creation.
* @param beanName the name of the singleton about to be created
* @see #isSingletonCurrentlyInCreation
*/
protected void beforeSingletonCreation(String beanName) {
// 根据 singletonFactory 创建 bean 之前,先检查对应的 bean 是否已经处于创建中
if (!this.inCreationCheckExclusions.contains(beanName) && !this.singletonsCurrentlyInCreation.add(beanName)) {
throw new BeanCurrentlyInCreationException(beanName);
}
}
/**
* Callback after singleton creation.
*
* singleton 的创建后置处理
*
* <p>The default implementation marks the singleton as not in creation anymore.
* @param beanName the name of the singleton that has been created
* @see #isSingletonCurrentlyInCreation
*/
protected void afterSingletonCreation(String beanName) {
// 根据 singletonFactory 创建 bean 之前,先检查对应的 bean 是否处于创建中
if (!this.inCreationCheckExclusions.contains(beanName) && !this.singletonsCurrentlyInCreation.remove(beanName)) {
throw new IllegalStateException("Singleton '" + beanName + "' isn't currently in creation");
}
}
The default implementation register the singleton as currently in creation. / The default implementation marks the singleton as not in creation anymore.
这两个方法是 singleton bean 创建前后的回调函数。继承 DefaultSingletonBeanRegistry 的子类可以重写这两个方法的逻辑,在 DefaultSingletonBeanRegistry 中创建 singleton bean 时会触发。protected 修饰符意思也是只想让子类能访问到去重写。
判断指定的 beanName 是否在创建中
/**
* 判断指定的 beanName 是否在创建中
* 作为检测入口,可以做边界条件的处理
*
* @param beanName
* @return
*/
public boolean isCurrentlyInCreation(String beanName) {
Assert.notNull(beanName, "Bean name must not be null");
// 创建时不检查的 bean 的集合,即白名单。不在白名单中的 beanName,才去检查是否正在创建中。
return (!this.inCreationCheckExclusions.contains(beanName) && isActuallyInCreation(beanName));
}
/**
* 判断指定的 beanName 是否实际正在创建中
* 对实际的理解:如果有多处需要检查的地方,这个方法可以做一个收口。
* 调用这个方法,就能检测到所有需要检测的位置。可以参考子类重写的:org.springframework.beans.factory.support.AbstractBeanFactory#isActuallyInCreation(java.lang.String)
*
* @param beanName
* @return
*/
protected boolean isActuallyInCreation(String beanName) {
return isSingletonCurrentlyInCreation(beanName);
}
/**
* Return whether the specified singleton bean is currently in creation
* (within the entire factory).
*
* 判断指定的 singleton beanName 是否正在创建中
*
* @param beanName the name of the bean
*/
public boolean isSingletonCurrentlyInCreation(String beanName) {
// singletonsCurrentlyInCreation 中维护了正在创建的单例的 beanName 的集合
return this.singletonsCurrentlyInCreation.contains(beanName);
}
以上三个方法连用:
- isCurrentlyInCreation 作为检测入口,可以做边界条件的处理。
- isActuallyInCreation 判断指定的 beanName 是否实际正在创建中。对实际的理解:如果有多处需要检查的地方,这个方法可以做一个收口。调用这个方法,就能检测到所有需要检测的位置。可以参考子类重写的: org.springframework.beans.factory.support.AbstractBeanFactory#isActuallyInCreation(java.lang.String)
/**
* AbstractBeanFactory 作为 DefaultSingletonBeanRegistry 子类重写的方法,这里就能看出收口方法的作用了。
* 如果有多处需要检查的地方,这个方法可以做一个收口。调用这个方法,就能检测到所有需要检测的位置。
*/
@Override
public boolean isActuallyInCreation(String beanName) {
return (isSingletonCurrentlyInCreation(beanName) || isPrototypeCurrentlyInCreation(beanName));
}
- isSingletonCurrentlyInCreation 判断指定的 singleton beanName 是否正在创建中,singletonsCurrentlyInCreation 中维护了正在创建的单例的 beanName 的集合。
registerDependentBean 方法
/**
* Register a dependent bean for the given bean,
* to be destroyed before the given bean is destroyed.
*
* 把 bean 注册为 dependentBean 的依赖
*
* @param beanName the name of the bean
* @param dependentBeanName the name of the dependent bean
*/
public void registerDependentBean(String beanName, String dependentBeanName) {
// 传入一个 name,不管这个 name 是别名还是本名,此方法将获得真实的本名
String canonicalName = canonicalName(beanName);
/*
* 指定 bean 与依赖指定 bean 的集合,比如 bcd 依赖 a,那么就是 key 为 a,bcd 为 value
* dependentBeanMap 是 ConcurrentHashMap。这里体现了 ConcurrentHashMap 只能保证 api 是线程安全的,如果组合使用多个 api,还是可能出现竟态条件问题,需要加锁
*/
synchronized (this.dependentBeanMap) {
// 拿到 beanName 对应的 value,如果 value 不存在就初始化一个 LinkedHashSet 用于存储依赖于 beanName bean 的 dependentBean
Set<String> dependentBeans =
this.dependentBeanMap.computeIfAbsent(canonicalName, k -> new LinkedHashSet<>(8));
// beanName bean 的 dependentBean set 中添加一个元素
if (!dependentBeans.add(dependentBeanName)) {
return;
}
}
// 指定 bean 与指定 bean 依赖的集合,比如 a 依赖 bcd,那么就是 key 为 a,bcd 为 value
synchronized (this.dependenciesForBeanMap) {
// 拿到 dependentBeanName 对应的 value,如果 value 不存在就初始化一个 LinkedHashSet 用于存储 dependentBeanName bean 的 dependenciesBean
Set<String> dependenciesForBean =
this.dependenciesForBeanMap.computeIfAbsent(dependentBeanName, k -> new LinkedHashSet<>(8));
// dependentBeanName bean 的 dependenciesBean set 中添加一个元素
dependenciesForBean.add(canonicalName);
}
}
把 bean 注册为 dependentBean 的依赖,同时维护了:
- dependentBeanMap: 指定 bean 与依赖指定 bean 的集合,比如 bcd 依赖 a,那么就是 key 为 a,bcd 为 value。
- dependenciesForBeanMap: 指定 bean 与指定 bean 依赖的集合,比如 a 依赖 bcd,那么就是 key 为 a,bcd 为 value。
并且此方法中针对 ConcurrentHashMap 加了 synchronized 锁。这里体现了 ConcurrentHashMap 只能保证 api 是线程安全的,如果组合使用多个 api,还是可能出现竟态条件问题,需要加锁。
