STM32——LCD显示图片

最新推荐文章于 2025-03-14 21:09:19 发布
最新推荐文章于 2025-03-14 21:09:19 发布
阅读量1.9w 收藏 153
点赞数 44
分类专栏： STM32
火红色祥云
本文链接：https://blog.csdn.net/weixin_43739167/article/details/104924017
版权
本文详细解析了一个用于在指定位置显示单色图的函数LCD_DrawPicture，包括其功能、参数说明及调用方法。该函数通过逐行扫描并根据图片数据在屏幕上绘制像素点，实现图像显示。

摘要生成于 C知道 ，由 DeepSeek-R1 满血版支持， 前往体验 >

/****************************************************************************
* 名    称：void LCD_DrawPicture(u16 StartX,u16 StartY,u16 EndX,u16 EndY,u16 *pic)
* 功    能：在指定位置显示一幅单色图
* 入口参数：StartX     行起始座标
*           StartY     列起始座标
*           EndX       行结束座标
*           EndY       列结束座标
            pic        图片头指针
* 出口参数：无
* 说    明：
* 调用方法：LCD_DrawPicture(0,0,100,100,(u16*)demo);
****************************************************************************/
void LCD_Draw_Picture(u16 xstr,u16 ystr,u16 xend,u16 yend,u8 *pic)	    //画图
{
	u8 temp,t1;
	u16 x_t=xstr,y_t=ystr;//,x=xstr,y=ystr;
	u8 *pusMsk = pic;//480000 65536
	for(y_t=ystr;y_t<yend;)
    {
			temp = *pusMsk;
			for(t1=0;t1<8;t1++)
			{
				if(temp&0x80)LCD_Fast_DrawPoint(x_t,y_t,POINT_COLOR);//画实心点
				else LCD_Fast_DrawPoint(x_t,y_t,BACK_COLOR);   //画空白点（使用背景色）
				temp<<=1;
				x_t++;
				if(x_t>=xend)
				{
					x_t=xstr;
					y_t++;
					break;
				}
			}
			pusMsk++;
    }
}


const unsigned char gImage_4[600] = { /* 0X10,0X01,0X00,0X50,0X00,0X3C, */
0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
0X00,0X00,0X00,0X00,0X00,0X00,0XFF,0XE0,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X03,
0XFF,0XF8,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X0F,0XFF,0XFE,0X00,0X00,0X00,0X00,
0X00,0X00,0X00,0X3F,0XFF,0XFF,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X7F,0X80,0X3F,
0X80,0X00,0X00,0X00,0X00,0X00,0X00,0XFE,0X00,0X0F,0XE0,0X00,0X00,0X00,0X00,0X00,
0X00,0XF8,0X00,0X03,0XFF,0X80,0X00,0X00,0X00,0X00,0X01,0XF0,0X00,0X01,0XFF,0XE0,
0X00,0X00,0X00,0X00,0X03,0XE0,0X00,0X00,0XFF,0XF8,0X00,0X00,0X00,0X00,0X03,0XC0,
0X00,0X00,0X7F,0XFC,0X00,0X00,0X00,0X00,0X07,0XC0,0X00,0X00,0X00,0XFF,0X00,0X00,
0X00,0X00,0X07,0X80,0X00,0X00,0X00,0X1F,0X00,0X00,0X00,0X00,0X0F,0X80,0X00,0X00,
0X00,0X0F,0X80,0X00,0X00,0X00,0X3F,0X80,0X00,0X00,0X00,0X07,0XC0,0X00,0X00,0X00,
0XFF,0X80,0X00,0X00,0X00,0X03,0XC0,0X00,0X00,0X03,0XFF,0X00,0X00,0X00,0X00,0X03,
0XC0,0X00,0X00,0X07,0XFE,0X00,0X00,0X00,0X00,0X01,0XE0,0X00,0X00,0X0F,0XE0,0X00,
0X00,0X00,0X00,0X01,0XE0,0X00,0X00,0X0F,0X80,0X00,0X00,0X00,0X00,0X01,0XE0,0X00,
0X00,0X1F,0X00,0X00,0X00,0X00,0X00,0X01,0XE0,0X00,0X00,0X1E,0X00,0X00,0X00,0X00,
0X00,0X01,0XE0,0X00,0X00,0X1E,0X00,0X00,0X00,0X00,0X00,0X01,0XE0,0X00,0X00,0X1C,
0X00,0X00,0X00,0X00,0X00,0X01,0XE0,0X00,0X00,0X1C,0X00,0X00,0X00,0X00,0X00,0X01,
0XE0,0X00,0X00,0X1E,0X00,0X00,0X00,0X00,0X00,0X03,0XC0,0X00,0X00,0X1E,0X00,0X00,
0X00,0X00,0X00,0X03,0XC0,0X00,0X00,0X1F,0X00,0X00,0X00,0X00,0X00,0X07,0XC0,0X00,
0X00,0X0F,0X00,0X00,0X00,0X00,0X00,0X1F,0X80,0X00,0X00,0X0F,0XC0,0X00,0X17,0X80,
0X00,0X3F,0X00,0X00,0X00,0X07,0XF8,0X00,0X7F,0X80,0X00,0XFE,0X00,0X00,0X00,0X03,
0XFF,0X00,0XFF,0X00,0X00,0XFC,0X00,0X00,0X00,0X01,0XFF,0X00,0XFE,0X00,0X00,0XF8,
0X00,0X00,0X00,0X00,0X7E,0X01,0XFC,0X00,0X80,0XE0,0X00,0X00,0X00,0X00,0X00,0X03,
0XF8,0X01,0X80,0X00,0X00,0X00,0X00,0X00,0X00,0X03,0XF0,0X01,0XC0,0X00,0X00,0X00,
0X00,0X00,0X00,0X07,0XF0,0X03,0XC0,0X00,0X00,0X00,0X00,0X00,0X00,0X07,0XF3,0X03,
0XE0,0X00,0X00,0X00,0X00,0X00,0X00,0X0F,0XFF,0X07,0XE0,0X00,0X00,0X00,0X00,0X00,
0X00,0X01,0XFE,0X07,0XF0,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X7C,0X07,0XF0,0X00,
0X00,0X00,0X00,0X00,0X00,0X00,0X78,0X0F,0XF8,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
0XF0,0X0F,0XF8,0X00,0X00,0X00,0X00,0X00,0X00,0X01,0XC0,0X0F,0XF8,0X00,0X00,0X00,
0X00,0X00,0X00,0X01,0X80,0X0F,0XF8,0X00,0X00,0X00,0X00,0X00,0X00,0X03,0X00,0X0F,
0XF0,0X00,0X00,0X00,0X00,0X00,0X00,0X06,0X00,0X07,0XF0,0X00,0X00,0X00,0X00,0X00,
0X00,0X04,0X00,0X03,0XC0,0X00,0X00,0X00,0X00,0X00,0X00,0X08,0X00,0X00,0X00,0X00,
0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,};

const unsigned char gImage_3[600] = { /* 0X10,0X01,0X00,0X50,0X00,0X3C, */
0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
0X00,0X00,0X00,0X00,0X30,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X30,0X00,
0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X30,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
0X00,0X00,0X30,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X30,0X00,0X00,0X00,
0X00,0X00,0X00,0X00,0X00,0X00,0X30,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X07,0X00,
0X00,0X01,0X80,0X00,0X00,0X00,0X00,0X00,0X03,0X80,0X00,0X03,0X80,0X00,0X00,0X00,
0X00,0X00,0X01,0XC0,0X00,0X07,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0XC0,0XFE,0X06,
0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X03,0XFF,0X80,0X00,0X00,0X00,0X00,0X00,0X00,
0X00,0X07,0XFF,0XC0,0X00,0X00,0X00,0X00,0X00,0X03,0XFE,0X0F,0X01,0XE0,0X00,0X00,
0X00,0X00,0X00,0X0F,0XFF,0XFE,0X00,0XF0,0X00,0X00,0X00,0X00,0X00,0X1F,0XFF,0XFC,
0X00,0X70,0X00,0X00,0X00,0X00,0X00,0X7E,0X00,0XFC,0X00,0X38,0X00,0X00,0X00,0X00,
0X00,0X78,0X00,0X3C,0X00,0X38,0X00,0X00,0X00,0X00,0X00,0XE0,0X00,0X1F,0XE0,0X18,
0X00,0X00,0X00,0X00,0X01,0XC0,0X00,0X0F,0XFC,0X18,0X7C,0X00,0X00,0X00,0X03,0XC0,
0X00,0X07,0XFE,0X18,0X7E,0X00,0X00,0X00,0X03,0X80,0X00,0X00,0X0F,0X38,0X00,0X00,
0X00,0X00,0X07,0X80,0X00,0X00,0X07,0XF8,0X00,0X00,0X00,0X00,0X0F,0X00,0X00,0X00,
0X03,0XF8,0X00,0X00,0X00,0X00,0X3F,0X00,0X00,0X00,0X01,0XF0,0X00,0X00,0X00,0X00,
0XFF,0X00,0X00,0X00,0X00,0XF0,0X00,0X00,0X00,0X01,0XF8,0X00,0X00,0X00,0X00,0XE0,
0X00,0X00,0X00,0X03,0XC0,0X00,0X00,0X00,0X00,0X60,0X00,0X00,0X00,0X03,0X80,0X00,
0X00,0X00,0X00,0X70,0X00,0X00,0X00,0X07,0X00,0X00,0X00,0X00,0X00,0X7C,0X00,0X00,
0X00,0X07,0X00,0X00,0X00,0X00,0X00,0X7E,0X00,0X00,0X00,0X07,0X00,0X00,0X00,0X00,
0X00,0XF7,0X00,0X00,0X00,0X07,0X00,0X00,0X00,0X00,0X00,0XE1,0X80,0X00,0X00,0X07,
0X00,0X00,0X00,0X00,0X00,0XE0,0X80,0X00,0X00,0X07,0X00,0X00,0X00,0X00,0X01,0XC0,
0X00,0X00,0X00,0X03,0X80,0X00,0X00,0X00,0X03,0XC0,0X00,0X00,0X00,0X01,0XE0,0X00,
0X00,0X00,0X0F,0X80,0X00,0X00,0X00,0X01,0XFE,0X00,0X00,0X00,0X1F,0X00,0X00,0X00,
0X00,0X00,0X7E,0X00,0XC0,0X00,0X3C,0X00,0X00,0X00,0X00,0X00,0X1E,0X01,0XC0,0X00,
0X10,0X00,0X00,0X00,0X00,0X00,0X00,0X01,0XC0,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
0X00,0X03,0XC0,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X07,0XC0,0X00,0X00,0X00,
0X00,0X00,0X00,0X00,0X00,0X07,0XC0,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X07,
0XC0,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X03,0X00,0X00,0X00,0X00,0X00,0X00,
0X00,0X00,0X00,0X00,0X00,0X30,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X70,
0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0XF0,0X00,0X00,0X00,0X00,0X00,0X00,
0X00,0X00,0X01,0XF0,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X03,0XF0,0X00,0X00,
0X00,0X00,0X00,0X00,0X00,0X00,0X03,0XF0,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
0X03,0XF0,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X01,0XE0,0X00,0X00,0X00,0X00,
0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,};

const unsigned char gImage_2[600] = { /* 0X10,0X01,0X00,0X50,0X00,0X3C, */
0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
0X00,0X00,0X00,0X07,0XFC,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X1F,0XFF,0X00,
0X00,0X00,0X00,0X00,0X00,0X01,0XC0,0X7F,0XFF,0X80,0X00,0X00,0X00,0X00,0X00,0X1F,
0XFF,0XFF,0XFF,0XC0,0X00,0X00,0X00,0X00,0X00,0X7F,0XFF,0XF8,0X07,0XF8,0X00,0X00,
0X00,0X00,0X01,0XFF,0XFF,0XF0,0X01,0XFF,0X80,0X00,0X00,0X00,0X03,0XFE,0X1F,0XF0,
0X00,0XFF,0XE0,0X00,0X00,0X00,0X07,0XF0,0X01,0XF8,0X00,0X7F,0XF0,0X00,0X00,0X00,
0X0F,0XC0,0X00,0XFC,0X00,0X1F,0XF8,0X00,0X00,0X00,0X1F,0X80,0X00,0X7F,0XF8,0X00,
0XFC,0X00,0X00,0X00,0X1F,0X00,0X00,0X1F,0XFE,0X00,0X3E,0X00,0X00,0X00,0X3E,0X00,
0X00,0X1F,0XFF,0X80,0X1E,0X00,0X00,0X00,0X7C,0X00,0X00,0X0F,0XFF,0XC0,0X1E,0X00,
0X00,0X00,0X78,0X00,0X00,0X00,0X0F,0XE0,0X0E,0X00,0X00,0X00,0XF8,0X00,0X00,0X00,
0X03,0XF0,0X0F,0X00,0X00,0X00,0XF8,0X00,0X00,0X00,0X01,0XF8,0X0F,0X00,0X00,0X03,
0XF0,0X00,0X00,0X00,0X00,0XF8,0X0F,0X00,0X00,0X1F,0XF0,0X00,0X00,0X00,0X00,0X7C,
0X1E,0X00,0X00,0X3F,0XF0,0X00,0X00,0X00,0X00,0X3C,0X1E,0X00,0X00,0X7F,0XE0,0X00,
0X00,0X00,0X00,0X3C,0X1E,0X00,0X00,0XFE,0X00,0X00,0X00,0X00,0X00,0X1C,0X3E,0X00,
0X01,0XF8,0X00,0X00,0X00,0X00,0X00,0X1E,0X7C,0X00,0X01,0XE0,0X00,0X00,0X00,0X00,
0X00,0X1F,0XF8,0X00,0X01,0XE0,0X00,0X00,0X00,0X00,0X00,0X1F,0XF0,0X00,0X03,0XC0,
0X00,0X00,0X00,0X00,0X00,0X1F,0XE0,0X00,0X03,0XC0,0X00,0X00,0X00,0X00,0X00,0X1F,
0XC0,0X00,0X03,0XC0,0X00,0X00,0X00,0X00,0X00,0X3E,0X00,0X00,0X03,0XC0,0X00,0X00,
0X00,0X00,0X00,0X3C,0X00,0X00,0X03,0XE0,0X00,0X00,0X00,0X00,0X00,0X7C,0X00,0X00,
0X01,0XE0,0X00,0X00,0X00,0X00,0X00,0XF8,0X00,0X00,0X01,0XF0,0X00,0X00,0X00,0X00,
0X01,0XF8,0X00,0X00,0X00,0XF8,0X00,0X00,0X00,0X00,0X03,0XF0,0X00,0X00,0X00,0XFE,
0X00,0X00,0X00,0X00,0X1F,0XE0,0X00,0X00,0X00,0X7F,0XFF,0XFF,0XFF,0XFF,0XFF,0XC0,
0X00,0X00,0X00,0X3F,0XFF,0XFF,0XFF,0XFF,0XFF,0X80,0X00,0X00,0X00,0X0F,0XFF,0XFF,
0XFF,0XFF,0XFE,0X00,0X00,0X00,0X00,0X00,0X00,0XFF,0X0F,0XFF,0X40,0X00,0X00,0X00,
0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,};

const unsigned char gImage_1[600] = { /* 0X10,0X01,0X00,0X50,0X00,0X3C, */
0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
0X00,0X00,0X00,0X00,0X06,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X06,0X00,
0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X0E,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
0X00,0X00,0X0E,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X0E,0X00,0X00,0X00,
0X00,0X00,0X00,0X00,0X00,0X00,0X0E,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
0X0E,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X06,0X00,0X00,0X00,0X0E,0X00,0X00,0X00,
0X00,0X00,0X07,0X00,0X00,0X00,0X1C,0X00,0X00,0X00,0X00,0X00,0X03,0XC0,0X00,0X00,
0X38,0X00,0X00,0X00,0X00,0X00,0X01,0XE0,0X00,0X00,0X78,0X00,0X00,0X00,0X00,0X00,
0X00,0XE0,0X00,0X00,0X70,0X00,0X00,0X00,0X00,0X00,0X00,0X40,0X3F,0XC0,0X60,0X00,
0X00,0X00,0X00,0X00,0X00,0X00,0XFF,0XF0,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X03,
0XFF,0XF8,0X00,0X00,0X00,0X00,0X00,0X00,0XF8,0X07,0XFF,0XFC,0X00,0X00,0X00,0X00,
0X00,0X0F,0XFF,0X07,0XC0,0X3E,0X00,0X00,0X00,0X00,0X00,0X3F,0XFF,0XFF,0X00,0X1F,
0X00,0X00,0X00,0X00,0X00,0X7F,0XFF,0XFE,0X00,0X0F,0X00,0X00,0X00,0X00,0X00,0XFC,
0X01,0XFC,0X00,0X07,0X80,0X00,0X00,0X00,0X01,0XF0,0X00,0X7C,0X00,0X07,0X80,0X00,
0X00,0X00,0X03,0XE0,0X00,0X3F,0X00,0X07,0X80,0X00,0X00,0X00,0X07,0XC0,0X00,0X1F,
0XFC,0X03,0X83,0X80,0X00,0X00,0X07,0X80,0X00,0X0F,0XFF,0X03,0X83,0XF8,0X00,0X00,
0X0F,0X00,0X00,0X07,0XFF,0XC3,0X83,0XF8,0X00,0X00,0X1E,0X00,0X00,0X01,0X0F,0XE3,
0X81,0X00,0X00,0X00,0X1E,0X00,0X00,0X00,0X03,0XF3,0X80,0X00,0X00,0X00,0X3E,0X00,
0X00,0X00,0X00,0XFF,0X80,0X00,0X00,0X00,0X7C,0X00,0X00,0X00,0X00,0X7F,0X00,0X00,
0X00,0X01,0XFC,0X00,0X00,0X00,0X00,0X3F,0X00,0X00,0X00,0X07,0XFC,0X00,0X00,0X00,
0X00,0X3E,0X00,0X00,0X00,0X0F,0XF8,0X00,0X00,0X00,0X00,0X1E,0X00,0X00,0X00,0X1F,
0X80,0X00,0X00,0X00,0X00,0X1E,0X00,0X00,0X00,0X3E,0X00,0X00,0X00,0X00,0X00,0X1C,
0X00,0X00,0X00,0X3C,0X00,0X00,0X00,0X00,0X00,0X1C,0X00,0X00,0X00,0X78,0X00,0X00,
0X00,0X00,0X00,0X1C,0X60,0X00,0X00,0X78,0X00,0X00,0X00,0X00,0X00,0X1C,0X70,0X00,
0X00,0X70,0X00,0X00,0X00,0X00,0X00,0X1C,0X78,0X00,0X00,0X70,0X00,0X00,0X00,0X00,
0X00,0X1C,0X3C,0X00,0X00,0X78,0X00,0X00,0X00,0X00,0X00,0X3C,0X1C,0X00,0X00,0X78,
0X00,0X00,0X00,0X00,0X00,0X3C,0X0C,0X00,0X00,0X78,0X00,0X00,0X00,0X00,0X00,0X78,
0X00,0X00,0X00,0X3C,0X00,0X00,0X00,0X00,0X00,0XF8,0X00,0X00,0X00,0X1E,0X00,0X00,
0X00,0X00,0X03,0XF0,0X00,0X00,0X00,0X1F,0XC0,0X00,0X00,0X00,0X0F,0XE0,0X00,0X00,
0X00,0X0F,0XFF,0XFF,0XFF,0XFF,0XFF,0XC0,0X00,0X00,0X00,0X03,0XFF,0XFF,0XFF,0XFF,
0XFF,0X00,0X00,0X00,0X00,0X01,0XFF,0XFF,0XFF,0XFF,0XFC,0X00,0X00,0X00,0X00,0X00,
0X00,0X00,0X00,0X7F,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,};

const unsigned char gImage_0[600] = { /* 0X10,0X01,0X00,0X50,0X00,0X3C, */
0X00,0X00,0X00,0X00,0X01,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X03,0X00,
0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X03,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
0X00,0X00,0X03,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X03,0X80,0X00,0X00,
0X00,0X00,0X00,0X00,0X00,0X00,0X07,0X80,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
0X07,0X80,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X07,0X80,0X00,0X00,0X00,0X00,
0X00,0X00,0X00,0X00,0X07,0X80,0X00,0X00,0X00,0X00,0X00,0X00,0X1C,0X00,0X03,0X00,
0X00,0X60,0X00,0X00,0X00,0X00,0X1E,0X00,0X00,0X00,0X00,0XE0,0X00,0X00,0X00,0X00,
0X0F,0X00,0X00,0X00,0X03,0XC0,0X00,0X00,0X00,0X00,0X07,0XC0,0X00,0X00,0X07,0XC0,
0X00,0X00,0X00,0X00,0X07,0XC0,0X00,0X00,0X0F,0X80,0X00,0X00,0X00,0X00,0X03,0XC0,
0X00,0X00,0X0F,0X00,0X00,0X00,0X00,0X00,0X01,0XC0,0X1F,0XE0,0X0E,0X00,0X00,0X00,
0X00,0X00,0X00,0X00,0X7F,0XFC,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X01,0XFF,0XFE,
0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X03,0XFF,0XFF,0X00,0X00,0X00,0X00,0X00,0X00,
0X00,0X07,0XF8,0X3F,0XC0,0X00,0X00,0X00,0X00,0X00,0X00,0X0F,0XC0,0X0F,0XC0,0X00,
0X00,0X00,0X00,0X00,0X00,0X1F,0X80,0X07,0XE0,0X00,0X00,0X00,0X00,0X00,0X00,0X1F,
0X00,0X03,0XF0,0X00,0X00,0X00,0X00,0X00,0X00,0X3E,0X00,0X01,0XF0,0X00,0X00,0X00,
0X00,0X00,0X00,0X3E,0X00,0X00,0XF0,0X00,0X00,0X00,0X00,0X00,0X00,0X3C,0X00,0X00,
0XF8,0X00,0X00,0X00,0X00,0X00,0X00,0X7C,0X00,0X00,0X78,0X00,0X00,0X00,0X00,0X03,
0XF0,0X7C,0X00,0X00,0X78,0X1F,0X00,0X00,0X00,0X1F,0XF0,0X78,0X00,0X00,0X78,0X3F,
0XE0,0X00,0X00,0X1F,0XF0,0X78,0X00,0X00,0X78,0X3F,0XE0,0X00,0X00,0X00,0X70,0X7C,
0X00,0X00,0X78,0X1C,0X00,0X00,0X00,0X00,0X00,0X7C,0X00,0X00,0X78,0X00,0X00,0X00,
0X00,0X00,0X00,0X7C,0X00,0X00,0XF8,0X00,0X00,0X00,0X00,0X00,0X00,0X3E,0X00,0X00,
0XF0,0X00,0X00,0X00,0X00,0X00,0X00,0X3E,0X00,0X01,0XF0,0X00,0X00,0X00,0X00,0X00,
0X00,0X1F,0X00,0X03,0XE0,0X00,0X00,0X00,0X00,0X00,0X00,0X1F,0X80,0X07,0XE0,0X00,
0X00,0X00,0X00,0X00,0X00,0X0F,0XE0,0X0F,0XC0,0X00,0X00,0X00,0X00,0X00,0X00,0X07,
0XFC,0X7F,0X80,0X00,0X00,0X00,0X00,0X00,0X00,0X03,0XFF,0XFF,0X00,0X00,0X00,0X00,
0X00,0X00,0X00,0X01,0XFF,0XFE,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X7F,0XF8,
0X00,0X00,0X00,0X00,0X00,0X00,0X01,0XC0,0X0F,0XC0,0X0F,0X00,0X00,0X00,0X00,0X00,
0X03,0XC0,0X00,0X00,0X0F,0X00,0X00,0X00,0X00,0X00,0X07,0XC0,0X00,0X00,0X0F,0X80,
0X00,0X00,0X00,0X00,0X07,0X80,0X00,0X00,0X07,0XC0,0X00,0X00,0X00,0X00,0X0F,0X00,
0X00,0X00,0X01,0XE0,0X00,0X00,0X00,0X00,0X1C,0X00,0X00,0X00,0X00,0XE0,0X00,0X00,
0X00,0X00,0X18,0X00,0X03,0X80,0X00,0X60,0X00,0X00,0X00,0X00,0X00,0X00,0X07,0X80,
0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X07,0X80,0X00,0X00,0X00,0X00,0X00,0X00,
0X00,0X00,0X07,0X80,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X03,0X80,0X00,0X00,
0X00,0X00,0X00,0X00,0X00,0X00,0X03,0X80,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
0X03,0X80,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X03,0X00,0X00,0X00,0X00,0X00,
0X00,0X00,0X00,0X00,0X03,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,};


int main(void)
 {
		delay_init();	    	 //延时函数初始化
		NVIC_PriorityGroupConfig(NVIC_PriorityGroup_2);	 //设置NVIC中断分组2:2位抢占优先级，2位响应优先级
		uart_init(115200);	 	//串口初始化为115200
		LED_Init();			     //LED端口初始化
		LCD_Init();
		POINT_COLOR=RED;
		LCD_Draw_Picture(0,0,80,60,(u8 *)gImage_0);
		LCD_Draw_Picture(80,0,160,60,(u8 *)gImage_1);
		LCD_Draw_Picture(160,0,240,60,(u8 *)gImage_2);
		LCD_Draw_Picture(240,0,320,60,(u8 *)gImage_3);

		LCD_Draw_Picture(0,60,80,120,(u8 *)gImage_4);
		while（1）；
}

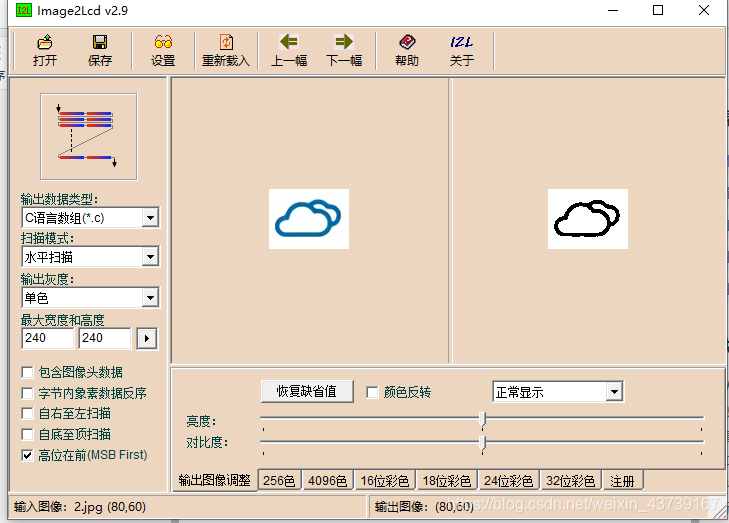

取模：

在这里插入图片描述

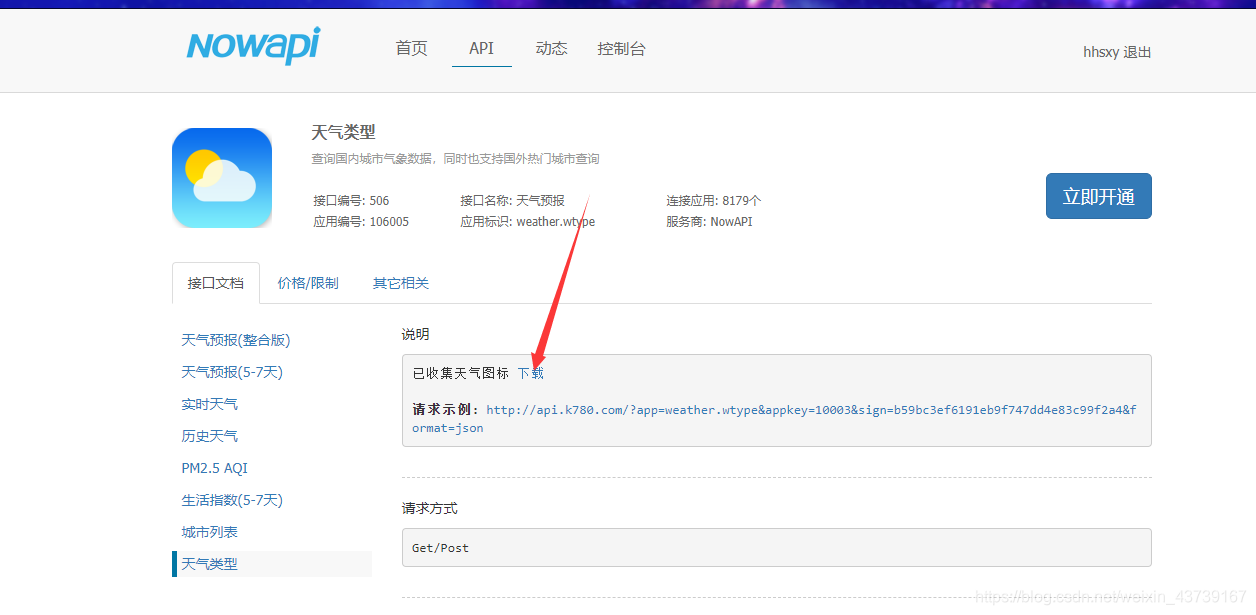

天气图标下载地址：

天气图标

在这里插入图片描述

批量修改图片类型：
ClickHere

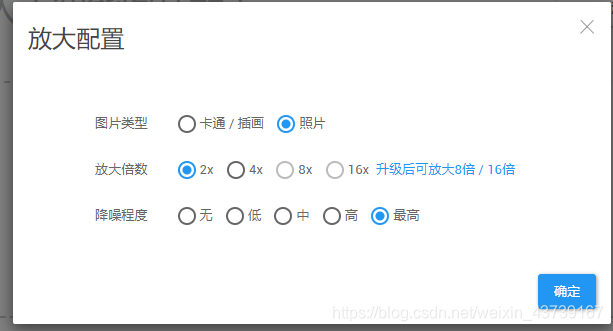

无损放大图片：
网址：ClickHere

在这里插入图片描述

我在高职教STM32——LCD液晶显示（2）
gmc832002的博客
06-20 1089
关注LCD1602的显示地址与字符、状态字节、读写时序和相关指令。
STM32CubeIDE开发(二十)，在LCD显示摄像头抓取的图片数据
技术需要分享
12-05 2735
cubeIDE开发，在LCD显示摄像头抓取的图片数据，基于前期的LCD显示图片工程迁移新建工程，加入摄像头支持，分析摄像机模组的数据手册及实现原理，将摄像头抓取数据推送给LCD屏幕显示。
stm32驱动lcd屏幕FLASH图片显示
07-16
代码通过驱动stm32f103zet6的lcd屏幕来显示flash里面的图片
基于STM32F407读取mpu6050数据显示在lcd
最新发布
qq_45762107的博客
03-14 712
这个也是一个典型的使用IIC通信器件，在cubemx里面使能了需要用到的外设后，然后就可以着手开始mpu6050的部分代码编写了。首先查看mpu6050的原理图，发现其与stm32使用iic通信，并且使用pb8pb9引脚，也就是说在初始化的时候，要重新使能pb8pb9引脚为IIC。接下来查看mpu6050的用户开发手册，确定其时序图，确定逻辑。mpu6050采集加速度的数据并存储在加速度输出数据寄存器，陀螺仪的数据保存在陀螺仪输出寄存器里面，温度数据保存在温度输出寄存器。
STM32 LCD 显示彩色图片(内部FLASH)
weixin_53944340的博客
12-07 6955
STM32 LCD 数组方式显示彩色图片
STM32学习之路-LCD（3）<显示图片>
Demetered的专栏
06-01 1万+
祝大家端午和六一快乐！原本今天是想休息休息的,但是实在无奈没什么事干.所以就来学习学习LCD显示图片的函数 函数是照搬奋斗的例子,算是些笔记吧.不过奋斗的例子注释的不是很详细.今天去看了正点原子的论坛,唉..瞬间感觉正点原子做得真的很好 能把所有的资料都开源,并且论坛上大多问题都耐心的解答了.这实在是非常非常好的售后服务了！！自己也偷偷的去下了写资料来看看,(*^__^*) 嘻嘻…… 好,进
stm32 LCD显示图片
qq_44234895的博客
04-15 7147
将图片生成的数组文件添加到任意路径，然后再main.c文件中声明extern const unsigned char gImage_IMG0002[86888]; 最后调用的时候直接gImage_IMG0002就可以。此处显示多张图片刷新较慢 以下是动态显示时间以及图片主函数 #include "main.h" #include "tu.h" //extern const unsigned char gImage_IMG00004[107048]; /***********************..
STM32F4_LCD显示图片
light_2025的博客
06-10 4617
LCD 显示数字和字符的原理都是将数字和字符转换成点阵，通过函数扫描点阵进而在LCD上显示，LCD显示图片的原理也是如此，将图片转换成若干点阵，进而通过函数进行扫描，正点官方提供了图片转换成点阵的工具。本程序基于正点的STM32F4系列；
stm32——lcd液晶显示
m0_59247951的博客
07-24 3583
与控制SRAM时一样，控制FSMC使用NOR FLASH存储器时主要是配置时序寄存器以及控制寄存器，利用ST标准库的时序结构体以及初始化结构体可以很方便地写入参数。
STM32——LCD
pyh1322712308的博客
01-23 1195
LCD
STM32——LCD液晶显示
weixin_62584795的博客
08-05 3161
LCD液晶显示
STM32代码——TDLCD波形显示.rar
11-01
在"STM32代码——TDLCD波形显示.rar"压缩包中，包含的是一个实现了在STM32上用TDLCD进行波形显示的代码实例。这个项目的核心在于如何将数组数据转化为可视化的波形，同时确保代码的无bug运行。 首先，我们需要理解...
stm32液晶显示图片
03-05
stm32\零死角玩转stm32-高级篇5、3.2寸液晶显示(中英文+图片).
stm32图片动态显示（Mini32单片机）.zip
05-08
使用取模软件，将图片取模放入数组，在通过显示函数显示到TFTLCD液晶显示屏上，本例程可直接下载到Mini 32单片机开发板上使用。
如何使用STM32指南者LCD显示图片
qq_44941069的博客
10-07 1万+
一、上面是不完整的程序，包括LCD GPIO的初始化，FSMC模拟时序结构体的设计还有写命令函数与写数据函数，这些函数都可以在B站上找到源程序，完成这些之后，接下来要说的是如何获得图片的十六进制，就是使用下面的LCD程序（如图） 下载之后打开，然后选择和我一样的配置（如图） 二、 然后保存在桌面，他就会自动生成笔记本形式的二进制，键盘按下Ctrl+a选择全部，然后复制到程序里面当做数组、 三、然后写入LCD显示函数，这个函数的意思是打开窗口（可有可...
[手把手教学]零基础学会STM32 LCD显示图片
m0_51812091的博客
04-09 4786
[新手推荐] 手把手教学 零基础学习STM32开发板的LCD显示图片步骤，欢迎大家讨论
【STM32】LCD液晶显示
weixin_63726869的博客
09-05 2万+
介绍了LCD液晶显示原理，FSMC的配置，代码实现，以及英文字符字模和字库的制作。
stm32驱动TFTLCD液晶屏显示图片+汉字（快速上手，只教怎么用，不讲原理！）
热门推荐
weixin_46323814的博客
08-30 4万+
这几天在学STM32，基于正点原子开发板和视频教程，TFTLCD能显示字符和汉字，但是原子哥没有提供显示图片的例程，有一个搭边的，但是基于SD卡的，所以索性自己写了一个显示图片的函数其实显示字符和汉字是通过点阵的方式来实现的，显示图片也是一个道理，要将图片转成点阵。...............
STM32LCD液晶屏显示二值图片
weixin_43823679的博客
02-12 5424
基本原理 这几天在学STM32，基于正点原子的开发板和视频教程，TFTLCD能显示字符和汉字，那么能不能显示图片，看看下文你就知道答案了。 其实显示字符和汉字是通过点阵的方式来实现的，显示图片也是一个道理，要将图片转成点阵。 将图片转成点阵 假设有这么一张图片 用MATLAB转换成二值图像 代码如下： f=imread('索隆.jpg'); I=im2bw(f); I=imresize(I, [...
stm32连接LCD显示图片原理
03-08
### STM32连接LCD显示图片的工作原理 STM32微控制器与LCD显示屏之间的交互主要依赖于液晶控制器的作用。当STM32需要向LCD发送图像数据时，实际上并不是直接操作像素点，而是通过指令集控制液晶控制器完成这一过程[^1]。 具体来说，在准备阶段，STM32会初始化配置参数并设置好通信接口（如SPI、IIC或8位/16位总线），以便能够按照预定协议与液晶控制器建立联系。之后，STM32可以发出特定命令来设定屏幕属性，比如分辨率大小、色彩模式等；接着就是传送实际要展示的画面内容——即RGB颜色值序列给到液晶控制器内部的帧缓冲区(Frame Buffer)。 一旦这些原始图像数据被送入帧缓冲区内存区域后，就由硬件层面负责后续处理工作了。液晶控制器依据预先定义好的刷新频率周期性读取该内存中的信息，并将其转换成适合驱动TFT-LCD面板所需的电信号形式输出去点亮对应的子像素单元，从而最终呈现出完整的视觉效果出来。 ```c // 初始化LCD模块函数示例代码 void LCD_Init(void){ // 配置GPIO端口作为LCD接口使用 GPIO_Configuration(); // 设置LCD控制器基本参数 LCD_Controller_Setup(); // 清除整个屏幕内容 Clear_Screen(); } // 发送单个字符至指定位置显示 void PutChar(char ch, uint16_t x_pos, uint16_t y_pos){ // 将ASCII码映射为字体图案矩阵... } ``` 上述C语言片段展示了如何编写程序以启动和管理LCD设备。`LCD_Init()`用于执行必要的初始化任务，而`PutChar()`则提供了一种简单的方法把单独的文字放置在屏幕上任意坐标处。当然这只是简化版的例子，真实应用中可能涉及到更多细节上的考量以及更复杂的逻辑结构设计。
评论 32
添加红包

请填写红包祝福语或标题

个

红包个数最小为10个

元

红包金额最低5元

当前余额3.43元 前往充值 >
需支付：10.00元
成就一亿技术人!
领取后你会自动成为博主和红包主的粉丝 规则
hope_wisdom
发出的红包
实付元
使用余额支付
点击重新获取
扫码支付
钱包余额 0

抵扣说明：

1.余额是钱包充值的虚拟货币，按照1:1的比例进行支付金额的抵扣。
2.余额无法直接购买下载，可以购买VIP、付费专栏及课程。

余额充值
