前言
参加工作的时候需要用到boost库来处理图形,因此想写一下某些函数的使用方法,于人于己都方便。但是由于个人能力有限,所以有一些地方理解的较为片面还清多多谅解。如果能对你有所帮助,那就再好不过了。(注:英文目录后没带中文解释的都是还未探索的)
boost库的使用方法
- 前言
- Access Functions(访问方法)
- Adapted models
- Algorithms(算法部分)
- area(面积计算)
- assign
- append
- azimuth(方位角计算)
- buffer
- centroid(质心计算)
- clear(清除)
- closest_points
- convert
- convex_hull(最小凸多边形)
- correct(纠正图形)
- covered_by(覆盖检测)
- crosses(交叉检测)
- densify(增加点的密度)
- difference(计算两个几何图形的差)
- discrete_frechet_distance
- discrete_hausdorff_distance
- disjoint(检查两个几何图形是否不相交)
- distance(计算两个几何图形之间的距离)
- envelope
- equals(相等判断)
- expand
- for_each
- intersection(计算两个几何图形的交点)
- intersects
- is_empty
- is_simple
- is_valid
- length
- line_interpolate(计算直线上固定距离的点)
- make
- num_geometries
- num_interior_rings
- num_points
- num_segments
- overlaps(检查两个几何图形是否重叠)
- perimeter(求周长)
- relate
- relation
- reverse(改变几何体的顺逆时针)
- simplify
- sym_difference
- touches(检查图形是否存在接触点)
- transform
- union_(叠加两个几何图形)
- unique(计算几何图形的最小集合)
- within(检查第一个几何体是否完全在第二个几何体内部)
- Arithmetic(计算部分)
- Concepts(概念部分)
- Constants
- Coordinate Systems
- Core Metafunctions(核心元函数)
- DE-9IM
- Enumerations
- Exceptions
- IO (input/output)
- Iterators
- Models
- Spatial Indexes
- SRS
- Strategies
- Views
Access Functions(访问方法)
get(获得点的坐标)
下面为我经常使用的点坐标的获得方法
#include <iostream>
#include <boost/geometry.hpp>
#include <boost/geometry/geometries/point_xy.hpp>
namespace bg = boost::geometry;
int main()
{
bg::model::d2::point_xy<double> point(1, 2);//初始化pointd的坐标为(1.0,2.0)
double x = bg::get<0>(point);
double y = bg::get<1>(point);
std::cout << "x=" << x << " y=" << y << std::endl;
return 0;
}
输出
x=1 y=2
#include <iostream>
#include <boost/geometry.hpp>
namespace bg = boost::geometry;
int main()
{
bg::model::point<double, 2, bg::cs::cartesian> point1;//构造一个笛卡尔坐标系下的二维点
bg::model::point<double, 3, bg::cs::cartesian> point2(1.0, 2.0, 3.0);
//构造一个笛卡尔坐标系下的三维点,并进行初始化
bg::set<0>(point1, 1.0);//设置point1的横坐标
point1.set<1>(2.0);//设置point1的纵坐标
double x = bg::get<0>(point1);//获得point1的横坐标
double y = point1.get<1>();//获得point1的纵坐标
std::cout << x << ", " << y << std::endl;
return 0;
}
输出
1, 2
set(设置坐标)
设置点的坐标
下面为我经常使用的点坐标的设置方法
#include <iostream>
#include <boost/geometry.hpp>
#include <boost/geometry/geometries/point_xy.hpp>
namespace bg = boost::geometry;
int main()
{
bg::model::d2::point_xy<double> point;
bg::set<0>(point, 1);
bg::set<1>(point, 2);
std::cout << "Location: " << bg::dsv(point) << std::endl;
return 0;
}
输出
Location: (1, 2)
#include <iostream>
#include <boost/geometry.hpp>
namespace bg = boost::geometry;
int main()
{
bg::model::point<double, 2, bg::cs::cartesian> point1;//构造一个笛卡尔坐标系下的二维点
bg::model::point<double, 3, bg::cs::cartesian> point2(1.0, 2.0, 3.0);
//构造一个笛卡尔坐标系下的三维点,并进行初始化
bg::set<0>(point1, 1.0);//设置point1的横坐标
point1.set<1>(2.0);//设置point1的纵坐标
double x = bg::get<0>(point1);//获得point1的横坐标
double y = point1.get<1>();//获得point1的纵坐标
std::cout << x << ", " << y << std::endl;
return 0;
}
输出
1, 2
设置线段
#include <iostream>
#include <boost/geometry.hpp>
#include <boost/geometry/geometries/geometries.hpp>
namespace bg = boost::geometry;
int main()
{
typedef bg::model::point<double, 2, bg::cs::cartesian> point_t;
typedef bg::model::segment<point_t> segment_t;
segment_t seg1;
segment_t seg2(point_t(0.0, 0.0), point_t(5.0, 5.0));
#ifndef BOOST_NO_CXX11_UNIFIED_INITIALIZATION_SYNTAX
segment_t seg3{{0.0, 0.0}, {5.0, 5.0}};
#endif
bg::set<0, 0>(seg1, 1.0);
bg::set<0, 1>(seg1, 2.0);
bg::set<1, 0>(seg1, 3.0);
bg::set<1, 1>(seg1, 4.0);
double x0 = bg::get<0, 0>(seg1);
double y0 = bg::get<0, 1>(seg1);
double x1 = bg::get<1, 0>(seg1);
double y1 = bg::get<1, 1>(seg1);
std::cout << x0 << ", " << y0 << ", " << x1 << ", " << y1 << std::endl;
return 0;
}
输出
1, 2, 3, 4
设置矩形
#include <iostream>
#include <boost/geometry.hpp>
#include <boost/geometry/geometries/point_xy.hpp>
namespace bg = boost::geometry;
int main()
{
bg::model::segment<bg::model::d2::point_xy<double> > segment;
bg::set<bg::>(segment);
bg::model::box<bg::model::d2::point_xy<double> > box;
bg::set<bg::min_corner, 0>(box, 0);
bg::set<bg::min_corner, 1>(box, 2);
bg::set<bg::max_corner, 0>(box, 4);
bg::set<bg::max_corner, 1>(box, 5);
std::cout << "Extent: " << bg::dsv(box) << std::endl;
return 0;
}
输出
Extent: ((0, 2), (4, 5))
exterior_ring
interior_rings
Adapted models
C array
C++11 Array Container
Boost.Array
Boost.Fusion
Boost.Tuple
Boost.Polygon
Boost.Range
Macro’s for adaption
Algorithms(算法部分)
area(面积计算)
计算一个几何图形的面积
支持的几何图形:
点、线段、矩形、直线、圆环、多边形、多点、多直线、多多边形、
#include <iostream>
#include <boost/geometry.hpp>
#include <boost/geometry/geometries/point_xy.hpp>
#include <boost/geometry/geometries/polygon.hpp>
namespace bg = boost::geometry;
int main()
{
//计算多边形面积
bg::model::polygon<bg::model::d2::point_xy<double> > poly;
bg::read_wkt("POLYGON((0 0,0 7,4 2,2 0,0 0))", poly);
double area = bg::area(poly);
std::cout << "Area: " << area << std::endl;
//计算球面多边形面积
bg::model::polygon<bg::model::point<float, 2, bg::cs::spherical_equatorial<bg::degree> > > sph_poly;
bg::read_wkt("POLYGON((0 0,0 45,45 0,0 0))", sph_poly);
area = bg::area(sph_poly);
std::cout << "Area: " << area << std::endl;
return 0;
}
输出
Area: 16
Area: 0.339837
assign
append
azimuth(方位角计算)
#include <iostream>
#include <boost/geometry.hpp>
#include <boost/geometry/geometries/point_xy.hpp>
int main()
{
typedef boost::geometry::model::d2::point_xy<double> point_type;
point_type p1(0, 0);
point_type p2(1, 1);
auto azimuth = boost::geometry::azimuth(p1, p2);
std::cout << "azimuth: " << azimuth << std::endl;
return 0;
}
输出
azimuth: 0.785398
buffer
centroid(质心计算)
#include <iostream>
#include <list>
#include <boost/geometry.hpp>
#include <boost/geometry/geometries/point_xy.hpp>
#include <boost/geometry/geometries/polygon.hpp>
int main()
{
typedef boost::geometry::model::d2::point_xy<double> point_type;
typedef boost::geometry::model::polygon<point_type> polygon_type;
polygon_type poly;
boost::geometry::read_wkt(
"POLYGON((2 1.3,2.4 1.7,2.8 1.8,3.4 1.2,3.7 1.6,3.4 2,4.1 3,5.3 2.6,5.4 1.2,4.9 0.8,2.9 0.7,2 1.3)"
"(4.0 2.0, 4.2 1.4, 4.8 1.9, 4.4 2.2, 4.0 2.0))", poly);
point_type p;
boost::geometry::centroid(poly, p);
std::cout << "centroid: " << boost::geometry::dsv(p) << std::endl;
return 0;
}
输出
centroid: (4.04663, 1.6349)
clear(清除)
#include <iostream>
#include <boost/geometry.hpp>
#include <boost/geometry/geometries/polygon.hpp>
#include <boost/geometry/geometries/ring.hpp>
#include <boost/geometry/geometries/adapted/boost_tuple.hpp>
BOOST_GEOMETRY_REGISTER_BOOST_TUPLE_CS(cs::cartesian)
#include <boost/assign.hpp>
int main()
{
using boost::assign::tuple_list_of;
typedef boost::tuple<float, float> point;
typedef boost::geometry::model::polygon<point> polygon;
typedef boost::geometry::model::ring<point> ring;
polygon poly;
//创建一个多边形
poly.outer() = tuple_list_of(0, 0)(0, 9)(10, 10)(0, 0);
poly.inners().push_back(tuple_list_of(1, 2)(4, 6)(2, 8)(1, 2));
std::cout << boost::geometry::dsv(poly) << std::endl;
boost::geometry::clear(poly);
std::cout << boost::geometry::dsv(poly) << std::endl;
//创建一个圆环
ring r = tuple_list_of(0, 0)(0, 9)(8, 8)(0, 0);
std::cout << boost::geometry::dsv(r) << std::endl;
boost::geometry::clear(r);
std::cout << boost::geometry::dsv(r) << std::endl;
return 0;
}
输出
(((0, 0), (0, 10), (11, 11), (0, 0)), ((0, 0), (0, 10), (11, 11), (0, 0)))
(())
((0, 0), (0, 9), (8, 8), (0, 0))
()
closest_points
convert

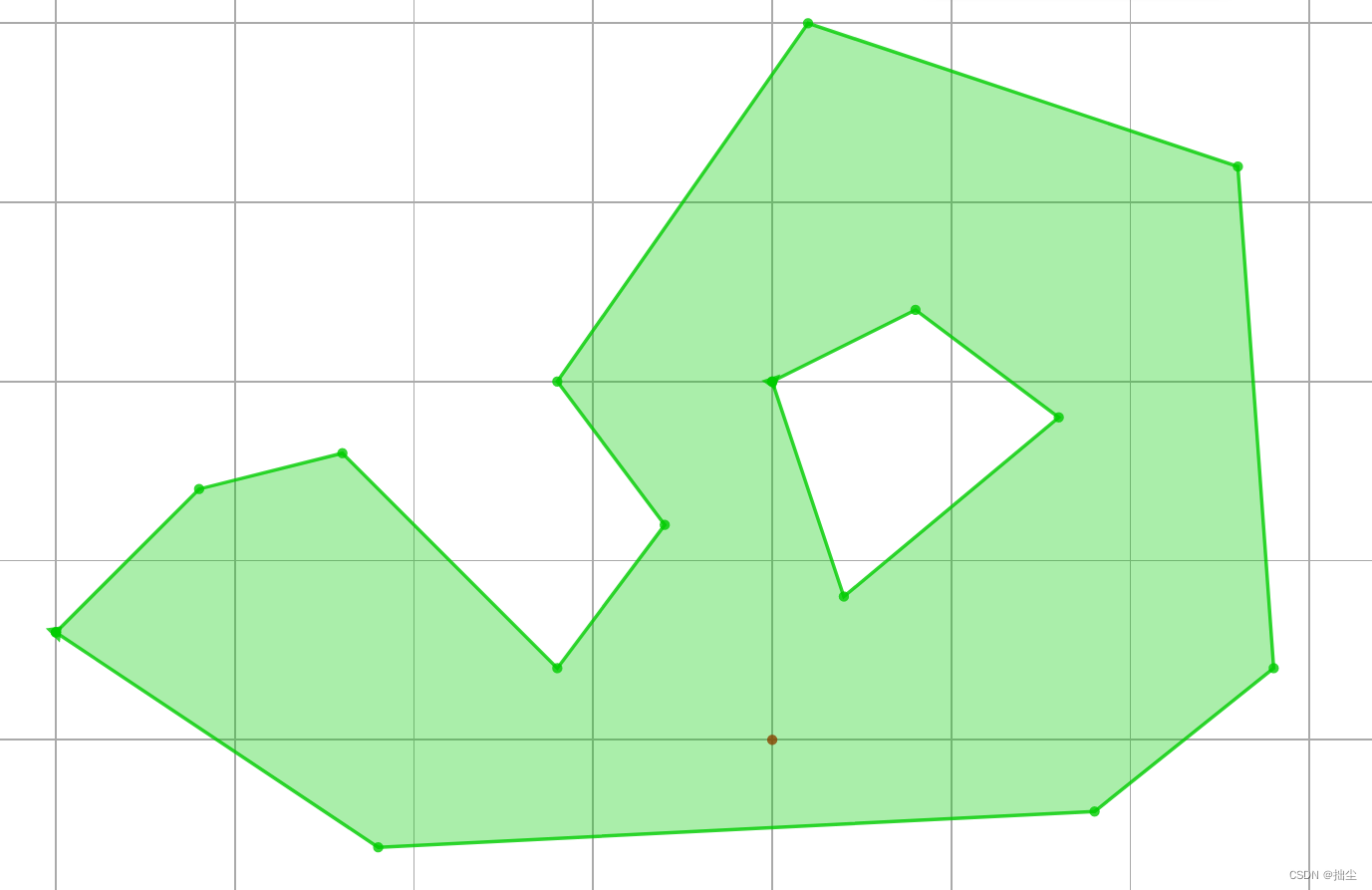

convex_hull(最小凸多边形)
#include <iostream>
#include <boost/geometry.hpp>
#include <boost/geometry/geometries/polygon.hpp>
#include <boost/geometry/geometries/adapted/boost_tuple.hpp>
BOOST_GEOMETRY_REGISTER_BOOST_TUPLE_CS(cs::cartesian)
int main()
{
namespace bg=boost::geometry;
typedef bg::model::point<double, 2, bg::cs::cartesian> point;
typedef bg::model::polygon<point> polygon;
polygon poly;
boost::geometry::read_wkt("polygon((2.0 1.3, 2.4 1.7, 2.8 1.8, 3.4 1.2, 3.7 1.6,3.4 2.0, 4.1 3.0"
", 5.3 2.6, 5.4 1.2, 4.9 0.8, 2.9 0.7,2.0 1.3))", poly);
polygon hull;
boost::geometry::convex_hull(poly, hull);
using boost::geometry::dsv;
std::cout
<< "polygon: " << dsv(poly) << std::endl
<< "hull: " << dsv(hull) << std::endl;
return 0;
}
输出
polygon: (((2, 1.3), (2.4, 1.7), (2.8, 1.8), (3.4, 1.2), (3.7, 1.6), (3.4, 2), (4.1, 3), (5.3, 2.6), (5.4, 1.2), (4.9, 0.8), (2.9, 0.7), (2, 1.3)))
hull: (((2, 1.3), (2.4, 1.7), (4.1, 3), (5.3, 2.6), (5.4, 1.2), (4.9, 0.8), (2.9, 0.7), (2, 1.3)))
correct(纠正图形)
将图形修正成,外部顺时针,内部逆时针,对于凹多边形也适用。
#include <iostream>
#include <boost/geometry.hpp>
#include <boost/geometry/geometries/polygon.hpp>
#include <boost/geometry/geometries/adapted/boost_tuple.hpp>
BOOST_GEOMETRY_REGISTER_BOOST_TUPLE_CS(cs::cartesian)
using namespace std;
namespace bg = boost::geometry;
typedef bg::model::d2::point_xy<double> point_t;
typedef bg::model::segment<point_t> segment_t;
typedef bg::model::linestring<point_t> line_t;
typedef bg::model::polygon<point_t> polygon_t;
typedef bg::model::multi_point<point_t> mpoint_t;
typedef bg::model::multi_linestring<line_t> mline_t;
typedef bg::model::multi_polygon<polygon_t> mpolygon_t;
typedef bg::strategy::transform::rotate_transformer<bg::radian,double,2,2> rotate_t;
int main()
{

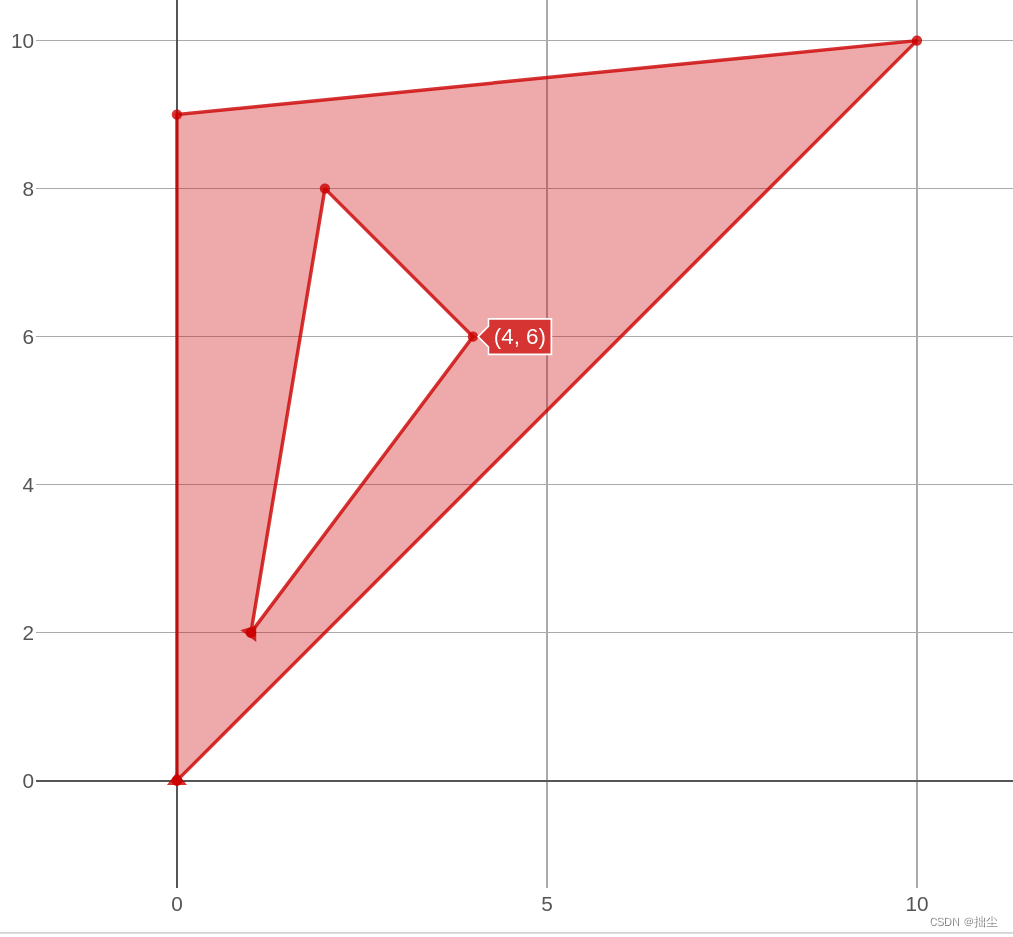

polygon_t cwcp={{{0,0},{10,10},{0,9}},{{1,2},{4,6},{2,8},{1,2}}};
double area_before = boost::geometry::area(cwcp);
boost::geometry::correct(cwcp);
double area_after = boost::geometry::area(cwcp);
std::cout << boost::geometry::dsv(cwcp) << std::endl;
std::cout << area_before << " -> " << area_after << std::endl;
return 0;
}
输出
(((0, 0), (0, 9), (10, 10), (0, 0)), ((1, 2), (4, 6), (2, 8), (1, 2)))
-7 -> 38
#include <iostream>
#include <boost/geometry.hpp>
#include <boost/geometry/geometries/polygon.hpp>
#include <boost/geometry/geometries/adapted/boost_tuple.hpp>
BOOST_GEOMETRY_REGISTER_BOOST_TUPLE_CS(cs::cartesian)
using namespace std;
namespace bg = boost::geometry;
typedef bg::model::d2::point_xy<double> point_t;
typedef bg::model::segment<point_t> segment_t;
typedef bg::model::linestring<point_t> line_t;
typedef bg::model::polygon<point_t> polygon_t;
typedef bg::model::multi_point<point_t> mpoint_t;
typedef bg::model::multi_linestring<line_t> mline_t;
typedef bg::model::multi_polygon<polygon_t> mpolygon_t;
typedef bg::strategy::transform::rotate_transformer<bg::radian,double,2,2> rotate_t;
int main()
{

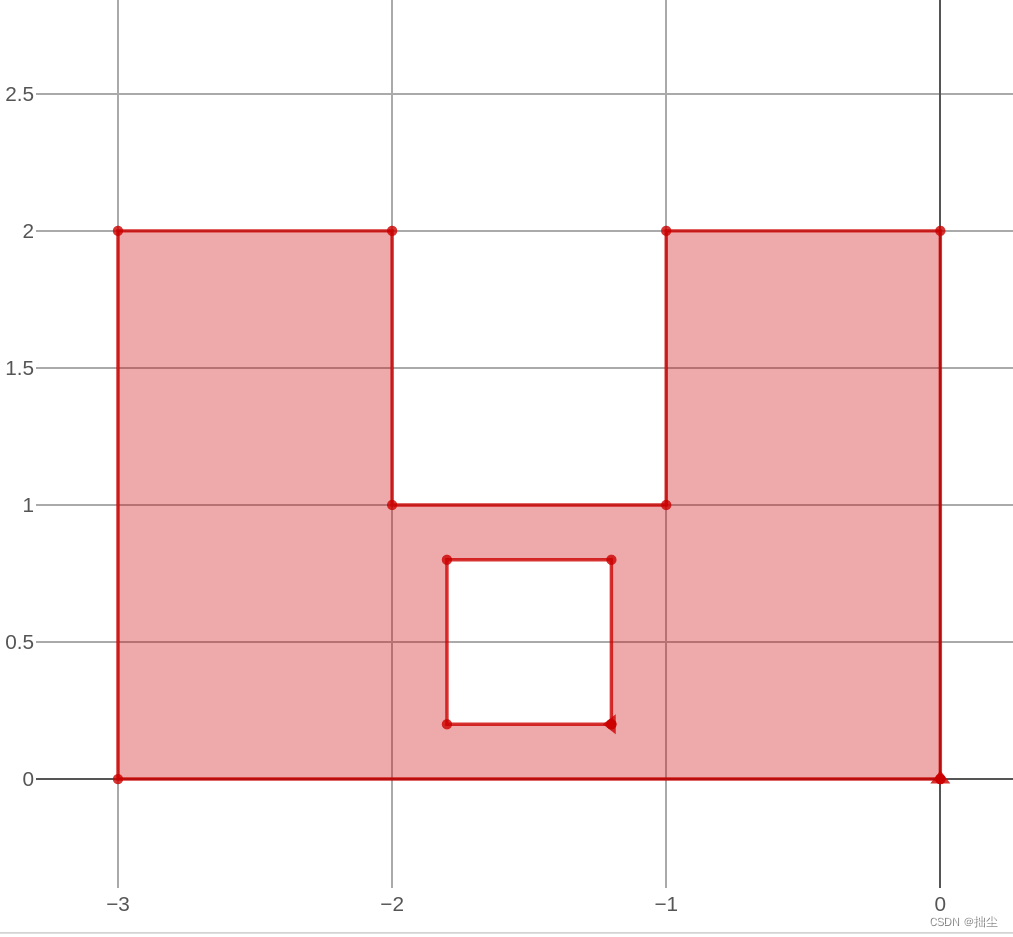

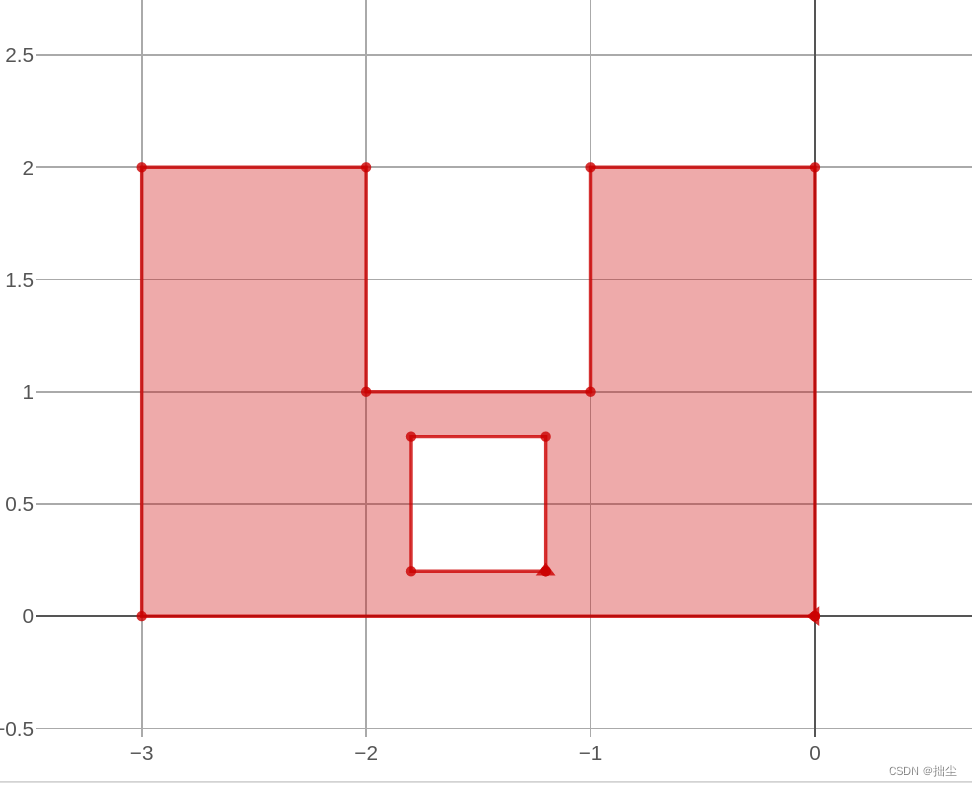

polygon_t cwcp={{{0,0},{0,2},{-1,2},{-1,1},{-2,1},{-2,2},{-3,2},{-3,0}},{{-1.2,0.2},{-1.8,0.2},{-1.8,0.8},{-1.2,0.8}}};
double area_before = boost::geometry::area(cwcp);
// Correct it!
boost::geometry::correct(cwcp);
// Check its new area
double area_after = boost::geometry::area(cwcp);
// And output it
std::cout << boost::geometry::dsv(cwcp) << std::endl;
std::cout << area_before << " -> " << area_after << std::endl;
return 0;
}
输出
(((0, 0), (-3, 0), (-3, 2), (-2, 2), (-2, 1), (-1, 1), (-1, 2), (0, 2), (0, 0)), ((-1.2, 0.2), (-1.2, 0.8), (-1.8, 0.8), (-1.8, 0.2), (-1.2, 0.2)))
-3.92 -> 4.64
covered_by(覆盖检测)
几何体 | 点 | 线段 | 矩形 | 直线 | 圆环 | 多边形 | 多点 | 多直线 | 多多边形 |
---|---|---|---|---|---|---|---|---|---|
点 | ✓ | x | x | x | x | x | x | x | x |
线段 | ✓ | x | x | x | x | x | x | x | x |
矩形 | ✓ | x | ✓ | x | x | x | x | x | x |
直线 | ✓ | x | x | ✓ | x | x | x | ✓ | x |
圆环 | ✓ | x | x | ✓ | ✓ | ✓ | x | ✓ | ✓ |
多边形 | ✓ | x | x | ✓ | ✓ | ✓ | x | ✓ | ✓ |
多点 | ✓ | x | x | x | x | x | x | x | x |
多直线 | ✓ | x | x | ✓ | x | x | x | ✓ | x |
多多边形 | ✓ | x | x | ✓ | ✓ | ✓ | x | ✓ | ✓ |
#include <iostream>
#include <boost/geometry.hpp>
#include <boost/geometry/geometries/point_xy.hpp>
#include <boost/geometry/geometries/polygon.hpp>
namespace bg = boost::geometry;
int main()
{
//检查poly1是否在poly2的内部或边界上
bg::model::polygon<bg::model::d2::point_xy<double> > poly1;
bg::read_wkt("POLYGON((0 2,0 3,2 4,1 2,0 2))", poly1);
bg::model::polygon<bg::model::d2::point_xy<double> > poly2;
bg::read_wkt("POLYGON((0 4,3 4,2 2,0 1,0 4))", poly2);
bool check_covered = bg::covered_by(poly1, poly2);
if (check_covered) {
std::cout << "Covered: Yes" << std::endl;
} else {
std::cout << "Covered: No" << std::endl;
}
bg::model::polygon<bg::model::d2::point_xy<double> > poly3;
bg::read_wkt("POLYGON((-1 -1,-3 -4,-7 -7,-4 -3,-1 -1))", poly3);
check_covered = bg::covered_by(poly1, poly3);
if (check_covered) {
std::cout << "Covered: Yes" << std::endl;
} else {
std::cout << "Covered: No" << std::endl;
}
//两个图形重合也算在内部
check_covered = bg::covered_by(poly1, poly1);
if (check_covered) {
std::cout << "Covered: Yes" << std::endl;
} else {
std::cout << "Covered: No" << std::endl;
}
return 0;
}
输出
Covered: Yes
Covered: No
Covered: Yes
crosses(交叉检测)
几何体 | 点 | 线段 | 矩形 | 直线 | 圆环 | 多边形 | 多点 | 多直线 | 多多边形 |
---|---|---|---|---|---|---|---|---|---|
点 | x | x | x | ✓ | ✓ | ✓ | x | ✓ | ✓ |
线段 | x | x | x | x | x | x | x | x | x |
矩形 | x | x | x | x | x | x | x | x | x |
直线 | ✓ | x | x | ✓ | x | x | x | ✓ | x |
圆环 | ✓ | x | x | ✓ | x | x | x | ✓ | x |
多边形 | ✓ | x | x | ✓ | x | x | x | ✓ | x |
多点 | x | x | x | x | x | x | x | x | x |
多直线 | ✓ | x | x | ✓ | x | x | x | ✓ | x |
多多边形 | ✓ | x | x | ✓ | x | x | x | ✓ | x |
#include <iostream>
#include <boost/geometry.hpp>
#include <boost/geometry/geometries/point_xy.hpp>
#include <boost/geometry/geometries/polygon.hpp>
namespace bg = boost::geometry;
int main()
{

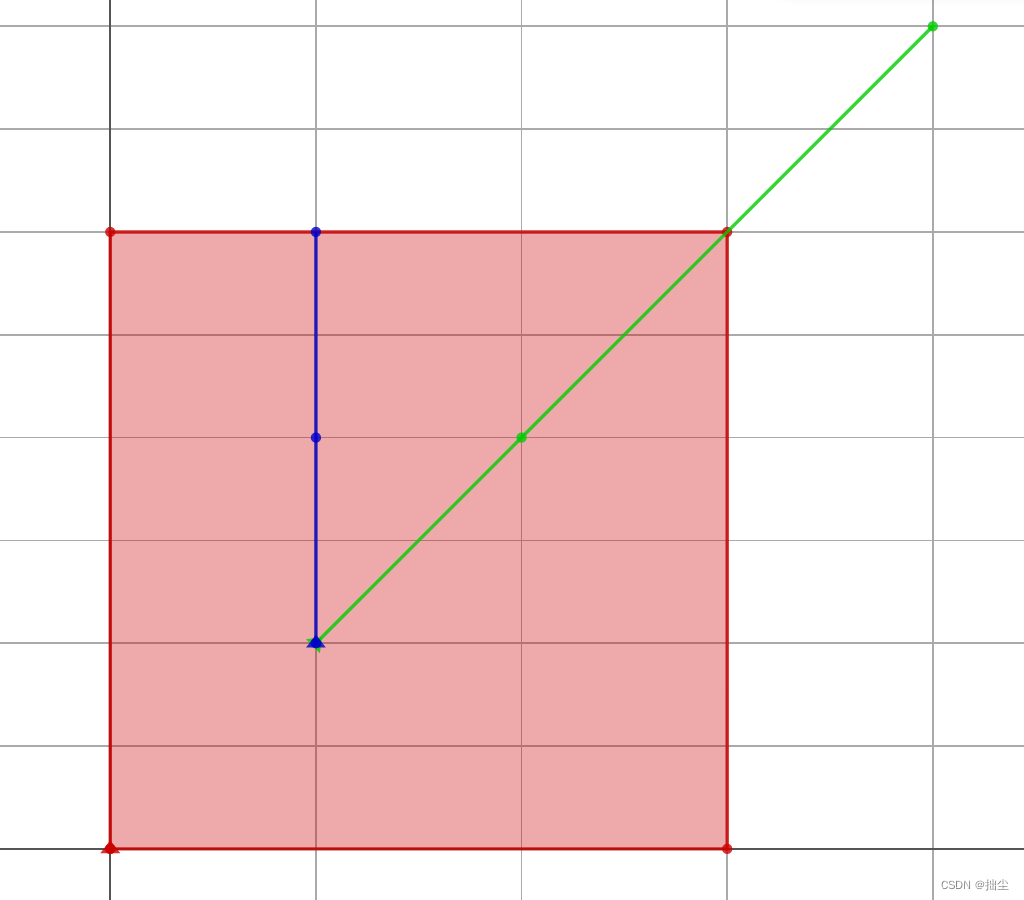

//检查两个几何图形是否相交
bg::model::polygon<bg::model::d2::point_xy<double> > poly;
bg::read_wkt("POLYGON((0 0,0 3,3 3,3 0,0 0))", poly);
bg::model::linestring<bg::model::d2::point_xy<double> > line1;
bg::read_wkt("LINESTRING(1 1,2 2,4 4)", line1);
bool check_crosses = bg::crosses(poly, line1);
if (check_crosses) {
std::cout << "Crosses: Yes" << std::endl;
} else {
std::cout << "Crosses: No" << std::endl;
}
//;两个图形只接触不算交叉
bg::model::linestring<bg::model::d2::point_xy<double> > line2;
bg::read_wkt("LINESTRING(1 1,1 2,1 3)", line2);
check_crosses = bg::crosses(poly, line2);
if (check_crosses) {
std::cout << "Crosses: Yes" << std::endl;
} else {
std::cout << "Crosses: No" << std::endl;
}
return 0;
}
输出
Crosses: Yes
Crosses: No

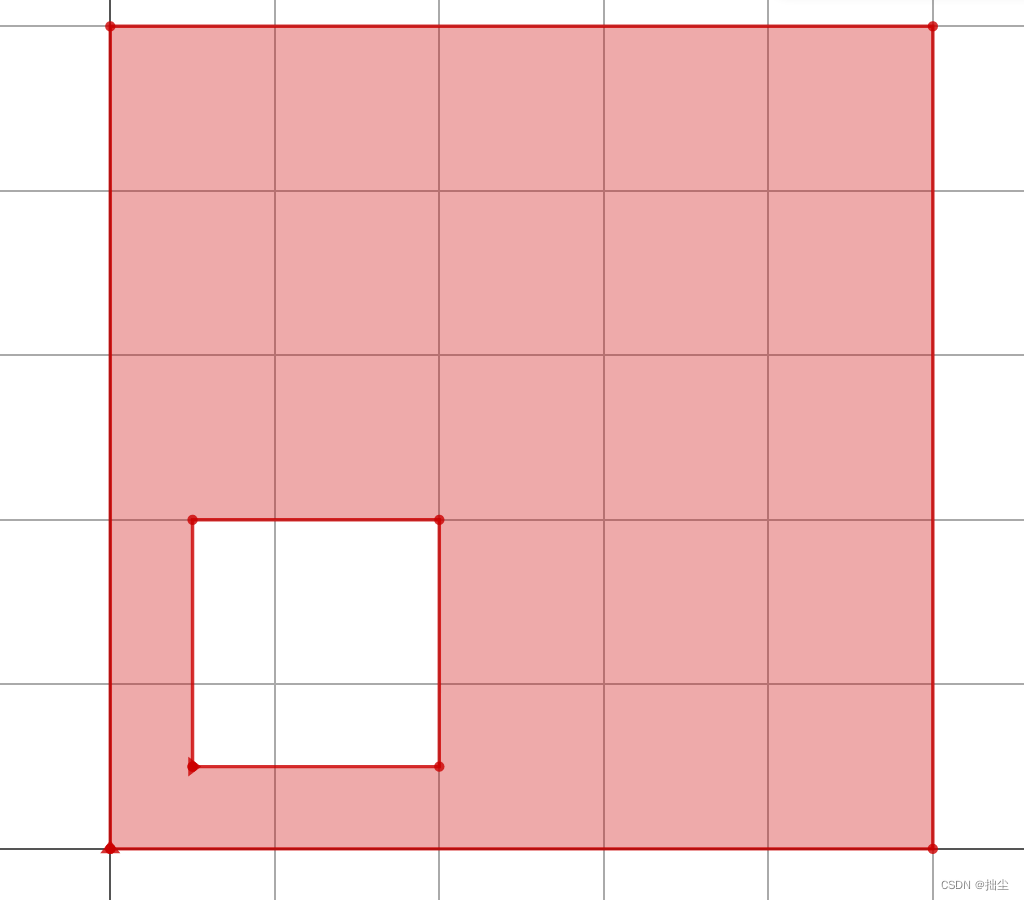

densify(增加点的密度)
#include <iostream>
#include <boost/geometry.hpp>
#include <boost/geometry/geometries/point_xy.hpp>
#include <boost/geometry/geometries/polygon.hpp>
int main()
{
typedef boost::geometry::model::d2::point_xy<double> point_type;
typedef boost::geometry::model::polygon<point_type> polygon_type;
polygon_type poly;
boost::geometry::read_wkt(
"POLYGON((0 0,0 10,10 10,10 0,0 0),(1 1,4 1,4 4,1 4,1 1))", poly);
polygon_type res;
boost::geometry::densify(poly, res, 1.5);
std::cout << "densified: " << boost::geometry::wkt(res) << std::endl;
return 0;
}
输出
densified: POLYGON((0 0,0 1.42857,0 2.85714,0 4.28571,0 5.71429,0 7.14286,0 8.57143,0 10,1.42857 10,2.85714 10,4.28571 10,5.71429 10,7.14286 10,8.57143 10,10 10,10 8.57143,10 7.14286,10 5.71429,10 4.28571,10 2.85714,10 1.42857,10 0,8.57143 0,7.14286 0,5.71429 0,4.28571 0,2.85714 0,1.42857 0,0 0),(1 1,2 1,3 1,4 1,4 2,4 3,4 4,3 4,2 4,1 4,1 3,1 2,1 1))

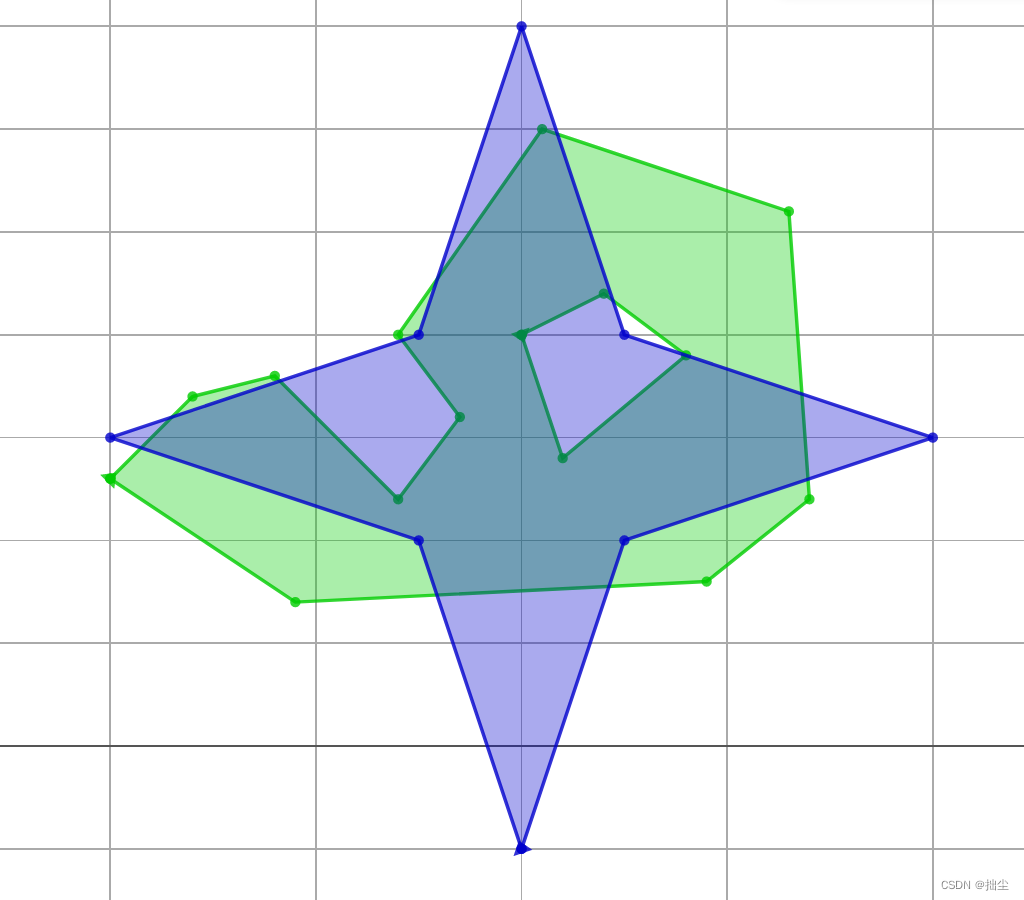

difference(计算两个几何图形的差)
#include <iostream>
#include <list>
#include <boost/geometry.hpp>
#include <boost/geometry/geometries/point_xy.hpp>
#include <boost/geometry/geometries/polygon.hpp>
#include <boost/foreach.hpp>
int main()
{
typedef boost::geometry::model::polygon<boost::geometry::model::d2::point_xy<double> > polygon;
polygon green, blue;
boost::geometry::read_wkt(
"POLYGON((2 1.3,2.4 1.7,2.8 1.8,3.4 1.2,3.7 1.6,3.4 2,4.1 3,5.3 2.6,5.4 1.2,4.9 0.8,2.9 0.7,2 1.3)"
"(4.0 2.0, 4.2 1.4, 4.8 1.9, 4.4 2.2, 4.0 2.0))", green);
boost::geometry::read_wkt(
"POLYGON((4.0 -0.5 , 3.5 1.0 , 2.0 1.5 , 3.5 2.0 , 4.0 3.5 , 4.5 2.0 , 6.0 1.5 , 4.5 1.0 , 4.0 -0.5))", blue);
std::list<polygon> output;
boost::geometry::difference(green, blue, output);
int i = 0;
std::cout << "green - blue:" << std::endl;
BOOST_FOREACH(polygon const& p, output)
{
std::cout << i++ << ": " << boost::geometry::area(p) << std::endl;
}
output.clear();
boost::geometry::difference(blue, green, output);
i = 0;
std::cout << "blue - green:" << std::endl;
BOOST_FOREACH(polygon const& p, output)
{
std::cout << i++ << ": " << boost::geometry::area(p) << std::endl;
}
return 0;
}
输出
green - blue:
0: 0.02375
1: 0.542951
2: 0.0149697
3: 0.226855
4: 0.839424

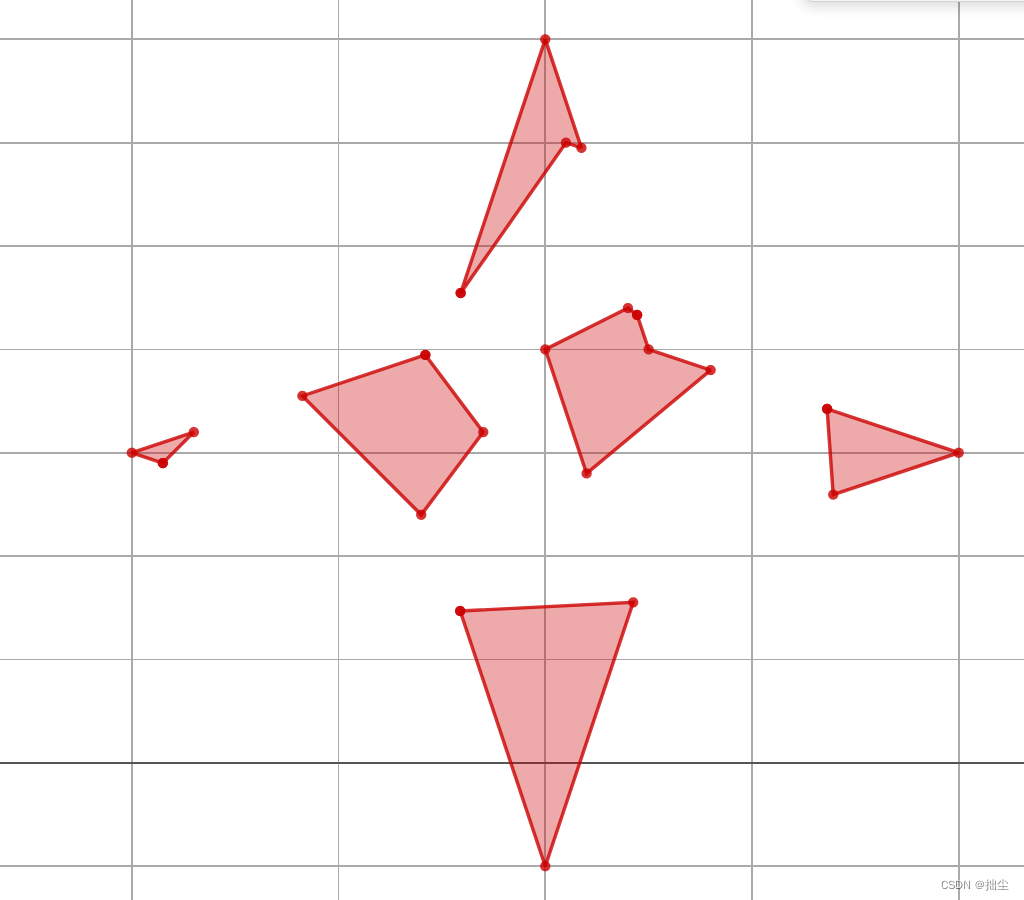

blue - green:
0: 0.525154
1: 0.015
2: 0.181136
3: 0.128798
4: 0.340083
5: 0.307778
discrete_frechet_distance
discrete_hausdorff_distance

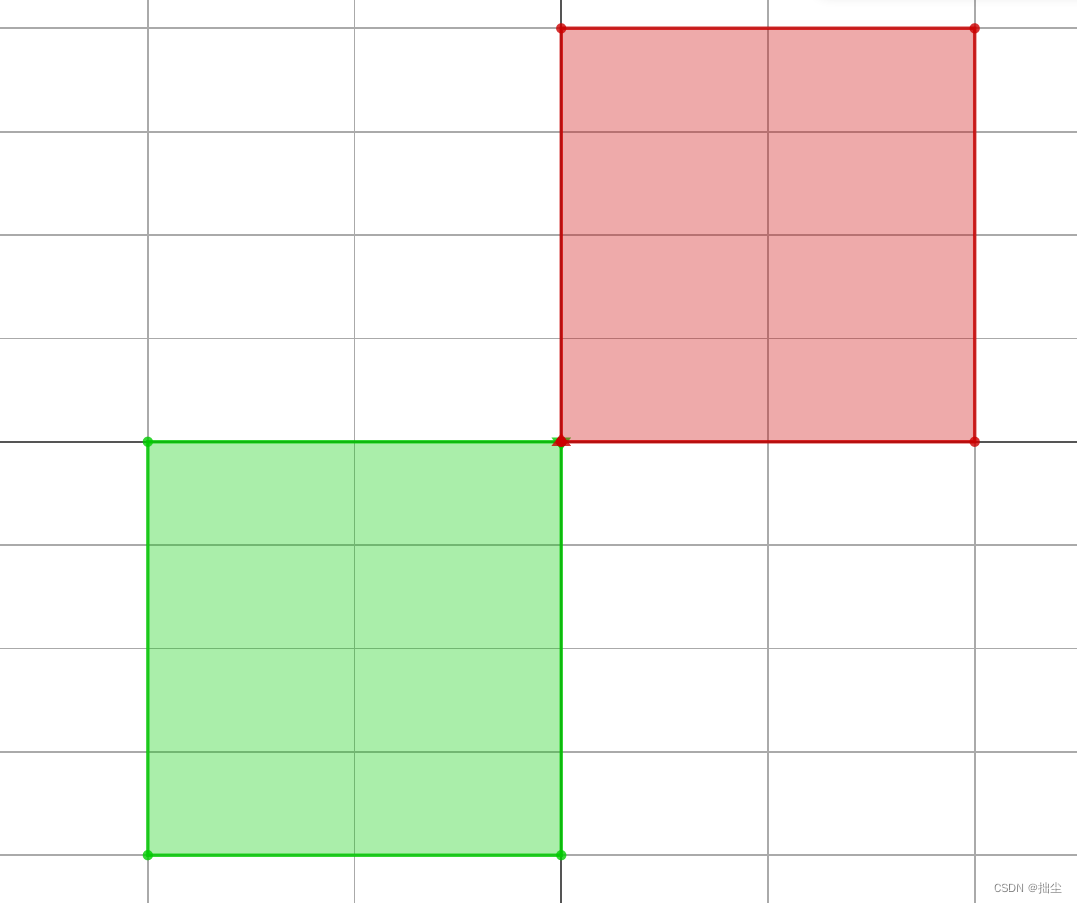

disjoint(检查两个几何图形是否不相交)
几何体 | 点 | 线段 | 矩形 | 直线 | 圆环 | 多边形 | 多点 | 多直线 | 多多边形 |
---|---|---|---|---|---|---|---|---|---|
点 | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
线段 | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
矩形 | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
直线 | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
圆环 | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | x | ✓ | ✓ |
多边形 | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | x | ✓ | ✓ |
多点 | ✓ | ✓ | ✓ | ✓ | x | x | ✓ | ✓ | x |
多直线 | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
多多边形 | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | x | ✓ | ✓ |
#include <iostream>
#include <boost/geometry.hpp>
#include <boost/geometry/geometries/point_xy.hpp>
#include <boost/geometry/geometries/polygon.hpp>
namespace bg = boost::geometry;
int main()
{
//检查两个几何是否不相交
bg::model::polygon<bg::model::d2::point_xy<double> > poly1;
bg::read_wkt("POLYGON((0 2,-2 0,-4 2,-2 4,0 2))", poly1);
bg::model::polygon<bg::model::d2::point_xy<double> > poly2;
bg::read_wkt("POLYGON((2 2,4 4,6 2,4 0,2 2))", poly2);
bool check_disjoint = bg::disjoint(poly1, poly2);
if (check_disjoint) {
std::cout << "Disjoint: Yes" << std::endl;
} else {
std::cout << "Disjoint: No" << std::endl;
}
bg::model::polygon<bg::model::d2::point_xy<double> > poly3;
bg::read_wkt("POLYGON((0 2,2 4,4 2,2 0,0 2))", poly3);
check_disjoint = bg::disjoint(poly1, poly3);
if (check_disjoint) {
std::cout << "Disjoint: Yes" << std::endl;
} else {
std::cout << "Disjoint: No" << std::endl;
}
return 0;
}
输出
Disjoint: Yes
Disjoint: No
distance(计算两个几何图形之间的距离)
几何体 | 点 | 线段 | 矩形 | 直线 | 圆环 | 多边形 | 多点 | 多直线 | 多多边形 |
---|---|---|---|---|---|---|---|---|---|
点 | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
线段 | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
矩形 | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
直线 | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
圆环 | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
多边形 | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
多点 | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
多直线 | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
多多边形 | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
#include <iostream>
#include <list>
#include <boost/geometry.hpp>
#include <boost/geometry/geometries/linestring.hpp>
#include <boost/geometry/geometries/point_xy.hpp>
#include <boost/geometry/geometries/polygon.hpp>
#include <boost/geometry/geometries/multi_point.hpp>
#include <boost/geometry/geometries/multi_polygon.hpp>
#include <boost/foreach.hpp>
int main()
{
typedef boost::geometry::model::d2::point_xy<double> point_type;
typedef boost::geometry::model::polygon<point_type> polygon_type;
typedef boost::geometry::model::linestring<point_type> linestring_type;
typedef boost::geometry::model::multi_point<point_type> multi_point_type;
point_type p(1,2);
polygon_type poly;
linestring_type line;
multi_point_type mp;
boost::geometry::read_wkt(
"POLYGON((2 1.3,2.4 1.7,2.8 1.8,3.4 1.2,3.7 1.6,3.4 2,4.1 3,5.3 2.6,5.4 1.2,4.9 0.8,2.9 0.7,2 1.3)"
"(4.0 2.0, 4.2 1.4, 4.8 1.9, 4.4 2.2, 4.0 2.0))", poly);
line.push_back(point_type(0,0));
line.push_back(point_type(0,3));
mp.push_back(point_type(0,0));
mp.push_back(point_type(3,3));
std::cout
<< "Point-Poly: " << boost::geometry::distance(p, poly) << std::endl
<< "Point-Line: " << boost::geometry::distance(p, line) << std::endl
<< "Point-MultiPoint: " << boost::geometry::distance(p, mp) << std::endl;
return 0;
}
输出
Point-Poly: 1.22066
Point-Line: 1
Point-MultiPoint: 2.23607
envelope
equals(相等判断)
检查两个几何图形是否在空间上相等
几何体 | 点 | 线段 | 矩形 | 直线 | 圆环 | 多边形 | 多点 | 多直线 | 多多边形 |
---|---|---|---|---|---|---|---|---|---|
点 | ✓ | x | x | x | x | x | x | x | x |
线段 | x | x | x | x | x | x | x | x | x |
矩形 | x | x | ✓ | x | ✓ | ✓ | x | x | x |
直线 | x | x | x | ✓ | x | x | x | ✓ | x |
圆环 | x | x | ✓ | x | ✓ | ✓ | x | x | x |
多边形 | x | x | ✓ | x | ✓ | ✓ | x | x | ✓ |
多点 | x | x | x | x | x | x | x | x | x |
多直线 | x | x | x | ✓ | x | x | x | ✓ | x |
多多边形 | x | x | x | x | x | ✓ | x | x | ✓ |
#include <iostream>
#include <boost/geometry.hpp>
#include <boost/geometry/geometries/polygon.hpp>
#include <boost/geometry/geometries/adapted/boost_tuple.hpp>
BOOST_GEOMETRY_REGISTER_BOOST_TUPLE_CS(cs::cartesian)
#include <boost/assign.hpp>
int main()
{
using boost::assign::tuple_list_of;
typedef boost::tuple<int, int> point;
boost::geometry::model::polygon<point> poly1, poly2;
boost::geometry::exterior_ring(poly1) = tuple_list_of(0, 0)(0, 5)(5, 5)(5, 0)(0, 0);
boost::geometry::exterior_ring(poly2) = tuple_list_of(5, 0)(0, 0)(0, 5)(5, 5)(5, 0);
std::cout
<< "polygons are spatially "
<< (boost::geometry::equals(poly1, poly2) ? "equal" : "not equal")
<< std::endl;
boost::geometry::model::box<point> box;
boost::geometry::assign_values(box, 0, 0, 5, 5);
std::cout
<< "polygon and box are spatially "
<< (boost::geometry::equals(box, poly2) ? "equal" : "not equal")
<< std::endl;
return 0;
}
输出
polygons are spatially equal
polygon and box are spatially equal
expand
for_each

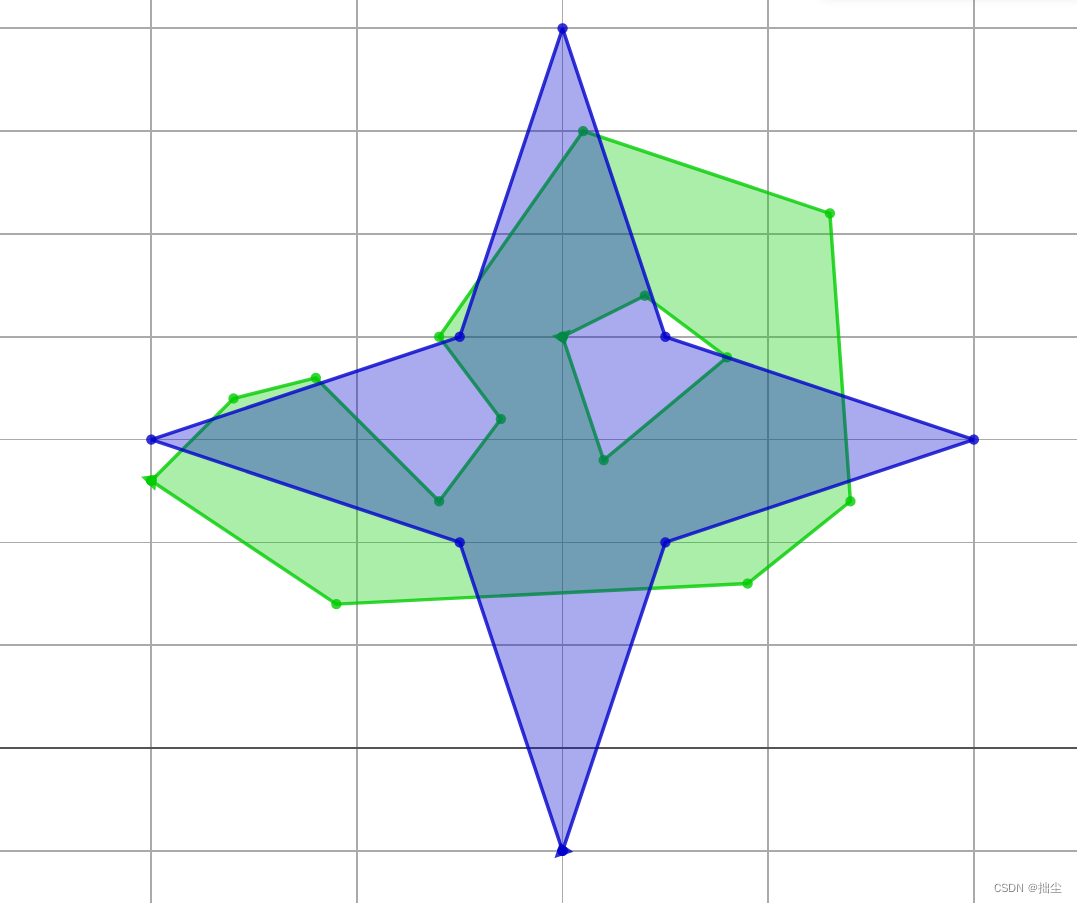

intersection(计算两个几何图形的交点)
#include <iostream>
#include <deque>
#include <boost/geometry.hpp>
#include <boost/geometry/geometries/point_xy.hpp>
#include <boost/geometry/geometries/polygon.hpp>
#include <boost/foreach.hpp>
int main()
{
typedef boost::geometry::model::polygon<boost::geometry::model::d2::point_xy<double> > polygon;
polygon green, blue;
boost::geometry::read_wkt(
"POLYGON((2 1.3,2.4 1.7,2.8 1.8,3.4 1.2,3.7 1.6,3.4 2,4.1 3,5.3 2.6,5.4 1.2,4.9 0.8,2.9 0.7,2 1.3)"
"(4.0 2.0, 4.2 1.4, 4.8 1.9, 4.4 2.2, 4.0 2.0))", green);
boost::geometry::read_wkt(
"POLYGON((4.0 -0.5 , 3.5 1.0 , 2.0 1.5 , 3.5 2.0 , 4.0 3.5 , 4.5 2.0 , 6.0 1.5 , 4.5 1.0 , 4.0 -0.5))", blue);
std::deque<polygon> output;
boost::geometry::intersection(green, blue, output);
int i = 0;
std::cout << "green && blue:" << std::endl;
BOOST_FOREACH(polygon const& p, output)
{
std::cout << i++ << ": " << boost::geometry::area(p) << std::endl;
}
return 0;
}
输出
green && blue:
0: 2.50205
intersects
is_empty
is_simple
is_valid
length

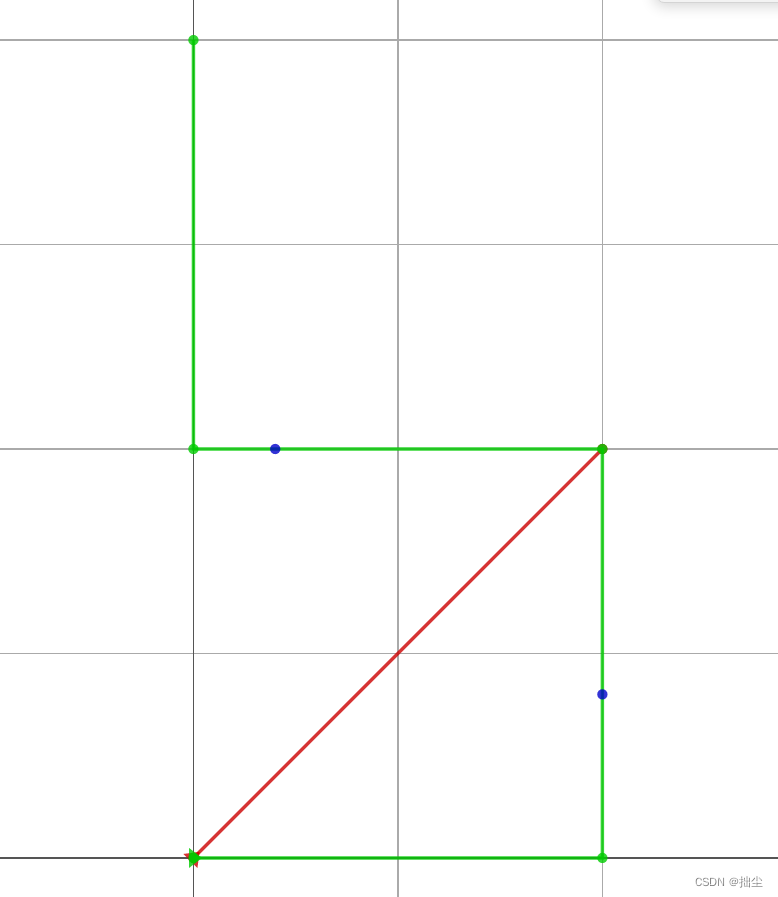

line_interpolate(计算直线上固定距离的点)
#include <iostream>
#include <boost/geometry.hpp>
#include <boost/geometry/geometries/point_xy.hpp>
using namespace boost::geometry;
int main()
{
typedef boost::geometry::model::d2::point_xy<double> point_type;
using segment_type = model::segment<point_type>;
using linestring_type = model::linestring<point_type>;
using multipoint_type = model::multi_point<point_type>;

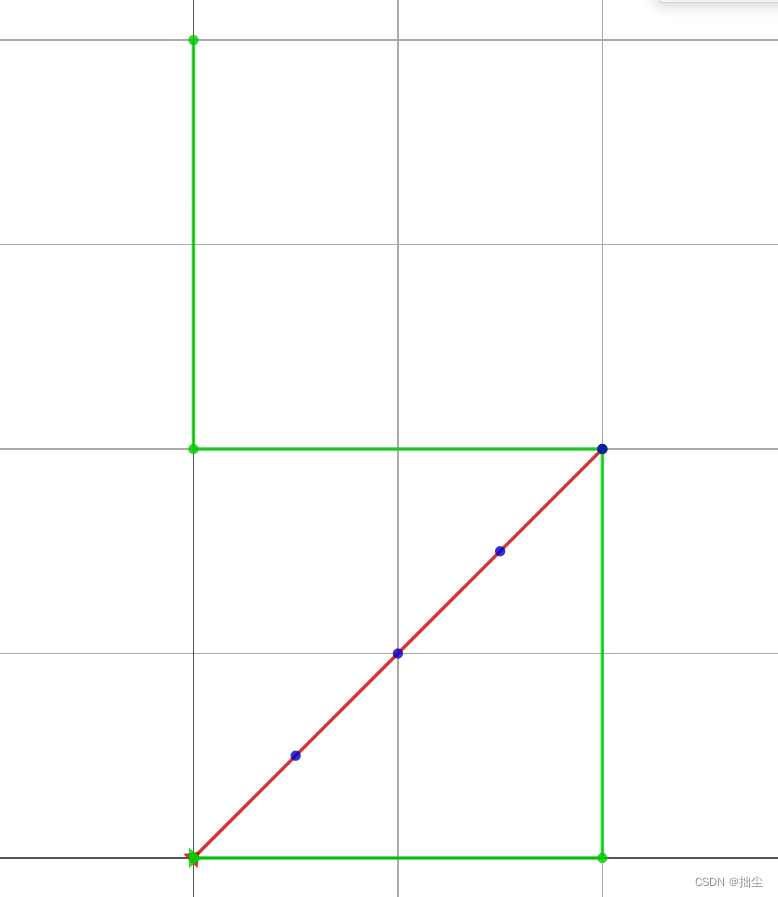

segment_type const s { {0, 0}, {1, 1} };//线段s
linestring_type const l { {0, 0}, {1, 0}, {1, 1}, {0, 1}, {0, 2} };//直线l
point_type p;
multipoint_type mp;
std::cout << "point interpolation" << std::endl;
line_interpolate(s, std::sqrt(2)/4, p);//计算距离起点(0,0)长度为√2的点的坐标,记录在点p中
std::cout << "on segment : " << wkt(p) << std::endl;
line_interpolate(l, 1.4, p);//计算距离起点(0,0)长度为1.4的点的坐标,记录在点p中
std::cout << "on linestring : " << wkt(p) << std::endl << std::endl;
std::cout << "multipoint interpolation" << std::endl;
line_interpolate(s, std::sqrt(2)/4, mp);//计算距离起点(0,0)到终点(1,1)间距为√2的点的坐标,记录在点集mp中
std::cout << "on segment : " << wkt(mp) << std::endl;
mp=multipoint_type();
line_interpolate(l, 1.4, mp);//计算距离起点(0,0)到终点(0,2)间距为√2的点的坐标,记录在点集mp中
std::cout << "on linestring : " << wkt(mp) << std::endl;
return 0;
}
输出
point interpolation
on segment : POINT(0.25 0.25)
on linestring : POINT(1 0.4)
multipoint interpolation
on segment : MULTIPOINT((0.25 0.25),(0.5 0.5),(0.75 0.75),(1 1))
on linestring : MULTIPOINT((1 0.4),(0.2 1))
make
num_geometries
num_interior_rings
num_points
num_segments
overlaps(检查两个几何图形是否重叠)
几何体 | 点 | 线段 | 矩形 | 直线 | 圆环 | 多边形 | 多点 | 多直线 | 多多边形 |
---|---|---|---|---|---|---|---|---|---|
点 | ✓ | x | x | x | x | x | ✓ | x | x |
线段 | x | x | x | x | x | x | x | x | x |
矩形 | x | x | ✓ | x | x | x | x | x | x |
直线 | x | x | x | ✓ | x | x | x | ✓ | x |
圆环 | x | x | x | x | ✓ | ✓ | x | x | ✓ |
多边形 | x | x | x | x | ✓ | ✓ | x | x | ✓ |
多点 | ✓ | x | x | x | x | x | ✓ | x | x |
多直线 | x | x | x | ✓ | x | x | x | ✓ | x |
多多边形 | x | x | x | x | ✓ | ✓ | x | x | ✓ |
#include <iostream>
#include <boost/geometry.hpp>
#include <boost/geometry/geometries/point_xy.hpp>
#include <boost/geometry/geometries/polygon.hpp>
namespace bg = boost::geometry;
int main()
{
// Checks if the two geometries overlaps or not.
bg::model::polygon<bg::model::d2::point_xy<double> > poly1;
bg::read_wkt("POLYGON((0 0,0 4,4 4,4 0,0 0))", poly1);
bg::model::polygon<bg::model::d2::point_xy<double> > poly2;
bg::read_wkt("POLYGON((2 2,2 6,6 7,6 1,2 2))", poly2);
bool check_overlap = bg::overlaps(poly1, poly2);
if (check_overlap) {
std::cout << "Overlaps: Yes" << std::endl;
} else {
std::cout << "Overlaps: No" << std::endl;
}
bg::model::polygon<bg::model::d2::point_xy<double> > poly3;
bg::read_wkt("POLYGON((-1 -1,-3 -4,-7 -7,-4 -3,-1 -1))", poly3);
check_overlap = bg::overlaps(poly1, poly3);
if (check_overlap) {
std::cout << "Overlaps: Yes" << std::endl;
} else {
std::cout << "Overlaps: No" << std::endl;
}
return 0;
}
输出
Overlaps: Yes
Overlaps: No
perimeter(求周长)
#include <iostream>
#include <boost/geometry.hpp>
#include <boost/geometry/geometries/point_xy.hpp>
#include <boost/geometry/geometries/polygon.hpp>
namespace bg = boost::geometry;
int main()
{
// Calculate the perimeter of a cartesian polygon
bg::model::polygon<bg::model::d2::point_xy<double> > poly;
bg::read_wkt("POLYGON((0 0,3 4,5 -5,-2 -4, 0 0))", poly);
double perimeter = bg::perimeter(poly);
std::cout << "Perimeter: " << perimeter << std::endl;
return 0;
}
输出
Perimeter: 25.7627
relate
relation
reverse(改变几何体的顺逆时针)
几何体 | 结果 |
---|---|
点 | 什么都没有发生,几何形状不变 |
线段 | 不支持旋转操作 |
矩形 | 什么都没有发生,几何形状不变 |
直线 | 方向变为反向 |
圆环 | 方向变为反向 |
多边形 | 外环和所有内环方向均变为反向 |
多点 | 什么都没有发生,几何形状不变 |
多直线 | 单独反转所有的线 |
多多边形 | 单独反转所有的多边形 |
#include <iostream>
#include <boost/geometry.hpp>
#include <boost/geometry/geometries/polygon.hpp>
#include <boost/geometry/geometries/ring.hpp>
#include <boost/geometry/geometries/adapted/boost_tuple.hpp>
BOOST_GEOMETRY_REGISTER_BOOST_TUPLE_CS(cs::cartesian)
#include <boost/assign.hpp>
int main()
{
using boost::assign::tuple_list_of;
typedef boost::tuple<int, int> point;
typedef boost::geometry::model::polygon<point> polygon;
typedef boost::geometry::model::ring<point> ring;
polygon poly;
boost::geometry::exterior_ring(poly) = tuple_list_of(0, 0)(0, 9)(10, 10)(0, 0);
boost::geometry::interior_rings(poly).push_back(tuple_list_of(1, 2)(4, 6)(2, 8)(1, 2));
double area_before = boost::geometry::area(poly);
boost::geometry::reverse(poly);
double area_after = boost::geometry::area(poly);
std::cout << boost::geometry::dsv(poly) << std::endl;
std::cout << area_before << " -> " << area_after << std::endl;
ring r = tuple_list_of(0, 0)(0, 9)(8, 8)(0, 0);
area_before = boost::geometry::area(r);
boost::geometry::reverse(r);
area_after = boost::geometry::area(r);
std::cout << boost::geometry::dsv(r) << std::endl;
std::cout << area_before << " -> " << area_after << std::endl;
return 0;
}
输出
(((0, 0), (10, 10), (0, 9), (0, 0)), ((1, 2), (2, 8), (4, 6), (1, 2)))
38 -> -38
((0, 0), (8, 8), (0, 9), (0, 0))
36 -> -36
simplify
sym_difference
touches(检查图形是否存在接触点)
touches (检测是否自交)
#include <iostream>
#include <boost/geometry.hpp>
#include <boost/geometry/geometries/point_xy.hpp>
#include <boost/geometry/geometries/polygon.hpp>
namespace bg = boost::geometry;
int main()
{
// Checks if the geometry has self-tangency.
bg::model::polygon<bg::model::d2::point_xy<double> > poly1;
bg::read_wkt("POLYGON((0 0,0 3,2 3,2 2,1 2,1 1,2 1,2 2,3 2,3 0,0 0))", poly1);
bool check_touches = bg::touches(poly1);
if (check_touches) {
std::cout << "Touches: Yes" << std::endl;
} else {
std::cout << "Touches: No" << std::endl;
}
bg::model::polygon<bg::model::d2::point_xy<double> > poly2;
bg::read_wkt("POLYGON((0 0,0 4,4 4,4 0,2 3,0 0))", poly2);
check_touches = bg::touches(poly2);
if (check_touches) {
std::cout << "Touches: Yes" << std::endl;
} else {
std::cout << "Touches: No" << std::endl;
}
return 0;
}
输出
Touches: Yes
Touches: No
touches (检查两个几何图形是否至少有一个接触点)
#include <iostream>
#include <boost/geometry.hpp>
#include <boost/geometry/geometries/point_xy.hpp>
#include <boost/geometry/geometries/polygon.hpp>
namespace bg = boost::geometry;
int main()
{
//检查两个几何图形是否接触
bg::model::polygon<bg::model::d2::point_xy<double> > poly1;
bg::read_wkt("POLYGON((0 0,0 4,4 4,4 0,0 0))", poly1);
bg::model::polygon<bg::model::d2::point_xy<double> > poly2;
bg::read_wkt("POLYGON((0 0,0 -4,-4 -4,-4 0,0 0))", poly2);
bool check_touches = bg::touches(poly1, poly2);
if (check_touches) {
std::cout << "Touches: Yes" << std::endl;
} else {
std::cout << "Touches: No" << std::endl;
}
bg::model::polygon<bg::model::d2::point_xy<double> > poly3;
bg::read_wkt("POLYGON((1 1,0 -4,-4 -4,-4 0,1 1))", poly3);
check_touches = bg::touches(poly1, poly3);
if (check_touches) {
std::cout << "Touches: Yes" << std::endl;
} else {
std::cout << "Touches: No" << std::endl;
}
return 0;
}
输出
Touches: Yes
Touches: No
transform

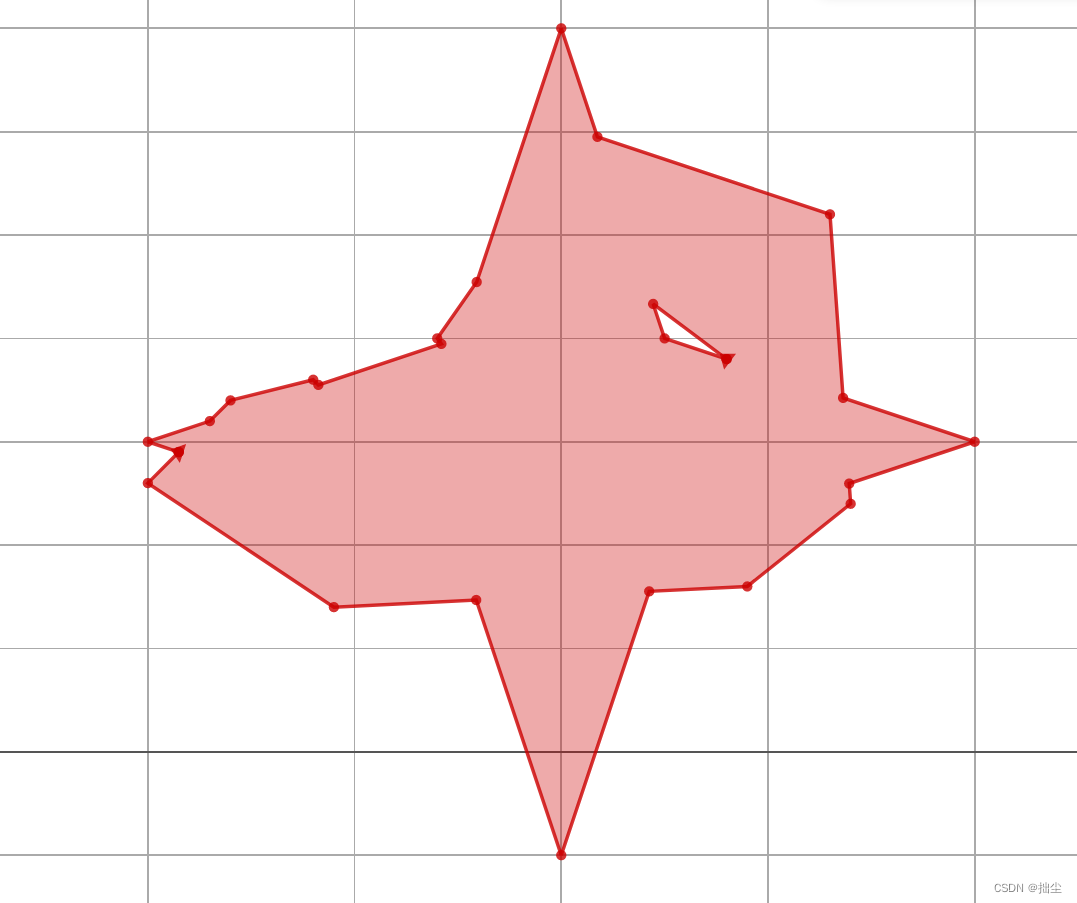

union_(叠加两个几何图形)
#include <iostream>
#include <vector>
#include <boost/geometry.hpp>
#include <boost/geometry/geometries/point_xy.hpp>
#include <boost/geometry/geometries/polygon.hpp>
#include <boost/foreach.hpp>
int main()
{
typedef boost::geometry::model::polygon<boost::geometry::model::d2::point_xy<double> > polygon;
polygon green, blue;
boost::geometry::read_wkt(
"POLYGON((2 1.3,2.4 1.7,2.8 1.8,3.4 1.2,3.7 1.6,3.4 2,4.1 3,5.3 2.6,5.4 1.2,4.9 0.8,2.9 0.7,2 1.3)"
"(4.0 2.0, 4.2 1.4, 4.8 1.9, 4.4 2.2, 4.0 2.0))", green);
boost::geometry::read_wkt(
"POLYGON((4.0 -0.5 , 3.5 1.0 , 2.0 1.5 , 3.5 2.0 , 4.0 3.5 , 4.5 2.0 , 6.0 1.5 , 4.5 1.0 , 4.0 -0.5))", blue);
std::vector<polygon> output;
boost::geometry::union_(green, blue, output);
int i = 0;
std::cout << "green || blue:" << std::endl;
BOOST_FOREACH(polygon const& p, output)
{
std::cout << i++ << ": " << boost::geometry::area(p) << std::endl;
}
return 0;
}
输出
green || blue:
0: 5.64795
unique(计算几何图形的最小集合)
#include <iostream>
#include <boost/geometry.hpp>
#include <boost/geometry/geometries/polygon.hpp>
#include <boost/geometry/geometries/adapted/boost_tuple.hpp>
BOOST_GEOMETRY_REGISTER_BOOST_TUPLE_CS(cs::cartesian)
int main()
{
boost::geometry::model::polygon<boost::tuple<double, double> > poly;
boost::geometry::read_wkt("POLYGON((0 0,0 0,0 5,5 5,5 5,5 5,5 0,5 0,0 0,0 0,0 0,0 0))", poly);
boost::geometry::unique(poly);//去掉重复的点
std::cout << boost::geometry::wkt(poly) << std::endl;
return 0;
}
输出
POLYGON((0 0,0 5,5 5,5 0,0 0))
within(检查第一个几何体是否完全在第二个几何体内部)
几何体 | 点 | 线段 | 矩形 | 直线 | 圆环 | 多边形 | 多点 | 多直线 | 多多边形 |
---|---|---|---|---|---|---|---|---|---|
点 | ✓ | x | x | x | x | x | x | x | x |
线段 | ✓ | x | x | x | x | x | x | x | x |
矩形 | ✓ | x | ✓ | x | x | x | x | x | x |
直线 | ✓ | x | x | ✓ | x | x | x | ✓ | x |
圆环 | ✓ | x | x | ✓ | ✓ | ✓ | x | ✓ | ✓ |
多边形 | ✓ | x | x | ✓ | ✓ | ✓ | x | ✓ | ✓ |
多点 | ✓ | x | x | x | x | x | x | x | x |
多直线 | ✓ | x | x | ✓ | x | x | x | ✓ | x |
多多边形 | ✓ | x | x | ✓ | ✓ | ✓ | x | ✓ | ✓ |
#include <iostream>
#include <list>
#include <boost/geometry.hpp>
#include <boost/geometry/geometries/point_xy.hpp>
#include <boost/geometry/geometries/polygon.hpp>
int main()
{
typedef boost::geometry::model::d2::point_xy<double> point_type;
typedef boost::geometry::model::polygon<point_type> polygon_type;
polygon_type poly;
boost::geometry::read_wkt(
"POLYGON((2 1.3,2.4 1.7,2.8 1.8,3.4 1.2,3.7 1.6,3.4 2,4.1 3,5.3 2.6,5.4 1.2,4.9 0.8,2.9 0.7,2 1.3)"
"(4.0 2.0, 4.2 1.4, 4.8 1.9, 4.4 2.2, 4.0 2.0))", poly);
point_type p(4, 1);
std::cout << "within: " << (boost::geometry::within(p, poly) ? "yes" : "no") << std::endl;
return 0;
}
输出
within: yes
Arithmetic(计算部分)
add_point
add_value
assign_point
assign_value
cross_product
cross_product
divide_point
divide_value
dot_product
multiply_point
multiply_value
subtract_point
subtract_value
Concepts(概念部分)
Point Concept(点的概念)
每一个点类型,必须包含下述部分
点的类型(是点类型,而不是圆环、多边形等)
点的坐标类型,如 :(1,2) (1.1,5.0)
点的坐标系,如:笛卡尔坐标系、球面坐标系等
点的维度
点坐标的设置函数
点坐标的获取函数
Linestring Concept
Polygon Concept
MultiPoint Concept
MultiLinestring Concept
MultiPolygon Concept
Box Concept
Ring Concept
Segment Concept
Constants
min_corner
max_corner
Coordinate Systems
cs::cartesian
cs::spherical
cs::spherical_equatorial
cs::geographic
Core Metafunctions(核心元函数)
closure
coordinate_system
coordinate_type
cs_tag
degree
dimension
interior_type
point_order
point_type
radian
ring_type
tag
tag_cast
DE-9IM
de9im::mask
de9im::matrix
de9im::static_mask
Enumerations
buffer_side_selector
closure_selector
join_selector
order_selector
piece_type
result_code
validity_failure_type
Exceptions
exception
centroid_exception
IO (input/output)
DSV (Delimiter-Separated Values)
WKT (Well-Known Text)
SVG (Scalable Vector Graphics)
Iterators
closing_iterator
ever_circling_iterator
Models
model::point
model::d2::point_xy
model::d3::point_xyz
model::linestring
model::polygon
model::multi_point
model::multi_linestring
model::multi_polygon
model::box
model::ring
model::segment
model::referring_segment
Spatial Indexes
boost::geometry::index::rtree
R-tree free functions (boost::geometry::index::)
R-tree parameters (boost::geometry::index::)
Observers (boost::geometry::index::)
Inserters (boost::geometry::index::)
Adaptors (boost::geometry::index::adaptors::)
Predicates (boost::geometry::index::)
SRS
srs::spheroid
Strategies
strategy::area::cartesian
strategy::area::spherical
strategy::area::geographic
strategy::buffer::join_round
strategy::buffer::join_miter
strategy::buffer::end_round
strategy::buffer::end_flat
strategy::buffer::distance_symmetric
strategy::buffer::distance_asymmetric
strategy::buffer::point_circle
strategy::buffer::point_square
strategy::buffer::geographic_point_circle
strategy::buffer::side_straight
strategy::centroid::average
strategy::centroid::bashein_detmer
strategy::densify::cartesian
strategy::densify::geographic
strategy::densify::spherical
strategy::distance::pythagoras
strategy::distance::pythagoras_box_box
strategy::distance::pythagoras_point_box
strategy::distance::haversine
strategy::distance::projected_point
strategy::distance::cross_track
strategy::distance::cross_track_point_box
strategy::line_interpolate::cartesian
strategy::line_interpolate::geographic
strategy::line_interpolate::spherical
strategy::side::side_by_triangle
strategy::side::side_by_cross_track
strategy::side::spherical_side_formula
strategy::side::geographic
strategy::simplify::douglas_peucker
strategy::transform::inverse_transformer
strategy::transform::map_transformer
strategy::transform::rotate_transformer(直角坐标系下的旋转)
红色l1,绿色l2,蓝色l3。
l3为l2绕原点旋转l1的角度
#include <iostream>
#include <boost/geometry.hpp>
#include <boost/geometry/geometries/polygon.hpp>
#include <boost/geometry/geometries/adapted/boost_tuple.hpp>
BOOST_GEOMETRY_REGISTER_BOOST_TUPLE_CS(cs::cartesian)
using namespace std;
namespace bg=boost::geometry;
typedef bg::model::d2::point_xy<double> point_t;
typedef bg::model::segment<point_t> segment_t;
typedef bg::model::linestring<point_t> line_t;
typedef bg::model::polygon<point_t> polygon_t;
typedef bg::model::multi_polygon<polygon_t> mpolygon_t;
typedef bg::strategy::transform::rotate_transformer<boost::geometry::radian, double, 2UL, 2UL> rotate_t;
int main()
{
line_t l1={{0,0},{1,1}},l2={{2,0},{3,1}},l3;
rotate_t rotate(0);
rotate={std::atan2(l1[1].y()-l1[0].y(),l1[1].x()-l1[0].x())};
bg::transform(l2,l3,rotate);
return 0;
}
strategy::transform::scale_transformer
strategy::transform::translate_transformer
strategy::transform::matrix_transformer
strategy::within::winding
strategy::within::franklin
strategy::within::crossings_multiply
Views
box_view
segment_view
closeable_view
reversible_view
identity_view
