vue 鼠标拖动选取框进行截图功能

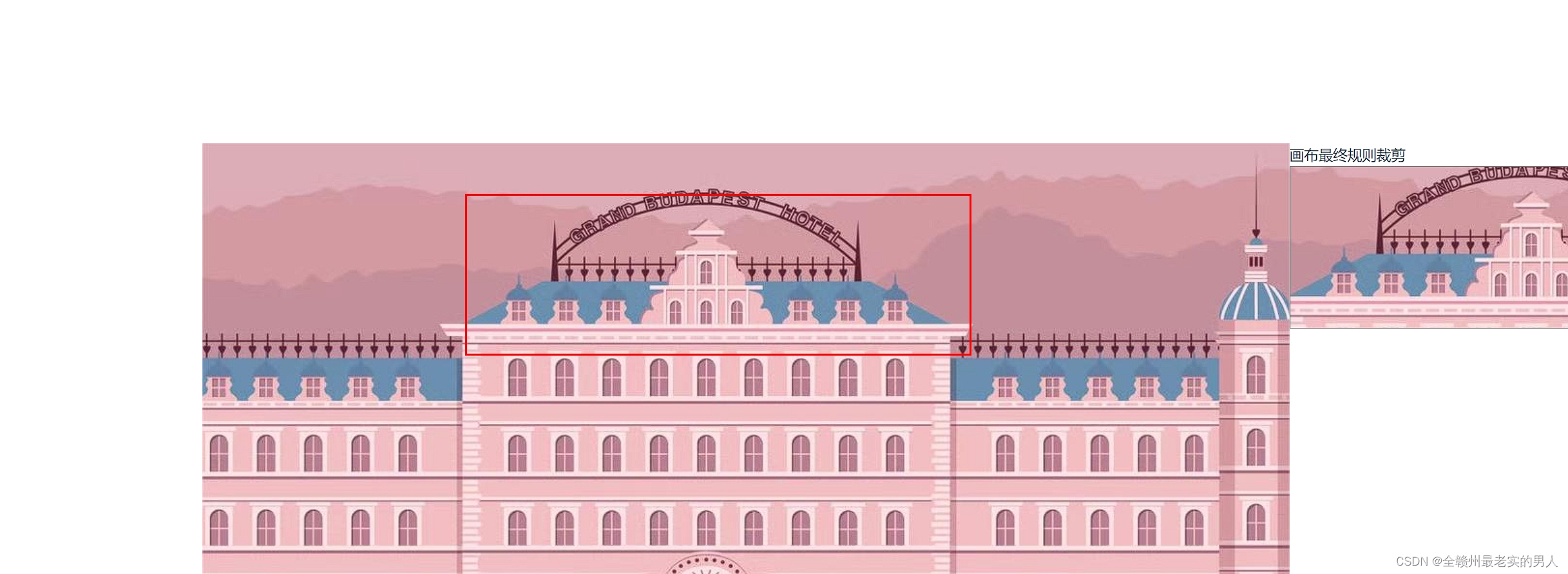

先上效果图

截图原图注意路径位置， 以及大小 ，此demo的大小标签大小写死的，css 的宽高需要与图片一致

HTML代码

<template>
  <div class="box" id="box">
    <img src="../assets/demo.png" alt="" class="img-box" draggable="false">
    <!-- 截取坐标在图上的位置 -->
    <div class="box-max"
         @mousedown="handleMousedown"
         @mousemove="handleMousemove"
         @mouseup="handleMouseup"
    >
      <div class="active-box" @mousedown.stop="handleBoxMax"
           :style="{ width: activeWidth + 'px', height: activeHeight + 'px', left: activeLeft + 'px', top: activeTop + 'px' }"
      >
      </div>
    </div>
  </div>
  <div>
    <p style="display: none">画布首次裁剪</p>
    <canvas id="imgDom" style="display: none">画布首次裁剪</canvas>
    <p>画布最终规则裁剪</p>
    <canvas id="imgClipDom">画布最终规则裁剪</canvas>
  </div>
</template>

JS代码

<script setup>
import demoIMg from '../assets/demo.png'
import { ref } from "vue";
const activeLeft = ref(0)
const activeTop = ref(0)
const activeWidth = ref(0)
const activeHeight = ref(0)
let drawActiveBox = false
function handleMousedown(event) {
  console.log(event)
  drawActiveBox = !drawActiveBox
  if (!drawActiveBox) return interceptImg()
  activeWidth.value = 0
  activeHeight.value = 0
  activeLeft.value = event.offsetX
  activeTop.value = event.offsetY
}
function handleMousemove(event) { // 鼠标移动时画出轮廓
  const dom = document.getElementById('box')
  console.log(dom.offsetLeft)
  if (drawActiveBox) {
    activeWidth.value = event.clientX - activeLeft.value - dom.offsetLeft
    activeHeight.value = event.clientY - activeTop.value - dom.offsetTop
    console.log(event)
    // console.log(activeWidth.value, activeHeight.value)
  }
}
function handleMouseup() { // 松开时关闭移动绘制
  drawActiveBox = false
  console.log('松开鼠标')
  interceptImg()
}
function handleBoxMax () {
  console.log('移动框框')
}
function interceptImg() {
  // 截取指定坐标的图片信息
  var canvas = document.getElementById('imgDom');
  var ctx = canvas.getContext('2d');
  var img = new Image();
  img.src = demoIMg;
  // img.crossOrigin = ''
  var clipPos = [
    [activeLeft.value, activeTop.value],
    [activeLeft.value + activeWidth.value, activeTop.value],
    [activeLeft.value + activeWidth.value, activeTop.value + activeHeight.value],
    [activeLeft.value, activeTop.value + activeHeight.value]
  ] // 获取截取框的位置
  img.onload = function () {
    // console.log(this)
    canvas.width = img.width;
    canvas.height = img.height;
    ctx.beginPath();
    ctx.moveTo(clipPos[0][0], clipPos[0][1]);
    ctx.lineTo(clipPos[1][0], clipPos[1][1]);
    ctx.lineTo(clipPos[2][0], clipPos[2][1]);
    ctx.lineTo(clipPos[3][0], clipPos[3][1]);
    // 裁剪后其他区域不可见，然后再绘制图片，就会只剩下指定的区域；
    // 实际上画布还是原本图片的宽高大小，只是指定的区域里面才有图片内容，其他区域是空白的；
    // 画布裁剪只能裁剪出规则的矩形，这时候需要算出指定有效坐标区域的最小外接矩形，使不规则转变为规则
    ctx.clip();
    ctx.drawImage(img, 0, 0, img.width, img.height);
    // 当绘制图形不规则时，根据左右上下的坐标得到不规则图形外的最小外接矩形，进行规则裁剪
    // 首先循环获取最小的x，y 和 最大的x，y
    var minLeft = clipPos[0][0], maxLeft = clipPos[0][0], minTop = clipPos[0][1], maxTop = clipPos[0][1]
    for (let index = 1; index < clipPos.length; index++) {
      const item = clipPos[index];
      if (item[0] < minLeft) {
        minLeft = item[0]
      }
      if (item[0] > maxLeft) {
        maxLeft = item[0]
      }
      if (item[1] < minTop) {
        minTop = item[1]
      }
      if (item[1] > maxTop) {
        maxTop = item[1]
      }
    }
    // 得到规则矩形对应区域的图片数据
    console.log(minLeft, minTop, maxLeft - minLeft, maxTop - minTop)
    var imgClipData = ctx.getImageData(minLeft, minTop, maxLeft - minLeft, maxTop - minTop);
    var canvas2 = document.getElementById("imgClipDom")
    var cxt2 = canvas2.getContext("2d")
    canvas2.width = imgClipData.width
    canvas2.height = imgClipData.height
    cxt2.putImageData(imgClipData, 0, 0, 0, 0, imgClipData.width, imgClipData.height)
    // 可以转换为base64进行查看
    var img2 = canvas2.toDataURL("image/png");
    // console.log(img2)
  }
}
</script>

CSS代码

<style scoped>
.box {
  width: 1125px;
  height: 543px;
  position: relative;
}
.box-max{
  position: absolute;
  width: 1125px;
  height: 543px;
  z-index: 9;
}
.img-box {
  z-index: 1;
  position: absolute;
}

canvas {
  border: 1px solid #666;
}

.active-box {
  position: absolute;
  width: 0;
  height: 0;
  border: 2px solid red;
  top: 0;
  left: 0;
  z-index: 9;
}
</style>
