OpenShift 4 之 GitOps（2）用ArgoCD向多云部署应用

本文链接：https://blog.csdn.net/weixin_43902588/article/details/104645348

《OpenShift 4.x HOL教程汇总》
说明：本文已经在OpenShift 4.15 + Gitops Operator 1.12 环境中验证

文章目录

用ArgoCD部署应用
- 向ArgoCD增加Github Repo
- 通过ArgoCD部署OpenShift应用
用ArgoCD自动更新应用配置
用ArgoCD删除应用配置
参考

用ArgoCD部署应用

向ArgoCD增加Github Repo

首先向ArgoCD增加Github Reop，然后查看ArgoCD的repo列表。

$ argocd repo add https://github.com/liuxiaoyu-git/gitops-on-openshift.git
repository 'https://github.com/liuxiaoyu-git/gitops-on-openshift.git' added

$ argocd repo list
TYPE  NAME  REPO                                                      INSECURE  OCI    LFS    CREDS  STATUS      MESSAGE
git         https://github.com/liuxiaoyu-git/gitops-on-openshift.git  false     false  false  false  Successful

通过ArgoCD部署OpenShift应用

创建部署应用的目标项目，并打标签，说明该项目为ArgoCD管理。

$ oc new-project reverse-words
$ oc label namespace reverse-words argocd.argoproj.io/managed-by=openshift-gitops

查看当前Argo管理的OpenShift或K8s集群。如果ArgoCD和OpenShift运行在一起，那么使用本地地址（https://kubernetes.default.svc）访问。

$ argocd cluster list
SERVER                          NAME        VERSION  STATUS      MESSAGE  PROJECT
https://kubernetes.default.svc  in-cluster  1.28     Successful

基于Github，在ArgoCD上创建一个应用reverse-words-app，然后查看ArgoCD上的应用列表。其中ArgoCD的create命令参数有：
–project ：ArgoCD应用程序所属的ArgoCD项目
–name ：ArgoCD应用程序名称
–repo ：Git存储库
–path ：Git信息库中存储清单的目录路径
–dest-server ：OpenShift集群
–dest-namespace ：用于将ArgoCD应用程序部署到的OpenShift项目
–revision ：Git存储库的分支
–sync-policy ：与Git存储库同步的策略

$ argocd app create --project default --name reverse-words-app \
     --repo https://github.com/liuxiaoyu-git/gitops-on-openshift.git \
     --path simple-app/reversewords_app/ \
     --dest-server https://kubernetes.default.svc \
     --dest-namespace reverse-words \
     --revision HEAD --sync-policy automated
application 'reverse-words-app' created

$ argocd app list
NAME               CLUSTER                         NAMESPACE      PROJECT  STATUS     HEALTH       SYNCPOLICY  CONDITIONS  REPO                                                         PATH                          TARGET
reverse-words-app  https://kubernetes.default.svc  reverse-words  default  Synced     Progressing  Auto        <none>      https://github.com/liuxiaoyu-git/gitops-on-openshift.git     simple-app/reversewords_app/  master

查看ArgoCD中的reverse-words-app应用，注意此时ArgoCD的reverse-words应用的“Sync Status”是“Synced to HEAD”状态。

$ argocd app get reverse-words-app
Name:               reverse-words-app
Project:            default
Server:             https://kubernetes.default.svc
Namespace:          reverse-words
URL:                https://openshift-gitops-server-openshift-gitops.apps.cluster-394c.394c.sandbox1709.opentlc.com/applications/reverse-words-app
Repo:               http://github.com/liuxiaoyu-git/gitops-on-openshift.git
Target:             HEAD
Path:               simple-app/reversewords_app/
SyncWindow:         Sync Allowed
Sync Policy:        Automated
Sync Status:        Synced to HEAD (36306dc)
Health Status:      Healthy

GROUP  KIND        NAMESPACE      NAME           STATUS   HEALTH   HOOK  MESSAGE
       Namespace   reverse-words  reverse-words  Running  Synced         namespace/reverse-words unchanged
       Service     reverse-words  reverse-words  Synced   Healthy        service/reverse-words unchanged
apps   Deployment  reverse-words  reverse-words  Synced   Healthy        deployment.apps/reverse-words created
       Namespace                  reverse-words  Synced

手动创建访问应用的Route，然后访问reverse-words应用。

$ oc expose svc reverse-words -n reverse-words
$ curl -X POST http://$(oc get route reverse-words -n reverse-words -o jsonpath='{.spec.host}') -d '{"word":"PALC"}'
{"reverse_word":"CLAP"}

再次查看ArgoCD中的reverse-words-app应用，注意此时ArgoCD的reverse-words应用的“Sync Status”是“OutOfSync from HEAD”状态。在最后也可看到名为“reverse-words”的Route资源也是“OutOfSync”状态，这是由于Route是手动创建的。

$ argocd app get reverse-words-app
Name:               reverse-words-app
Project:            default
Server:             https://kubernetes.default.svc
Namespace:          reverse-words
URL:                https://openshift-gitops-server-openshift-gitops.apps.cluster-394c.394c.sandbox1709.opentlc.com/applications/reverse-words-app
Repo:               http://github.com/liuxiaoyu-git/gitops-on-openshift.git
Target:             HEAD
Path:               simple-app/reversewords_app/
SyncWindow:         Sync Allowed
Sync Policy:        Automated
Sync Status:        OutOfSync from HEAD (36306dc)
Health Status:      Healthy

GROUP               KIND        NAMESPACE      NAME           STATUS     HEALTH   HOOK  MESSAGE
                    Namespace   reverse-words  reverse-words  Running    Synced         namespace/reverse-words unchanged
                    Service     reverse-words  reverse-words  Synced     Healthy        service/reverse-words unchanged
apps                Deployment  reverse-words  reverse-words  Synced     Healthy        deployment.apps/reverse-words created
                    Namespace                  reverse-words  Synced
route.openshift.io  Route       reverse-words  reverse-words  OutOfSync

用ArgoCD自动更新应用配置

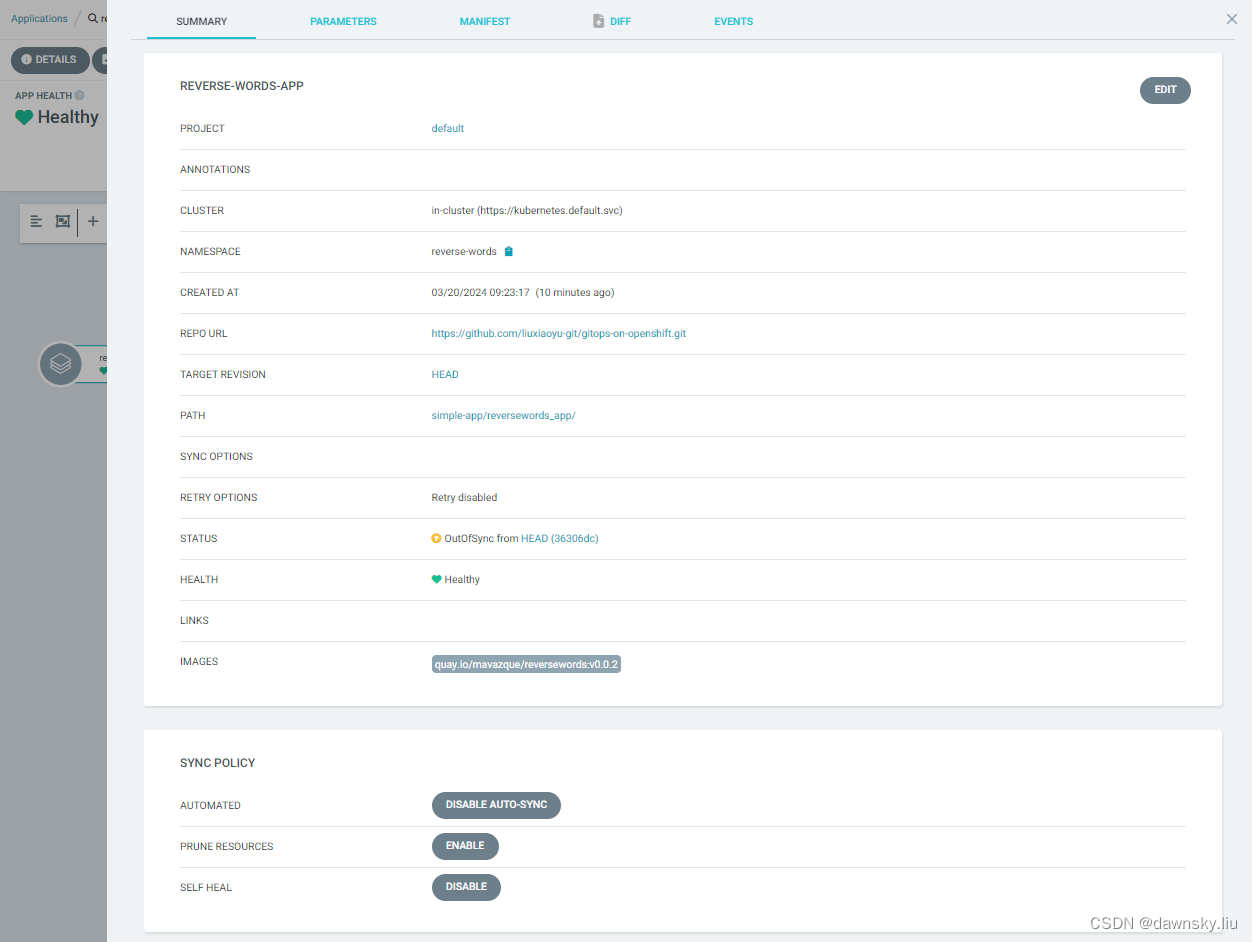

在ArgoCD中查看当前的应用的配置，确认最下方已经开启了“AUTOMATED 和 SELF HEAL”。
先删除OpenShift中reverse-words的Deployment。

$ oc delete deployment reverse-words -n reverse-words
deployment.extensions "reverse-words" deleted

查看reverse-words-app应用当前状态，确认“Health Status”是“Missing”的状态，并且Sync Status是“OutOfSync”状态。

$ argocd app get reverse-words-app
Name:               reverse-words-app
Project:            default
Server:             https://kubernetes.default.svc
Namespace:          reverse-words
URL:                https://openshift-gitops-server-openshift-gitops.apps.cluster-394c.394c.sandbox1709.opentlc.com/applications/reverse-words-app
Repo:               http://github.com/liuxiaoyu-git/gitops-on-openshift.git
Target:             HEAD
Path:               simple-app/reversewords_app/
SyncWindow:         Sync Allowed
Sync Policy:        Automated
Sync Status:        OutOfSync from HEAD (36306dc)
Health Status:      Missing

GROUP               KIND        NAMESPACE      NAME           STATUS     HEALTH   HOOK  MESSAGE
                    Namespace   reverse-words  reverse-words  Running    Synced         namespace/reverse-words unchanged
                    Service     reverse-words  reverse-words  Synced     Healthy        service/reverse-words unchanged
apps                Deployment  reverse-words  reverse-words  OutOfSync  Missing        deployment.apps/reverse-words created
                    Namespace                  reverse-words  Synced
route.openshift.io  Route       reverse-words  reverse-words  OutOfSync

执行命令同步reverse-words-app应用。确认“Message”为“successfully synced”说明同步成功。但是“Sync Status”还是“OutOfSync from HEAD”，并且Route资源的STATUS是“OutOfSync”，而且在最后显示“1 resources require pruning”，这是由于Route是我们手动生成的，而不是通过ArgoCD的Repo生成的。

$ argocd app sync reverse-words-app
TIMESTAMP                  GROUP                     KIND   NAMESPACE                     NAME    STATUS    HEALTH        HOOK  MESSAGE
2020-03-03T16:20:38+00:00                         Service  reverse-words         reverse-words    Synced   Healthy
2020-03-03T16:20:38+00:00   apps               Deployment  reverse-words         reverse-words  OutOfSync  Missing
2020-03-03T16:20:38+00:00  route.openshift.io       Route  reverse-words         reverse-words  OutOfSync  Unknown
2020-03-03T16:20:38+00:00                       Namespace                        reverse-words    Synced   Unknown

Name:               reverse-words-app
Project:            default
Server:             https://kubernetes.default.svc
Namespace:          reverse-words
URL:                https://openshift-gitops-server-openshift-gitops.apps.cluster-394c.394c.sandbox1709.opentlc.com/applications/reverse-words-app
Repo:               http://github.com/liuxiaoyu-git/gitops-on-openshift.git
Target:             HEAD
Path:               simple-app/reversewords_app/
SyncWindow:         Sync Allowed
Sync Policy:        Automated
Sync Status:        OutOfSync from HEAD (36306dc)
Health Status:      Progressing

Operation:          Sync
Sync Revision:      36306dc264cea403e33b756de6faf95f605fee5d
Phase:              Succeeded
Start:              2021-10-02 07:34:24 +0000 UTC
Finished:           2021-10-02 07:34:27 +0000 UTC
Duration:           3s
Message:            successfully synced (all tasks run)

GROUP               KIND        NAMESPACE      NAME           STATUS     HEALTH       HOOK  MESSAGE
route.openshift.io  Route       reverse-words  reverse-words  OutOfSync                     ignored (requires pruning)
                    Namespace   reverse-words  reverse-words  Running    Synced             namespace/reverse-words unchanged
                    Service     reverse-words  reverse-words  Synced     Healthy            service/reverse-words unchanged
apps                Deployment  reverse-words  reverse-words  Synced     Progressing        deployment.apps/reverse-words created
                    Namespace                  reverse-words  Synced
FATA[0002] 1 resources require pruning

持续查看reverse-words的Deployment状态变化，最后变为READY状态。

$ oc get deployment -n reverse-words -w
NAME            READY   UP-TO-DATE   AVAILABLE   AGE
reverse-words   0/1     1            0           29s
reverse-words   1/1     1            1           39s

再次访问reverse-words应用的路由，确认又可以正常访问应用了。

$ curl -X POST http://$(oc get route reverse-words -n reverse-words -o jsonpath='{.spec.host}') -d '{"word":"PALC"}'
{"reverse_word":"CLAP"}

说明：最后使用“argocd app list”查看Argo的应用Status，确认还是OutOfSync的。这是由于Route对象是我们在OpenShift手动创建的，在Github中没有。只要部署目标和Git Repo之间存在差异，Argo就认为是OutOfSync的。
另外，还可使用以下带有“self-heal”参数的命令同步ArgoCD应用。

$ argocd app sync reverse-words-app --self-heal

用ArgoCD删除应用配置

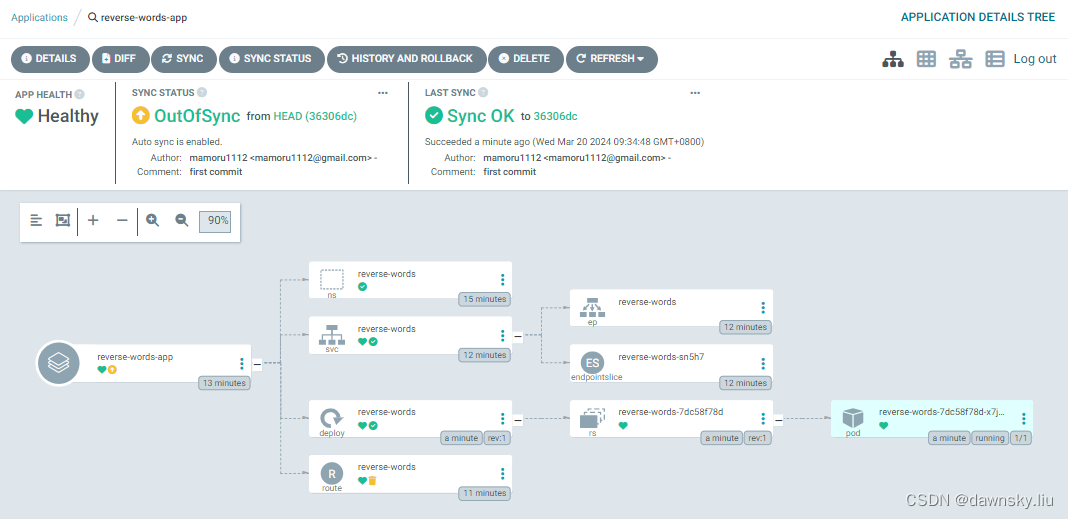

此时进到ArgoCD的控制台，在Application中进入reverse-words-ap，确认是“OutOfSync”状态。其中是名为“reverse-words”的Route是黄色非同步状态，这是由于这个对象是我们在OpenShift中直接创建的，而不是根据Github的配置创建的。
点击上图中红框中名为“reverse-words”的Route的右侧图标，然后选择Delete，然后确认是Force
Delete。删除后，ArgoCD的reverse-words-app应用又恢复了“Synced”状态了。
然后执行以下命令，确认OpenShift的名为“reverse-words”的Route对象已经被删除了。

$ oc get route -n reverse-words
No resources found in reverse-words namespace.

参考

https://redhat-scholars.github.io/summit-2023-gitops-lab-guide/summit-2023-gitops-workshop-guide
