前言
这里先给出建立一颗普通的排序二叉树,平衡二叉树的建立以及操作,等复习到再写吧。
一、排序二叉树
排序二叉树,即当前节点左子树 < 当前节点 < 当前节点的右子树 的特殊的二叉树,便于查找。
排序二叉树的构造很简单,使用三个树节点指针。currentNode(指向当前遍历节点地址的指针) parentNode(保存当前遍历节点的父节点地址的指针) ,和一个新节点指针newNode
每插入一个新节点,移动这三个指针,即在树上找到合适的位置插入新节点
代码如下:
currentNode = root;
while(currentNode!=NULL)
{
parentNode = currentNode; //当cur 是空的时候 结束循环 此时par 就是 cur的父节点
if(currentNode->date > newNode->date)
{
currentNode = currentNode->lchild;
}
else
{
currentNode = currentNode->rchild;
}
}
if(parentNode->date > newNode->date) //找到位置了,新节点要插在这个par下面
parentNode->lchild = newNode; //再判断一下
else
parentNode->rchild = newNode;
二、四种遍历
模板一样的东西,记下来就行了。挺简单的。
void PreOrder(BiTree root)
{
if(root!=NULL)
{
cout<<root->date<<" ";
PreOrder(root->lchild);
PreOrder(root->rchild);
}
}
void InOrder(BiTree root)
{
if(root!=NULL)
{
InOrder(root->lchild);
cout<<root->date<<" ";
InOrder(root->rchild);
}
}
void PostOrder(BiTree root)
{
if(root!=NULL)
{
PostOrder(root->lchild);
PostOrder(root->rchild);
cout<<root->date<<" ";
}
}
void LevelOrder(BiTree root)
{
if(root==NULL)
{
cout<<"当前树为空"<<endl;
}
q.push(root);
BiTNode *cur=NULL;
while(!q.empty())
{
cur= q.front(); //遍历当前节点
q.pop();
cout<<cur->date<<" ";
if(cur->lchild) q.push(cur->lchild); //左孩子有孩子入队列
if(cur->rchild) q.push(cur->rchild);
}
}
一个完整的实例

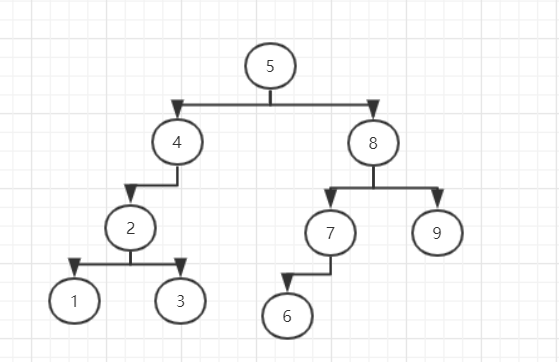

树结构如下:
先序遍历结果:5 4 2 1 3 8 7 6 9
中序遍历结果:1 2 3 4 5 6 7 8 9
后序遍历结果:1 3 2 4 6 7 9 8 5
层次遍历结果:5 4 8 2 7 9 1 3 6
#include<iostream>
#include<queue>
using namespace std;
//排序二叉树
typedef int ElemType;
typedef struct BiTNode{
ElemType date;
struct BiTNode *lchild,*rchild;
}BiTNode,*BiTree;
queue<BiTNode*> q; //层次遍历用
BiTree add(BiTree root,int e)
{
BiTNode *newNode=NULL; //新结点指针
BiTNode *currentNode=NULL; //当前遍历到的节点指针
BiTNode *parentNode=NULL; //父节点指针
newNode = (BiTNode*)malloc(sizeof(BiTNode));
newNode->date=e;
newNode->lchild=NULL;
newNode->rchild=NULL;
if(root==NULL) //第一个节点建立
{
return newNode;
}
else //往下找
{
currentNode = root;
while(currentNode!=NULL)
{
parentNode = currentNode;
if(currentNode->date > newNode->date)
{
currentNode = currentNode->lchild;
}
else
{
currentNode = currentNode->rchild;
}
}
if(parentNode->date > newNode->date)
parentNode->lchild = newNode;
else
parentNode->rchild = newNode;
}
return root;
}
BiTree CreateBtree(int e[],int len)
{
BiTree root = NULL; //根节点指针初始为空
for(int i=1;i<=len;i++)
{
root = add(root,e[i]);
}
return root;
}
void PreOrder(BiTree root)
{
if(root!=NULL)
{
cout<<root->date<<" ";
PreOrder(root->lchild);
PreOrder(root->rchild);
}
}
void InOrder(BiTree root)
{
if(root!=NULL)
{
InOrder(root->lchild);
cout<<root->date<<" ";
InOrder(root->rchild);
}
}
void PostOrder(BiTree root)
{
if(root!=NULL)
{
PostOrder(root->lchild);
PostOrder(root->rchild);
cout<<root->date<<" ";
}
}
void LevelOrder(BiTree root)
{
if(root==NULL)
{
cout<<"当前树为空"<<endl;
}
q.push(root);
BiTNode *cur=NULL;
while(!q.empty())
{
cur= q.front(); //遍历当前节点
q.pop();
cout<<cur->date<<" ";
if(cur->lchild) q.push(cur->lchild); //左孩子有孩子入队列
if(cur->rchild) q.push(cur->rchild);
}
}
int main()
{
int len;
BiTree root = NULL;
cin>>len;
int e[len+1];
for(int i=1;i<=len;i++)
{
cin>>e[i];
}
root=CreateBtree(e,len);
cout<<"先序结果:";
PreOrder(root);
cout<<endl;
cout<<"中序结果:";
InOrder(root);
cout<<endl;
cout<<"后序结果:";
PostOrder(root);
cout<<endl;
cout<<"层次结果:";
LevelOrder(root);
return 0;
}
