meshing：The mesh file exporter could not resolve cyclic dependencies in overlapping contact regions.

f

      fluent仿真网格划分导出数据时报错误The mesh file exporter could not resolve cyclic dependencies in overlapping contact regions.

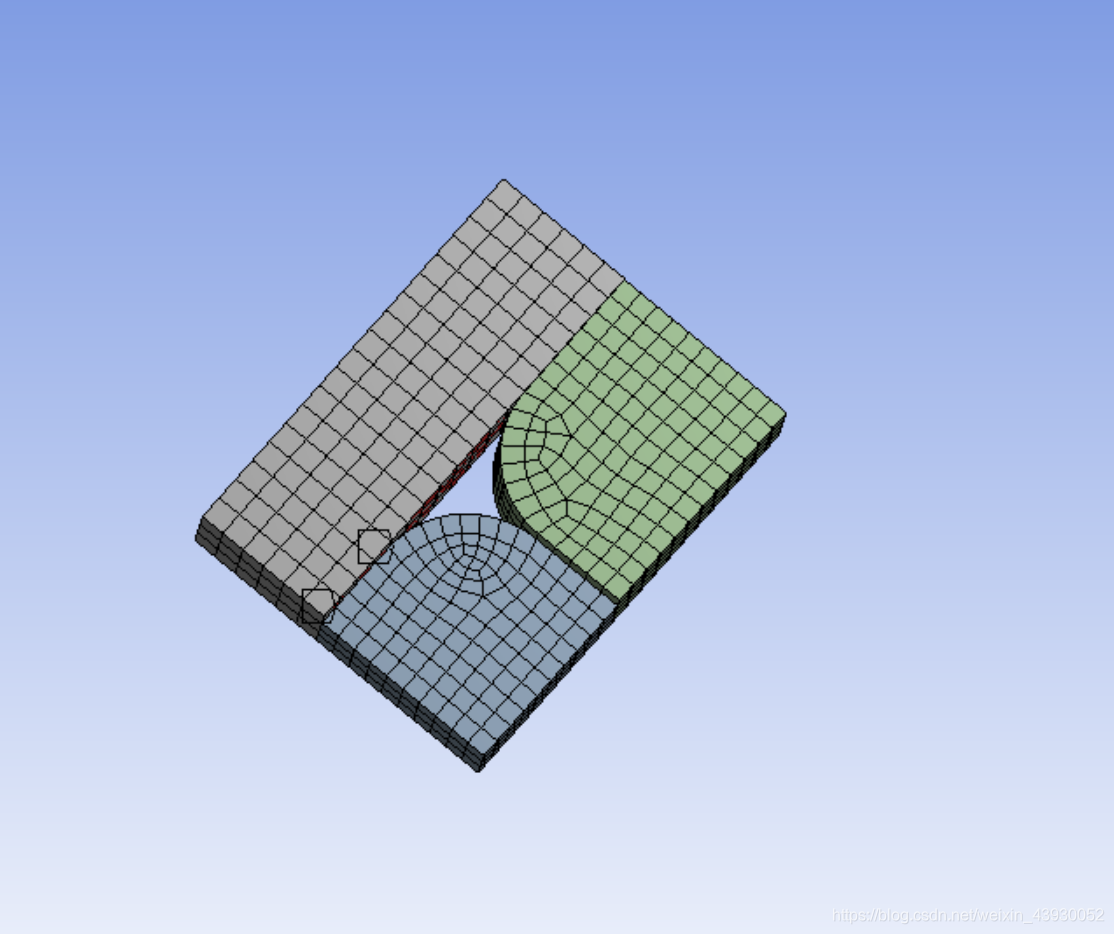

      阅读其报错信息，猜测为接触面构成了一种循环关系。于是建立模型进行验证。模型如下：

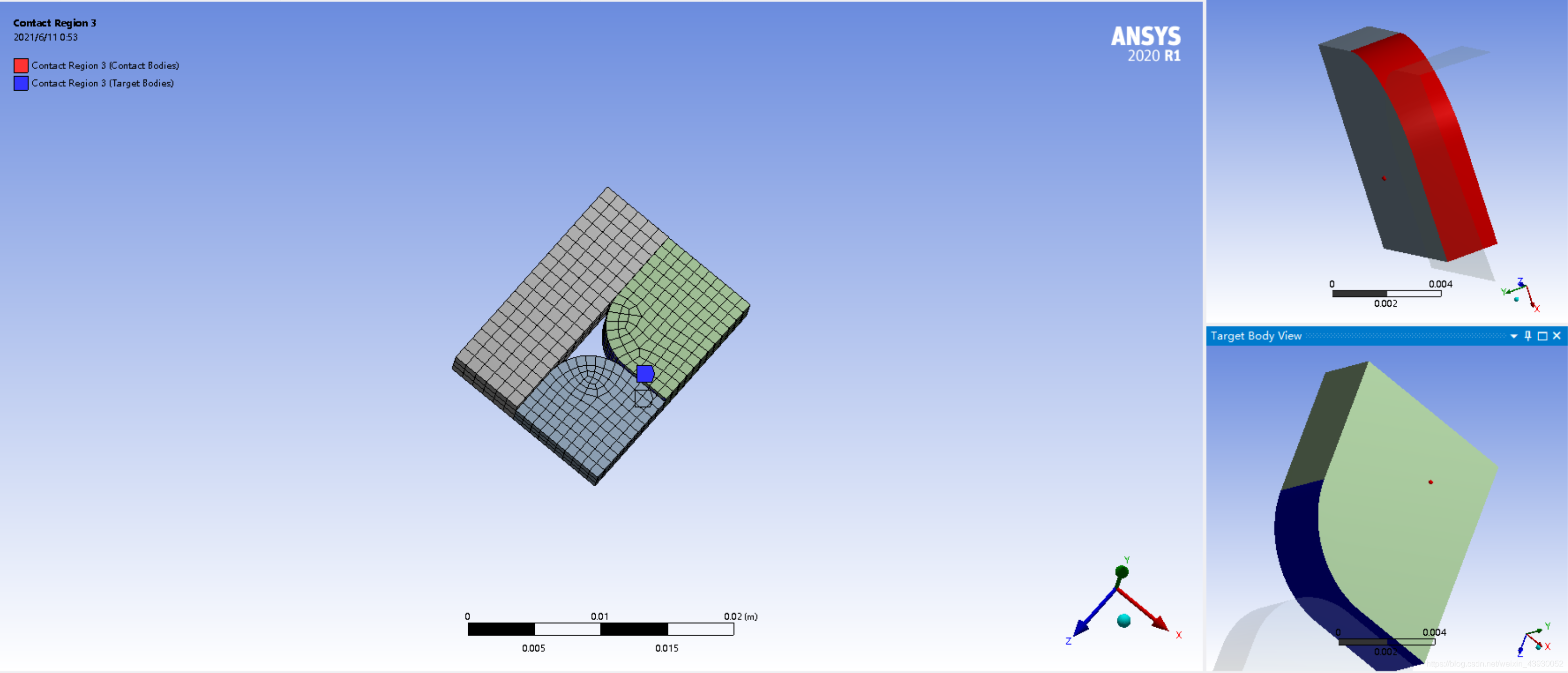

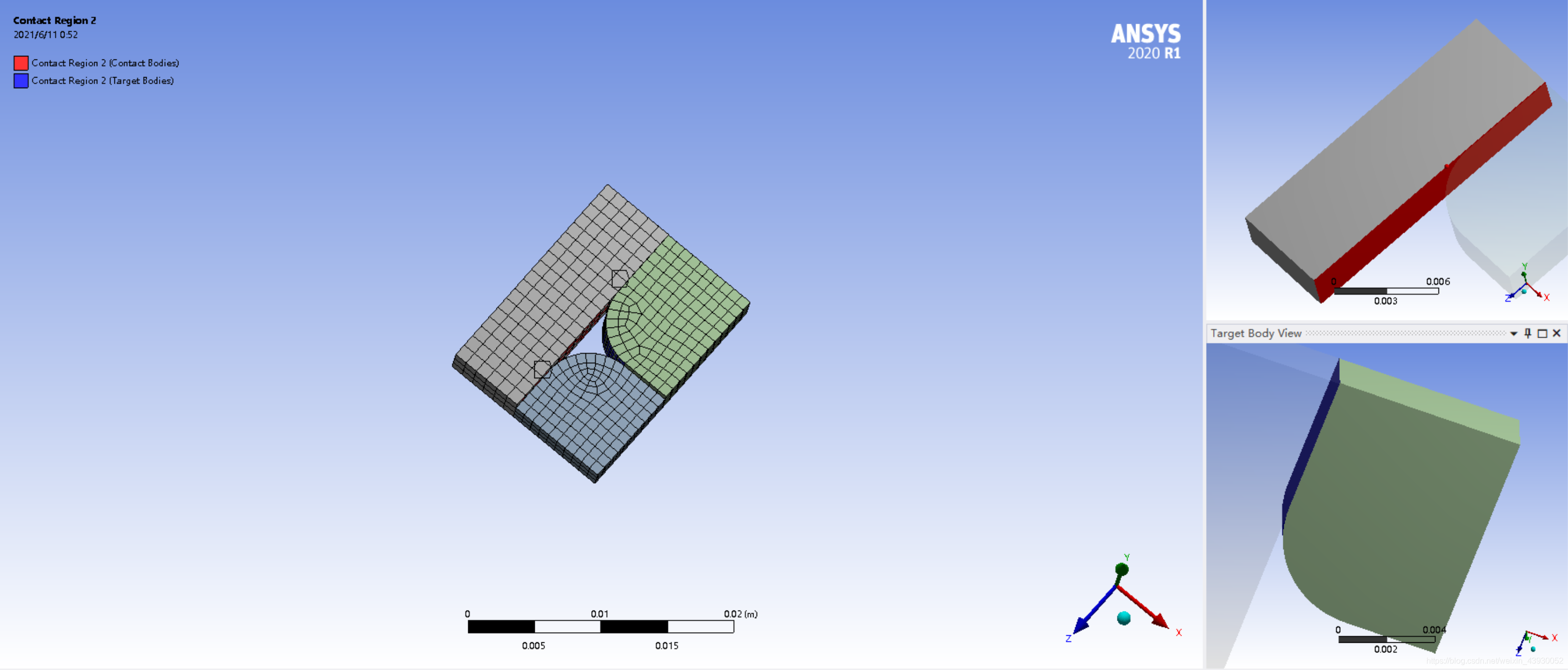

点开Contacts,各接触面关系如下

三个面A接触B、B接触C、C接触A构成循环关系。

划分网格后输出fluent input文件报错误The mesh file exporter could not resolve cyclic dependencies in overlapping contact regions. Please try to Repair Overlapping Contact Regions.

解决方法：

方法1：建模时把接触面进行分割

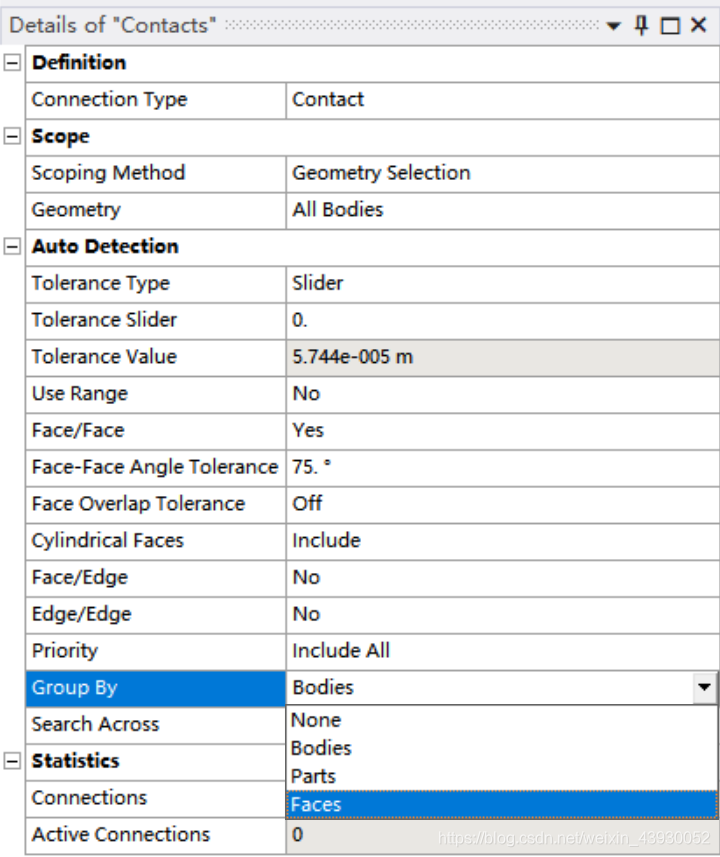

方法2：删除contacts下的所有关系，然后选中contacts，将Group by bodies改为Group by faces，然后重新创建connections。
