SpringBoot Web 开发
静态资源
打开 WebMvcAutoConfiguration
类里面的静态类 WebMvcAutoConfigurationAdapter
里面的 addResourceHandlers()
方法
@Override
public void addResourceHandlers(ResourceHandlerRegistry registry) {
// 有没有自定义配置
if (!this.resourceProperties.isAddMappings()) {
logger.debug("Default resource handling disabled");
return;
}
Duration cachePeriod = this.resourceProperties.getCache().getPeriod();
CacheControl cacheControl = this.resourceProperties.getCache().getCachecontrol().toHttpCacheControl();
// 1. WebJars 方式, 只需要输入 /webjars/**
if (!registry.hasMappingForPattern("/webjars/**")) {
customizeResourceHandlerRegistration(registry.addResourceHandler("/webjars/**")
.addResourceLocations("classpath:/META-INF/resources/webjars/")
.setCachePeriod(getSeconds(cachePeriod)).setCacheControl(cacheControl)
.setUseLastModified(this.resourceProperties.getCache().isUseLastModified()));
}
// 2. 获得静态资源的路径
String staticPathPattern = this.mvcProperties.getStaticPathPattern();
if (!registry.hasMappingForPattern(staticPathPattern)) {
customizeResourceHandlerRegistration(registry.addResourceHandler(staticPathPattern)
.addResourceLocations(getResourceLocations(this.resourceProperties.getStaticLocations()))
.setCachePeriod(getSeconds(cachePeriod)).setCacheControl(cacheControl)
.setUseLastModified(this.resourceProperties.getCache().isUseLastModified()));
}
}
1、 WebJars (一般不使用)
访问资源路径: /webjars/** 映射到 classpath:/META-INF/resources/webjars/
访问路径:http://localhost:8080/webjars/**
测试

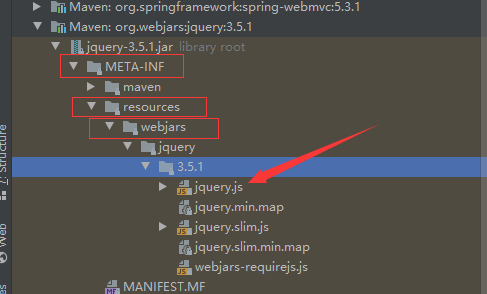

可以使用Maven 引入 JQuery.
<dependency>
<groupId>org.webjars</groupId>
<artifactId>jquery</artifactId>
<version>3.5.1</version>
</dependency>
如果你要访问 jquery 相当于你只要输入 : http://localhost:8080/webjars/jquery/3.5.1/jquery.js 就可以访问到。
2、 获得静态资源路径
getStaticPathPattern() 码源为:
public String getStaticPathPattern() {
return this.staticPathPattern;
}
// 点进 staticPathPattern
/**
* Path pattern used for static resources.
*/
private String staticPathPattern = "/**";
WebMvcAutoConfiguration
类里面的静态类 WebMvcAutoConfigurationAdapter
类码源:
@EnableConfigurationProperties({ WebMvcProperties.class,
org.springframework.boot.autoconfigure.web.ResourceProperties.class, WebProperties.class })
public static class WebMvcAutoConfigurationAdapter implements WebMvcConfigurer {
....
}
// 点进 WebProperties 配置类
@ConfigurationProperties("spring.web")
public class WebProperties {
public static class Resources {
private static final String[] CLASSPATH_RESOURCE_LOCATIONS = { "classpath:/META-INF/resources/",
"classpath:/resources/", "classpath:/static/", "classpath:/public/" };
/**
* Locations of static resources. Defaults to classpath:[/META-INF/resources/,
* /resources/, /static/, /public/].
*/
private String[] staticLocations = CLASSPATH_RESOURCE_LOCATIONS;
}
}
访问资源路径:/** 映射到 “classpath:/META-INF/resources/”, “classpath:/resources/”, “classpath:/static/”, “classpath:/public/”
这4个目录都能够被识别到
访问路径:http://localhost:8080/**
优先级: public < static(默认) < resources
3、 自定义配置 (一般不配置,使用第二种默认的)
application.properties
spring.mvc.static-path-pattern=/xxxx
首页
EnableWebMvcConfiguration
类的内部类 EnableWebMvcConfiguration
码源:
@Bean
public WelcomePageHandlerMapping welcomePageHandlerMapping(ApplicationContext applicationContext,
FormattingConversionService mvcConversionService, ResourceUrlProvider mvcResourceUrlProvider) {
WelcomePageHandlerMapping welcomePageHandlerMapping = new WelcomePageHandlerMapping(
new TemplateAvailabilityProviders(applicationContext), applicationContext, getWelcomePage(),
this.mvcProperties.getStaticPathPattern());// this.mvcProperties.getStaticPathPattern() 获取自定义的配置
welcomePageHandlerMapping.setInterceptors(getInterceptors(mvcConversionService, mvcResourceUrlProvider));
welcomePageHandlerMapping.setCorsConfigurations(getCorsConfigurations());
return welcomePageHandlerMapping;
}
....
private Optional<Resource> getWelcomePage() {
// this.resourceProperties.getStaticLocations() 点进去是系统定义的4个静态资源目录
String[] locations = getResourceLocations(this.resourceProperties.getStaticLocations());
return Arrays.stream(locations).map(this::getIndexHtml).filter(this::isReadable).findFirst();
}
private Resource getIndexHtml(String location) {
// 在静态资源目录下找 index.html ,返回首页
return this.resourceLoader.getResource(location + "index.html");
}
所以将 index.html 放在静态资源目录下即可直接访问到。
在 templates 目录下的所有页面,只能通过 Controller 来跳转。需要模板引擎的支持。(thymeleaf)
Thymeleaf 模板引擎
什么是 Thymeleaf ?
Thymeleaf是适用于Web和独立环境的现代服务器端Java模板引擎,能够处理HTML,XML,JavaScript,CSS甚至纯文本。
jsp 就是一个模板引擎。
Thymeleaf 官网
Thymeleaf Github
SpringBoot Start
需要带入依赖:
<!-- Thymeleaf : 基于 3.x 开发 -->
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-thymeleaf</artifactId>
</dependency>
导入的东西都有 xxxProperties
自动配置类,查看 Thymeleaf 的自动配置类:ThymeleafProperties
的源码:
@ConfigurationProperties(prefix = "spring.thymeleaf")
public class ThymeleafProperties {
private static final Charset DEFAULT_ENCODING = StandardCharsets.UTF_8;
// 默认前缀
public static final String DEFAULT_PREFIX = "classpath:/templates/";
// 默认后缀
public static final String DEFAULT_SUFFIX = ".html";
...
}
测试在 templates 目录下新建 test.html, 编写 Controller:
@Controller
public class IndexController {
@RequestMapping("/test")
public String index(){
return "test";
}
}
输入 http://localhost:8080/test 即可访问到。
Thymeleaf 基础语法 (另外再自学吧,淦!)
所有的 html 元素都可以被 thymeleaf 替换接管: th:元素名
导入命名空间
<html xmlns:th="http://www.thymeleaf.org">
属性优先级:
Order | Feature | Attributes | |
---|---|---|---|
1 | Fragment inclusion | th:insert、th:replace | |
2 | Fragment iteration | th:each | |
3 | Conditional evaluation | th:if、th:unless、th:switch、th:case | |
4 | Local variable definition | th:object、th:with | |
5 | General attribute modification | th:attr、th:attrprepend、th:attrappend | |
6 | Specific attribute modification | th:value、th:href、th:src、… | |
7 | Text (tag body modification) | th:text、th:utext | |
8 | Fragment specification | th:fragment | |
9 | Fragment removal | th:remove |
1、 简单变量
- 变量表达式: ${…}
<div th:text="${msg}"></div>
- 选择表达式: *{…}
<div th:object="${session.user}">
<p>Name: <span th:text="*{name}"></span></p>
<p>Age: <span th:text="*{age}"></span></p>
<p>Sex: <span th:text="*{sex}"></span></p>
</div>
<!-- 等价于 -->
<div>
<p>Name: <span th:text="${session.user.name}"></span></p>
<p>Age: <span th:text="${session.user.age}"></span></p>
<p>Sex: <span th:text="${session.user.sex}"></span></p>
</div>
-
消息表达式: #{…}
用于国际化 -
链接表达式: @{…}
<a th:href="@{test.html}">Content 路径,默认访问静态资源目录下的文件</a>
- 片段表达式: ~{…} (模板插入: th:insert, th:replace)
<!--侧边栏-->
<nav th:fragment="sidebarMenu">...</nav>
<!-- 侧边栏插入 -->
<div th:insert="~{文件名::sidebarMenu}"></div>
templates/conmons/commons.html
<nav th:fragment="sidebarMenu">...</nav>
<!-- 使用界面的侧边栏引入 -->
<div th:replace="~{commons/commons::sidebarMenu}"></div>
2、 文字
- 文本文字(单引号): ‘one text’, ‘Another one!’,…
- 数字: 0, 34, 3.0, 12.3,…
- 布尔值: true, false
- 空值: null
3、 文本操作:
- 文本连接符: +
- 文本替换 : |The name is ${name}|
4、比较运算符:
- 比较: >, <, >=, <= (gt, lt, ge, le)
- 相等: ==, != (eq, ne)
5、条件运算符:
- If-then: (if) ? (then)
- If-then-else: (if) ? (then) : (else)
- Default: (value) ?: (defaultvalue)
6、 循环
th:each
<tr th:each="user,iterStat : ${users}">
<td th:text="${user.name}"></td>
<td th:text="${user.age}"></td>
<td th:text="${user.sex}"></td>
</tr>
iterStat 对象包含以下属性:
- index,从0开始的角标
- count,元素的个数,从1开始
- size,总元素个数
- current,当前遍历到的元素
- even/odd,返回是否为奇偶,boolean值
- first/last,返回是否为第一或最后,boolean值
MVC 配置原理
Spring Boot为Spring MVC提供了自动配置,适用于大多数应用程序。
自动配置在 Spring 的默认值之上添加了以下功能:
- 包含
ContentNegotiatingViewResolver
和BeanNameViewResolver
beans。 - 支持提供静态资源,包括对 WebJars 的支持。
- 自动注册
Converter
,GenericConverter
和Formatter
beans。 - 支持
HttpMessageConverters
。 - 自动注册
MessageCodesResolver
。 - 静态
index.html
支持。 - 自动使用
ConfigurableWebBindingInitializer
bean。
如果你想保留 Spring Boot MVC 功能,并且你想添加额外的 MVC 配置(拦截器,格式化程序,视图控制器和其他功能),你可以编写自己 MVC配置类 添加上 @Configuration
注解,并且这个配置类的类型必须为 WebMvcConfigurer
类(他是一个接口类,实现即可) 但不加 @EnableWebMvc
注解。
如果您想完全控制 Spring MVC,可以添加注释 @EnableWebMvc
。
初体验
自定义一个视图解析器
// 扩展 Spring MVC
@Configuration
public class MyNvcConfig implements WebMvcConfigurer {
// ContentNegotiatingViewResolver ——> ViewResolver 实现了视图解析器接口,我们就可以把他看做视图解析器
// 放入到 Spring 容器中
@Bean
public ViewResolver myViewResolver(){
return new MyViewResolver();
}
// 自定义一个视图解析器 MyViewResolver
public static class MyViewResolver implements ViewResolver {
@Override
public View resolveViewName(String viewName, Locale locale) throws Exception {
return null;
}
}
}
所有的请求都会经过 DispatcherServlet
类,在此类源码的一下方法打上断点。 debug 启动 SpringBoot
protected void doDispatch(HttpServletRequest request, HttpServletResponse response)
可以看到自己写的视图解析器配置类:
如果需要自定义一些功能,只需要写组件,然后将它交给 SpringBoot,SpringBoot会帮我们自动装配。
首页跳转实现
输入:http://localhost:8080/index.html
、http://localhost:8080/
都会跳转到 index.html
@Configuration
public class MyMvcConfig implements WebMvcConfigurer {
@Override
public void addViewControllers(ViewControllerRegistry registry) {
// 首页跳转实现
registry.addViewController("/").setViewName("index");
registry.addViewController("/index.html").setViewName("index");
}
}
国际化
在 static 目录下新建 i18n(internationalization的缩写,中间有18个字母) 文件夹,新建 login.properties 文件,再建一个 login_zh_CN.properties 文件
IDEA 会自动生成 Resource Bundle ‘login’ 文件夹,右击可以新建其他语言的配置文件
打开某个配置文件,点击编辑器底部的 Resource Bundle ,即可同时编写三个文件。
自动配置类:MessageSourceAutoConfiguration
配置文件:
# 国际化配置文件位置
spring.messages.basename=i18n.login
html: 使用 Thymeleaf 的 #{xxx} 获取,链接传递的参数:@{/index.html(l=‘zh_CN’)}
<body class="text-center">
<form class="form-signin">
<img class="mb-4" th:src="@{/img/bootstrap-solid.svg}" alt="" width="72" height="72">
<h1 class="h3 mb-3 font-weight-normal" th:text="#{login.tip}">Please sign in</h1>
<label for="inputEmail" class="sr-only" th:text="#{login.username}">Username</label>
<input type="text" id="inputEmail" class="form-control" th:placeholder="#{login.username}" required autofocus>
<label for="inputPassword" class="sr-only" th:text="#{login.password}">Password</label>
<input type="password" id="inputPassword" class="form-control" th:placeholder="#{login.password}" required>
<div class="checkbox mb-3">
<label>
<input type="checkbox" value="remember-me" th:text="#{login.remember}">
</label>
</div>
<button class="btn btn-lg btn-primary btn-block" type="submit" th:text="#{login.btn}">Sign in</button>
<p class="mt-5 mb-3 text-muted">© 2017-2020</p>
<a class="btn btn-sm" th:href="@{/index.html(l='zh_CN')}">中文</a>
<a class="btn btn-sm" th:href="@{/index.html(l='en_US')}">English</a>
</form>
</body>
如果需要按钮进行切换,需要自定义一个组件:MyLocaleResolver
public class MyLocaleResolver implements LocaleResolver {
// 解析请求
@Override
public Locale resolveLocale(HttpServletRequest request) {
// 获得请求的语言参数
String language = request.getParameter("l");
Locale locale = Locale.getDefault(); // 如果没有,就是用默认的
// 如果请求的连接携带了国际化的参数
if (!StringUtils.isEmpty(language)){
// zh_CN
String[] split = language.split("_");
// 国家,地区
locale = new Locale(split[0], split[1]);
}
return locale;
}
@Override
public void setLocale(HttpServletRequest request, HttpServletResponse response, Locale locale) {}
}
将自己的组件注册到 Spring 容器中: @Bean
// MyMvcConfig.java
// 注入Bean 自定义国际化组件
@Bean
public LocaleResolver localeResolver(){
return new MyLocaleResolver();
}
登录功能实现
html :
<form class="form-signin" th:action="@{/user/login}" method="post">
...
<h1 class="h3 mb-3 font-weight-normal" th:text="#{login.tip}">Please sign in</h1>
<!-- 如果msg不为空则显示 -->
<p style="color: red;" th:text="${msg}" th:if="${not #strings.isEmpty(msg)}"></p>
...
</form>
LopginController:
@Controller
public class LoginController {
@RequestMapping("/user/login")
public String login(
@RequestParam("username") String username,
@RequestParam("password") String password,
Model model,
HttpSession session){
// 具体业务
if (!StringUtils.isEmpty(username) && "123".equals(password)){
session.setAttribute("loginUser", username);
return "redirect:/main.html";
}else {
// 告诉用户,登录失败
model.addAttribute("msg", "用户或密码错误!");
return "index";
}
}
}
路径映射:MyMvcConfig
的 addViewControllers()
方法 (重定向到 /main.html 会跳转到 dashboard.html 这个模板)
@Configuration
public class MyMvcConfig implements WebMvcConfigurer {
@Override
public void addViewControllers(ViewControllerRegistry registry) {
...
registry.addViewController("/main.html").setViewName("dashboard");
}
}
登录拦截器
编写登录拦截器: LoginHandlerInterceptor
public class LoginHandlerInterceptor implements HandlerInterceptor {
@Override
public boolean preHandle(HttpServletRequest request, HttpServletResponse response, Object handler) throws Exception {
// 登录成功之后应该有用户的 session
Object loginUser = request.getSession().getAttribute("loginUser");
// 没有登录
if (loginUser == null){
request.setAttribute("msg", "没有权限,请先登录!");
request.getRequestDispatcher("/index.html").forward(request, response);
return false;
} else {
return true;
}
}
}
配置中注册拦截器:MyMvcConfig
@Override
public void addInterceptors(InterceptorRegistry registry) {
registry.addInterceptor(new LoginHandlerInterceptor())
.addPathPatterns("/**")
.excludePathPatterns("/index.html", "/", "/user/login",
"/js/**", // js静态资源
"/css/**", // css静态资源
"/img/**" // img静态资源
);
}
Thymeleaf代码复用
templates/conmons/commons.html 存放模板代码, 使用 th:fragment="id"
进行标记。
<nav th:fragment="topBar">...</nav>
templates/xxx.html 使用时,使用 th:replace="~{路径::id}"
进行引用。
<!-- 项目导航栏 -->
<div th:replace="~{commons/commons::topBar}"></div>
如果需要传递参数,可以直接使用 ()
传参,接收判断
<!-- 传递参数给组件 -->
<div th:replace="~{commons/commons::sidebarMenu(active='main.html')}"></div>
<!-- 接收判断 -->
<a th:class="${active=='main.html'? 'nav-link active' : 'nav-link'}" th:href="@{/index.html}">...</a>
员工列表循环显示:
<thead>
<tr>
<th>id</th>
<th>lastName</th>
<th>email</th>
<th>gender</th>
<th>department</th>
<th>birth</th>
<th>操作</th>
</tr>
</thead>
<tbody>
<tr th:each="emp: ${employees}">
<td th:text="${emp.getId()}"></td>
<td th:text="${emp.getLastName()}"></td>
<td th:text="${emp.getEmail()}"></td>
<td th:text="${emp.getGender()==0 ? '女' : '男' }"></td>
<td th:text="${emp.getDepartment().getName()}"></td>
<td th:text="${#dates.format(emp.getBirth(), 'yyyy-MM-dd HH:mm:ss')}"></td>
<td>
<button class="btn btn-sm btn-primary">编辑</button>
<button class="btn btn-sm btn-danger">删除</button>
</td>
</tr>
</tbody>
</table>
停了超长时间,继续都摸不着头脑了
1、添加员工
<form th:action="@{/emp}" method="post">
<div class="form-group">
<label>LastName</label>
<input name="lastName" type="text" class="form-control" placeholder="面包">
</div>
<div class="form-group">
<label>Email</label>
<input name="email" type="email" class="form-control" placeholder="1752196851@qq.com">
</div>
<div class="form-group">
<label>Gender</label><br>
<div class="form-check form-check-inline">
<input class="form-check-input" type="radio" name="gender" value="1">
<label class="form-check-label">男</label>
</div>
<div class="form-check form-check-inline">
<input class="form-check-input" type="radio" name="gender" value="0">
<label class="form-check-label">女</label>
</div>
</div>
<div class="form-group">
<label>department</label>
<!-- 我们在 controller 接收的是一个 Employee,所以我们需要提交的是其中的一个属性! department.id -->
<select class="form-control" name="department.id">
<option th:each="dept:${departments}" th:text="${dept.getName()}" th:value="${dept.getId()}"></option>
</select>
</div>
<div class="form-group">
<label>Birth</label>
<input name="birth" type="text" class="form-control" placeholder="2020/12/01">
</div>
<button type="submit" class="btn btn-primary">添加</button>
</form>
2、修改员工
<form th:action="@{/updateEmp}" method="post">
<!-- id隐藏域 -->
<input type="hidden" name="id" th:value="${emp.getId()}">
<div class="form-group">
<label>LastName</label>
<input th:value="${emp.getLastName()}" name="lastName" type="text" class="form-control" placeholder="面包">
</div>
<div class="form-group">
<label>Email</label>
<input th:value="${emp.getEmail()}" name="email" type="email" class="form-control" placeholder="1752196851@qq.com">
</div>
<div class="form-group">
<label>Gender</label><br>
<div class="form-check form-check-inline">
<input th:checked="${emp.getGender()==1}" class="form-check-input" type="radio" name="gender" value="1">
<label class="form-check-label">男</label>
</div>
<div class="form-check form-check-inline">
<input th:checked="${emp.getGender()==0}" class="form-check-input" type="radio" name="gender" value="0">
<label class="form-check-label">女</label>
</div>
</div>
<div class="form-group">
<label>department</label>
<!-- 我们在 controller 接收的是一个 Employee,所以我们需要提交的是其中的一个属性! department.id -->
<select class="form-control" name="department.id">
<option th:selected="${dept.getId()==emp.getDepartment().getId()}" th:each="dept:${departments}" th:text="${dept.getName()}" th:value="${dept.getId()}"></option>
</select>
</div>
<div class="form-group">
<label>Birth</label>
<input th:value="${#dates.format(emp.getBirth(), 'yyyy-MM-dd HH:mm')}" name="birth" type="text" class="form-control" placeholder="2020/12/01">
</div>
<button type="submit" class="btn btn-primary">修改</button>
</form>
配置文件日期格式:
# 日期格式化
spring.mvc.format.date=yyyy-MM-dd
3、删除员工
<a class="btn btn-sm btn-danger" th:href="@{/deleteEmp/}+${emp.getId()}">删除</a>
4、404页面
在templates文件夹下新建error文件夹,放置404.html、500.html等等即可。
