准备工作:
1. 创建工程 day02_eesy_04account_annoioc_withoutxml
2. 在pom.xml文件中完成相关配置
3. 将工程day02_eesy_04account_annoioc的相关文件全部都复制到该工程对应目录下,
4. 即工程 day02_eesy_04account_annoioc_withoutxml的初始状态和工程day02_eesy_04account_annoioc的
完结状态相同
5. 创建配置类SpringConfiguration.java
1. ComponentScan
1.1 介绍
Configuration
作用: 指定当前类是一个配置类
1.2 案例
在配置类SpringConfiguration.java进行@Configuration注解配置
/**
* 该类是一个配置类, 他的作用和bean.xml是一样的
* spring中的新注解
* Configuration
* 作用: 指定当前类是一个配置类
*/
@Configuration
public class SpringConfiguration {
}
2. ComponentScan
2.1 介绍
作用: 用于通过注解指定Spring在创建容器时要扫描的包
属性:
value: 他和basePackages的作用是一样的, 都是用于指定创建容器时要扫描的包
我们使用此注解就相当于在xml中配置了:
<context:component-scan base-package="com.itheima"></context:component-scan>
2.2 案例
在配置类SpringConfiguration.java进行@ ComponentScan注解配置
/**
* 该类是一个配置类, 他的作用和bean.xml是一样的
* spring中的新注解
* Configuration
* 作用: 指定当前类是一个配置类
* ComponentScan
* 作用: 用于通过注解指定Spring在创建容器时要扫描的包
* 属性:
* value: 他和basePackages的作用是一样的, 都是用于指定创建容器时要扫描的包
* 我们使用此注解就相当于在xml中配置了:
* <context:component-scan base-package="com.itheima"></context:component-scan>
*/
@Configuration
@ComponentScan(basePackages = {"com.itheima"}) //或@ComponentScan(basePackages = "com.itheima")或@ComponentScan("com.itheima")
public class SpringConfiguration {
}
3. Bean
3.1 介绍
Bean
作用: 用于把当前方法的返回值作为bean对象存入spring的ioc容器中
属性:
name: 用于指定bean的id; 当不写时,默认值是当前方法的名称
细节:
当我们使用注解配置方法时, 如果方法有参数, spring框架就会去容器中查找有没有可用的bean对象;
查找的方式和Autowired注解的方式是一样的
3.2 案例
在配置类SpringConfiguration.java进行@ Bean注解配置
/**
* 该类是一个配置类, 他的作用和bean.xml是一样的
* spring中的新注解
* Configuration
* 作用: 指定当前类是一个配置类
* ComponentScan
* 作用: 用于通过注解指定Spring在创建容器时要扫描的包
* 属性:
* value: 他和basePackages的作用是一样的, 都是用于指定创建容器时要扫描的包
* 我们使用此注解就相当于在xml中配置了:
* <context:component-scan base-package="com.itheima"></context:component-scan>
* Bean
* 作用: 用于把当前方法的返回值作为bean对象存入spring的ioc容器中
* 属性:
* name: 用于指定bean的id; 当不写时,默认值是当前方法的名称
* 细节:
* 当我们使用注解配置方法时, 如果方法有参数, spring框架就会去容器中查找有没有可用的bean对象;
* 查找的方式和Autowired注解的方式是一样的
*/
@Configuration
@ComponentScan(basePackages = {"com.itheima"}) //或@ComponentScan(basePackages = "com.itheima")或@ComponentScan("com.itheima")
public class SpringConfiguration {
/**
* 用于创建一个QueryRunner对象
*/
@Bean(name = "runner")
public QueryRunner createQueryRunner(DataSource dataSource){
return new QueryRunner(dataSource);
}
/**
* 创建数据源对象
* @return
*/
@Bean("datasource")
public DataSource createDataSource() {
try {
ComboPooledDataSource dataSource = new ComboPooledDataSource();
dataSource.setDriverClass("");
dataSource.setJdbcUrl("");
dataSource.setUser("root");
dataSource.setPassword("123456");
return dataSource;
} catch (Exception e) {
throw new RuntimeException();
}
}
}
说明: 这一段使用bean注解的代码与bean.xml文件中的
<!--配置QueryRunner-->
<bean id="runner" class="org.apache.commons.dbutils.QueryRunner" scope="prototype"> <!--QueryRunner的默认作用范围是单例的,为了避免线程之间的相互影响,将其设置为多例的-->
<!--注入数据源-->
<constructor-arg name="ds" ref="dataSource"></constructor-arg>
</bean>
<!--配置数据源-->
<bean id="dataSource" class="com.mchange.v2.c3p0.ComboPooledDataSource">
<!--连接数据库的必备信息-->
<property name="driverClass" value="com.mysql.jdbc.Driver"></property>
<property name="jdbcUrl" value="jdbc:mysql://localhost:3306/eesy"></property>
<property name="user" value="root"></property>
<property name="password" value="123456"></property>
</bean>
相对应
4. 使用 AnnotationConfigApplicationContext(.class)获取容器
为了将bean.xml配置文件删除也能获取到IOC容器, 获取容器的方式改为
ApplicationContext applicationContext = new AnnotationConfigApplicationContext(SpringConfiguration.class);
括号中为配置类的字节码
完善AccountServiceTest.java如下:
**
* 使用Junit单元,测试我们的配置
*/
public class AccountServiceTest {
private ApplicationContext applicationContext;
private IAccountService accountService;
@Before
public void init(){
// 1. 获取容器
//通过解析注解配置类得到applicationContext
applicationContext = new AnnotationConfigApplicationContext(SpringConfiguration.class);
// 2. 得到业务层对象
accountService=applicationContext.getBean("accountService",IAccountService.class);
}
@Test
public void testFindAll(){
// 3. 执行方法
List<Account> accounts = accountService.findAllAccount();
for(Account account:accounts){
System.out.println(account);
}
}
@Test
public void testFindById(){
// 3. 执行方法
Account account=accountService.findAccountById(1);
System.out.println(account);
}
@Test
public void testSave(){
// 3. 执行方法
Account account = new Account();
account.setName("test");
account.setMoney(12345.0);
accountService.saveAccount(account);
}
@Test
public void testUpdate(){
// 3. 执行方法
Account account = accountService.findAccountById(5);
account.setMoney(1234.0);
accountService.updateAccount(account);
}
@Test
public void testDelete(){
accountService.deleteAccount(4);
}
}
5. 修改QueryRunner作用范围
5.1 为返回QueryRunner的方法添加注解@Scope
SpringConfiguration.java
@Configuration
@ComponentScan(basePackages = {"com.itheima"}) //或@ComponentScan(basePackages = "com.itheima")或@ComponentScan("com.itheima")
public class SpringConfiguration {
/**
* 用于创建一个QueryRunner对象
*/
@Bean(name = "runner")
@Scope("prototype")
public QueryRunner createQueryRunner(DataSource dataSource){
return new QueryRunner(dataSource);
}
/**
* 创建数据源对象
* @return
*/
@Bean("datasource")
public DataSource createDataSource() {
try {
ComboPooledDataSource dataSource = new ComboPooledDataSource();
dataSource.setDriverClass("com.mysql.jdbc.Driver");
dataSource.setJdbcUrl("jdbc:mysql://localhost:3306/eesy");
dataSource.setUser("root");
dataSource.setPassword("123456");
return dataSource;
} catch (Exception e) {
throw new RuntimeException();
}
}
}
5.2 创建测试类TestQueryRunner.java
/**
* 测试QueryRunner是否单例
*/
public class QueryRunnerTest {
@Test
public void testQueryRunner() {
//1. 获取容器
ApplicationContext applicationContext = new AnnotationConfigApplicationContext(SpringConfiguration.class);
//2. 获取QueryRunner对象
QueryRunner runner = applicationContext.getBean("runner",QueryRunner.class);
QueryRunner runner2 = applicationContext.getBean("runner",QueryRunner.class);
System.out.println(runner == runner2);
}
}
6. Import
用于解决配置类的导入问题
6.1 新建一个配置类JdbcConfig.java用于进行数据库方面的配置
/**
* 和Spring连接数据库相关的配置
*/
public class JdbcConfig {
/**
* 用于创建一个QueryRunner对象
*/
@Bean(name = "runner")
@Scope("prototype")
public QueryRunner createQueryRunner(DataSource dataSource){
return new QueryRunner(dataSource);
}
/**
* 创建数据源对象
* @return
*/
@Bean("datasource")
public DataSource createDataSource() {
try {
ComboPooledDataSource dataSource = new ComboPooledDataSource();
dataSource.setDriverClass("com.mysql.jdbc.Driver");
dataSource.setJdbcUrl("jdbc:mysql://localhost:3306/eesy");
dataSource.setUser("root");
dataSource.setPassword("123456");
return dataSource;
} catch (Exception e) {
throw new RuntimeException();
}
}
}
6.2 在主配置文件SpringConfiguration.java中导入该配置类
/**
* 该类是一个配置类, 他的作用和bean.xml是一样的
* spring中的新注解
* Configuration
* 作用: 指定当前类是一个配置类
* 细节: 当配置类作为AnnotationConfigApplicationContext对象创建的参数时,该注解可以不写
* ComponentScan
* 作用: 用于通过注解指定Spring在创建容器时要扫描的包
* 属性:
* value: 他和basePackages的作用是一样的, 都是用于指定创建容器时要扫描的包
* 我们使用此注解就相当于在xml中配置了:
* <context:component-scan base-package="com.itheima"></context:component-scan>
*
* Bean
* 作用: 用于把当前方法的返回值作为bean对象存入spring的ioc容器中
* 属性:
* name: 用于指定bean的id; 当不写时,默认值是当前方法的名称
* 细节:
* 当我们使用注解配置方法时, 如果方法有参数, spring框架就会去容器中查找有没有可用的bean对象;
* 查找的方式和Autowired注解的方式是一样的
*
* Import:
* 作用: 用于导入其他配置类
* 属性:
* value: 用于指定其他配置类的字节码
* 当我们使用Import的注解之后, 有Import注解的类就是夫配置类, 而导入的都是子配置类
*/
@Configuration
@ComponentScan(basePackages = {"com.itheima"}) //或@ComponentScan(basePackages = "com.itheima")或@ComponentScan("com.itheima")
@Import(JdbcConfig.class)
public class SpringConfiguration {
}
说明: 当配置类作为AnnotationConfigApplicationContext对象创建的参数时,@Configuration注解可以不写
7. PropertySource
用于读取配置文件 jdbc.properties 的数据
7.1 创建jdbc.properties
jdbc.properties用于存放数据库相关的数据
jdbc.driver=com.mysql.jdbc.Driver
jdbc.url=jdbc:mysql://localhost:3306/eesy
jdbc.username=root
jdbc.password=123456
7.2 修改JdbcConfig.java类
**
* 和Spring连接数据库相关的配置
*/
public class JdbcConfig {
@Value("${jdbc.driver}")
private String driver;
@Value("${jdbc.url}")
private String url;
@Value("${jdbc.username}")
private String username;
@Value("${jdbc.password}")
private String password;
/**
* 用于创建一个QueryRunner对象
*/
@Bean(name = "runner")
@Scope("prototype")
public QueryRunner createQueryRunner(DataSource dataSource){
return new QueryRunner(dataSource);
}
/**
* 创建数据源对象
* @return
*/
@Bean("datasource")
public DataSource createDataSource() {
try {
ComboPooledDataSource dataSource = new ComboPooledDataSource();
dataSource.setDriverClass(driver);
dataSource.setJdbcUrl(url);
dataSource.setUser(username);
dataSource.setPassword(password);
return dataSource;
} catch (Exception e) {
throw new RuntimeException();
}
}
}
7.3 为主配置文件 SpringConfiguration.java添加ProprttySource注解
*
* Import:
* 作用: 用于导入其他配置类
* 属性:
* value: 用于指定其他配置类的字节码
* 当我们使用Import的注解之后, 有Import注解的类就是夫配置类, 而导入的都是子配置类
* PropertySource:
* 作用: 用于指定properties文件的位置
* 属性:
* value: 指定文件的名称和路径
* 关键字: classpath, 表示类路径下
*
*/
@Configuration
@ComponentScan(basePackages = {"com.itheima"}) //或@ComponentScan(basePackages = "com.itheima")或@ComponentScan("com.itheima")
@Import(JdbcConfig.class)
@PropertySource("classpath:jdbcConfig.properties")
public class SpringConfiguration {
}
8. 总结
如果是自己创建的类, 用注解方式比较简单
如果是jar包中封装的对象,直接在xml文件中配置比较简单
9. Qualifier
Qualifier一方面可以和Autwired联合使用
另一方面可以指定方法中形式参数的注入id
9.1 创建数据库eesy02
create eesy02;
9.2 创建数据库表 account
create table account(
id int primary key auto_increment,
name varchar(40),
money float
)character set utf8 collate utf8_general_ci;
insert into account(name,money) values('aaa',1000);
insert into account(name,money) values('bbb',1000);
insert into account(name,money) values('ccc',1000);
9.3 修改JdbcConfig.java
/**
* 和Spring连接数据库相关的配置
*/
public class JdbcConfig {
@Value("${jdbc.driver}")
private String driver;
@Value("${jdbc.url}")
private String url;
@Value("${jdbc.username}")
private String username;
@Value("${jdbc.password}")
private String password;
/**
* 用于创建一个QueryRunner对象
*/
@Bean(name = "runner")
@Scope("prototype")
public QueryRunner createQueryRunner(@Qualifier("datasource2") DataSource dataSource){
return new QueryRunner(dataSource);
}
/**
* 创建数据源对象
* @return
*/
@Bean("datasource")
public DataSource createDataSource() {
try {
ComboPooledDataSource dataSource = new ComboPooledDataSource();
dataSource.setDriverClass(driver);
dataSource.setJdbcUrl(url);
dataSource.setUser(username);
dataSource.setPassword(password);
return dataSource;
} catch (Exception e) {
throw new RuntimeException();
}
}
@Bean("datasource2")
public DataSource createDataSource2() {
try {
ComboPooledDataSource dataSource = new ComboPooledDataSource();
dataSource.setDriverClass("com.jdbc.driver");
dataSource.setJdbcUrl("jdbc:mysql://localhost:3306/eesy02");
dataSource.setUser("root");
dataSource.setPassword("123456");
return dataSource;
} catch (Exception e) {
throw new RuntimeException();
}
}
}
此时Spring的IOC容器中有两个DataSource类型的对象, Qualifier的作用就是指定注入的是哪一个DataSource
9.4 在AccountServiceTest.java中运行

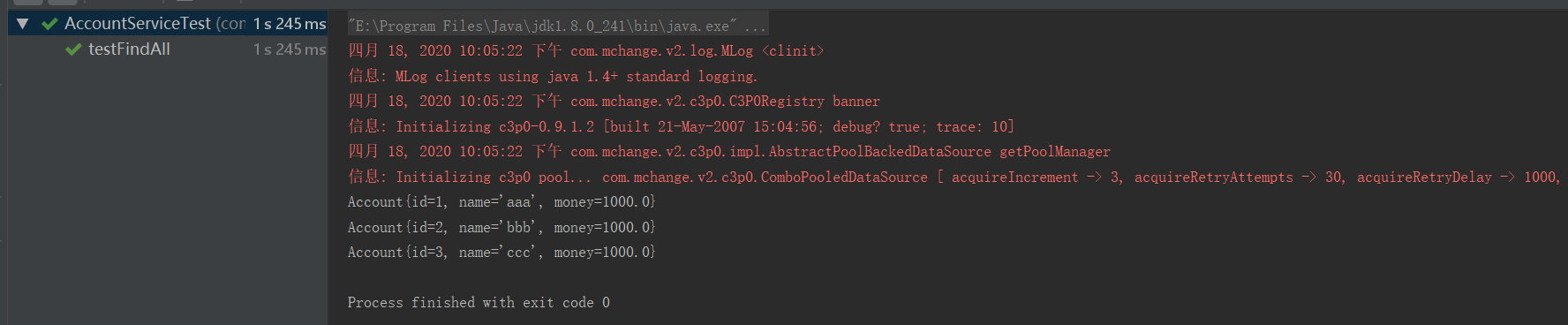

运行结果:
3. Spring整合junit
3.1 问题分析
-
程序的入口
main方法
-
junit单元测试中,没有main方法也能执行
junit集成了一个main方法
该方法就会判断当前测试类中哪些方法有 @Test 注解
junit就会让有 @Test 注解的方法执行
-
junit不会管我们是否采用Spring框架
在执行测试方法时, junit根本不知道我们是不是使用了Spring框架
所以也就不会为我们读取配置文件/配置类创建Spring容器
-
由以上三点可知
当测试方法执行时,没有IOC容器,即使写了 Autowired 注解,也无法实现注入
3.2 整合步骤
在测试类AccountServiceTest.java中完成整合
/**
* 使用Junit单元,测试我们的配置
* Spring整合junit的配置
* 1.导入Spring整合junit的jar包(坐标)
* 2. 使用Junit提供的注解 @Runwith 把原有的main方法替换掉, 替换成Spring提供的
* @Runwith
* 3. 告知Spring的运行器,Spring和IOC创建是基于xml还是注解, 并且说明位置
* @ContextConfiguration
* locations: 指定xml文件的位置,加上classpath关键字,表示在类路径下
* classes: 指定注解类所在位置
*
* 细节: 当我们使用Spring 5.x 版本的时候,要求junit的jar包必须是 4.12版本及以上
*/
@RunWith(SpringJUnit4ClassRunner.class)
@ContextConfiguration(classes = SpringConfiguration.class)
public class AccountServiceTest {
@Autowired
private IAccountService accountService=null;
@Test
public void testFindAll(){
// 3. 执行方法
List<Account> accounts = accountService.findAllAccount();
for(Account account:accounts){
System.out.println(account);
}
}
@Test
public void testFindById(){
// 3. 执行方法
Account account=accountService.findAccountById(1);
System.out.println(account);
}
@Test
public void testSave(){
// 3. 执行方法
Account account = new Account();
account.setName("test");
account.setMoney(12345.0);
accountService.saveAccount(account);
}
@Test
public void testUpdate(){
// 3. 执行方法
Account account = accountService.findAccountById(5);
account.setMoney(1234.0);
accountService.updateAccount(account);
}
@Test
public void testDelete(){
accountService.deleteAccount(4);
}
}
在pom.xml中添加的依赖为:
<dependency>
<groupId>org.springframework</groupId>
<artifactId>spring-test</artifactId>
<version>5.2.4.RELEASE</version>
</dependency>

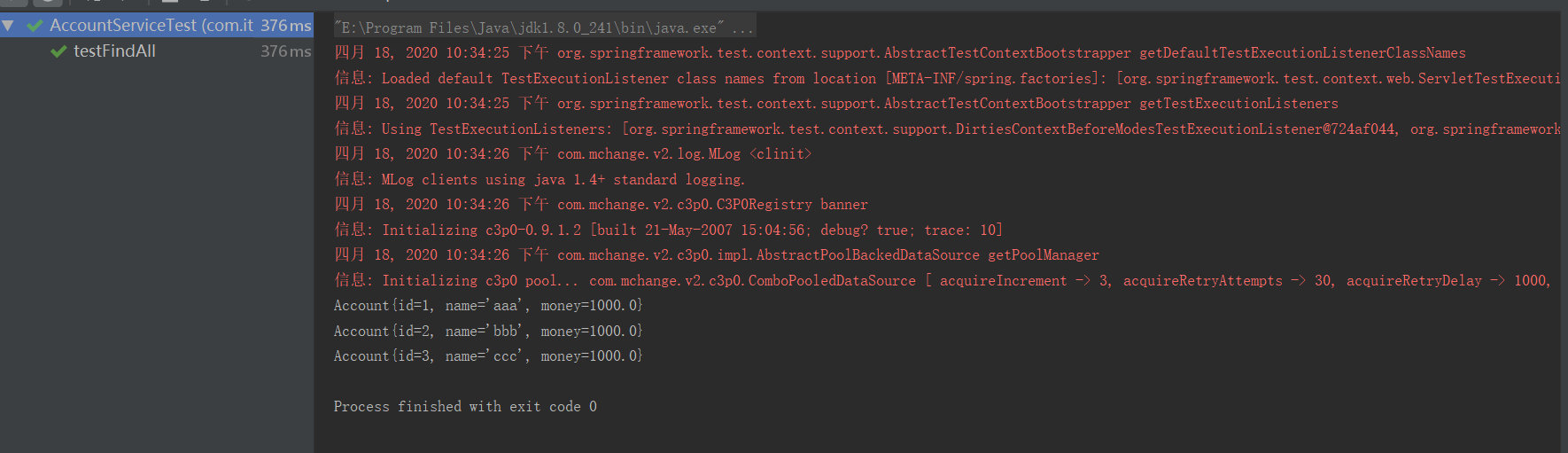

运行结果:
