Revit API: Dimension 尺寸标注

前言

本文介绍 Revit API 的尺寸标注。

内容

在 Revit API 中，尺寸标注相关的有三个类：Dimension、AngularDimension 和 SpotDimension。
后两者是 Dimension 的子类。

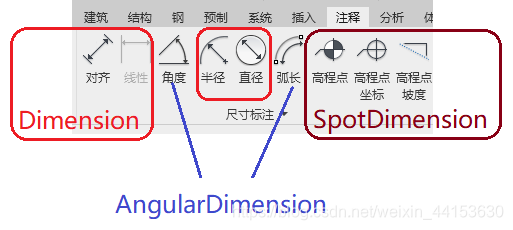

对应到 UI：

创建标注

Revit 中创建标注的地方并不统一。分别在 Autodesk.Revit.Creation.ItemFactoryBase、 Autodesk.Revit.Creation.FamilyItemFactory 和 Autodesk.Revit.Creation.Document中。其中，后两者继承自第一个类。

在 Autodesk.Revit.Creation.ItemFactoryBase, 创建对齐标注和线型标注，Alignment 是约束：

namespace Autodesk.Revit.Creation
{
    public class ItemFactoryBase : APIObject
    {
        public Dimension NewAlignment(View view, Reference reference1, Reference reference2);
        public Dimension NewDimension(View view, Line line, ReferenceArray references, DB.DimensionType dimensionType);
        public Dimension NewDimension(View view, Line line, ReferenceArray references);
    }
}

在实际使用中，Revit 文件和 Revit 族文件使用上稍有差异。
Revit 文件：

Dimension newDimension = doc.Create.NewDimension(doc.ActiveView, newLine2, referenceArray);

Revit 族文件，实际对应的是 FamilyItemFactory 里面的方法：

dim = m_document.FamilyCreate.NewDimension(view, line, refArray);

如下所示，在族文件里，除了对齐标注和线型标注，可以做角度、半径、直径、弧长的尺寸标注。从另一个角度可以说明，在 Revit 文件中，可能不能创建这些类型的尺寸标注，需要自己去验证一下。

namespace Autodesk.Revit.Creation
{
    public class FamilyItemFactory : ItemFactoryBase
    {
        public Dimension NewAngularDimension(View view, Arc arc, Reference firstRef, Reference secondRef);
        public Dimension NewAngularDimension(View view, Arc arc, Reference firstRef, Reference secondRef, DB.DimensionType dimensionType);
        public Dimension NewArcLengthDimension(View view, Arc arc, Reference arcRef, Reference firstRef, Reference secondRef);
        public Dimension NewArcLengthDimension(View view, Arc arc, Reference arcRef, Reference firstRef, Reference secondRef, DB.DimensionType dimensionType);
        public Dimension NewDiameterDimension(View view, Reference arcRef, DB.XYZ origin);
        public Dimension NewLinearDimension(View view, Line line, ReferenceArray references);
        public Dimension NewLinearDimension(View view, Line line, ReferenceArray references, DB.DimensionType dimensionType);
        public Dimension NewRadialDimension(View view, Reference arcRef, DB.XYZ origin);
        public Dimension NewRadialDimension(View view, Reference arcRef, DB.XYZ origin, DB.DimensionType dimensionType);
    }
}

创建高程点标注：

namespace Autodesk.Revit.Creation
{
    public class Document : ItemFactoryBase
    {
        public SpotDimension NewSpotCoordinate(View view, Reference reference, DB.XYZ origin, DB.XYZ bend, DB.XYZ end, DB.XYZ refPt, bool hasLeader);
        public SpotDimension NewSpotElevation(View view, Reference reference, DB.XYZ origin, DB.XYZ bend, DB.XYZ end, DB.XYZ refPt, bool hasLeader);
    }
}

创建的过程是类似的，以 NewDimension 为例：
Revit API 开发（3）：用两个点创建一个标注

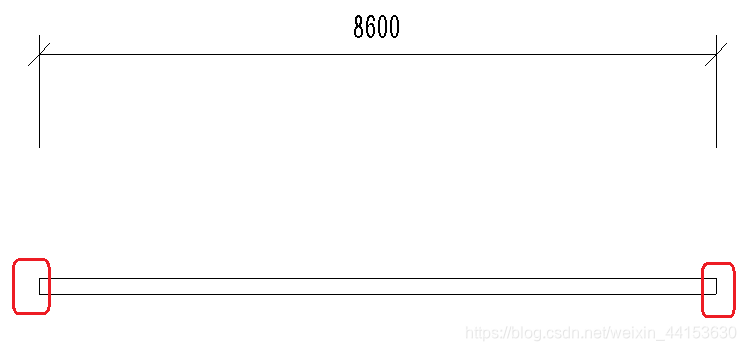

线性标注的例子

逻辑：

1. 用户选中墙（这个例子仅仅支持墙的方向在平面视图中从左往右，其它方向自行修改代码）
2. 检测墙的几何图形，找到端点的两个面（通过法线来判断）
3. 从一个面计算得到坐标在 UV(0,0) 的点，然后投影到另一个面
4. 把这两个点都平移一段距离（吐槽 line.CreateOffset 健壮性太差）
5. 创建线性标注，doc.Create.NewDimension(uiDoc.ActiveView, line, referenceArray)

完整代码：

class CreateDimensionCommand : IExternalCommand
{
    public Result Execute(ExternalCommandData commandData, ref string message, ElementSet elements)
    {
        UIDocument uiDoc = commandData.Application.ActiveUIDocument;
        Document doc = uiDoc.Document;

        Face face1 = null;
        Face face2 = null;
        Reference reference = uiDoc.Selection.PickObject(Autodesk.Revit.UI.Selection.ObjectType.Element);
        Element elem = doc.GetElement(reference.ElementId);
        Options options = new Options();
        options.View = uiDoc.ActiveView;
        options.ComputeReferences = true;
        GeometryElement geometryElement = elem.get_Geometry(options);
        foreach (GeometryObject gObj in geometryElement)
        {
            Solid solid = gObj as Solid;
            foreach (Face face in solid.Faces)
            {
                XYZ normal = face.ComputeNormal(new UV(0, 0));
                if (Math.Abs(normal.X) > 0.1)
                {
                    if (normal.X > 0.1)
                    {
                        face1 = face;
                    }
                    else
                    {
                        face2 = face;
                    }
                }
            }
        }

        if (face1 != null && face2 != null)
        {
            Transaction tran = new Transaction(doc, "Create Dimension");
            tran.Start();
            XYZ p1 = face1.Evaluate(new UV(0, 0));
            XYZ p2 = face2.Project(p1).XYZPoint;
            p1 = new XYZ(p1.X, p1.Y + 10.0, p1.Z);
            p2 = new XYZ(p2.X, p2.Y + 10.0, p2.Z);
            Line line = Line.CreateBound(p1, p2);

            ReferenceArray referenceArray = new ReferenceArray();
            referenceArray.Append(face1.Reference);
            referenceArray.Append(face2.Reference);
            doc.Create.NewDimension(uiDoc.ActiveView, line, referenceArray);
            tran.Commit();
        }

        return Result.Succeeded;
    }
}

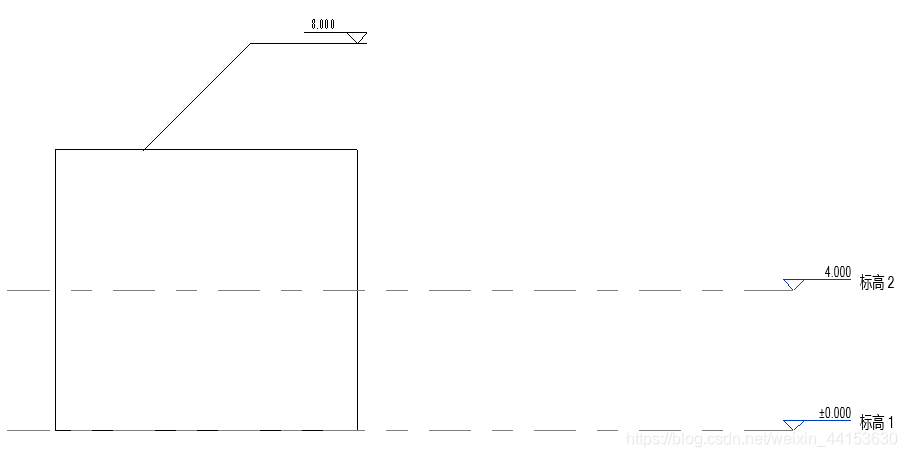

高程点的例子

逻辑：

1. 用户选中墙（这个例子仅仅支持墙的方向在平面视图中从左往右，其它方向自行修改代码）
2. 检测墙的几何图形，找到顶面（通过法线来判断）
3. 从一个面计算得到坐标在 UV(0,20) 的点作为 origin（注意和你选的面有关，不一定是这个点作为起点）
4. 计算几个转角点 bend，终点 end，以及 refPt，这个点似乎没有什么作用
5. 设置是否需要箭头
6. 创建线性标注，doc.Create.NewSpotElevation(uiDoc.ActiveView, topFaceRef, origin, bend, end, refPt, hasLeader)

class CreateSpotDimensionCommand : IExternalCommand
{
    public Result Execute(ExternalCommandData commandData, ref string message, ElementSet elements)
    {
        UIDocument uiDoc = commandData.Application.ActiveUIDocument;
        Document doc = uiDoc.Document;

        Reference reference = uiDoc.Selection.PickObject(Autodesk.Revit.UI.Selection.ObjectType.Element);
        Face upFace = null;
        Element elem = doc.GetElement(reference.ElementId);
        Options options = new Options();
        options.View = uiDoc.ActiveView;
        options.ComputeReferences = true;
        GeometryElement geometryElement = elem.get_Geometry(options);
        foreach (GeometryObject gObj in geometryElement)
        {
            Solid solid = gObj as Solid;
            foreach (Face face in solid.Faces)
            {
                XYZ normal = face.ComputeNormal(new UV(0, 0));
                if (normal.Z > 0.1)
                {
                    upFace = face;
                }
            }
        }

        if (upFace != null)
        {
            Reference topFaceRef = upFace.Reference;
            Transaction tran = new Transaction(doc, "Create Dimension");
            tran.Start();
            XYZ origin = upFace.Evaluate(new UV(0, 20));
            XYZ bend = new XYZ(origin.X + 10.0, origin.Y, origin.Z + 10.0);
            XYZ end = new XYZ(bend.X + 10.0, bend.Y, bend.Z);
            XYZ refPt = origin;
            bool hasLeader = true;

            doc.Create.NewSpotElevation(uiDoc.ActiveView, topFaceRef, origin, bend, end, refPt, hasLeader);
            tran.Commit();
        }

        return Result.Succeeded;
    }
}
