《Mybatis》第一篇 系统读取Mybatis-config.xml核心配置文件流程

一.前言

本人是一个java后端开发新手，由于近期的项目中添加了mybatis技术，虽然技术会使用，但是不太了解配置文件是如何加载读取到的，所以按照自己的理解整理出一份说明。
<如有不足之处，麻烦指出>

二.底层代码解析

---

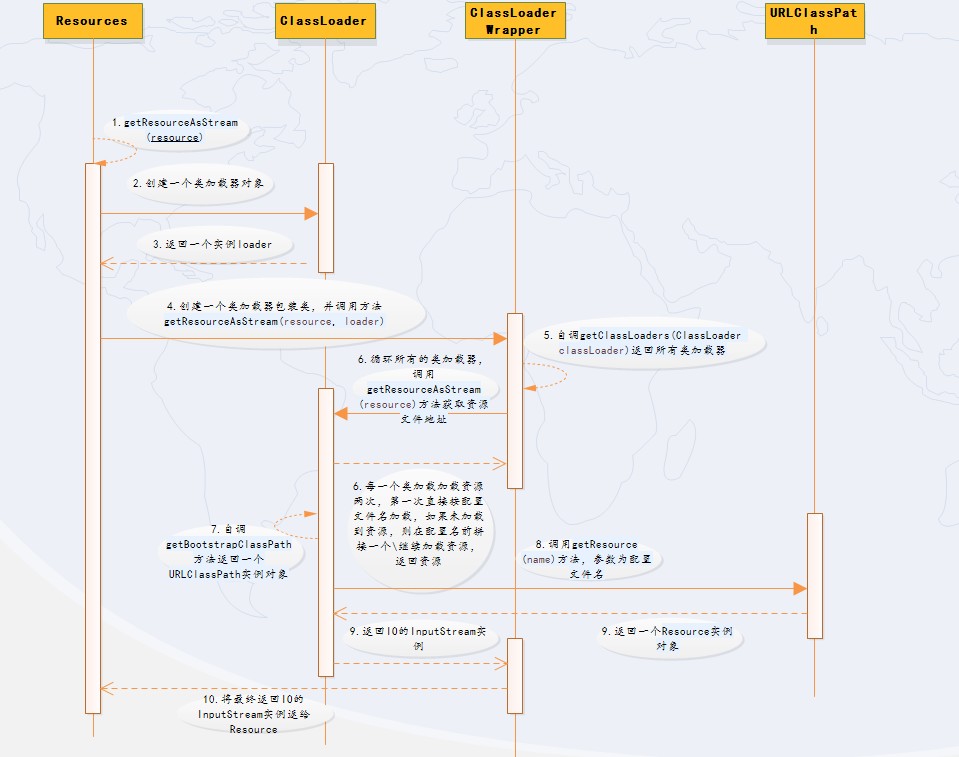

图上时序图步骤解析说明<附上代码块，序号和图中序号对应>:
1.一般代码中加载配置只需要一行代码搞定，如下

   //代码中从类路径中加载核心配置文件resource = "mybatis-comfig.xml "
   InputStream inputStream = Resources.getResourceAsStream(resource);

2.重载的方法中创建一个类加载器ClassLoader实例对象loader,并调用类加载器包装类classLoaderWrapper的方法
getResourceAsStream(resource, loader)

/*
   * 以流对象的形式返回类路径上的资源
   *
   * @param resource The resource to find
   * @return The resource
   * @throws java.io.IOException If the resource cannot be found or read
   */
  public static InputStream getResourceAsStream(String resource) throws IOException {
    return getResourceAsStream(null, resource); //调用Resources内部重载方法，参数为路径名
  }

/*
   * 以流对象的形式返回类路径上的资源
   *
   * @param loader   The classloader used to fetch the resource
   * @param resource The resource to find
   * @return The resource
   * @throws java.io.IOException If the resource cannot be found or read
   */
  public static InputStream getResourceAsStream(ClassLoader loader, String resource) throws IOException {
    InputStream in = classLoaderWrapper.getResourceAsStream(resource, loader); //返回IO流对象InputStream
    if (in == null) throw new IOException("Could not find resource " + resource);
    return in;
  }

3 && 4.classLoaderWrapper来加载器包装类的getResourceAsStream(resource, loader)方法

/*
   * Get a resource from the classpath, starting with a specific class loader
   *
   * @param resource    - the resource to find
   * @param classLoader - the first class loader to try
   * @return the stream or null
   */
  public InputStream getResourceAsStream(String resource, ClassLoader classLoader) {
    //getClassLoaders(classLoader)为获取所有类型的类加载器
    return getResourceAsStream(resource, getClassLoaders(classLoader));
  }

//4.自调getClassLoaders(classLoader)方法，返回一个类加载器数组，内部包含5类加载器
ClassLoader[] getClassLoaders(ClassLoader classLoader) {
        return new ClassLoader[]{
            classLoader,   //由参数指定的默认类加载器
            defaultClassLoader, //系统指定的类加载器
            Thread.currentThread().getContextClassLoader(), //当前线程绑定的类加载器
            getClass().getClassLoader(), //加载当前类所使用的类加载器
            systemClassLoader}; //系统类加载器
      }

5 && 6.循环使用每一个类加载器去加载配置路径资源，每个类最多加载两次，第一次直接以配置文件名作为路径加载，如果没有加载到资源，则拼接一个"/"形成一个新的路径名再次加载

 /*
   * Try to get a resource from a group of classloaders
   * 尝试循环使用每一个类加载器去加载资源
   *
   * @param resource    - the resource to get
   * @param classLoader - the classloaders to examine
   * @return the resource or null
   */
  InputStream getResourceAsStream(String resource, ClassLoader[] classLoader) {
    for (ClassLoader cl : classLoader) {
      if (null != cl) {
        // try to find the resource as passed
        InputStream returnValue = cl.getResourceAsStream(resource);  //第一次加载
        // now, some class loaders want this leading "/", so we'll add it and try again if we didn't find the resource
        //如果第一次未加载到，拼接地址再次加载(第二次加载)
        if (null == returnValue) returnValue = cl.getResourceAsStream("/" + resource);
        if (null != returnValue) return returnValue;
      }
    }
    //两次都没加载到，返回null，下一个类加载器classLoader继续重复上面操作
    return null;
  }

//6.每个类加载器classLoader去调用方法getResourceAsStream(resource)方法，内部自调方法getResource(name)
   /**
     * Returns an input stream for reading the specified resource.
     * 返回用于读取指定资源的输入流
     * <p> The search order is described in the documentation for {@link
     * #getResource(String)}.  </p>
     *
     * @param  name
     *         The resource name
     *
     * @return  An input stream for reading the resource, or <tt>null</tt>
     *          if the resource could not be found
     *
     * @since  1.1
     */
    public InputStream getResourceAsStream(String name) {
        URL url = getResource(name); //自调
        try {
            return url != null ? url.openStream() : null;
        } catch (IOException e) {
            return null;
        }
    }

 //内部自调方法getResource(name)
   /**
     * Finds the resource with the given name.  A resource is some data
     * (images, audio, text, etc) that can be accessed by class code in a way
     * 查找具有给定名称的资源。资源是一些数据(图像、音频、文本等)，可以通过类代码以某种方式访问
     * that is independent of the location of the code.
     *
     * <p> The name of a resource is a '<tt>/</tt>'-separated path name that
     * identifies the resource.
     *
     * <p> This method will first search the parent class loader for the
     * resource; if the parent is <tt>null</tt> the path of the class loader
     * built-in to the virtual machine is searched.  That failing, this method
     * will invoke {@link #findResource(String)} to find the resource.  </p>
     *
     * @param  name
     *         The resource name
     *
     * @return  A <tt>URL</tt> object for reading the resource, or
     *          <tt>null</tt> if the resource could not be found or the invoker
     *          doesn't have adequate  privileges to get the resource.
     *
     * @since  1.1
     */
    public URL getResource(String name) {
        URL url;
        if (parent != null) {
            //parent 为此类ClassLoader类加载器中初始化委托的父类装入器
            //private final ClassLoader parent;
            url = parent.getResource(name);
        } else {
            url = getBootstrapResource(name);   //自调getBootstrapClassPath方法返回一个URLClassPath实例对象
        }
        if (url == null) {
            url = findResource(name);
        }
        return url;
    }

7 && 8 && 9.自调getBootstrapClassPath方法返回一个URLClassPath实例对象

    /**
    * Find resources from the VM's built-in classloader.
    * 从VM的内置类加载器中查找资源。
    */
   private static URL getBootstrapResource(String name) {
       URLClassPath ucp = getBootstrapClassPath();
       //8.调用URLClassPath类中getResource(name)返回Resource实例对象
       Resource res = ucp.getResource(name);
       return res != null ? res.getURL() : null;
   }

   //A:返回用于查找系统资源的URLClassPath。
   static URLClassPath getBootstrapClassPath() {
       return sun.misc.Launcher.getBootstrapClassPath();
   }

10.classLoaderWrapper将最终获取的IO流InputStream对象加载的配置资源返还给Resource

/*
   * 以流对象的形式返回类路径上的资源
   *
   * @param loader   The classloader used to fetch the resource
   * @param resource The resource to find
   * @return The resource
   * @throws java.io.IOException If the resource cannot be found or read
   */
  public static InputStream getResourceAsStream(ClassLoader loader, String resource) throws IOException {
    InputStream in = classLoaderWrapper.getResourceAsStream(resource, loader); //返回IO流对象InputStream
    if (in == null) throw new IOException("Could not find resource " + resource);
    return in;
  }
    //获取到的inputStream流对象返回Resource<逆向反推到最开始的那段代码>
    //代码中从类路径中加载核心配置文件mybatis-comfig.xml
    InputStream inputStream = Resources.getResourceAsStream(resource);
