TensorFlow基础8-实现单层神经网络

记录TensorFlow听课笔记

---

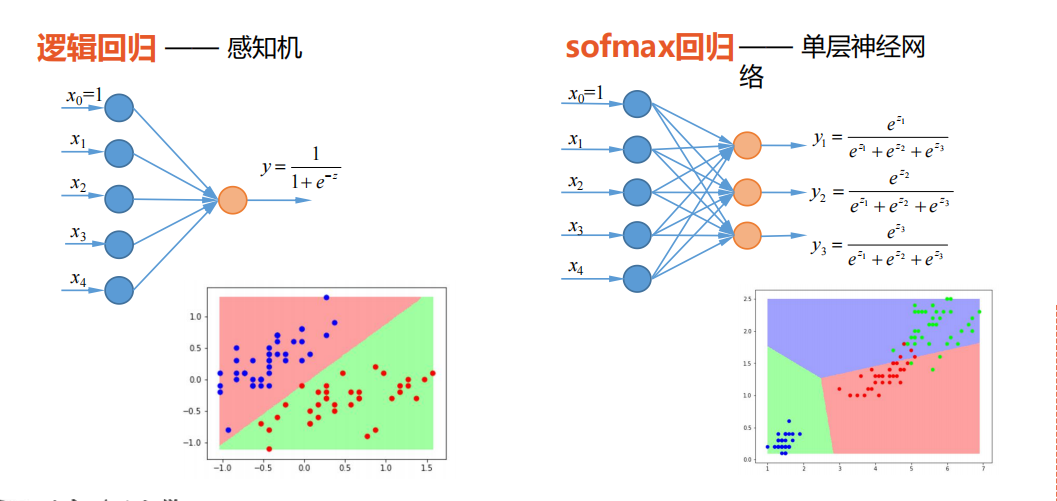

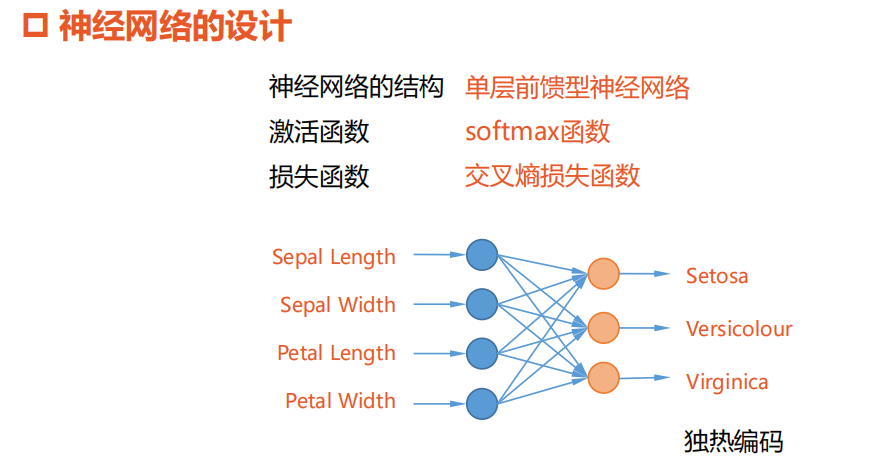

一，神经网络的设计

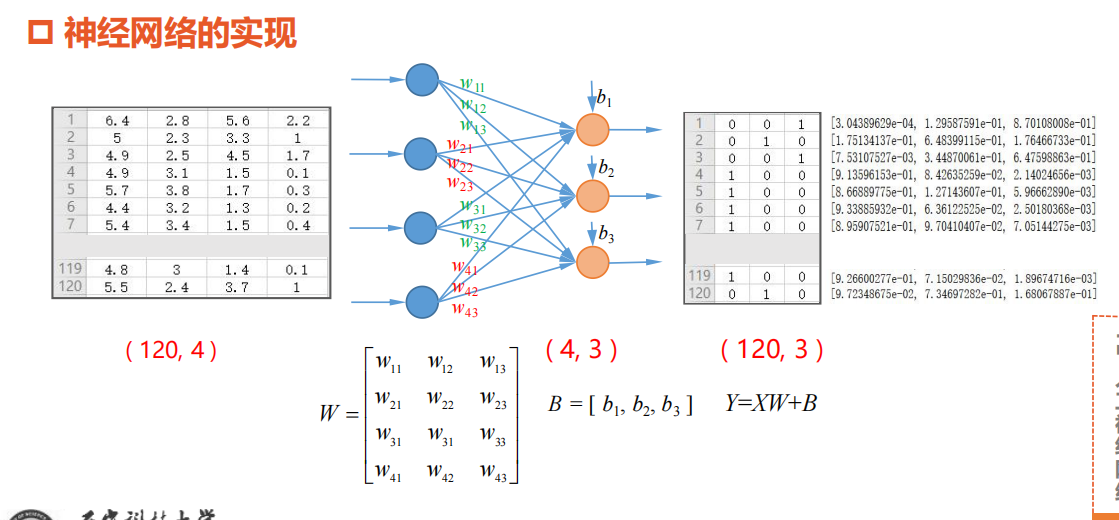

二，实现单层神经网络

导入库
加载数据
数据预处理
设置超参数和显示间隔
设置模型参数初始值
训练模型
结果可视化

#单层神经网络
import tensorflow as tf
import pandas as pd
import numpy as np
import matplotlib.pyplot as plt
#下载鸢尾花数据集
TRAIN_URL="http://download.tensorflow.org/data/iris_training.csv"
train_path=tf.keras.utils.get_file(TRAIN_URL.split('/')[-1],TRAIN_URL)
TEST_URL="http://download.tensorflow.org/data/iris_test.csv"
test_path=tf.keras.utils.get_file(TRAIN_URL.split('/')[-1],TEST_URL)
#读取数据集
df_iris_train=pd.read_csv(train_path,header=0)
df_iris_test=pd.read_csv(test_path,header=0)
#将数据集变为np数组
iris_train=np.array(df_iris_train)
iris_test=np.array(df_iris_test)
#取出数据集前四列特征以及第五列标签
x_train=iris_train[:,0:4]
y_train=iris_train[:,4]
x_test=iris_test[:,0:4]
y_test=iris_test[:,4]
#归一化中心化
x_train=x_train-np.mean(x_train,axis=0)
x_test=x_test-np.mean(x_test,axis=0)

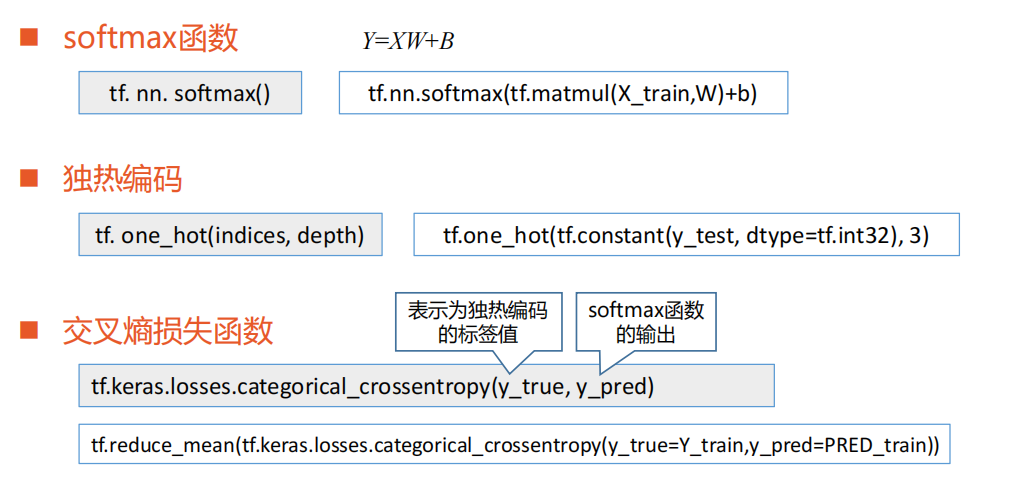

#转换数据类型并标签独热编码
X_train=tf.cast(x_train,tf.float32)
Y_train=tf.one_hot(tf.constant(y_train,dtype=tf.int32),3)
X_test=tf.cast(x_test,tf.float32)
Y_test=tf.one_hot(tf.constant(y_test,dtype=tf.int32),3)
#设置超参数和显示间隔
learn_rate=0.5
iter=50
display_step=10
#设置模型参数初始值
np.random.seed(612)
W=tf.Variable(np.random.randn(4,3),dtype=tf.float32)
B=tf.Variable(np.zeros([3]),dtype=tf.float32)
#训练模型
acc_train=[]              #训练准确率
acc_test=[]
cce_train=[]              #训练交叉熵
cce_test=[]
for i in range(0,iter+1):
    with tf.GradientTape() as tape:
        PRED_train=tf.nn.softmax(tf.matmul(X_train,W)+B)
        Loss_train=tf.reduce_mean(tf.keras.losses.categorical_crossentropy(y_true=Y_train,y_pred=PRED_train))
    PRED_test=tf.nn.softmax(tf.matmul(X_test,W)+B)
    Loss_test=tf.reduce_mean(tf.keras.losses.categorical_crossentropy(y_true=Y_test,y_pred=PRED_test))
    Accuracy_train=tf.reduce_mean(tf.cast(tf.equal(tf.argmax(PRED_train.numpy(),axis=1),y_train),tf.float32))
    Accuracy_test=tf.reduce_mean(tf.cast(tf.equal(tf.argmax(PRED_test.numpy(),axis=1),y_test),tf.float32))
    acc_train.append(Accuracy_train)
    acc_test.append(Accuracy_test)
    cce_train.append(Loss_train)
    cce_test.append(Loss_test)
    grads=tape.gradient(Loss_train,[W,B])
    W.assign_sub(learn_rate*grads[0])
    B.assign_sub(learn_rate*grads[1])
    if i % display_step == 0:
        print("i:%i, TrainAcc:%f,TrainLoss:%f, TestAcc:%f,TestLoss:%f"%(i,Accuracy_train,Loss_train,Accuracy_test,Loss_test))

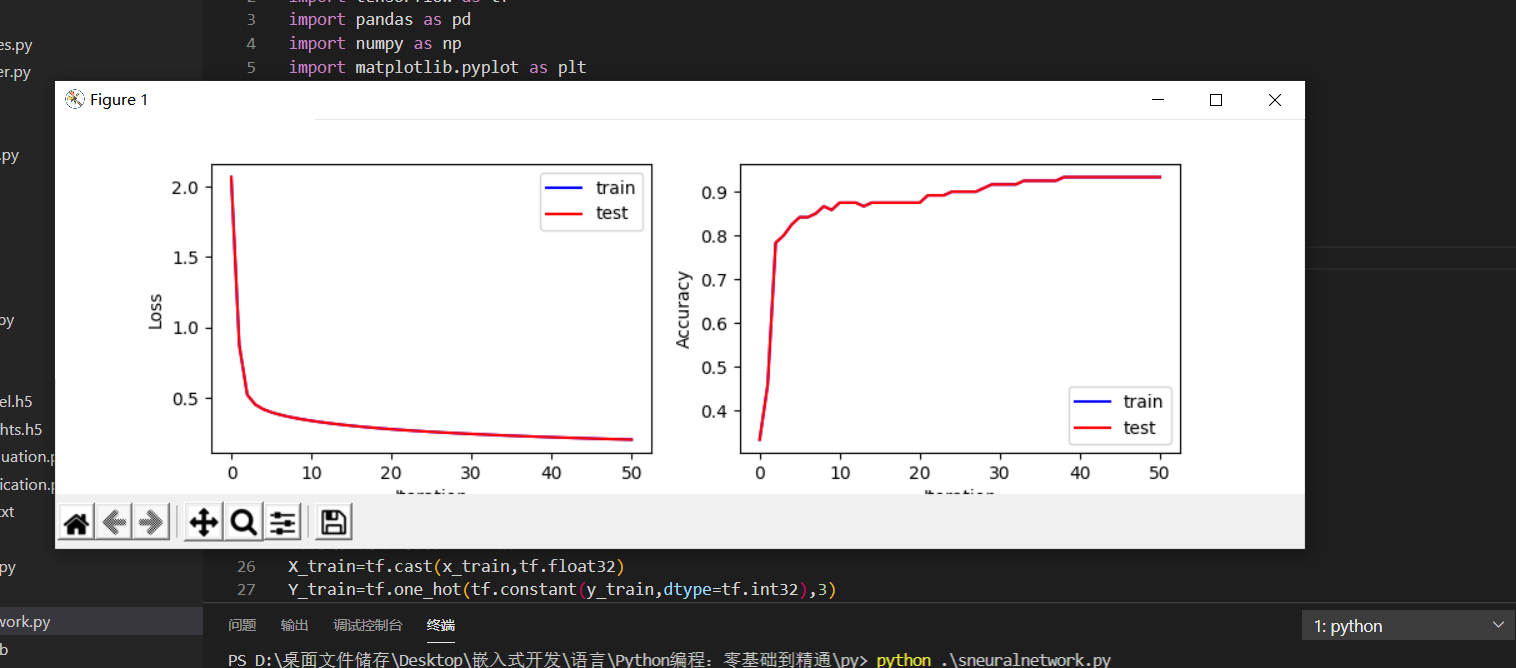

#损失函数和准确率可视化
plt.figure(figsize=(10,3))\

plt.subplot(121)
plt.plot(cce_train,color="blue",label="train")
plt.plot(cce_test,color="red",label="test")
plt.xlabel("Iteration")
plt.ylabel("Loss")
plt.legend()

plt.subplot(122)
plt.plot(acc_train,color="blue",label="train")
plt.plot(acc_test,color="red",label="test")
plt.xlabel("Iteration")
plt.ylabel("Accuracy")
plt.legend()

plt.show()
