Jupyter ipywidgets组件使用

ipywidgets

ipywidgets可以用于在jupyter notebook当中进行界面设计，以及一些简单的交互式控件操作。

SelectMultiple（复选框框组件取值）

from ipywidgets import interact,widgets
from ipywidgets import interact
from ipywidgets import Button, Layout

#样例列表
test_list = ['first','second','third','forth','fifth','sixth']

productcode = widgets.SelectMultiple(
    options=test_list,			#可选参数
    value=[test_list[0]],		#默认选项
    rows=6,						#显示行数
    description='产品代码：',	#描述信息
    disabled=False				#是否不可用
)
#提交按钮
submit_buttom = widgets.Button(
    description='提交',
    layout=Layout(width='30%', height='50px'),
    button_style='success'
)

#触发函数
def btn_click(sender):
    print(productcode.value)
#绑定触发函数
submit_buttom.on_click(btn_click)
#组件展示
display(productcode,submit_buttom)

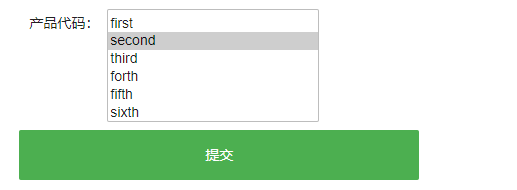

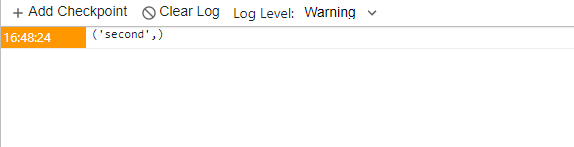

执行效果

DatePicker(获取日期组件的值)

from ipywidgets import interact,widgets
from ipywidgets import interact
from ipywidgets import Button, Layout


current_time = widgets.DatePicker(
    description='生成日期：',
    disabled=False
)
submit_buttom = widgets.Button(
    description='提交',
    layout=Layout(width='30%', height='50px'),
    button_style='success'
)
def btn_click(sender):
    print(current_time.value)

submit_buttom.on_click(btn_click)
display(current_time,submit_buttom)

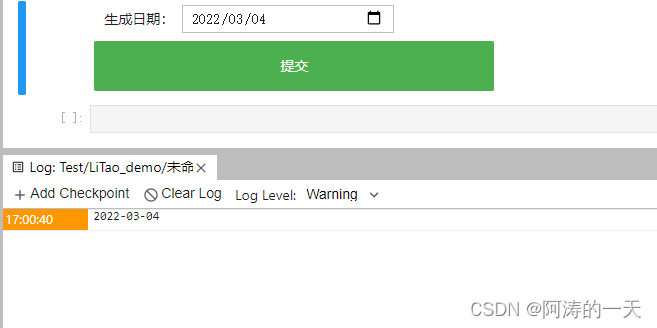

执行效果

DatePicker(获取日期组件的值)

from ipywidgets import interact,widgets
from ipywidgets import interact
from ipywidgets import Button, Layout


Dropdown_test = widgets.Dropdown(description='饼图1:',options=[("必选项", 1), ("展示", 2) ,("不展示", 3)], index=0, value=1, label="必选项")
def chosen(_):
    print("Selected index:{}, value:{}, label:{}".format(pie_first.index, pie_first.value, pie_first.label))
pie_first.observe(chosen, names="value")


submit_buttom = widgets.Button(
    description='提交',
    layout=Layout(width='30%', height='50px'),
    button_style='success'
)
def btn_click(sender):
    print(Dropdown_test.label)

submit_buttom.on_click(btn_click)
display(Dropdown_test,submit_buttom)
