Spring企业级程序设计 • 【第2章 Spring Bean管理进阶】

全部章节   >>>>


本章目录

2.1 bean标签和import标签

2.1.1 标签中的id属性和name属性

2.1.2 Bean的作用范围和生命周期

2.1.2 Bean的生命周期

2.1.3 标签实现分模块配置

2.1.4 实践练习

2.2 复杂类型注入

2.2.1 数组元素注入

2.2.2 List集合注入

2.2.3 Map集合注入

2.2.4 Properties集合注入

2.2.5 实践练习

2.3 通过注解方式配置Bean

2.3.1 @Component将对象注册到容器

2.3.2 @Value值类型注

2.3.3 @Autowired引用类型注入

2.3.4 @Scope设置对象作用范围

2.3.5 @PostConstruct和@PreDestory注解

2.3.6 实践练习

2.4 综合案例

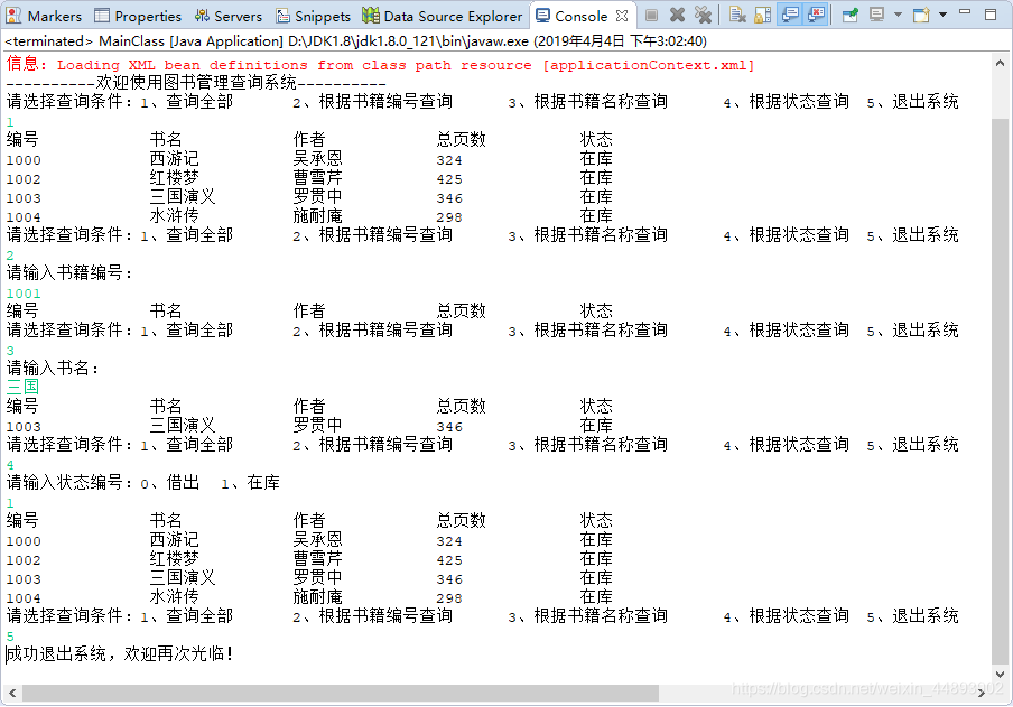

2.4.1 需求说明

总结


2.1 bean标签和import标签

<bean>标签是用来定义一个Bean对象的。

<bean>标签的属性有很多,其中常用属性有:id、name、class、factory-method、factory-bean、init-method、destory-method、scope和autowire属性,而class、factory-method和factory-bean属性在前面的章节中已经接触过,这里不再详解。

2.1.1 <bean>标签中的id属性和name属性

id属性是Bean的唯一标识,IoC容器中<bean>标签的id属性不能重复,否则会报错。在Spring4.x之前的版本id的属性值不能包含特殊字符且必须是字母或者下划线开头,在本案例中,将验证id属性的唯一性。



示例:IoC容器中<bean>标签的id属性不能重复,否则会报错

在com.mhys.pojo包下创建一个Student类,添加name属性

public class Student {
	private String name;
	// set()方法和get()方法省略
}

在applicationContext.xml文件中注入Student类,两个<bean>标签的id属性值一样

	<!-- 创建两个id属性名一样的Bean -->
	<bean id="student" class="com.mhys.pojo.Student"></bean>
	<bean id="student" class="com.mhys.pojo.Student"></bean>

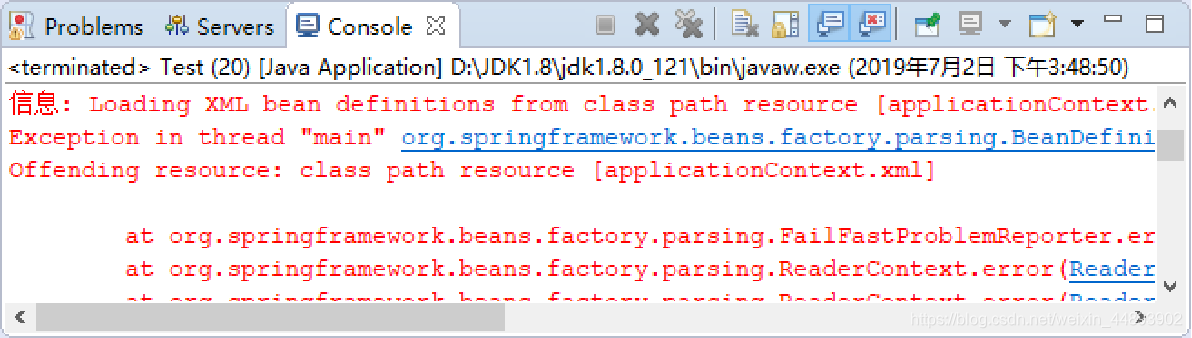

在com.mhys.test包下,编写测试类,在控制台输出结果。 运行程序,在控制台中,查看输出结果

public class Test {
	public static void main(String[] args) {
		ApplicationContext context = new ClassPathXmlApplicationContext("applicationContext.xml");
		Student stu = (Student) context.getBean("student");
		System.out.println(stu);
	}
}

name属性是Bean的名称标识,IoC容器中<bean>标签的name属性可以重复,name属性的属性值可以包含特殊字符,在Spring4.x之后的版本name的属性值必须唯一。

示例:通过name属性定义Bean

在com.mhys.pojo包下创建一个Dog类

public class Dog {
	public void cry(){
		System.out.println("我是一条小狗,汪、汪、汪!");
	}
}

在applicationContext.xml文件中注册Dog类到容器

	<!-- 通过name属性定义bean,属性值带有特殊字符 -->
	<bean name="%@#dto%#" class="com.mhys.pojo.Dog"></bean>

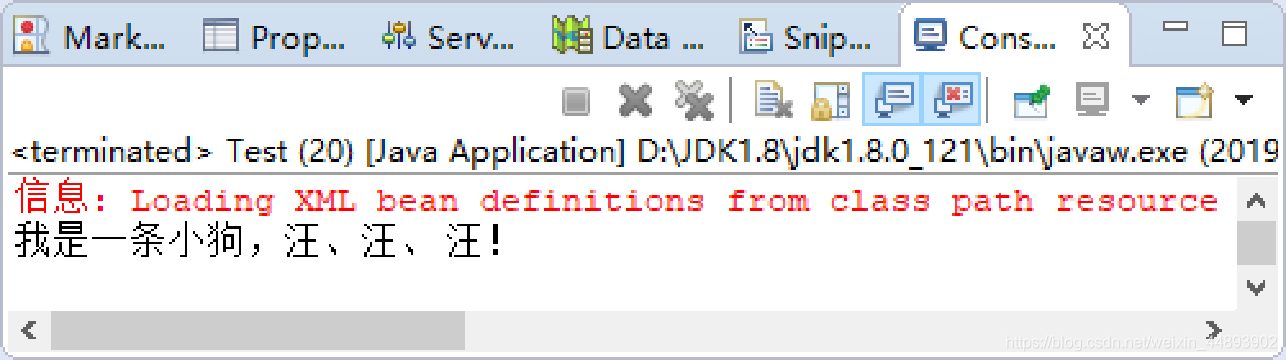

在com.mhys.test包下,编写测试类,在控制台输出结果。 运行程序,在控制台中,查看输出结果

	public class Test {
	public static void main(String[] args) {
		ApplicationContext context = new ClassPathXmlApplicationContext("applicationContext.xml");
		Dog dog = (Dog) context.getBean("%@#dto%#");
		dog.cry();
	}
}

2.1.2 Bean的作用范围和生命周期

scope属性:Bean的作用范围是通过scope属性来控制的,常用取值有四种:

  • singleton:单例对象,被标识为单例的对象在Spring容器中只会存在一个实体。
  • prototype:多例原型,被标识为多例的对象,每次需要获取对象是才会创建,每次创建都是新的对象。
  • request:Web环境下,对象与Request生命周期一致。
  • session:Web环境下,对象与Session生命周期一致。

示例:通过scope属性来了解Bean的作用范围

在com.mhys.pojo包下创建一个Cat类

	public class Cat {
	private String name;
	private String color;
	// set()方法和get()方法省略
}

在applicationContext.xml文件中注册Cat类到容器

<bean name="cat" class="com.mhys.pojo.Cat"></bean>

在com.mhys.test包下,编写测试类,在控制台输出结果。

public class Test {
	public static void main(String[] args) {
		ApplicationContext context = new ClassPathXmlApplicationContext("applicationContext.xml");
		Cat cat1 = (Cat) context.getBean("cat");
		Cat cat2 = (Cat) context.getBean("cat");
		if(cat1==cat2){
			System.out.println("cat1与cat2是同一个对象!");
		}else{
			System.out.println("cat1与cat2不是同一个对象!");
		}
	}
}

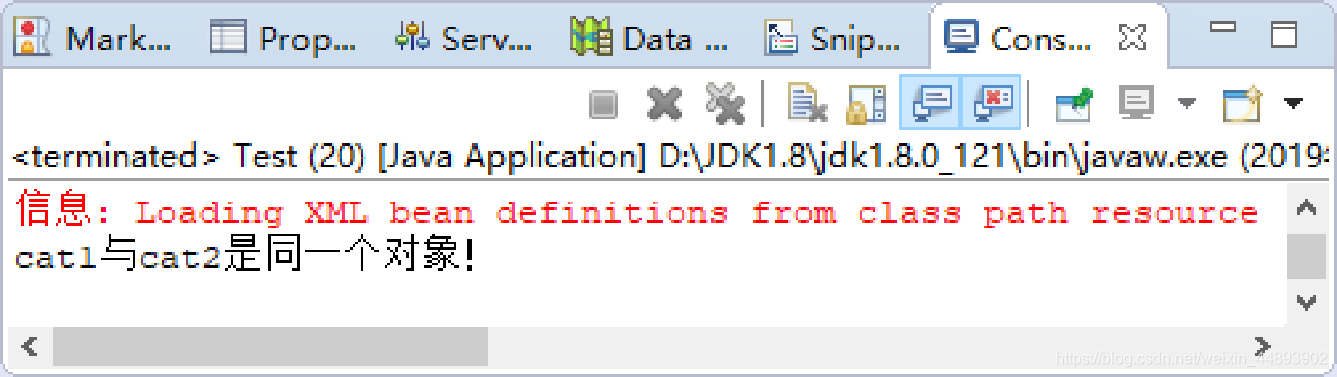

运行程序,在控制台出结果

在applicationContext.xml文件中修改Cat类的bean标签,scope属性值为prototype

<bean name="cat" class="com.mhys.pojo.Cat" scope="prototype"></bean>

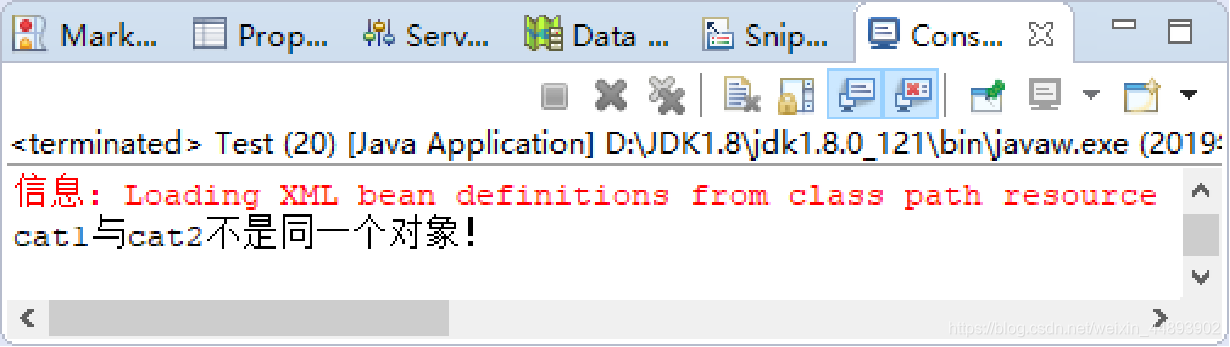

运行程序,在控制台中查看输出结果

2.1.2 Bean的生命周期

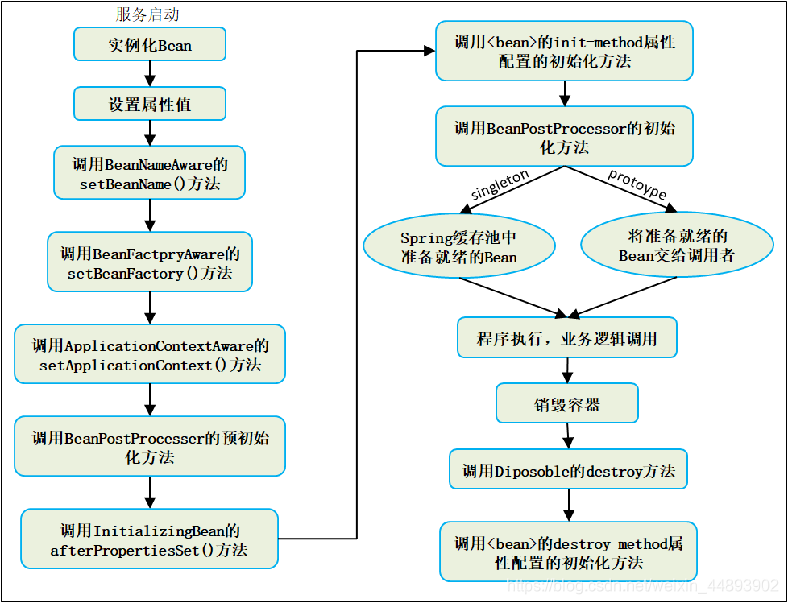

Spring Bean的完整生命周期从创建Spring容器开始,直到最终Spring容器销毁Bean。

init-method属性用于在Bean初始化时指定初始化方法

destroy-method用于在Bean销毁时指定的调用的方法

示例:使用init-method属性和destroy-method属性来指定初始化和销毁方法,最后在控制台输出结果。

在Cat类中声明init()方法和destroy()方法

public class Cat {
	private String name;
	private String color;
	// set()方法和get()方法省略

		public void init(){
			System.out.println("初始化方法被执行");
		}
		public void destory(){
			System.out.println("销毁方法被执行");
	}
}

在applicationContext.xml配置文件中修改name属性为cat的<bean>标签

<bean name="cat" class="com.mhys.pojo.Cat" init-method="init" destroy-method="destory"></bean>

在com.mhys.test包下,编写测试类,在控制台输出结果。

public class Test {
	public static void main(String[] args) {
		ClassPathXmlApplicationContext context = new ClassPathXmlApplicationContext("applicationContext.xml");
		Cat cat = (Cat) context.getBean("cat");	// 此时会执行init()方法
		context.close();		// 容器关闭,此时会执行destrory()方法

	}
}

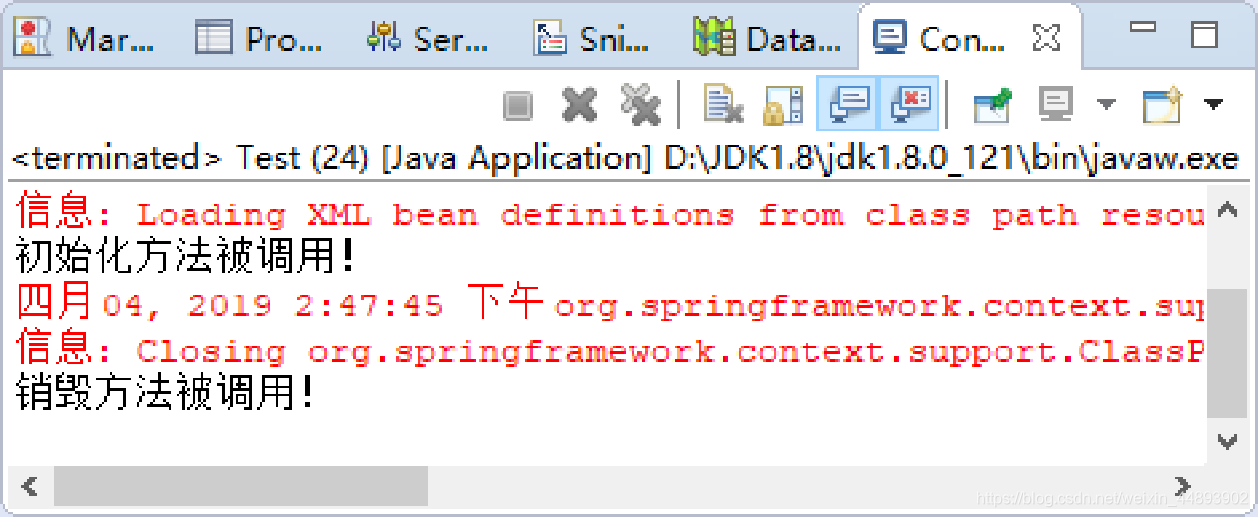

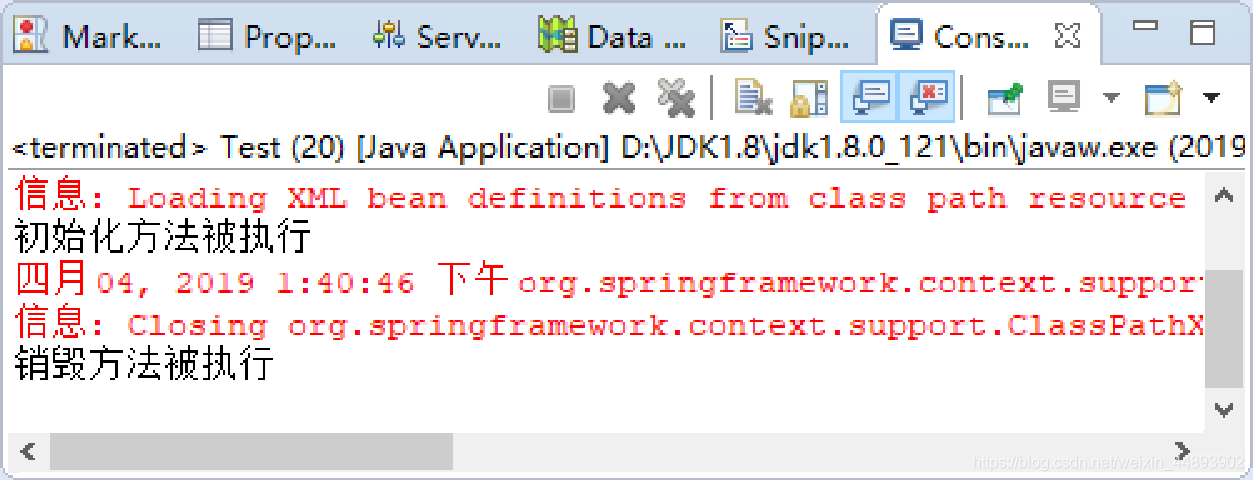

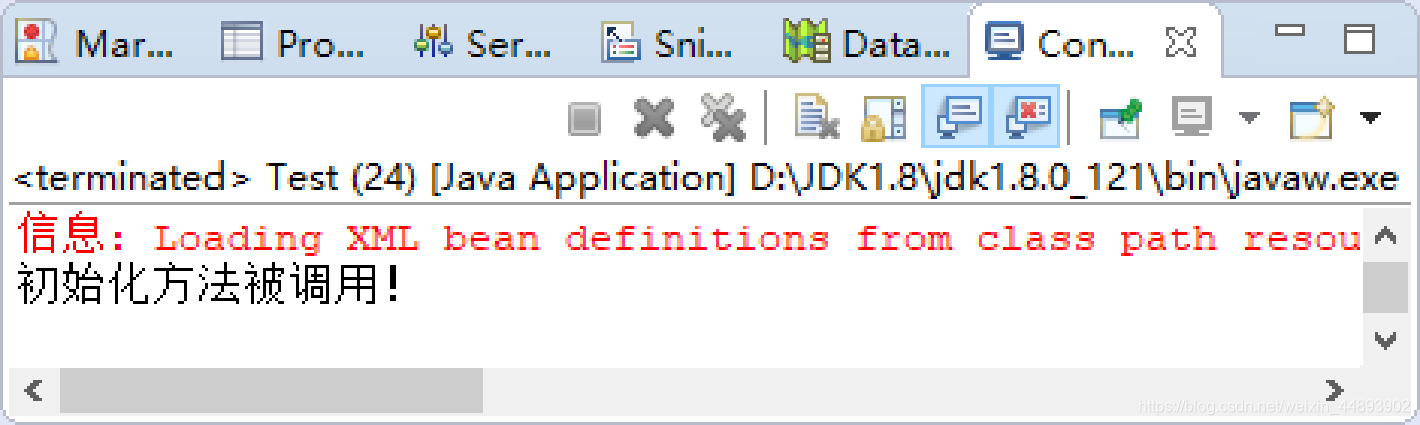

运行程序,在控制台出结果

2.1.3 <import>标签实现分模块配置

在企业项目开发中,配置文件中的信息非常多,经常会分模块开发,Spring提供<import>标签实现分模块配置,将多个模块的配置文件分开进行配置,最后再整合。

示例:定义三个模块,用户模块、角色模块和订单模块来模拟企业中的分模块开发

  • 创建com.mhys.user包,存放用户模块的相关代码,在包中创建User类
  • 在com.mhys.user包中创建applicationContext-user.xml配置文件,注入User类
  • 创建com.mhys.role包,存放角色模块的相关代码,在包中创建Role类。
  • 在com.mhys.role包中创建applicationContext-role.xml配置文件,注入Role类

示例:定义三个模块,用户模块、角色模块和订单模块来模拟企业中的分模块开发

  • 创建com.mhys.order包,存放订单模块的相关代码,在包中创建Order类
  • 在com.mhys.order包中创建applicationContext-order.xml配置文件,注入Order类
  • 在src目录下创建applicationContext.xml配置文件,引入3个模块的配置文件
  • 在com.mhys.test包下编写测试类,在控制台输出结果
  • 运行程序,在控制台中查看输出结果

2.1.4 实践练习



2.2 复杂类型注入

在Spring框架中,属性的注入有多种方式,可以通过构造方法注入、set方法注入、和p命名空间注入等方式,而对于复杂的数据类型比如数组、List集合、Map集合和Properties等,Spring也提供了相应的注入方式。

2.2.1 数组元素注入

示例:使用<list>标签注入数组元素

在com.mhys.pojo包下创建User类,添加names属性。

public class User {
	private String[] names;
	// set()方法和get()方法省略
}

在applicationContext.xml配置文件中注册User类到容器。

<bean id="user" class="com.mhys.pojo.User">
		<property name="names">
			<list>
				<value>张XX</value>
				<value>小XX</value>
				<value>LuXX</value>
			</list>
		</property>
	</bean>

在com.mhys.test包下创建测试类。

public class Test {
	public static void main(String[] args) {
		ApplicationContext context = new ClassPathXmlApplicationContext("applicationContext.xml");
		User user = (User) context.getBean("user");
		String[] names = user.getNames();
		for(String name : names){
			System.out.println(name);
		}
	}
}

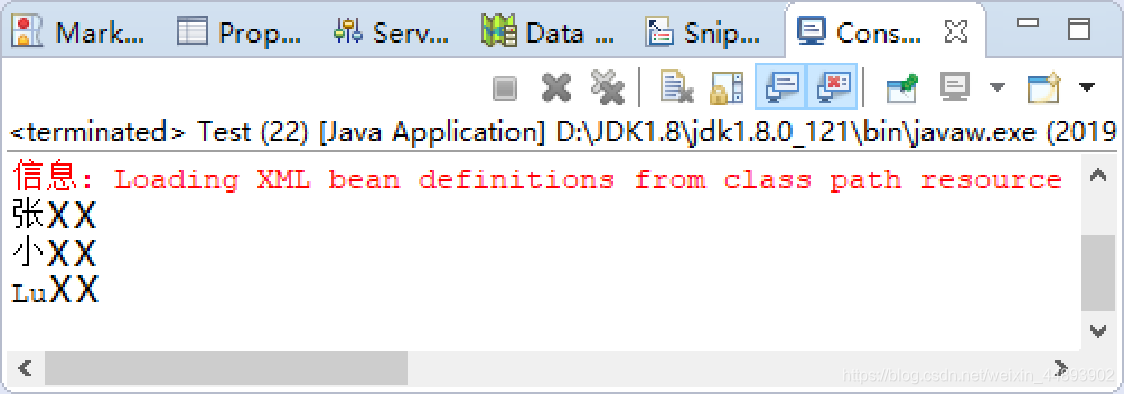

在控制台中,查看输出结果

2.2.2 List集合注入

示例:在applicationContext.xml配置文件中,注入List集合

在User类中增加List集合类型属性。

public class User {
	private String[] names;
	private List<String> hobbys;
	// set()方法和get()方法省略
}

在applicationContext.xml配置文件中注入List集合属性。

<bean id="user" class="com.mhys.pojo.User">
		<property name="hobbys">
			// 省略原有代码
			<list>
				<value>跑步</value>
				<value>看书</value>
				<value>骑单车</value>
				<value>打羽毛球</value>
			</list>
		</property>
	</bean>

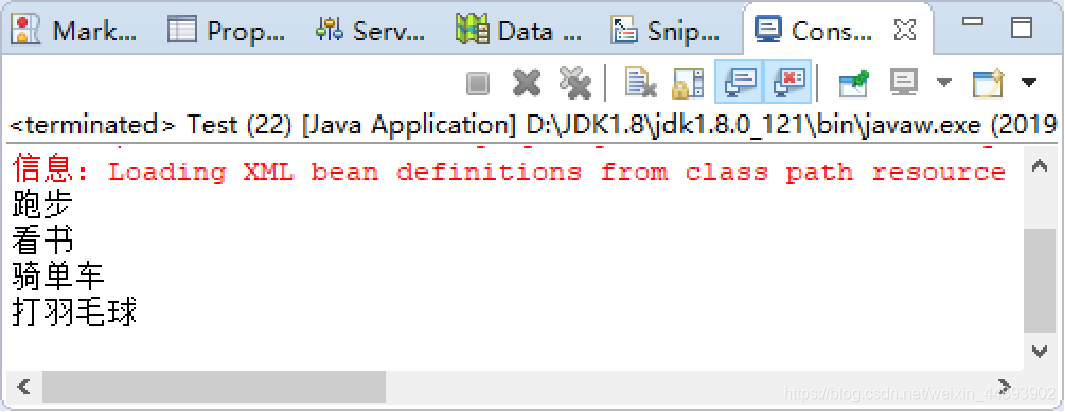

在com.mhys.test包下创建测试类。 在控制台中,查看输出结果

public class Test {
	public static void main(String[] args) {
		ApplicationContext context = new ClassPathXmlApplicationContext("applicationContext.xml");
		User user = (User) context.getBean("user");
		List<String> hobbys = user.getHobbys();
		for(String hobby : hobbys){
			System.out.println(hobby);
		}
	}
}

2.2.3 Map集合注入

示例:在applicationContext.xml配置文件中注入Map集合属性

在com.mhys.pojo包下创建DataSource类,添加Map集合类型属性。

public class DataSource {
	private Map<String, String> map;
		// set()方法和get()方法省略
}

在applicationContext.xml配置文件中注册DataSource类到容器并注入Map集合属性。

<bean id="dataSource" class="com.mhys.pojo.DataSource">
		<property name="map">
			<map>
				<entry key="driverClassName" value="com.mysql.jdbc.Driver"></entry>
				<entry key="url" value="jdbc:mysql://localhost:3306/mysql"></entry>
				<entry key="username" value="root"></entry>
				<entry key="password" value="rootroot"></entry>
			</map>
		</property>
</bean>

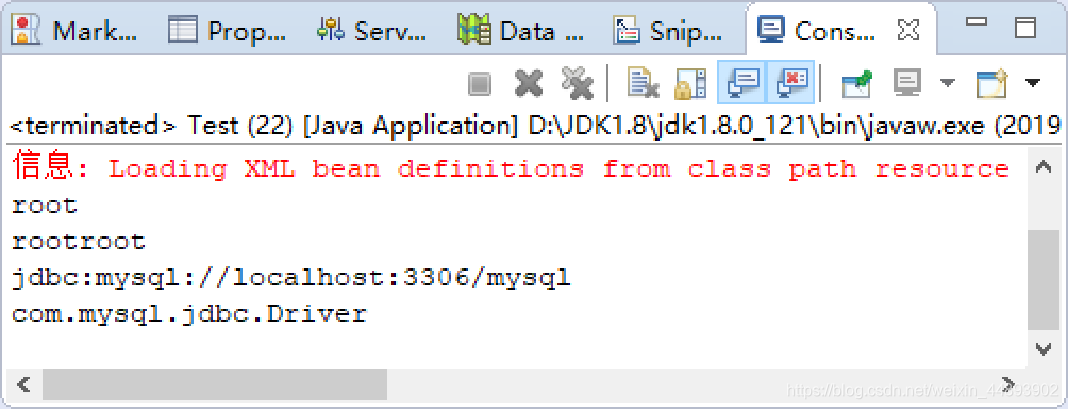

在com.mhys.test包下创建测试类。 在控制台中,查看输出结果

public class Test {
		public static void main(String[] args) {
			ApplicationContext context = new ClassPathXmlApplicationContext("applicationContext.xml");
			DataSource dataSource = (DataSource) context.getBean("dataSource");
			Map<String, String> map = dataSource.getMap();
			System.out.println(map.get("username"));
			System.out.println(map.get("password"));
			System.out.println(map.get("url"));
			System.out.println(map.get("driverClassName"));

		}
}

2.2.4 Properties集合注入

示例:在applicationContext.xml配置文件中注入Properties类型数据

在DataSource类中增加properties属性。

public class DataSource {
	private Map<String, String> map;
	private Properties properties;
		// set()方法和get()方法省略
}

在applicationContext.xml配置文件中注入Properties类型属性。

<bean id="dataSource" class="com.mhys.pojo.DataSource">
		// 省略原有代码
		<property name="properties">
			<props>
				<prop key="driverClassName">oracle.jdbc.driver.OracleDriver</prop>
				<prop key="url">jdbc:oracle:thin:@localhost::1521:myoracle</prop>
				<prop key="username">scott</prop>
				<prop key="password">1q2w3e</prop>
			</props>
		</property>
</bean>

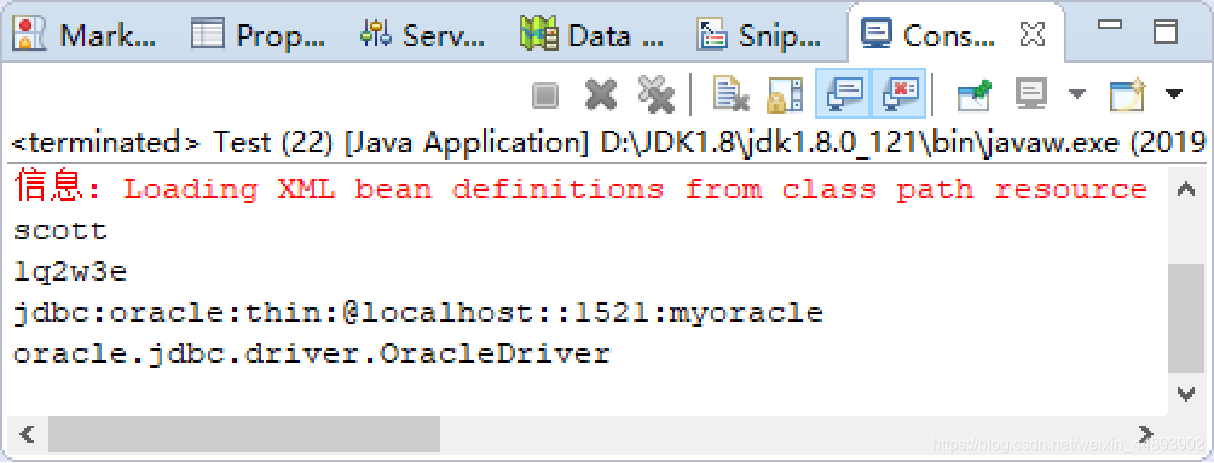

在com.mhys.test包下创建测试类。 在控制台中,查看输出结果

public class Test {
	public static void main(String[] args) {
		ApplicationContext context = new ClassPathXmlApplicationContext("applicationContext.xml");
		DataSource dataSource = (DataSource) context.getBean("dataSource");
		Properties pro = dataSource.getProperties();
		System.out.println(pro.get("username"));
		System.out.println(pro.get("password"));
		System.out.println(pro.get("url"));
		System.out.println(pro.get("driverClassName"));
	}
}

2.2.5 实践练习



2.3 通过注解方式配置Bean

传统的Spring是使用XML配置文件来对Bean进行注入、配置AOP以及配置声明式事务,这么做有两个缺点:

  • 如果所有的内容都配置在XML文件中,那么XML文件将会十分庞大。如果按模块分开XML配置文件,那么XML配置文件又会非常多。总之这将导致配置文件的可读性与可维护性变得很低。
  • 开发过程中,在.java文件和.xml文件之间不断切换,是一件麻烦的事,同时这种思维上的不连贯也会降低开发的效率。

为了解决使用XML配置文件来对Bean进行注入所带来的问题,Spring引入了注解,通过“@xxx”的方式让注解与Java Bean紧密结合,这样大大减少了配置文件的体积,又增加了Java Bean的可读性与内聚性。

2.3.1 @Component将对象注册到容器

@Component注解的使用方法

引入注解开发相关jar包。

<?xml version="1.0" encoding="UTF-8"?>
<beans  xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
		xmlns="http://www.springframework.org/schema/beans"
		xmlns:p="http://www.springframework.org/schema/p"
		xmlns:context="http://www.springframework.org/schema/context"
		xsi:schemaLocation="http://www.springframework.org/schema/beans
		http://www.springframework.org/schema/beans/spring-beans-4.2.xsd
		http://www.springframework.org/schema/context
		http://www.springframework.org/schema/context/spring-context-4.2.xsd ">
	<!—此处输入内容 -->
</beans>

在applicationContext.xml配置文件中引入context约束。

在applicationContext.xml配置文件中开启使用注解配置

<!-- 开启注解扫描功能扫描com.mhys.pojo包以及子包中的类-->
	<context:component-scan base-package="com.mhys.pojo"></context:component-scan>

在com.mhys.pojo包下创建Tiger类,添加tigerType和tigerName两个属性,并使用@Component将Tiger类注册到容器

@Component
public class Tiger {
	private String tigerType;
	private String tigerName;

	@Override
	public String toString() {
		return "Tiger [tigerType=" + tigerType + ", tigerName=" + tigerName + "]";
	}
}

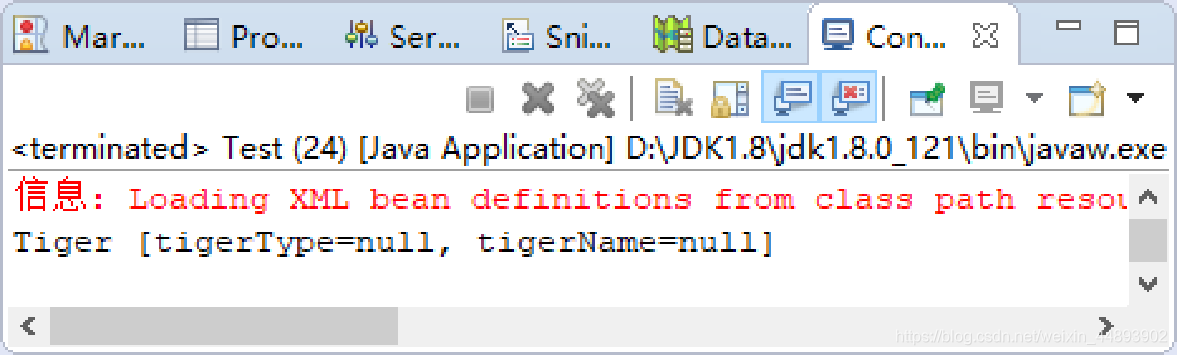

在com.mhys.test包下编写测试类 在控制台中查看输出结果

public class Test {
	public static void main(String[] args) {
		ApplicationContext context = new ClassPathXmlApplicationContext("applicationContext.xml");
		Tiger tiger = (Tiger) context.getBean("tiger");
		System.out.println(tiger);
	}
}

2.3.2 @Value值类型注

使用@Value注解为Tiger类的两个属性注入属性值

在Tiger类中使用@Value注解注入属性值。

@Component
public class Tiger {
	@Value("东北虎")
	private String tigerType;
	@Value("小白")
	private String tigerName;

	@Override
	public String toString() {
		return "Tiger [tigerType=" + tigerType + ", tigerName=" + tigerName + "]";
	}
}

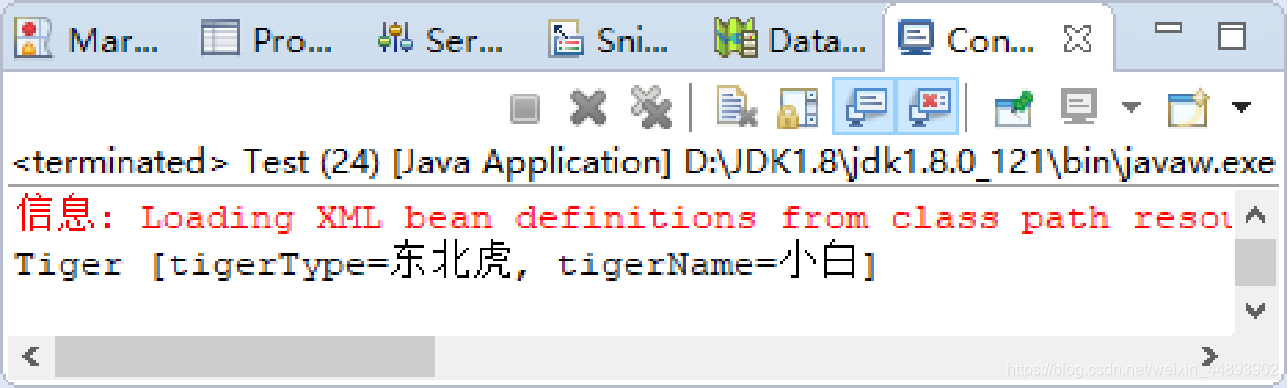

运行测试类程序,在控制台中查看输出结果。

2.3.3 @Autowired引用类型注入

创建Zoo类,添加Tiger类型属性,并通过注解注入到容器中,然后使用@Autowired引入Tiger类型属性值。

在com.mhys.pojo包下创建Zoo类,注册到容器中,添加Tiger类型属性,使用@AutoWired引入属性值。

@Component
public class Zoo {
	@Autowired
	private Tiger tiger;

	@Override
	public String toString() {
		return "Zoo [tiger=" + tiger + "]";
	}
}

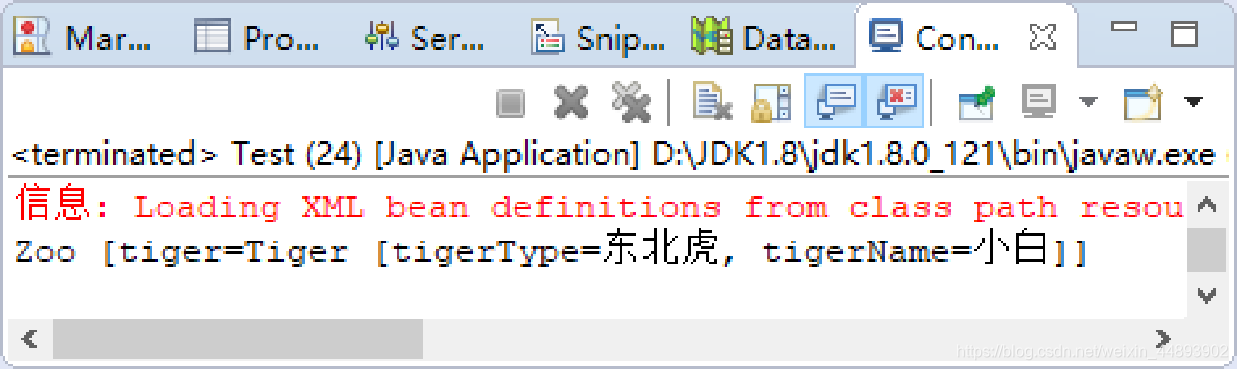

编写测试类,并在控制台中,查看输出结果。

public class Test {
	public static void main(String[] args) {
		ApplicationContext context = new ClassPathXmlApplicationContext("applicationContext.xml");
		Zoo zoo = (Zoo) context.getBean("zoo");
		System.out.println(zoo);
	}
}

2.3.4 @Scope设置对象作用范围

首先创建User类,添加username属性和password属性;然后使用@Scope指定注入到容器中Bean的作用范围;接着加载两个User对象,比较两个User对象是否相同;最后在控制台打印输出结果。。

在com.mhys.pojo包下创建User类,使用注解注册到容器并使用@Scope指定为单例,添加username和password两个属性。

@Component
@Scope("singleton")
public class User {
	@Value("章XX)
	private String username;
	@Value("123qwe")
	private String password;
}

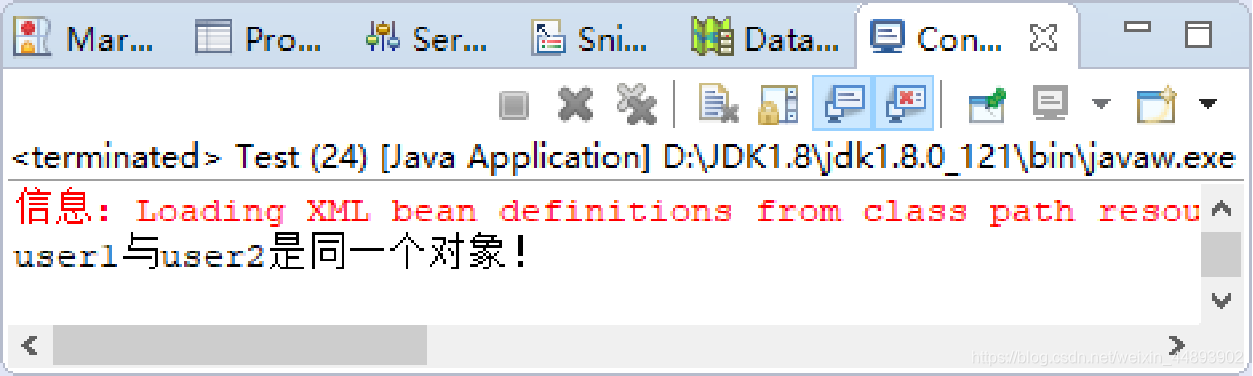

编写测试类,并在控制台中,查看输出结果。

public class Test {
	public static void main(String[] args) {
		ApplicationContext context =  new ClassPathXmlApplicationContext("applicationContext.xml");
		User user1 = (User) context.getBean("user");
		User user2 = (User) context.getBean("user");
		if(user1 == user2){
			System.out.println("user1与user2是同一个对象!");
		}else{
			System.out.println("user1与user2不是同一个对象!");
		}
	}
}

在User类使用@Scope指定为多例。

@Component
@Scope("prototype")
public class User {
	// 原有代码省略
	}

运行程序,在控制台中查看输出结果。

2.3.5 @PostConstruct和@PreDestory注解

示例:在User类中声明init()方法和destory()方法,然后在方法上添加注解,最后在控制台打印输出结果。

在User类中使用注解注册到容器并使用@Scope指定为单例,添加username和password两个属性。

@Component
@Scope("singleton")
public class User {
	// 原有代码省略

		@PostConstruct
		public void init(){
			System.out.println("初始化方法被调用!");
		}
		@PreDestroy
		public void detroy(){
			System.out.println("销毁方法被调用!");
	}
}

编写测试类,并在控制台中,查看输出结果。

public class Test {
	public static void main(String[] args) {
		ClassPathXmlApplicationContext context =
					new ClassPathXmlApplicationContext("applicationContext.xml");
		User user = (User) context.getBean("user");
	}
}

在测试类中关闭容器。

public class Test {
	public static void main(String[] args) {
		ClassPathXmlApplicationContext context =new ClassPathXmlApplicationContext("applicationContext.xml");
		User user = (User) context.getBean("user");
		context.close();
	}
}

运行程序,在控制台中查看输出结果。

2.3.6 实践练习



2.4 综合案例

2.4.1 需求说明

图书查询系统,能够充分发挥信息化管理的方便性和快捷性,并能够与图书管理系统中的其他模块无缝结合,让图书馆管理人员便捷地工作。综合之前学过的知识,开发一个简易的图书查询系统。要求如下:

  • 查询全部图书。
  • 根据书籍编号查询信息。
  • 根据书名查询书籍信息。
  • 根据状态查询书籍信息。



总结

  • Spring容器中的Bean可以分为5个范围:singleton、prototype 、 request 、 session 、 global-session
  • Spring的单例Bean是线程安全的
  • 如果Bean有多种状态的话,就需要自行保证线程安全。最浅显的解决办法就是将多态Bean的作用域由“singleton”变更为“prototype”。
  • 相对于XML文件,注解型的配置依赖于通过字节码元数据装配组件,而非尖括号的声明。开发者通过在相应的类,方法或属性上使用注解的方式,直接组件类中进行配置,而不是使用XML表述Bean的装配关系。



  • 29
    点赞
  • 3
    收藏
    觉得还不错? 一键收藏
  • 打赏
    打赏
  • 15
    评论

“相关推荐”对你有帮助么?

  • 非常没帮助
  • 没帮助
  • 一般
  • 有帮助
  • 非常有帮助
提交
评论 15
添加红包

请填写红包祝福语或标题

红包个数最小为10个

红包金额最低5元

当前余额3.43前往充值 >
需支付:10.00
成就一亿技术人!
领取后你会自动成为博主和红包主的粉丝 规则
hope_wisdom
发出的红包

打赏作者

明金同学

你的鼓励将是我创作的最大动力

¥1 ¥2 ¥4 ¥6 ¥10 ¥20
扫码支付:¥1
获取中
扫码支付

您的余额不足,请更换扫码支付或充值

打赏作者

实付
使用余额支付
点击重新获取
扫码支付
钱包余额 0

抵扣说明:

1.余额是钱包充值的虚拟货币,按照1:1的比例进行支付金额的抵扣。
2.余额无法直接购买下载,可以购买VIP、付费专栏及课程。

余额充值
