AFL QEMU模式安装 2024.1.28

找到build_qemu_support.sh文件，双击点开，找到

修改QEMU_URL为以下内容， 确保qemu2.10.0版本能正常下载。或手动下载放至build_qemu_support.sh同级目录下。

QEMU_URL="https://download.qemu.org/qemu-${VERSION}.tar.xz"

运行build_qemu_support.sh（这里修改为自己的afl安装路径）

/path/to/afl/qemu_mode/build_qemu_support.sh

根据提示安装缺少的库

• 报错libtool not found, please install first。

        需要装两个

sudo apt install libtool

sudo apt install libtool-bin

•  报错python not found, please install first。

        /usr/bin目录中找不到python，所以报错。直接把安装好的python2复制一份并重命名为python

cd /usr/bin/

sudo cp python2.7 python

• 报错error: static declaration of ‘memfd_create’ follows non-static declaration

        在/path/to/afl/qemu_mode/patches目录下新建 memfd_create.diff 文件，添加以下内容：

diff -ru qemu-2.10.0-clean/util/memfd.c qemu-2.10.0/util/memfd.c
--- qemu-2.10.0-clean/util/memfd.c      2018-11-20 18:11:00.170271506 +0100
+++ qemu-2.10.0/util/memfd.c    2018-11-20 18:11:13.398423613 +0100
@@ -37,7 +37,7 @@
 #include <sys/syscall.h>
 #include <asm/unistd.h>

-static int memfd_create(const char *name, unsigned int flags)
+int memfd_create(const char *name, unsigned int flags)
 {
 #ifdef __NR_memfd_create
     return syscall(__NR_memfd_create, name, flags);

        在build_qemu_support.sh文件这里

patch -p1 <../patches/elfload.diff || exit 1

patch -p1 <../patches/cpu-exec.diff || exit 1

patch -p1 <../patches/syscall.diff || exit 1

         下方添加一行

patch -p1 <../patches/memfd_create.diff || exit 1

• 报错 error: static declaration of ‘gettid’ follows non-static declaration

        修改同目录下 syscall.diff 文件，将原先文件内容全部删除，添加以下内容

--- qemu-2.10.0-rc3-clean/linux-user/syscall.c  2017-08-15 11:39:41.000000000 -0700

+++ qemu-2.10.0-rc3/linux-user/syscall.c    2017-08-22 14:34:03.193088186 -0700

@@ -34,6 +34,7 @@

 #include <sys/resource.h>

 #include <sys/swap.h>

 #include <linux/capability.h>

+#include <linux/sockios.h> // https://lkml.org/lkml/2019/6/3/988

 #include <sched.h>

 #include <sys/timex.h>

 #ifdef __ia64__

@@ -116,6 +117,8 @@ int __clone2(int (*fn)(void *), void *ch

 #include "qemu.h"

+extern unsigned int afl_forksrv_pid;

+

 #ifndef CLONE_IO

 #define CLONE_IO                0x80000000      /* Clone io context */

 #endif

@@ -256,7 +259,9 @@ static type name (type1 arg1,type2 arg2,

 #endif

 #ifdef __NR_gettid

-_syscall0(int, gettid)

+// taken from https://patchwork.kernel.org/patch/10862231/

+#define __NR_sys_gettid __NR_gettid

+_syscall0(int, sys_gettid)

 #else

 /* This is a replacement for the host gettid() and must return a host

    errno. */

@@ -6219,7 +6224,8 @@ static void *clone_func(void *arg)

     cpu = ENV_GET_CPU(env);

     thread_cpu = cpu;

     ts = (TaskState *)cpu->opaque;

-    info->tid = gettid();

+    // taken from https://patchwork.kernel.org/patch/10862231/

+    info->tid = sys_gettid();

     task_settid(ts);

     if (info->child_tidptr)

         put_user_u32(info->tid, info->child_tidptr);

@@ -6363,9 +6369,11 @@ static int do_fork(CPUArchState *env, un

                mapping.  We can't repeat the spinlock hack used above because

                the child process gets its own copy of the lock.  */

             if (flags & CLONE_CHILD_SETTID)

-                put_user_u32(gettid(), child_tidptr);

+                // taken from https://patchwork.kernel.org/patch/10862231/

+                put_user_u32(sys_gettid(), child_tidptr);

             if (flags & CLONE_PARENT_SETTID)

-                put_user_u32(gettid(), parent_tidptr);

+                // taken from https://patchwork.kernel.org/patch/10862231/

+                put_user_u32(sys_gettid(), parent_tidptr);

             ts = (TaskState *)cpu->opaque;

             if (flags & CLONE_SETTLS)

                 cpu_set_tls (env, newtls);

@@ -11402,7 +11410,8 @@ abi_long do_syscall(void *cpu_env, int n

         break;

 #endif

     case TARGET_NR_gettid:

-        ret = get_errno(gettid());

+        // taken from https://patchwork.kernel.org/patch/10862231/

+        ret = get_errno(sys_gettid());

         break;

 #ifdef TARGET_NR_readahead

     case TARGET_NR_readahead:

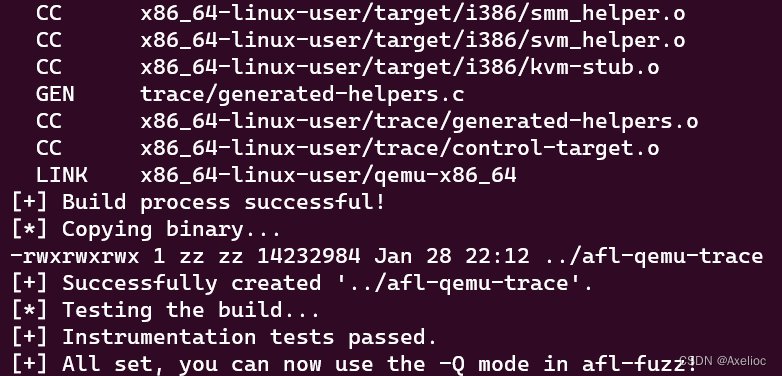

        再次运行，编译成功，出现以下内容

2024.1.28
