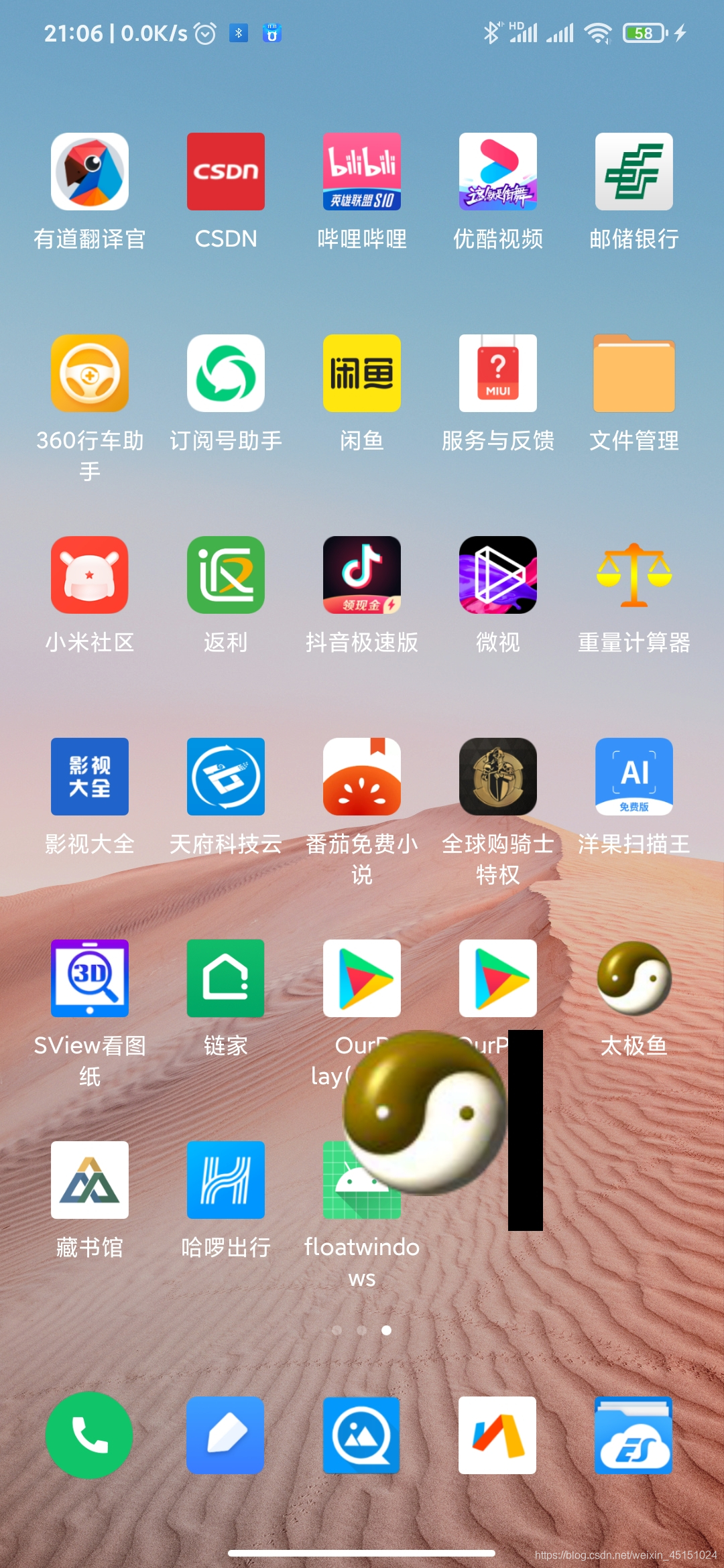

做一个悬浮窗,显示一张图片在桌面上。结果本来是透明的png图片背景全部成为了黑色。如下图所示:
上面图片的代码是这样的:
<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
xmlns:tools="http://schemas.android.com/tools"
android:layout_width="match_parent"
android:layout_height="match_parent"
tools:ignore="MissingDefaultResource"
android:orientation="horizontal">
<ImageView
android:layout_width="90dp"
android:layout_height="90dp"
android:id="@+id/img_ftjy"
android:src="@drawable/tjy"/>
</LinearLayout>
如图所示,太极鱼周围本来是透明的,现在全成为黑色。上网上搜了一下,大部分说是从软件导出的原因,导致格式成为bmp或者jpg格式的。但我反复查看,通过不同的看图软件确定我的这个图片确实是透明背景的png图片。且是本地用,不是从网上找的图片。
偶尔在图片后面加了一个SurfaceView,发现图片竟然透明了。但是SurfaceView成黑色的了。代码如下面所示:
<ImageView
android:layout_width="90dp"
android:layout_height="90dp"
android:id="@+id/img_ftjy"
android:src="@drawable/tjy"/>
<SurfaceView
android:id="@+id/surfaceView"
android:layout_width="match_parent"
android:layout_height="match_parent"/>
在ImageView后面加了SurfaceView

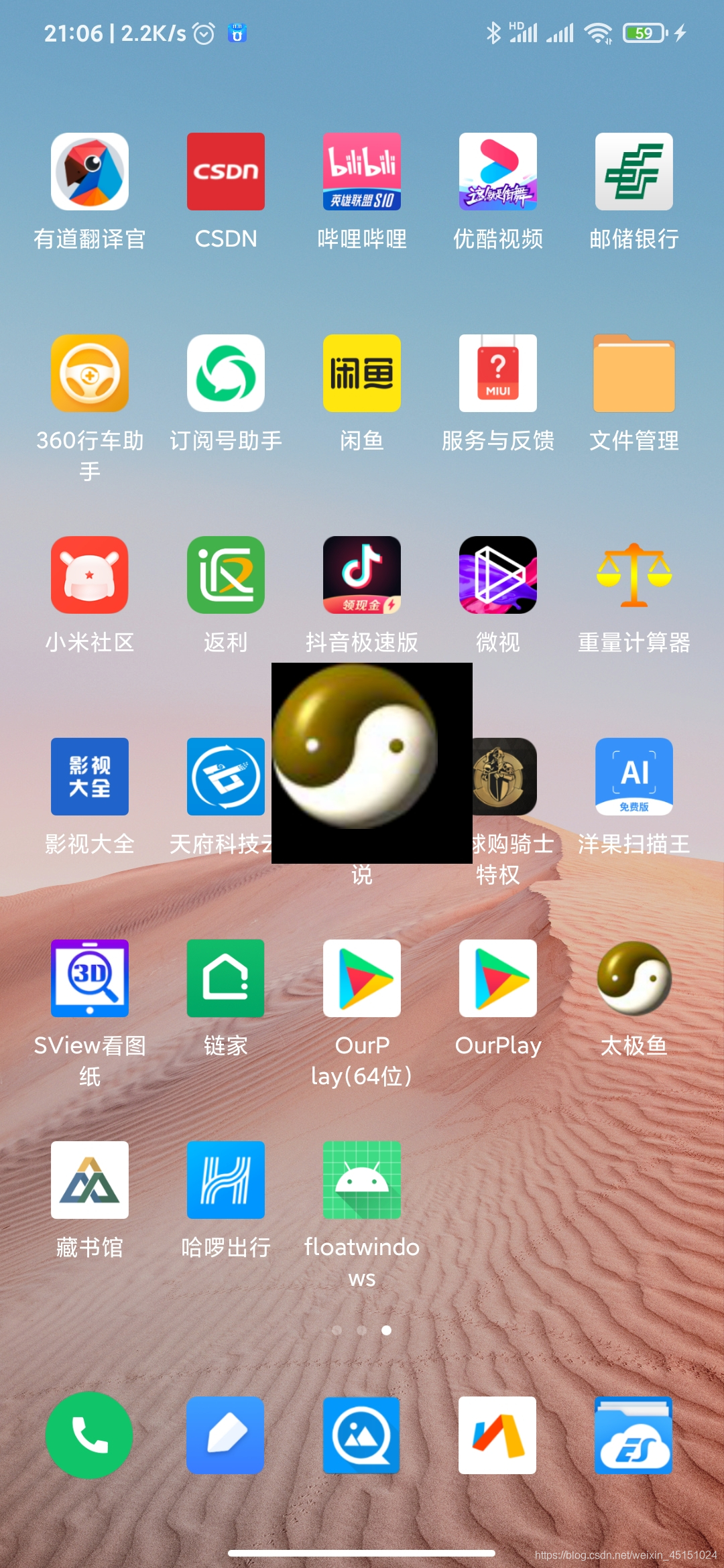

如下图所示:
l图片竟然透明了。但是SurfaceView是黑色的。试了试在后面加入TextView,不行,图片背景还是黑色的。即然SurfaceView可以,那就加它,把它的尺寸设置小一点。还直行。
<ImageView
android:layout_width="90dp"
android:layout_height="90dp"
android:id="@+id/img_ftjy"
android:src="@drawable/tjy"/>
<SurfaceView
android:id="@+id/surfaceView"
android:layout_width="0.1dp"
android:layout_height="0.1dp"/>

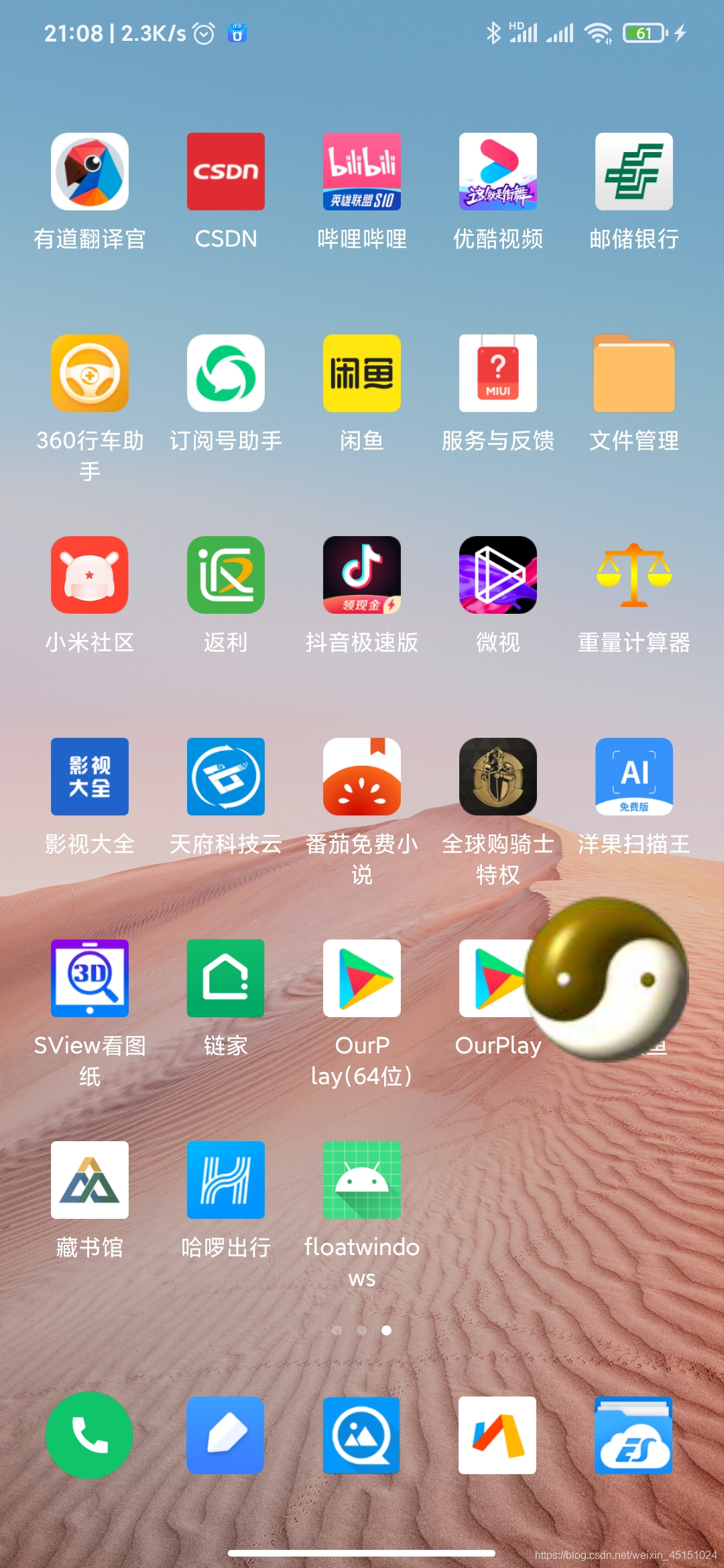

宽、高均为0.1dp,最终效果:
图片背景透明了。
虽然实现了效果。但是不知道原理。不知道还有没有其它办法?
