一、折线图，柱状图
https://echarts.apache.org/zh/index.html echarts 官网
更多配置项可以去官网查看
在开始项目之前，确保您已经安装了以下工具和技术：
- MySQL 数据库：用于存储和管理数据。
- Java 后端：用于创建后端应用程序，提供数据 API 和数据库连接。
- Vue.js 前端：用于构建前端界面，呈现数据可视化图表。
- ECharts：用于创建各种类型的图表和数据可视化。
步骤 1: 创建表 以及生成数据
-- 创建产品表
CREATE TABLE a_products (
product_id INT PRIMARY KEY COMMENT '产品ID',
product_name VARCHAR(255) COMMENT '产品名称',
unit_price DECIMAL(10, 2) COMMENT '产品单价（带两位小数）'
) COMMENT '存储产品信息';
-- 创建销售表
CREATE TABLE a_sales (
sale_id INT PRIMARY KEY COMMENT '销售ID',
product_id INT COMMENT '产品ID（外键，关联到products表）',
sale_date DATE COMMENT '销售日期',
quantity INT COMMENT '销售数量',
revenue DECIMAL(10, 2) COMMENT '销售收入（带两位小数）'
) COMMENT '存储销售数据';
-- 插入产品数据
INSERT INTO a_products (product_id, product_name, unit_price) VALUES
(1, 'Product A', 10.50),
(2, 'Product B', 15.75);
-- 插入销售数据
INSERT INTO a_sales (sale_id, product_id, sale_date, quantity, revenue)
VALUES
(1, 1, '2023-11-01', FLOOR(RAND() * 20) + 1, ROUND(RAND() * 100, 2)),
(2, 1, '2023-11-02', FLOOR(RAND() * 20) + 1, ROUND(RAND() * 100, 2)),
(3, 1, '2023-11-03', FLOOR(RAND() * 20) + 1, ROUND(RAND() * 100, 2)),
(4, 1, '2023-11-04', FLOOR(RAND() * 20) + 1, ROUND(RAND() * 100, 2)),
(5, 1, '2023-11-05', FLOOR(RAND() * 20) + 1, ROUND(RAND() * 100, 2)),
(6, 1, '2023-11-01', FLOOR(RAND() * 20) + 1, ROUND(RAND() * 100, 2)),
(7, 1, '2023-11-02', FLOOR(RAND() * 20) + 1, ROUND(RAND() * 100, 2)),
(8, 1, '2023-11-03', FLOOR(RAND() * 20) + 1, ROUND(RAND() * 100, 2)),
(9, 1, '2023-11-04', FLOOR(RAND() * 20) + 1, ROUND(RAND() * 100, 2)),
(10, 1, '2023-11-05', FLOOR(RAND() * 20) + 1, ROUND(RAND() * 100, 2));
-- For product_id 2
INSERT INTO a_sales (sale_id, product_id, sale_date, quantity, revenue)
VALUES
(11, 2, '2023-11-01', FLOOR(RAND() * 20) + 1, ROUND(RAND() * 100, 2)),
(12, 2, '2023-11-02', FLOOR(RAND() * 20) + 1, ROUND(RAND() * 100, 2)),
(13, 2, '2023-11-03', FLOOR(RAND() * 20) + 1, ROUND(RAND() * 100, 2)),
(14, 2, '2023-11-04', FLOOR(RAND() * 20) + 1, ROUND(RAND() * 100, 2)),
(15, 2, '2023-11-05', FLOOR(RAND() * 20) + 1, ROUND(RAND() * 100, 2)),
(16, 2, '2023-11-01', FLOOR(RAND() * 20) + 1, ROUND(RAND() * 100, 2)),
(17, 2, '2023-11-02', FLOOR(RAND() * 20) + 1, ROUND(RAND() * 100, 2)),
(18, 2, '2023-11-03', FLOOR(RAND() * 20) + 1, ROUND(RAND() * 100, 2)),
(19, 2, '2023-11-04', FLOOR(RAND() * 20) + 1, ROUND(RAND() * 100, 2)),
(20, 2, '2023-11-05', FLOOR(RAND() * 20) + 1, ROUND(RAND() * 100, 2));
步骤2.数据库查询 SQL
-- 查询销售数据
SELECT
s.sale_date AS saleDate,
p.product_name AS productName,
COALESCE(SUM(s.quantity), 0) AS totalQuantity,
COALESCE(SUM(s.revenue), 0) AS totalRevenue
FROM a_products p
LEFT JOIN a_sales s ON p.product_id = s.product_id
GROUP BY s.sale_date, p.product_name

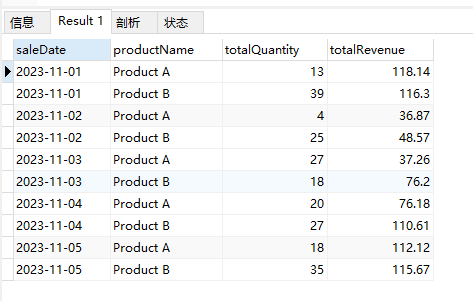

查询结果:
步骤3. 创建实体类
import lombok.Data;
import java.util.List;
@Data
public class SalesDTO {
@ApiModelProperty(value = "日期")
private String saleDate;
@ApiModelProperty(value = "产品名")
private String productName;
@ApiModelProperty(value = "销售数量")
private int totalQuantity;
@ApiModelProperty(value = "销售额")
private double totalRevenue;
// 省略构造函数、getter和setter 如果引入了lombok.Data不需要
}
步骤四: SalesMapper
public interface SalesMapper {
/**
* 根据产品名称统计产品售出数量
* @param
* @return
*/
List<SalesDTO> getProductSalesSummary(@Param("productName") String productName);
/**
* 获取所有产品
* @return
*/
List<String> getAllProductName();
}
步骤五:SalesMapper.xml
<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE mapper PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN" "http://mybatis.org/dtd/mybatis-3-mapper.dtd">
<mapper namespace="org.jeecg.modules.statistics.mapper.SalesMapper">
<resultMap id="SalesDTOResultMap" type="org.jeecg.modules.statistics.entity.SalesDTO">
<id property="saleDate" column="saleDate"/>
<result property="productName" column="productName"/>
<result property="totalQuantity" column="totalQuantity"/>
<result property="totalRevenue" column="totalRevenue"/>
</resultMap>
<select id="getProductSalesSummary" resultMap="SalesDTOResultMap">
SELECT
s.sale_date AS saleDate,
p.product_name AS productName,
COALESCE(SUM(s.quantity), 0) AS totalQuantity,
COALESCE(SUM(s.revenue), 0) AS totalRevenue
FROM a_products p
LEFT JOIN a_sales s ON p.product_id = s.product_id
<where>
<if test="productName != null and productName != ''">
and p.product_name =#{productName}
</if>
</where>
GROUP BY s.sale_date, p.product_name
</select>
<select id="getAllProductName" resultType="java.lang.String">
SELECT product_name FROM a_products GROUP BY product_name
</select>
</mapper>
步骤七:SalesController
package org.jeecg.modules.statistics.controller;
import groovyjarjarpicocli.CommandLine;
import io.swagger.annotations.Api;
import io.swagger.annotations.ApiOperation;
import lombok.extern.slf4j.Slf4j;
import org.apache.xmlbeans.impl.inst2xsd.SalamiSliceStrategy;
import org.jeecg.common.api.vo.Result;
import org.jeecg.modules.statistics.entity.SalesDTO;
import org.jeecg.modules.statistics.mapper.SalesMapper;
import org.jeecg.modules.statistics.service.IKgOrderService;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RestController;
import java.time.LocalDate;
import java.time.format.DateTimeFormatter;
import java.util.*;
import java.util.stream.Collectors;
@RestController
@RequestMapping("/sales")
@Api(tags = "统计图表示例")
@Slf4j
public class SalesController {
@Autowired
private SalesMapper salesMapper;
@ApiOperation(value = "统计图表示例-A", notes = "统计图表示例-A")
@GetMapping(value = "/summary")
public Result<Map<String, Object>> getSalesSummary() {
//也可以包装一个实体类返回
Result<Map<String, Object>> result = new Result<>();
Map<String, Object> resultMap = new HashMap<>();
// 获取所有产品名称列表
List<String> distinctProductNames = salesMapper.getAllProductName();
// 设置起始日期为 "2023-11-01" 也可以获取系统时间
LocalDate startDate = LocalDate.parse("2023-11-01");
// 生成近五天的日期列表
List<String> distinctSaleDates = new ArrayList<>();
for (int i = 0; i < 5; i++) {
LocalDate date = startDate.plusDays(i);
distinctSaleDates.add(date.format(DateTimeFormatter.ISO_DATE));
}
List<Map<String, Object>> seriesData = new ArrayList<>();
// 遍历每个产品名称
for (String distinctProductName : distinctProductNames) {
// 根据产品名称获取产品销售数据
List<SalesDTO> productSalesSummary = salesMapper.getProductSalesSummary(distinctProductName);
Map<String, Object> seriesItem = new HashMap<>();
seriesItem.put("name", distinctProductName);
List<Integer> quantityList = new ArrayList<>();
// 遍历日期列表
for (String distinctSaleDate : distinctSaleDates) {
// 使用 Optional 包装以处理空值情况
Optional<SalesDTO> matchingSale = productSalesSummary.stream()
.filter(dto -> dto.getSaleDate().equals(distinctSaleDate))
.findFirst();
if (matchingSale.isPresent()) {
// 如果存在匹配的销售数据，添加到数量列表中
quantityList.add(matchingSale.get().getTotalQuantity());
} else {
// 如果没有匹配的销售数据 设置为0
quantityList.add(0);
}
}
seriesItem.put("data", quantityList);
seriesData.add(seriesItem);
}
resultMap.put("dates", distinctSaleDates);
resultMap.put("series", seriesData);
result.setResult(resultMap);
return result;
}
}

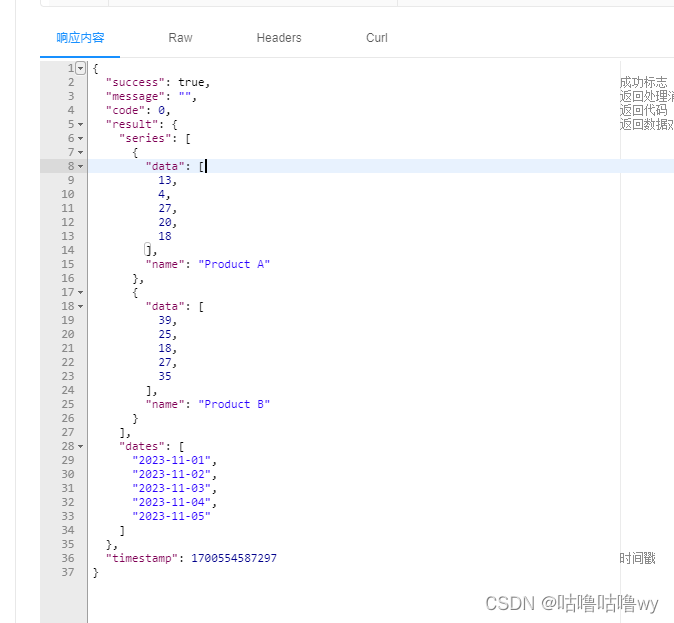

响应结果
步骤8:通过cdn引入echarts --解决打包过大问题

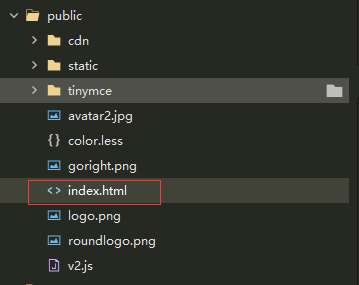

找到index.html
在index.html 加入以下代码
<script src="https://cdn.jsdelivr.net/npm/echarts@5.3.0/dist/echarts.min.js"></script>
步骤9:vue.js 加载数据与Echarts 图表
<template>
<!-- 柱状图容器 -->
<div class="bar-chart-container">
<div ref="barChart" class="echarts-chart"></div>
</div>
</template>
<script>
// 导入 API 请求方法
import {
getAction
} from '@/api/manage';
export default {
data() {
return {
// API 请求的 URL 集合
url: {
getSalesSummary: '/jeecg-customers/sales/summary',
},
// 数据对象
data: {},
// ECharts 实例
chart: null,
// ECharts 图表配置
chartOptions: {
// 图表标题
title: {
text: '销售数据统计',
},
// X 轴配置
xAxis: {
type: "category", // X 轴类型为类别
data: [], // X 轴的数据，即日期
},
// Y 轴配置
yAxis: {
type: "value", // Y 轴类型为值
name: '销售数量', // Y 轴的名称
},
// 系列数据，即图表的线条/柱状等配置
series: [],
// 提示框配置
tooltip: {
trigger: 'axis', // 提示框触发方式为坐标轴触发
axisPointer: {
type: 'cross', // 十字准星指示器
},
},
// 图例配置(鼠标覆盖上去有详情信息的)
legend: {
icon: 'rect', // 图例项的图标形状
orient: 'horizontal', // 图例的布局方向
itemWidth: 20, // 图例项的宽度
itemHeight: 10, // 图例项的高度
textStyle: {
fontSize: 12, // 图例项的字体大小
},
right: '30%', // 图例相对于容器右侧的距离
},
// 工具箱配置 就是右上角可以下载原图 展示数据视图那个工具
toolbox: {
show: true, // 是否显示工具箱
feature: {
dataZoom: {}, // 数据区域缩放工具
dataView: {
readOnly: false // 是否只读
},
magicType: {
type: ['line', 'bar'] // 切换图表类型工具
},
restore: {}, // 还原工具
saveAsImage: {} // 保存为图片工具
},
right: '10%', // 工具箱相对于容器右侧的距离
},
},
};
},
mounted() {
// 页面加载后调用获取销售数据的方法
this.getSalesSummaryLoad();
},
methods: {
// 获取销售数据的方法
getSalesSummaryLoad() {
// 调用 API 请求获取销售数据
getAction(this.url.getSalesSummary, {}).then((res) => {
if (res.success) {
console.log(res)
const data = res.result;
// 更新图表的 X 轴和 Series 数据
this.chartOptions.xAxis.data = data.dates;
this.chartOptions.series = data.series.map(item => {
return {
...item,
type: "line"
};
});
// 初始化图表
this.initChart();
}
});
},
// 初始化 ECharts 图表的方法
initChart() {
// 创建 ECharts 实例
this.chart = echarts.init(this.$refs.barChart);
// 设置图表宽度和高度
const chartWidth = 1200;
const chartHeight = 500;
// 调整图表大小
this.chart.resize({
width: chartWidth,
height: chartHeight
});
// 设置图表配置
this.chart.setOption(this.chartOptions);
},
},
};
</script>
<style scoped>
.bar-chart-container {}
</style>
步骤10:echarts各项配置
| 配置项 | 描述 |
|---|---|
| title | 配置图表的主标题。可以包括副标题和文本样式。 |
| legend | 配置图例，显示图例数据的区域。可以自定义位置、方向和文本样式。 |
| tooltip | 配置提示框，当悬停在数据点上时显示额外信息。可以自定义格式和内容。 |
| grid | 配置网格组件，定义图表网格的大小和位置。可以设置左、右、上、下，并包含标签样式。 |
| xAxis | 配置 x 轴，包括类型、数据、轴标签和轴刻度设置。 |
| yAxis | 配置 y 轴，与 xAxis 类似，包括类型、数据、轴标签和轴刻度设置。 |
| series | 配置要在图表上绘制的数据系列，如线条、柱状图、散点图等。每种系列类型都有自己的一组选项。 |
| toolbox | 配置工具箱，提供与图表交互的工具，如数据缩放、保存为图像等。 |
| dataZoom | 配置数据缩放组件，允许用户缩放到特定范围的数据。可以应用于 x 轴和 y 轴。 |
| visualMap | 配置视觉映射组件，将数据值映射到颜色等视觉属性。适用于显示数据强度或分布。 |
| color | 指定图表的颜色调色板。可以是颜色数组或预定义的颜色主题。 |
| textStyle | 配置图表中各种文本元素的默认文本样式，如标题、标签和提示框。 |
二、echarts 中国地图，china.json文件

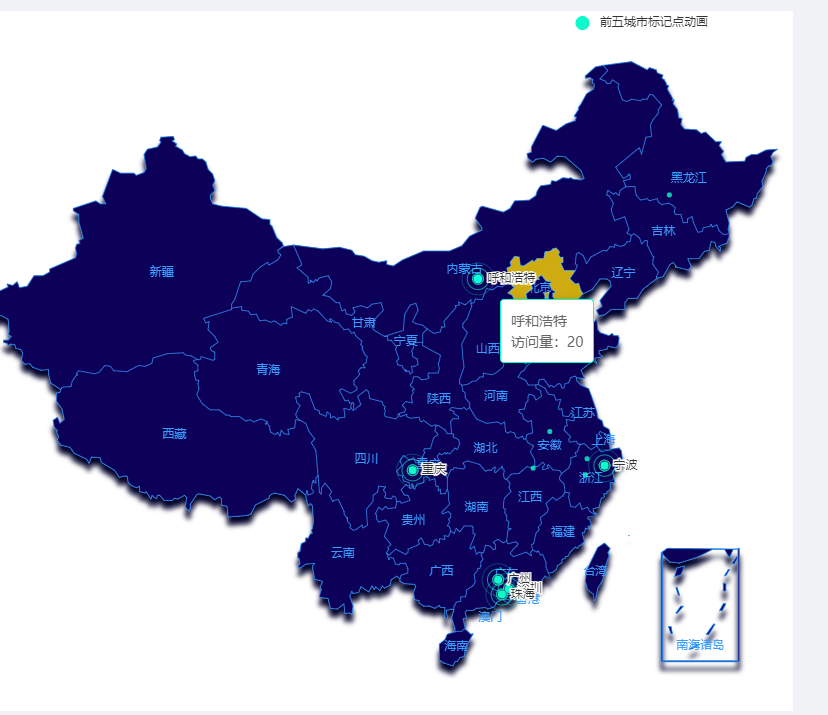

1.效果图
2.引入china.json文件
找个地方写个china.json文件。内容复制这个代码。
{
"type": "FeatureCollection",
"features":
[
{ "type": "Feature", "properties": { "id": "65", "size": "550", "name": "新疆", "cp": [86.9023, 41.148], "childNum": 18 }, "geometry": { "type": "Polygon", "coordinates": [[[96.416, 42.7588], [96.416, 42.7148], [95.9766, 42.4951], [96.0645, 42.3193], [96.2402, 42.2314], [95.9766, 41.9238], [95.2734, 41.6162], [95.1855, 41.792], [94.5703, 41.4844], [94.043, 41.0889], [93.8672, 40.6934], [93.0762, 40.6494], [92.6367, 39.6387], [92.373, 39.3311], [92.373, 39.1113], [92.373, 39.0234], [90.1758, 38.4961], [90.3516, 38.2324], [90.6152, 38.3203], [90.5273, 37.8369], [91.0547, 37.4414], [91.3184, 37.0898], [90.7031, 36.7822], [90.791, 36.6064], [91.0547, 36.5186], [91.0547, 36.0791], [90.8789, 36.0352], [90, 36.2549], [89.9121, 36.0791], [89.7363, 36.0791], [89.209, 36.2988], [88.7695, 36.3428], [88.5938, 36.4746], [87.3633, 36.4307], [86.2207, 36.167], [86.1328, 35.8594], [85.6055, 35.6836], [85.0781, 35.7275], [84.1992, 35.376], [83.1445, 35.4199], [82.8809, 35.6836], [82.4414, 35.7275], [82.002, 35.332], [81.6504, 35.2441], [80.4199, 35.4199], [80.2441, 35.2881], [80.332, 35.1563], [80.2441, 35.2002], [79.8926, 34.8047], [79.8047, 34.4971], [79.1016, 34.4531], [79.0137, 34.3213], [78.2227, 34.7168], [78.0469, 35.2441], [78.0469, 35.5078], [77.4316, 35.4639], [76.8164, 35.6396], [76.5527, 35.8594], [76.2012, 35.8154], [75.9375, 36.0352], [76.0254, 36.4746], [75.8496, 36.6943], [75.498, 36.7383], [75.4102, 36.958], [75.0586, 37.002], [74.8828, 36.9141], [74.7949, 37.0459], [74.5313, 37.0898], [74.5313, 37.2217], [74.8828, 37.2217], [75.1465, 37.4414], [74.8828, 37.5732], [74.9707, 37.749], [74.8828, 38.4521], [74.3555, 38.6719], [74.1797, 38.6719], [74.0918, 38.54], [73.8281, 38.584], [73.7402, 38.8477], [73.8281, 38.9795], [73.4766, 39.375], [73.916, 39.5068], [73.916, 39.6826], [73.8281, 39.7705], [74.0039, 40.0342], [74.8828, 40.3418], [74.7949, 40.5176], [75.2344, 40.4297], [75.5859, 40.6494], [75.7617, 40.2979], [76.377, 40.3857], [76.9043, 41.001], [77.6074, 41.001], [78.1348, 41.2207], [78.1348, 41.3965], [80.1563, 42.0557], [80.2441, 42.2754], [80.1563, 42.627], [80.2441, 42.8467], [80.5078, 42.8906], [80.4199, 43.0664], [80.7715, 43.1982], [80.4199, 44.165], [80.4199, 44.6045], [79.9805, 44.8242], [79.9805, 44.9561], [81.7383, 45.3955], [82.0898, 45.2197], [82.5293, 45.2197], [82.2656, 45.6592], [83.0566, 47.2412], [83.6719, 47.0215], [84.7266, 47.0215], [84.9023, 46.8896], [85.5176, 47.0654], [85.6934, 47.2852], [85.5176, 48.1201], [85.7813, 48.4277], [86.5723, 48.5596], [86.8359, 48.8232], [86.748, 48.9551], [86.8359, 49.1309], [87.8027, 49.1748], [87.8906, 48.999], [87.7148, 48.9111], [88.0664, 48.7354], [87.9785, 48.6035], [88.5059, 48.3838], [88.6816, 48.1641], [89.1211, 47.9883], [89.5605, 48.0322], [89.7363, 47.8564], [90.0879, 47.8564], [90.3516, 47.6807], [90.5273, 47.2412], [90.8789, 46.9775], [91.0547, 46.582], [90.8789, 46.3184], [91.0547, 46.0107], [90.7031, 45.7471], [90.7031, 45.5273], [90.8789, 45.2197], [91.582, 45.0879], [93.5156, 44.9561], [94.7461, 44.3408], [95.3613, 44.2969], [95.3613, 44.0332], [95.5371, 43.9014], [95.8887, 43.2422], [96.3281, 42.9346], [96.416, 42.7588]]] } },
{ "type": "Feature", "properties": { "id": "54", "size": "550", "name": "西藏", "cp": [87.8695, 31.6846], "childNum": 7 }, "geometry": { "type": "Polygon", "coordinates": [[[79.0137, 34.3213], [79.1016, 34.4531], [79.8047, 34.4971], [79.8926, 34.8047], [80.2441, 35.2002], [80.332, 35.1563], [80.2441, 35.2881], [80.4199, 35.4199], [81.6504, 35.2441], [82.002, 35.332], [82.4414, 35.7275], [82.8809, 35.6836], [83.1445, 35.4199], [84.1992, 35.376], [85.0781, 35.7275], [85.6055, 35.6836], [86.1328, 35.8594], [86.2207, 36.167], [87.3633, 36.4307], [88.5938, 36.4746], [88.7695, 36.3428], [89.209, 36.2988], [89.7363, 36.0791], [89.3848, 36.0352], [89.4727, 35.9033], [89.7363, 35.7715], [89.7363, 35.4199], [89.4727, 35.376], [89.4727, 35.2441], [89.5605, 34.8926], [89.8242, 34.8486], [89.7363, 34.6729], [89.8242, 34.3652], [89.6484, 34.0137], [90.0879, 33.4863], [90.7031, 33.1348], [91.4063, 33.1348], [91.9336, 32.8271], [92.1973, 32.8271], [92.2852, 32.7393], [92.9883, 32.7393], [93.5156, 32.4756], [93.7793, 32.5635], [94.1309, 32.4316], [94.6582, 32.6074], [95.1855, 32.4316], [95.0098, 32.2998], [95.1855, 32.3438], [95.2734, 32.2119], [95.3613, 32.168], [95.3613, 31.9922], [95.4492, 31.8164], [95.8008, 31.6846], [95.9766, 31.8164], [96.1523, 31.5967], [96.2402, 31.9482], [96.5039, 31.7285], [96.8555, 31.6846], [96.7676, 31.9922], [97.2949, 32.0801], [97.3828, 32.5635], [97.7344, 32.5195], [98.1738, 32.3438], [98.4375, 31.8604], [98.877, 31.4209], [98.6133, 31.2012], [98.9648, 30.7617], [99.1406, 29.2676], [98.9648, 29.1357], [98.9648, 28.8281], [98.7891, 28.8721], [98.7891, 29.0039], [98.7012, 28.916], [98.6133, 28.5205], [98.7891, 28.3447], [98.7012, 28.2129], [98.3496, 28.125], [98.2617, 28.3887], [98.1738, 28.125], [97.5586, 28.5205], [97.2949, 28.0811], [97.3828, 27.9053], [97.0313, 27.7295], [96.5039, 28.125], [95.7129, 28.2568], [95.3613, 28.125], [95.2734, 27.9492], [94.2188, 27.5537], [93.8672, 27.0264], [93.6035, 26.9385], [92.1094, 26.8506], [92.0215, 27.4658], [91.582, 27.5537], [91.582, 27.9053], [91.4063, 28.0371], [91.0547, 27.8613], [90.7031, 28.0811], [89.8242, 28.2129], [89.6484, 28.1689], [89.1211, 27.5977], [89.1211, 27.334], [89.0332, 27.2021], [88.7695, 27.4219], [88.8574, 27.9932], [88.6816, 28.125], [88.1543, 27.9053], [87.8906, 27.9492], [87.7148, 27.8174], [87.0996, 27.8174], [86.748, 28.125], [86.5723, 28.125], [86.4844, 27.9053], [86.1328, 28.125], [86.0449, 27.9053], [85.6934, 28.3447], [85.6055, 28.2568], [85.166, 28.3447], [85.166, 28.6523], [84.9023, 28.5645], [84.4629, 28.7402], [84.2871, 28.8721], [84.1992, 29.2236], [84.1113, 29.2676], [83.584, 29.1797], [83.2324, 29.5752], [82.1777, 30.0586], [82.0898, 30.3223], [81.3867, 30.3662], [81.2109, 30.0146], [81.0352, 30.2344], [80.0684, 30.5859], [79.7168, 30.9375], [79.0137, 31.0693], [78.75, 31.333], [78.8379, 31.5967], [78.6621, 31.8164], [78.75, 31.9043], [78.4863, 32.124], [78.3984, 32.5195], [78.75, 32.6953], [78.9258, 32.3438], [79.2773, 32.5635], [79.1016, 33.1787], [78.6621, 33.6621], [78.6621, 34.1016], [78.9258, 34.1455], [79.0137, 34.3213]]] } },
{ "type": "Feature", "properties": { "id": "15", "size": "450", "name": "内蒙古", "cp": [110.5977, 41.3408], "childNum": 12 }, "geometry": { "type": "Polygon", "coordinates": [[[97.207, 42.8027], [99.4922, 42.583], [100.8105, 42.6709], [101.7773, 42.4951], [102.041, 42.2314], [102.7441, 42.1436], [103.3594, 41.8799], [103.8867, 41.792], [104.502, 41.8799], [104.502, 41.6602], [105.0293, 41.5723], [105.7324, 41.9238], [107.4023, 42.4512], [109.4238, 42.4512], [110.3906, 42.7588], [111.0059, 43.3301], [111.9727, 43.6816], [111.9727, 43.8135], [111.4453, 44.3848], [111.7969, 45], [111.9727, 45.0879], [113.6426, 44.7363], [114.1699, 44.9561], [114.5215, 45.3955], [115.6641, 45.4395], [116.1914, 45.7031], [116.2793, 45.9668], [116.543, 46.2744], [117.334, 46.3623], [117.4219, 46.582], [117.7734, 46.5381], [118.3008, 46.7578], [118.7402, 46.7139], [118.916, 46.7578], [119.0918, 46.6699], [119.707, 46.626], [119.9707, 46.7139], [119.707, 47.1973], [118.4766, 47.9883], [117.8613, 48.0322], [117.334, 47.6807], [116.8066, 47.9004], [116.1914, 47.8564], [115.9277, 47.6807], [115.5762, 47.9004], [115.4883, 48.1641], [115.8398, 48.252], [115.8398, 48.5596], [116.7188, 49.834], [117.7734, 49.5264], [118.5645, 49.9219], [119.2676, 50.0977], [119.3555, 50.3174], [119.1797, 50.3613], [119.5313, 50.7568], [119.5313, 50.8887], [119.707, 51.0645], [120.1465, 51.6797], [120.6738, 51.9434], [120.7617, 52.1191], [120.7617, 52.251], [120.5859, 52.3389], [120.6738, 52.5146], [120.4102, 52.6465], [120.0586, 52.6025], [120.0586, 52.7344], [120.8496, 53.2617], [121.4648, 53.3496], [121.8164, 53.042], [121.2012, 52.5586], [121.6406, 52.4268], [121.7285, 52.2949], [121.9922, 52.2949], [122.168, 52.5146], [122.6953, 52.251], [122.6074, 52.0752], [122.959, 51.3281], [123.3105, 51.2402], [123.6621, 51.3721], [124.3652, 51.2842], [124.541, 51.3721], [124.8926, 51.3721], [125.0684, 51.6357], [125.332, 51.6357], [126.0352, 51.0205], [125.7715, 50.7568], [125.7715, 50.5371], [125.332, 50.1416], [125.1563, 49.834], [125.2441, 49.1748], [124.8047, 49.1309], [124.4531, 48.1201], [124.2773, 48.5156], [122.4316, 47.373], [123.0469, 46.7139], [123.3984, 46.8896], [123.3984, 46.9775], [123.4863, 46.9775], [123.5742, 46.8457], [123.5742, 46.8896], [123.5742, 46.6699], [123.0469, 46.582], [123.2227, 46.2305], [122.7832, 46.0107], [122.6953, 45.7031], [122.4316, 45.8789], [122.2559, 45.791], [121.8164, 46.0107], [121.7285, 45.7471], [121.9043, 45.7031], [122.2559, 45.2637], [122.0801, 44.8682], [122.3438, 44.2529], [123.1348, 44.4727], [123.4863, 43.7256], [123.3105, 43.5059], [123.6621, 43.374], [123.5742, 43.0225], [123.3105, 42.9785], [123.1348, 42.8027], [122.7832, 42.7148], [122.3438, 42.8467], [122.3438, 42.6709], [121.9922, 42.7148], [121.7285, 42.4512], [121.4648, 42.4951], [120.498, 42.0996], [120.1465, 41.7041], [119.8828, 42.1875], [119.5313, 42.3633], [119.3555, 42.2754], [119.2676, 41.7041], [119.4434, 41.6162], [119.2676, 41.3086], [118.3887, 41.3086], [118.125, 41.748], [118.3008, 41.792], [118.3008, 42.0996], [118.125, 42.0557], [117.9492, 42.2314], [118.0371, 42.4072], [117.7734, 42.627], [117.5098, 42.583], [117.334, 42.4512], [116.8945, 42.4072], [116.8066, 42.0117], [116.2793, 42.0117], [116.0156, 41.792], [115.9277, 41.9238], [115.2246, 41.5723], [114.9609, 41.6162], [114.873, 42.0996], [114.5215, 42.1436], [114.1699, 41.792], [114.2578, 41.5723], [113.9063, 41.4404], [113.9941, 41.2207], [113.9063, 41.1328], [114.082, 40.7373], [114.082, 40.5176], [113.8184, 40.5176], [113.5547, 40.3418], [113.2031, 40.3857], [112.7637, 40.166], [112.3242, 40.2539], [111.9727, 39.5947], [111.4453, 39.6387], [111.3574, 39.4189], [111.0938, 39.375], [111.0938, 39.5947], [110.6543, 39.2871], [110.127, 39.4629], [110.2148, 39.2871], [109.8633, 39.2432], [109.9512, 39.1553], [108.9844, 38.3203], [109.0723, 38.0127], [108.8965, 37.9688], [108.8086, 38.0127], [108.7207, 37.7051], [108.1934, 37.6172], [107.666, 37.8809], [107.3145, 38.1006], [106.7871, 38.1885], [106.5234, 38.3203], [106.9629, 38.9795], [106.7871, 39.375], [106.3477, 39.2871], [105.9082, 38.7158], [105.8203, 37.793], [104.3262, 37.4414], [103.4473, 37.8369], [103.3594, 38.0127], [103.5352, 38.1445], [103.4473, 38.3643], [104.2383, 38.9795], [104.0625, 39.4189], [103.3594, 39.3311], [103.0078, 39.1113], [102.4805, 39.2432], [101.8652, 39.1113], [102.041, 38.8916], [101.7773, 38.6719], [101.3379, 38.7598], [101.25, 39.0234], [100.9863, 38.9355], [100.8105, 39.4189], [100.5469, 39.4189], [100.0195, 39.7705], [99.4922, 39.8584], [100.1074, 40.2539], [100.1953, 40.6494], [99.9316, 41.001], [99.2285, 40.8691], [99.0527, 40.6934], [98.9648, 40.7813], [98.7891, 40.6055], [98.5254, 40.7373], [98.6133, 40.6494], [98.3496, 40.5615], [98.3496, 40.9131], [97.4707, 41.4844], [97.8223, 41.6162], [97.8223, 41.748], [97.207, 42.8027]]] } },
{ "type": "Feature", "properties": { "id": "63", "size": "800", "name": "青海", "cp": [95.2402, 35.4199], "childNum": 8 }, "geometry": { "type": "Polygon", "coordinates": [[[89.7363, 36.0791], [89.9121, 36.0791], [90, 36.2549], [90.8789, 36.0352], [91.0547, 36.0791], [91.0547, 36.5186], [90.791, 36.6064], [90.7031, 36.7822], [91.3184, 37.0898], [91.0547, 37.4414], [90.5273, 37.8369], [90.6152, 38.3203], [90.3516, 38.2324], [90.1758, 38.4961], [92.373, 39.0234], [92.373, 39.1113], [93.1641, 39.1992], [93.1641, 38.9795], [93.6914, 38.9355], [93.8672, 38.7158], [94.3066, 38.7598], [94.5703, 38.3643], [95.0098, 38.4082], [95.4492, 38.2764], [95.7129, 38.3643], [96.2402, 38.1006], [96.416, 38.2324], [96.6797, 38.1885], [96.6797, 38.4521], [97.1191, 38.584], [97.0313, 39.1992], [98.1738, 38.8037], [98.3496, 39.0234], [98.6133, 38.9355], [98.7891, 39.0674], [99.1406, 38.9355], [99.8438, 38.3643], [100.1953, 38.2764], [100.0195, 38.4521], [100.1074, 38.4961], [100.459, 38.2764], [100.7227, 38.2324], [101.1621, 37.8369], [101.5137, 37.8809], [101.7773, 37.6172], [101.9531, 37.7051], [102.1289, 37.4414], [102.5684, 37.1777], [102.4805, 36.958], [102.6563, 36.8262], [102.5684, 36.7383], [102.832, 36.3428], [103.0078, 36.2549], [102.9199, 36.0791], [102.9199, 35.9033], [102.6563, 35.7715], [102.832, 35.5957], [102.4805, 35.5957], [102.3047, 35.4199], [102.3926, 35.2002], [101.9531, 34.8486], [101.9531, 34.6289], [102.2168, 34.4092], [102.1289, 34.2773], [101.6895, 34.1016], [100.9863, 34.3652], [100.8105, 34.2773], [101.25, 33.6621], [101.5137, 33.7061], [101.6016, 33.5303], [101.7773, 33.5303], [101.6895, 33.3105], [101.7773, 33.2227], [101.6016, 33.1348], [101.1621, 33.2227], [101.25, 32.6953], [100.7227, 32.6514], [100.7227, 32.5195], [100.3711, 32.7393], [100.1074, 32.6514], [100.1074, 32.8711], [99.8438, 33.0029], [99.7559, 32.7393], [99.2285, 32.915], [99.2285, 33.0469], [98.877, 33.1787], [98.4375, 34.0576], [97.8223, 34.1895], [97.6465, 34.1016], [97.7344, 33.9258], [97.3828, 33.8818], [97.4707, 33.5742], [97.7344, 33.3984], [97.3828, 32.8711], [97.4707, 32.6953], [97.7344, 32.5195], [97.3828, 32.5635], [97.2949, 32.0801], [96.7676, 31.9922], [96.8555, 31.6846], [96.5039, 31.7285], [96.2402, 31.9482], [96.1523, 31.5967], [95.9766, 31.8164], [95.8008, 31.6846], [95.4492, 31.8164], [95.3613, 31.9922], [95.3613, 32.168], [95.2734, 32.2119], [95.1855, 32.3438], [95.0098, 32.2998], [95.1855, 32.4316], [94.6582, 32.6074], [94.1309, 32.4316], [93.7793, 32.5635], [93.5156, 32.4756], [92.9883, 32.7393], [92.2852, 32.7393], [92.1973, 32.8271], [91.9336, 32.8271], [91.4063, 33.1348], [90.7031, 33.1348], [90.0879, 33.4863], [89.6484, 34.0137], [89.8242, 34.3652], [89.7363, 34.6729], [89.8242, 34.8486], [89.5605, 34.8926], [89.4727, 35.2441], [89.4727, 35.376], [89.7363, 35.4199], [89.7363, 35.7715], [89.4727, 35.9033], [89.3848, 36.0352], [89.7363, 36.0791]]] } },
{ "type": "Feature", "properties": { "id": "51", "size": "900", "name": "四川", "cp": [102.9199, 30.1904], "childNum": 21 }, "geometry": { "type": "Polygon", "coordinates": [[[101.7773, 33.5303], [101.8652, 33.5742], [101.9531, 33.4424], [101.8652, 33.0908], [102.4805, 33.4424], [102.2168, 33.9258], [102.9199, 34.3213], [103.0957, 34.1895], [103.1836, 33.7939], [104.1504, 33.6182], [104.2383, 33.3984], [104.4141, 33.3105], [104.3262, 33.2227], [104.4141, 33.0469], [104.3262, 32.8711], [104.4141, 32.7393], [105.2051, 32.6074], [105.3809, 32.7393], [105.3809, 32.8711], [105.4688, 32.915], [105.5566, 32.7393], [106.084, 32.8711], [106.084, 32.7393], [106.3477, 32.6514], [107.0508, 32.6953], [107.1387, 32.4756], [107.2266, 32.4316], [107.4023, 32.5195], [108.0176, 32.168], [108.2813, 32.2559], [108.5449, 32.2119], [108.3691, 32.168], [108.2813, 31.9043], [108.5449, 31.6846], [108.1934, 31.5088], [107.9297, 30.8496], [107.4902, 30.8496], [107.4023, 30.7617], [107.4902, 30.6299], [107.0508, 30.0146], [106.7871, 30.0146], [106.6113, 30.3223], [106.2598, 30.1904], [105.8203, 30.4541], [105.6445, 30.2783], [105.5566, 30.1025], [105.7324, 29.8828], [105.293, 29.5313], [105.4688, 29.3115], [105.7324, 29.2676], [105.8203, 28.96], [106.2598, 28.8721], [106.3477, 28.5205], [105.9961, 28.7402], [105.6445, 28.4326], [105.9082, 28.125], [106.1719, 28.125], [106.3477, 27.8174], [105.6445, 27.6416], [105.5566, 27.7734], [105.293, 27.7295], [105.2051, 27.9932], [105.0293, 28.0811], [104.8535, 27.9053], [104.4141, 27.9492], [104.3262, 28.0371], [104.4141, 28.125], [104.4141, 28.2568], [104.2383, 28.4326], [104.4141, 28.6084], [103.8867, 28.6523], [103.7988, 28.3008], [103.4473, 28.125], [103.4473, 27.7734], [102.9199, 27.29], [103.0078, 26.3672], [102.6563, 26.1914], [102.5684, 26.3672], [102.1289, 26.1035], [101.8652, 26.0596], [101.6016, 26.2354], [101.6895, 26.3672], [101.4258, 26.5869], [101.4258, 26.8066], [101.4258, 26.7188], [101.1621, 27.0264], [101.1621, 27.1582], [100.7227, 27.8613], [100.3711, 27.8174], [100.2832, 27.7295], [100.0195, 28.125], [100.1953, 28.3447], [99.668, 28.8281], [99.4043, 28.5205], [99.4043, 28.1689], [99.2285, 28.3008], [99.1406, 29.2676], [98.9648, 30.7617], [98.6133, 31.2012], [98.877, 31.4209], [98.4375, 31.8604], [98.1738, 32.3438], [97.7344, 32.5195], [97.4707, 32.6953], [97.3828, 32.8711], [97.7344, 33.3984], [97.4707, 33.5742], [97.3828, 33.8818], [97.7344, 33.9258], [97.6465, 34.1016], [97.8223, 34.1895], [98.4375, 34.0576], [98.877, 33.1787], [99.2285, 33.0469], [99.2285, 32.915], [99.7559, 32.7393], [99.8438, 33.0029], [100.1074, 32.8711], [100.1074, 32.6514], [100.3711, 32.7393], [100.7227, 32.5195], [100.7227, 32.6514], [101.25, 32.6953], [101.1621, 33.2227], [101.6016, 33.1348], [101.7773, 33.2227], [101.6895, 33.3105], [101.7773, 33.5303]]] } },
{ "type": "Feature", "properties": { "id": "23", "size": "700", "name": "黑龙江", "cp": [128.1445, 46.7156], "childNum": 13 }, "geometry": { "type": "Polygon", "coordinates": [[[121.4648, 53.3496], [123.6621, 53.5693], [124.8926, 53.0859], [125.0684, 53.2178], [125.5957, 53.0859], [125.6836, 52.9102], [126.123, 52.7783], [126.0352, 52.6025], [126.2109, 52.5146], [126.3867, 52.2949], [126.3867, 52.207], [126.5625, 52.1631], [126.4746, 51.9434], [126.9141, 51.3721], [126.8262, 51.2842], [127.002, 51.3281], [126.9141, 51.1084], [127.2656, 50.7568], [127.3535, 50.2734], [127.6172, 50.2295], [127.5293, 49.8779], [127.793, 49.6143], [128.7598, 49.5703], [129.1113, 49.3506], [129.4629, 49.4385], [130.2539, 48.8672], [130.6934, 48.8672], [130.5176, 48.6475], [130.8691, 48.2959], [130.6934, 48.1201], [131.0449, 47.6807], [132.5391, 47.7246], [132.627, 47.9443], [133.0664, 48.1201], [133.5059, 48.1201], [134.209, 48.3838], [135.0879, 48.4277], [134.7363, 48.252], [134.5605, 47.9883], [134.7363, 47.6807], [134.5605, 47.4609], [134.3848, 47.4609], [134.209, 47.2852], [134.209, 47.1533], [133.8574, 46.5381], [133.9453, 46.2744], [133.5059, 45.835], [133.418, 45.5713], [133.2422, 45.5273], [133.0664, 45.1318], [132.8906, 45.0439], [131.9238, 45.3516], [131.5723, 45.0439], [131.0449, 44.8682], [131.3086, 44.0771], [131.2207, 43.7256], [131.3086, 43.4619], [130.8691, 43.418], [130.5176, 43.6377], [130.3418, 43.9893], [129.9902, 43.8574], [129.9023, 44.0332], [129.8145, 43.9014], [129.2871, 43.8135], [129.1992, 43.5938], [128.8477, 43.5498], [128.4961, 44.165], [128.4082, 44.4727], [128.0566, 44.3408], [128.0566, 44.1211], [127.7051, 44.1211], [127.5293, 44.6045], [127.0898, 44.6045], [127.002, 44.7803], [127.0898, 45], [126.9141, 45.1318], [126.5625, 45.2637], [126.0352, 45.1758], [125.7715, 45.3076], [125.6836, 45.5273], [125.0684, 45.3955], [124.8926, 45.5273], [124.3652, 45.4395], [124.0137, 45.7471], [123.9258, 46.2305], [123.2227, 46.2305], [123.0469, 46.582], [123.5742, 46.6699], [123.5742, 46.8896], [123.5742, 46.8457], [123.4863, 46.9775], [123.3984, 46.9775], [123.3984, 46.8896], [123.0469, 46.7139], [122.4316, 47.373], [124.2773, 48.5156], [124.4531, 48.1201], [124.8047, 49.1309], [125.2441, 49.1748], [125.1563, 49.834], [125.332, 50.1416], [125.7715, 50.5371], [125.7715, 50.7568], [126.0352, 51.0205], [125.332, 51.6357], [125.0684, 51.6357], [124.8926, 51.3721], [124.541, 51.3721], [124.3652, 51.2842], [123.6621, 51.3721], [123.3105, 51.2402], [122.959, 51.3281], [122.6074, 52.0752], [122.6953, 52.251], [122.168, 52.5146], [121.9922, 52.2949], [121.7285, 52.2949], [121.6406, 52.4268], [121.2012, 52.5586], [121.8164, 53.042], [121.4648, 53.3496]]] } },
{ "type": "Feature", "properties": { "id": "62", "size": "690", "name": "甘肃", "cp": [102.7129, 38.166], "childNum": 14 }, "geometry": { "type": "Polygon", "coordinates": [[[96.416, 42.7148], [97.207, 42.8027], [97.8223, 41.748], [97.8223, 41.6162], [97.4707, 41.4844], [98.3496, 40.9131], [98.3496, 40.5615], [98.6133, 40.6494], [98.5254, 40.7373], [98.7891, 40.6055], [98.9648, 40.7813], [99.0527, 40.6934], [99.2285, 40.8691], [99.9316, 41.001], [100.1953, 40.6494], [100.1074, 40.2539], [99.4922, 39.8584], [100.0195, 39.7705], [100.5469, 39.4189], [100.8105, 39.4189], [100.9863, 38.9355], [101.25, 39.0234], [101.3379, 38.7598], [101.7773, 38.6719], [102.041, 38.8916], [101.8652, 39.1113], [102.4805, 39.2432], [103.0078, 39.1113], [103.3594, 39.3311], [104.0625, 39.4189], [104.2383, 38.9795], [103.4473, 38.3643], [103.5352, 38.1445], [103.3594, 38.0127], [103.4473, 37.8369], [104.3262, 37.4414], [104.5898, 37.4414], [104.5898, 37.2217], [104.8535, 37.2217], [105.293, 36.8262], [105.2051, 36.6943], [105.4688, 36.123], [105.293, 35.9912], [105.3809, 35.7715], [105.7324, 35.7275], [105.8203, 35.5518], [105.9961, 35.4639], [105.9082, 35.4199], [105.9961, 35.4199], [106.084, 35.376], [106.2598, 35.4199], [106.3477, 35.2441], [106.5234, 35.332], [106.4355, 35.6836], [106.6992, 35.6836], [106.9629, 35.8154], [106.875, 36.123], [106.5234, 36.2549], [106.5234, 36.4746], [106.4355, 36.5625], [106.6113, 36.7822], [106.6113, 37.0898], [107.3145, 37.0898], [107.3145, 36.9141], [108.7207, 36.3428], [108.6328, 35.9912], [108.5449, 35.8594], [108.6328, 35.5518], [108.5449, 35.2881], [107.7539, 35.2881], [107.7539, 35.1123], [107.8418, 35.0244], [107.666, 34.9365], [107.2266, 34.8926], [106.9629, 35.0684], [106.6113, 35.0684], [106.5234, 34.7607], [106.3477, 34.585], [106.6992, 34.3213], [106.5234, 34.2773], [106.6113, 34.1455], [106.4355, 33.9258], [106.5234, 33.5303], [105.9961, 33.6182], [105.7324, 33.3984], [105.9961, 33.1787], [105.9082, 33.0029], [105.4688, 32.915], [105.3809, 32.8711], [105.3809, 32.7393], [105.2051, 32.6074], [104.4141, 32.7393], [104.3262, 32.8711], [104.4141, 33.0469], [104.3262, 33.2227], [104.4141, 33.3105], [104.2383, 33.3984], [104.1504, 33.6182], [103.1836, 33.7939], [103.0957, 34.1895], [102.9199, 34.3213], [102.2168, 33.9258], [102.4805, 33.4424], [101.8652, 33.0908], [101.9531, 33.4424], [101.8652, 33.5742], [101.7773, 33.5303], [101.6016, 33.5303], [101.5137, 33.7061], [101.25, 33.6621], [100.8105, 34.2773], [100.9863, 34.3652], [101.6895, 34.1016], [102.1289, 34.2773], [102.2168, 34.4092], [101.9531, 34.6289], [101.9531, 34.8486], [102.3926, 35.2002], [102.3047, 35.4199], [102.4805, 35.5957], [102.832, 35.5957], [102.6563, 35.7715], [102.9199, 35.9033], [102.9199, 36.0791], [103.0078, 36.2549], [102.832, 36.3428], [102.5684, 36.7383], [102.6563, 36.8262], [102.4805, 36.958], [102.5684, 37.1777], [102.1289, 37.4414], [101.9531, 37.7051], [101.7773, 37.6172], [101.5137, 37.8809], [101.1621, 37.8369], [100.7227, 38.2324], [100.459, 38.2764], [100.1074, 38.4961], [100.0195, 38.4521], [100.1953, 38.2764], [99.8438, 38.3643], [99.1406, 38.9355], [98.7891, 39.0674], [98.6133, 38.9355], [98.3496, 39.0234], [98.1738, 38.8037], [97.0313, 39.1992], [97.1191, 38.584], [96.6797, 38.4521], [96.6797, 38.1885], [96.416, 38.2324], [96.2402, 38.1006], [95.7129, 38.3643], [95.4492, 38.2764], [95.0098, 38.4082], [94.5703, 38.3643], [94.3066, 38.7598], [93.8672, 38.7158], [93.6914, 38.9355], [93.1641, 38.9795], [93.1641, 39.1992], [92.373, 39.1113], [92.373, 39.3311], [92.6367, 39.6387], [93.0762, 40.6494], [93.8672, 40.6934], [94.043, 41.0889], [94.5703, 41.4844], [95.1855, 41.792], [95.2734, 41.6162], [95.9766, 41.9238], [96.2402, 42.2314], [96.0645, 42.3193], [95.9766, 42.4951], [96.416, 42.7148]]] } },
{ "type": "Feature", "properties": { "id": "53", "size": "1200", "name": "云南", "cp": [101.0652, 24.6807], "childNum": 16 }, "geometry": { "type": "Polygon", "coordinates": [[[98.1738, 28.125], [98.2617, 28.3887], [98.3496, 28.125], [98.7012, 28.2129], [98.7891, 28.3447], [98.6133, 28.5205], [98.7012, 28.916], [98.7891, 29.0039], [98.7891, 28.8721], [98.9648, 28.8281], [98.9648, 29.1357], [99.1406, 29.2676], [99.2285, 28.3008], [99.4043, 28.1689], [99.4043, 28.5205], [99.668, 28.8281], [100.1953, 28.3447], [100.0195, 28.125], [100.2832, 27.7295], [100.3711, 27.8174], [100.7227, 27.8613], [101.1621, 27.1582], [101.1621, 27.0264], [101.4258, 26.7188], [101.4258, 26.8066], [101.4258, 26.5869], [101.6895, 26.3672], [101.6016, 26.2354], [101.8652, 26.0596], [102.1289, 26.1035], [102.5684, 26.3672], [102.6563, 26.1914], [103.0078, 26.3672], [102.9199, 27.29], [103.4473, 27.7734], [103.4473, 28.125], [103.7988, 28.3008], [103.8867, 28.6523], [104.4141, 28.6084], [104.2383, 28.4326], [104.4141, 28.2568], [104.4141, 28.125], [104.3262, 28.0371], [104.4141, 27.9492], [104.8535, 27.9053], [105.0293, 28.0811], [105.2051, 27.9932], [105.293, 27.7295], [105.2051, 27.3779], [104.5898, 27.334], [104.4141, 27.4658], [104.1504, 27.2461], [103.8867, 27.4219], [103.623, 27.0264], [103.7109, 26.9824], [103.7109, 26.7627], [103.8867, 26.543], [104.4141, 26.6748], [104.6777, 26.4111], [104.3262, 25.708], [104.8535, 25.2246], [104.5898, 25.0488], [104.6777, 24.9609], [104.502, 24.7412], [104.6777, 24.3457], [104.7656, 24.4775], [105.0293, 24.4336], [105.2051, 24.082], [105.4688, 24.0381], [105.5566, 24.126], [105.9961, 24.126], [106.1719, 23.8184], [106.1719, 23.5547], [105.6445, 23.4229], [105.5566, 23.2031], [105.293, 23.3789], [104.8535, 23.1592], [104.7656, 22.8516], [104.3262, 22.6758], [104.1504, 22.8076], [103.9746, 22.5439], [103.623, 22.7637], [103.5352, 22.5879], [103.3594, 22.8076], [103.0957, 22.4561], [102.4805, 22.7637], [102.3047, 22.4121], [101.8652, 22.3682], [101.7773, 22.5], [101.6016, 22.1924], [101.8652, 21.6211], [101.7773, 21.1377], [101.6016, 21.2256], [101.25, 21.1816], [101.1621, 21.7529], [100.6348, 21.4453], [100.1074, 21.4893], [99.9316, 22.0605], [99.2285, 22.1484], [99.4043, 22.5879], [99.3164, 22.7197], [99.4922, 23.0713], [98.877, 23.2031], [98.7012, 23.9502], [98.877, 24.126], [98.1738, 24.082], [97.7344, 23.8623], [97.5586, 23.9063], [97.7344, 24.126], [97.6465, 24.4336], [97.5586, 24.4336], [97.5586, 24.7412], [97.7344, 24.8291], [97.8223, 25.2686], [98.1738, 25.4004], [98.1738, 25.6201], [98.3496, 25.5762], [98.5254, 25.8398], [98.7012, 25.8838], [98.6133, 26.0596], [98.7012, 26.1475], [98.7891, 26.5869], [98.7012, 27.5098], [98.5254, 27.6416], [98.3496, 27.5098], [98.1738, 28.125]]] } },
{ "type": "Feature", "properties": { "id": "45", "size": "1450", "name": "广西", "cp": [108.7813, 23.6426], "childNum": 14 }, "geometry": { "type": "Polygon", "coordinates": [[[104.502, 24.7412], [104.6777, 24.6094], [105.2051, 24.9609], [105.9961, 24.6533], [106.1719, 24.7852], [106.1719, 24.9609], [106.875, 25.1807], [107.0508, 25.2686], [106.9629, 25.4883], [107.2266, 25.6201], [107.4902, 25.2246], [107.7539, 25.2246], [107.8418, 25.1367], [108.1055, 25.2246], [108.1934, 25.4443], [108.3691, 25.5322], [108.6328, 25.3125], [108.6328, 25.5762], [109.0723, 25.5322], [108.9844, 25.752], [109.3359, 25.708], [109.5117, 26.0156], [109.7754, 25.8838], [109.9512, 26.1914], [110.2148, 25.9717], [110.5664, 26.3232], [111.1816, 26.3232], [111.2695, 26.2354], [111.2695, 25.8838], [111.4453, 25.8398], [111.0059, 25.0049], [111.0938, 24.9609], [111.3574, 25.1367], [111.5332, 24.6533], [111.709, 24.7852], [112.0605, 24.7412], [111.8848, 24.6533], [112.0605, 24.3457], [111.8848, 24.2139], [111.8848, 23.9941], [111.7969, 23.8184], [111.6211, 23.8184], [111.6211, 23.6865], [111.3574, 23.4668], [111.4453, 23.0273], [111.2695, 22.8076], [110.7422, 22.5439], [110.7422, 22.2803], [110.6543, 22.1484], [110.3027, 22.1484], [110.3027, 21.8848], [109.9512, 21.8408], [109.8633, 21.665], [109.7754, 21.6211], [109.7754, 21.4014], [109.5996, 21.4453], [109.1602, 21.3574], [109.248, 20.874], [109.0723, 20.9619], [109.0723, 21.5332], [108.7207, 21.5332], [108.6328, 21.665], [108.2813, 21.4893], [107.8418, 21.6211], [107.4023, 21.6211], [107.0508, 21.7969], [107.0508, 21.9287], [106.6992, 22.0166], [106.6113, 22.4121], [106.7871, 22.7637], [106.6992, 22.8955], [105.9082, 22.9395], [105.5566, 23.0713], [105.5566, 23.2031], [105.6445, 23.4229], [106.1719, 23.5547], [106.1719, 23.8184], [105.9961, 24.126], [105.5566, 24.126], [105.4688, 24.0381], [105.2051, 24.082], [105.0293, 24.4336], [104.7656, 24.4775], [104.6777, 24.3457], [104.502, 24.7412]]] } },
{ "type": "Feature", "properties": { "id": "43", "size": "1700", "name": "湖南", "cp": [111.5332, 27.3779], "childNum": 14 }, "geometry": { "type": "Polygon", "coordinates": [[[109.248, 28.4766], [109.248, 29.1357], [109.5117, 29.6191], [109.6875, 29.6191], [109.7754, 29.751], [110.4785, 29.6631], [110.6543, 29.751], [110.4785, 30.0146], [110.8301, 30.1465], [111.7969, 29.9268], [112.2363, 29.5313], [112.5, 29.6191], [112.6758, 29.5752], [112.9395, 29.7949], [113.0273, 29.751], [112.9395, 29.4873], [113.0273, 29.4434], [113.5547, 29.8389], [113.5547, 29.707], [113.7305, 29.5752], [113.6426, 29.3115], [113.7305, 29.0918], [113.9063, 29.0479], [114.1699, 28.8281], [114.082, 28.5645], [114.2578, 28.3447], [113.7305, 27.9492], [113.6426, 27.5977], [113.6426, 27.3779], [113.8184, 27.29], [113.7305, 27.1143], [113.9063, 26.9385], [113.9063, 26.6309], [114.082, 26.5869], [113.9941, 26.1914], [114.2578, 26.1475], [113.9941, 26.0596], [113.9063, 25.4443], [113.6426, 25.3125], [113.2031, 25.5322], [112.8516, 25.3564], [113.0273, 25.2246], [113.0273, 24.9609], [112.8516, 24.917], [112.5879, 25.1367], [112.2363, 25.1807], [112.1484, 24.873], [112.0605, 24.7412], [111.709, 24.7852], [111.5332, 24.6533], [111.3574, 25.1367], [111.0938, 24.9609], [111.0059, 25.0049], [111.4453, 25.8398], [111.2695, 25.8838], [111.2695, 26.2354], [111.1816, 26.3232], [110.5664, 26.3232], [110.2148, 25.9717], [109.9512, 26.1914], [109.7754, 25.8838], [109.5117, 26.0156], [109.4238, 26.2793], [109.248, 26.3232], [109.4238, 26.5869], [109.3359, 26.7188], [109.5117, 26.8066], [109.5117, 27.0264], [109.3359, 27.1582], [108.8965, 27.0264], [108.8086, 27.1143], [109.4238, 27.5977], [109.3359, 27.9053], [109.3359, 28.2568], [109.248, 28.4766]]] } },
{ "type": "Feature", "properties": { "id": "61", "size": "1150", "name": "陕西", "cp": [108.5996, 33.7396], "childNum": 10 }, "geometry": { "type": "Polygon", "coordinates": [[[105.4688, 32.915], [105.9082, 33.0029], [105.9961, 33.1787], [105.7324, 33.3984], [105.9961, 33.6182], [106.5234, 33.5303], [106.4355, 33.9258], [106.6113, 34.1455], [106.5234, 34.2773], [106.6992, 34.3213], [106.3477, 34.585], [106.5234, 34.7607], [106.6113, 35.0684], [106.9629, 35.0684], [107.2266, 34.8926], [107.666, 34.9365], [107.8418, 35.0244], [107.7539, 35.1123], [107.7539, 35.2881], [108.5449, 35.2881], [108.6328, 35.5518], [108.5449, 35.8594], [108.6328, 35.9912], [108.7207, 36.3428], [107.3145, 36.9141], [107.3145, 37.0898], [107.3145, 37.6172], [107.666, 37.8809], [108.1934, 37.6172], [108.7207, 37.7051], [108.8086, 38.0127], [108.8965, 37.9688], [109.0723, 38.0127], [108.9844, 38.3203], [109.9512, 39.1553], [109.8633, 39.2432], [110.2148, 39.2871], [110.127, 39.4629], [110.6543, 39.2871], [111.0938, 39.5947], [111.0938, 39.375], [111.1816, 39.2432], [110.918, 38.7158], [110.8301, 38.4961], [110.4785, 38.1885], [110.4785, 37.9688], [110.8301, 37.6611], [110.3906, 37.002], [110.4785, 36.123], [110.5664, 35.6396], [110.2148, 34.8926], [110.2148, 34.6729], [110.3906, 34.585], [110.4785, 34.2334], [110.6543, 34.1455], [110.6543, 33.8379], [111.0059, 33.5303], [111.0059, 33.2666], [110.7422, 33.1348], [110.5664, 33.2666], [110.3027, 33.1787], [109.5996, 33.2666], [109.4238, 33.1348], [109.7754, 33.0469], [109.7754, 32.915], [110.127, 32.7393], [110.127, 32.6074], [109.6875, 32.6074], [109.5117, 32.4316], [109.5996, 31.7285], [109.248, 31.7285], [109.0723, 31.9482], [108.5449, 32.2119], [108.2813, 32.2559], [108.0176, 32.168], [107.4023, 32.5195], [107.2266, 32.4316], [107.1387, 32.4756], [107.0508, 32.6953], [106.3477, 32.6514], [106.084, 32.7393], [106.084, 32.8711], [105.5566, 32.7393], [105.4688, 32.915]]] } },
{ "type": "Feature", "properties": { "id": "44", "size": "1600", "name": "广东", "cp": [113.8668, 22.8076], "childNum": 21 }, "geometry": { "type": "Polygon", "coordinates": [[[109.7754, 21.4014], [109.7754, 21.6211], [109.8633, 21.665], [109.9512, 21.8408], [110.3027, 21.8848], [110.3027, 22.1484], [110.6543, 22.1484], [110.7422, 22.2803], [110.7422, 22.5439], [111.2695, 22.8076], [111.4453, 23.0273], [111.3574, 23.4668], [111.6211, 23.6865], [111.6211, 23.8184], [111.7969, 23.8184], [111.8848, 23.9941], [111.8848, 24.2139], [112.0605, 24.3457], [111.8848, 24.6533], [112.0605, 24.7412], [112.1484, 24.873], [112.2363, 25.1807], [112.5879, 25.1367], [112.8516, 24.917], [113.0273, 24.9609], [113.0273, 25.2246], [112.8516, 25.3564], [113.2031, 25.5322], [113.6426, 25.3125], [113.9063, 25.4443], [113.9941, 25.2686], [114.6094, 25.4004], [114.7852, 25.2686], [114.6973, 25.1367], [114.4336, 24.9609], [114.1699, 24.6973], [114.4336, 24.5215], [115.4004, 24.7852], [115.8398, 24.5654], [115.752, 24.7852], [115.9277, 24.917], [116.2793, 24.7852], [116.3672, 24.873], [116.543, 24.6094], [116.7188, 24.6533], [116.9824, 24.1699], [116.9824, 23.9063], [117.1582, 23.5547], [117.334, 23.2471], [116.8945, 23.3789], [116.6309, 23.1152], [116.543, 22.8516], [115.9277, 22.7197], [115.6641, 22.7637], [115.5762, 22.6318], [115.0488, 22.6758], [114.6094, 22.3682], [114.3457, 22.5439], [113.9941, 22.5], [113.8184, 22.1924], [114.3457, 22.1484], [114.4336, 22.0166], [114.082, 21.9287], [113.9941, 21.7969], [113.5547, 22.0166], [113.1152, 21.8408], [112.9395, 21.5771], [112.4121, 21.4453], [112.2363, 21.5332], [111.5332, 21.4893], [111.2695, 21.3574], [110.7422, 21.3574], [110.6543, 21.2256], [110.7422, 20.918], [110.4785, 20.874], [110.6543, 20.2588], [110.5664, 20.2588], [110.3906, 20.127], [110.0391, 20.127], [109.8633, 20.127], [109.8633, 20.3027], [109.5996, 20.918], [109.7754, 21.4014], [109.7754, 21.4014]], [[113.5986, 22.1649], [113.6096, 22.1265], [113.5547, 22.11], [113.5437, 22.2034], [113.5767, 22.2034], [113.5986, 22.1649]]] } },
{ "type": "Feature", "properties": { "id": "22", "size": "1120", "name": "吉林", "cp": [126.1746, 43.5938], "childNum": 9 }, "geometry": { "type": "Polygon", "coordinates": [[[123.2227, 46.2305], [123.9258, 46.2305], [124.0137, 45.7471], [124.3652, 45.4395], [124.8926, 45.5273], [125.0684, 45.3955], [125.6836, 45.5273], [125.7715, 45.3076], [126.0352, 45.1758], [126.5625, 45.2637], [126.9141, 45.1318], [127.0898, 45], [127.002, 44.7803], [127.0898, 44.6045], [127.5293, 44.6045], [127.7051, 44.1211], [128.0566, 44.1211], [128.0566, 44.3408], [128.4082, 44.4727], [128.4961, 44.165], [128.8477, 43.5498], [129.1992, 43.5938], [129.2871, 43.8135], [129.8145, 43.9014], [129.9023, 44.0332], [129.9902, 43.8574], [130.3418, 43.9893], [130.5176, 43.6377], [130.8691, 43.418], [131.3086, 43.4619], [131.3086, 43.3301], [131.1328, 42.9346], [130.4297, 42.7148], [130.6055, 42.6709], [130.6055, 42.4512], [130.2539, 42.7588], [130.2539, 42.8906], [130.166, 42.9785], [129.9023, 43.0225], [129.7266, 42.4951], [129.375, 42.4512], [128.9355, 42.0117], [128.0566, 42.0117], [128.3203, 41.5723], [128.1445, 41.3525], [127.0898, 41.5283], [127.1777, 41.5723], [126.9141, 41.792], [126.6504, 41.6602], [126.4746, 41.3965], [126.123, 40.957], [125.6836, 40.8691], [125.5957, 40.9131], [125.7715, 41.2207], [125.332, 41.6602], [125.332, 41.9678], [125.4199, 42.0996], [125.332, 42.1436], [124.8926, 42.8027], [124.8926, 43.0664], [124.7168, 43.0664], [124.4531, 42.8467], [124.2773, 43.2422], [123.8379, 43.4619], [123.6621, 43.374], [123.3105, 43.5059], [123.4863, 43.7256], [123.1348, 44.4727], [122.3438, 44.2529], [122.0801, 44.8682], [122.2559, 45.2637], [121.9043, 45.7031], [121.7285, 45.7471], [121.8164, 46.0107], [122.2559, 45.791], [122.4316, 45.8789], [122.6953, 45.7031], [122.7832, 46.0107], [123.2227, 46.2305]]] } },
{ "type": "Feature", "properties": { "id": "13", "size": "1300", "name": "河北", "cp": [115.4004, 38.1688], "childNum": 11 }, "geometry": { "type": "MultiPolygon", "coordinates": [[[[114.5215, 39.5068], [114.3457, 39.8584], [113.9941, 39.9902], [114.5215, 40.3418], [114.3457, 40.3857], [114.2578, 40.6055], [114.082, 40.7373], [113.9063, 41.1328], [113.9941, 41.2207], [113.9063, 41.4404], [114.2578, 41.5723], [114.1699, 41.792], [114.5215, 42.1436], [114.873, 42.0996], [114.9609, 41.6162], [115.2246, 41.5723], [115.9277, 41.9238], [116.0156, 41.792], [116.2793, 42.0117], [116.8066, 42.0117], [116.8945, 42.4072], [117.334, 42.4512], [117.5098, 42.583], [117.7734, 42.627], [118.0371, 42.4072], [117.9492, 42.2314], [118.125, 42.0557], [118.3008, 42.0996], [118.3008, 41.792], [118.125, 41.748], [118.3887, 41.3086], [119.2676, 41.3086], [118.8281, 40.8252], [119.2676, 40.5176], [119.5313, 40.5615], [119.707, 40.1221], [119.8828, 39.9463], [119.5313, 39.6826], [119.4434, 39.4189], [118.916, 39.0674], [118.4766, 38.9355], [118.125, 39.0234], [118.0371, 39.1992], [118.0371, 39.2432], [117.8613, 39.4189], [117.9492, 39.5947], [117.6855, 39.5947], [117.5098, 39.7705], [117.5098, 39.9902], [117.6855, 39.9902], [117.6855, 40.0781], [117.4219, 40.21], [117.2461, 40.5176], [117.4219, 40.6494], [116.9824, 40.6934], [116.6309, 41.0449], [116.3672, 40.9131], [116.4551, 40.7813], [116.1914, 40.7813], [116.1035, 40.6055], [115.752, 40.5615], [115.9277, 40.2539], [115.4004, 39.9463], [115.4883, 39.6387], [115.752, 39.5068], [116.1914, 39.5947], [116.3672, 39.4629], [116.543, 39.5947], [116.8066, 39.5947], [116.8945, 39.1113], [116.7188, 38.9355], [116.7188, 38.8037], [117.2461, 38.54], [117.5977, 38.6279], [117.9492, 38.3203], [117.4219, 37.8369], [116.8066, 37.8369], [116.4551, 37.4854], [116.2793, 37.5732], [116.2793, 37.3535], [116.0156, 37.3535], [115.752, 36.9141], [115.3125, 36.5186], [115.4883, 36.167], [115.3125, 36.0791], [115.1367, 36.2109], [114.9609, 36.0791], [114.873, 36.123], [113.7305, 36.3428], [113.4668, 36.6504], [113.7305, 36.8701], [113.7305, 37.1338], [114.1699, 37.6611], [113.9941, 37.7051], [113.8184, 38.1445], [113.5547, 38.2764], [113.5547, 38.54], [113.8184, 38.8037], [113.8184, 38.9355], [113.9063, 39.0234], [114.3457, 39.0674], [114.5215, 39.5068]]], [[[117.2461, 40.0781], [117.1582, 39.8145], [117.1582, 39.6387], [116.8945, 39.6826], [116.8945, 39.8145], [116.8066, 39.9902], [117.2461, 40.0781]]]] } },
{ "type": "Feature", "properties": { "id": "42", "size": "1500", "name": "湖北", "cp": [112.2363, 30.8572], "childNum": 17 }, "geometry": { "type": "Polygon", "coordinates": [[[110.2148, 31.1572], [110.127, 31.377], [109.6875, 31.5527], [109.7754, 31.6846], [109.5996, 31.7285], [109.5117, 32.4316], [109.6875, 32.6074], [110.127, 32.6074], [110.127, 32.7393], [109.7754, 32.915], [109.7754, 33.0469], [109.4238, 33.1348], [109.5996, 33.2666], [110.3027, 33.1787], [110.5664, 33.2666], [110.7422, 33.1348], [111.0059, 33.2666], [111.5332, 32.6074], [112.3242, 32.3438], [113.2031, 32.4316], [113.4668, 32.2998], [113.7305, 32.4316], [113.8184, 31.8604], [113.9941, 31.7725], [114.1699, 31.8604], [114.5215, 31.7725], [114.6094, 31.5527], [114.7852, 31.4648], [115.1367, 31.5967], [115.2246, 31.4209], [115.4004, 31.4209], [115.5762, 31.2012], [116.0156, 31.0254], [115.752, 30.6738], [116.1035, 30.1904], [116.1035, 29.8389], [115.9277, 29.707], [115.4883, 29.7949], [114.873, 29.3994], [114.2578, 29.3555], [113.9063, 29.0479], [113.7305, 29.0918], [113.6426, 29.3115], [113.7305, 29.5752], [113.5547, 29.707], [113.5547, 29.8389], [113.0273, 29.4434], [112.9395, 29.4873], [113.0273, 29.751], [112.9395, 29.7949], [112.6758, 29.5752], [112.5, 29.6191], [112.2363, 29.5313], [111.7969, 29.9268], [110.8301, 30.1465], [110.4785, 30.0146], [110.6543, 29.751], [110.4785, 29.6631], [109.7754, 29.751], [109.6875, 29.6191], [109.5117, 29.6191], [109.248, 29.1357], [109.0723, 29.3555], [108.9844, 29.3115], [108.6328, 29.8389], [108.457, 29.7949], [108.5449, 30.2344], [108.457, 30.4102], [108.6328, 30.5859], [108.8086, 30.498], [109.0723, 30.6299], [109.1602, 30.542], [109.248, 30.6299], [109.4238, 30.542], [109.8633, 30.8936], [110.0391, 30.8057], [110.2148, 31.1572]]] } },
{ "type": "Feature", "properties": { "id": "52", "size": "2000", "name": "贵州", "cp": [106.6113, 26.6385], "childNum": 9 }, "geometry": { "type": "Polygon", "coordinates": [[[104.1504, 27.2461], [104.4141, 27.4658], [104.5898, 27.334], [105.2051, 27.3779], [105.293, 27.7295], [105.5566, 27.7734], [105.6445, 27.6416], [106.3477, 27.8174], [106.1719, 28.125], [105.9082, 28.125], [105.6445, 28.4326], [105.9961, 28.7402], [106.3477, 28.5205], [106.5234, 28.5645], [106.4355, 28.7842], [106.5234, 28.7842], [106.6113, 28.6523], [106.6113, 28.5205], [106.6992, 28.4766], [106.875, 28.7842], [107.4023, 28.8721], [107.4023, 29.1797], [107.5781, 29.2236], [107.8418, 29.1357], [107.8418, 29.0039], [108.2813, 29.0918], [108.3691, 28.6523], [108.5449, 28.6523], [108.5449, 28.3887], [108.7207, 28.4766], [108.7207, 28.2129], [109.0723, 28.2129], [109.248, 28.4766], [109.3359, 28.2568], [109.3359, 27.9053], [109.4238, 27.5977], [108.8086, 27.1143], [108.8965, 27.0264], [109.3359, 27.1582], [109.5117, 27.0264], [109.5117, 26.8066], [109.3359, 26.7188], [109.4238, 26.5869], [109.248, 26.3232], [109.4238, 26.2793], [109.5117, 26.0156], [109.3359, 25.708], [108.9844, 25.752], [109.0723, 25.5322], [108.6328, 25.5762], [108.6328, 25.3125], [108.3691, 25.5322], [108.1934, 25.4443], [108.1055, 25.2246], [107.8418, 25.1367], [107.7539, 25.2246], [107.4902, 25.2246], [107.2266, 25.6201], [106.9629, 25.4883], [107.0508, 25.2686], [106.875, 25.1807], [106.1719, 24.9609], [106.1719, 24.7852], [105.9961, 24.6533], [105.2051, 24.9609], [104.6777, 24.6094], [104.502, 24.7412], [104.6777, 24.9609], [104.5898, 25.0488], [104.8535, 25.2246], [104.3262, 25.708], [104.6777, 26.4111], [104.4141, 26.6748], [103.8867, 26.543], [103.7109, 26.7627], [103.7109, 26.9824], [103.623, 27.0264], [103.8867, 27.4219], [104.1504, 27.2461]]] } },
{ "type": "Feature", "properties": { "id": "37", "size": "1500", "name": "山东", "cp": [118.2402, 36.2307], "childNum": 17 }, "geometry": { "type": "Polygon", "coordinates": [[[115.4883, 36.167], [115.3125, 36.5186], [115.752, 36.9141], [116.0156, 37.3535], [116.2793, 37.3535], [116.2793, 37.5732], [116.4551, 37.4854], [116.8066, 37.8369], [117.4219, 37.8369], [117.9492, 38.3203], [118.125, 38.1445], [118.916, 38.1445], [119.3555, 37.6611], [119.0039, 37.5293], [119.0039, 37.3535], [119.3555, 37.1338], [119.707, 37.1338], [119.8828, 37.3975], [120.498, 37.8369], [120.5859, 38.1445], [120.9375, 38.4521], [121.0254, 37.8369], [121.2012, 37.6611], [121.9043, 37.4854], [122.168, 37.6172], [122.2559, 37.4854], [122.6074, 37.4854], [122.6953, 37.3535], [122.6074, 36.9141], [122.4316, 36.7822], [121.8164, 36.8701], [121.7285, 36.6943], [121.1133, 36.6064], [121.1133, 36.4307], [121.377, 36.2549], [120.7617, 36.167], [120.9375, 35.8594], [120.6738, 36.0352], [119.707, 35.4639], [119.9707, 34.9805], [119.3555, 35.0244], [119.2676, 35.1123], [118.916, 35.0244], [118.7402, 34.7168], [118.4766, 34.6729], [118.3887, 34.4092], [118.2129, 34.4092], [118.125, 34.6289], [117.9492, 34.6729], [117.5977, 34.4531], [117.334, 34.585], [117.2461, 34.4531], [116.8066, 34.9365], [116.4551, 34.8926], [116.3672, 34.6289], [116.1914, 34.585], [115.5762, 34.585], [115.4004, 34.8486], [114.7852, 35.0684], [115.0488, 35.376], [115.2246, 35.4199], [115.4883, 35.7275], [116.1035, 36.0791], [115.3125, 35.8154], [115.4883, 36.167]]] } },
{ "type": "Feature", "properties": { "id": "36", "size": "1700", "name": "江西", "cp": [115.7156, 27.99], "childNum": 11 }, "geometry": { "type": "Polygon", "coordinates": [[[114.2578, 28.3447], [114.082, 28.5645], [114.1699, 28.8281], [113.9063, 29.0479], [114.2578, 29.3555], [114.873, 29.3994], [115.4883, 29.7949], [115.9277, 29.707], [116.1035, 29.8389], [116.2793, 29.7949], [116.7188, 30.0586], [116.8945, 29.9268], [116.7188, 29.751], [116.7188, 29.6191], [117.1582, 29.707], [117.0703, 29.8389], [117.1582, 29.9268], [117.5098, 29.6191], [118.0371, 29.5752], [118.2129, 29.3994], [118.0371, 29.1797], [118.0371, 29.0479], [118.3887, 28.7842], [118.4766, 28.3447], [118.4766, 28.3008], [118.3008, 28.0811], [117.7734, 27.8174], [117.5098, 27.9932], [116.9824, 27.6416], [117.1582, 27.29], [117.0703, 27.1143], [116.543, 26.8066], [116.6309, 26.4551], [116.3672, 26.2354], [116.4551, 26.1035], [116.1914, 25.8838], [116.0156, 25.2686], [115.8398, 25.2246], [115.9277, 24.917], [115.752, 24.7852], [115.8398, 24.5654], [115.4004, 24.7852], [114.4336, 24.5215], [114.1699, 24.6973], [114.4336, 24.9609], [114.6973, 25.1367], [114.7852, 25.2686], [114.6094, 25.4004], [113.9941, 25.2686], [113.9063, 25.4443], [113.9941, 26.0596], [114.2578, 26.1475], [113.9941, 26.1914], [114.082, 26.5869], [113.9063, 26.6309], [113.9063, 26.9385], [113.7305, 27.1143], [113.8184, 27.29], [113.6426, 27.3779], [113.6426, 27.5977], [113.7305, 27.9492], [114.2578, 28.3447]]] } },
{ "type": "Feature", "properties": { "id": "41", "size": "1700", "name": "河南", "cp": [113.0668, 33.8818], "childNum": 17 }, "geometry": { "type": "Polygon", "coordinates": [[[110.3906, 34.585], [110.8301, 34.6289], [111.1816, 34.8047], [111.5332, 34.8486], [111.7969, 35.0684], [112.0605, 35.0684], [112.0605, 35.2881], [112.7637, 35.2002], [113.1152, 35.332], [113.6426, 35.6836], [113.7305, 36.3428], [114.873, 36.123], [114.9609, 36.0791], [115.1367, 36.2109], [115.3125, 36.0791], [115.4883, 36.167], [115.3125, 35.8154], [116.1035, 36.0791], [115.4883, 35.7275], [115.2246, 35.4199], [115.0488, 35.376], [114.7852, 35.0684], [115.4004, 34.8486], [115.5762, 34.585], [116.1914, 34.585], [116.1914, 34.4092], [116.543, 34.2773], [116.6309, 33.9258], [116.1914, 33.7061], [116.0156, 33.9697], [115.6641, 34.0576], [115.5762, 33.9258], [115.5762, 33.6621], [115.4004, 33.5303], [115.3125, 33.1787], [114.873, 33.1348], [114.873, 33.0029], [115.1367, 32.8711], [115.2246, 32.6074], [115.5762, 32.4316], [115.8398, 32.5195], [115.9277, 31.7725], [115.4883, 31.6846], [115.4004, 31.4209], [115.2246, 31.4209], [115.1367, 31.5967], [114.7852, 31.4648], [114.6094, 31.5527], [114.5215, 31.7725], [114.1699, 31.8604], [113.9941, 31.7725], [113.8184, 31.8604], [113.7305, 32.4316], [113.4668, 32.2998], [113.2031, 32.4316], [112.3242, 32.3438], [111.5332, 32.6074], [111.0059, 33.2666], [111.0059, 33.5303], [110.6543, 33.8379], [110.6543, 34.1455], [110.4785, 34.2334], [110.3906, 34.585]]] } },
{ "type": "Feature", "properties": { "id": "21", "size": "1500", "name": "辽宁", "cp": [123.0438, 41.0889], "childNum": 14 }, "geometry": { "type": "Polygon", "coordinates": [[[119.2676, 41.3086], [119.4434, 41.6162], [119.2676, 41.7041], [119.3555, 42.2754], [119.5313, 42.3633], [119.8828, 42.1875], [120.1465, 41.7041], [120.498, 42.0996], [121.4648, 42.4951], [121.7285, 42.4512], [121.9922, 42.7148], [122.3438, 42.6709], [122.3438, 42.8467], [122.7832, 42.7148], [123.1348, 42.8027], [123.3105, 42.9785], [123.5742, 43.0225], [123.6621, 43.374], [123.8379, 43.4619], [124.2773, 43.2422], [124.4531, 42.8467], [124.7168, 43.0664], [124.8926, 43.0664], [124.8926, 42.8027], [125.332, 42.1436], [125.4199, 42.0996], [125.332, 41.9678], [125.332, 41.6602], [125.7715, 41.2207], [125.5957, 40.9131], [125.6836, 40.8691], [124.541, 40.21], [124.1016, 39.6826], [123.3984, 39.6826], [123.1348, 39.4189], [123.1348, 39.0234], [122.0801, 39.0234], [121.5527, 38.7158], [121.1133, 38.6719], [120.9375, 38.9795], [121.377, 39.1992], [121.2012, 39.5508], [122.0801, 40.3857], [121.9922, 40.6934], [121.7285, 40.8252], [121.2012, 40.8252], [120.5859, 40.21], [119.8828, 39.9463], [119.707, 40.1221], [119.5313, 40.5615], [119.2676, 40.5176], [118.8281, 40.8252], [119.2676, 41.3086]]] } },
{ "type": "Feature", "properties": { "id": "14", "size": "1450", "name": "山西", "cp": [112.4121, 36.6611], "childNum": 11 }, "geometry": { "type": "Polygon", "coordinates": [[[110.918, 38.7158], [111.1816, 39.2432], [111.0938, 39.375], [111.3574, 39.4189], [111.4453, 39.6387], [111.9727, 39.5947], [112.3242, 40.2539], [112.7637, 40.166], [113.2031, 40.3857], [113.5547, 40.3418], [113.8184, 40.5176], [114.082, 40.5176], [114.082, 40.7373], [114.2578, 40.6055], [114.3457, 40.3857], [114.5215, 40.3418], [113.9941, 39.9902], [114.3457, 39.8584], [114.5215, 39.5068], [114.3457, 39.0674], [113.9063, 39.0234], [113.8184, 38.9355], [113.8184, 38.8037], [113.5547, 38.54], [113.5547, 38.2764], [113.8184, 38.1445], [113.9941, 37.7051], [114.1699, 37.6611], [113.7305, 37.1338], [113.7305, 36.8701], [113.4668, 36.6504], [113.7305, 36.3428], [113.6426, 35.6836], [113.1152, 35.332], [112.7637, 35.2002], [112.0605, 35.2881], [112.0605, 35.0684], [111.7969, 35.0684], [111.5332, 34.8486], [111.1816, 34.8047], [110.8301, 34.6289], [110.3906, 34.585], [110.2148, 34.6729], [110.2148, 34.8926], [110.5664, 35.6396], [110.4785, 36.123], [110.3906, 37.002], [110.8301, 37.6611], [110.4785, 37.9688], [110.4785, 38.1885], [110.8301, 38.4961], [110.918, 38.7158]]] } },
{ "type": "Feature", "properties": { "id": "34", "size": "1700", "name": "安徽", "cp": [117.2461, 31.0361], "childNum": 17 }, "geometry": { "type": "Polygon", "coordinates": [[[116.6309, 33.9258], [116.543, 34.2773], [116.1914, 34.4092], [116.1914, 34.585], [116.3672, 34.6289], [116.8945, 34.4092], [117.1582, 34.0576], [117.5977, 34.0137], [117.7734, 33.7061], [118.125, 33.75], [117.9492, 33.2227], [118.0371, 33.1348], [118.2129, 33.2227], [118.3008, 32.7832], [118.7402, 32.7393], [118.916, 32.959], [119.1797, 32.8271], [119.1797, 32.4756], [118.5645, 32.5635], [118.6523, 32.2119], [118.4766, 32.168], [118.3887, 31.9482], [118.916, 31.5527], [118.7402, 31.377], [118.8281, 31.2451], [119.3555, 31.2891], [119.4434, 31.1572], [119.6191, 31.1133], [119.6191, 31.0693], [119.4434, 30.6738], [119.2676, 30.6299], [119.3555, 30.4102], [118.916, 30.3223], [118.916, 29.9707], [118.7402, 29.707], [118.2129, 29.3994], [118.0371, 29.5752], [117.5098, 29.6191], [117.1582, 29.9268], [117.0703, 29.8389], [117.1582, 29.707], [116.7188, 29.6191], [116.7188, 29.751], [116.8945, 29.9268], [116.7188, 30.0586], [116.2793, 29.7949], [116.1035, 29.8389], [116.1035, 30.1904], [115.752, 30.6738], [116.0156, 31.0254], [115.5762, 31.2012], [115.4004, 31.4209], [115.4883, 31.6846], [115.9277, 31.7725], [115.8398, 32.5195], [115.5762, 32.4316], [115.2246, 32.6074], [115.1367, 32.8711], [114.873, 33.0029], [114.873, 33.1348], [115.3125, 33.1787], [115.4004, 33.5303], [115.5762, 33.6621], [115.5762, 33.9258], [115.6641, 34.0576], [116.0156, 33.9697], [116.1914, 33.7061], [116.6309, 33.9258]]] } },
{ "type": "Feature", "properties": { "id": "35", "size": "2000", "name": "福建", "cp": [118.3008, 25.9277], "childNum": 9 }, "geometry": { "type": "Polygon", "coordinates": [[[118.4766, 28.3008], [118.8281, 28.2568], [118.7402, 28.0371], [118.916, 27.4658], [119.2676, 27.4219], [119.6191, 27.6855], [119.7949, 27.29], [120.2344, 27.4219], [120.4102, 27.1582], [120.7617, 27.0264], [120.6738, 26.8945], [120.2344, 26.8506], [120.2344, 26.7188], [120.4102, 26.6748], [120.498, 26.3672], [120.2344, 26.2793], [120.4102, 26.1475], [120.0586, 26.1914], [119.9707, 25.9277], [119.7949, 25.9277], [119.9707, 25.4004], [119.7949, 25.2686], [119.5313, 25.1367], [119.4434, 25.0049], [119.2676, 25.0928], [118.916, 24.8291], [118.6523, 24.5215], [118.4766, 24.5215], [118.4766, 24.4336], [118.2129, 24.3457], [118.2129, 24.1699], [117.8613, 23.9941], [117.7734, 23.7744], [117.5098, 23.5986], [117.1582, 23.5547], [116.9824, 23.9063], [116.9824, 24.1699], [116.7188, 24.6533], [116.543, 24.6094], [116.3672, 24.873], [116.2793, 24.7852], [115.9277, 24.917], [115.8398, 25.2246], [116.0156, 25.2686], [116.1914, 25.8838], [116.4551, 26.1035], [116.3672, 26.2354], [116.6309, 26.4551], [116.543, 26.8066], [117.0703, 27.1143], [117.1582, 27.29], [116.9824, 27.6416], [117.5098, 27.9932], [117.7734, 27.8174], [118.3008, 28.0811], [118.4766, 28.3008]]] } },
{ "type": "Feature", "properties": { "id": "33", "size": "2100", "name": "浙江", "cp": [120.498, 29.0918], "childNum": 11 }, "geometry": { "type": "Polygon", "coordinates": [[[118.2129, 29.3994], [118.7402, 29.707], [118.916, 29.9707], [118.916, 30.3223], [119.3555, 30.4102], [119.2676, 30.6299], [119.4434, 30.6738], [119.6191, 31.0693], [119.6191, 31.1133], [119.9707, 31.1572], [120.498, 30.8057], [120.9375, 31.0254], [121.2891, 30.6738], [121.9922, 30.8057], [122.6953, 30.8936], [122.8711, 30.7178], [122.959, 30.1465], [122.6074, 30.1025], [122.6074, 29.9268], [122.168, 29.5313], [122.3438, 28.8721], [121.9922, 28.8721], [121.9922, 28.4326], [121.7285, 28.3447], [121.7285, 28.2129], [121.4648, 28.2129], [121.5527, 28.0371], [121.2891, 27.9492], [121.1133, 27.4219], [120.6738, 27.334], [120.6738, 27.1582], [120.9375, 27.0264], [120.7617, 27.0264], [120.4102, 27.1582], [120.2344, 27.4219], [119.7949, 27.29], [119.6191, 27.6855], [119.2676, 27.4219], [118.916, 27.4658], [118.7402, 28.0371], [118.8281, 28.2568], [118.4766, 28.3008], [118.4766, 28.3447], [118.3887, 28.7842], [118.0371, 29.0479], [118.0371, 29.1797], [118.2129, 29.3994]]] } },
{ "type": "Feature", "properties": { "id": "32", "size": "1950", "name": "江苏", "cp": [119.8586, 32.915], "childNum": 13 }, "geometry": { "type": "Polygon", "coordinates": [[[116.3672, 34.6289], [116.4551, 34.8926], [116.8066, 34.9365], [117.2461, 34.4531], [117.334, 34.585], [117.5977, 34.4531], [117.9492, 34.6729], [118.125, 34.6289], [118.2129, 34.4092], [118.3887, 34.4092], [118.4766, 34.6729], [118.7402, 34.7168], [118.916, 35.0244], [119.2676, 35.1123], [119.3555, 35.0244], [119.3555, 34.8486], [119.707, 34.585], [120.3223, 34.3652], [120.9375, 33.0469], [121.0254, 32.6514], [121.377, 32.4756], [121.4648, 32.168], [121.9043, 31.9922], [121.9922, 31.6846], [121.9922, 31.5967], [121.2012, 31.8604], [121.1133, 31.7285], [121.377, 31.5088], [121.2012, 31.4648], [120.9375, 31.0254], [120.498, 30.8057], [119.9707, 31.1572], [119.6191, 31.1133], [119.4434, 31.1572], [119.3555, 31.2891], [118.8281, 31.2451], [118.7402, 31.377], [118.916, 31.5527], [118.3887, 31.9482], [118.4766, 32.168], [118.6523, 32.2119], [118.5645, 32.5635], [119.1797, 32.4756], [119.1797, 32.8271], [118.916, 32.959], [118.7402, 32.7393], [118.3008, 32.7832], [118.2129, 33.2227], [118.0371, 33.1348], [117.9492, 33.2227], [118.125, 33.75], [117.7734, 33.7061], [117.5977, 34.0137], [117.1582, 34.0576], [116.8945, 34.4092], [116.3672, 34.6289]]] } },
{ "type": "Feature", "properties": { "id": "50", "size": "2380", "name": "重庆", "cp": [107.7539, 29.8904], "childNum": 40 }, "geometry": { "type": "Polygon", "coordinates": [[[108.5449, 31.6846], [108.2813, 31.9043], [108.3691, 32.168], [108.5449, 32.2119], [109.0723, 31.9482], [109.248, 31.7285], [109.5996, 31.7285], [109.7754, 31.6846], [109.6875, 31.5527], [110.127, 31.377], [110.2148, 31.1572], [110.0391, 30.8057], [109.8633, 30.8936], [109.4238, 30.542], [109.248, 30.6299], [109.1602, 30.542], [109.0723, 30.6299], [108.8086, 30.498], [108.6328, 30.5859], [108.457, 30.4102], [108.5449, 30.2344], [108.457, 29.7949], [108.6328, 29.8389], [108.9844, 29.3115], [109.0723, 29.3555], [109.248, 29.1357], [109.248, 28.4766], [109.0723, 28.2129], [108.7207, 28.2129], [108.7207, 28.4766], [108.5449, 28.3887], [108.5449, 28.6523], [108.3691, 28.6523], [108.2813, 29.0918], [107.8418, 29.0039], [107.8418, 29.1357], [107.5781, 29.2236], [107.4023, 29.1797], [107.4023, 28.8721], [106.875, 28.7842], [106.6992, 28.4766], [106.6113, 28.5205], [106.6113, 28.6523], [106.5234, 28.7842], [106.4355, 28.7842], [106.5234, 28.5645], [106.3477, 28.5205], [106.2598, 28.8721], [105.8203, 28.96], [105.7324, 29.2676], [105.4688, 29.3115], [105.293, 29.5313], [105.7324, 29.8828], [105.5566, 30.1025], [105.6445, 30.2783], [105.8203, 30.4541], [106.2598, 30.1904], [106.6113, 30.3223], [106.7871, 30.0146], [107.0508, 30.0146], [107.4902, 30.6299], [107.4023, 30.7617], [107.4902, 30.8496], [107.9297, 30.8496], [108.1934, 31.5088], [108.5449, 31.6846]]] } },
{ "type": "Feature", "properties": { "id": "64", "size": "2100", "name": "宁夏", "cp": [105.9961, 37.1096], "childNum": 5 }, "geometry": { "type": "Polygon", "coordinates": [[[104.3262, 37.4414], [105.8203, 37.793], [105.9082, 38.7158], [106.3477, 39.2871], [106.7871, 39.375], [106.9629, 38.9795], [106.5234, 38.3203], [106.7871, 38.1885], [107.3145, 38.1006], [107.666, 37.8809], [107.3145, 37.6172], [107.3145, 37.0898], [106.6113, 37.0898], [106.6113, 36.7822], [106.4355, 36.5625], [106.5234, 36.4746], [106.5234, 36.2549], [106.875, 36.123], [106.9629, 35.8154], [106.6992, 35.6836], [106.4355, 35.6836], [106.5234, 35.332], [106.3477, 35.2441], [106.2598, 35.4199], [106.084, 35.376], [105.9961, 35.4199], [106.084, 35.4639], [105.9961, 35.4639], [105.8203, 35.5518], [105.7324, 35.7275], [105.3809, 35.7715], [105.293, 35.9912], [105.4688, 36.123], [105.2051, 36.6943], [105.293, 36.8262], [104.8535, 37.2217], [104.5898, 37.2217], [104.5898, 37.4414], [104.3262, 37.4414]]] } },
{ "type": "Feature", "properties": { "id": "46", "size": "4500", "name": "海南", "cp": [109.9512, 19.2041], "childNum": 18 }, "geometry": { "type": "Polygon", "coordinates": [[[108.6328, 19.3799], [109.0723, 19.6436], [109.248, 19.9512], [109.5996, 20.0391], [110.0391, 20.127], [110.3906, 20.127], [110.5664, 20.2588], [110.6543, 20.2588], [111.0938, 19.9512], [111.2695, 19.9951], [110.6543, 19.1602], [110.5664, 18.6768], [110.2148, 18.5889], [110.0391, 18.3691], [109.8633, 18.3691], [109.6875, 18.1055], [108.9844, 18.2813], [108.6328, 18.457], [108.6328, 19.3799]]] } },
{ "type": "Feature", "properties": { "id": "71", "size": "3000", "name": "台湾", "cp": [120.8254, 23.5986], "childNum": 1 }, "geometry": { "type": "Polygon", "coordinates": [[[121.9043, 25.0488], [121.9922, 25.0049], [121.8164, 24.7412], [121.9043, 24.5654], [121.6406, 24.0381], [121.377, 23.1152], [121.0254, 22.6758], [120.8496, 22.0605], [120.7617, 21.9287], [120.6738, 22.3242], [120.2344, 22.5879], [120.0586, 23.0713], [120.1465, 23.6865], [121.0254, 25.0488], [121.5527, 25.3125], [121.9043, 25.0488]]] } },
{ "type": "Feature", "properties": { "id": "11", "size": "5000", "name": "北京", "cp": [116.4551, 40.2539], "childNum": 19 }, "geometry": { "type": "Polygon", "coordinates": [[[117.4219, 40.21], [117.334, 40.1221], [117.2461, 40.0781], [116.8066, 39.9902], [116.8945, 39.8145], [116.8945, 39.6826], [116.8066, 39.5947], [116.543, 39.5947], [116.3672, 39.4629], [116.1914, 39.5947], [115.752, 39.5068], [115.4883, 39.6387], [115.4004, 39.9463], [115.9277, 40.2539], [115.752, 40.5615], [116.1035, 40.6055], [116.1914, 40.7813], [116.4551, 40.7813], [116.3672, 40.9131], [116.6309, 41.0449], [116.9824, 40.6934], [117.4219, 40.6494], [117.2461, 40.5176], [117.4219, 40.21]]] } },
{ "type": "Feature", "properties": { "id": "12", "size": "5000", "name": "天津", "cp": [117.4219, 39.4189], "childNum": 18 }, "geometry": { "type": "Polygon", "coordinates": [[[116.8066, 39.5947], [116.8945, 39.6826], [117.1582, 39.6387], [117.1582, 39.8145], [117.2461, 40.0781], [117.334, 40.1221], [117.4219, 40.21], [117.6855, 40.0781], [117.6855, 39.9902], [117.5098, 39.9902], [117.5098, 39.7705], [117.6855, 39.5947], [117.9492, 39.5947], [117.8613, 39.4189], [118.0371, 39.2432], [118.0371, 39.1992], [117.8613, 39.1113], [117.5977, 38.6279], [117.2461, 38.54], [116.7188, 38.8037], [116.7188, 38.9355], [116.8945, 39.1113], [116.8066, 39.5947]]] } },
{ "type": "Feature", "properties": { "id": "31", "size": "7500", "name": "上海", "cp": [121.4648, 31.2891], "childNum": 19 }, "geometry": { "type": "Polygon", "coordinates": [[[120.9375, 31.0254], [121.2012, 31.4648], [121.377, 31.5088], [121.1133, 31.7285], [121.2012, 31.8604], [121.9922, 31.5967], [121.9043, 31.1572], [121.9922, 30.8057], [121.2891, 30.6738], [120.9375, 31.0254]]] } },
{ "type": "Feature", "properties": { "id": "81", "size": "18000", "name": "香港", "cp": [114.6178, 22.3242], "childNum": 1 }, "geometry": { "type": "Polygon", "coordinates": [[[114.6094, 22.4121], [114.5215, 22.1484], [114.3457, 22.1484], [113.9063, 22.1484], [113.8184, 22.1924], [113.9063, 22.4121], [114.1699, 22.5439], [114.3457, 22.5439], [114.4336, 22.5439], [114.4336, 22.4121], [114.6094, 22.4121]]] } },
{ "type": "Feature", "properties": { "id": "82", "size": "27", "name": "澳门", "cp": [113.5547, 21.6484], "childNum": 1 }, "geometry": { "type": "Polygon", "coordinates": [[[113.5986, 22.1649], [113.6096, 22.1265], [113.5547, 22.11], [113.5437, 22.2034], [113.5767, 22.2034], [113.5986, 22.1649]]] } }
]
}
3:地图的代码
<template>
<div class="chartBox">
<div id="mapChart" style="width: 800px;height: 700px;"></div>
</div>
</template>
<script>
import china from "../../utils/china.json";
export default {
data() {
return {};
},
mounted() {
this.getMapChart();
},
methods: {
getMapChart() {
echarts.registerMap('china', china)
var dataValue = this.dealWithData();
var data1 = dataValue.splice(0, 6);
var myChart = echarts.init(document.getElementById("mapChart"));
var option = {
tooltip: {
show: false,
},
backgroundColor: "#fff",
geo: {
map: "china",
roam: false, // 一定要关闭拖拽
zoom: 1.23,
center: [105, 36], // 调整地图位置
label: {
normal: {
show: false, //关闭省份名展示
fontSize: "10",
color: "rgba(0,0,0,0.7)",
},
emphasis: {
show: false,
},
},
itemStyle: {
normal: {
areaColor: "#0d0059",
borderColor: "#389dff",
borderWidth: 1, //设置外层边框
shadowBlur: 5,
shadowOffsetY: 8,
shadowOffsetX: 0,
shadowColor: "#01012a",
},
emphasis: {
areaColor: "#184cff",
shadowOffsetX: 0,
shadowOffsetY: 0,
shadowBlur: 5,
borderWidth: 0,
shadowColor: "rgba(0, 0, 0, 0.5)",
},
},
},
legend: {
orient: "horizontal",
height: "50%",
top: "0%",
right: "10%",
},
series: [
{
type: "map",
map: "china",
roam: false,
zoom: 1.23,
center: [105, 36],
// geoIndex: 1,
// aspectScale: 0.75, //长宽比
showLegendSymbol: false, // 存在legend时显示
label: {
// 显示地图省名称
normal: {
color: "#389dff",
formatter: "{b}",
position: [-12, -1],
show: true,
},
emphasis: {
show: false,
},
},
itemStyle: {
normal: {
areaColor: "#0d0059",
borderColor: "#389dff",
borderWidth: 0.5,
},
emphasis: {
areaColor: "#17008d",
shadowOffsetX: 0,
shadowOffsetY: 0,
shadowBlur: 5,
borderWidth: 0,
shadowColor: "rgba(0, 0, 0, 0.5)",
},
},
},
{
name: "",
type: "scatter",
coordinateSystem: "geo",
data: dataValue,
symbol: "circle",
symbolSize: 5,
hoverSymbolSize: 10,
tooltip: {
formatter(value) {
return (
value.data.name + "<br/>" + "物流量：" + value.data.value[2]
);
},
show: true,
},
encode: {
value: 2,
},
label: {
formatter: "{b}",
position: "right",
show: false,
},
itemStyle: {
color: "#0efacc",
},
emphasis: {
label: {
show: false,
},
},
},
{
name: "前五城市标记点动画",
type: "effectScatter",
coordinateSystem: "geo",
data: data1,
symbolSize: 8,
tooltip: {
formatter(value) {
return (
value.data.name + "<br/>" + "访问量：" + value.data.value[2]
);
},
show: true,
},
encode: {
value: 2,
},
showEffectOn: "render",
rippleEffect: {
brushType: "stroke",
color: "#0efacc",
period: 9,
scale: 5,
},
hoverAnimation: true,
label: {
formatter: "{b}",
position: "right",
show: true,
},
itemStyle: {
color: "#0efacc",
shadowBlur: 2,
shadowColor: "#333",
},
zlevel: 1,
},
],
};
myChart.setOption(option);
window.onresize = () => {
myChart.resize();
};
},
dealWithData() {
var geoCoordMap = [
{
name: "广州",
value: [113.23, 23.16, 20],
},
{
name: "深圳",
value: [114.07, 22.62, 60],
},
{
name: "呼和浩特",
value: [111.65, 40.82, 20],
},
{
name: "宁波",
value: [121.56, 29.86, 10],
},
{
name: "珠海",
value: [113.52, 22.3, 10],
},
{
name: "重庆",
value: [106.54, 29.59, 11],
},
{
name: "杭州",
value: [120.19, 30.26, 12],
},
{
name: "九江",
value: [115.97, 29.71, 13],
},
{
name: "哈尔滨",
value: [126.63, 45.75, 14],
},
{
name: "合肥",
value: [117.27, 31.86, 15],
},
{
name: "义乌",
value: [120.06, 29.32],
},
];
return geoCoordMap;
},
},
};
</script>
<style lang="less" scoped>
.chartBox {
width: 100%;
height: 100vh;
}
#mapChart {
width: 100%;
height: 100%;
}
</style>
2万+
被折叠的 条评论
为什么被折叠?
到【灌水乐园】发言
