使用自定义view模拟充电界面

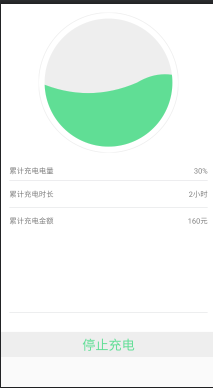

1.自定义view的图形

代码：

public class ProgressCircleView extends androidx.appcompat.widget.AppCompatTextView {

  private int mHeight;    //控件宽高
  private int mWidth; //

  private int mStartX;    //起始位置坐标
  private int mStartY;    //

  private Paint mPaint;   // 边框画笔
  private Paint mQuadPaint;   // 水波纹画笔
  private Paint mForePaint;   // 前景色画笔

  private int[] mXs;
  private int[] mYs;

  private int mStrokeWidth = 4;   // 边框宽度
  private int mTranslationUnit;   // 位移单位

  /**
   * 水波纹总宽度
   */
  private int mTotle;
  /**
   * 当前进度值
   */
  private float mProgress         = 0.5f;
  /**
   * 当前进度对应的颜色值
   */
  private int   mCurProgressColor = 0xFF60DE95;
  /**
   * 渐变颜色
   */
  private int[] mProgressColors   = new int[]{Color.RED, Color.BLUE, Color.CYAN, Color.GREEN};

  private Path path;

  // 最外层圆
  private int o1CColor = 0xFFEEEEEE;
  private int o1CWidth = 4;
  // 次外层圆
  private int o2CColor = Color.WHITE;
  private int o2CWidth = 60;

  public ProgressCircleView(Context context) {
    super(context);

  }

  public ProgressCircleView(Context context, AttributeSet attrs) {
    super(context, attrs);

  }

  public ProgressCircleView(Context context, AttributeSet attrs,
                            int defStyleAttr) {
    super(context, attrs, defStyleAttr);

  }

  /**
   * 设置进度值
   *
   * @param progress float 取值范围：0.1 - 1.0
   */
  public void setProgress(@FloatRange(from = 0.0, to = 1.0) float progress) {
    this.mProgress = 1 - progress;
//    mCurProgressColor = interpRectColor(mProgressColors, progress); // 得到当前色值
    mHeight = 0;
    invalidate();
  }

  /**
   * 初始化 得到一些数据
   */
  private void init() {

    mHeight = getHeight();
    mWidth = getWidth();
    mWidth = mHeight = mWidth <= mHeight ? mWidth : mHeight;

    mStartX = mStrokeWidth;
    mStartY = (int) (mHeight * mProgress);

    // 绘制圆背景
    mPaint = new Paint();
    mPaint.setAntiAlias(true);
    mPaint.setColor(Color.parseColor("#EEEEEE"));
    mPaint.setStyle(Paint.Style.FILL);//设置为空心
    mPaint.setStrokeWidth(mStrokeWidth);

    // 绘制波浪的
    mQuadPaint = new Paint();
    mQuadPaint.setAntiAlias(true);
    mQuadPaint.setColor(mCurProgressColor);
    mQuadPaint.setStyle(Paint.Style.FILL);//设置实心

    // 绘制前景
    mForePaint = new Paint();
    mForePaint.setAntiAlias(true);
    mForePaint.setColor(Color.WHITE);
    mForePaint.setStyle(Paint.Style.FILL);//设置实心

    path = new Path();

    // 波纹坐标
    mTotle = 0;
    float scale = mProgress > 0.5f ? (1 - mProgress) * 2 : mProgress * 2;
    float[] xFs = new float[]{0.35f, 0.2f, 0.45f, 0.6f};
    float[] yFs = new float[]{0.15f, -0.12f, 0.2f, -0.25f};
    mXs = new int[xFs.length];
    mYs = new int[yFs.length];
    for (int i = 0; i < xFs.length; i++) {
      mXs[i] = (int) (mWidth * xFs[i]);
      mYs[i] = (int) (mHeight * yFs[i] * scale);

      mTotle += mXs[i];
    }
    mTotle += mXs[0];
    mTotle += mXs[1];
    mTranslationUnit = mWidth / 50;
  }

  @SuppressLint("DrawAllocation")
  @Override
  protected void onDraw(Canvas canvas) {
    if (mHeight == 0) {
      if (mWidth == 0) {
        // 开始波动
        start();
      }
      // 初始化
      init();
    }

    if (android.os.Build.VERSION.SDK_INT > 10) {
      // 3.0 或更高版本
      drawForegroundCircle(canvas);
    } else {
      // 3.0以下版本
      clipCircle(canvas);
    }
    super.onDraw(canvas);
  }

  private void clipCircle(Canvas canvas) {
    canvas.save();
    Path path = new Path();
    path.addCircle(mWidth / 2, mHeight / 2, mWidth / 2 - (mStrokeWidth >> 1), Path.Direction.CW);
    canvas.clipPath(path);
    canvas.drawCircle(mWidth / 2, mHeight / 2, mWidth / 2, mPaint);
    canvas.drawPath(dealPath(), mQuadPaint);
    canvas.restore();
  }

  private void drawForegroundCircle(Canvas canvas) {
    // 绘制底圆
    canvas.drawCircle(mWidth / 2, mHeight / 2, mWidth / 2, mPaint);
    // 绘制曲线
    canvas.drawPath(dealPath(), mQuadPaint);
    // 绘制前景
    float radius = mWidth / 2f;
    float panding = mStrokeWidth / 2f;
    path.reset();
    path.moveTo(0, radius);
    path.lineTo(0, 0);
    path.lineTo(mWidth, 0);
    path.lineTo(mWidth, mHeight);
    path.lineTo(0, mHeight);
    path.lineTo(0, radius);
    //圆弧左边中间起点是180,旋转360度
    path.arcTo(new RectF(panding, panding, mWidth - panding, mHeight - panding), 180, -359, true);
    path.close();
    canvas.drawPath(path, mForePaint);

    mForePaint.setStyle(Paint.Style.STROKE);
    mForePaint.setStrokeWidth(o2CWidth);
    mForePaint.setColor(o2CColor);
    canvas.drawCircle(mWidth / 2, mHeight / 2, mWidth / 2, mForePaint);
    mForePaint.setStrokeWidth(o1CWidth);
    mForePaint.setColor(o1CColor);
    canvas.drawCircle(mWidth / 2, mHeight / 2, mWidth / 2, mForePaint);
    mForePaint.setColor(Color.WHITE);
    mForePaint.setStyle(Paint.Style.FILL);
  }

  /**
   * 画出水波线
   */
  private Path dealPath() {
    path.reset();
    path.moveTo(mStartX, mStartY);
    for (int i = 0; i < mXs.length; i++) {
      path.rQuadTo(mXs[i], mYs[i], mXs[i] << 1, 0);
    }
    path.rQuadTo(mXs[0], mYs[0], mXs[0] << 1, 0);
    path.rQuadTo(mXs[1], mYs[1], mXs[1] << 1, 0);
    path.lineTo(mWidth, mHeight);
    path.lineTo(mStartX, mHeight);
    path.lineTo(mStartX, mStartY);
    path.close();
    return path;
  }

  /**
   * 开始波动效果
   */
  private void start() {
    mStartX -= mTranslationUnit;
    new Handler().postDelayed(new Runnable() {
      @Override
      public void run() {
        start();
      }
    }, 20);
    invalidate();
    if (-mStartX >= mTotle + mWidth + 1.2f * mStrokeWidth) {
      mStartX = mStrokeWidth;
    }
  }

  /**
   * 获取渐变颜色
   *
   * @param colors
   * @return
   */
  private int interpRectColor(int[] colors, float p) {
    if (p == 0) {
      return colors[0];
    }

    int size = colors.length - 1;
    float cp, up;
    int a, r, g, b, cur;
    up = 1f / size;
    cur = (int) (p / up);
    cp = (p - cur * up) / up;
    if (cp == 0) {
      cur--;
      cp = 1;
    }

    a = ave(Color.alpha(colors[cur]), Color.alpha(colors[cur + 1]), cp);
    r = ave(Color.red(colors[cur]), Color.red(colors[cur + 1]), cp);
    g = ave(Color.green(colors[cur]), Color.green(colors[cur + 1]), cp);
    b = ave(Color.blue(colors[cur]), Color.blue(colors[cur + 1]), cp);
    return Color.argb(a, r, g, b);
  }

  private int ave(int s, int d, float p) {
    return s + Math.round(p * (d - s));
  }

  @Override
  protected void onSizeChanged(int w, int h, int oldw, int oldh) {
    super.onSizeChanged(w, h, oldw, oldh);
    mHeight = 0;
    invalidate();
  }

  @Override
  protected void onMeasure(int widthMeasureSpec, int heightMeasureSpec) {
    super.onMeasure(widthMeasureSpec, heightMeasureSpec);

    int width = View.MeasureSpec.getSize(widthMeasureSpec);
    int height = View.MeasureSpec.getSize(heightMeasureSpec);
    width = height = width <= height ? width : height;
    setMeasuredDimension(width, height);
  }
}

使用方法：
在使用自定义view的activity中设置参数：
此代码实现充电电量显示和自定义view的联动。

 private void initView() {
        mPcv = this.findViewById(R.id.pcv);
        Timer timer = new Timer();
        timer.schedule(new TimerTask() {
            public void run() {
                numberAmount+=1;
                numberProgress+=0.01f;
                if(numberAmount<=100){
                    mPcv.setText(numberAmount+"%"+"\n充电中");
                }else {
                    Looper.prepare();
                    Toast.makeText(charge_mini_activity.this,"电量已充满",Toast.LENGTH_SHORT).show();
                    Looper.loop();
                }
                mPcv.setProgress(numberProgress);
            }
        }, 0 , 700);
}
