一、部署Dashbord

1.1、下载yaml文件

$wget https://raw.githubusercontent.com/kubernetes/dashboard/v2.4.0/aio/deploy/recommended.yaml

1.2、修改端口资源类型

默认Dashboard只能集群内部访问，修改Service为NodePort类型，暴露到外部30001端口
打开yaml文件找到这一段

kind: Service
apiVersion: v1
metadata:
  labels:
    k8s-app: kubernetes-dashboard
  name: kubernetes-dashboard
  namespace: kubernetes-dashboard
spec:
  ports:
    - port: 443
      targetPort: 8443
  selector:
    k8s-app: kubernetes-dashboard

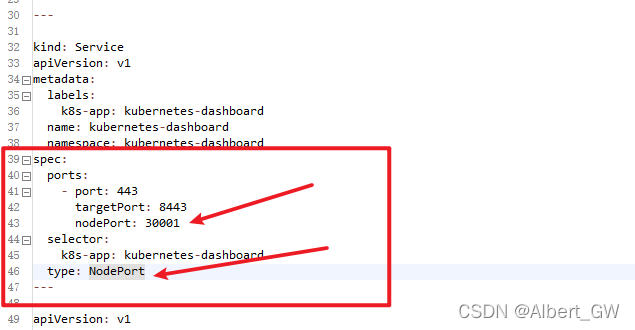

往里面添加nodePort:30001 以及type:NodePort

1.3、创建Pod

$kubectl apply -f recommended.yaml

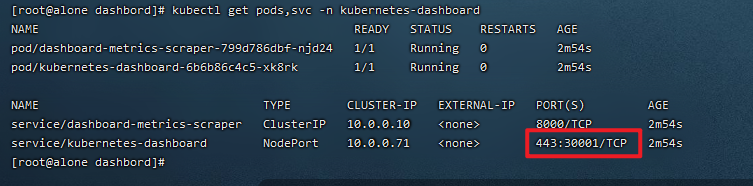

$kubectl get pods,svc -n kubernetes-dashboard

1.4、浏览器访问dashboard

集群内访问：curl https://10.0.0.71:443
集群外访问： https://192.168.91.132:30001

二、登录dashboard

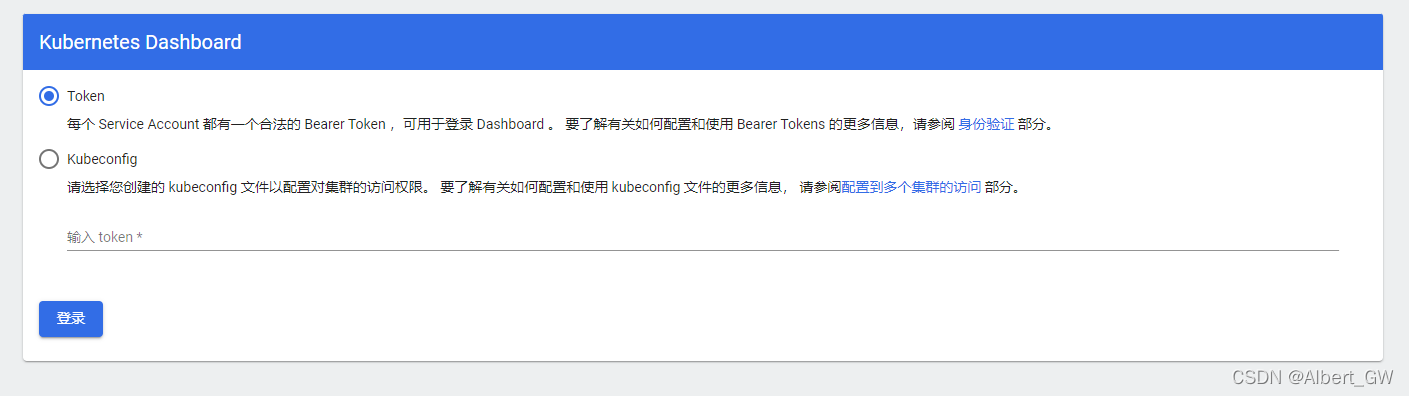

Dashboard提供两种认证方式：

2.1、Token

2.1.1、创建账号

在master node中创建service account并绑定默认cluster-admin管理员集群角色

#创建用户
$kubectl create serviceaccount dashboard-admin -n kube-system

# 用户授权
$kubectl create clusterrolebinding dashboard-admin --clusterrole=cluster-admin --serviceaccount=kube-system:dashboard-admin

# 获取用户Token

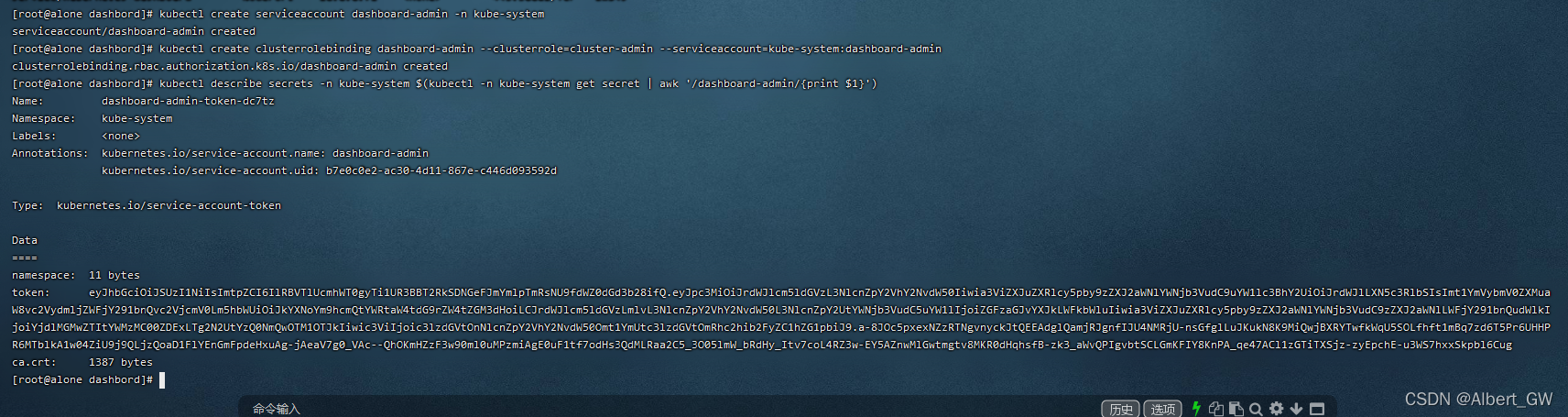

$kubectl describe secrets -n kube-system $(kubectl -n kube-system get secret | awk '/dashboard-admin/{print $1}')

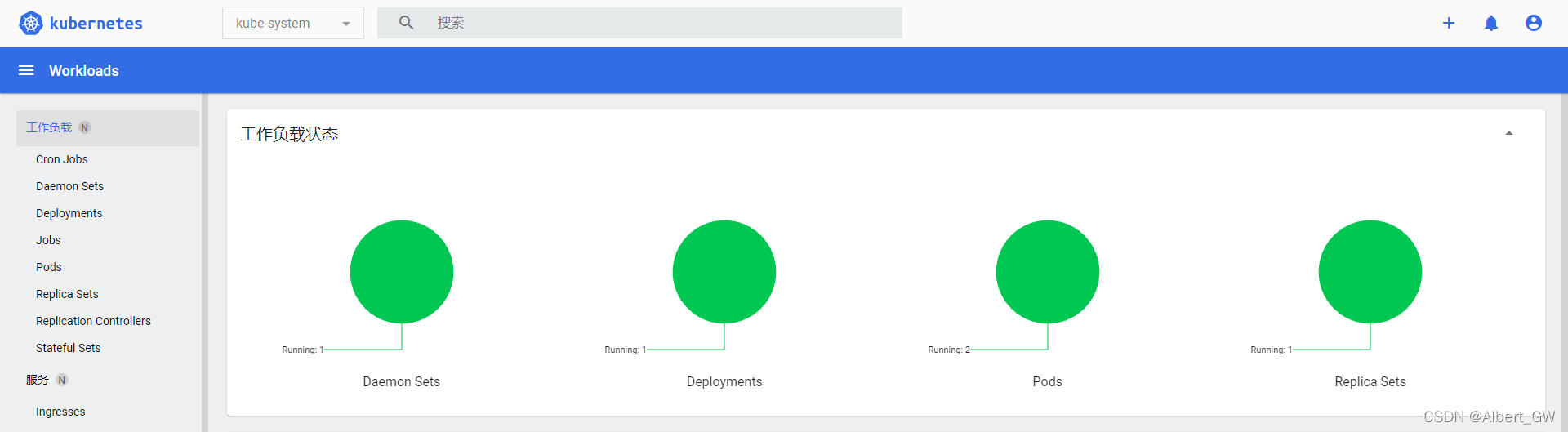

复制打印出来的token到页面就可以登录了

2.2、Kubeconfig

同样需先创建用户以及分配角色，其实这种方式更像是Token的续集，

# 创建用户
$kubectl create serviceaccount dashboard-admin -n kube-system

# 用户授权
$kubectl create clusterrolebinding dashboard-admin --clusterrole=cluster-admin --serviceaccount=kube-system:dashboard-admin

# 获取用户Token
$kubectl describe secrets -n kube-system $(kubectl -n kube-system get secret | awk '/dashboard-admin/{print $1}')

获取到token后，生成dashbord.kubeconfig文件

#获取token文件名dashboard-admin-token-dc7tz
$kubectl get secrets -n kube-system $(kubectl -n kube-system get secret | awk '/dashboard-admin/{print $1}')
#将上一步获取到的token文件名替换到这里
$DASH_TOKEN=$(kubectl get secret -n kube-system dashboard-admin-token-dc7tz -o jsonpath={.data.token}|base64 -d)

# 生成dashboard-admin.kubeconfig配置文件
$kubectl config set-cluster kubernetes \
--certificate-authority=/opt/kubernetes/ssl/ca.pem \
--embed-certs=true \
--server=https://192.168.91.132:6443 \
--kubeconfig=dashboard-admin.kubeconfig

$kubectl config set-credentials dashboard-admin \
--token=$DASH_TOKEN \
--kubeconfig=dashboard-admin.kubeconfig

$kubectl config set-context dashboard-admin@kubernetes \
--cluster=kubernetes \
--user=dashboard-admin \
--kubeconfig=dashboard-admin.kubeconfig

$kubectl config use-context dashboard-admin@kubernetes --kubeconfig=dashboard-admin.kubeconfig

最后把生成的dashboard-admin.kubeconfig文件下载到本地，再通过浏览器选择此文件进行登录
