CX20709四进两出带回声消除多路音频子板[AB33EP]的演示程序

本文链接：https://blog.csdn.net/weixin_45326556/article/details/94165361

本指南介绍AB33EP音频板的详细配置与使用方法，涵盖CX20709芯片特性、演示程序代码、接口定义及内部配置流程。通过实战演示，展示如何实现多路音频输入输出、回声消除等功能。

摘要生成于 C知道，由 DeepSeek-R1 满血版支持，前往体验 >

CX20709四进两出带回声消除多路音频子板[AB33EP]的演示程序

AB33EP音频板简介
源程序

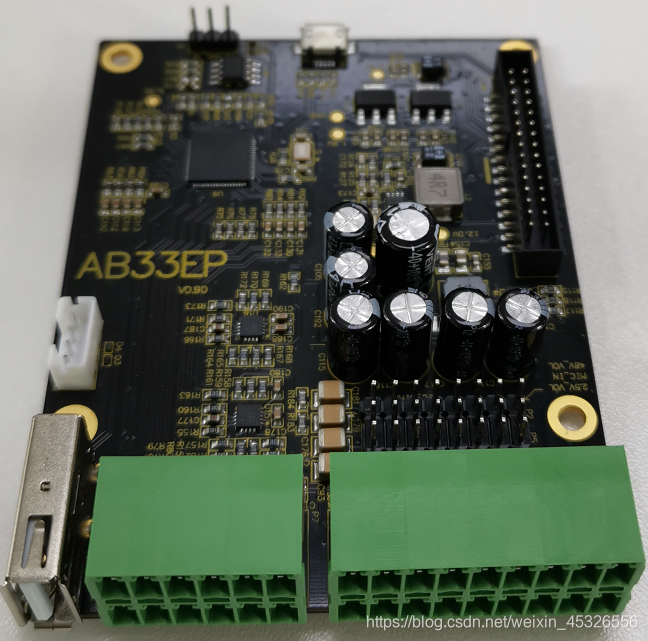

AB33EP外观

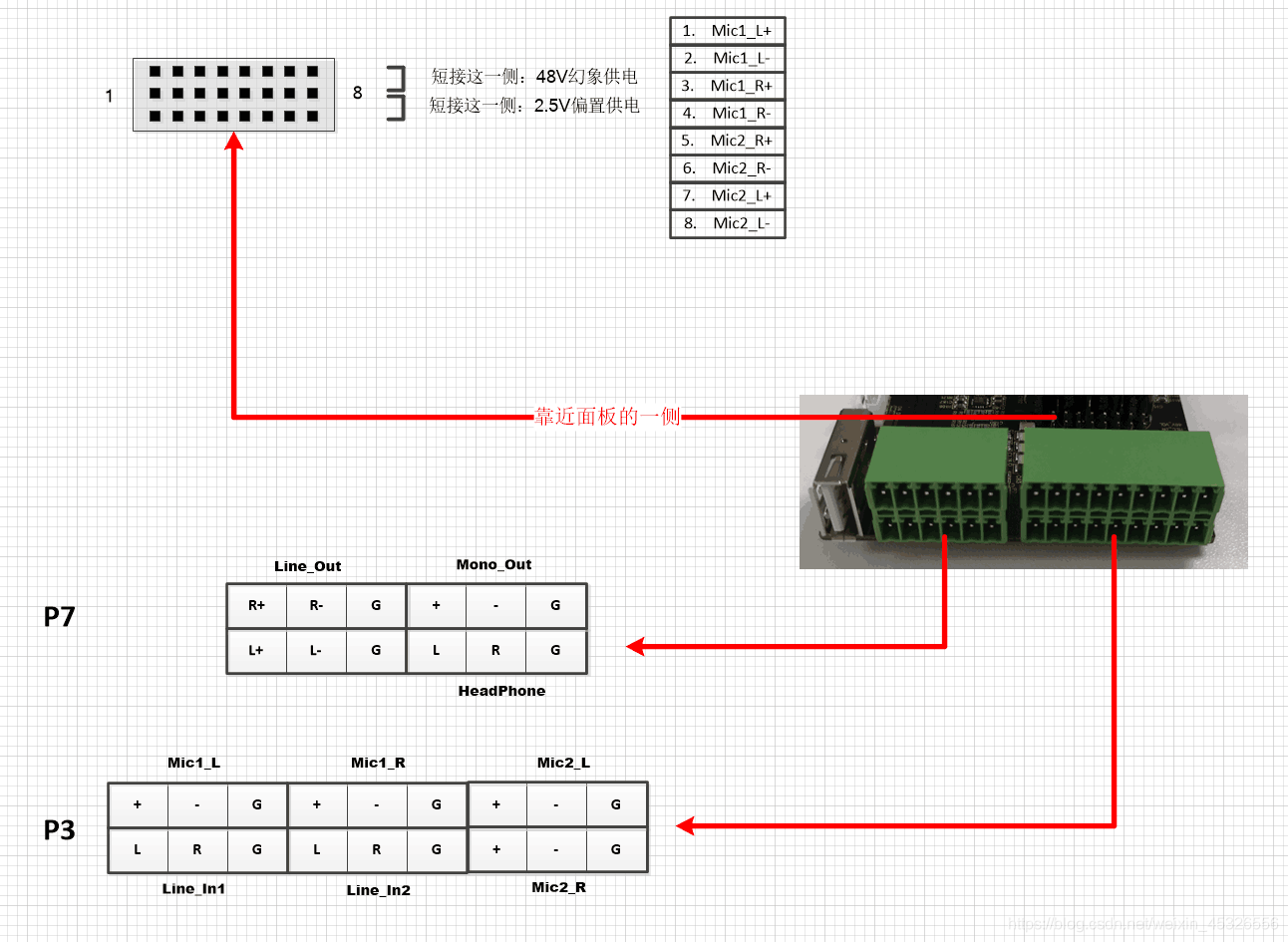

接口定义

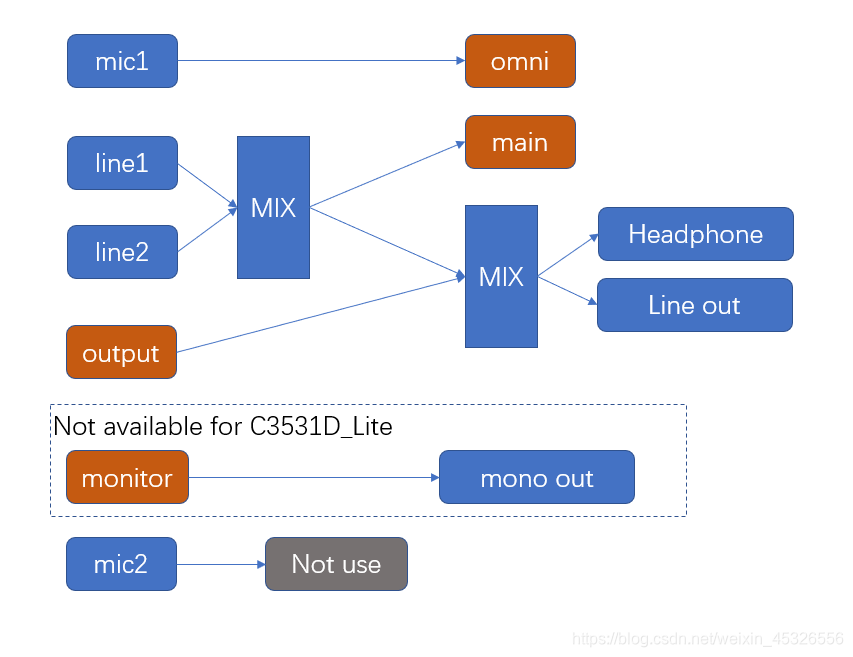

内部定义

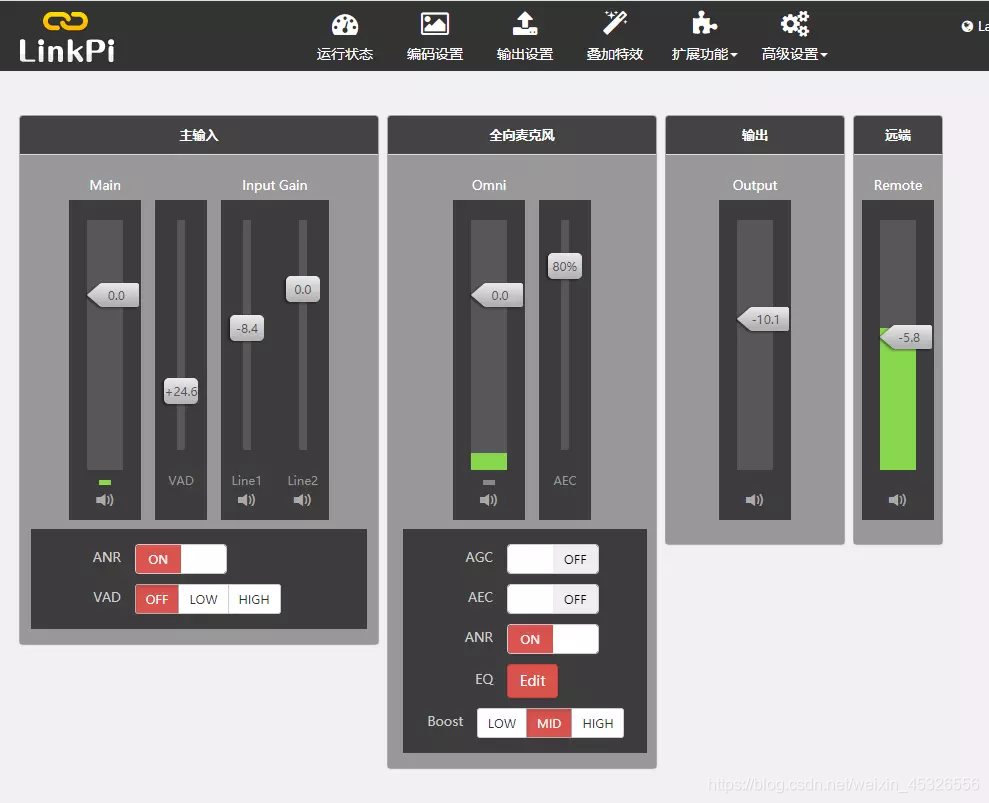

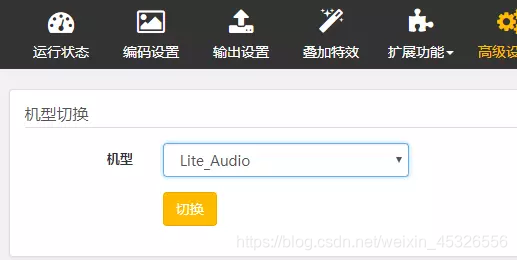

演示程序使用方法

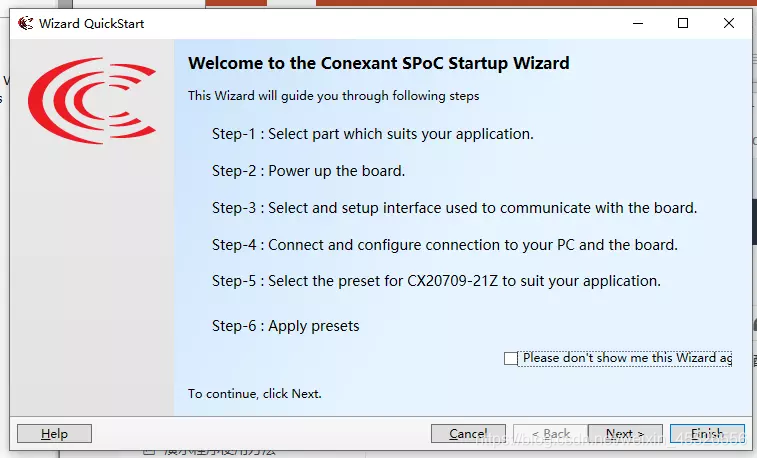

芯片内部配置方法

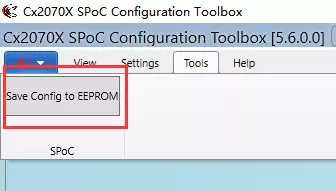

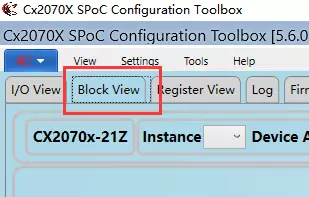

- - 自定义配置
- - 恢复配置

AB33EP音频板简介

该音频板采用Conexant的CX20709芯片来实现。最大可以支持4路输入，2路输出，内置回声消除算法。CX20709 SoC 内置了集成的音频/语音数字信号处理器（digital signal processor，DSP）、多位编解码器、数字和模拟输入/输出接口，以及极具功效的 D 类放大器。其主要功能包括科胜讯专有的能显著改善音频和语音质量的技术创新。这包括 BrightSound、全面的参数均衡、动态压缩、可优化扬声器频率响应并在没有削峰的情况下提高声音响亮度的数字交叉算法。其他功能还包括子带回声消除、波束成形、端到端降噪、线路回声消除、3D 幻影扬声器及 3D 虚拟浸没。

源程序

完整工程

https://gitee.com/LinkPi/Audio
https://gitee.com/LinkPi/Audio/wikis/pages

main.cpp

#include <QCoreApplication>
#include "Link.h"
#include "Audio.h"
int main(int argc, char *argv[])
{
    QCoreApplication a(argc, argv);
    Link::init();
    Audio audio;
    audio.init();
    audio.startStream();

    return a.exec();
}

Audio.cpp

#include "Audio.h"
#include "Json.h"
Audio::Audio(QObject *parent) : QObject(parent)
{

}

void Audio::init()
{
    QVariantMap data;
    main=Link::create("InputAi");
    data["interface"]="main";
    main->start(data);

    omni=Link::create("InputAi");
    data["interface"]="omni";
    omni->start(data);

    output=Link::create("OutputAo");
    data["interface"]="output";
    output->start(data);



//    monitor=Link::create("OutputAo");
//    data["interface"]="monitor";
//    monitor->start(data);

    mix=Link::create("MixA");
    data.clear();
    data["main"]=main->name();
    mix->start(data);
    mixOut=Link::create("MixA");
    data.clear();
    data["main"]=main->name();
    mixOut->start(data);

    volMain=Link::create("Volume");
    volMain->start();
    volOmni=Link::create("Volume");
    volOmni->start();
    volMix=Link::create("Volume");
    volMix->start();
    volRemote=Link::create("Volume");
    volRemote->start();
    volOut=Link::create("Volume");
    volOut->start();

    vad=Link::create("Vad");
    data.clear();
    data["volume"]=volMain->name();
    vad->start(data);

    main->linkA(mix);
    main->linkA(mixOut);
    omni->linkA(vad)->linkA(mix);


    main->linkA(volMain);
    vad->linkA(volOmni);
    mix->linkA(volMix);


    net=Link::create("InputNet");
    QVariantMap dataNet;
    dataNet["path"]="rtsp://192.168.1.43/stream0";
    net->start(dataNet);

    decA=Link::create("DecodeA");
    decA->start();

    gain=Link::create("Gain");
    gain->start();

    res=Link::create("Resample");
    res->start();

    net->linkA(decA)->linkA(gain)->linkA(res)->linkA(output);
    res->linkA(volRemote);
    res->linkA(mixOut);
    res->linkA(mix);
    mixOut->linkA(volOut);


    rpcServer=new jcon::JsonRpcWebSocketServer();
    QObjectList list;
    list<<this;
    rpcServer->registerServices(list);
    rpcServer->listen(6002);

    config=Json::loadFile("/link/config/audio/audio.json").toMap();
    main->invoke("setDrvData",config);
}

void Audio::startStream()
{



    LinkObject *vi=Link::create("InputVi");
    QVariantMap dataVi;
    dataVi["interface"]="HDMI-A";
    vi->start(dataVi);

    LinkObject *encV=Link::create("EncodeV");
    encV->start();
    LinkObject *encA1=Link::create("EncodeA");
    encA1->start();

    LinkObject *encA2=Link::create("EncodeA");
    encA2->start();

    LinkObject *rtsp=Link::create("Rtsp");
    rtsp->start();

    LinkObject *mux1=Link::create("Mux");
    QVariantMap dataMux;
    dataMux["path"]="mem://test1";
    dataMux["format"]="rtsp";
    mux1->start(dataMux);
    LinkObject *mux2=Link::create("Mux");
    dataMux["path"]="mem://test2";
    mux2->start(dataMux);

    LinkObject *ai1=mix;
    LinkObject *ai2=omni;


    vi->linkV(encV)->linkV(mux1)->linkV(rtsp);
    encV->linkV(mux2)->linkV(rtsp);

    ai1->linkA(encA1)->linkA(mux1)->linkA(rtsp);
    ai2->linkA(encA2)->linkA(mux2)->linkA(rtsp);
}

QVariantMap Audio::getVolume()
{
    QVariantMap data;
    data["Main"]=volMain->invoke("getVolume").toMap()["max"].toInt();
    data["Omni"]=volOmni->invoke("getVolume").toMap()["max"].toInt();
    data["Output"]=volOut->invoke("getVolume").toMap()["max"].toInt();
    data["remote"]=volRemote->invoke("getVolume").toMap()["max"].toInt();
//    qDebug()<<vad->getData()["active"].toBool();
    if(vad->getData()["active"].toBool() || !vad->getData()["enable"].toBool())
        data["active"]="main";
    else
        data["active"]="omni";

    return data;
}

QVariantMap Audio::getAudio()
{
    return config;
}

bool Audio::setAudio(QVariantMap cfg)
{
    config=cfg;
    Json::saveFile(config,"/link/config/audio/audio.json");
    main->invoke("setDrvData",config);

    QVariantMap dataOut=cfg["output"].toMap();
    {
        QVariantMap vol;
        vol["mute"]=dataOut["mute0"].toBool();
        vol["gain"]=dataOut["gain0"].toInt();
        volOut->setData(vol);
    }

    QVariantMap dataMain=cfg["main"].toMap();
    {
        QVariantMap dataVad;
        dataVad["level"]=4*dataMain["vad"].toInt();
        dataVad["th"]=dataMain["vadth"].toInt();
        if(dataMain["vad"].toInt()==0)
            dataVad["enable"]=false;
        else
            dataVad["enable"]=true;

        vad->setData(dataVad);
    }

    QVariantMap rem=cfg["remote"].toMap();
    {
        QVariantMap dataGain;
        dataGain["mute"]=rem["mute"].toBool();
        dataGain["gain"]=rem["gain"].toInt();
        gain->setData(dataGain);
    }

    return true;
}
