本文详细介绍了Element UI组件，包括Switch的基本用法和颜色设置，Slider的基础用法，TimePicker和DatePicker的时间选择，DateTimePicker的日期时间选择，Upload的文件上传功能，Rate的评分系统，ColorPicker的颜色选择，以及Transfer穿梭框的使用。此外，还提及了Form表单的典型应用和注意事项，如回车提交表单的阻止以及自定义校验。
（7）Switch 开关
基本用法—绑定v-model到一个Boolean类型的变量。可以使用active-color属性与inactive-color属性来设置开关的背景色。
<el-switch
v-model="value"
active-color="#13ce66"
inactive-color="#ff4949">
</el-switch>
<script>
export default {
data() {
return {
value: true
}
}
};
</script>
**文字描述**-----使用active-text属性与inactive-text属性来设置开关的文字描述。
<el-switch
v-model="value1"
active-text="按月付费"
inactive-text="按年付费">
</el-switch>
<el-switch
style="display: block"
v-model="value2"
active-color="#13ce66"
inactive-color="#ff4949"
active-text="按月付费"
inactive-text="按年付费">
</el-switch>
<script>
export default {
data() {
return {
value1: true,
value2: true
}
}
};
</script>
**扩展的 value 类型**----设置active-value和inactive-value属性，接受Boolean, String或Number类型的值。
<el-tooltip :content="'Switch value: ' + value" placement="top">
<el-switch
v-model="value"
active-color="#13ce66"
inactive-color="#ff4949"
active-value="100"
inactive-value="0">
</el-switch>
</el-tooltip>
<script>
export default {
data() {
return {
value: '100'
}
}
};
</script>
**禁用状态**----设置disabled属性，接受一个Boolean，设置true即可禁用。
<el-switch
v-model="value1"
disabled>
</el-switch>
<el-switch
v-model="value2"
disabled>
</el-switch>
<script>
export default {
data() {
return {
value1: true,
value2: false
}
}
};
</script>
Attributes
（8）Slider 滑块
基础用法
<template>
<div class="block">
<span class="demonstration">默认</span>
<el-slider v-model="value1"></el-slider>
</div>
<div class="block">
<span class="demonstration">自定义初始值</span>
<el-slider v-model="value2"></el-slider>
</div>
<div class="block">
<span class="demonstration">隐藏 Tooltip</span>
<el-slider v-model="value3" :show-tooltip="false"></el-slider>
</div>
<div class="block">
<span class="demonstration">格式化 Tooltip</span>
<el-slider v-model="value4" :format-tooltip="formatTooltip"></el-slider>
</div>
<div class="block">
<span class="demonstration">禁用</span>
<el-slider v-model="value5" disabled></el-slider>
</div>
</template>
<script>
export default {
data() {
return {
value1: 0,
value2: 50,
value3: 36,
value4: 48,
value5: 42
}
},
methods: {
formatTooltip(val) {
return val / 100;
}
}
}
</script>
**离散值**-----改变step的值可以改变步长，通过设置show-stops属性可以显示间断点
<template>
<div class="block">
<span class="demonstration">不显示间断点</span>
<el-slider
v-model="value1"
:step="10">
</el-slider>
</div>
<div class="block">
<span class="demonstration">显示间断点</span>
<el-slider
v-model="value2"
:step="10"
show-stops>
</el-slider>
</div>
</template>
<script>
export default {
data() {
return {
value1: 0,
value2: 0
}
}
}
</script>
**带有输入框**---设置show-input属性会在右侧显示一个输入框
<template>
<div class="block">
<el-slider
v-model="value"
show-input>
</el-slider>
</div>
</template>
<script>
export default {
data() {
return {
value: 0
}
}
}
</script>
**范围选择**---设置range即可开启范围选择，此时绑定值是一个数组，其元素分别为最小边界值和最大边界值
<template>
<div class="block">
<el-slider
v-model="value"
range
show-stops
:max="10">
</el-slider>
</div>
</template>
<script>
export default {
data() {
return {
value: [4, 8]
}
}
}
</script>
**竖向模式**----设置vertical可使 Slider 变成竖向模式，此时必须设置高度height属性。
<template>
<div class="block">
<el-slider
v-model="value"
vertical
height="200px">
</el-slider>
</div>
</template>
<script>
export default {
data() {
return {
value: 0
}
}
}
</script>
**展示标记**-----设置 marks 属性可以展示标记
<template>
<div class="block">
<el-slider
v-model="value"
range
:marks="marks">
</el-slider>
</div>
</template>
<script>
export default {
data() {
return {
value: [30, 60],
marks: {
0: '0°C',
8: '8°C',
37: '37°C',
50: {
style: {
color: '#1989FA'
},
label: this.$createElement('strong', '50%')
}
}
}
}
}
</script>
Attributes
Events
（9）TimePicker 时间选择器
固定时间点----使用 el-time-select 标签，分别通过star、end和step指定可选的起始时间、结束时间和步长
<el-time-select
v-model="value"
:picker-options="{
start: '08:30',
step: '00:15',
end: '18:30'
}"
placeholder="选择时间">
</el-time-select>
<script>
export default {
data() {
return {
value: ''
};
}
}
</script>
**任意时间点**、------使用 el-time-picker 标签，通过selectableRange限制可选时间范围。提供了两种交互方式：默认情况下通过鼠标滚轮进行选择，打开arrow-control属性则通过界面上的箭头进行选择。
<template>
<el-time-picker
v-model="value1"
:picker-options="{
selectableRange: '18:30:00 - 20:30:00'
}"
placeholder="任意时间点">
</el-time-picker>
<el-time-picker
arrow-control
v-model="value2"
:picker-options="{
selectableRange: '18:30:00 - 20:30:00'
}"
placeholder="任意时间点">
</el-time-picker>
</template>
<script>
export default {
data() {
return {
value1: new Date(2016, 9, 10, 18, 40),
value2: new Date(2016, 9, 10, 18, 40)
};
}
}
</script>
**固定时间范围**
<template>
<el-time-select
placeholder="起始时间"
v-model="startTime"
:picker-options="{
start: '08:30',
step: '00:15',
end: '18:30'
}">
</el-time-select>
<el-time-select
placeholder="结束时间"
v-model="endTime"
:picker-options="{
start: '08:30',
step: '00:15',
end: '18:30',
minTime: startTime
}">
</el-time-select>
</template>
<script>
export default {
data() {
return {
startTime: '',
endTime: ''
};
}
}
</script>
**任意时间范围**-----添加is-range属性即可选择时间范围，同样支持arrow-control属性。
<template>
<el-time-picker
is-range
v-model="value1"
range-separator="至"
start-placeholder="开始时间"
end-placeholder="结束时间"
placeholder="选择时间范围">
</el-time-picker>
<el-time-picker
is-range
arrow-control
v-model="value2"
range-separator="至"
start-placeholder="开始时间"
end-placeholder="结束时间"
placeholder="选择时间范围">
</el-time-picker>
</template>
<script>
export default {
data() {
return {
value1: [new Date(2016, 9, 10, 8, 40), new Date(2016, 9, 10, 9, 40)],
value2: [new Date(2016, 9, 10, 8, 40), new Date(2016, 9, 10, 9, 40)]
};
}
}
</script>

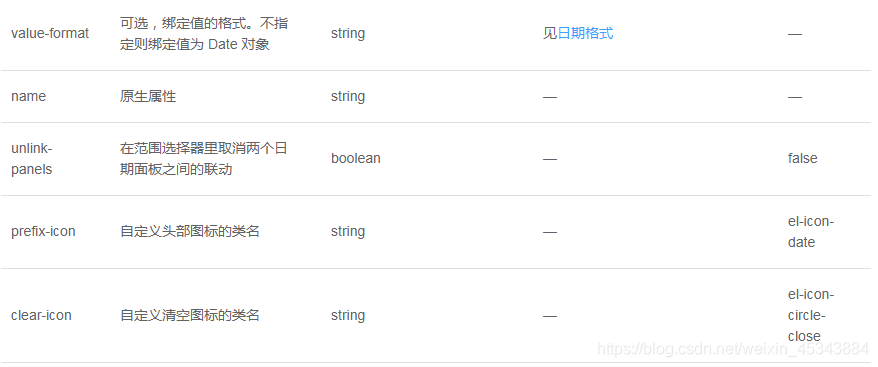

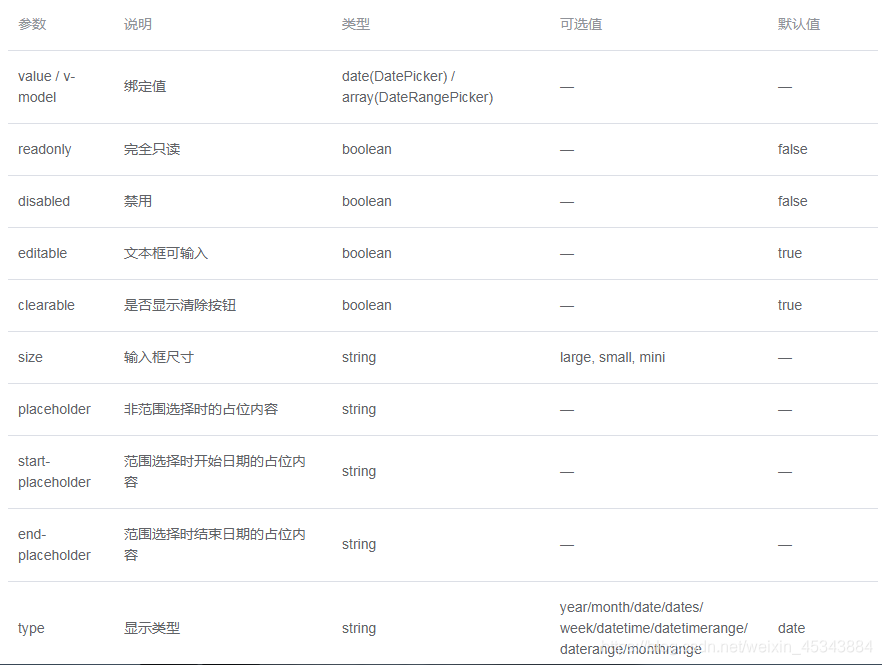

Attributes

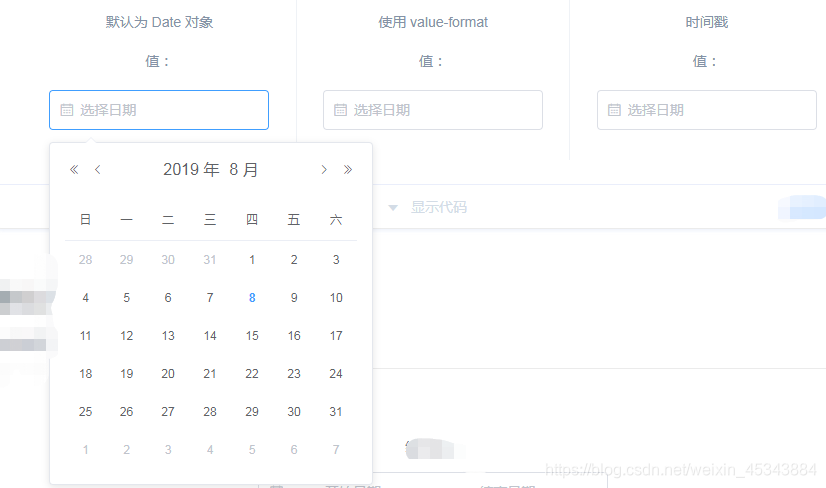

（10）DatePicker 日期选择器

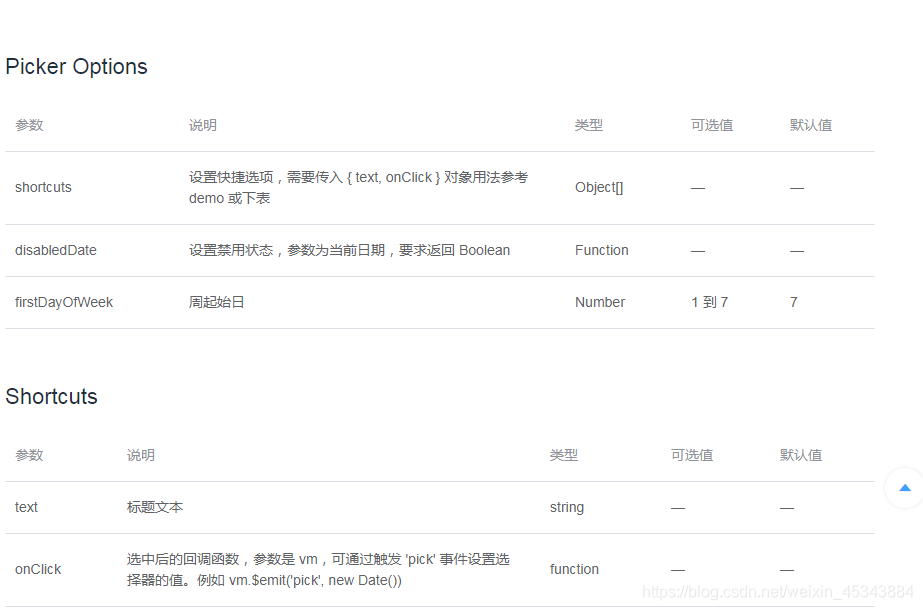

选择日-----基本单位由type属性指定。快捷选项需配置picker-options对象中的shortcuts，禁用日期通过 disabledDate 设置，传入函数
<template>
<div class="block">
<span class="demonstration">默认</span>
<el-date-picker
v-model="value1"
type="date"
placeholder="选择日期">
</el-date-picker>
</div>
<div class="block">
<span class="demonstration">带快捷选项</span>
<el-date-picker
v-model="value2"
align="right"
type="date"
placeholder="选择日期"
:picker-options="pickerOptions">
</el-date-picker>
</div>
</template>
<script>
export default {
data() {
return {
pickerOptions: {
disabledDate(time) {
return time.getTime() > Date.now();
},
shortcuts: [{
text: '今天',
onClick(picker) {
picker.$emit('pick', new Date());
}
}, {
text: '昨天',
onClick(picker) {
const date = new Date();
date.setTime(date.getTime() - 3600 * 1000 * 24);
picker.$emit('pick', date);
}
}, {
text: '一周前',
onClick(picker) {
const date = new Date();
date.setTime(date.getTime() - 3600 * 1000 * 24 * 7);
picker.$emit('pick', date);
}
}]
},
value1: '',
value2: '',
};
}
};
</script>
**其他日期单位**
<div class="container">
<div class="block">
<span class="demonstration">周</span>
<el-date-picker
v-model="value1"
type="week"

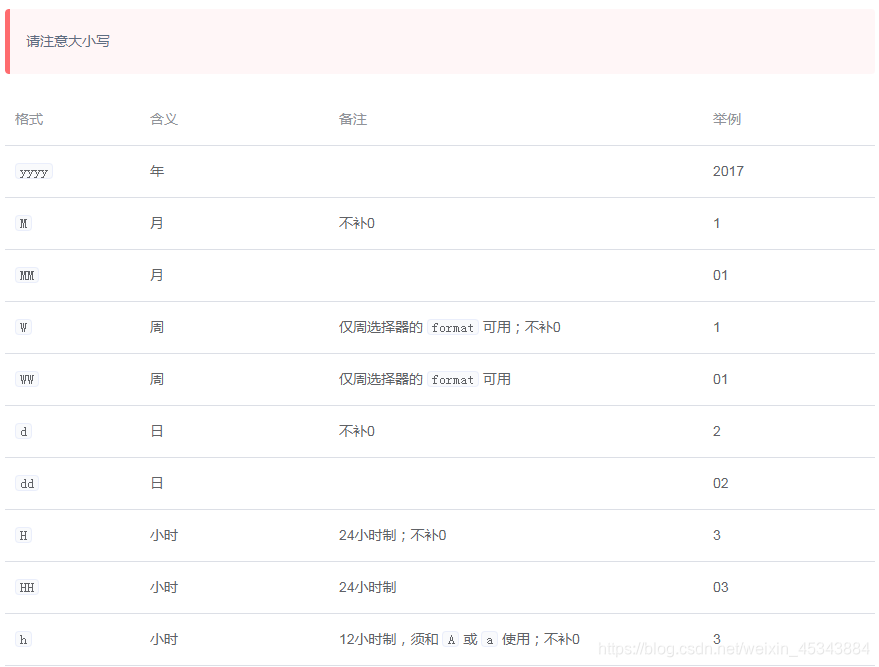

format="yyyy 第 WW 周"
placeholder="选择周">
</el-date-picker>
</div>
<div class="block">
<span class="demonstration">月</span>
<el-date-picker
v-model="value2"
type="month"
placeholder="选择月">
</el-date-picker>
</div>
</div>
<div class="container">
<div class="block">
<span class="demonstration">年</span>
<el-date-picker
v-model="value3"
type="year"
placeholder="选择年">
</el-date-picker>
</div>
<div class="block">
<span class="demonstration">多个日期</span>
<el-date-picker
type="dates"
v-model="value4"
placeholder="选择一个或多个日期">
</el-date-picker>
</div>
</div>
<script>
export default {
data() {
return {
value1: '',
value2: '',
value3: '',
value4: ''
};
}
};
</script>

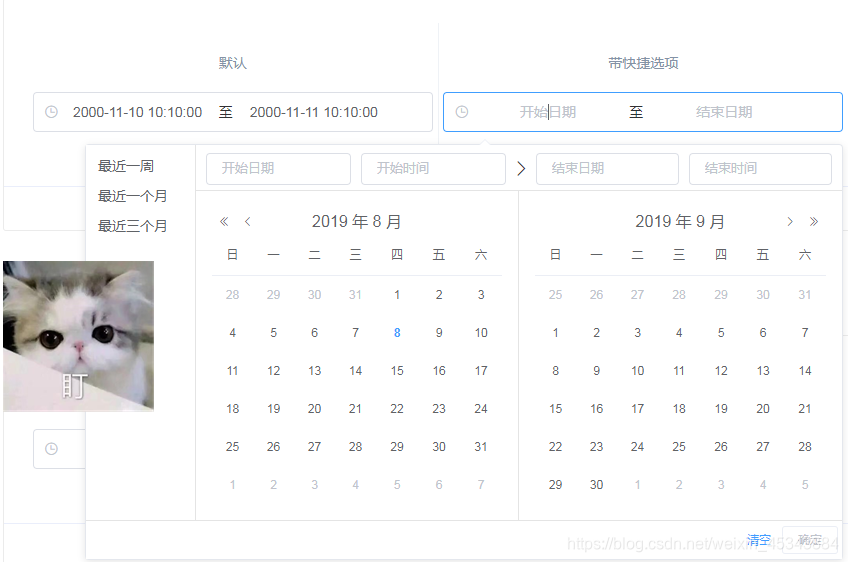

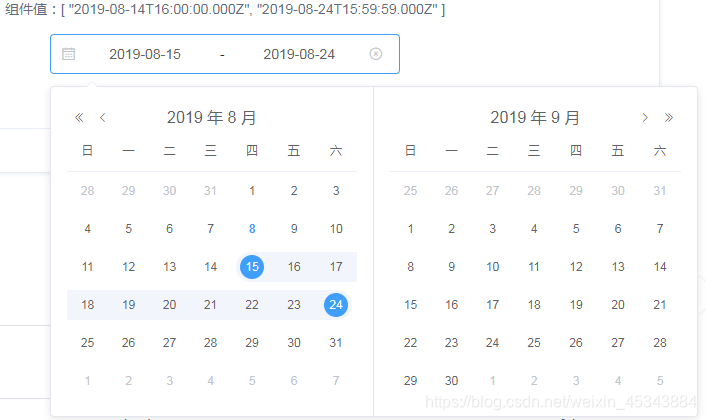

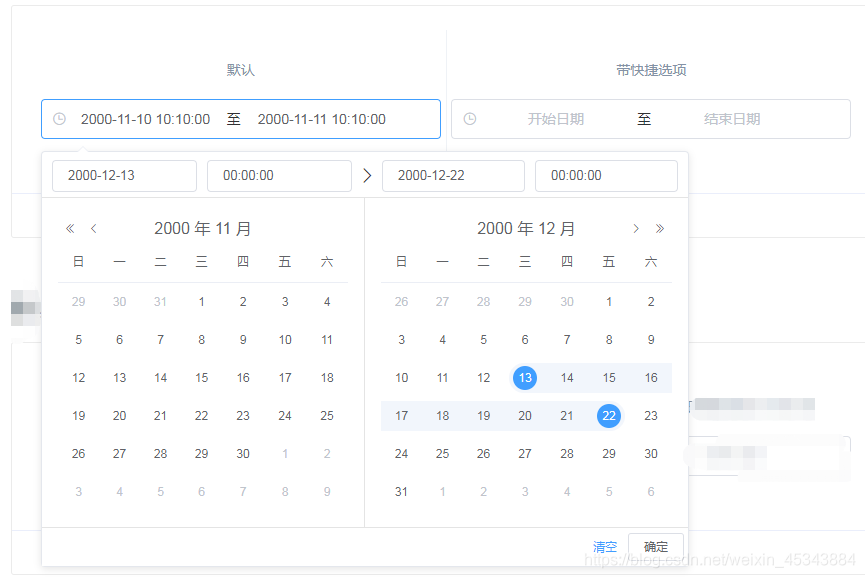

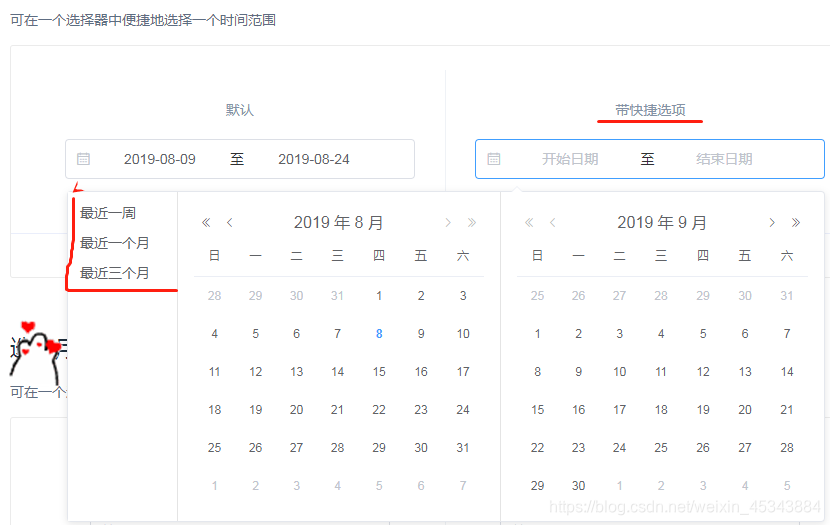

**选择日期范围**----在选择日期范围时，默认情况下左右面板会联动。如果希望两个面板各自独立切换当前月份，可以使用unlink-panels属性解除联动。
