ZKP2 Overview of Modern SNARK Constructions (Dan Boneh)

ZKP学习笔记

ZK-Learning MOOC课程笔记

Lecture 2 Overview of Modern SNARK Constructions (Dan Boneh)

• What is a zk-SNARK (intuition)

  • SNARK is a succinct proof that a certain statement is true.
  • The proof is short and fast to verify
  • zk-SNARK: the proof reveals nothing about the privacy of a message
  • Babai-Fortnow-Levin-Szegedy 1991: In this setup, a single reliable PC can monitor the operation of a herd of supercomputers working with unreliable software.

• Applications

  • Blockchain

    • Scalability: proof-based Rollups (zkRollup)
    • Bridging blockchains: proof of consensus (zkBridge)
    • Private Tx on a public blockchain: zk proof that a private Tx is valid (Tornado cash, Zcash, IronFish, Aleo)
    • Compliance: Proof that a private Tx is compliant with banking laws (Espresso); Proof that an exchange is solvent in zero-knowledge (Raposa)

  • C2PA: a standard for content provenance, T. Datta, 2022 (fighting disinformation)

    • Solve the problem: post-processing (resized photo)


  • A. Naveh and E. Tromer, “PhotoProof: Cryptographic Image Authentication for Any Set of Permissible Transformations,” 2016 IEEE Symposium on Security and Privacy (SP), San Jose, CA, USA, 2016, pp. 255-271, doi: 10.1109/SP.2016.23.

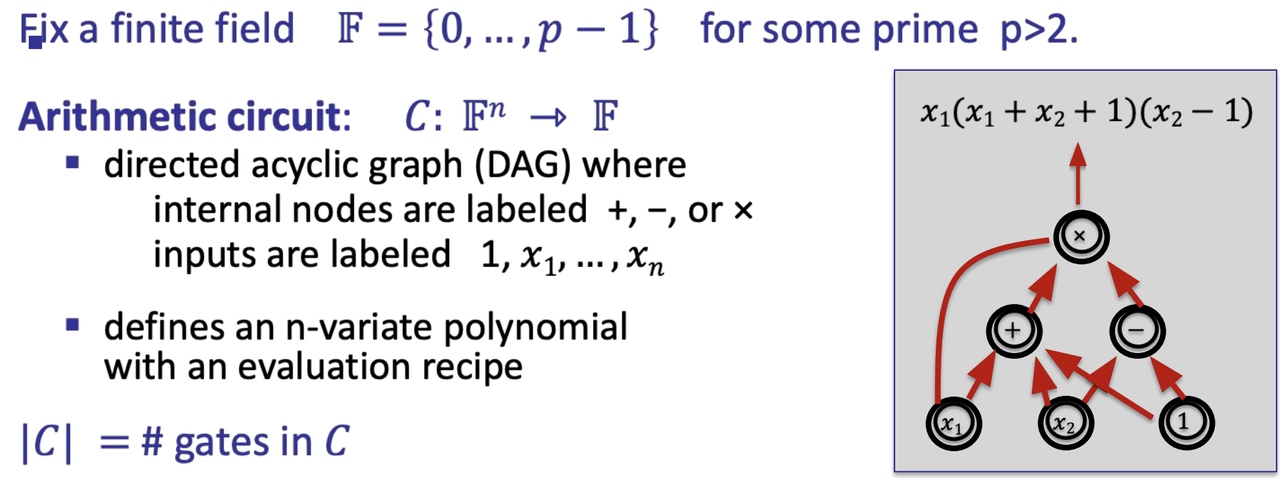

• Review: Arithmetic circuits


  • Input: n elements in finite field
  • Output: an element in finite field

• Structured vs. Unstructured circuits

  • An unstructured circuit: a circuit with arbitrary wires


  • M: Micro processor

  • Some SNARK techniques only apply to structured circuits

• NARK: Non-interactive ARgument of Knowledge

  • A preprocessing NARK is a triple (S, P, V)

  • S(C) -> public parameters (pp,vp) for prover and verifier

  • P(pp, x, w) -> proof $\Pi$

  • V(vp, x, $\Pi$) -> accept or reject

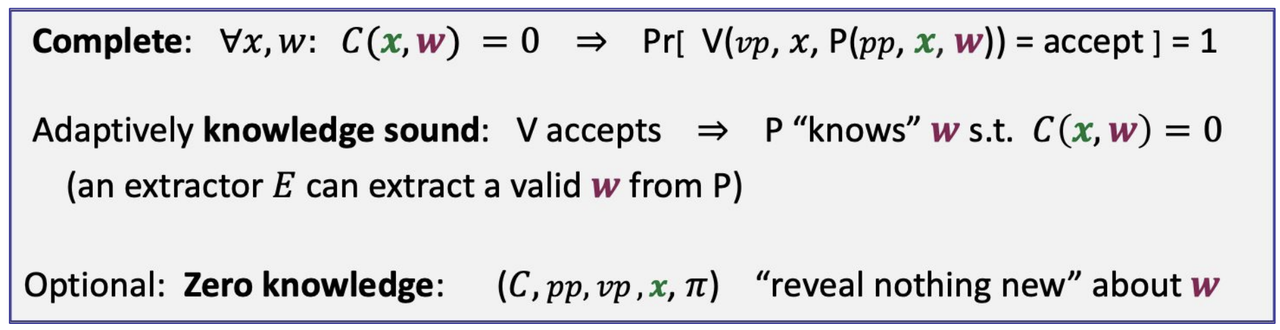

  • requirements (informal)


    • A trivial NARK: $\Pi$ = w

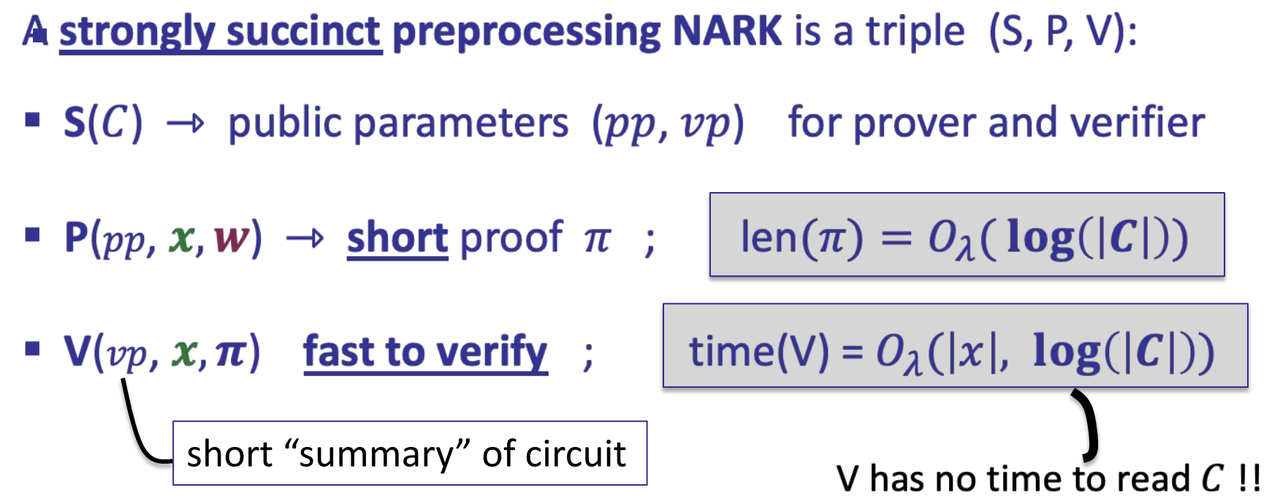

• SNARK: a Succinct ARgument of Knowledge


  • The trivial NARK is not a SNARK

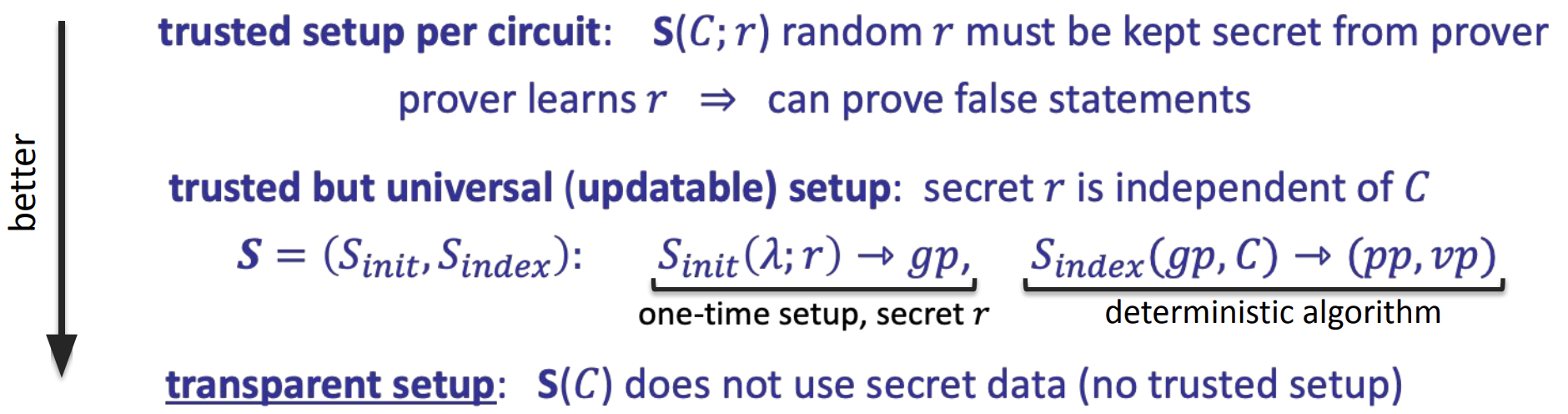

• Types of preprocessing Setup

  • Setup of a Circuit C: S(C, r)-> public parameters (pp, vp)

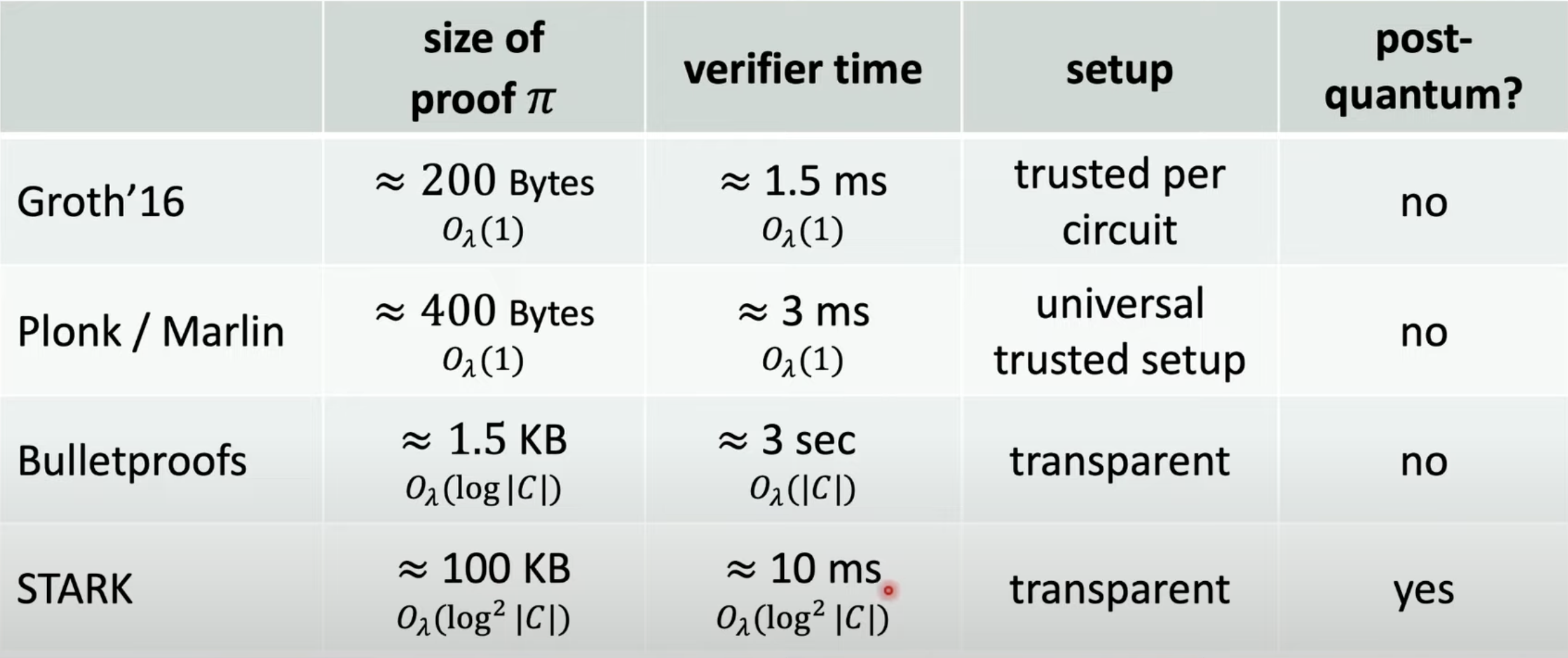

  • for a circuit with ≈$2^{20}$ gates

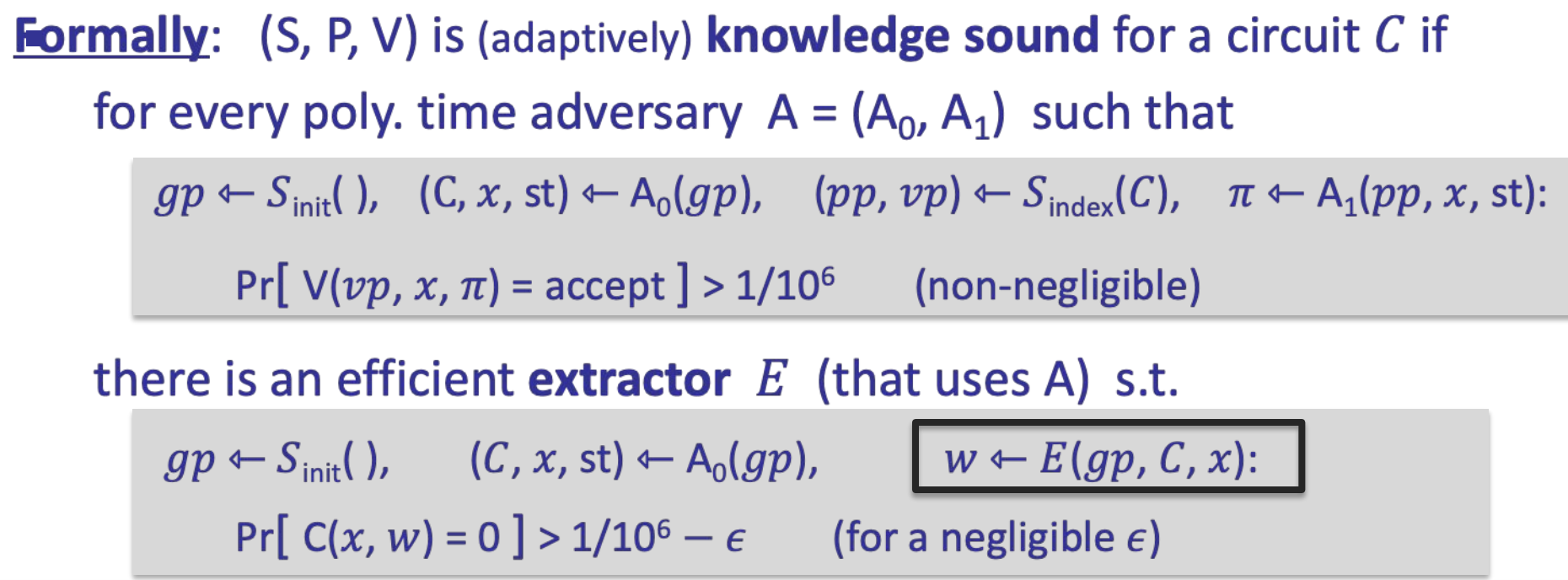

• Definitions: knowledge soundness


• Building an efficient SNARK: General paradigm

  • Step 1: A functional commitment scheme (cryptographic object)
  • Step 2: A compatible interactive oracle proof (IOP)

• Review: commitment scheme

  • commit(m,r) -> com (r chosen at random)
  • verify(m, com, r) -> accept or reject
  • Properties (Informat):
    • Binding: cannot produce com and two valid openings
    • Hiding: com reveals nothing about committed data

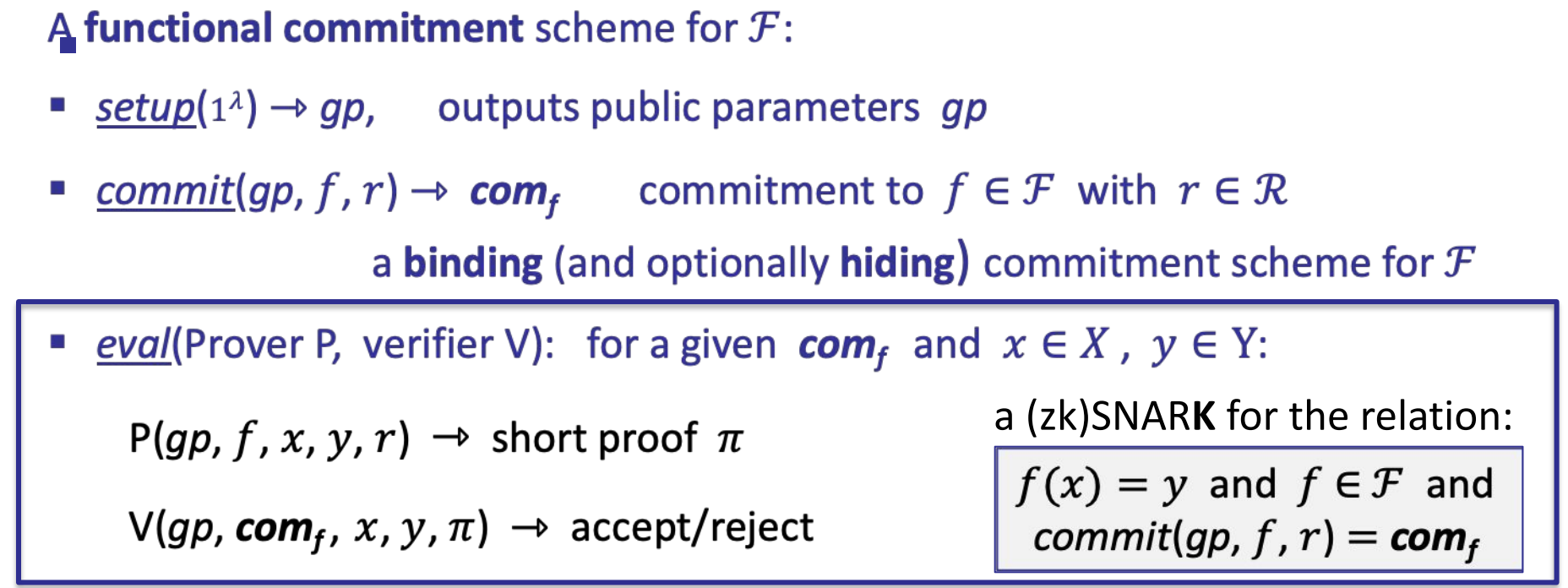

• Committing to a function: syntax

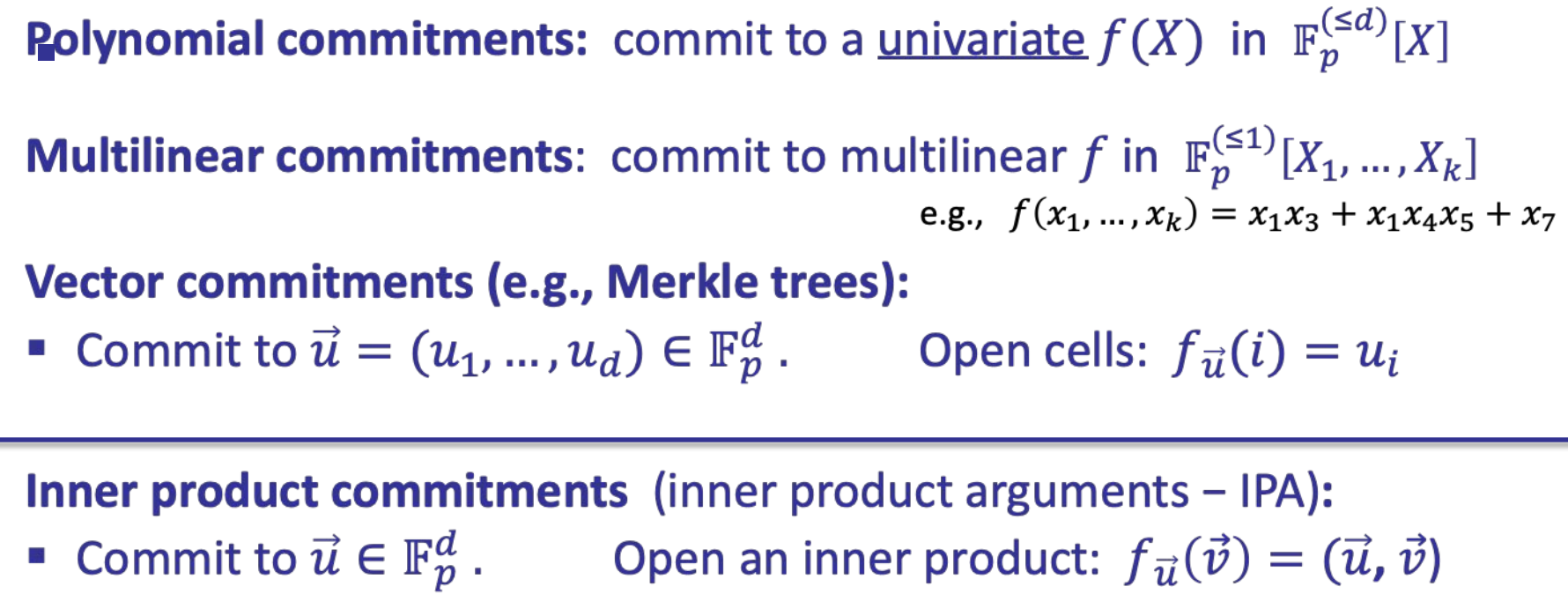

• Four important functional commitments

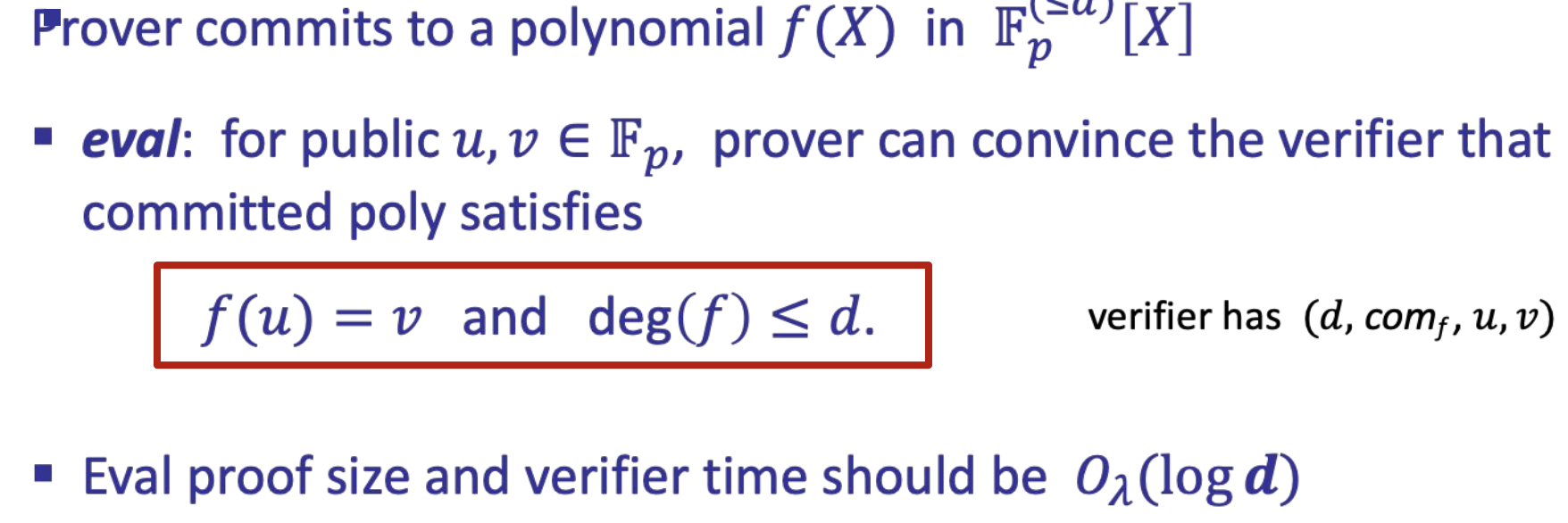

• Polynomial commitments


• Examples

  • Using bilinear groups: KZG10(trusted setup), Dory’20
  • Using hash function only: based on FRI
  • Using elliptic curve: Bulletproofs
  • Using groups of unknown order: Dark’20

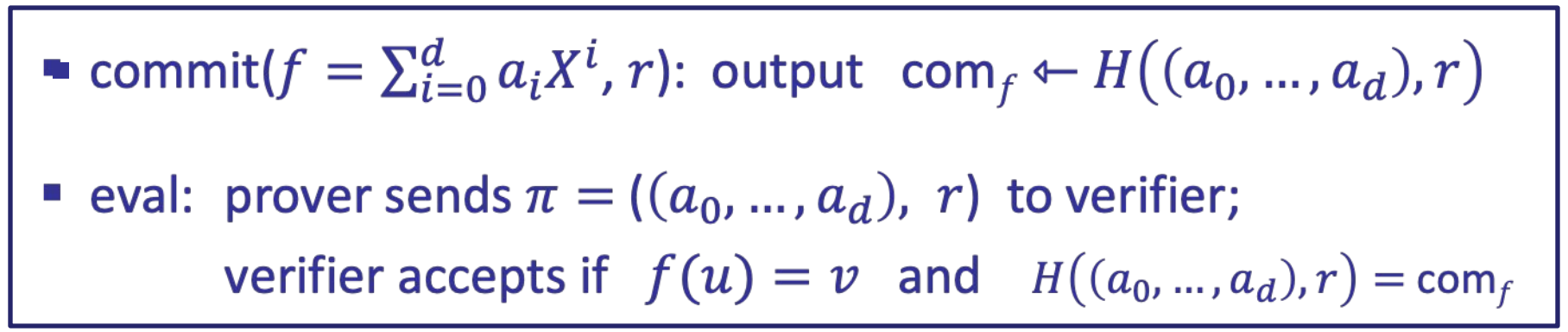

• trivial commitment scheme


  • Proof $\Pi$ is not succint: prove size and verification time are all linear to d
  • It is not a polynomial commitment

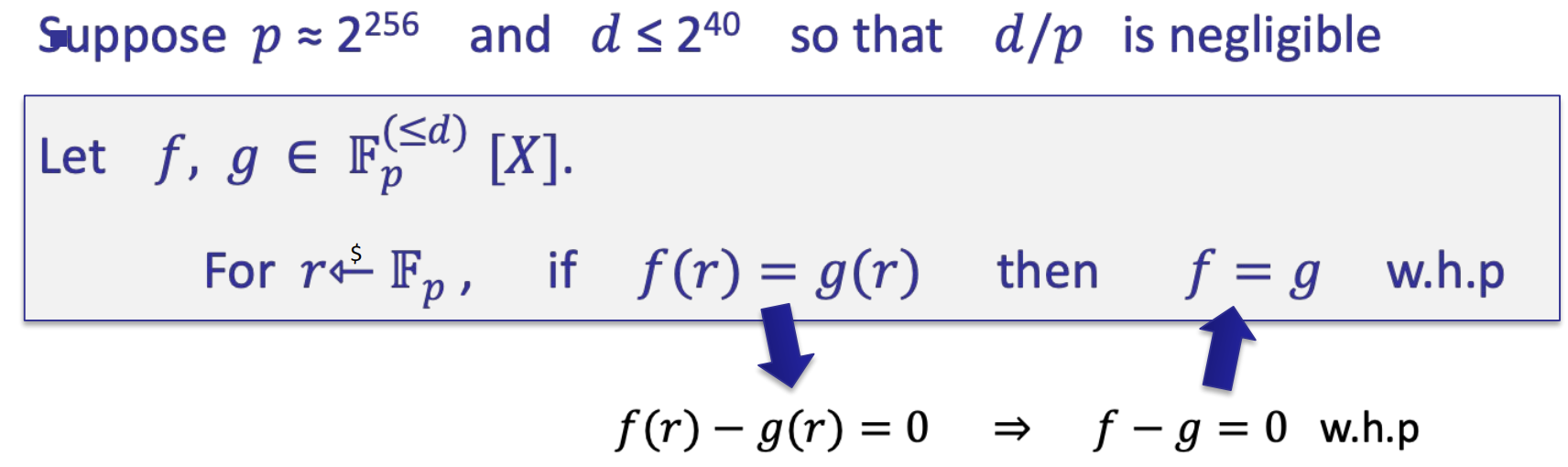

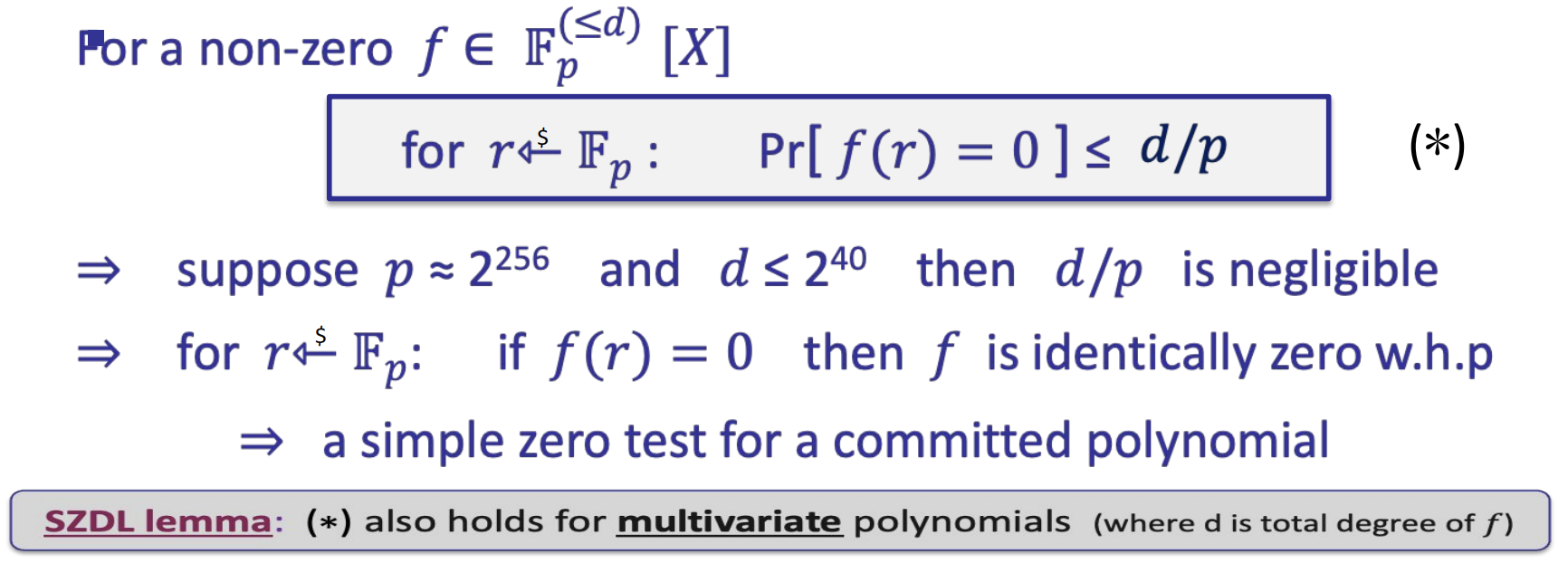

• A useful observation

  • Zero test


  • Equality test

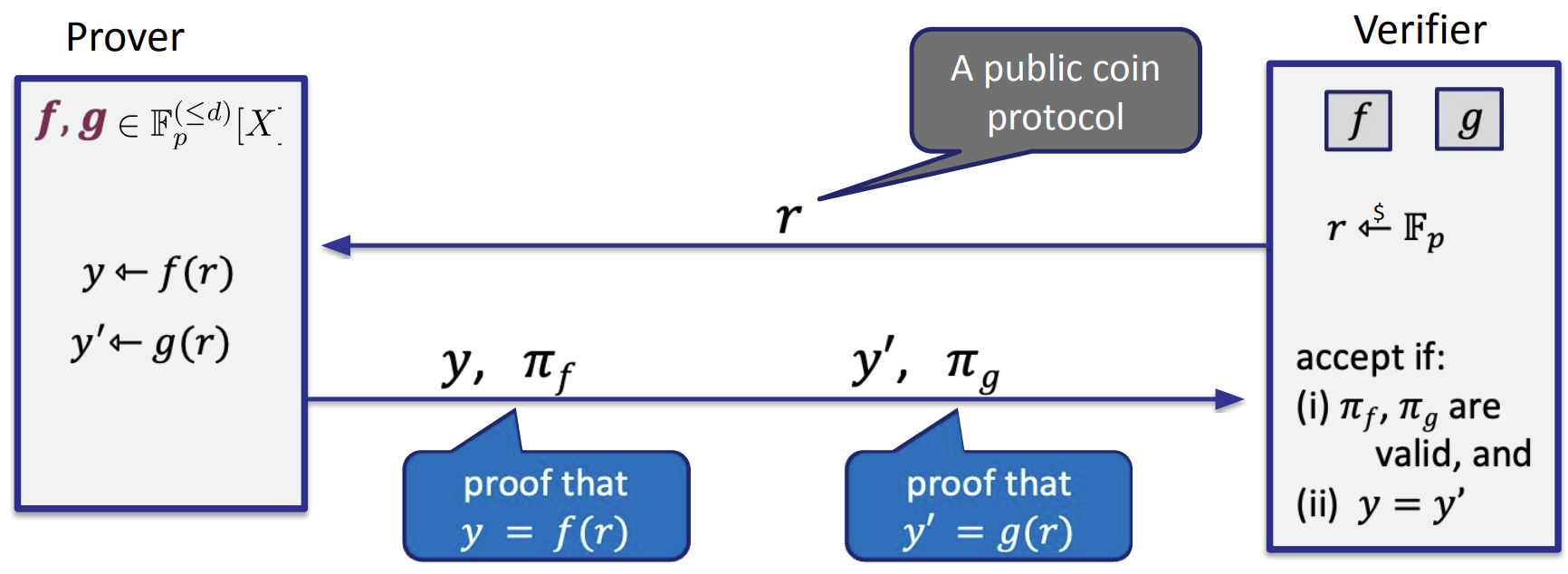

  • The equality test protocol

    • Interactive protocol


    • Making it a SNARK (non-interactive)

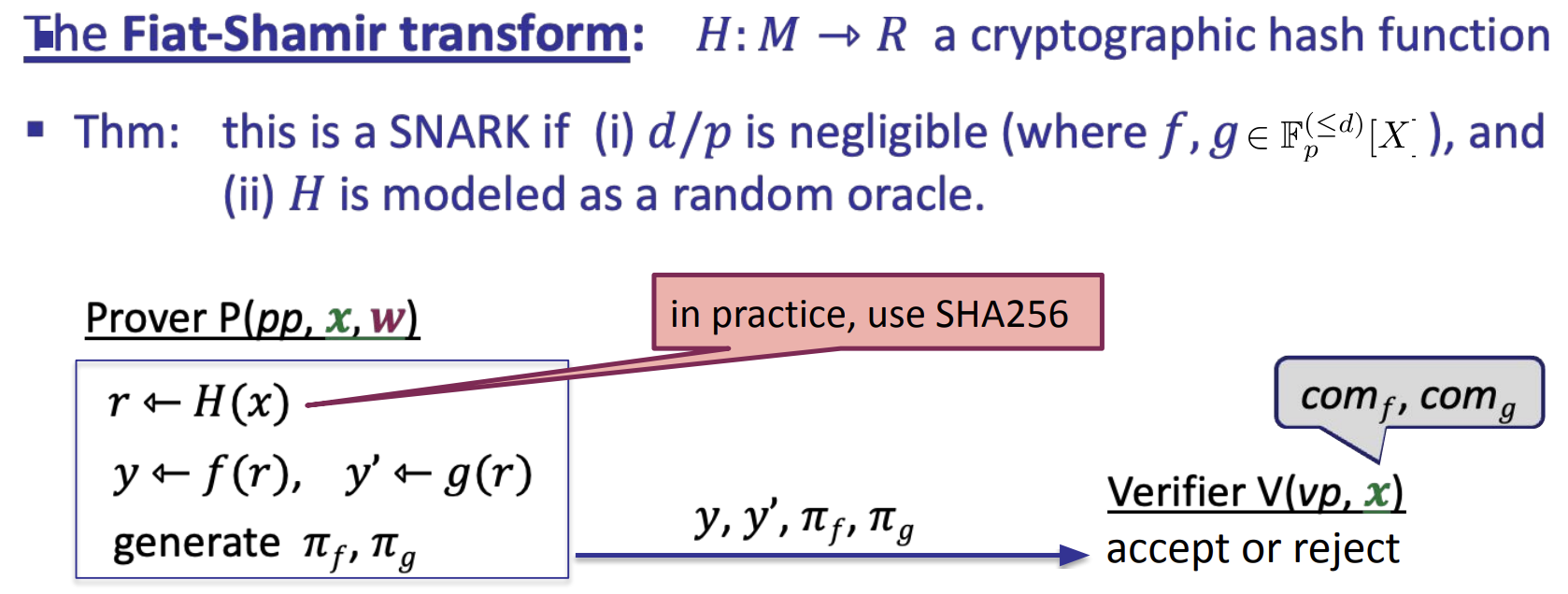

      • The Fiat-Shamir transform

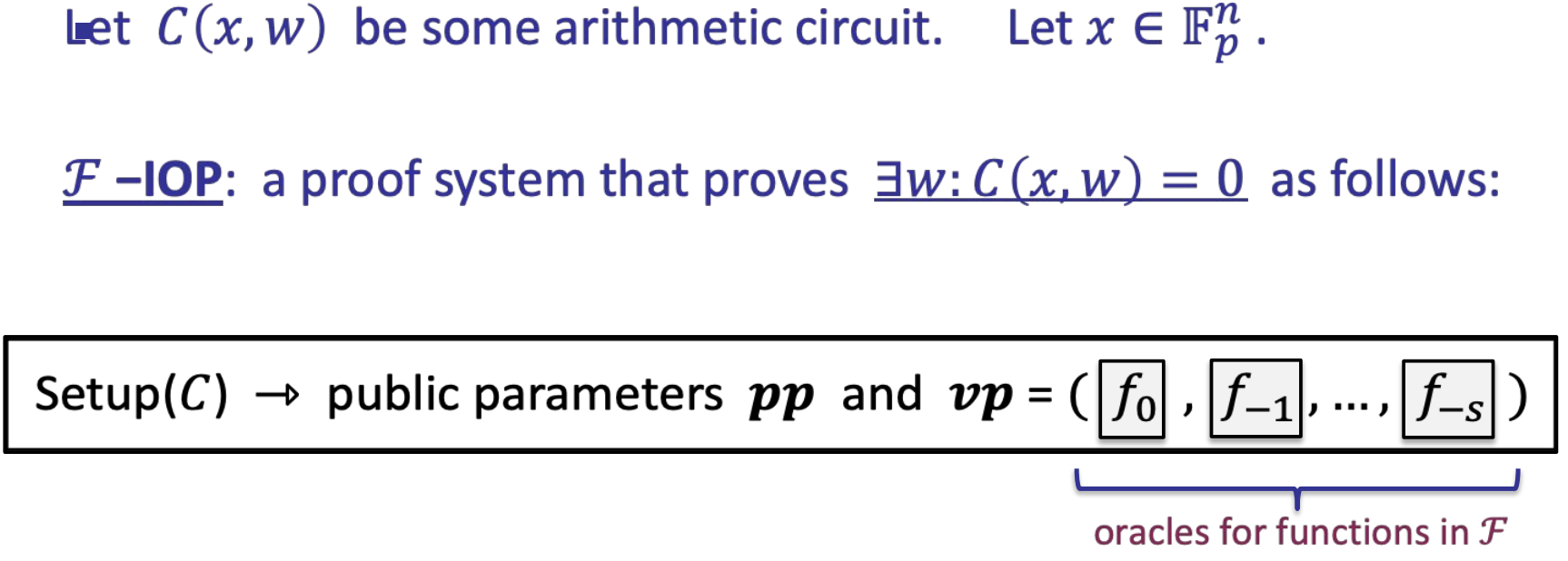

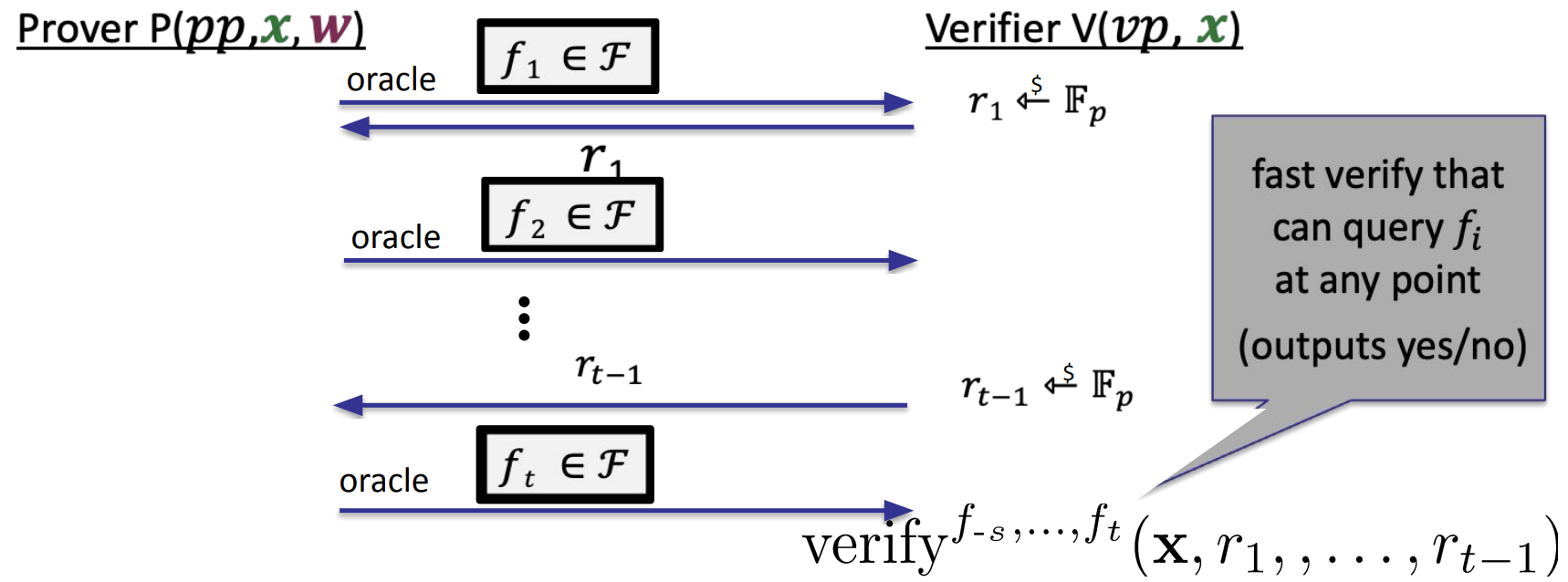

• F-IOP

  • boost functional commitment -> SNARK for general circuits


• Just like the SumCheck Protocol
• The IOP Zoo
  • Poly-IOP: Sonic, Marlin, Plonk,… (+Poly-Commit)
  • Multilinear-IOP: Spartan, Clover, Hyperplonk,… (+Multilinear-Commit)
  • Vector-IOP: STARK, Breakdown, Orion,… (+Merkle-Commit)
