DPCM 压缩系统

原理介绍

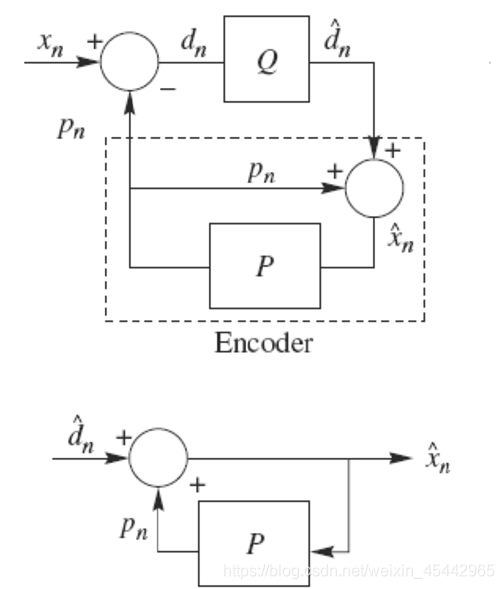

DPCM是差分预测编码调制的缩写，是比较典型的预测编码系统。在DPCM系统中，需要注意的是预测器的输入是已经解码以后的样本。之所以不用原始样本来做预测，是因为在解码端无法得到原始样本，只能得到存在误差的样本。因此，在DPCM编码器中实际内嵌了一个解码器，如编码器中虚线框中所示。

在一个DPCM系统中，有两个因素需要设计：预测器和量化器。理想情况下，预测器和量化器应进行联合优化。实际中，采用一种次优的设计方法：分别进行线性预测器和量化器的优化设计。
在这里插入图片描述

代码实现

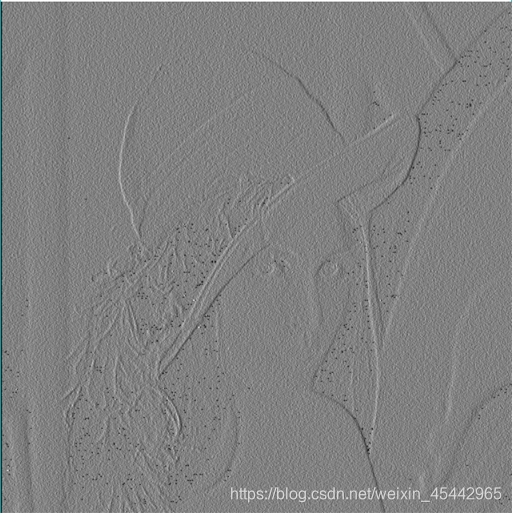

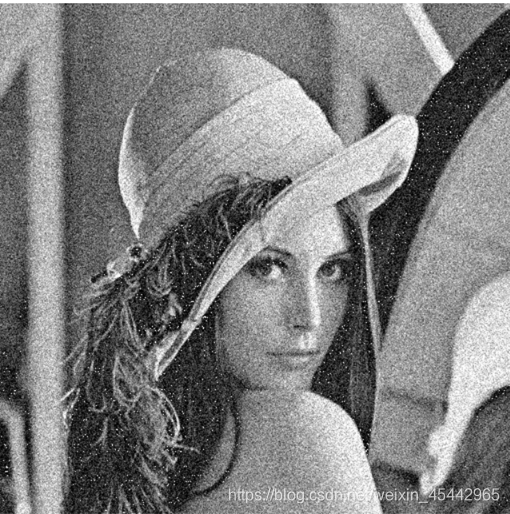

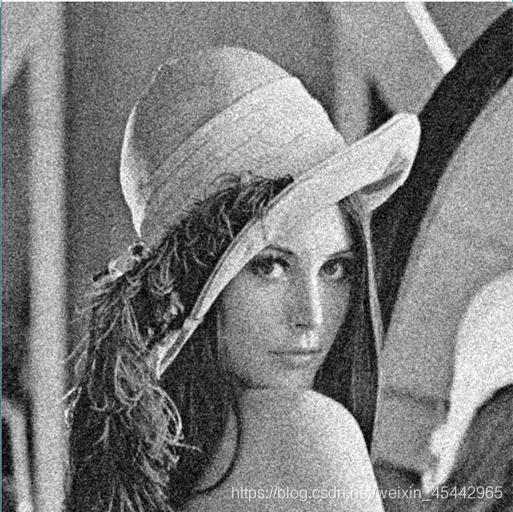

编写代码实现量化比特数位1-8bit的DPCM编码并输出相应的预测误差图像和重建图像，此处以lena_noise为例。
代码如下：

#include "stdafx.h"

#include<iostream>
using namespace std;

int main(int argc, char* argv[])
{
	FILE* YUV = NULL;
	FILE* REBUILD = NULL;
	FILE* PRE = NULL;
	int w = 512;
	int h = 512;

	if ((fopen_s(&YUV, "lena_noise.yuv", "rb")) != 0)
	{
		cout << "Failed to open the YUV file!" << endl;
	}
	else
	{
		cout << "File successfully opened!" << endl;
	}
	if ((fopen_s(&PRE, "e.yuv", "wb")) != 0)
	{
		cout << "Failed to write in the RGB file!" << endl;
	}
	else
	{
		cout << "Successfully written RGB!" << endl;
	}
	if ((fopen_s(&REBUILD, "lenadpcm.yuv", "wb")) != 0)
	{
		cout << "Failed to write in the RGB file!" << endl;
	}
	else
	{
		cout << "Successfully written RGB!" << endl;
	}

	fseek(YUV, 0L, SEEK_END);
	int size;
	size = ftell(YUV);
	fseek(YUV, 0L, SEEK_SET);

	unsigned char* YUV_BUFFER = new unsigned char[size];
	unsigned char* Y_BUFFER = new unsigned char[size / 3];
	unsigned char* U_BUFFER = new unsigned char[size / 3];
	unsigned char* V_BUFFER = new unsigned char[size / 3];

	YUV_BUFFER = new unsigned char[size];
	fread(YUV_BUFFER, sizeof(unsigned char), size, YUV);

	for (int i = 0; i < (size / 3); i++)
	{
		Y_BUFFER[i] = YUV_BUFFER[i];
	}
	for (int i = 0; i < (size / 3); i++)
	{
		U_BUFFER[i] = YUV_BUFFER[i + (size / 3)];
	}
	for (int i = 0; i < (size / 3); i++)
	{
		V_BUFFER[i] = YUV_BUFFER[i + (size * 2 / 3)];
	}

	unsigned char* Y_REBUILD = new unsigned char[size * 2 / 3];
	unsigned char* E_BUFFER = new unsigned char[size * 2 / 3];

	for (int i = 0; i < h; i++)
	{
		for (int j = 0; j < w; j++)
		{
			int k = 0;
			if (j == 0)
			{
				Y_REBUILD[j + i * w] = Y_BUFFER[j + i * w];
				E_BUFFER[j + i * w] = 0;
			}
			if (j != 0)
			{
				k = Y_BUFFER[j + i * w] - Y_REBUILD[j + i * w - 1];
				E_BUFFER[j + i * w] = (k + 256) / 2 - 1;
				Y_REBUILD[j + i * w] = 2 * (E_BUFFER[j + i * w] + 1) + Y_REBUILD[j + i * w - 1];
			}
		}
	}


	fwrite(Y_REBUILD, sizeof(unsigned char), size / 3, REBUILD);
	fwrite(U_BUFFER, sizeof(unsigned char), size / 3, REBUILD);
	fwrite(V_BUFFER, sizeof(unsigned char), size / 3, REBUILD);

	fwrite(E_BUFFER, sizeof(unsigned char), size / 3, PRE);
	fwrite(U_BUFFER, sizeof(unsigned char), size / 3, PRE);
	fwrite(V_BUFFER, sizeof(unsigned char), size / 3, PRE);

	free(YUV_BUFFER);
	free(Y_BUFFER);
	free(U_BUFFER);
	free(V_BUFFER);
	free(Y_REBUILD);


}
