1.需求
集成海康威视DS-K560人证对比终端设备，实现人脸+身份证识别，识别出身份证信息，抓拍人脸照片以及身份证照片
2.代码实现
1.首先我们需要把海康威视的的部分库文件导入到我们的项目中,没有库文件可以去海康威视的官网下载最新的SDK，压缩包里面会有库文件，链接我会放在最下面。
需要导入的文件有：HCNetSDKCom文件夹、AudioRender.dll、HCCore.dll、HCNetSDK.dll、hlog.dll、hpr.dll、libeay32.dll、ssleay32.dll。

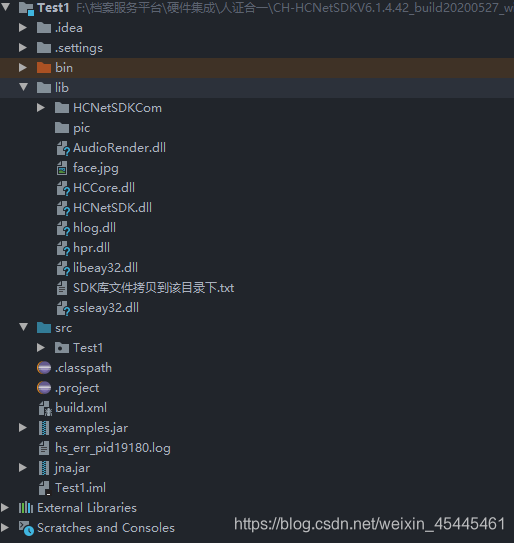

以下是我的库文件存放路径大家可以参考一下
2.
设备登录
/**
* 登录
* */
public static void login(){
//注册之前判断有没有已注册用户，有就删除
if(lUserID>-1){
//注销
hCNetSDK.NET_DVR_Logout(lUserID);
lUserID = -1;
}
//注册
//设备IP地址
m_sDeviceIP = "192.168.1.64";
m_strLoginInfo.sDeviceAddress = new byte[HCNetSDK.NET_DVR_DEV_ADDRESS_MAX_LEN];
System.arraycopy(m_sDeviceIP.getBytes(), 0, m_strLoginInfo.sDeviceAddress, 0, m_sDeviceIP.length());
//设备账户 如果没有，一般默认为admin
m_sUsername = "admin";
m_strLoginInfo.sUserName = new byte[HCNetSDK.NET_DVR_LOGIN_USERNAME_MAX_LEN];
System.arraycopy(m_sUsername.getBytes(), 0, m_strLoginInfo.sUserName, 0, m_sUsername.length());
//设备密码 购买时会提供
m_sPassword ="1232132";
m_strLoginInfo.sPassword = new byte[HCNetSDK.NET_DVR_LOGIN_PASSWD_MAX_LEN];
System.arraycopy(m_sPassword.getBytes(), 0, m_strLoginInfo.sPassword, 0, m_sPassword.length());
//设备端口
m_strLoginInfo.wPort =8000;
//海康威视登录登录方法
lUserID =hCNetSDK.NET_DVR_Login_V40(m_strLoginInfo,m_strDeviceInfo);
//判断注册是否成功
if(lUserID==-1){
JOptionPane.showMessageDialog(null, "false，错误号:" + hCNetSDK.NET_DVR_GetLastError());
} else {
JOptionPane.showMessageDialog(null, "success");
}
}
报警布防监听
//布防
public static void initMemberFlowUpload(){
//设置报警回调函数
boolean callflag = hCNetSDK.NET_DVR_SetDVRMessageCallBack_V31(new Haikangimpl(),null);
if(callflag){
System.out.println("callback----success+设置回调函数成功");
}
//启用布防-其他报警布防参数不需要设置，不支持
HCNetSDK.NET_DVR_SETUPALARM_PARAM lpSetupParam = new HCNetSDK.NET_DVR_SETUPALARM_PARAM();
lpSetupParam.dwSize=lpSetupParam.size();
lpSetupParam.byLevel=1;//智能交通布防优先级：0- 一等级（高），1- 二等级（中），2- 三等级（低）
lpSetupParam.byAlarmInfoType=1;//智能交通报警信息上传类型：0- 老报警信息（NET_DVR_PLATE_RESULT），1- 新报警信息(NET_ITS_PLATE_RESULT)
lpSetupParam.byDeployType =1; //布防类型(仅针对门禁主机、人证设备)：0-客户端布防(会断网续传)，1-实时布防(只上传实时数据)
lpSetupParam.write();
final int lAlarmHandle = hCNetSDK.NET_DVR_SetupAlarmChan_V41(lUserID,lpSetupParam);
if (lAlarmHandle==-1)
{
System.out.println("NET_DVR_SetupAlarmChan_V41 error, %d\n"+hCNetSDK.NET_DVR_GetLastError());
hCNetSDK.NET_DVR_Logout(lUserID);
hCNetSDK.NET_DVR_Cleanup();
System.out.println("布防失败");
}
else {
System.out.println("bufangsuccess++布防成功");
}
//等待过程中，如果设备上传报警信息，在报警回调函数里面接收和处理报警信息
Timer timer =new Timer();// 实例化Timer类
timer.schedule(new TimerTask() {
@Override
public void run() {
//撤销布防上传通道
if (! hCNetSDK.NET_DVR_CloseAlarmChan_V30(lAlarmHandle))
{
System.out.println("! hCNetSDK.NET_DVR_CloseAlarmChan_V31(lAlarmHandle)\n"+ hCNetSDK.NET_DVR_GetLastError() +"\n" +hCNetSDK.NET_DVR_GetErrorMsg(null) );
hCNetSDK.NET_DVR_Logout(lUserID);
hCNetSDK. NET_DVR_Cleanup();
return;
}
//注销用户
hCNetSDK.NET_DVR_Logout(lUserID);
//释放SDK资源
hCNetSDK.NET_DVR_Cleanup();
this.cancel();
System.gc();//主动回收垃圾
}
}, 100 * 60 * 1000 );// 这里毫秒
}
回调函数
public class Haikangimpl implements HCNetSDK.FMSGCallBack_V31{
@Override
public boolean invoke(int lCommand, HCNetSDK.NET_DVR_ALARMER pAlarmer, Pointer pAlarmInfo, int dwBufLen, Pointer pUser) {
String sAlarmType = new String();
Date today = new Date();
DateFormat dateFormat = new SimpleDateFormat("yyyy-MM-dd hh:mm:ss");
String[] sIP = new String[2];
// sAlarmType = new String("lCommand=0x") + Integer.toHexString(lCommand);
switch (lCommand){
case HCNetSDK.COMM_ID_INFO_ALARM: ///身份证信息*/
HCNetSDK.NET_DVR_ID_CARD_INFO_ALARM strIDCardInfo = new HCNetSDK.NET_DVR_ID_CARD_INFO_ALARM();
strIDCardInfo.write();
Pointer pIDCardInfo = strIDCardInfo.getPointer();
pIDCardInfo.write(0, pAlarmInfo.getByteArray(0, strIDCardInfo.size()), 0, strIDCardInfo.size());
strIDCardInfo.read();
sAlarmType = sAlarmType + "：门禁身份证刷卡信息，身份证号码：" + new String(strIDCardInfo.struIDCardCfg.byIDNum).trim() + "，姓名：" +
new String(strIDCardInfo.struIDCardCfg.byName).trim() + "，报警主类型：" + strIDCardInfo.dwMajor + "，报警次类型：" + strIDCardInfo.dwMinor;
// String s =new String(strIDCardInfo.struIDCardCfg.byName).trim();
// /*System.out.println(sAlarmType);*/
// String name=new String(strIDCardInfo.struIDCardCfg.byName).trim();//姓名
// String cardnum=new String(strIDCardInfo.struIDCardCfg.byIDNum).trim();//身份证号码
// String address=new String(strIDCardInfo.struIDCardCfg.byAddr).trim();//地址
// String struBirth=new String(String.valueOf(strIDCardInfo.struIDCardCfg.struBirth)).trim();//出生日期
// System.out.println("name:"+name+"\ncardnum："+cardnum+"\naddress:"+address);
// System.out.println(sAlarmType);
//身份证图片
if (strIDCardInfo.dwPicDataLen > 0) {
SimpleDateFormat sf = new SimpleDateFormat("yyyyMMddHHmmss");
String newName = sf.format(new Date());
FileOutputStream fout;
try {
String filename ="F:\\硬件集成\\人证合一\\CH-HCNetSDKV6.1.4.42_build20200527_win64\\CH-HCNetSDKV6.1.4.42_build20200527_win64\\Demo示例\\4- Java 开发示例\\3-明眸门禁优化接口\\Test1\\lib\\pic" +
newName + "_IDInfoPic.jpg";
fout = new FileOutputStream(filename);
//将字节写入文件
long offset = 0;
ByteBuffer buffers = strIDCardInfo.pPicData.getByteBuffer(offset, strIDCardInfo.dwPicDataLen);
byte[] bytes = new byte[strIDCardInfo.dwPicDataLen];
buffers.rewind();
buffers.get(bytes);
fout.write(bytes);
fout.close();
} catch (IOException e) {
// TODO Auto-generated catch block
e.printStackTrace();
}
}
//抓拍图片
if (strIDCardInfo.dwCapturePicDataLen > 0) {
SimpleDateFormat sf = new SimpleDateFormat("yyyyMMddHHmmss");
String newName = sf.format(new Date());
FileOutputStream fout;
try {
String filename = "F:\\硬件集成\\人证合一\\CH-HCNetSDKV6.1.4.42_build20200527_win64\\CH-HCNetSDKV6.1.4.42_build20200527_win64\\Demo示例\\4- Java 开发示例\\3-明眸门禁优化接口\\Test1\\lib\\pic" +
newName + "_IDInfoCapturePic.jpg";
tFamilyinfo.setYhzp(filename);
fout = new FileOutputStream(filename);
//将字节写入文件
long offset = 0;
ByteBuffer buffers = strIDCardInfo.pCapturePicData.getByteBuffer(offset, strIDCardInfo.dwCapturePicDataLen);
byte[] bytes = new byte[strIDCardInfo.dwCapturePicDataLen];
buffers.rewind();
buffers.get(bytes);
fout.write(bytes);
fout.close();
} catch (IOException e) {
// TODO Auto-generated catch block
e.printStackTrace();
}
}
break;
case HCNetSDK.COMM_ALARM_ACS: //门禁主机报警信息sout
HCNetSDK.NET_DVR_ACS_ALARM_INFO strACSInfo = new HCNetSDK.NET_DVR_ACS_ALARM_INFO();
strACSInfo.write();
Pointer pACSInfo = strACSInfo.getPointer();
pACSInfo.write(0, pAlarmInfo.getByteArray(0, strACSInfo.size()), 0, strACSInfo.size());
strACSInfo.read();
sAlarmType = sAlarmType + "：门禁主机报警信息，卡号："+ new String(strACSInfo.struAcsEventInfo.byCardNo).trim() + "，卡类型：" +
strACSInfo.struAcsEventInfo.byCardType + "，报警主类型：" + strACSInfo.dwMajor + "，报警次类型：" + strACSInfo.dwMinor;
System.out.println(sAlarmType);
System.out.println(strACSInfo.pPicData);
System.out.println("上传类型："+strACSInfo.byPicTransType);
if(strACSInfo.dwPicDataLen>0)
{
SimpleDateFormat sf = new SimpleDateFormat("yyyyMMddHHmmss");
String newName = sf.format(new Date());
FileOutputStream fout;
try {
String filename = ".\\pic\\"+ new String(pAlarmer.sDeviceIP).trim() +
"_byCardNo["+ new String(strACSInfo.struAcsEventInfo.byCardNo).trim() +
"_"+ newName + "_Acs.jpg";
fout = new FileOutputStream(filename);
//将字节写入文件
long offset = 0;
ByteBuffer buffers = strACSInfo.pPicData.getByteBuffer(offset, strACSInfo.dwPicDataLen);
byte [] bytes = new byte[strACSInfo.dwPicDataLen];
buffers.rewind();
buffers.get(bytes);
fout.write(bytes);
fout.close();
} catch (FileNotFoundException e) {
// TODO Auto-generated catch block
e.printStackTrace();
} catch (IOException e) {
// TODO Auto-generated catch block
e.printStackTrace();
}
}
break;
case HCNetSDK.COMM_UPLOAD_FACESNAP_RESULT:
//实时人脸抓拍上传
HCNetSDK.NET_VCA_FACESNAP_RESULT strFaceSnapInfo = new HCNetSDK.NET_VCA_FACESNAP_RESULT();
strFaceSnapInfo.write();
Pointer pFaceSnapInfo = strFaceSnapInfo.getPointer();
pFaceSnapInfo.write(0, pAlarmInfo.getByteArray(0, strFaceSnapInfo.size()), 0, strFaceSnapInfo.size());
strFaceSnapInfo.read();
sAlarmType = sAlarmType + "：人脸抓拍上传，人脸评分：" + strFaceSnapInfo.dwFaceScore + "，年龄段：" + strFaceSnapInfo.struFeature.byAgeGroup + "，性别：" + strFaceSnapInfo.struFeature.bySex;
SimpleDateFormat df = new SimpleDateFormat("yyyyMMddHHmmss"); //设置日期格式
String time = df.format(new Date()); // new Date()为获取当前系统时间
//人脸图片写文件
try {
FileOutputStream small = new FileOutputStream(System.getProperty("user.dir") + "\\pic\\" + time + "small.jpg");
FileOutputStream big = new FileOutputStream(System.getProperty("user.dir") + "\\pic\\" + time + "big.jpg");
if(strFaceSnapInfo.dwFacePicLen > 0)
{
try {
small.write(strFaceSnapInfo.pBuffer1.getByteArray(0, strFaceSnapInfo.dwFacePicLen), 0, strFaceSnapInfo.dwFacePicLen);
small.close();
} catch (IOException ignored) {
}
}
if(strFaceSnapInfo.dwFacePicLen > 0)
{
try {
big.write(strFaceSnapInfo.pBuffer2.getByteArray(0, strFaceSnapInfo.dwBackgroundPicLen), 0, strFaceSnapInfo.dwBackgroundPicLen);
big.close();
} catch (IOException ignored) {
}
}
} catch (FileNotFoundException ignored) {
}
break;
// case HCNetSDK.COMM_UPLOAD_FACESNAP_RESULT:
// HCNetSDK.NET_DVR_ID_CARD_INFO_ALARM
// break;
default:
//throw new IllegalStateException("Unexpected value: " + lCommand);
System.out.println("Unexpected value: " + lCommand);
}
return true;
}
}
