DPVS安装配置、使用(1)

1 前言

        这两天一直在看dpvs这块,从开始安装到启动dpvs,一路上遇到各种各样的坑。总结了一下,以供各位参考。

        首先DPVS环境需要网卡能支持DPDK技术,由于本人使用的服务器用的intel的网卡,通过查看官方(http://core.dpdk.org/supported/nics/intel/),intel支持dpdk技术的网卡如下所示:

  • e1000 (82540, 82545, 82546)
  • e1000e (82571, 82572, 82573, 82574, 82583, ICH8, ICH9, ICH10, PCH, PCH2, I217, I218, I219)
  • igb (82573, 82576, 82580, I210, I211, I350, I354, DH89xx)
  • igc (I225)
  • ixgbe (82598, 82599, X520, X540, X550)
  • i40e (X710, XL710, X722, XXV710)
  • ice (E810)
  • fm10k (FM10420)
  • ipn3ke (PAC N3000)
  • ifc (IFC)

本文服务器的网卡型号是x520类型的网卡,支持dpdk技术。

官方文档:https://github.com/iqiyi/dpvs

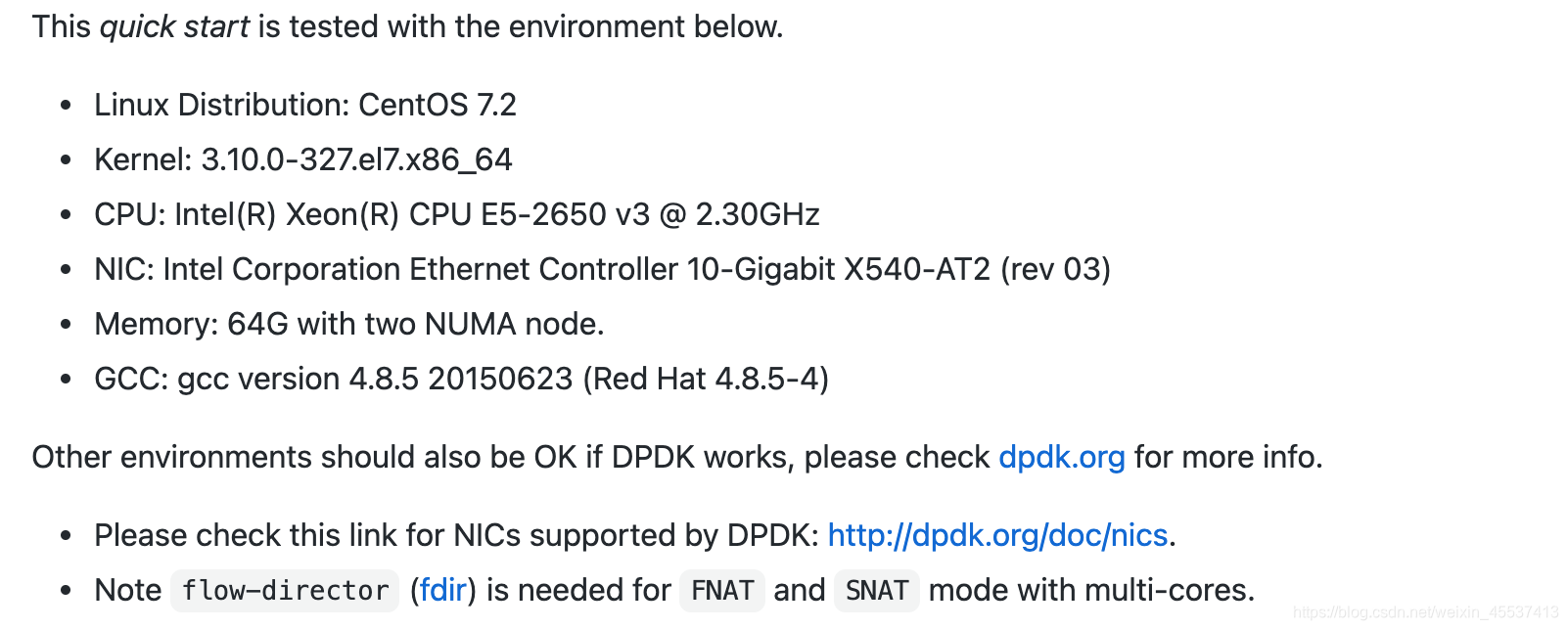

可以看到官方文档给出的一个环境是:

 本人使用的环境是:

  • linux distribution:CentOS Linux release 7.6.1810 (Core)
  • kernel:3.10.0-1160.15.2.el7.x86_64
  • memory:128G

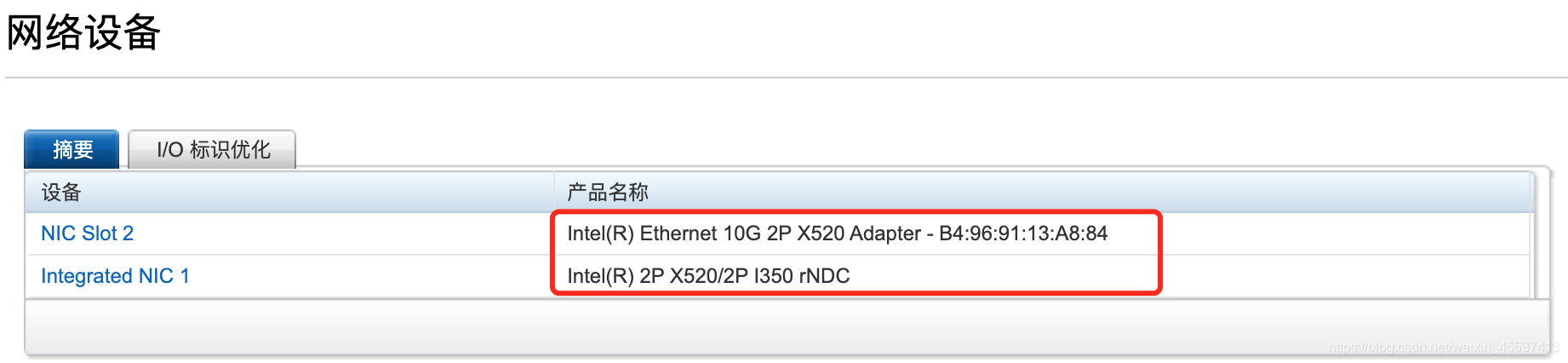

        lspci查看网卡型号:

 2 安装步骤

机器配置:

       1、机器BIOS配置

  •         关闭逻辑核
  •         cpu模式设置performance
  •         内存频率设置最大性能,非auto

        2、Kernel配置cpu隔离参数,避免linux内核应用调度到dpvs使用的核心上

[root@3.sys.dpvs.** bin]$ more /etc/default/grub
GRUB_TIMEOUT=5
GRUB_DISTRIBUTOR="$(sed 's, release .*$,,g' /etc/system-release)"
GRUB_DEFAULT=saved
GRUB_DISABLE_SUBMENU=true
GRUB_CMDLINE_LINUX="scsi_mod.scan=sync crashkernel=auto rhgb quiet default_hugepagesz=1G hugepagesz=1G hugepages=80 nowatchdog nmi_watchdog=0 isolcpus=2,4,6,8,10,12,14,16,18 nohz_full=2,4,6,8,10,12,14,16,18 rcu_nocbs=2,4,6,8,10,12,1
4,16,18 rcu_nocb_poll"
GRUB_TERMINAL_OUTPUT="console"
GRUB_DISABLE_RECOVERY="true"

 使重启后配置参数仍然生效:

grub2-mkconfig -o /boot/grub2/grub.cfg

cpu隔离操作的相关参考说明可以查略相关资料:

nowatchdog nmi_watchdog=0——关闭watchlog功能

https://www.cnblogs.com/alog9/p/11551441.html———cpu隔离操作

https://blog.csdn.net/weixin_42361608/article/details/116811268?utm_medium=distribute.pc_relevant.none-task-blog-2%7Edefault%7EBlogCommendFromBaidu%7Edefault-17.control&depth_1-utm_source=distribute.pc_relevant.none-task-blog-2%7Edefault%7EBlogCommendFromBaidu%7Edefault-17.control——cpu减少电力消耗

https://blog.csdn.net/haitaoliang/article/details/22427045——isolcpus功能与使用介绍

lscpu查看是否关闭超线程(禁止逻辑核)

 正常情况下关闭逻辑核后threads per core是为1的。

3、安装依赖包

 # 注意kernel以及相应的kernel组件的版本需要和现在使用的kernel版本相对应
 $ rpm -qa | grep kernel | grep "3.10.0" | sort
yum group install "Development Tools"
yum install patch libnuma* numactl numactl-devel kernel-devel openssl* popt* gcc* libpcap* -y
//yum install numactl numactl-devel gcc openssl-devel  popt-devel patch automake pciutils net-tools libpcap-devel automake libnl libnl-devel libnfnetlink-devel  -y
yum install kernel-devel-$(uname -r)
yum install kernel-tools-$(uname -r)
yum install kernel-headers-$(uname -r)

4、重启服务器使内核参数修改生效

reboot

2.1 安装DPVS

$ git clone https://github.com/iqiyi/dpvs.git
$ cd dpvs

        这个地方有个坑,git clone  https://github.com/iqiyi/dpvs.git不好使,需要改为git clone  git://github.com/iqiyi/dpvs.git

        进入dpvs目录下:(现在最新的是dpdk-stable-18.11.2,dpdk-17.11.2.tar.xz安装过程有很多傻b问题,详情可以看https://github.com/iqiyi/dpvs/issues/701

wget https://fast.dpdk.org/rel/dpdk-18.11.2.tar.xz
tar vxf dpdk-18.11.2.tar.xz

接下来打补丁:(官方意思是不知道补丁干嘛的就都打了吧)

 $ cd /<>/dpvs
 $ cp patch/dpdk-stable-18.11.2/*.patch dpdk-stable-18.11.2/
 $ cd dpdk-stable-18.11.2/
 # 0001号补丁主要是用于在kni网卡上开启硬件多播功能,比如在kni设备上启动ospfd
 $ patch -p1 < 0001-kni-use-netlink-event-for-multicast-driver-part.patch
 # patching file lib/librte_eal/linuxapp/kni/kni_net.c
 ​
 # 0002号补丁主要是使用dpvs的UOA模块的时候需要用到
 $ patch -p1 < 0002-net-support-variable-IP-header-len-for-checksum-API.patch
 # patching file lib/librte_net/rte_ip.h

编译dpdk

$ cd /<>/dpvs/dpdk-stable-18.11.2
$ make config T=x86_64-native-linuxapp-gcc
$ make
$ export RTE_SDK=$PWD
$ export RTE_TARGET=build

        需要指定RTE_TARGET,后续DPVS安装时候需要根据其设定值找config文件,否则会报错。

配置hugepage

        和其他的一般程序不同,dpvs使用的dpdk并不是从操作系统中索要内存,而是直接使用大页内存(hugepage),极大地提高了内存分配的效率。

$ # for NUMA machine
$ echo 8192 > /sys/devices/system/node/node0/hugepages/hugepages-2048kB/nr_hugepages
$ echo 8192 > /sys/devices/system/node/node1/hugepages/hugepages-2048kB/nr_hugepages
#由于前面已经配置了cpu隔离参数时设置了大页内存,上面这两步可以省略了


$ mkdir /mnt/huge
$ mount -t hugetlbfs nodev /mnt/huge

        挂载动作可以写入/etc/fstab文件里,进行开机自启挂载。

查看大页内存分配:

cat /proc/meminfo |grep Hug

挂载驱动模块

$ modprobe uio
$ cd /<>/dpvs/dpdk-stable-18.11.2
$ insmod /<>/dpvs/dpdk-stable-18.11.2/build/kmod/igb_uio.ko
$ insmod /<>/dpvs/dpdk-stable-18.11.2/build/kmod/rte_kni.ko carrier=on

设置网卡加入dpdk
$ ./usertools/dpdk-devbind.py --status
$ ifconfig eth0 down  # assuming eth0 is 0000:06:00.0 #假设使用的是eth0作为dpdk的网卡
$ ./usertools/dpdk-devbind.py -b igb_uio 0000:06:00.0

检查是否已经加入dpdk
$ ./usertools/dpdk-devbind.py --status

安装dpvs模块前可能需要对源码文件进行修改

/app/dpvs/src/config.mk
[root@1.ucloud-lan1.dpvs.tt.bjs.p1staff.com src]$ more config.mk
#
# DPVS is a software load balancer (Virtual Server) based on DPDK.
#
# Copyright (C) 2017 iQIYI (www.iqiyi.com).
# All Rights Reserved.
#
# This program is free software; you can redistribute it and/or
# modify it under the terms of the GNU General Public License
# as published by the Free Software Foundation; either version 2
# of the License, or (at your option) any later version.
#
# This program is distributed in the hope that it will be useful,
# but WITHOUT ANY WARRANTY; without even the implied warranty of
# MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE.  See the
# GNU General Public License for more details.
#

#
# enable as needed.
#
# TODO: use standard way to define compile flags.
#

CONFIG_MLX5=n

CFLAGS += -D DPVS_MAX_SOCKET=2
CFLAGS += -D DPVS_MAX_LCORE=64

#CFLAGS += -D CONFIG_DPVS_NEIGH_DEBUG
CFLAGS += -D CONFIG_RECORD_BIG_LOOP
#CFLAGS += -D CONFIG_DPVS_SAPOOL_DEBUG
#CFLAGS += -D CONFIG_DPVS_IPVS_DEBUG
#CFLAGS += -D CONFIG_SYNPROXY_DEBUG
#CFLAGS += -D CONFIG_TIMER_MEASURE
#CFLAGS += -D CONFIG_TIMER_DEBUG
#CFLAGS += -D DPVS_CFG_PARSER_DEBUG
#CFLAGS += -D NETIF_BONDING_DEBUG
#CFLAGS += -D CONFIG_TC_DEBUG
#CFLAGS += -D CONFIG_DPVS_IPVS_STATS_DEBUG
#CFLAGS += -D CONFIG_DPVS_IP_HEADER_DEBUG
#CFLAGS += -D CONFIG_DPVS_MBUF_DEBUG
#CFLAGS += -D CONFIG_DPVS_PDUMP
#CFLAGS += -D CONFIG_DPVS_IPSET_DEBUG
#CFLAGS += -D CONFIG_NDISC_DEBUG
#CFLAGS += -D CONFIG_MSG_DEBUG
#CFLAGS += -D CONFIG_DPVS_MP_DEBUG

GCC_MAJOR = $(shell echo __GNUC__ | $(CC) -E -x c - | tail -n 1)
GCC_MINOR = $(shell echo __GNUC_MINOR__ | $(CC) -E -x c - | tail -n 1)
GCC_VERSION = $(GCC_MAJOR)$(GCC_MINOR)

dpvs模块安装

$ cd dpdk-stable-18.11.2/
$ export RTE_SDK=$PWD
$ cd <path-of-dpvs>

$ make # or "make -j40" to speed up.
$ make install

安装完成后查看文件

$ ls bin/
dpip  dpvs  ipvsadm  keepalived

启动DPVS(这步可以启动,或者后续写进服务里)

$ cp conf/dpvs.conf.single-nic.sample /etc/dpvs.conf
$ ./dpvs &

        一般在实际生产环境中,是把dpvs单独跑在指定的内核上运行:(事先在/etc/default/grub文件里定义好isolcpus要隔离的cpu,后续系统启动时其他应用程序会默认调用到其他核上,这个是内核就已经存在了的isolcpus功能,相关说明文档可以参考一下:https://blog.csdn.net/haitaoliang/article/details/22427045

/dpvs -- --lcores 0@2,1@4,2@6,3@8,4@10,5@12,6@14,7@16,8@18 &

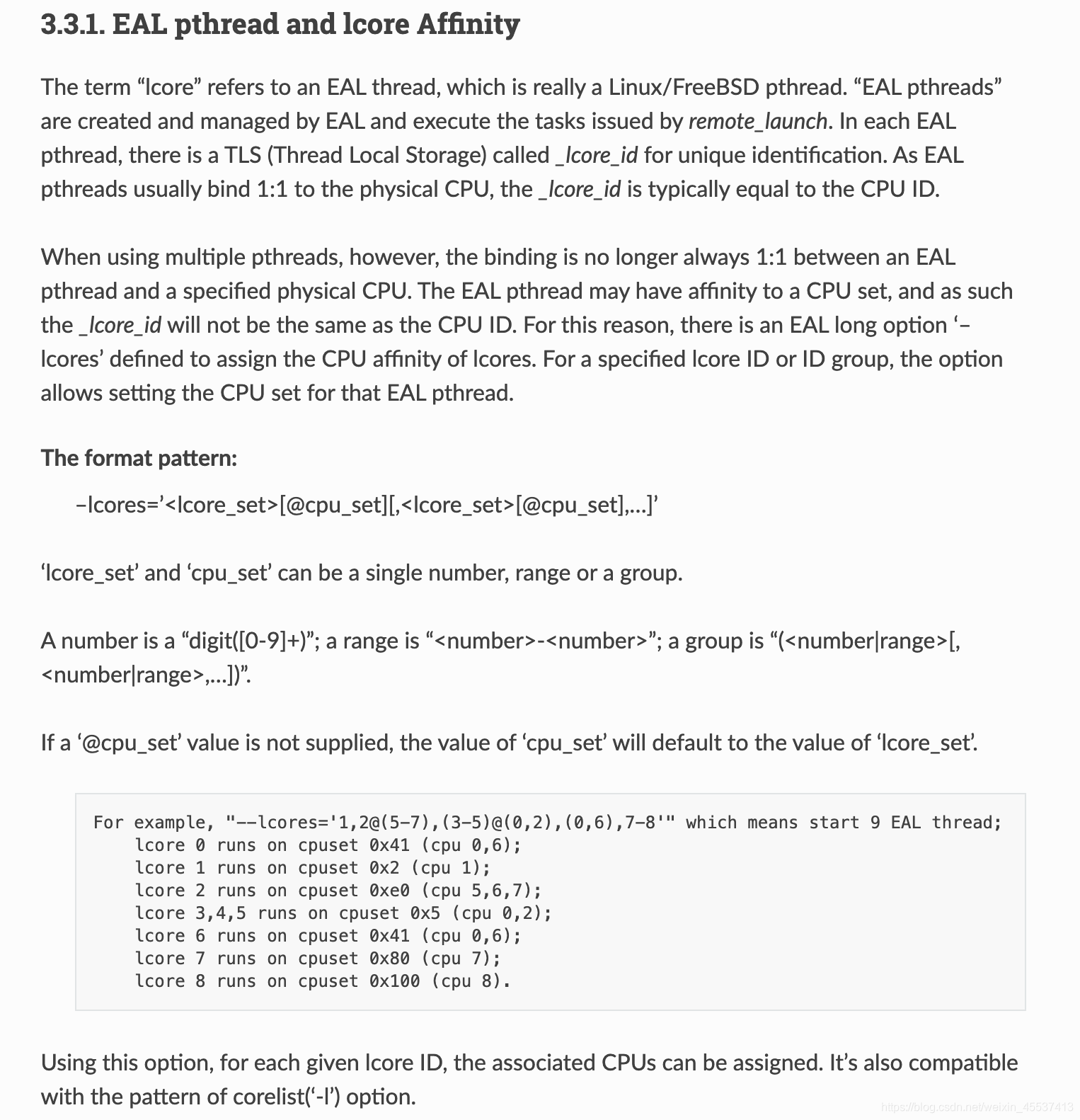

        具体的语法以及相关说明信息可以参考dpdk的一些官方文档,https://doc.dpdk.org/guides/prog_guide/env_abstraction_layer.html#eal-pthread-and-lcore-affinity。如下:

 按文中的描述来看:

        A lcore等价于一个线程,对于单线程情况下,线程一般都与cpu进行1:1的绑定,lcore_id等于cpu的id。对于多线程情况下,这种绑定关系就不再是1:1,因此这种情况下可以用户自己指定程序的不同线程(不同的lcore)对应的不同的核,具体规则见上图。

        直接启动可能会报错,这是由于设置dpdk的网卡数量和dpvs.conf中配置的不一样,修改dpvs.conf配置即可:

EAL: Error - exiting with code: 1
  Cause: ports in DPDK RTE (2) != ports in dpvs.conf(1)

修改dpvs.conf配置使得dpdk网卡数量和配置文件配置的一样:

[root@3.sys.dpvs.tt.bjs.p1staff.com ~]$ more /etc/dpvs.conf
!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
! This is dpvs default configuration file.
!
! The attribute "<init>" denotes the configuration item at initialization stage. Item of
! this type is configured oneshoot and not reloadable. If invalid value configured in the
! file, dpvs would use its default value.
!
! Note that dpvs configuration file supports the following comment type:
!   * line comment: using '#" or '!'
!   * inline range comment: using '<' and '>', put comment in between
!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

! global config
global_defs {
    log_level   WARNING
    ! log_file    /var/log/dpvs.log
    ! log_async_mode    on
}

! netif config
netif_defs {
    <init> pktpool_size     1048575
    <init> pktpool_cache    256

    <init> device dpdk0 {
        rx {
            queue_number        8
            descriptor_number   2048
            rss                 all
        }
        tx {
            queue_number        8
            descriptor_number   2048
        }
        fdir {
            mode                perfect
            pballoc             64k
            status              matched
        }
        ! promisc_mode
        ! kni_name                dpdk0.kni
    }
    <init> device dpdk1 {
        rx {
            queue_number        8
            descriptor_number   2048
            rss                 all
        }
        tx {
            queue_number        8
            descriptor_number   2048
        }
        fdir {
            mode                perfect
            pballoc             64k
            status              matched
        }
        ! promisc_mode
        ! kni_name                dpdk0.kni
    }
    <init> bonding bond0 {
        mode                    4
        slave                   dpdk0
        slave                   dpdk1
        primary                 dpdk0
        kni_name                bond0.kni
    }
}

! worker config (lcores)
worker_defs {
    <init> worker cpu0 {
        type    master
        cpu_id  0
    }

    <init> worker cpu1 {
        type    slave
        cpu_id  1
        port    bond0 {
            rx_queue_ids     0
            tx_queue_ids     0
            ! isol_rx_cpu_ids  9
            ! isol_rxq_ring_sz 1048576
        }
    }

    <init> worker cpu2 {
        type    slave
        cpu_id  2
        port    bond0 {
            rx_queue_ids     1
            tx_queue_ids     1
            ! isol_rx_cpu_ids  10
            ! isol_rxq_ring_sz 1048576
        }
    }

    <init> worker cpu3 {
        type        slave
        cpu_id      3
        port        bond0 {
            rx_queue_ids     2
            tx_queue_ids     2
            ! isol_rx_cpu_ids  11
            ! isol_rxq_ring_sz 1048576
        }
    }

    <init> worker   cpu4 {
        type        slave
        cpu_id      4
        port        bond0 {
            rx_queue_ids     3
            tx_queue_ids     3
            ! isol_rx_cpu_ids  12
            ! isol_rxq_ring_sz 1048576
        }
    }

    <init> worker   cpu5 {
        type        slave
        cpu_id      5
        port        bond0 {
            rx_queue_ids     4
            tx_queue_ids     4
            ! isol_rx_cpu_ids  13
            ! isol_rxq_ring_sz 1048576
        }
    }

    <init> worker   cpu6 {
        type        slave
        cpu_id      6
        port        bond0 {
            rx_queue_ids     5
            tx_queue_ids     5
            ! isol_rx_cpu_ids  14
            ! isol_rxq_ring_sz 1048576
        }
    }

    <init> worker   cpu7 {
        type        slave
        cpu_id      7
        port        bond0 {
            rx_queue_ids     6
            tx_queue_ids     6
            ! isol_rx_cpu_ids  15
            ! isol_rxq_ring_sz 1048576
        }
    }

    <init> worker   cpu8 {
        type        slave
        cpu_id      8
        port        bond0 {
            rx_queue_ids     7
            tx_queue_ids     7
            ! isol_rx_cpu_ids  16
            ! isol_rxq_ring_sz 1048576
        }
    }

    !<init> worker   cpu9 {
    !    type        kni
    !    cpu_id      9
    !    port        dpdk0 {
    !        tx_queue_ids     8
    !    }
    !}

}

! timer config
timer_defs {
    # cpu job loops to schedule dpdk timer management
    schedule_interval    500
}

! dpvs neighbor config
neigh_defs {
    <init> unres_queue_length  128
    timeout                    60
}

! dpvs ipv4 config
ipv4_defs {
    forwarding                 off
    <init> default_ttl         64
    fragment {
        <init> bucket_number   4096
        <init> bucket_entries  16
        <init> max_entries     4096
        <init> ttl             1
    }
}

! dpvs ipv6 config
ipv6_defs {
    disable                     off
    forwarding                  off
    route6 {
        <init> method           hlist
        recycle_time            10
    }
}

! control plane config
ctrl_defs {
    lcore_msg {
        <init> ring_size                4096
        sync_msg_timeout_us             20000
        priority_level                  low
    }
    ipc_msg {
        <init> unix_domain /var/run/dpvs_ctrl
    }
}

! ipvs config
ipvs_defs {
    conn {
        <init> conn_pool_size       16777216
        <init> conn_pool_cache      256
        conn_init_timeout           3
        ! expire_quiescent_template
        ! fast_xmit_close
        ! <init> redirect           off
    }

    udp {
        defence_udp_drop
        uoa_mode        opp
        uoa_max_trail   3
        timeout {
            normal      300
            last        3
        }
    }

    tcp {
        defence_tcp_drop
        timeout {
            none        2
            established 3600
            syn_sent    3
            syn_recv    30
            fin_wait    7
            time_wait   7
            close       3
            close_wait  7
            last_ack    7
            listen      120
            synack      30
            last        2
        }
        synproxy {
            synack_options {
                mss             1452
                ttl             63
                sack
                ! wscale
                ! timestamp
            }
            ! defer_rs_syn
            rs_syn_max_retry    3
            ack_storm_thresh    10
            max_ack_saved       3
            conn_reuse_state {
                close
                time_wait
                ! fin_wait
                ! close_wait
                ! last_ack
           }
        }
    }
}

! sa_pool config
sa_pool {
    pool_hash_size   16
}

        安装完成后,由于dpvs.conf文件里设置资源池大小相关参数导致内存不够用,从而导致dpvs一直起不来。后续优化dpvs配置文件参数解决,dpvs启动可以通过以下脚本来完成:

#!/bin/sh
#LIP:10.189.17.5-62
DPVS_HOME=/app/dpvs/bin
LANIP=10.189.17.4
LAN_GW=10.189.17.1
LAN_NET=10.0.0.0/8

# startup dpvs
$DPVS_HOME/dpvs -- --lcores 0@2,1@4,2@6,3@8,4@10,5@12,6@14,7@16,8@18 &
sleep 30

# if_LAN = bond0
# if_WAN = bond0
############ DPDK ############
# add LAN route for dpvs
$DPVS_HOME/dpip route add ${LANIP}/32 dev bond0 scope kni_host
$DPVS_HOME/dpip route add default via ${LAN_GW} dev bond0
sleep 1

############ KNI ############
ip link set bond0.kni up
ip addr add ${LANIP}/26 dev bond0.kni
sleep 1

评论
添加红包

请填写红包祝福语或标题

红包个数最小为10个

红包金额最低5元

当前余额3.43前往充值 >
需支付:10.00
成就一亿技术人!
领取后你会自动成为博主和红包主的粉丝 规则
hope_wisdom
发出的红包
实付
使用余额支付
点击重新获取
扫码支付
钱包余额 0

抵扣说明:

1.余额是钱包充值的虚拟货币,按照1:1的比例进行支付金额的抵扣。
2.余额无法直接购买下载,可以购买VIP、付费专栏及课程。

余额充值
