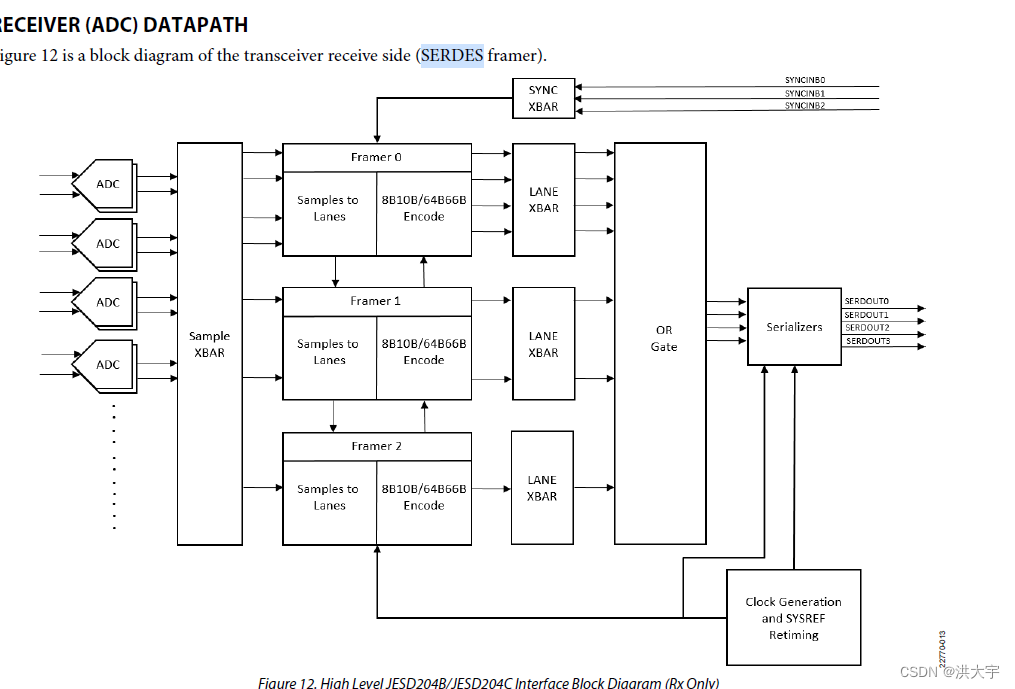

每个帧器都内置了PRBS测试图案发生器，帮助调试JESD204B/JESD204C串行链路。该发生器可以生成不同阶数的PRBS模式，当信号完整性的错误导致链路建立失败时，能够输出串行数据。通过启用此功能，可以调整序列器幅度和预加重，找到最小化接收端PRBS检查器检测到的位错误的最佳设置。要使用此模式，基带处理器必须具有PRBS检查器来检查错误。

摘要生成于 C知道，由 DeepSeek-R1 满血版支持，前往体验 >

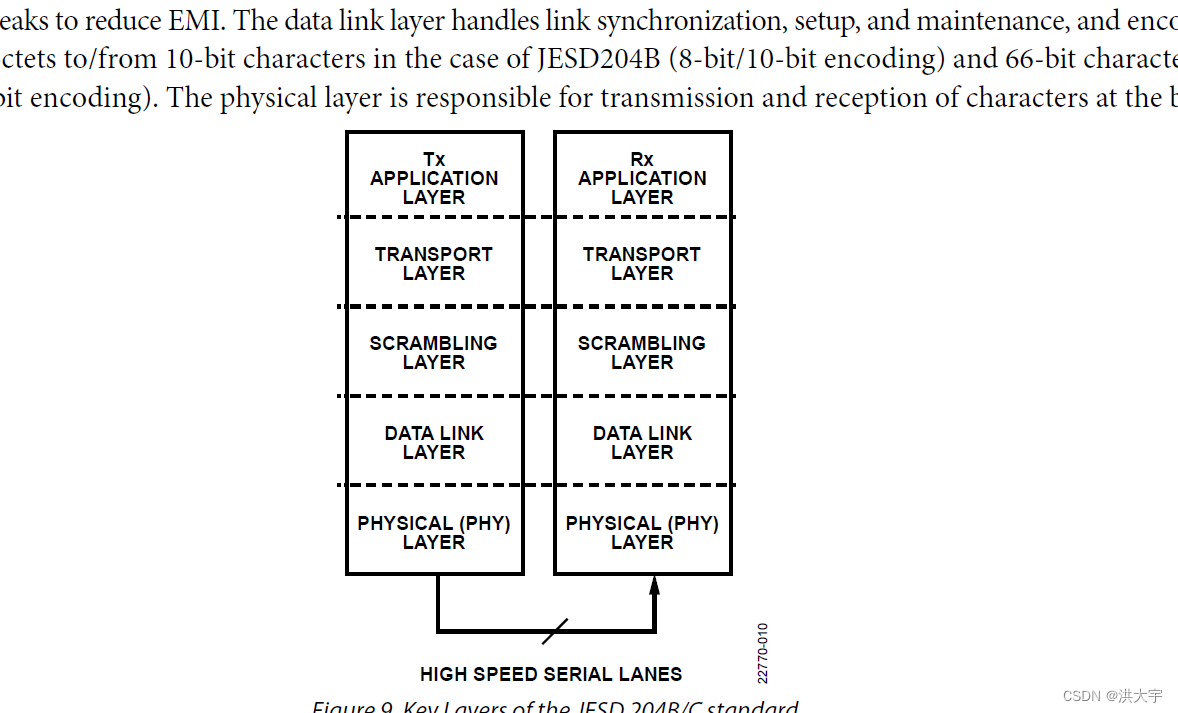

在这里插入图片描述

PRBS 随机数据测试源用于找到 jesd 建链失败的原因

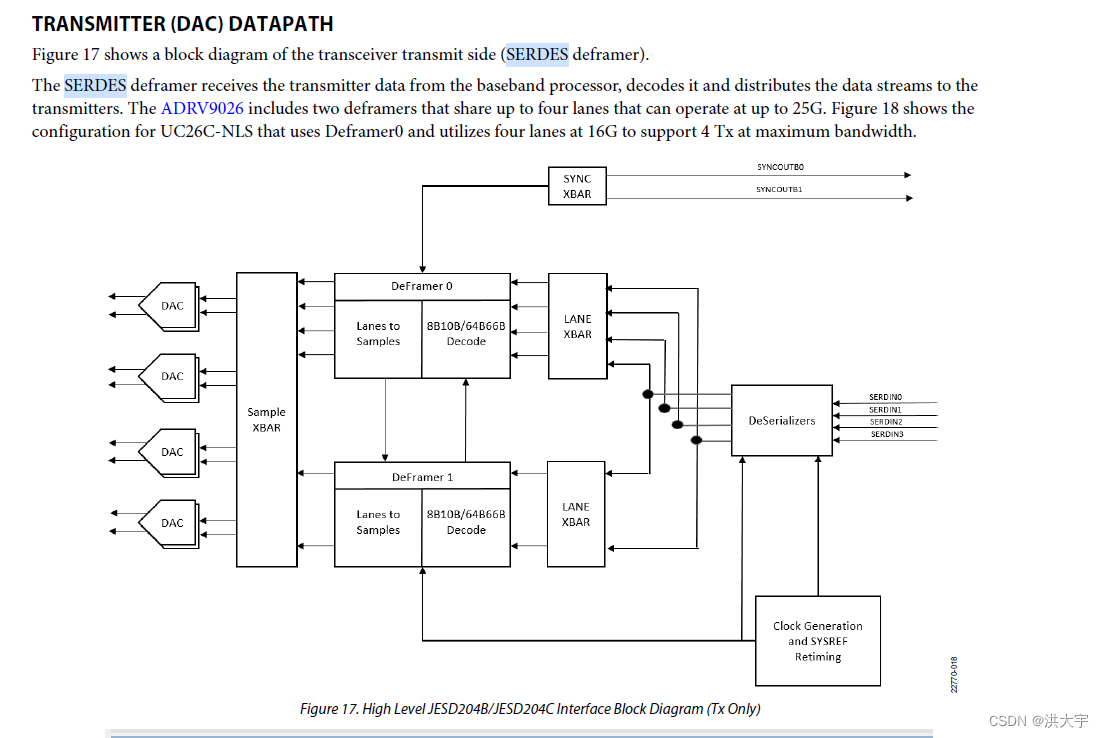

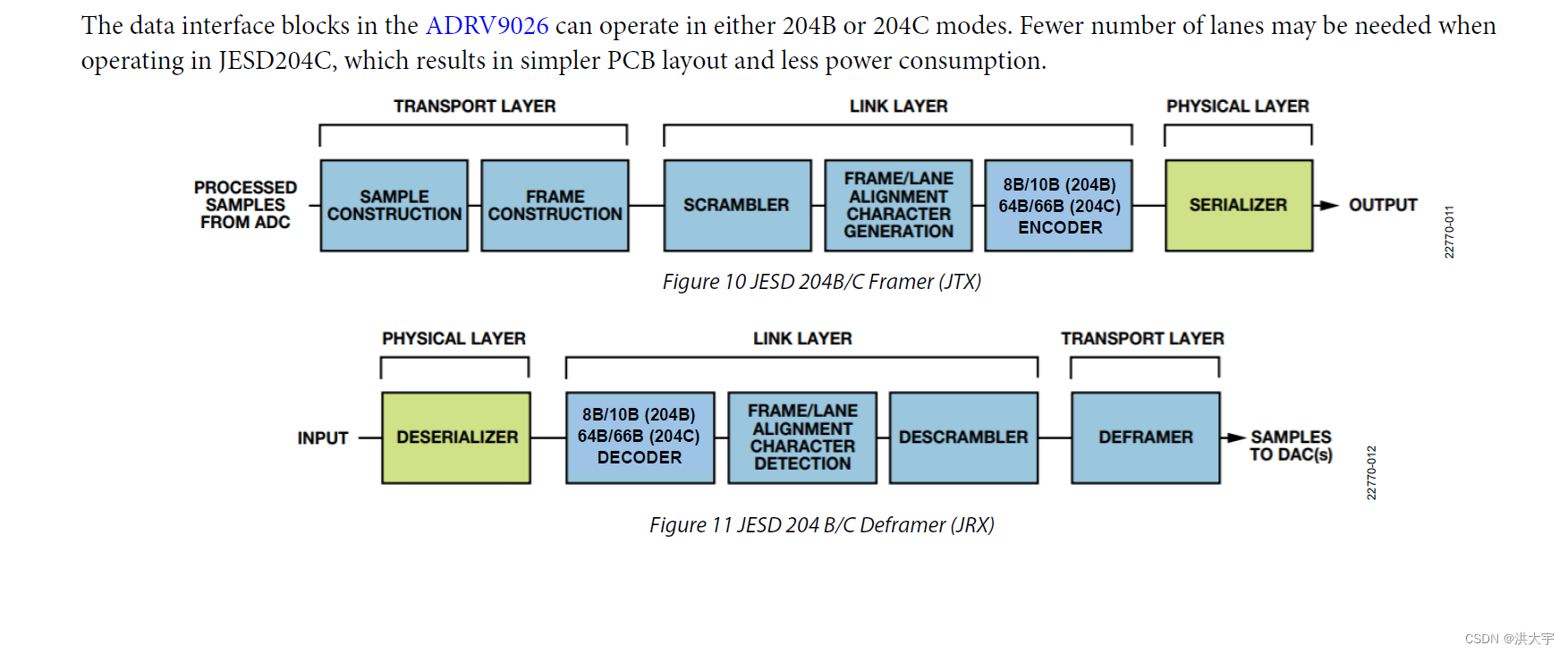

Each framer has a built in PRBS test pattern generator to aid in debugging the JESD204B/JESD204C serial link. The pattern generator is capable of generating PRBS7, PRBS9, PRBS15, PRBS23, or PRBS31 patterns. If errors caused by signal integrity exist, it may be difficult to get the JESD204B/JESD204C framer-to-deframer link to work properly. The PRBS generator built into the framer allows the device to
output serial data even when the link cannot be established. With this mode enabled, the serializer amplitude and pre-emphasis can be
adjusted to find the best setting to minimize bit errors seen by the PRBS checker at the receiver side of the link. For this mode to be
utilized, the baseband processor must have a PRBS checker to check the PRBS sequence for errors.
