用AndroidStudio生产UML图

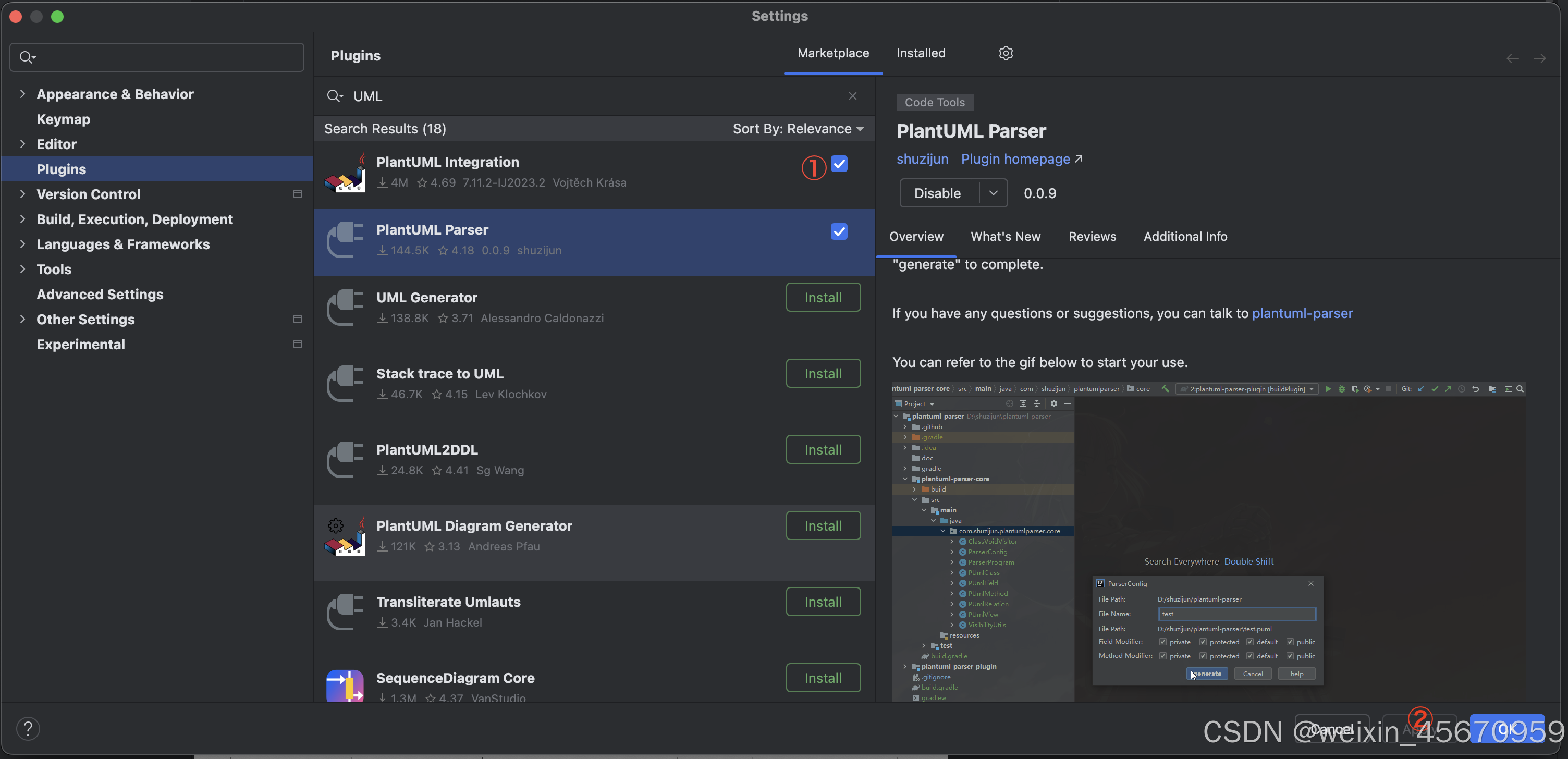

AndroidStudio的文件→设定→Plugins
PlantUML Parser、PlantUML Integration
1、安装插件（如图）

2、 如何使用UML

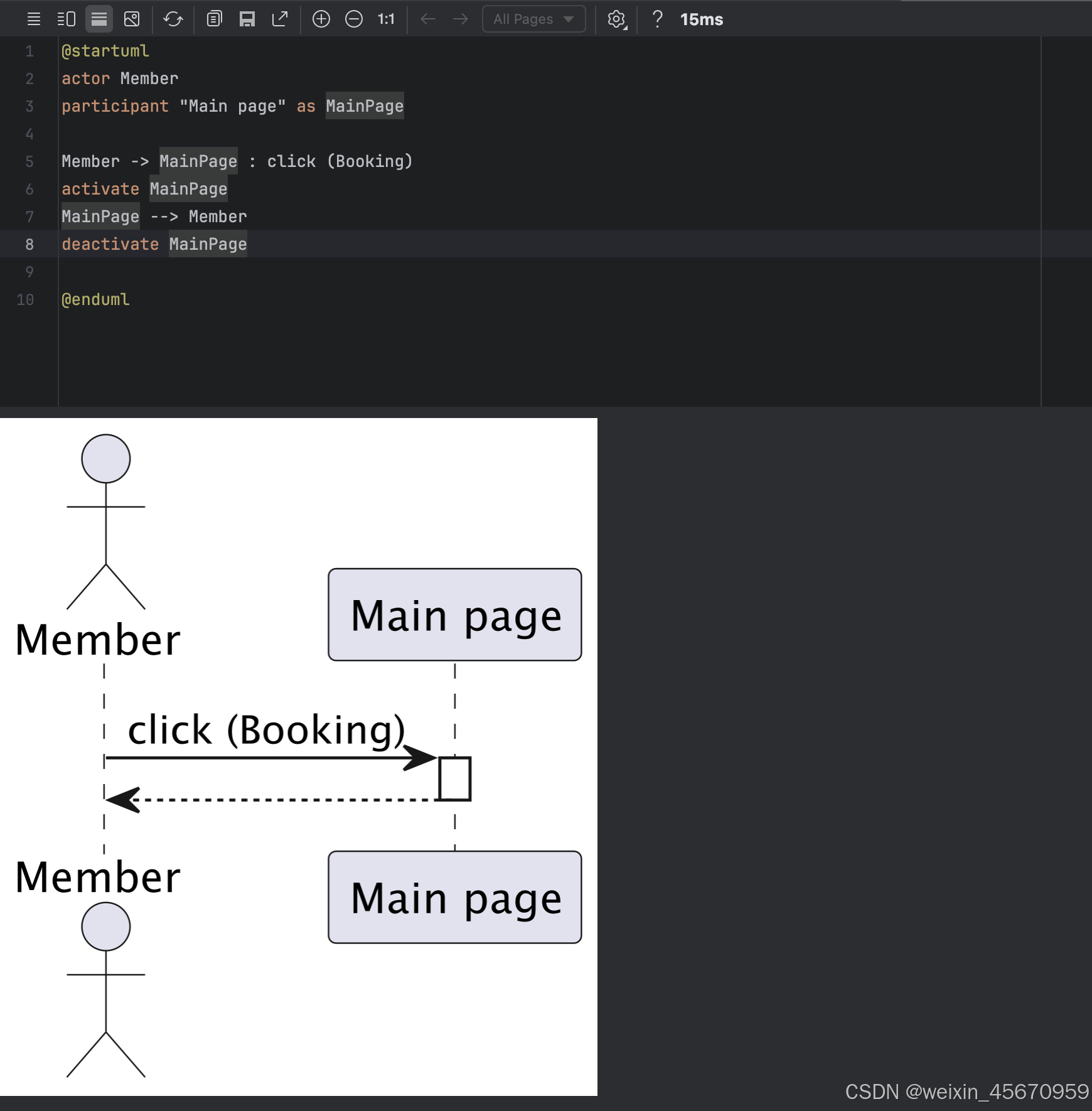

同期的调用处理

@startuml
actor Member
participant "Main page" as MainPage

Member -> MainPage : click (Booking)
activate MainPage
MainPage --> Member
deactivate MainPage

@enduml

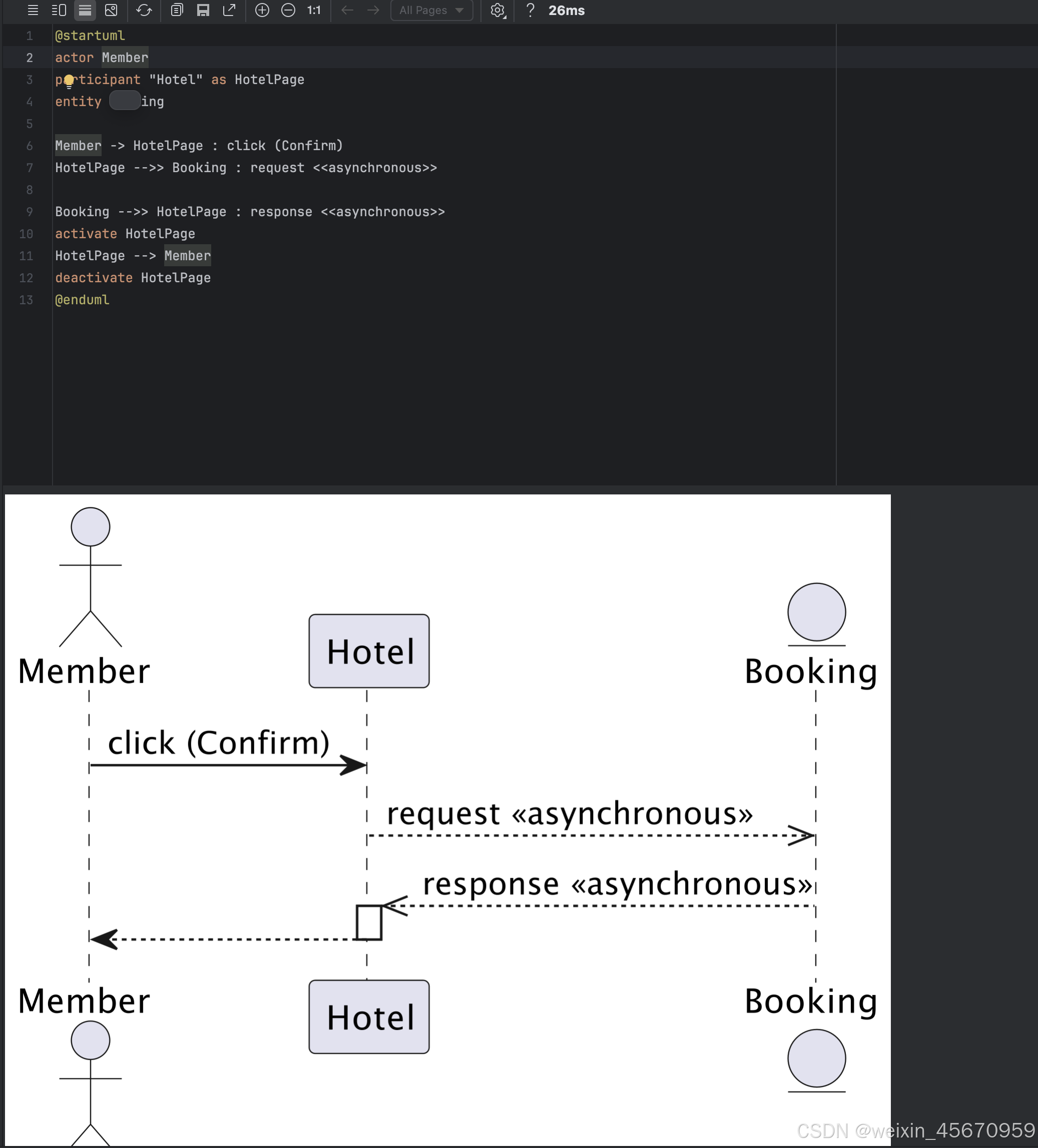

非同期的调用处理

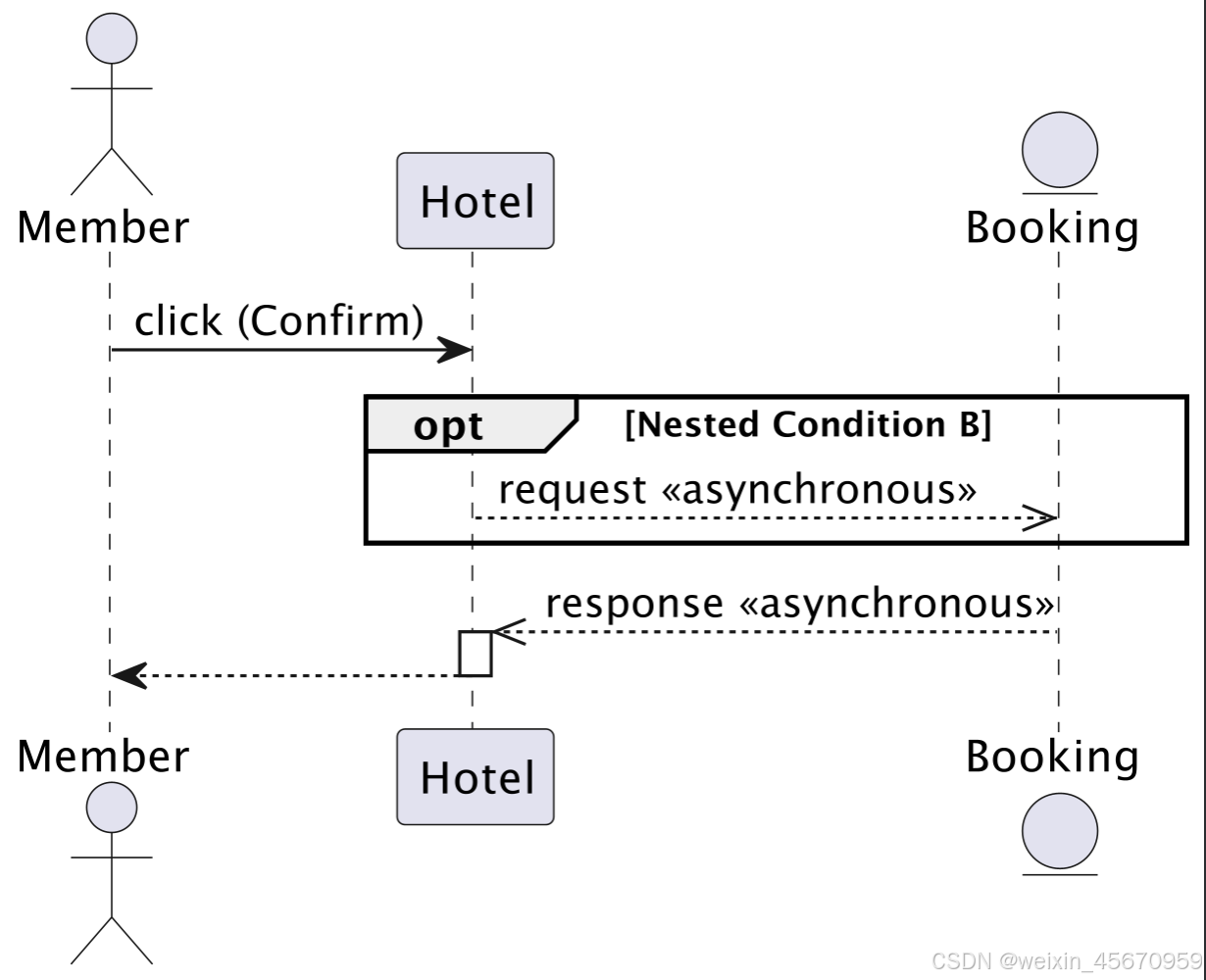

条件的几种表示

@startuml
actor Member
participant "Hotel" as HotelPage
entity Booking

Member -> HotelPage : click (Confirm)

 opt Nested Condition A
HotelPage -->> Booking : request <<asynchronous>>
 end
Booking -->> HotelPage : response <<asynchronous>>
activate HotelPage
HotelPage --> Member
deactivate HotelPage
@enduml

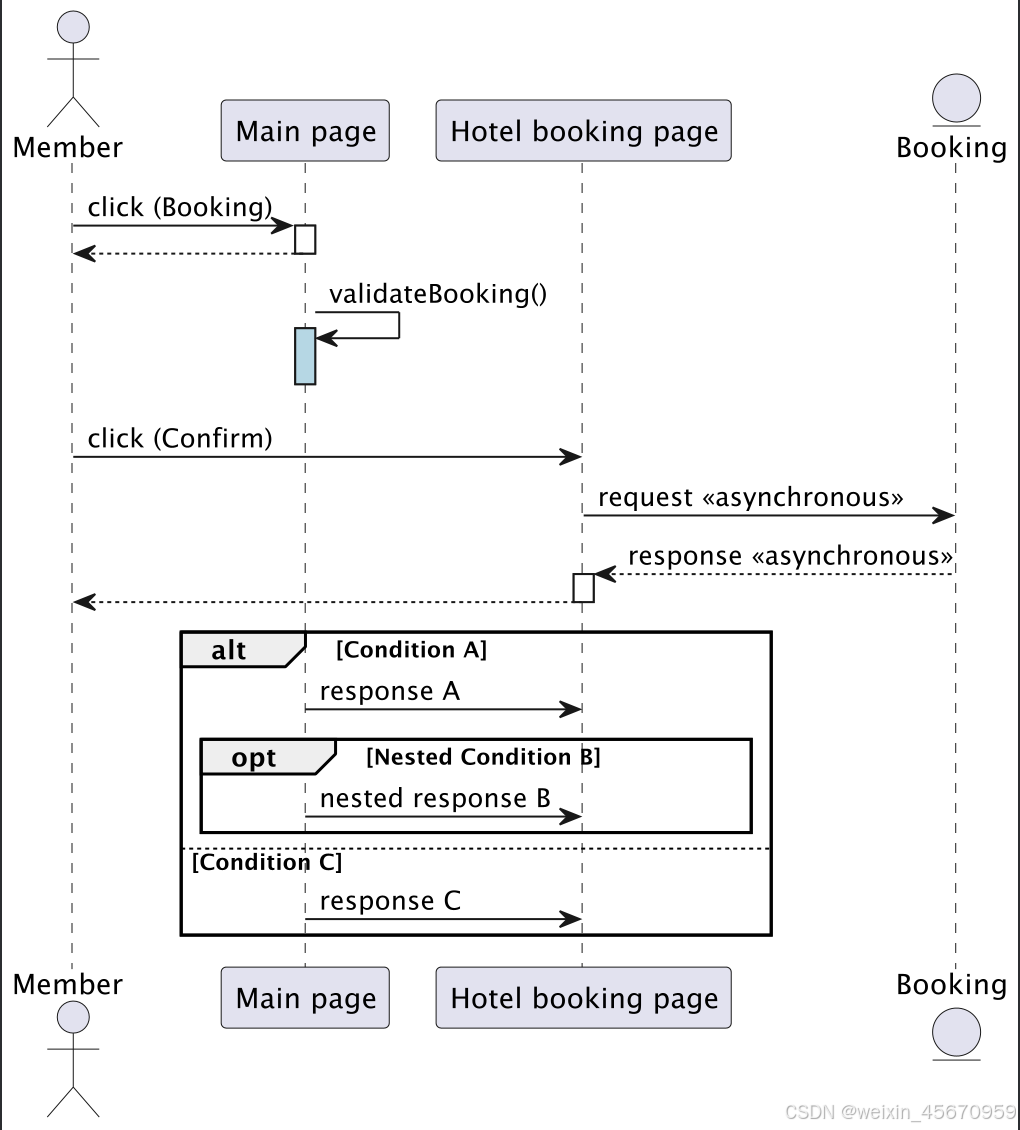

@startuml
actor Member
participant "Main page" as MainPage
participant "Hotel booking page" as HotelPage
entity Booking

Member -> MainPage : click (Booking)
activate MainPage
MainPage --> Member
deactivate MainPage


MainPage -> MainPage : validateBooking()
activate MainPage #lightblue
deactivate MainPage #lightblue

Member -> HotelPage : click (Confirm)
HotelPage -> Booking : request <<asynchronous>>

Booking --> HotelPage : response <<asynchronous>>
activate HotelPage
HotelPage --> Member
deactivate HotelPage

alt Condition A
    MainPage -> HotelPage : response A
    opt Nested Condition B
        MainPage -> HotelPage : nested response B
    end
else Condition C
    MainPage -> HotelPage : response C
end
@enduml
