ORB_SLAM2原理及代码解析:Tracking::TrackReferenceKeyFrame() 函数

WWZZ2025

已于 2025-10-06 15:23:16 修改

阅读量334

点赞数 10

CC 4.0 BY-SA版权

分类专栏： ORB_SLAM2 文章标签：算法计算机视觉机器人人工智能 SLAM 具身感知大模型

于 2025-10-06 15:22:41 首次发布

本文链接：https://blog.csdn.net/weixin_45728280/article/details/152559357

ORB_SLAM2 专栏收录该内容

17 篇文章

订阅专栏

#『AI先锋杯·14天征文挑战第6期』#

目录

1 作用

2 参数及含义

3 代码

4 解析

4.1 计算词袋向量

4.1.1 ComputeBoW() 函数

4.1.1.1 Frame::ComputeBoW()

4.1.1.2 KeyFrame::ComputeBoW()

4.2 词袋与参考关键帧匹配

4.3 检查匹配数量

4.4 绑定匹配结果并设定初始位姿

4.5 优化当前位姿（PnP+BA）

4.5.1 PoseOptimization() 函数

4.6 剔除外点

4.7 返回结果

1 作用

利用当前参考关键帧（mpReferenceKF）中的地图点和当前帧图像进行匹配，通过 PnP + 优化估计当前帧位姿。

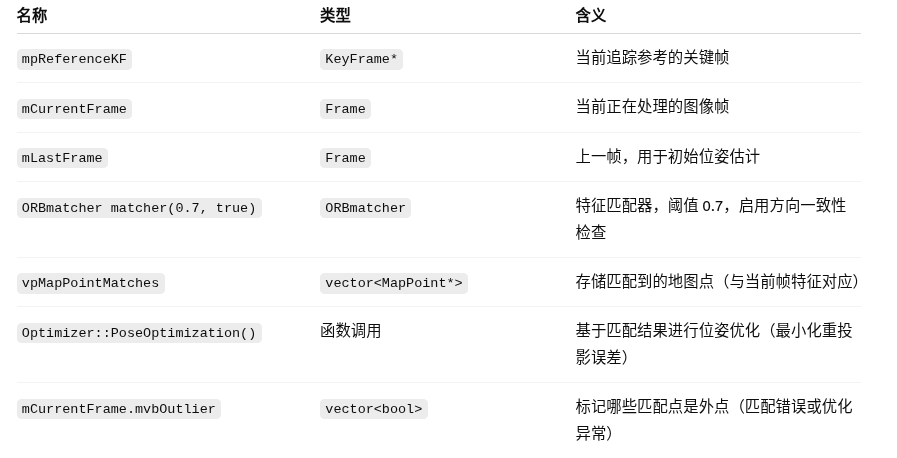

2 参数及含义

3 代码


bool Tracking::TrackReferenceKeyFrame()
{
    // Compute Bag of Words vector
    mCurrentFrame.ComputeBoW();

    // We perform first an ORB matching with the reference keyframe
    // If enough matches are found we setup a PnP solver
    ORBmatcher matcher(0.7,true);
    vector<MapPoint*> vpMapPointMatches;

    int nmatches = matcher.SearchByBoW(mpReferenceKF,mCurrentFrame,vpMapPointMatches);

    if(nmatches<15)
        return false;

    mCurrentFrame.mvpMapPoints = vpMapPointMatches;
    mCurrentFrame.SetPose(mLastFrame.mTcw);

    Optimizer::PoseOptimization(&mCurrentFrame);

    // Discard outliers
    int nmatchesMap = 0;
    for(int i =0; i<mCurrentFrame.N; i++)
    {
        if(mCurrentFrame.mvpMapPoints[i])
        {
            if(mCurrentFrame.mvbOutlier[i])
            {
                MapPoint* pMP = mCurrentFrame.mvpMapPoints[i];

                mCurrentFrame.mvpMapPoints[i]=static_cast<MapPoint*>(NULL);
                mCurrentFrame.mvbOutlier[i]=false;
                pMP->mbTrackInView = false;
                pMP->mnLastFrameSeen = mCurrentFrame.mnId;
                nmatches--;
            }
            else if(mCurrentFrame.mvpMapPoints[i]->Observations()>0)
                nmatchesMap++;
        }
    }

    return nmatchesMap>=10;
}

4 解析

4.1 计算词袋向量

    // Compute Bag of Words vector
    mCurrentFrame.ComputeBoW();

4.1.1 ComputeBoW() 函数

把当前帧的ORB特征描述子（Descriptors）转化为词袋向量（BoW向量和特征向量），
用于快速特征匹配、重定位、回环检测等任务。

该处调用的是Frame.cc

4.1.1.1 Frame::ComputeBoW()

（1）声明：Frame.h

    // Compute Bag of Words representation.
    void ComputeBoW();

（2）定义：Frame.cc

void Frame::ComputeBoW()
{
    if(mBowVec.empty())
    {
        //转换描述子格式：N*32矩阵转化为vector<cv::Mat>数组形式
        vector<cv::Mat> vCurrentDesc = Converter::toDescriptorVector(mDescriptors);
        //使用 ORB 词典量化生成 BoW 向量
        mpORBvocabulary->transform(vCurrentDesc,mBowVec,mFeatVec,4);
    }
}

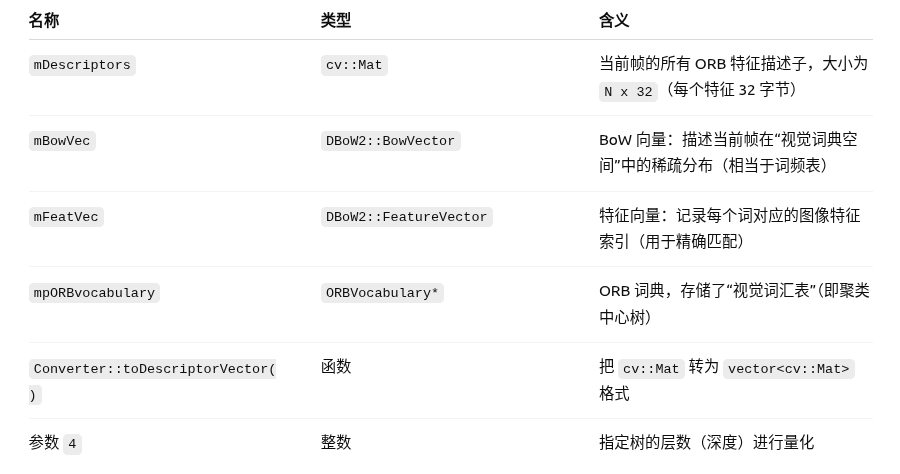

（3）参数及含义

（4）解析

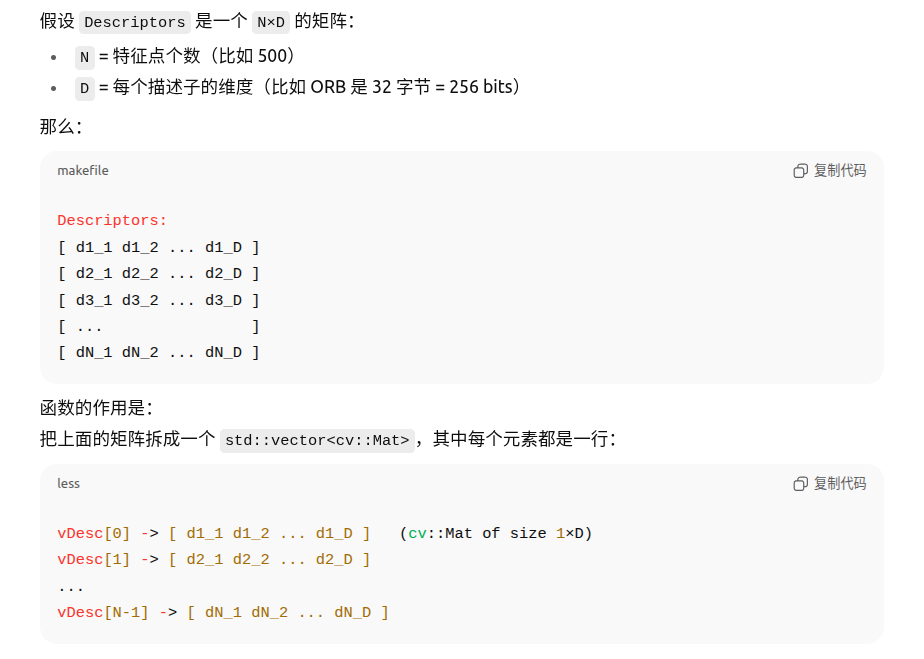

a.vector<cv::Mat> vCurrentDesc = Converter::toDescriptorVector(mDescriptors);

std::vector<cv::Mat> Converter::toDescriptorVector(const cv::Mat &Descriptors)
{
    //vDesc为浅拷贝，如引用的矩阵数据被销毁，则vDesc也消失
    std::vector<cv::Mat> vDesc;
    //将描述子矩阵每行拆解，分别放入vDesc
    vDesc.reserve(Descriptors.rows);
    for (int j=0;j<Descriptors.rows;j++)
        vDesc.push_back(Descriptors.row(j));

    return vDesc;
}

4.1.1.2 KeyFrame::ComputeBoW()

（1）声明：KeyFrame.h

    // Bag of Words Representation
    void ComputeBoW();

（2）定义：KeyFrame.cc

void KeyFrame::ComputeBoW()
{
    //如果BoW向量或特征向量为空
    if(mBowVec.empty() || mFeatVec.empty())
    {
        vector<cv::Mat> vCurrentDesc = Converter::toDescriptorVector(mDescriptors);
        // Feature vector associate features with nodes in the 4th level (from leaves up)
        // We assume the vocabulary tree has 6 levels, change the 4 otherwise
        mpORBvocabulary->transform(vCurrentDesc,mBowVec,mFeatVec,4);
    }
}

与4.1.1.2基本一致，

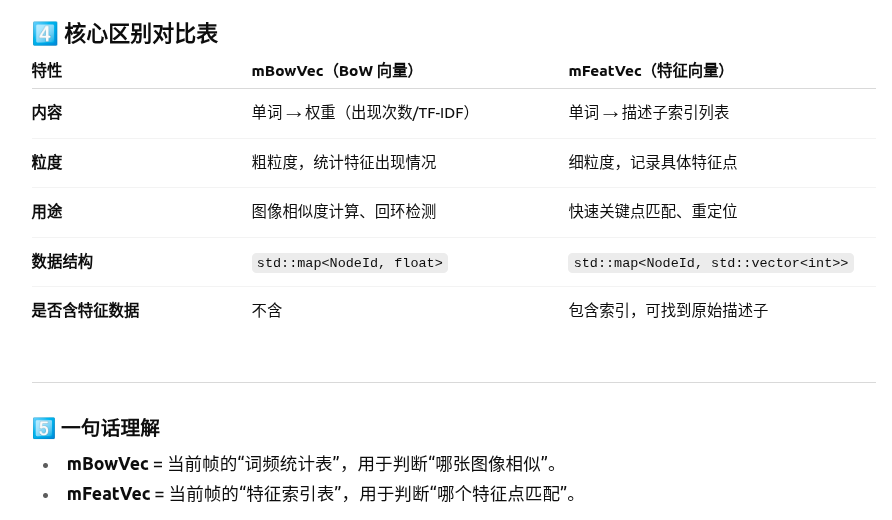

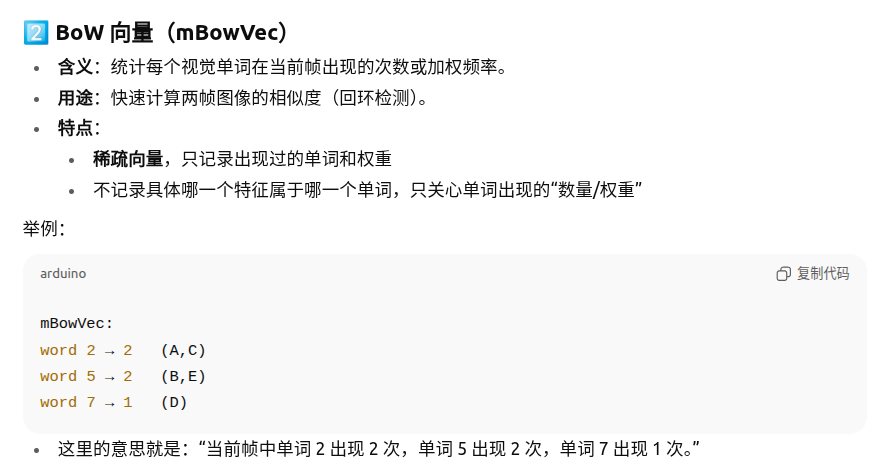

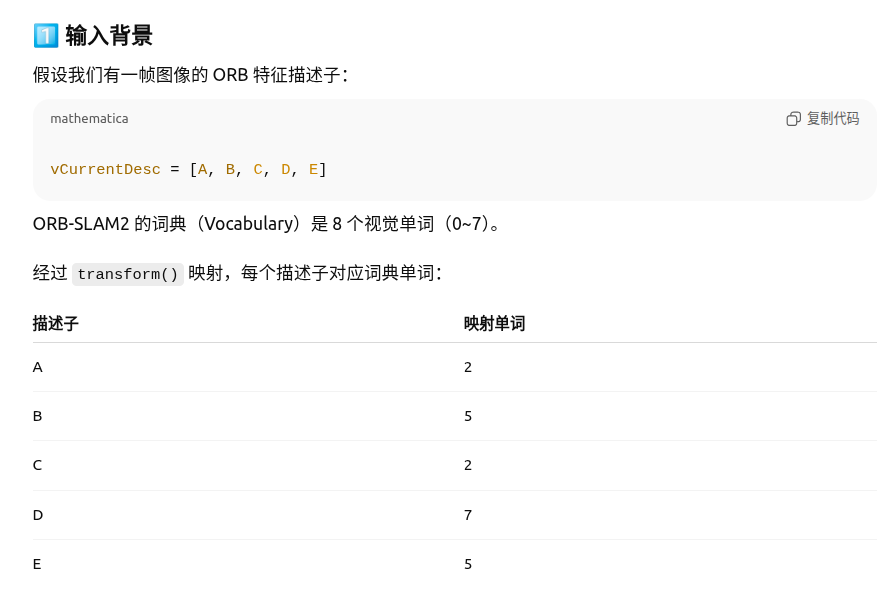

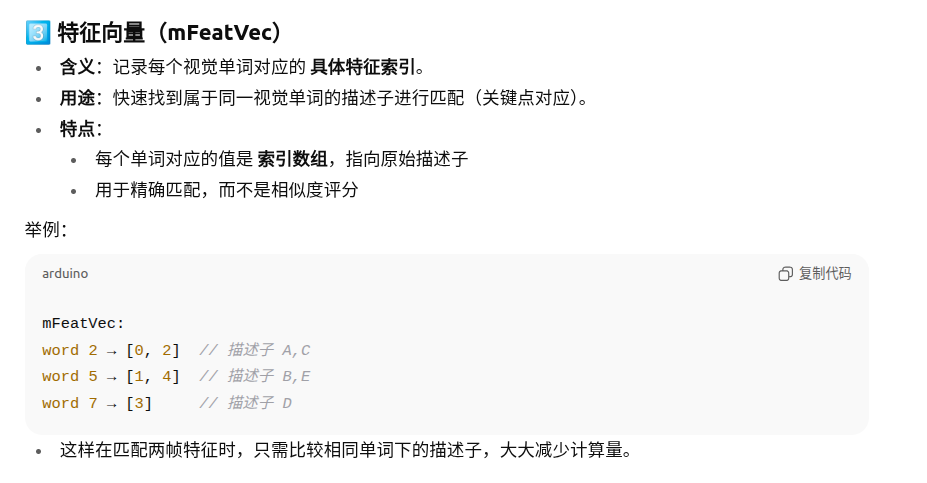

PS.BoW向量 VS 特征向量

4.2 词袋与参考关键帧匹配

    // We perform first an ORB matching with the reference keyframe
    // If enough matches are found we setup a PnP solver
    //ORB匹配器，匹配阀值0.7，使用弱约束（允许较远距离匹配）
    ORBmatcher matcher(0.7,true);
    vector<MapPoint*> vpMapPointMatches;

    //匹配成功的地图点数=地图点参考关键帧与当前帧BOW向量匹配成功存入地图点配对成功数量
    int nmatches = matcher.SearchByBoW(mpReferenceKF,mCurrentFrame,vpMapPointMatches);

4.3 检查匹配数量

    if(nmatches<15)
        return false;

4.4 绑定匹配结果并设定初始位姿

    mCurrentFrame.mvpMapPoints = vpMapPointMatches;
    mCurrentFrame.SetPose(mLastFrame.mTcw);

4.5 优化当前位姿（PnP+BA）

    Optimizer::PoseOptimization(&mCurrentFrame);

4.5.1 PoseOptimization() 函数

（1）作用

单帧相机的位姿（Tcw）进行优化，使该帧在当前的地图点观测下最符合重投影误差最小化。

（2）声明：Optimizer.h

    int static PoseOptimization(Frame* pFrame);

（3）定义：Optimizer.cc

int Optimizer::PoseOptimization(Frame *pFrame)
{
    g2o::SparseOptimizer optimizer;
    g2o::BlockSolver_6_3::LinearSolverType * linearSolver;

    linearSolver = new g2o::LinearSolverDense<g2o::BlockSolver_6_3::PoseMatrixType>();

    g2o::BlockSolver_6_3 * solver_ptr = new g2o::BlockSolver_6_3(linearSolver);

    g2o::OptimizationAlgorithmLevenberg* solver = new g2o::OptimizationAlgorithmLevenberg(solver_ptr);
    optimizer.setAlgorithm(solver);

    int nInitialCorrespondences=0;

    // Set Frame vertex
    g2o::VertexSE3Expmap * vSE3 = new g2o::VertexSE3Expmap();
    vSE3->setEstimate(Converter::toSE3Quat(pFrame->mTcw));
    vSE3->setId(0);
    vSE3->setFixed(false);
    optimizer.addVertex(vSE3);

    // Set MapPoint vertices
    const int N = pFrame->N;

    vector<g2o::EdgeSE3ProjectXYZOnlyPose*> vpEdgesMono;
    vector<size_t> vnIndexEdgeMono;
    vpEdgesMono.reserve(N);
    vnIndexEdgeMono.reserve(N);

    vector<g2o::EdgeStereoSE3ProjectXYZOnlyPose*> vpEdgesStereo;
    vector<size_t> vnIndexEdgeStereo;
    vpEdgesStereo.reserve(N);
    vnIndexEdgeStereo.reserve(N);

    const float deltaMono = sqrt(5.991);
    const float deltaStereo = sqrt(7.815);


    {
    unique_lock<mutex> lock(MapPoint::mGlobalMutex);

    for(int i=0; i<N; i++)
    {
        MapPoint* pMP = pFrame->mvpMapPoints[i];
        if(pMP)
        {
            // Monocular observation
            if(pFrame->mvuRight[i]<0)
            {
                nInitialCorrespondences++;
                pFrame->mvbOutlier[i] = false;

                Eigen::Matrix<double,2,1> obs;
                const cv::KeyPoint &kpUn = pFrame->mvKeysUn[i];
                obs << kpUn.pt.x, kpUn.pt.y;

                g2o::EdgeSE3ProjectXYZOnlyPose* e = new g2o::EdgeSE3ProjectXYZOnlyPose();

                e->setVertex(0, dynamic_cast<g2o::OptimizableGraph::Vertex*>(optimizer.vertex(0)));
                e->setMeasurement(obs);
                const float invSigma2 = pFrame->mvInvLevelSigma2[kpUn.octave];
                e->setInformation(Eigen::Matrix2d::Identity()*invSigma2);

                g2o::RobustKernelHuber* rk = new g2o::RobustKernelHuber;
                e->setRobustKernel(rk);
                rk->setDelta(deltaMono);

                e->fx = pFrame->fx;
                e->fy = pFrame->fy;
                e->cx = pFrame->cx;
                e->cy = pFrame->cy;
                cv::Mat Xw = pMP->GetWorldPos();
                e->Xw[0] = Xw.at<float>(0);
                e->Xw[1] = Xw.at<float>(1);
                e->Xw[2] = Xw.at<float>(2);

                optimizer.addEdge(e);

                vpEdgesMono.push_back(e);
                vnIndexEdgeMono.push_back(i);
            }
            else  // Stereo observation
            {
                nInitialCorrespondences++;
                pFrame->mvbOutlier[i] = false;

                //SET EDGE
                Eigen::Matrix<double,3,1> obs;
                const cv::KeyPoint &kpUn = pFrame->mvKeysUn[i];
                const float &kp_ur = pFrame->mvuRight[i];
                obs << kpUn.pt.x, kpUn.pt.y, kp_ur;

                g2o::EdgeStereoSE3ProjectXYZOnlyPose* e = new g2o::EdgeStereoSE3ProjectXYZOnlyPose();

                e->setVertex(0, dynamic_cast<g2o::OptimizableGraph::Vertex*>(optimizer.vertex(0)));
                e->setMeasurement(obs);
                const float invSigma2 = pFrame->mvInvLevelSigma2[kpUn.octave];
                Eigen::Matrix3d Info = Eigen::Matrix3d::Identity()*invSigma2;
                e->setInformation(Info);

                g2o::RobustKernelHuber* rk = new g2o::RobustKernelHuber;
                e->setRobustKernel(rk);
                rk->setDelta(deltaStereo);

                e->fx = pFrame->fx;
                e->fy = pFrame->fy;
                e->cx = pFrame->cx;
                e->cy = pFrame->cy;
                e->bf = pFrame->mbf;
                cv::Mat Xw = pMP->GetWorldPos();
                e->Xw[0] = Xw.at<float>(0);
                e->Xw[1] = Xw.at<float>(1);
                e->Xw[2] = Xw.at<float>(2);

                optimizer.addEdge(e);

                vpEdgesStereo.push_back(e);
                vnIndexEdgeStereo.push_back(i);
            }
        }

    }
    }


    if(nInitialCorrespondences<3)
        return 0;

    // We perform 4 optimizations, after each optimization we classify observation as inlier/outlier
    // At the next optimization, outliers are not included, but at the end they can be classified as inliers again.
    const float chi2Mono[4]={5.991,5.991,5.991,5.991};
    const float chi2Stereo[4]={7.815,7.815,7.815, 7.815};
    const int its[4]={10,10,10,10};

    int nBad=0;
    for(size_t it=0; it<4; it++)
    {

        vSE3->setEstimate(Converter::toSE3Quat(pFrame->mTcw));
        optimizer.initializeOptimization(0);
        optimizer.optimize(its[it]);

        nBad=0;
        for(size_t i=0, iend=vpEdgesMono.size(); i<iend; i++)
        {
            g2o::EdgeSE3ProjectXYZOnlyPose* e = vpEdgesMono[i];

            const size_t idx = vnIndexEdgeMono[i];

            if(pFrame->mvbOutlier[idx])
            {
                e->computeError();
            }

            const float chi2 = e->chi2();

            if(chi2>chi2Mono[it])
            {
                pFrame->mvbOutlier[idx]=true;
                e->setLevel(1);
                nBad++;
            }
            else
            {
                pFrame->mvbOutlier[idx]=false;
                e->setLevel(0);
            }

            if(it==2)
                e->setRobustKernel(0);
        }

        for(size_t i=0, iend=vpEdgesStereo.size(); i<iend; i++)
        {
            g2o::EdgeStereoSE3ProjectXYZOnlyPose* e = vpEdgesStereo[i];

            const size_t idx = vnIndexEdgeStereo[i];

            if(pFrame->mvbOutlier[idx])
            {
                e->computeError();
            }

            const float chi2 = e->chi2();

            if(chi2>chi2Stereo[it])
            {
                pFrame->mvbOutlier[idx]=true;
                e->setLevel(1);
                nBad++;
            }
            else
            {
                e->setLevel(0);
                pFrame->mvbOutlier[idx]=false;
            }

            if(it==2)
                e->setRobustKernel(0);
        }

        if(optimizer.edges().size()<10)
            break;
    }

    // Recover optimized pose and return number of inliers
    g2o::VertexSE3Expmap* vSE3_recov = static_cast<g2o::VertexSE3Expmap*>(optimizer.vertex(0));
    g2o::SE3Quat SE3quat_recov = vSE3_recov->estimate();
    cv::Mat pose = Converter::toCvMat(SE3quat_recov);
    pFrame->SetPose(pose);

    return nInitialCorrespondences-nBad;
}

（4）解析

a.构建优化器

    //创建g2o优化器
    g2o::SparseOptimizer optimizer;
    //定义优化变量维度
    g2o::BlockSolver_6_3::LinearSolverType * linearSolver;

    //LinearSolverDense，使用稠密线性求解器
    linearSolver = new g2o::LinearSolverDense<g2o::BlockSolver_6_3::PoseMatrixType>();

    g2o::BlockSolver_6_3 * solver_ptr = new g2o::BlockSolver_6_3(linearSolver);

    //选择非线性优化算法：Levenberg-Marquardt（LM）算法
    g2o::OptimizationAlgorithmLevenberg* solver = new g2o::OptimizationAlgorithmLevenberg(solver_ptr);
    optimizer.setAlgorithm(solver);

b.设置相机位姿

    // Set Frame vertex
    //创建一个 SE3 类型的顶点
    g2o::VertexSE3Expmap * vSE3 = new g2o::VertexSE3Expmap();
    //将当前帧位姿矩阵由cv::Mat转为SE3Quat，告诉优化器这个顶点的初始估计值是这帧的当前位姿
    vSE3->setEstimate(Converter::toSE3Quat(pFrame->mTcw));
    //给顶点赋予唯一ID
    vSE3->setId(0);
    //顶点不固定，需要优化
    vSE3->setFixed(false);
    //把顶点加入优化器
    optimizer.addVertex(vSE3);

c.添加观测边（投影误差）

    // Set MapPoint vertices
    const int N = pFrame->N;

    //定义容器
    //vpEdgesMono存放单目观测边
    vector<g2o::EdgeSE3ProjectXYZOnlyPose*> vpEdgesMono;
    vector<size_t> vnIndexEdgeMono;
    vpEdgesMono.reserve(N);
    vnIndexEdgeMono.reserve(N);

    vector<g2o::EdgeStereoSE3ProjectXYZOnlyPose*> vpEdgesStereo;
    vector<size_t> vnIndexEdgeStereo;
    vpEdgesStereo.reserve(N);
    vnIndexEdgeStereo.reserve(N);

    //定义鲁棒核参数
    const float deltaMono = sqrt(5.991);
    const float deltaStereo = sqrt(7.815);


    {
    unique_lock<mutex> lock(MapPoint::mGlobalMutex);

    //遍历当前帧特征点
    for(int i=0; i<N; i++)
    {
        MapPoint* pMP = pFrame->mvpMapPoints[i];
        if(pMP)
        {
            // Monocular observation
            if(pFrame->mvuRight[i]<0)
            {
                //计算特征匹配有效数
                nInitialCorrespondences++;
                //将该特征点标记为非外点
                pFrame->mvbOutlier[i] = false;

                //构造观测值
                Eigen::Matrix<double,2,1> obs;
                const cv::KeyPoint &kpUn = pFrame->mvKeysUn[i];
                obs << kpUn.pt.x, kpUn.pt.y;

                //创建边对象，优化相机位姿、已知地图点世界坐标、观测像素坐标、存在投影误差
                g2o::EdgeSE3ProjectXYZOnlyPose* e = new g2o::EdgeSE3ProjectXYZOnlyPose();

                //设置顶点与观测
                e->setVertex(0, dynamic_cast<g2o::OptimizableGraph::Vertex*>(optimizer.vertex(0)));
                e->setMeasurement(obs);
                //设置权重
                const float invSigma2 = pFrame->mvInvLevelSigma2[kpUn.octave];
                e->setInformation(Eigen::Matrix2d::Identity()*invSigma2);

                //设置鲁棒核
                g2o::RobustKernelHuber* rk = new g2o::RobustKernelHuber;
                e->setRobustKernel(rk);
                rk->setDelta(deltaMono);

                //相机参数
                e->fx = pFrame->fx;
                e->fy = pFrame->fy;
                e->cx = pFrame->cx;
                e->cy = pFrame->cy;
                cv::Mat Xw = pMP->GetWorldPos();
                e->Xw[0] = Xw.at<float>(0);
                e->Xw[1] = Xw.at<float>(1);
                e->Xw[2] = Xw.at<float>(2);

                //加入优化器
                optimizer.addEdge(e);

                vpEdgesMono.push_back(e);
                vnIndexEdgeMono.push_back(i);
            }
            else  // Stereo observation
            {
                nInitialCorrespondences++;
                pFrame->mvbOutlier[i] = false;

                //SET EDGE
                Eigen::Matrix<double,3,1> obs;
                const cv::KeyPoint &kpUn = pFrame->mvKeysUn[i];
                const float &kp_ur = pFrame->mvuRight[i];
                obs << kpUn.pt.x, kpUn.pt.y, kp_ur;

                g2o::EdgeStereoSE3ProjectXYZOnlyPose* e = new g2o::EdgeStereoSE3ProjectXYZOnlyPose();

                e->setVertex(0, dynamic_cast<g2o::OptimizableGraph::Vertex*>(optimizer.vertex(0)));
                e->setMeasurement(obs);
                const float invSigma2 = pFrame->mvInvLevelSigma2[kpUn.octave];
                Eigen::Matrix3d Info = Eigen::Matrix3d::Identity()*invSigma2;
                e->setInformation(Info);

                g2o::RobustKernelHuber* rk = new g2o::RobustKernelHuber;
                e->setRobustKernel(rk);
                rk->setDelta(deltaStereo);

                e->fx = pFrame->fx;
                e->fy = pFrame->fy;
                e->cx = pFrame->cx;
                e->cy = pFrame->cy;
                e->bf = pFrame->mbf;
                cv::Mat Xw = pMP->GetWorldPos();
                e->Xw[0] = Xw.at<float>(0);
                e->Xw[1] = Xw.at<float>(1);
                e->Xw[2] = Xw.at<float>(2);

                optimizer.addEdge(e);

                vpEdgesStereo.push_back(e);
                vnIndexEdgeStereo.push_back(i);
            }
        }

    }
    }

d.过滤匹配数量

      //有效匹配数小于3，退出
      if(nInitialCorrespondences<3)
        return 0;

e.迭代优化+外点剔除

    // We perform 4 optimizations, after each optimization we classify observation as inlier/outlier
    // At the next optimization, outliers are not included, but at the end they can be classified as inliers again.
    //chi2Mono单目观测误差的卡方阈值，阀值根据自由度置信度决定
    const float chi2Mono[4]={5.991,5.991,5.991,5.991};
    const float chi2Stereo[4]={7.815,7.815,7.815, 7.815};
    //每次优化最大迭代次数10
    const int its[4]={10,10,10,10};

    int nBad=0;
    for(size_t it=0; it<4; it++)
    {

        //设置当前位姿并执行优化
        vSE3->setEstimate(Converter::toSE3Quat(pFrame->mTcw));
        optimizer.initializeOptimization(0);
        optimizer.optimize(its[it]);

        nBad=0;
        for(size_t i=0, iend=vpEdgesMono.size(); i<iend; i++)
        {
            //取出边和索引
            g2o::EdgeSE3ProjectXYZOnlyPose* e = vpEdgesMono[i];

            const size_t idx = vnIndexEdgeMono[i];

            //如果上一轮判断为外点，重新再进行判断
            if(pFrame->mvbOutlier[idx])
            {
                e->computeError();
            }

            //计算重投影误差平方
            const float chi2 = e->chi2();

            //观测的重投影误差太大
            if(chi2>chi2Mono[it])
            {
                //标记为外点
                pFrame->mvbOutlier[idx]=true;
                //下一轮优化时排除这条边
                e->setLevel(1);
                nBad++;
            }
            else
            {
                pFrame->mvbOutlier[idx]=false;
                e->setLevel(0);
            }

            //第三轮后关闭鲁棒核，进行精调
            if(it==2)
                e->setRobustKernel(0);
        }

        //双目
        for(size_t i=0, iend=vpEdgesStereo.size(); i<iend; i++)
        {
            g2o::EdgeStereoSE3ProjectXYZOnlyPose* e = vpEdgesStereo[i];

            const size_t idx = vnIndexEdgeStereo[i];

            if(pFrame->mvbOutlier[idx])
            {
                e->computeError();
            }

            const float chi2 = e->chi2();

            if(chi2>chi2Stereo[it])
            {
                pFrame->mvbOutlier[idx]=true;
                e->setLevel(1);
                nBad++;
            }
            else
            {
                e->setLevel(0);
                pFrame->mvbOutlier[idx]=false;
            }

            if(it==2)
                e->setRobustKernel(0);
        }

        if(optimizer.edges().size()<10)
            break;
    }

f.更新相机位姿

    // Recover optimized pose and return number of inliers
    //获取优化后的相机顶点
    g2o::VertexSE3Expmap* vSE3_recov = static_cast<g2o::VertexSE3Expmap*>(optimizer.vertex(0));
    //获取优化后位姿
    g2o::SE3Quat SE3quat_recov = vSE3_recov->estimate();
    //格式转换
    cv::Mat pose = Converter::toCvMat(SE3quat_recov);
    //写回当前帧
    pFrame->SetPose(pose);

g.返回内点数量

    return nInitialCorrespondences-nBad;

4.6 剔除外点

    // Discard outliers
    int nmatchesMap = 0;
    for(int i =0; i<mCurrentFrame.N; i++)
    {
        if(mCurrentFrame.mvpMapPoints[i])
        {
            if(mCurrentFrame.mvbOutlier[i])
            {
                MapPoint* pMP = mCurrentFrame.mvpMapPoints[i];

                mCurrentFrame.mvpMapPoints[i]=static_cast<MapPoint*>(NULL);
                //重置外点标记，用于下一帧重新计算
                mCurrentFrame.mvbOutlier[i]=false;
                //该点不被当前帧跟踪
                pMP->mbTrackInView = false;
                pMP->mnLastFrameSeen = mCurrentFrame.mnId;
                nmatches--;
            }
            else if(mCurrentFrame.mvpMapPoints[i]->Observations()>0)
                nmatchesMap++;
        }
    }
