最近接到需求:要求支持各种不确定格式的模板,且识别后将数据返回给前端处理
引入以下maven依赖
<dependency>
<groupId>org.apache.poi</groupId>
<artifactId>poi</artifactId>
<version>3.10-FINAL</version>
</dependency>
<dependency>
<groupId>org.apache.poi</groupId>
<artifactId>poi-ooxml</artifactId>
<version>3.10-FINAL</version>
</dependency>
<dependency>
<groupId>org.apache.poi</groupId>
<artifactId>poi-ooxml-schemas</artifactId>
<version>3.10-FINAL</version>
</dependency>
基本思路为:
先确定传入的excel的标题是哪些行,有些是多级表头,所以存在多行表头
再就是从表头中提取我们实际需要的列是哪些
将每个表头和字典中的关键字匹配来得出对应的哪个属性
然后创建一个map用下标做key来将需要的列标注起来,后面就知道每个列所对应的属性了
代码实现

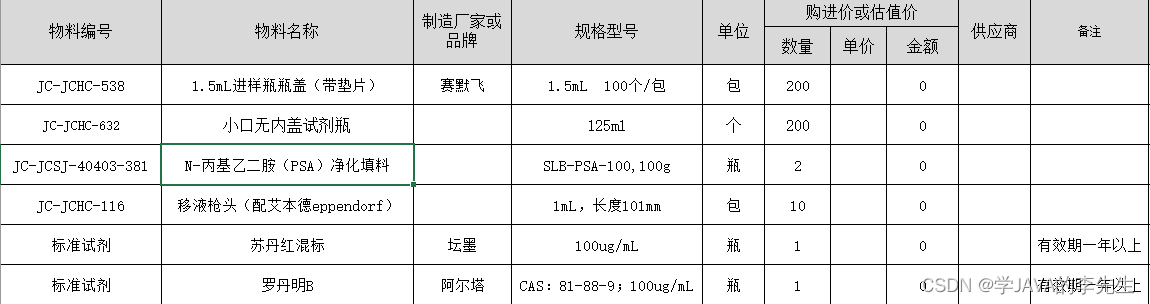

比如这种表头,我们需要物料名称,规格,数量,单价

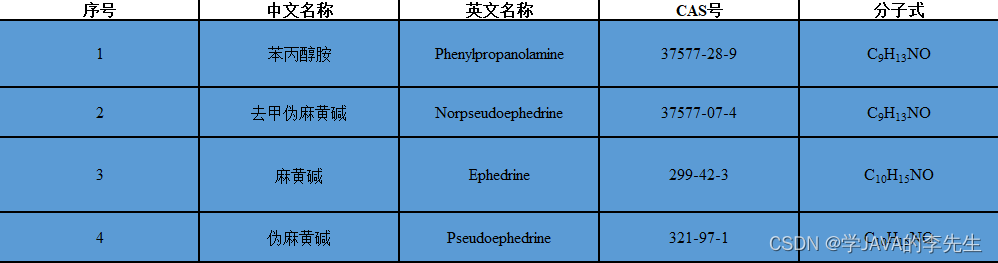

再比如这种我们需要名称,规格/型号,CAS号,数量,单价
这种就通过字典来完成与字段的配对
//这里选择继承是因为要支持多个字典,每个字典一个子类
public class SmartSmartExcelQuoteDict extends SmartExcelDict {
//获取字典map
public Map<String,String[]> getDictMap(){
String[] NAME_DICT={"NAME","产品名称","名称","商品名称","产品名","商品名","物料名称","中文名称"};
String[] SPEC_DICT={"SPEC","规格","技术规格","产品规格","规格型号","型号","规格或指标","规格/型号"};
String[] QUANTITY_DICT={"QUANTITY ","QTY","数量","销售数量"};
String[] PACKAGE_DICT={"PACKAGE","销售包装"};
String[] PRICE_DICT={"PRICE","UNIT PRICE","单价","价格"};
//String[] AMOUNT_DICT={"AMOUNT","TOTAL PRICE","金额合计","金额","总价","总金额","总计","合计","小计"};
String[] CAS_NO_DICT={"CAS.NO","CAS号","CAS"};
Map<String,String[]> dict=new HashMap<String,String[]>();
//从上到下依次匹配,设置优先级
dict.put("NAME",NAME_DICT);
dict.put("SPEC",SPEC_DICT);
dict.put("QUANTITY",QUANTITY_DICT);
dict.put("PACKAGE",PACKAGE_DICT);
dict.put("PRICE",PRICE_DICT);
//dict.put("AMOUNT",AMOUNT_DICT);
dict.put("CAS_NO",CAS_NO_DICT);
return dict;
}
//查找字典,确认对应的属性
public String find(String title){
if(StringUtil.isEmpty(title)){
return "";
}
Map<String,String[]> dict=getDictMap();
for (Map.Entry<String, String[]> entry : dict.entrySet()) {
String mapKey = entry.getKey();
String[] mapValue = entry.getValue();
for (String val:mapValue){
if(val.equals(title.toUpperCase().trim())){
return mapKey;
}
}
}
return "";
}
//将返回的List转换为实体list
public List<SmartExcelQuoteProduct> toModel(List<Map<String,Object>> list){
List<SmartExcelQuoteProduct> modelList=new ArrayList<>();
for (Map<String,Object> map:list) {
String name= MapUtils.getString(map,"NAME");
String spec= MapUtils.getString(map,"SPEC");
String quantity= MapUtils.getString(map,"QUANTITY");
String price= MapUtils.getString(map,"PRICE");
String salepackage= MapUtils.getString(map,"PACKAGE");
String casNo= MapUtils.getString(map,"CAS_NO");
SmartExcelQuoteProduct model=new SmartExcelQuoteProduct();
model.setName(name);
model.setSpec(spec);
model.setQuantity(quantity);
model.setPrice(price);
model.setSalePackage(salepackage);
model.setCasNo(casNo);
modelList.add(model);
}
return modelList;
}
public static void main(String[]args){
SmartSmartExcelQuoteDict excelDict=new SmartSmartExcelQuoteDict();
String key=excelDict.find("价格");
System.out.println("标题映射:"+key);
}
}
继承自的父类
public class SmartExcelDict {
//这个方法可以写成空方法,但不能删除
public Map<String,String[]> getDictMap(){
String[] NAME_DICT={"NAME"};
Map<String,String[]> dict=new HashMap<String,String[]>();
//从上到下依次匹配,设置优先级
dict.put("NAME",NAME_DICT);
return dict;
}
//这个方法可以写成空方法,但不能删除
public String find(String title){
if(StringUtil.isEmpty(title)){
return "";
}
Map<String,String[]> dict=getDictMap();
for (Map.Entry<String, String[]> entry : dict.entrySet()) {
String mapKey = entry.getKey();
String[] mapValue = entry.getValue();
for (String val:mapValue){
if(val.equals(title.toUpperCase().trim())){
return mapKey;
}
}
}
return "";
}
}
主要的工具类
public class SmartExcelUtils {
private SmartExcelDict smartExcelDict;
public SmartExcelUtils(){
}
public SmartExcelUtils(SmartExcelDict smartExcelDict2){
//后续支持多种模板,创建时带入模板类型
smartExcelDict = smartExcelDict2;
}
@RequestMapping("/importExcel")
public Result importExcel(@RequestParam(value="file", required = false) MultipartFile multfile) throws Exception {
SmartSmartExcelQuoteDict excelDict=new SmartSmartExcelQuoteDict();
SmartExcelUtils smartExcelUtils =new SmartExcelUtils(excelDict);
if (multfile == null) return Result.failed("请上传文件");
//log.info("{}-导入PCS数据,参数:{}", DateUtil.format(new Date(),"yyyy-MM-dd HH:mm:ss"));
// 根据参数选择解析
String originalFilename = multfile.getOriginalFilename();
assert originalFilename != null;
// 解析的数据
List<Map<String, Object>> mapList= new ArrayList<>();
try {
String expandName = originalFilename.substring(originalFilename.lastIndexOf(".") + 1, originalFilename.length());
if (expandName.equals("xls") || expandName.equals("xlsx") ){
mapList = smartExcelUtils.importExcel(multfile,1,2,0);
}else {
return Result.failed("上传的文件格式不正确,只支持xls,xlsx或者参数选择错误!");
}
if (CollectionUtils.isEmpty(mapList)) return Result.failed("传入的文件数据为空,请检查后再上传!!");
log.info("解析数据数量:{}",mapList.size());
List<SmartExcelQuoteProduct> modelList= excelDict.toModel(mapList);
return Result.succeed(modelList,"导入数据成功!!文件名:"+originalFilename+"导入PCS解析数据数量:"+mapList.size());
}catch (Exception e){
log.error("数据解析失败!!!原因:{}",e.getMessage(),e);
System.out.println("数据解析失败!!!原因:{}"+e.getMessage());
return Result.failed("解析异常");
}
}
// 判断excel版本
public List<Map<String,Object>> importExcel(MultipartFile file,Integer titleNo,Integer dataNo,Integer sheetNo) throws IOException {
String fileName = file.getOriginalFilename(); //获得上传的excel文件名
assert fileName != null;
String fileSuffix = fileName.substring(fileName.lastIndexOf(".") + 1); //获取上传的excel文件名后缀
List<Map<String,Object>> mapList = null;
if ("xlsx".equals(fileSuffix)) {
SmartExcelTitle smartExcelTitle =xlsxTitleIndex(file);//获取标题,数据列等
mapList = xlsxImportExcel(file, smartExcelTitle.getTitleIndexMap(), smartExcelTitle.getDataRowStart(),sheetNo);
} else if ("xls".equals(fileSuffix)) {
SmartExcelTitle smartExcelTitle =xlsTitleIndex(file);//获取标题,数据列等
mapList = xlsImportExcel(file, smartExcelTitle.getTitleIndexMap(), smartExcelTitle.getDataRowStart(),sheetNo);
}
return mapList;
}
/**
* 文件解析excel2007及以上版本
*
* @param file
* @return
* @throws IOException
*/
public List<Map<String,Object>> xlsxImportExcel(MultipartFile file,Map<Integer ,String> titleIndexMap,Integer dataNo,Integer sheetNo)throws IOException {
log.info("excel2007及以上版本");
XSSFWorkbook xwb = new XSSFWorkbook(file.getInputStream()); //获取excel工作簿
XSSFSheet xssfSheet = xwb.getSheetAt(sheetNo); //获取excel的sheet
if (xssfSheet == null) {
return null;
}
List<Map<String,Object>> mapList = new ArrayList<>();
//循环获取excel每一行
for (int rowNum = dataNo; rowNum < xssfSheet.getLastRowNum() + 1; rowNum++) {
XSSFRow xssfRow = xssfSheet.getRow(rowNum);
if (xssfRow == null) {
continue;
}
Map<String,Object> map = new HashMap<>();
//循环获取excel每一行的每一列
int i=0;
for (int cellNum = 0; cellNum < xssfSheet.getLastRowNum(); cellNum++) {
XSSFCell xssCell = xssfRow.getCell(cellNum);
if (xssCell == null) {
continue;
}
try {
//根据列的下标获取列对应的字段
String k=titleIndexMap.get(cellNum);
if(StringUtil.isEmpty(k)){
continue;
}
if(getValue(xssCell)==null){
continue;
}
map.put(k,getValue(xssCell));
i++;
}catch (Exception e){
log.error("");
}
}
if(i>0){
mapList.add(map); //将excel每一行的数据封装到map对象,并将map对象添加到list
}
}
return mapList;
}
/**
* @param file
* @return 文件解析 excel2003版本
* @throws IOException
*/
public List<Map<String,Object>> xlsImportExcel(MultipartFile file,Map<Integer ,String> titleIndexMap,Integer dataNo,Integer sheetNo) throws IOException {
log.info("excel2003版本");
Workbook wb = new HSSFWorkbook(file.getInputStream()); //获取excel工作簿
Sheet sheet = wb.getSheetAt(sheetNo); //获取excel的sheet
if (sheet == null) {
return null;
}
List<Map<String,Object>> list = new ArrayList<>();
//循环获取excel每一行
for (int rowNum = dataNo; rowNum < sheet.getLastRowNum() + 1; rowNum++) {
Row row = sheet.getRow(rowNum);
if (row == null) {
continue;
}
Map<String,Object> map = new HashMap<>();
//循环获取excel每一行的每一列
int i=0;
for (int cellNum = 0; cellNum < row.getLastCellNum(); cellNum++) {
Cell cell = row.getCell(cellNum);
if (cell == null) {
continue;
}
//根据列的下标获取列对应的字段
String k=titleIndexMap.get(cellNum);
if(StringUtil.isEmpty(k)){
continue;
}
if(getValue(cell)==null){
continue;
}
map.put(k,getValue(cell));
i++;
}
if(i>0){
list.add(map); //将excel每一行的数据封装到map对象,并将map对象添加到list
}
}
return list;
}
/**
* @param file
* @return 获取标题位置 excel2007及以上版本
* @throws IOException
*/
public SmartExcelTitle xlsxTitleIndex(MultipartFile file) throws IOException {
Integer titleNo=0;
Integer sheetNo=0;
log.info("excel2007及以上版本");
XSSFWorkbook xwb = new XSSFWorkbook(file.getInputStream()); //获取excel工作簿
XSSFSheet xssfSheet = xwb.getSheetAt(sheetNo); //获取excel的sheet
if (xssfSheet == null) {
return null;
}
Row rowTitle = xssfSheet.getRow(titleNo);
Map<String ,String> cellMap=new HashMap<>();
Map<Integer ,String> titleIndexMap=new HashMap<>();
int startRow=-1; //标题开始行
int endRow=-1; //标题结束行
int dataRow=-1; //数据开始行
boolean isFor=true;
for (int rowNum = 0; rowNum < xssfSheet.getLastRowNum() + 1 && isFor; rowNum++) {
XSSFRow xssfRow = xssfSheet.getRow(rowNum);
if (xssfRow == null) {
continue;
}
//循环获取excel每一行的每一列
int hit=0;
for (int cellNum = 0; cellNum < rowTitle.getLastCellNum(); cellNum++) {
XSSFCell xssCell = xssfRow.getCell(cellNum);
if (xssCell == null) {
continue;
}
//用于转换单元格类型为STRING,如果直接拿值会报错
xssCell.setCellType(Cell.CELL_TYPE_STRING);
String cellValue=xssCell.getStringCellValue();
//判断里面是否有名称,规格,数量等标题性质强的关键词
String titleVal= smartExcelDict.find(cellValue);
//判断此字段是否有过定义,列定义以第一次定义为准
String k=titleIndexMap.get(cellNum);
if(StringUtil.isEmpty(k)){
//对列进行定义
titleIndexMap.put(cellNum,titleVal);
}
if(StringUtil.isNotEmpty(titleVal)){
hit++;//有效列计数,如果循环结束大于0则表示此行中有标题列
cellMap.put(cellValue,titleVal);
//记录标题开始的行
if(startRow==-1){
startRow=rowNum;//设置标题开始行
}
endRow=rowNum;//设置标题结束行
}
}
if(endRow!=-1 && hit==0){
//如果上一个行有能匹配到的标题关键词,且此次没有匹配到标题,则表示标题部分结束
isFor=false;
dataRow=rowNum;
continue;
}
}
SmartExcelTitle smartExcelTitle =new SmartExcelTitle();
smartExcelTitle.setTitleMap(cellMap);
smartExcelTitle.setTitleIndexMap(titleIndexMap);
smartExcelTitle.setTitleRowStart(startRow);
smartExcelTitle.setTitleRowEnd(endRow);
smartExcelTitle.setDataRowStart(dataRow);
return smartExcelTitle;
}
/**
* @param file
* @return 获取标题位置 excel2003版本
* @throws IOException
*/
public SmartExcelTitle xlsTitleIndex(MultipartFile file) throws IOException {
Integer sheetNo=0;
log.info("excel2003版本");
Workbook wb = new HSSFWorkbook(file.getInputStream()); //获取excel工作簿
Sheet sheet = wb.getSheetAt(sheetNo); //获取excel的sheet
if (sheet == null) {
return null;
}
Map<String ,String> cellMap=new HashMap<>();
Map<Integer ,String> titleIndexMap=new HashMap<>();
int startRow=-1;
int endRow=-1;
int dataRow=-1;
boolean isFor=true;
for (int rowNum = 0; rowNum < sheet.getLastRowNum() + 1 && isFor; rowNum++) {
Row row = sheet.getRow(rowNum);
if (row == null) {
continue;
}
//循环获取excel每一行的每一列
int hit=0;
for (int cellNum = 0; cellNum < row.getLastCellNum(); cellNum++) {
Cell cell = row.getCell(cellNum);
if (cell == null) {
continue;
}
cell.setCellType(Cell.CELL_TYPE_STRING);
String cellValue=cell.getStringCellValue();
String titleVal= smartExcelDict.find(cellValue);
String k=titleIndexMap.get(cellNum);
if(StringUtil.isEmpty(k)){
titleIndexMap.put(cellNum,titleVal);
}
if(StringUtil.isNotEmpty(titleVal)){
hit++;
cellMap.put(cellValue,titleVal);
//记录标题开始的行
if(startRow==-1){
startRow=rowNum;
}
endRow=rowNum;
}
}
if(endRow!=-1 && hit==0){
//如果上一个行有能匹配到的标题关键字,且此次不能匹配到标题关键字,则表示标题部分结束
isFor=false;
dataRow=rowNum;
continue;
}
}
SmartExcelTitle smartExcelTitle =new SmartExcelTitle();
smartExcelTitle.setTitleMap(cellMap);
smartExcelTitle.setTitleIndexMap(titleIndexMap);
smartExcelTitle.setTitleRowStart(startRow);
smartExcelTitle.setTitleRowEnd(endRow);
smartExcelTitle.setDataRowStart(dataRow);
return smartExcelTitle;
}
/**
* excel值处理
*
* @param cell
* @return
*/
public Object getValue(Cell cell){
//判断是否为null或空串
if (cell== null || cell.toString().trim().equals( "" )) {
return null ;
}
String cellValue;
int cellType=cell.getCellType();
switch (cellType) {
case Cell.CELL_TYPE_STRING:
cellValue= cell.getStringCellValue().trim();
cellValue= StringUtil.isEmpty(cellValue) ? "" : cellValue;
break ;
case Cell.CELL_TYPE_BOOLEAN:
cellValue = String.valueOf(cell.getBooleanCellValue());
break ;
case Cell.CELL_TYPE_NUMERIC:
if (HSSFDateUtil.isCellDateFormatted(cell)) {
cellValue =null;// DateUtil.formatDateByFormat(cell.getDateCellValue(), "yyyy-MM-dd HH:mm:ss");
} else {
cellValue = new DecimalFormat( "#.######" ).format(cell.getNumericCellValue());
}
break ;
default :
cellValue = null ;
break ;
}
return cellValue == null ? null : cellValue.replaceAll("\\xa0", "");
}
}
实体类
@Data
public class SmartExcelTitle {
private int titleRowStart;//标题开始行
private int titleRowEnd;//标题结束行
private int dataRowStart;//数据开始行
private Map<String ,String> titleMap; //标题列数< 标题名称,字段名称》
private Map<Integer ,String> titleIndexMap; //标题列数< 列下标,字段名称》
}
@Data
public class SmartExcelQuoteProduct {
private String name; //产品名称
private String spec; //规格
private String quantity; //数量
private String salePackage; //包装
private String price; //价格
private String casNo; //casno
}
测试
导入的excel
返回结果
{
"data": [
{
"name": "1.5mL进样瓶瓶盖(带垫片)",
"spec": "1.5mL 100个/包",
"quantity": "200",
"salePackage": null,
"price": null,
"casNo": null
},
{
"name": "小口无内盖试剂瓶",
"spec": "125ml",
"quantity": "200",
"salePackage": null,
"price": null,
"casNo": null
},
{
"name": "N-丙基乙二胺(PSA)净化填料",
"spec": "SLB-PSA-100,100g",
"quantity": "2",
"salePackage": null,
"price": null,
"casNo": null
},
{
"name": "移液枪头(配艾本德eppendorf)",
"spec": "1mL,长度101mm",
"quantity": "10",
"salePackage": null,
"price": null,
"casNo": null
},
{
"name": "苏丹红混标",
"spec": "100ug/mL",
"quantity": "1",
"salePackage": null,
"price": null,
"casNo": null
},
{
"name": "罗丹明B",
"spec": "CAS:81-88-9;100ug/mL",
"quantity": "1",
"salePackage": null,
"price": null,
"casNo": null
}
],
"code": 0,
"msg": "智能数据解析完成41"
}
导入的excel
返回的结果
{
"data": [
{
"name": "苯丙醇胺",
"spec": null,
"quantity": null,
"salePackage": null,
"price": null,
"casNo": "37577-28-9"
},
{
"name": "去甲伪麻黄碱",
"spec": null,
"quantity": null,
"salePackage": null,
"price": null,
"casNo": "37577-07-4"
},
{
"name": "麻黄碱",
"spec": null,
"quantity": null,
"salePackage": null,
"price": null,
"casNo": "299-42-3"
},
{
"name": "伪麻黄碱",
"spec": null,
"quantity": null,
"salePackage": null,
"price": null,
"casNo": "321-97-1"
}
],
"code": 0,
"msg": "智能数据解析完成33"
}
结束
