我的效果就是会将文件名在移动端展示。点击文件名就会在下方展示附件pdf预览.该方式支持word,pdf,和excel.至于换成点击跳转预览还是下方预览,自行把握。本人测试浙里办可用。
vue代码块
<span class="fontElder18" v-for="(item, i) in fileList" :key="i" style="color: #309FFF"><span @click="showClick(item.id)">{{ item.name }}</span>
<pdf-page-view :id="item.id" v-show="pdfShow"></pdf-page-view>
</span>
这是整体代码块(部分代码删除,只要看附件有关的就行):
<template>
<div class="content content1">
<p>
<span>附件:</span>
<span class="fontElder18" v-for="(item, i) in fileList" :key="i" style="color: #309FFF"><span @click="showClick(item.id)">{{ item.name }}</span>
<pdf-page-view :id="item.id" v-show="pdfShow"></pdf-page-view>
</span>
</p>
</div>
</template>
<script>
import PdfPageView from '@/views/nextPage/PDFPageView.vue'
export default {
name: 'zczxinfo',
data() {
return {
list: {},
fileList: [],
pdfShow: false
}
},
components: {
PdfPageView
},
computed: {},
methods: {
getList(id) {
let _this = this
if (id) {
selectByZczxInfo({ id: id }).then((res) => {
_this.list = res.data[0]
let filesId = _this.list.filesId
console.log(res)
if (filesId) {
getFiles({filesId: filesId}).then((red) => {
console.log(red);
_this.fileList = red.data
if (_this.fileList.length == 0){
_this.fileList= [{name: '无'}]
}
});
}else{
_this.fileList= [{name: '无'}]
}
})
} else {
this.$toast('数据错误,请重新刷新!')
}
},
showClick(id){
let _this = this
if (id) {
_this.pdfShow = true
}
}
},
created() {
let id = this.$route.params.id
this.getList(id);
},
mounted() { },
}
</script>
<style>
.content1 {
padding: 0 10px;
}
.content1 h4 {
margin: 15px 0;
line-height: 18px;
font-size: 20px;
color: #000;
letter-spacing: 0;
font-weight: 500;
text-align: center;
}
.content1 p {
line-height: 20px;
font-size: 20px;
margin: 10px 0;
}
.content1 .type {
line-height: 30px;
font-size: 20px;
/* color: #afb0b1; */
color: rgb(20, 117, 235);
}
</style>
PDFPageView.vue
'http://localhost:8089/appApi/downloadOrViewFile?id='+this.id 获取后端地址自行修改
<template>
<div class="PDFPageView">
<div class="pdf_down">
<!-- <div class="pdf_set_left" @click="scaleD()">放大</div>
<div class="pdf_set_middle" @click="scaleX()">缩小</div>-->
</div>
<div :style="{width:pdf_div_width,margin:'0 auto'}">
<canvas v-for="page in pdf_pages" :id="'the_canvas'+page" :key="page" style="width: 100%"></canvas>
</div>
</div>
</template>
<script>
//以es5形式引入,解决低端浏览器兼容性问题
const PDFJS = require("pdfjs-dist/es5/build/pdf");
//pdfjs-dist的版本也是2.5.207
PDFJS.GlobalWorkerOptions.workerSrc = require("pdfjs-dist/build/pdf.worker.entry.js");
export default {
name:"PDFPageView",
props: {
id: null,
},
data() {
return {
pdf_scale: 1.0,//pdf放大系数
pdf_pages: [],
pdf_div_width: '',
pdf_src: null,
}
},
mounted() {
this.get_pdfurl()
},
methods: {
scaleD() { //放大
let max = 0
if (window.screen.width > 1440) {
max = 1.4
} else {
max = 1.2
}
if (this.pdf_scale >= max) {
return
}
this.pdf_scale = this.pdf_scale + 0.1
this._loadFile(this.pdf_src)
},
scaleX() { //缩小
let min = 1.0
if (this.pdf_scale <= min) {
return
}
this.pdf_scale = this.pdf_scale - 0.1
this._loadFile(this.pdf_src)
},
get_pdfurl() { //获得pdf教案
//加载本地
this.pdf_src = 'http://localhost:8089/appApi/downloadOrViewFile?id='+this.id
this._loadFile(this.pdf_src)
return
//线上请求
// this.$axios.get('')
// .then((res)=>{
// this.pdf_src = res.url
// this._loadFile(this.pdf_src)
// })
},
_loadFile(url) { //初始化pdf
let loadingTask = PDFJS.getDocument(url)
loadingTask.promise.then((pdf) => {
this.pdfDoc = pdf
this.pdf_pages = this.pdfDoc.numPages
//debugger
this.$nextTick(() => {
this._renderPage(1)
})
})
},
_renderPage(num) { //渲染pdf页
const that = this
this.pdfDoc.getPage(num)
.then((page) => {
let canvas = document.getElementById('the_canvas' + num)
let ctx = canvas.getContext('2d')
let dpr = window.devicePixelRatio || 1
let bsr = ctx.webkitBackingStorePixelRatio ||
ctx.mozBackingStorePixelRatio ||
ctx.msBackingStorePixelRatio ||
ctx.oBackingStorePixelRatio ||
ctx.backingStorePixelRatio || 1
let ratio = dpr / bsr
let viewport = page.getViewport({scale: this.pdf_scale})
canvas.width = viewport.width * ratio
canvas.height = viewport.height * ratio
// canvas.style.width = viewport.width + 'px'
canvas.style.width = '100%'
// that.pdf_div_width = viewport.width + 'px'
that.pdf_div_width = '100%'
canvas.style.height = viewport.height + 'px'
ctx.setTransform(ratio, 0, 0, ratio, 0, 0)
let renderContext = {
canvasContext: ctx,
viewport: viewport
}
page.render(renderContext)
if (this.pdf_pages > num) {
this._renderPage(num + 1)
}
})
},
}
}
</script>
<style lang="scss" scoped>
.home_wrap {
width: 100%;
height: 100%;
.pdf_down {
position: fixed;
display: flex;
z-index: 20;
right: 26px;
bottom: 7%;
.pdf_set_left {
width: 30px;
height: 40px;
color: #408FFF;
font-size: 11px;
padding-top: 25px;
text-align: center;
margin-right: 5px;
cursor: pointer;
}
.pdf_set_middle {
width: 30px;
height: 40px;
color: #408FFF;
font-size: 11px;
padding-top: 25px;
text-align: center;
margin-right: 5px;
cursor: pointer;
}
}
}
</style>
后端代码:
KeywordsFiles实体:
package com.epsoft.xc_ygxf.entity;
import com.baomidou.mybatisplus.annotation.*;
import io.swagger.annotations.ApiModelProperty;
import lombok.AllArgsConstructor;
import lombok.Builder;
import lombok.Data;
import lombok.NoArgsConstructor;
import java.io.Serializable;
import java.util.Date;
@Data
@Builder
@AllArgsConstructor
@NoArgsConstructor
@TableName("key_words_files")
public class KeyWordsFiles implements Serializable {
private static final long serialVersionUID = 1L;
/**
* id
*/
@TableId(value="id", type= IdType.UUID)
private String id;
/**
* 文件类型
*/
private String type;
/**
* 文件名
*/
private String originalFileName;
/**
* 存放的文件名
*/
private String fileName;
/**
* 文件地址
*/
private String filePath;
/**
* 文件访问路径
*/
private String fileAccessPath;
/**
* 创建时间
*/
@ApiModelProperty(value = "创建时间")
@TableField(value = "create_time",fill = FieldFill.INSERT)
private Date createTime;
}
PdfViewUtil工具类:
package com.epsoft.util;
import org.springframework.web.context.request.RequestContextHolder;
import org.springframework.web.context.request.ServletRequestAttributes;
import javax.servlet.ServletOutputStream;
import javax.servlet.http.HttpServletResponse;
import java.io.*;
public class PdfViewUtil {
private static PdfViewUtil pdfViewUtil;
/** * 获取Doc2HtmlUtil实例 */
public static synchronized PdfViewUtil getPdfViewUtilInstance() {
if (pdfViewUtil == null) {
pdfViewUtil = new PdfViewUtil();
}
return pdfViewUtil;
}
/*** 转换文件成pdf */
public void fileToPdf(String filePath) throws IOException {
String type= filePath.substring(filePath.lastIndexOf("."));
ServletRequestAttributes servletRequestAttributes = (ServletRequestAttributes) RequestContextHolder.getRequestAttributes();
HttpServletResponse response = servletRequestAttributes.getResponse();
response.setHeader("content-type", "text/html;charset=utf-8");
InputStream inputStream = null;
OutputStream outputStream = null;
String pdfPath = null;
File file = null;
response.setContentType("application/pdf; charset=UTF-8");
if(".pdf".equals(type)||".PDF".equals(type)){
pdfPath = filePath;
}else{
String pdfPath1 = filePath.substring(0, filePath.lastIndexOf(".")) + ".pdf";
File file1 = new File(pdfPath1);
if(!file1.exists()){
OfficeConvertPdf officeConvertPdf = new OfficeConvertPdf();
if(".doc".equals(type)||".docx".equals(type)){
pdfPath = officeConvertPdf.docConvertPdf(filePath);
}else if(".xls".equals(type)||".xlsx".equals(type)){
pdfPath = officeConvertPdf.excelConvertPdf(filePath);
}else if(".ppt".equals(type)||".pptx".equals(type)){
pdfPath = officeConvertPdf.pptConvertPdf(filePath);
}else if(".txt".equals(type)){
pdfPath = officeConvertPdf.docConvertPdf(filePath);
}
}else{
pdfPath = pdfPath1;
}
}
try {
file = new File(pdfPath);
InputStream i = new FileInputStream(file);
inputStream = new BufferedInputStream(i);
OutputStream o = response.getOutputStream();
outputStream = new BufferedOutputStream(o);
//一次性读取2048个字节
byte[] bs = new byte[2048];
int l;
while ((l=inputStream.read(bs)) != -1) {
outputStream.write(bs,0,l);
}
} catch (IOException e) {
if (file.exists()){
//file.delete();
}
e.printStackTrace();
} finally {
try {
outputStream.flush();
outputStream.close();
inputStream.close();
if (file.exists()){
//file.delete();
}
} catch (IOException e) {
e.printStackTrace();
}
}
}
}
OfficeConvertPdf:
这个文件注意:有可能由于这个文件路径不对导致解析水印失败预览无效。路径自己把握

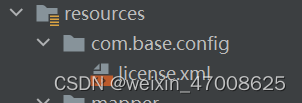

本人路径如下:
license.xml
<License>
<Data>
<Products>
<Product>Aspose.Total for Java</Product>
<Product>Aspose.Words for Java</Product>
</Products>
<EditionType>Enterprise</EditionType>
<SubscriptionExpiry>20991231</SubscriptionExpiry>
<LicenseExpiry>20991231</LicenseExpiry>
<SerialNumber>8bfe198c-7f0c-4ef8-8ff0-acc3237bf0d7</SerialNumber>
</Data>
<Signature>sNLLKGMUdF0r8O1kKilWAGdgfs2BvJb/2Xp8p5iuDVfZXmhppo+d0Ran1P9TKdjV4ABwAgKXxJ3jcQTqE/2IRfqwnPf8itN8aFZlV3TJPYeD3yWE7IT55Gz6EijUpC7aKeoohTb4w2fpox58wWoF3SNp6sK6jDfiAUGEHYJ9pjU=</Signature>
</License>
package com.epsoft.xc_ygxf.util;
import com.aspose.cells.PdfSaveOptions;
import com.aspose.cells.Workbook;
import com.aspose.slides.Presentation;
import com.aspose.words.Document;
import java.io.InputStream;
/**
* @author admin
*/
@SuppressWarnings("ALL")
public class OfficeConvertPdf {
/**
* 转换文件类型
*/
@SuppressWarnings("AlibabaEnumConstantsMustHaveComment")
protected static enum FileTypeEnum {
/**
* WORD
*/
WORD,
/**
* EXCEL
*/
EXCEL,
/**
* PPT
*/
PPT
}
/**
* @param type
* @return
*/
private static boolean getLicense(FileTypeEnum type) {
boolean result = false;
try {
// 凭证
InputStream license = OfficeConvertPdf.class.getClassLoader().getResourceAsStream("/com/base/config/license.xml");
// InputStream license = OfficeConvertPdf.class.getClassLoader().getResourceAsStream("license.xml");
switch (type) {
case WORD:
new com.aspose.words.License().setLicense(license);
break;
case EXCEL:
new com.aspose.cells.License().setLicense(license);
break;
case PPT:
new com.aspose.slides.License().setLicense(license);
break;
default:
new com.aspose.words.License().setLicense(license);
break;
}
result = true;
} catch (Exception e) {
e.printStackTrace();
}
return result;
}
/**
* word转pdf
*
* @param docPath
*/
public String docConvertPdf(String docPath) {
String pdfPath = docPath.substring(0, docPath.lastIndexOf(".")) + ".pdf";
if (!getLicense(FileTypeEnum.WORD)) {
System.out.println("doc2pdf,解析水印失败,请重试");
return pdfPath;
}
try {
long old = System.currentTimeMillis();
Document convertDoc = new Document(docPath);
convertDoc.save(pdfPath, com.aspose.words.SaveFormat.PDF);
long now = System.currentTimeMillis();
System.out.println("转换成功,共耗时:" + ((now - old) / 1000.0) + "秒");
} catch (Exception e) {
e.printStackTrace();
}
return pdfPath;
}
/**
* excel转pdf
*
* @param excelPath
*/
public String excelConvertPdf(String excelPath) {
String pdfPath = excelPath.substring(0, excelPath.lastIndexOf(".")) + ".pdf";
if (!getLicense(FileTypeEnum.EXCEL)) {
return pdfPath;
}
try {
long old = System.currentTimeMillis();
Workbook convertExcel = new Workbook(excelPath);
PdfSaveOptions pdfSaveOptions = new PdfSaveOptions();
pdfSaveOptions.setOnePagePerSheet(true);
convertExcel.save(pdfPath, pdfSaveOptions);
long now = System.currentTimeMillis();
System.out.println("转换成功,共耗时:" + ((now - old) / 1000.0) + "秒");
} catch (Exception e) {
e.printStackTrace();
}
return pdfPath;
}
/**
* ppt转pdf
*
* @param excelPath
*/
public String pptConvertPdf(String pptPath) {
String pdfPath = pptPath.substring(0, pptPath.lastIndexOf(".")) + ".pdf";
if (!getLicense(FileTypeEnum.PPT)) {
return pdfPath;
}
try {
long old = System.currentTimeMillis();
Presentation convertPpt = new Presentation(pptPath);
convertPpt.save(pdfPath, com.aspose.slides.SaveFormat.Pdf);
long now = System.currentTimeMillis();
System.out.println("转换成功,共耗时:" + ((now - old) / 1000.0) + "秒");
} catch (Exception e) {
e.printStackTrace();
}
return pdfPath;
}
private static OfficeConvertPdf officeConvertPdf;
/**
* 获取Doc2HtmlUtil实例
*/
public static void main(String[] args) {
OfficeConvertPdf officeConvertPdf = new OfficeConvertPdf();
// officeConvertPdf.pptConvertPdf("D:/12.docx");
officeConvertPdf.docConvertPdf("D:/12.docx");
}
}
controller:
@RequestMapping(value = "/downloadOrViewFile",method = RequestMethod.GET)
public void downloadOrViewFile(String id) throws IOException {
Assert.isTrue(org.springframework.util.StringUtils.hasText(id), "id不能为空");
keyWordsFilesService.downloadOrViewFile(id);
}
servicesImpl:
@Override
public void downloadOrViewFile(String id) {
QueryWrapper<KeyWordsFiles> queryWrapper = new QueryWrapper<KeyWordsFiles>();
queryWrapper.eq("id",id).orderByDesc("create_time").last("limit 1");
List<KeyWordsFiles> tAttachmentSxelist = keyWordsFilesMapper.selectList(queryWrapper);
Assert.isTrue(tAttachmentSxelist.size()>0, "附件下载不存在!");
String originalFileName = tAttachmentSxelist.get(0).getOriginalFileName();
String filePath = tAttachmentSxelist.get(0).getFilePath();
if(StringUtils.isNotEmpty(filePath)){
PdfViewUtil pdfViewUtilInstance = PdfViewUtil.getPdfViewUtilInstance();
try {
pdfViewUtilInstance.fileToPdf(filePath);
} catch (IOException e) {
e.printStackTrace();
}
}
}
