master 192.168.53.10

backup 192.168.53.11

harbor安装及主从复制配置略，本文主要配置keepalived

两台首先都安装keepalived

# yum -y install keepalived

配置文件

 1 ! Configuration File for keepalived
 2
 3 global_defs {
 4    notification_email {
 5      acassen@firewall.loc
 6      failover@firewall.loc
 7      sysadmin@firewall.loc
 8    }
 9    notification_email_from Alexandre.Cassen@firewall.loc
10    smtp_server 192.168.200.1
11    smtp_connect_timeout 30
12    router_id LVS_DEVEL
13    vrrp_skip_check_adv_addr
14 #   vrrp_strict　　　　#不注释掉vip是ping不通得
15    vrrp_garp_interval 0
16    vrrp_gna_interval 0
17 }
18
19 vrrp_instance VI_1 {
20     state MASTER　　　　　　# 指定 keepalived 的角色，MASTER 表示此主机是主服务器，BACKUP 表示此主机是备用服务器
21     interface ens33
22     virtual_router_id 51　　　　# 虚拟路由标识，这个标识是一个数字，同一个vrrp实例使用唯一的标识，同一vrrp_instance下，MASTER和BACKUP必须是一致的
23     priority 100　　　　　　# 定义优先级，数字越大，优先级越高(0-255)
24     advert_int 1
25     authentication {　　　　# 设置验证类型和密码
26         auth_type PASS
27         auth_pass 1111
28     }
29     virtual_ipaddress {　　　　#设置虚拟IP地址，可以设置多个虚拟IP地址，每行一个
30         192.168.53.100/24
31     }
32 }
33
34 virtual_server 192.168.53.100 80 {
35     delay_loop 6
36     lb_algo rr
37     lb_kind NAT
38     persistence_timeout 50
39     protocol TCP
40
41     real_server 192.168.53.10 80 {
42         weight 1
43     TCP_CHECK {
44             connect_timeout 3
45             nb_get_retry 3
46             delay_before_retry 3
47             connect_port 80
48     }
49 }
50 }

从服务器只需要修改角色及优先级

启动keepalived

# systemctl start keepalived.service

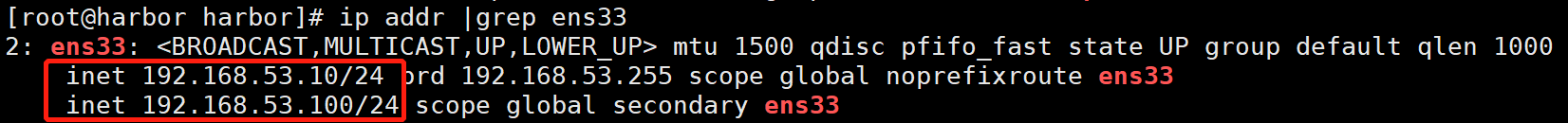

查看是否绑定

# ip addr

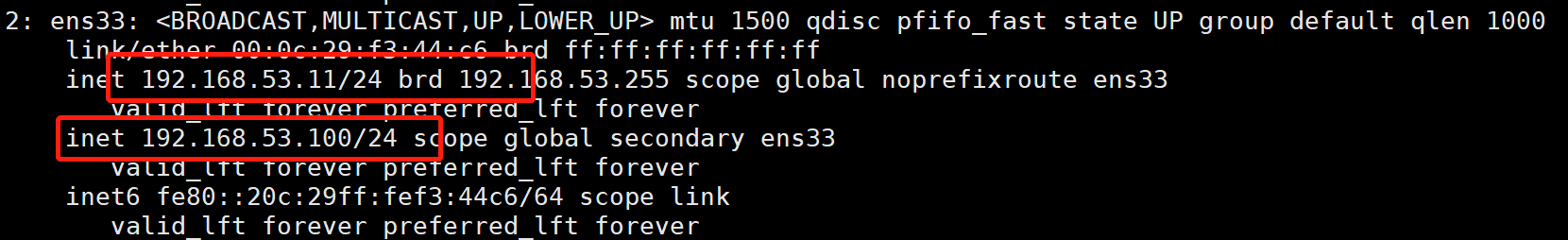

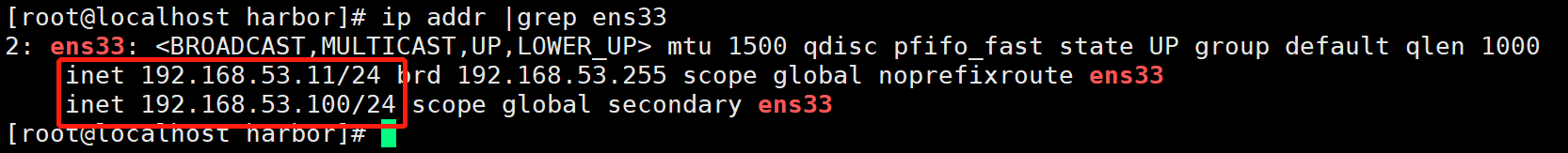

停掉master测试是否飘移

keepalived验证完毕，可以使用脚本进行检测，待优化

使用脚本进行检测，实现故障时候自动切换

检测脚本参考：

#!/bin/bash
harbor_port=`netstat -anpt |grep :80|wc -l`
[ $harbor_port -eq 0 ] && systemctl stop keepalived

keepalived master配置文件

! Configuration File for keepalived

global_defs {
   notification_email {
     acassen@firewall.loc
     failover@firewall.loc
     sysadmin@firewall.loc
   }
   notification_email_from Alexandre.Cassen@firewall.loc
   smtp_server 192.168.200.1
   smtp_connect_timeout 30
   router_id LVS_DEVEL
   vrrp_skip_check_adv_addr
#   vrrp_strict
   vrrp_garp_interval 0
   vrrp_gna_interval 0
}

vrrp_script check_harbor {
    script "/etc/keepalived/harbor_check.sh"
    interval 2
    weight -2
}

vrrp_instance VI_1 {
    state MASTER
    interface ens33
    virtual_router_id 51
    priority 100
    advert_int 1
    authentication {
        auth_type PASS
        auth_pass 1111
    }
    track_script {
    check_harbor
    }
    virtual_ipaddress {
        192.168.53.100/24
    }
}

virtual_server 192.168.53.100 80 {
    delay_loop 6
    lb_algo rr
    lb_kind NAT
    persistence_timeout 50
    protocol TCP

    real_server 192.168.53.10 80 {
        weight 1
#    TCP_CHECK {
#            connect_timeout 3
#            nb_get_retry 3
#            delay_before_retry 3
#            connect_port 80
#    }
    }
}

keepalived backup配置文件

! Configuration File for keepalived

global_defs {
   notification_email {
     acassen@firewall.loc
     failover@firewall.loc
     sysadmin@firewall.loc
   }
   notification_email_from Alexandre.Cassen@firewall.loc
   smtp_server 192.168.200.1
   smtp_connect_timeout 30
   router_id LVS_DEVEL
   vrrp_skip_check_adv_addr
#   vrrp_strict
   vrrp_garp_interval 0
   vrrp_gna_interval 0
}

vrrp_script check_harbor {
    script "/etc/keepalived/harbor_check.sh"
    interval 2
    weight -2
}

vrrp_instance VI_1 {
    state BACKUP
    interface ens33
    virtual_router_id 51
    priority 99
    advert_int 1
    authentication {
        auth_type PASS
        auth_pass 1111
    }
    track_script {
    check_harbor
    }

    virtual_ipaddress {
        192.168.53.100/24
    }
}

virtual_server 192.168.53.100 80 {
    delay_loop 6
    lb_algo rr
    lb_kind NAT
    persistence_timeout 50
    protocol TCP

    real_server 192.168.53.11 80 {
        weight 1
#        TCP_CHECK {
#            connect_timeout 3
#            nb_get_retry 3
#            delay_before_retry 3
#            connect_port 80
#    }
    }
}

keepalived.conf

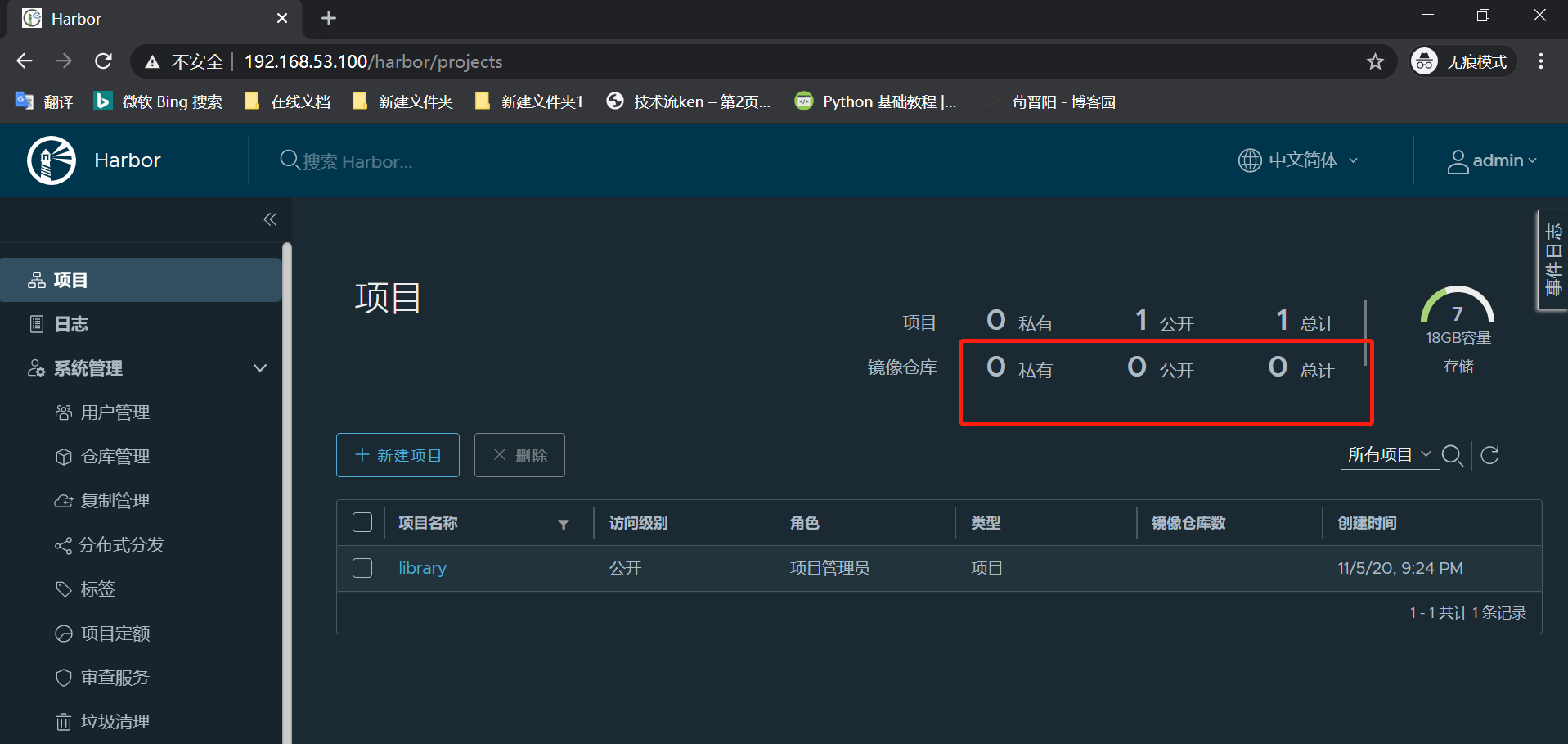

我们先把镜像主从同步停掉，上传一个镜像至53.10中，以便在页面更好区分节点使用vip进行访问

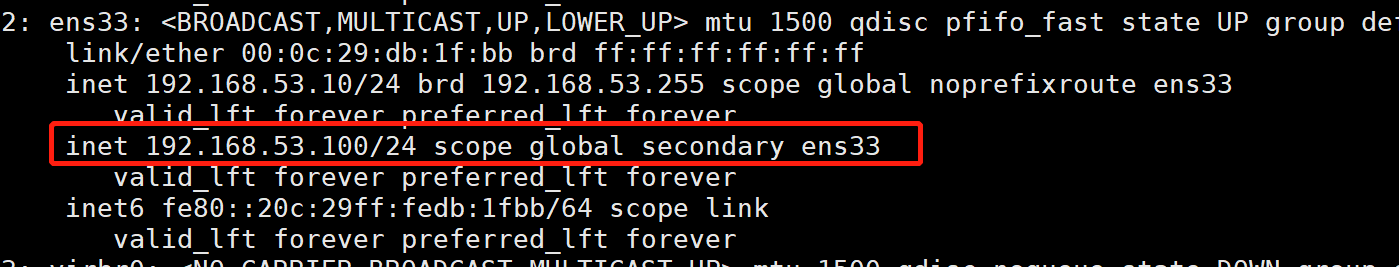

登录服务器查看VIP

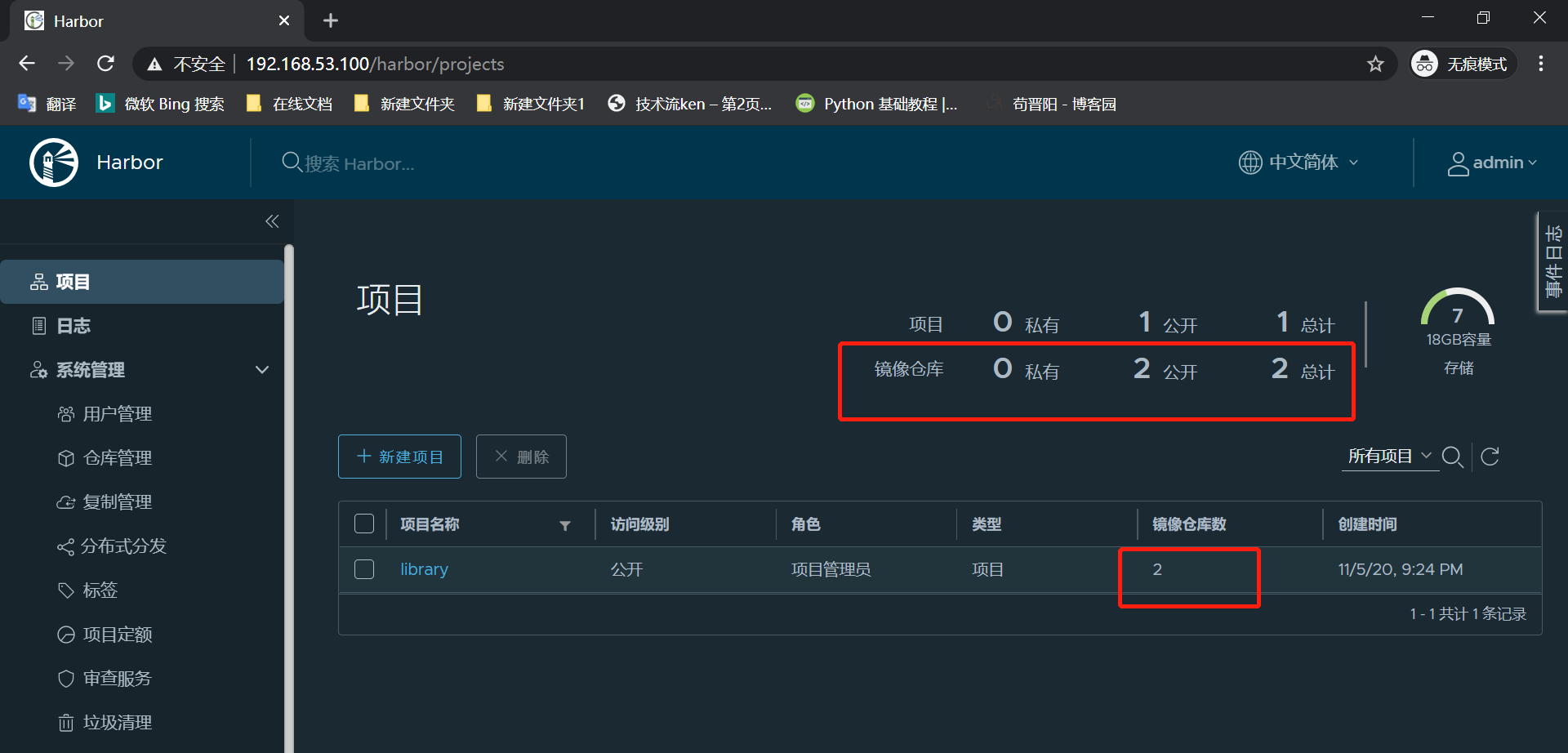

将主节点harbor服务停掉测试

登录服务器确认VIP

测试完毕，配置完成

PS##

1)如果需要配置通过域名访问，保证不暴露后端真实IP，需要将harbor.yml中得hostname进行修改

这样在复制拉取命令时候就不会将自己真实后端IP暴露出去

2)可以看到2.0版本后拉取镜像没有版本号，进行以下配置

[root@harbor harbor]# docker ps
CONTAINER ID        IMAGE                                COMMAND                  CREATED             STATUS                    PORTS                       NAMES
365a19c83071        goharbor/nginx-photon:v2.1.0         "nginx -g 'daemon of…"   3 days ago          Up 19 minutes (healthy)   0.0.0.0:80->8080/tcp        nginx
ce931dcc3d3a        goharbor/harbor-jobservice:v2.1.0    "/harbor/entrypoint.…"   3 days ago          Up 19 minutes (healthy)                               harbor-jobservice
18a585196b55        goharbor/harbor-core:v2.1.0          "/harbor/entrypoint.…"   3 days ago          Up 19 minutes (healthy)                               harbor-core
84cd91ad2d2d        goharbor/harbor-portal:v2.1.0        "nginx -g 'daemon of…"   3 days ago          Up 19 minutes (healthy)                               harbor-portal
039f375ff277        goharbor/registry-photon:v2.1.0      "/home/harbor/entryp…"   3 days ago          Up 19 minutes (healthy)                               registry
d329617fe932        goharbor/harbor-registryctl:v2.1.0   "/home/harbor/start.…"   3 days ago          Up 19 minutes (healthy)                               registryctl
b9a3b01fdf4e        goharbor/harbor-db:v2.1.0            "/docker-entrypoint.…"   3 days ago          Up 19 minutes (healthy)                               harbor-db
34f04df78acf        goharbor/redis-photon:v2.1.0         "redis-server /etc/r…"   3 days ago          Up 19 minutes (healthy)                               redis
e6fa18c6f576        goharbor/harbor-log:v2.1.0           "/bin/sh -c /usr/loc…"   3 days ago          Up 19 minutes (healthy)   127.0.0.1:1514->10514/tcp   harbor-log

进入harbor-portal 得容器中

[root@harbor harbor]# docker exec -it 84cd91ad2d2d /bin/bash
nginx [ / ]$ cd /usr/share/nginx/html/
nginx [ /usr/share/nginx/html ]$ ls -l
total 8612
-rw-r--r-- 1 root root  149395 2020-09-16 02:45 3rdpartylicenses.txt
-rw-r--r-- 1 root root   11347 2020-09-16 02:28 LICENSE
-rw-r--r-- 1 root root  375069 2020-09-16 02:45 dark-theme.css
-rw-r--r-- 1 root root    7455 2020-09-16 02:45 favicon.ico
drwxr-xr-x 3 root root      18 2020-09-16 02:45 i18n
drwxr-xr-x 2 root root     220 2020-09-16 02:45 images
-rw-r--r-- 1 root root     856 2020-09-16 02:45 index.html
-rw-r--r-- 1 root root  389660 2020-09-16 02:45 light-theme.css
-rw-r--r-- 1 root root 5982703 2020-09-16 02:45 main.50faa391a4ae8743ad63.js
-rw-r--r-- 1 root root   71509 2020-09-16 02:45 polyfills-es5.c04cfdffe6ecc730c69c.js
-rw-r--r-- 1 root root    1440 2020-09-16 02:45 runtime.9ad22a88fcc70a015907.js
-rw-r--r-- 1 root root  860407 2020-09-16 02:45 scripts.f4c015c4300c31a9a23c.js
-rw-r--r-- 1 root root     203 2020-09-16 02:45 setting.json
-rw-r--r-- 1 root root  532512 2020-09-16 02:45 styles.fd4a2ff060f99b077bef.css
-rw-r--r-- 1 root root  148840 2020-09-16 02:35 swagger.json
-rw-r--r-- 1 root root  169645 2020-09-16 02:28 swagger.yaml
-rw-r--r-- 1 root root   63039 2020-09-16 02:35 swagger2.json
-rw-r--r-- 1 root root   13548 2020-09-16 02:35 swagger3.json
nginx [ /usr/share/nginx/html ]$

复制一下main.50faa391a4ae8743ad63.js 退出容器

[root@harbor harbor]# find / -name main.50faa391a4ae8743ad63.js
/var/lib/docker/overlay2/8041b6cd2fb0b67619f9ae569d4b7012232c23306727124519e85883f76ec486/diff/usr/share/nginx/html/main.50faa391a4ae8743ad63.js
/var/lib/docker/overlay2/322168b51d2b67ea2bc5226cfe6e61781646a8296045e76c2cd54f2db16bc482/merged/usr/share/nginx/html/main.50faa391a4ae8743ad63.js
[root@harbor harbor]#

在merged目录下的这个，首先进行备份

[root@harbor harbor]# cp /var/lib/docker/overlay2/322168b51d2b67ea2bc5226cfe6e61781646a8296045e76c2cd54f2db16bc482/merged/usr/share/nginx/html/main.50faa391a4ae8743ad63.js{,.bak}
[root@harbor harbor]# vim /var/lib/docker/overlay2/322168b51d2b67ea2bc5226cfe6e61781646a8296045e76c2cd54f2db16bc482/merged/usr/share/nginx/html/main.50faa391a4ae8743ad63.js

搜索字符

artifactPullCommand

将下面内容:

t.type===e.type&&(e.pullCommand=t.pullCommand+" "+n.registryUrl+"/"+n.projectName+"/"+n.repoName+"@"+e.digest)

更改为：

t.type===e.type&&(e.pullCommand=t.pullCommand+" "+n.registryUrl+"/"+n.projectName+"/"+n.repoName+":"+e.tags[0].name)

保存退出，无需重启容器，最好清一下浏览器缓存
