java入门-protobuf-序列化

1. 创建项目

参考文章：java入门-创建项目-IntelliJ IDEA

2. pom.xml 配置 properties

依赖的java版本信息，后面的配置要用到。

    <properties>
        <maven.compiler.source>11</maven.compiler.source>
        <maven.compiler.target>11</maven.compiler.target>
        <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
        <protobuf-java.version>4.26.1</protobuf-java.version>
    </properties>

3. pom.xml 配置依赖

    <dependencies>
        <dependency>
            <groupId>com.google.protobuf</groupId>
            <artifactId>protobuf-java</artifactId>
            <version>${protobuf-java.version}</version>
        </dependency>
        <dependency>
            <groupId>com.google.protobuf</groupId>
            <artifactId>protobuf-java-util</artifactId>
            <version>${protobuf-java.version}</version>
        </dependency>
    </dependencies>

4. pom.xml 配置插件

os-maven-plugin，做环境检测，后面的${os.detected.classifier}会用到。

protobuf-maven-plugin，做proto编译。

    <build>
        <extensions>
            <extension>
                <groupId>kr.motd.maven</groupId>
                <artifactId>os-maven-plugin</artifactId>
                <version>1.7.1</version>
            </extension>
        </extensions>
        <plugins>
            <plugin>
                <groupId>org.xolstice.maven.plugins</groupId>
                <artifactId>protobuf-maven-plugin</artifactId>
                <version>0.6.1</version>
                <extensions>true</extensions>
                <executions>
                    <execution>
                        <goals>
                            <goal>compile</goal>
                            <goal>test-compile</goal>
                        </goals>
                    </execution>
                </executions>
                <configuration>
                    <clearOutputDirectory>false</clearOutputDirectory>
                    <protoSourceRoot>${project.basedir}/src/main/proto</protoSourceRoot>
                    <outputDirectory>${project.basedir}/src/main/java</outputDirectory>
                    <protocArtifact>com.google.protobuf:protoc:${protobuf-java.version}:exe:${os.detected.classifier}</protocArtifact>
                </configuration>
            </plugin>
        </plugins>
    </build>

5. proto定义

文件：src/main/proto/aaa.proto

syntax = "proto3";
package message.gen.proto;
option java_package = "message.gen.proto";

message Person {
  optional string name = 1;
  optional int32 id = 2;
  optional string email = 3;
}

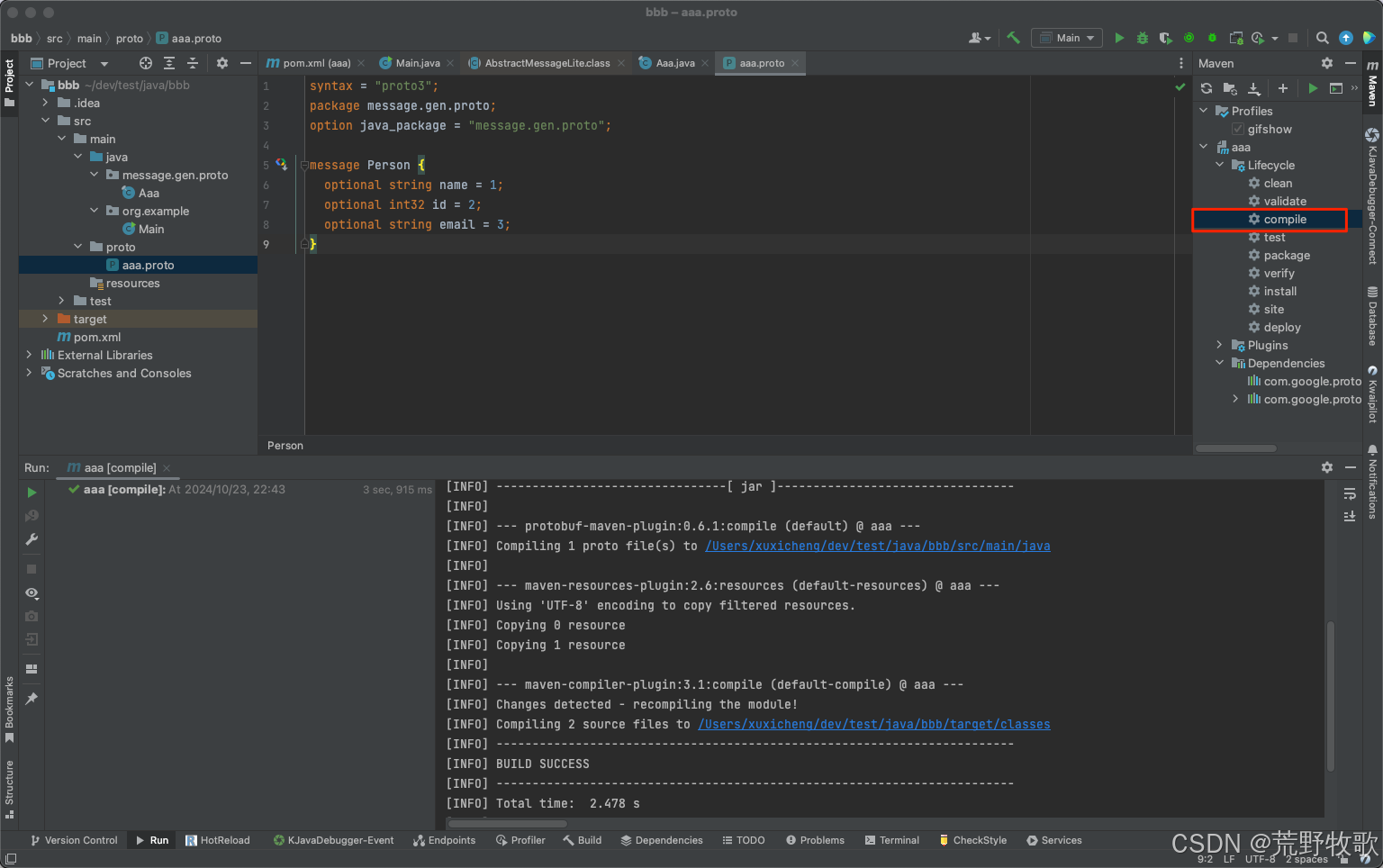

6. 编译proto

双击compile

7. 使用proto

src/main/java/org/example/Main.java，添加代码实现序列化和反序列化。

package org.example;
import com.google.protobuf.InvalidProtocolBufferException;
import message.gen.proto.Aaa.Person;

public class Main {
    public static void main(String[] args) throws InvalidProtocolBufferException {
        Person.Builder personBuilder = Person.newBuilder();
        personBuilder.setEmail("aaa@qq.com").setName("aaa").setId(123);
        Person person = personBuilder.build();

        byte[] aaa = person.toByteArray();
        System.out.println(aaa);

        Person person2 = Person.parseFrom(aaa);
        System.out.println(person2);
    }
}

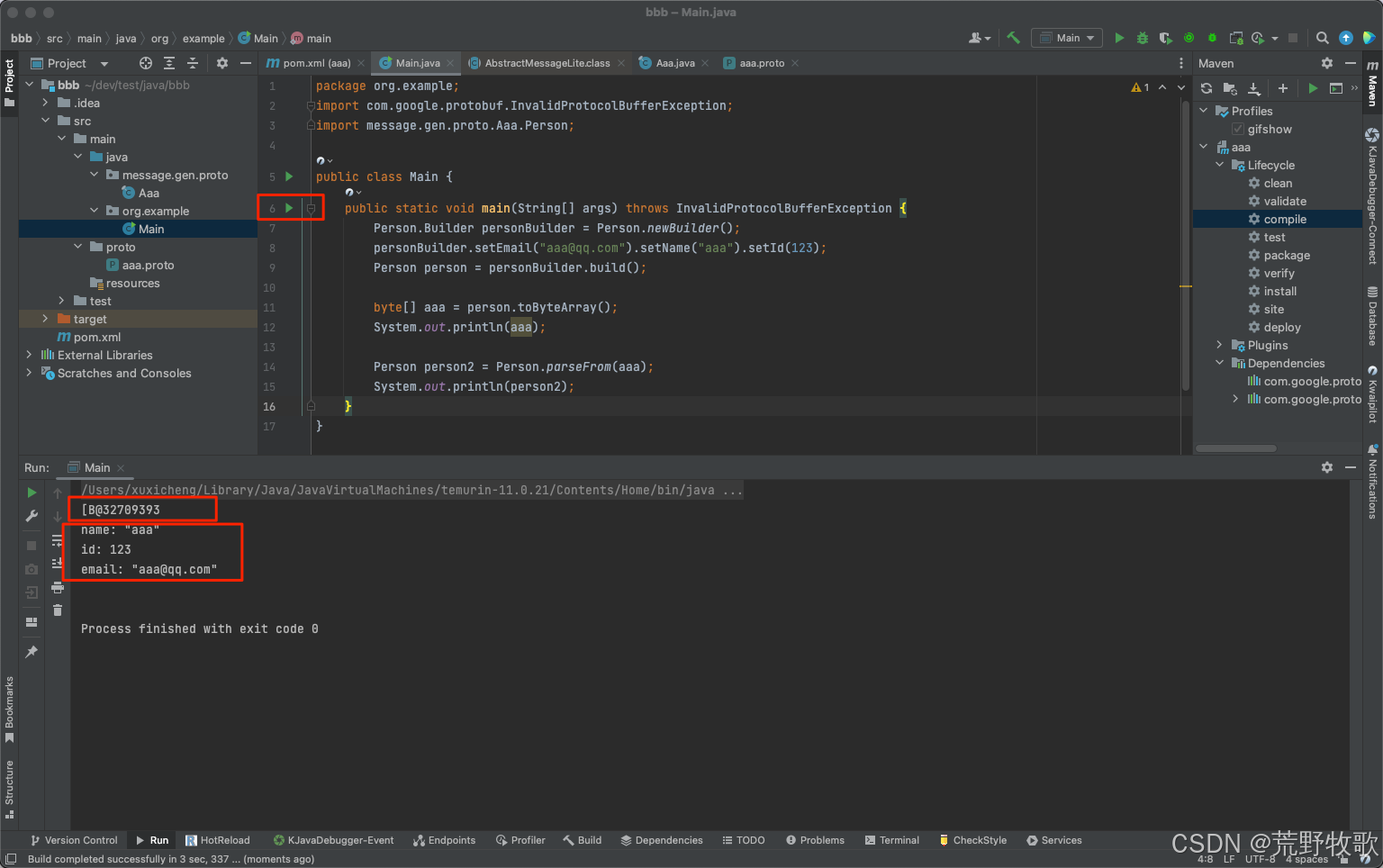

8. 运行测试

IntelliJ 点击main函数左侧绿色小三角。
