Angular封装高德地图组件实现输入框搜索,地图点击选地点

Angular封装高德地图组件实现输入框搜索,地图点击选地点(Angular17版本)

话不多说直接上代码

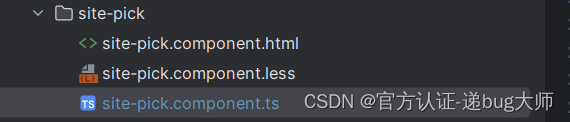

创建一个独立组件
在这里插入图片描述
html代码:

<div style="position: relative;">
  <input #searchInput nz-input placeholder="请输入地址"/>

  <div #mapContainer style="width: 100%;height: 350px;"></div>
</div>

样式less

@import "src/styles/themes/mixin";

.themeMixin({
  :host {
    position: relative;

    .toolbar {
      z-index: 9999;
      top: 8px;
      right: 8px;
      width: 200px;
    }
  }
});

ts代码:

import {
  AfterViewInit,
  Component,
  ElementRef,
  EventEmitter,
  Input,
  OnInit,
  Output, SimpleChanges,
  ViewChild
} from '@angular/core';
import {Observable, Observer, Subject} from "rxjs";
import {getPointsCenter} from "../../../util/gis";
import {NzInputDirective} from "ng-zorro-antd/input";
@Component({
  selector: 'app-site-pick',
  standalone: true,
  imports: [
    NzInputDirective
  ],
  templateUrl: './site-pick.component.html',
  styleUrl: './site-pick.component.less'
})
export class SitePickComponent implements OnInit, AfterViewInit{
  @ViewChild('mapContainer', {static: false}) mapContainer: ElementRef
  @ViewChild('searchInput', {static: false}) searchInput: ElementRef
  @Output("inputChange") inputChange = new EventEmitter<{ lonlat: any, siteName: any, adCode: any }>();
  @Input() lonlat: string;
  @Input() locationName: string;
  @Input("boundary") boundary: string
  map: any;
  overlays: any[] = [];
  searchAdCode = '010'
  defaultCenter = [116.397755, 39.903179]
  currentMarker: any; // 用于存储当前标记的引用
  drawMapEvent = new Subject()
  mapLoaded = false; // 标志位,判断地图是否已加载
  private mapLoadSubject = new Subject<void>(); // 用于触发地图加载完成事件
  ngOnInit(): void {
    this.drawMapEvent.subscribe(next => {
      this.currentPosition().subscribe(center => {
        this.addSearchPlugin();
      });
    });
  }

  addSearchPlugin(): void {
    const placeSearch = new window['AMap'].PlaceSearch({
      map: this.map,
      city: this.searchAdCode
    });
    const auto = new window['AMap'].Autocomplete({
      input: this.searchInput.nativeElement,
      city: this.searchAdCode
    });

    window['AMap'].Event.addListener(auto, "select", (e) => {
      placeSearch.search(e.poi.name, (status, result) => {
        if (status === 'complete' && result.info === 'OK' && result.poiList.pois.length > 0) {
          const poi = result.poiList.pois[0];
          placeSearch.getDetails(poi.id, (detailStatus, detailResult) => {
            if (detailStatus === 'complete' && detailResult.poiList.pois.length > 0) {
              const detailedPoi = detailResult.poiList.pois[0];
              const adCode = [
                detailedPoi.pname,
                detailedPoi.cityname,
                detailedPoi.adname
              ].filter(ac => ac);

              if (adCode.length === 2) {
                adCode.splice(1, 0, adCode[0]);
              }
              const adCodeStr = adCode.join(',');
              const location = detailedPoi.location;
              const siteName = detailedPoi.name;
              const lonlat = location.lng + ',' + location.lat;
              this.inputChange.emit({ lonlat: lonlat, siteName: siteName, adCode: adCodeStr });
            }
          });
        }
      });
    });
  }

  currentPosition(): Observable<any> {
    return new Observable<any>((observer: Observer<any>) => {
      new window['AMap'].Geolocation({
        enableHighAccuracy: false,
        timeout: 5000,
        offset: [10, 20],
        zoomToAccuracy: true,
        position: 'RB'
      }).getCityInfo((status, result) => {
        if (status == 'complete') {
          if (this.boundary && typeof this.boundary === 'string') {
            try {
              const center = getPointsCenter(this.boundary.split(';'));
              observer.next(center);
            } catch (e) {
              observer.next(this.defaultCenter);
            }
          } else {
            observer.next(result.position);
            this.searchAdCode = result.adcode;
            this.addSearchPlugin();
          }
        } else {
          console.error(result, 'Geolocation');
          observer.next(this.defaultCenter);
        }
      });
    });
  }

  ngAfterViewInit(): void {
    setTimeout(() => {
      this.map = new window['AMap'].Map(this.mapContainer.nativeElement, {
        resizeEnable: true,
        zoom: 14
      });

      this.map.on('click', (e) => {
        const lonlat = e.lnglat.getLng() + ',' + e.lnglat.getLat();
        this.resolveLocation(lonlat);
      });

      this.map.on('complete', () => {
        this.mapLoaded = true; // 地图加载完成
        this.mapLoadSubject.next(); // 触发地图加载完成事件
        this.initMarker();
      });

      this.drawMapEvent.next(null);
    }, 0);
  }

  initMarker(): void {
    if (!this.map) {
      console.error('地图尚未加载完成');
      return;
    }
    if (this.currentMarker) {
      this.map.remove(this.currentMarker);
    }
    if (this.lonlat) {
      const [lon, lat] = this.lonlat.split(',').map(Number);
      const position = new window['AMap'].LngLat(lon, lat);
      this.currentMarker = new window['AMap'].Marker({
        map: this.map,
        position: position
      });
    }
  }

  resolveLocation(lonlat: string): void {
    const [lng, lat] = lonlat.split(',').map(Number);
    const position = new window['AMap'].LngLat(lng, lat);
    const geocoder = new window['AMap'].Geocoder();

    geocoder.getAddress(position, (status, result) => {
      if (status === 'complete' && result.regeocode) {
        const address = result.regeocode.formattedAddress;
        const addressComponent = result.regeocode.addressComponent;
        const adCode = [addressComponent.province, addressComponent.city, addressComponent.district]
        .map(ac => ac && typeof ac === 'object' ? ac.adcode : ac)
        .filter(ac => ac);
        if (adCode.length === 2) {
          adCode.splice(1, 0, adCode[0]);
        }
        const adCodeStr = adCode.join(',');
        this.searchInput.nativeElement.value = address;
        this.inputChange.emit({ lonlat: lonlat, siteName: address, adCode: adCodeStr });
      } else {
        console.error('根据经纬度获取地址失败:', result);
      }
    });
    this.initMarker();
  }

  updateMapLocation(): Promise<void> {
    return new Promise((resolve, reject) => {
      if (!this.map) {
        console.error('地图尚未加载完成');
        return reject('地图尚未加载完成');
      }
      const [lon, lat] = this.lonlat.split(',').map(Number);
      const position = new window['AMap'].LngLat(lon, lat);
      if (this.currentMarker) {
        this.currentMarker.setPosition(position);
      } else {
        this.currentMarker = new window['AMap'].Marker({
          map: this.map,
          position: position
        });
      }
      this.map.setCenter([lon, lat]);
      resolve();
    });
  }

  getAddressFromLonLat(): void {
    const [lng, lat] = this.lonlat.split(',').map(Number);
    const geocoder = new window['AMap'].Geocoder();
    const position = new window['AMap'].LngLat(lng, lat);

    geocoder.getAddress(position, (status, result) => {
      if (status === 'complete' && result.regeocode) {
        const address = result.regeocode.formattedAddress;
        const addressComponent = result.regeocode.addressComponent;
        const adCode = [addressComponent.province, addressComponent.city, addressComponent.district]
        .map(ac => ac && typeof ac === 'object' ? ac.adcode : ac)
        .filter(ac => ac);
        if (adCode.length === 2) {
          adCode.splice(1, 0, adCode[0]);
        }
        const adCodeStr = adCode.join(',');
        this.searchInput.nativeElement.value = address;
        this.inputChange.emit({ lonlat: this.lonlat, siteName: address, adCode: adCodeStr });
      } else {
        console.error('根据经纬度获取地址失败:', result);
      }
    });
  }

  ngOnChanges(changes: SimpleChanges): void {
    if (changes['lonlat'] && this.lonlat) {
      if (this.mapLoaded) {
        this.updateMapLocation().then(() => {
          this.getAddressFromLonLat(); //根据 lonlat 获取地名
        });
      } else {
        this.mapLoadSubject.subscribe(() => { // 订阅地图加载完成事件
          this.updateMapLocation().then(() => {
            this.getAddressFromLonLat(); //根据 lonlat 获取地名
          });
        });
      }
    }
  }
}

如果 this.drawMapEvent.next(null); 报错改成 this.drawMapEvent.next();即可 因为我引入的 rxjs@7.5.7,

我这里对数据进行了处理:传出外部的数据类型:{ lonlat: any, siteName: any, adCode: any }

lonlat是经纬度,用",“逗号分隔
siteName是地点名
adCode是行政区code 用”,"分隔

使用

由于我做了表单的传值 可以直接在Form表单使用

      <nz-form-item>
        <nz-form-label [nzSpan]="4" nzFor="lonlat">场地地址</nz-form-label>
        <nz-form-control [nzSpan]="16" nzHasFeedback nzErrorTip="lonlat">
          <app-site-pick
              [lonlat]="form.get('lonlat').value"
              (inputChange)="inputChange($event)">
          </app-site-pick>
        </nz-form-control>
      </nz-form-item>
  /**
   * 地图input框选中返回lonlat+name
   * @param $event
   */
  inputChange($event: any) {
    this.form.get('lonlat').setValue($event.lonlat);
    this.form.get('address').setValue($event.siteName)
  }

这里我只需要传入lonlat即可回显地点
inputChange()方法可以监听改变的数据,然后数据格式就自己处理吧
当然也可以通过[(ngModel)]进行绑定

还有最关键的高德地图的key,securityJsCode(自己去官网上注册)

在全局上配置写上:app.config.ts

export const appConfig: ApplicationConfig = {
  providers: [
    importProvidersFrom(HttpClientModule, NzMessageModule, NzDrawerModule, NzModalModule, NzNotificationModule,NzSwitchModule),
    provideAnimations(),
    provideRouter(
        appRoutes,
        withPreloading(PreloadSelective),
        withComponentInputBinding() // 开启路由参数绑定到组件的输入属性,ng16新增特性
    ),
    // 初始化配置
    {
      provide: APP_INITIALIZER,
      useFactory: (bootstrap: BootstrapService) => () => {
        return bootstrap.init();
      },
      deps: [BootstrapService],
      multi: true,
    },
    // 国际化
    {
      provide: NZ_I18N,
      useFactory: (localId: string) => {
        switch (localId) {
          case 'en':
            return en_US;
          default:
            return zh_CN;
        }
      },
      deps: [LOCALE_ID]
    },
    {provide: HTTP_INTERCEPTORS, useClass: GlobalInterceptor, multi: true},
    {
      provide: AMAP_CONFIG, useValue: {
        securityJsCode: '9a2396b90169c48885aXXXXX6',
        key: 'de07643eaabaXXXXXX29284'
      }
    }
  ]
};

{
  provide: AMAP_CONFIG, useValue: {
    securityJsCode: '9a2396b9XXX2c0c3eaf6fdb6',
    key: 'de07643XXXX5a5629284'
  }
}

这个就是

然后在你的BootstrapService 中添加启动 loadAMap

import {Inject, Injectable} from '@angular/core';
import {registerLocaleData} from "@angular/common";
import zh from "@angular/common/locales/zh";
import {NzIconService} from "ng-zorro-antd/icon";
import {load} from "@amap/amap-jsapi-loader";
import {AMAP_CONFIG, AMAPConfig} from "../config";
import {SkinService} from "./skin.service";

@Injectable({providedIn: 'root'})
export class BootstrapService {

  constructor(private nzIconService: NzIconService,
              private skinService: SkinService,
              @Inject(AMAP_CONFIG) private amapConfig: AMAPConfig) {
  }

  init(): void {
    // 注册本地化语言包
    registerLocaleData(zh);
    // 注册icon
    // this.nzIconService.addIconLiteral('outline:clear', '')
    // 初始化设置主题
    this.skinService.loadTheme(this.skinService.localTheme()).then();
    // 加载地图
    this.loadAMap()
  }

  loadAMap(): void {
    window['_AMapSecurityConfig'] = {
      securityJsCode: this.amapConfig.securityJsCode, // 安全密钥
    };
    load({
      "key": this.amapConfig.key,
      "version": "2.0",   // 指定要加载的 JSAPI 的版本,缺省时默认为 1.4.15
      "plugins": [
        'AMap.Geolocation',
        'AMap.PolygonEditor',
        'AMap.PlaceSearch',
        'AMap.AutoComplete',
        'AMap.Polyline',
        'AMap.Geocoder'
      ], // 需要使用的的插件列表,如比例尺'AMap.Scale'等
      "AMapUI": {// 是否加载 AMapUI,缺省不加载
        "version": '1.1',// AMapUI 缺省 1.1
        "plugins": [
          'overlay/SimpleMarker'
        ],
      },
      "Loca": { // 是否加载 Loca, 缺省不加载
        "version": '2.0'  // Loca 版本,缺省 1.3.2
      },
    }).then((AMap) => {
      window['AMap'] = AMap
    }).catch(e => {
      console.log(e);
    })
  }
}

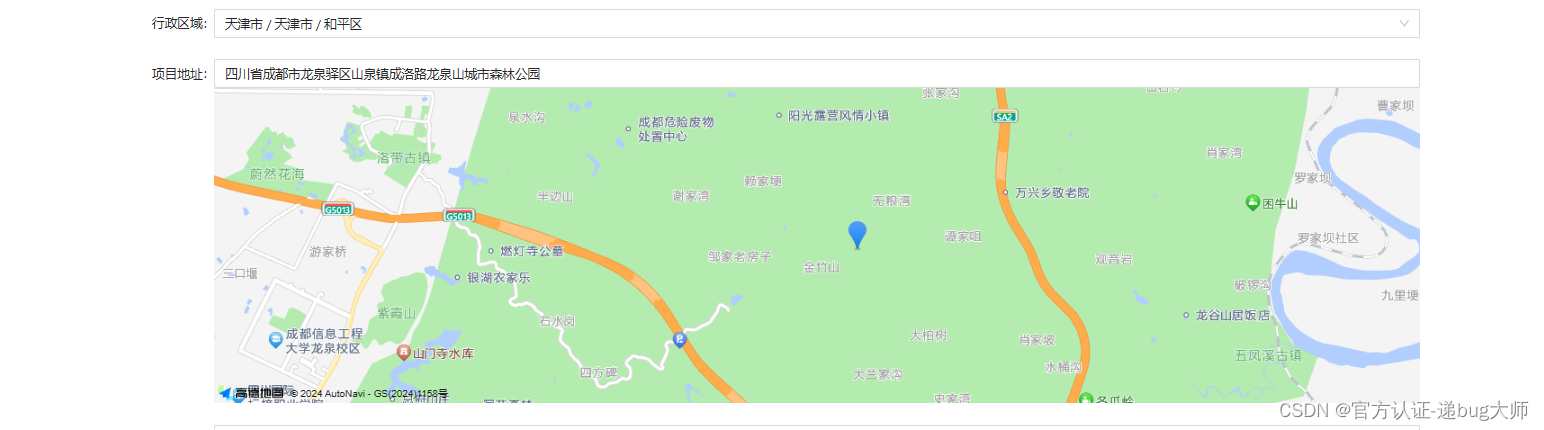

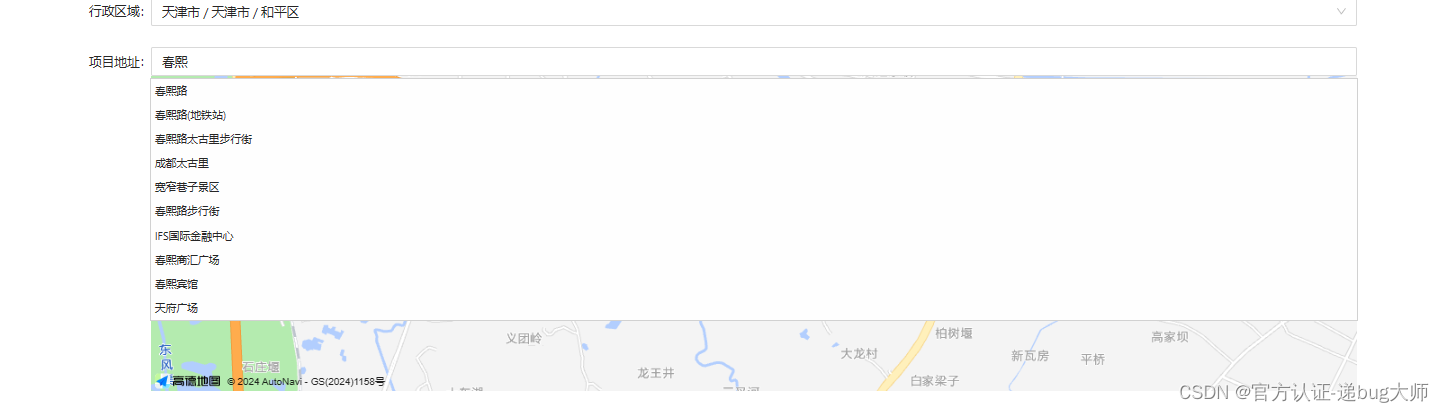

成品展示:

在这里插入图片描述

在这里插入图片描述
