交换机的端口种类access、trunk、hybrid

基础

Vlan、IP规划

PC1：192.168.1.1/24，hybrid pvid vlan 10
PC2：192.168.1.2/24，hybrid pvid vlan 20
PC3：192.168.30.3/24，hybrid pvid vlan 30
PC4：192.168.1.4/24，hybrid pvid vlan 30
PC5：192.168.30.5/24，access vlan 30
SW1：vlan 10、20、30，trunk vlan all
SW2：vlan 10、20、30，trunk vlan all

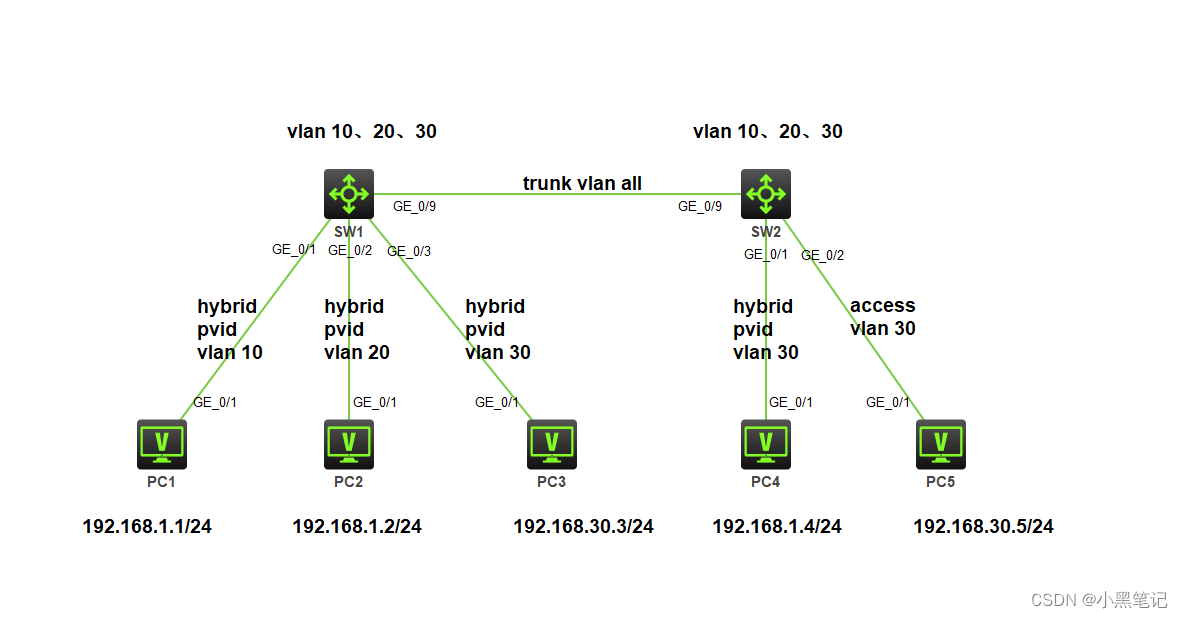

拓扑连接

目标

目标1：PC1可与同交换机的PC2不能相互访问

目标2：PC1、PC2分别与不同交换机的PC4相互访问

目标3：PC3与PC5跨交换机可相互访问

模拟器实施过程

SW1实施过程

[SW1]vlan 10
[SW1-vlan10]vlan 20
[SW1-vlan20]vlan 30
[SW1-vlan30]qu

[SW1]interface GigabitEthernet 1/0/1
[SW1-GigabitEthernet1/0/1]port link-type hybrid
[SW1-GigabitEthernet1/0/1]port hybrid pvid vlan 10
[SW1-GigabitEthernet1/0/1]port hybrid vlan 10 30 untagged
[SW1-GigabitEthernet1/0/1]undo port hybrid vlan 1
[SW1-GigabitEthernet1/0/1]qu

[SW1]interface GigabitEthernet 1/0/2
[SW1-GigabitEthernet1/0/2]port link-type hybrid
[SW1-GigabitEthernet1/0/2]port hybrid pvid vlan 20
[SW1-GigabitEthernet1/0/2]port hybrid vlan 20 30 untagged
[SW1-GigabitEthernet1/0/2]undo port hybrid vlan 1
[SW1-GigabitEthernet1/0/2]qu

[SW1]interface GigabitEthernet 1/0/3
[SW1-GigabitEthernet1/0/3]port link-type hybrid
[SW1-GigabitEthernet1/0/3]port hybrid pvid vlan 30
[SW1-GigabitEthernet1/0/3]port hybrid vlan 10 20 30 untagged
[SW1-GigabitEthernet1/0/3]undo port hybrid vlan 1
[SW1-GigabitEthernet1/0/3]qu

[SW1]interface GigabitEthernet 1/0/9
[SW1-GigabitEthernet1/0/9]port link-type trunk
[SW1-GigabitEthernet1/0/9]port trunk permit vlan all
[SW1-GigabitEthernet1/0/9]qu

SW2实施过程

[SW2]vlan 10
[SW2-vlan10]vlan 20
[SW2-vlan20]vlan 30
[SW2-vlan30]qu

[SW2]interface GigabitEthernet 1/0/1
[SW2-GigabitEthernet1/0/1]port link-type hybrid
[SW2-GigabitEthernet1/0/1]port hybrid pvid vlan 10
[SW2-GigabitEthernet1/0/1]port hybrid vlan 10 20 30 untagged
[SW2-GigabitEthernet1/0/1]undo port hybrid vlan 1
[SW2-GigabitEthernet1/0/1]qu

[SW2]interface GigabitEthernet 1/0/2
[SW2-GigabitEthernet1/0/2]port link-type access
[SW2-GigabitEthernet1/0/2]port access vlan 30
[SW2-GigabitEthernet1/0/2]qu

[SW2]interface GigabitEthernet 1/0/9
[SW2-GigabitEthernet1/0/9]port link-type trunk
[SW2-GigabitEthernet1/0/9]port trunk permit vlan all
[SW2-GigabitEthernet1/0/9]qu

通断验证

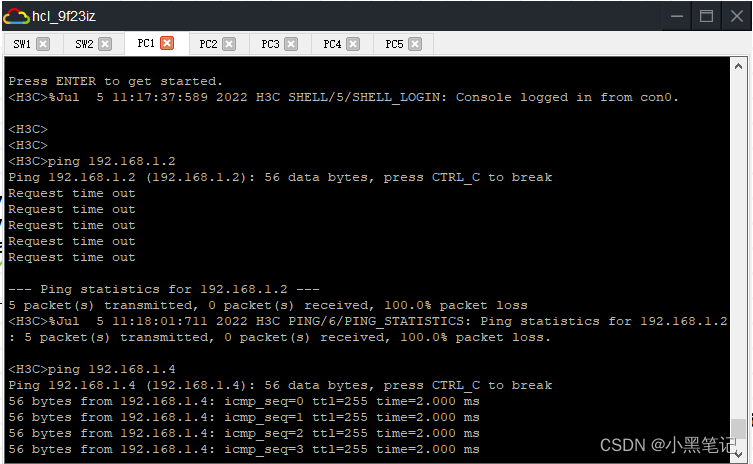

验证目标1

PC1至PC2不通，目标1完成

验证目标2

PC1至PC4通，PC2至PC4通，目标2完成

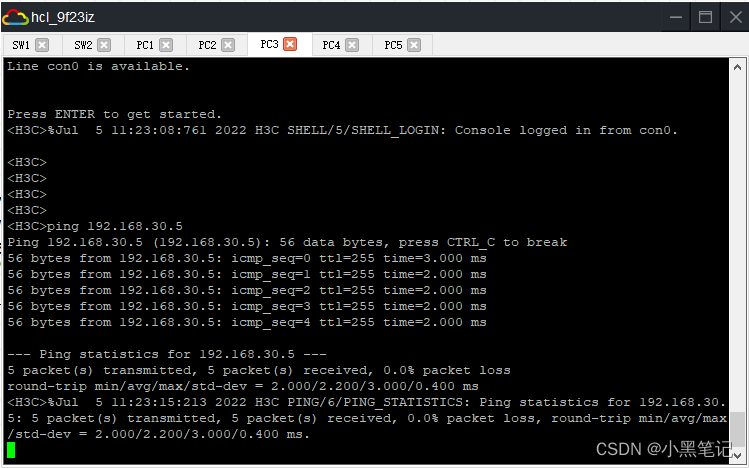

验证目标3

PC3至PC5通，目标3完成

物理机实施过程的阻碍项

其中
PC1：192.168.100.249，hybrid pvid vlan 100
PC2：192.168.100.115，hybrid pvid vlan 200
交换机：H3C S5560 Series
提前创建号vlan 100、200

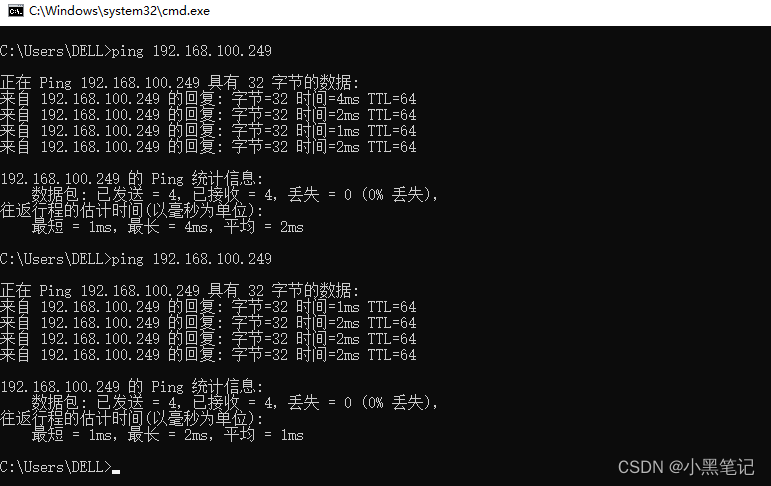

验证过程1

两个端口均为hybrid口情况下互通验证

[H3C]int g 1/0/1
[H3C-GigabitEthernet1/0/1]por li hy
[H3C-GigabitEthernet1/0/1]po hy pv vlan 100
[H3C-GigabitEthernet1/0/1]po hy vl 100 200 un
[H3C-GigabitEthernet1/0/1]un po hy vl 1
[H3C-GigabitEthernet1/0/1]qu

[H3C]int g 1/0/2
[H3C-GigabitEthernet1/0/2]po li hy
[H3C-GigabitEthernet1/0/2]po hy pv vl 200
[H3C-GigabitEthernet1/0/2]un po hy vl 1
[H3C-GigabitEthernet1/0/2]po hy vl 100 200 un
[H3C-GigabitEthernet1/0/2]qu
[H3C]

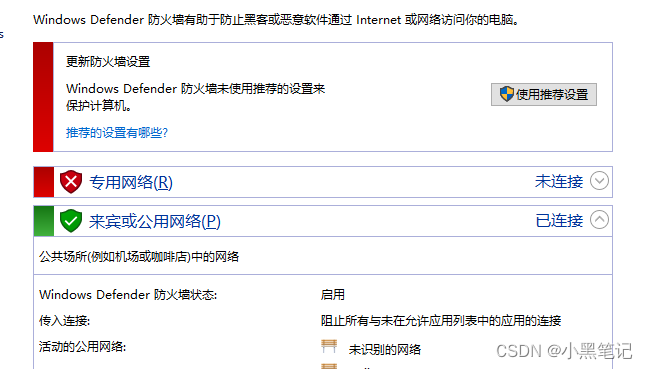

按照这个过程正常应该两个主机就通了，实际不通，后发现对方主机未关闭防火墙，关闭防火墙后可通【就是下方图片里的绿色的那个，也需要关闭掉】

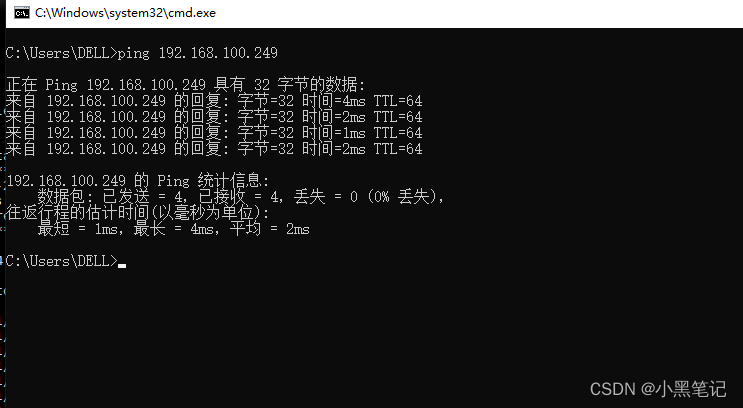

验证过程2

一个为hybrid口、一个为access口情况下互通验证

[H3C]int g 1/0/1
[H3C-GigabitEthernet1/0/1]por li hy
[H3C-GigabitEthernet1/0/1]po hy pv vlan 100
[H3C-GigabitEthernet1/0/1]po hy vl 100 200 un
[H3C-GigabitEthernet1/0/1]un po hy vl 1
[H3C-GigabitEthernet1/0/1]qu

[H3C]int g 1/0/2
[H3C-GigabitEthernet1/0/2]po li ac
[H3C-GigabitEthernet1/0/2]po ac vl 100
[H3C-GigabitEthernet1/0/2]qu
[H3C]

小结

个人记忆方法：
access：只允许一个vlan通过，一般就是接PC或傻瓜交换机
trunk：允许多个vlan通过，接可网管交换机的
hybrid：允许1个或多个vlan通过，跨vlan的同网段PC互通

#
interface GigabitEthernet1/0/1
 port link-mode bridge
 port link-type hybrid
 undo port hybrid vlan 1
 port hybrid vlan 10 30 untagged  #此处必须包含自己的vlan ID，另外需要和哪个vlan通就写哪个vlan ID
 port hybrid pvid vlan 10 #基于端口的vlan ID
 combo enable fiber
#
interface GigabitEthernet1/0/2
 port link-mode bridge
 port link-type hybrid
 undo port hybrid vlan 1
 port hybrid vlan 20 30 untagged
 port hybrid pvid vlan 30
 combo enable fiber
#
interface GigabitEthernet1/0/3
 port link-mode bridge
 port link-type hybrid
 undo port hybrid vlan 1
 port hybrid vlan 10 20 30 untagged
 port hybrid pvid vlan 30
 combo enable fiber
#
