企业微信自建应用单点登陆到第三方系统

最近在做一个项目时，接到一个需求。需要在企业微信中自建应用实现免密登陆到第三方应用，在网上查阅资料一番后，便开始实现，下面是我的大致流程，因是第一次做，所有不免有不准确的地方，还请大家多多指正。

第一步、企业微信自建应用，获取企ID（corpId），AgentId（agentId），Serect（coprsecret）

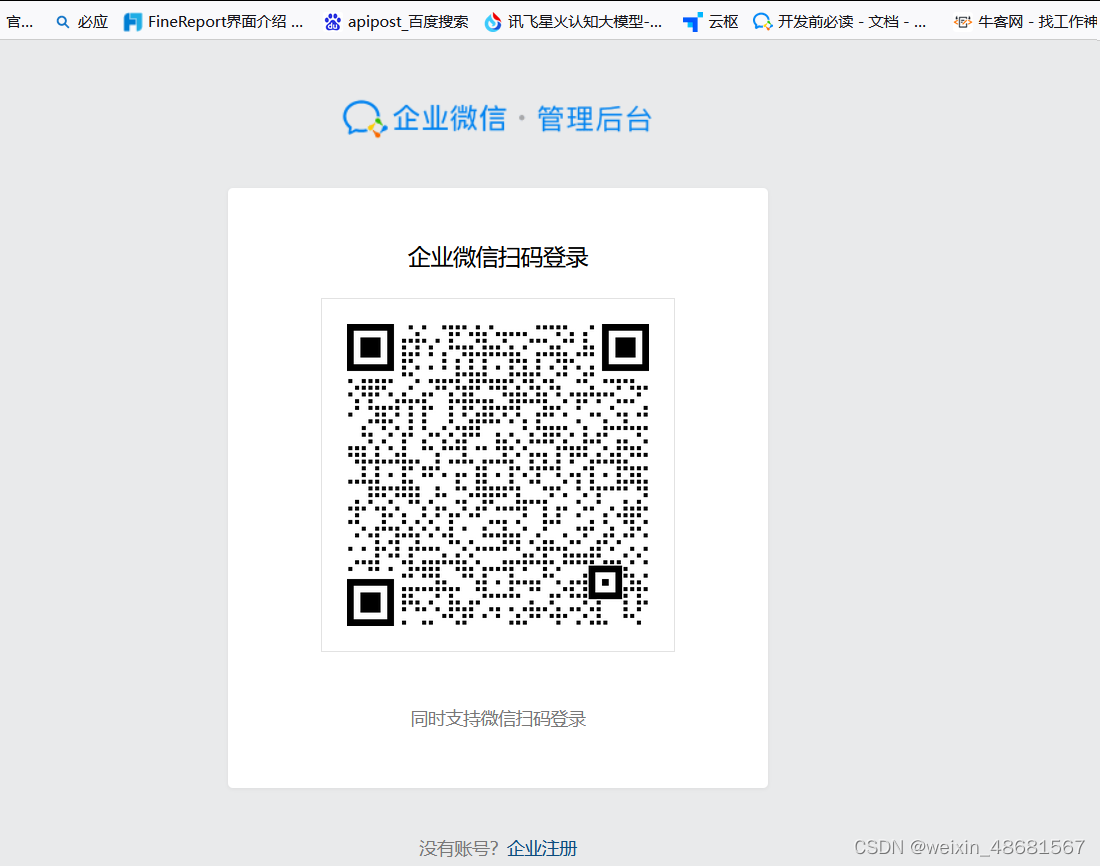

1.需要以管理员身份登录企业微信管理端后台

链接：企业微信

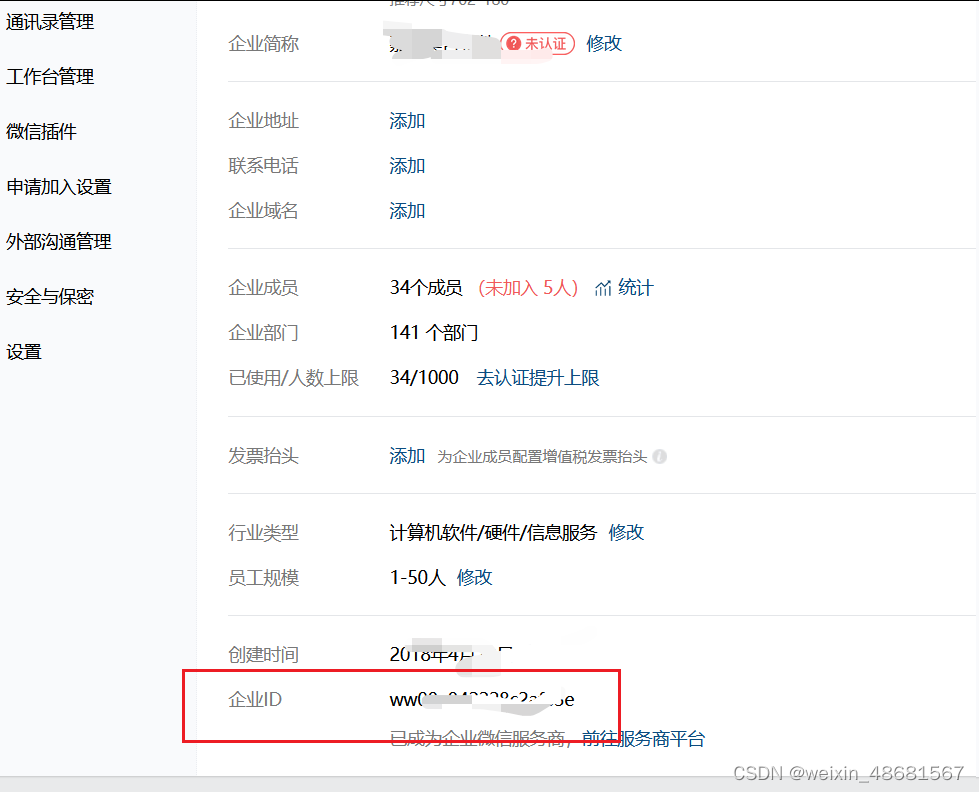

2.查看企业ID

这个相当于企业微信的唯一识别号，每个企业都有一个唯一的企业ID，在我的企业-企业信息中可以查看，记录下来，后面需要用到。

3.自建应用

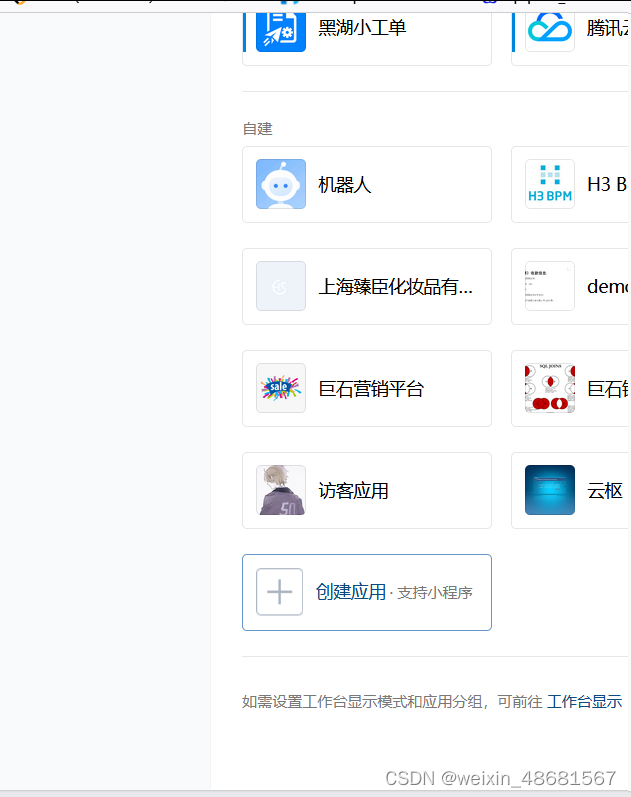

应用管理-应用-自建应用（最下面）

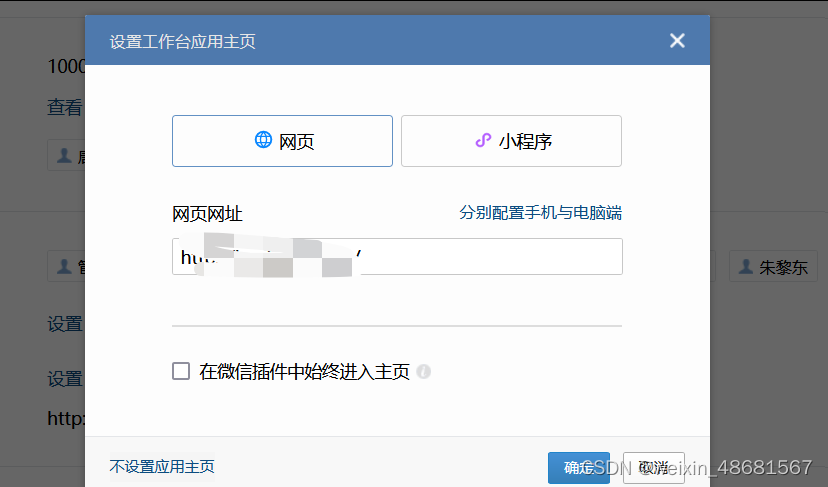

填写应用信息

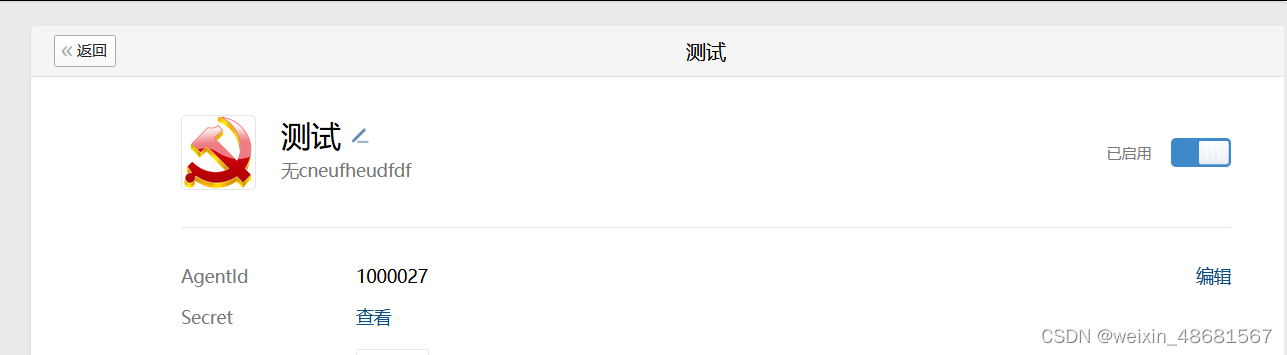

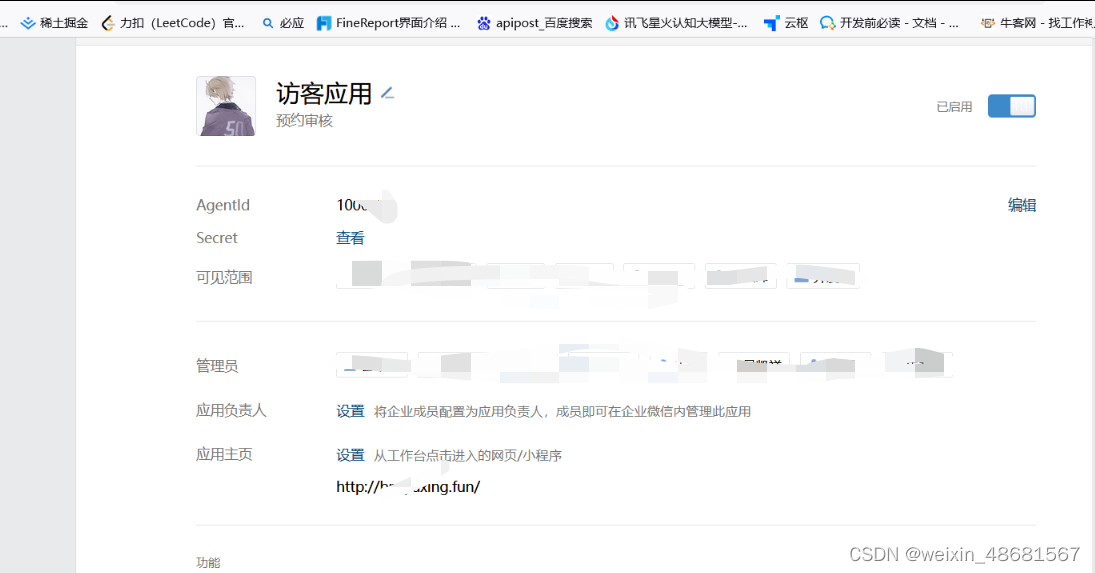

应用创建完之久就可以查看AgentId，Secret

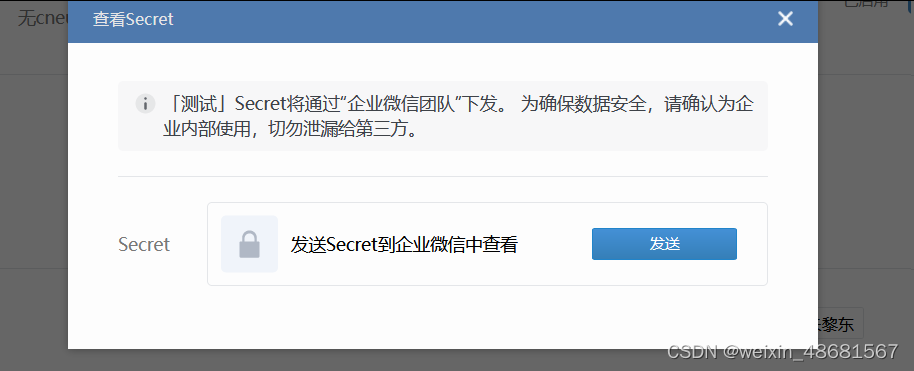

不过Secret需要下发手机端查看

第二步、后端代码实现

1.需要用到的依赖

  <dependency>
            <groupId>com.alibaba</groupId>
            <artifactId>fastjson</artifactId>
            <version>1.2.71</version>
  </dependency>
 <dependency>
            <groupId>org.apache.httpcomponents</groupId>
            <artifactId>httpcore</artifactId>
            <version>4.4.16</version>
        </dependency>
        <dependency>
            <groupId>org.apache.httpcomponents</groupId>
            <artifactId>httpclient</artifactId>
            <version>4.5.14</version>
        </dependency>

        <dependency>
            <groupId>commons-httpclient</groupId>
            <artifactId>commons-httpclient</artifactId>
            <version>3.1</version>
        </dependency>

2.发送http请求工具类

import com.alibaba.fastjson.JSONObject;
import com.oz.kerui.web.weixin.model.AccessToken;
import lombok.extern.slf4j.Slf4j;
import org.apache.commons.httpclient.HttpClient;
import org.apache.commons.httpclient.methods.InputStreamRequestEntity;
import org.apache.commons.httpclient.methods.PostMethod;
import org.apache.commons.httpclient.methods.RequestEntity;
import javax.net.ssl.HttpsURLConnection;
import javax.net.ssl.SSLContext;
import javax.net.ssl.SSLSocketFactory;
import javax.net.ssl.TrustManager;
import java.io.*;
import java.net.URL;
import java.text.MessageFormat;


/**
 * @Description 微信工具使用
 * @Author whl
 * @Date 2023/12/17 16:20
 **/
@Slf4j
public class WeChatUtil {
	/**
	 * 微信的请求url 获取access_token的接口地址（GET） 限200（次/天）
	 */
	public final static String access_token_url = "https://qyapi.weixin.qq.com/cgi-bin/gettoken?corpid={0}&corpsecret={1}";

    /**
     * 1.发起https请求并获取结果
     *
     * @param requestUrl    请求地址
     * @param requestMethod 请求方式（GET、POST）
     * @param outputStr     提交的数据
     * @return JSONObject(通过JSONObject.get ( key)的方式获取json对象的属性值)
     */
    public static JSONObject httpRequest(String requestUrl, String requestMethod, String outputStr) {
        JSONObject jsonObject = null;
        StringBuffer buffer = new StringBuffer();
        try {
            // 创建SSLContext对象，并使用我们指定的信任管理器初始化
            TrustManager[] tm = {new MyX509TrustManager()};
            SSLContext sslContext = SSLContext.getInstance("SSL", "SunJSSE");
            sslContext.init(null, tm, new java.security.SecureRandom());
            // 从上述SSLContext对象中得到SSLSocketFactory对象
            SSLSocketFactory ssf = sslContext.getSocketFactory();
            URL url = new URL(requestUrl);
            HttpsURLConnection httpUrlConn = (HttpsURLConnection) url.openConnection();
            httpUrlConn.setSSLSocketFactory(ssf);
            httpUrlConn.setDoOutput(true);
            httpUrlConn.setDoInput(true);
            httpUrlConn.setUseCaches(false);
            // 设置请求方式（GET/POST）
            httpUrlConn.setRequestMethod(requestMethod);
            if ("GET".equalsIgnoreCase(requestMethod)) {
                httpUrlConn.connect();
            }
            // 当有数据需要提交时
            if (null != outputStr) {
                OutputStream outputStream = httpUrlConn.getOutputStream();
                // 注意编码格式，防止中文乱码
                outputStream.write(outputStr.getBytes("UTF-8"));
                outputStream.close();
            }
            // 将返回的输入流转换成字符串
            InputStream inputStream = httpUrlConn.getInputStream();
            InputStreamReader inputStreamReader = new InputStreamReader(inputStream, "UTF-8");
            BufferedReader bufferedReader = new BufferedReader(inputStreamReader);
            String str = null;
            while ((str = bufferedReader.readLine()) != null) {
                buffer.append(str);
            }
            bufferedReader.close();
            inputStreamReader.close();
            // 释放资源
            inputStream.close();
            httpUrlConn.disconnect();
            jsonObject = JSONObject.parseObject(buffer.toString());
            return jsonObject;
        } catch (Exception e) {
            log.error("异常信息", e);
            return null;
        }
    }

    /**
     * 微信用户登录，登录成功后，返回相应的token 值
     *
     * @param appid     机构id
     * @param appsecret 密码
     * @return 微信用户登录，登录成功后，返回相应的token 值
     */
    public static AccessToken getAccessToken(String appid, String appsecret) {
		AccessToken accessToken = null;
		String requestUrl = MessageFormat.format(access_token_url, appid, appsecret);
		JSONObject jsonObject = httpRequest(requestUrl, "GET", null);
        // 如果请求成功
        if (null != jsonObject) {
            try {
                accessToken = new AccessToken();
                accessToken.setToken(jsonObject.getString("access_token"));
                accessToken.setExpiresIn(jsonObject.getInteger("expires_in"));
            } catch (Exception e) {
                accessToken = null;
                // 获取token失败
                log.error("获取token失败 errcode:{} errmsg:{}",
                        jsonObject.getInteger("errcode"), jsonObject.getString("errmsg"));
                return accessToken;
            }
        }
        return accessToken;
    }



    /**
     * 向指定 URL 发送POST方法的请求
     *
     * @param url
     * 发送请求的 URL
     * @param jsonData
     * 请求参数，请求参数应该是Json格式字符串的形式。
     * @return 所代表远程资源的响应结果
     */
    public static String sendJsonPost(String url, String jsonData) {
        PrintWriter out = null;
        BufferedReader in = null;
        String result = "";
        try {
            HttpClient client = new HttpClient(); // 客户端实例化
            PostMethod postMethod = new PostMethod(url); // 请求方法post，可以将请求路径传入构造参数中

            postMethod.addRequestHeader("Content-type", "application/json; charset=utf-8");
            byte[] requestBytes = jsonData.getBytes("utf-8"); // 将参数转为二进制流

            InputStream inputStream = new ByteArrayInputStream(requestBytes, 0,requestBytes.length);
            // 请求体
            RequestEntity requestEntity = new InputStreamRequestEntity(inputStream,requestBytes.length, "application/json; charset=utf-8");
            postMethod.setRequestEntity(requestEntity); // 将参数放入请求体
            int i = client.executeMethod(postMethod); // 执行方法
            System.out.println("请求状态"+i);

            // 这里因该有判断的，根据请求状态判断请求是否成功，然后根据第三方接口返回的数据格式，解析出我们需要的数据
            byte[] responseBody = postMethod.getResponseBody(); // 得到相应数据
            String s = new String(responseBody);
            System.out.println(s);
        } catch (Exception e) {
            System.out.println("发送 POST 请求出现异常！" + e);
            e.printStackTrace();
        }
        // 使用finally块来关闭输出流、输入流
        finally {
            try {
                if (out != null) {
                    out.close();
                }
                if (in != null) {
                    in.close();
                }
            } catch (IOException ex) {
                ex.printStackTrace();
            }
        }
        return result;
    }

}

 HttpUtil

import cn.hutool.core.map.MapUtil;
import org.apache.http.HttpEntity;
import org.apache.http.HttpResponse;
import org.apache.http.NameValuePair;
import org.apache.http.client.config.RequestConfig;
import org.apache.http.client.entity.UrlEncodedFormEntity;
import org.apache.http.client.methods.CloseableHttpResponse;
import org.apache.http.client.methods.HttpPost;
import org.apache.http.client.methods.HttpUriRequest;
import org.apache.http.client.methods.RequestBuilder;
import org.apache.http.entity.StringEntity;
import org.apache.http.impl.client.CloseableHttpClient;
import org.apache.http.impl.client.HttpClientBuilder;
import org.apache.http.impl.client.HttpClients;
import org.apache.http.impl.conn.PoolingHttpClientConnectionManager;
import org.apache.http.message.BasicNameValuePair;
import org.apache.http.protocol.HTTP;
import org.apache.http.util.EntityUtils;
import org.slf4j.Logger;
import org.slf4j.LoggerFactory;
import java.io.IOException;
import java.nio.charset.Charset;
import java.util.ArrayList;
import java.util.List;
import java.util.Map;

/**
 * http请求工具类
 *
 * @author wangfenglei
 */
public class HttpUtil {
	private static Logger log = LoggerFactory.getLogger(HttpUtil.class);
	private static PoolingHttpClientConnectionManager connectionManager = null;
	private static HttpClientBuilder httpBuilder = null;
	private static RequestConfig requestConfig = null;

	/**
	 * 最大连接连接数量
	 */
	private static int MAX_CONNECTION = 100;
	/**
	 * 最大并发请求数量
	 */
	private static int DEFAULT_MAX_CONNECTION = 50;

	static {
		// 设置http的状态参数
		requestConfig = RequestConfig.custom().setSocketTimeout(10000).setConnectTimeout(10000)
				.setConnectionRequestTimeout(10000).build();

		connectionManager = new PoolingHttpClientConnectionManager();
		connectionManager.setMaxTotal(MAX_CONNECTION);
		connectionManager.setDefaultMaxPerRoute(DEFAULT_MAX_CONNECTION);
		httpBuilder = HttpClients.custom();
		httpBuilder.setConnectionManager(connectionManager);
	}

	/**
	 * 获取http客户端连接
	 *
	 * @return http客户端连接
	 */
	public static CloseableHttpClient getConnection() {
		return httpBuilder.build();
	}

	/**
	 * http post请求，利用http请求池
	 *
	 * @param url       请求url
	 * @param paramsMap 请求参数
	 * @return 请求结果
	 * @throws Exception 异常
	 */
	public static String httpPost(String url, Map<String, String> paramsMap) throws Exception {
		List<NameValuePair> params = new ArrayList<>();

		for (Map.Entry<String, String> e : paramsMap.entrySet()) {
			NameValuePair pair = new BasicNameValuePair(e.getKey(), e.getValue());
			params.add(pair);
		}

		HttpUriRequest postMethod = RequestBuilder.post().setUri(url)
				.addParameters(params.toArray(new BasicNameValuePair[params.size()])).setConfig(requestConfig).build();

		HttpResponse response = getConnection().execute(postMethod);

		return EntityUtils.toString(response.getEntity());
	}

	/**
	 * http post请求，利用http请求池
	 *
	 * @param url       请求url
	 * @param paramsMap 请求参数
	 * @param urlParams url请求参数
	 * @return 请求结果
	 * @throws Exception 异常
	 */
	public static String httpPost(String url, Map<String, String> paramsMap, Map<String, Object> urlParams) throws Exception {
		List<NameValuePair> params = new ArrayList<>();

		for (Map.Entry<String, String> e : paramsMap.entrySet()) {
			NameValuePair pair = new BasicNameValuePair(e.getKey(), e.getValue());
			params.add(pair);
		}
		StringBuilder sb = new StringBuilder("?");
		for (Map.Entry<String, Object> e : urlParams.entrySet()) {
			sb.append(e.getKey()).append("=").append(e.getValue()).append("&");
		}
		if (urlParams!= null&&urlParams.size()!=0){
			url = url + sb.toString();
		}
		HttpUriRequest postMethod = RequestBuilder.post().setUri(url)
				.addParameters(params.toArray(new BasicNameValuePair[params.size()])).setConfig(requestConfig).build();

		HttpResponse response = getConnection().execute(postMethod);

		return EntityUtils.toString(response.getEntity());
	}

	/**
	 * http post请求，利用http请求池
	 *
	 * @param url     请求url
	 * @param jsonStr json字符串
	 * @return 请求结果
	 * @throws Exception 异常
	 */
	public static String httpPostJson(String url, String jsonStr) throws Exception {

		HttpUriRequest postMethod = RequestBuilder.post().setUri(url)
				.setHeader("Content-Type", "application/json;charset=utf-8").setHeader("Accept", "application/json")
				.setEntity(new StringEntity(jsonStr, Charset.forName("UTF-8"))).setConfig(requestConfig).build();
		HttpResponse response = getConnection().execute(postMethod);

		return EntityUtils.toString(response.getEntity());
	}

	/**
	 * http post请求，利用http请求池,设置head内容
	 *
	 * @param url     请求url
	 * @param jsonStr json字符串
	 * @param head    head内容
	 * @return 请求结果
	 * @throws Exception 异常
	 */
	public static String httpPostJson(String url, String jsonStr, Map<String, String> head) throws Exception {
		if (MapUtil.isNotEmpty(head)) {
			RequestBuilder requestBuilder = RequestBuilder.post().setUri(url)
					.setHeader("Content-Type", "application/json;charset=utf-8")
					.setHeader("Accept", "application/json");

			for (Map.Entry<String, String> entry : head.entrySet()) {
				requestBuilder.setHeader(entry.getKey(), entry.getValue());
			}

			HttpUriRequest postMethod = requestBuilder.setEntity(new StringEntity(jsonStr, Charset.forName("UTF-8")))
					.setConfig(requestConfig).build();

			HttpResponse response = getConnection().execute(postMethod);

			return EntityUtils.toString(response.getEntity());
		} else {
			return httpPostJson(url, jsonStr);
		}

	}

	/**
	 * http post请求，利用http请求池,设置head内容
	 *
	 * @param url     请求url
	 * @param jsonStr json字符串
	 * @param head    head内容
	 * @return 请求结果
	 * @throws Exception 异常
	 */
	public static String httpPostJson(String url, String jsonStr, Map<String, String> head,  Map<String, Object> urlParams) throws Exception {
		if (MapUtil.isNotEmpty(head)) {

			StringBuilder sb = new StringBuilder("?");
			for (Map.Entry<String, Object> e : urlParams.entrySet()) {
				sb.append(e.getKey()).append("=").append(e.getValue()).append("&");
			}
			if (urlParams!= null&&urlParams.size()!=0){
				url = url + sb.toString();
			}
			RequestBuilder requestBuilder = RequestBuilder.post().setUri(url)
					.setHeader("Content-Type", "application/json;charset=utf-8")
					.setHeader("Accept", "application/json");
			for (Map.Entry<String, String> entry : head.entrySet()) {
				requestBuilder.setHeader(entry.getKey(), entry.getValue());
			}

			HttpUriRequest postMethod = requestBuilder.setEntity(new StringEntity(jsonStr, Charset.forName("UTF-8")))
					.setConfig(requestConfig).build();

			HttpResponse response = getConnection().execute(postMethod);

			return EntityUtils.toString(response.getEntity());
		} else {
			return httpPostJson(url, jsonStr);
		}

	}

	/**
	 * http get请求，利用http请求池
	 *
	 * @param url 请求url
	 * @return 请求结果
	 * @throws Exception 异常
	 */
	public static String httpGet(String url) throws Exception {
		HttpUriRequest getMethod = RequestBuilder.get().setUri(url).setConfig(requestConfig).build();

		HttpResponse response = getConnection().execute(getMethod);

		return EntityUtils.toString(response.getEntity());
	}

	/**
	 * http get请求，利用http请求池
	 *
	 * @param url       请求url
	 * @param paramsMap 请求参数
	 * @return 请求结果
	 * @throws Exception 异常
	 */
	public static String httpGet(String url, Map<String, String> paramsMap) throws Exception {
		List<NameValuePair> params = new ArrayList<>();

		for (Map.Entry<String, String> e : paramsMap.entrySet()) {
			NameValuePair pair = new BasicNameValuePair(e.getKey(), e.getValue());
			params.add(pair);
		}

		HttpUriRequest getMethod = RequestBuilder.get().setUri(url)
				.addParameters(params.toArray(new BasicNameValuePair[params.size()])).setConfig(requestConfig).build();

		HttpResponse response = getConnection().execute(getMethod);

		return EntityUtils.toString(response.getEntity());
	}

	/**
	 * http get请求，利用http请求池 设置head内容
	 *
	 * @param url       请求url
	 * @param paramsMap 请求参数
	 * @param head      head内容
	 * @return 请求结果
	 * @throws Exception 异常
	 */
	public static String httpGet(String url, Map<String, String> paramsMap, Map<String, String> head) throws Exception {
		List<NameValuePair> params = new ArrayList<>();

		for (Map.Entry<String, String> e : paramsMap.entrySet()) {
			NameValuePair pair = new BasicNameValuePair(e.getKey(), e.getValue());
			params.add(pair);
		}
		RequestBuilder requestBuilder = RequestBuilder.get().setUri(url);
		for (Map.Entry<String, String> entry : head.entrySet()) {
			requestBuilder.setHeader(entry.getKey(), entry.getValue());
		}
		HttpUriRequest getMethod = requestBuilder.addParameters(params.toArray(new BasicNameValuePair[params.size()]))
				.setConfig(requestConfig).build();

		HttpResponse response = getConnection().execute(getMethod);

		return EntityUtils.toString(response.getEntity());
	}

	/**
	 * http post 请求,每次创建请求客户端
	 *
	 * @param url    url
	 * @param params 请求参数
	 * @return 请求返回值
	 */
	public static String httpPostNoPool(String url, Map<String, String> params) {
		CloseableHttpClient closeableHttpClient = null;
		try {
			HttpPost httpPost = new HttpPost(url);

			if (params != null) {
				List<NameValuePair> form = new ArrayList<>();

				for (String name : params.keySet()) {
					form.add(new BasicNameValuePair(name, params.get(name)));
				}

				httpPost.setEntity(new UrlEncodedFormEntity(form, HTTP.UTF_8));
			}

			closeableHttpClient = HttpClients.createDefault();
			CloseableHttpResponse httpResponse = closeableHttpClient.execute(httpPost);
			HttpEntity entry = httpResponse.getEntity();
			return EntityUtils.toString(entry);
		} catch (Exception e) {
			log.error("HttpUtil.httpPost failed!", e);
		} finally {
			if (null != closeableHttpClient) {
				try {
					closeableHttpClient.close();
				} catch (IOException e) {
					log.error("closeableHttpClient.close failed!", e);
				}
			}
		}

		return null;
	}

3.Controller层代码

@RestController
@RequestMapping("/dd")
public class DdLoginController {


    @Autowired
    private DdLoginService ddLoginService;

    /**
     * 单点登陆
     * @param code
     * @param
     * @return
     */
    @GetMapping("/loginPortal")
    public AjaxResult DdLogin( String code) throws Exception {
        return ddLoginService.loginPortal(code);
    }

}

4.逻辑层代码

实现单点登录，需要用前端传递过来的code获取用户信息。http请求的详细信息如下：

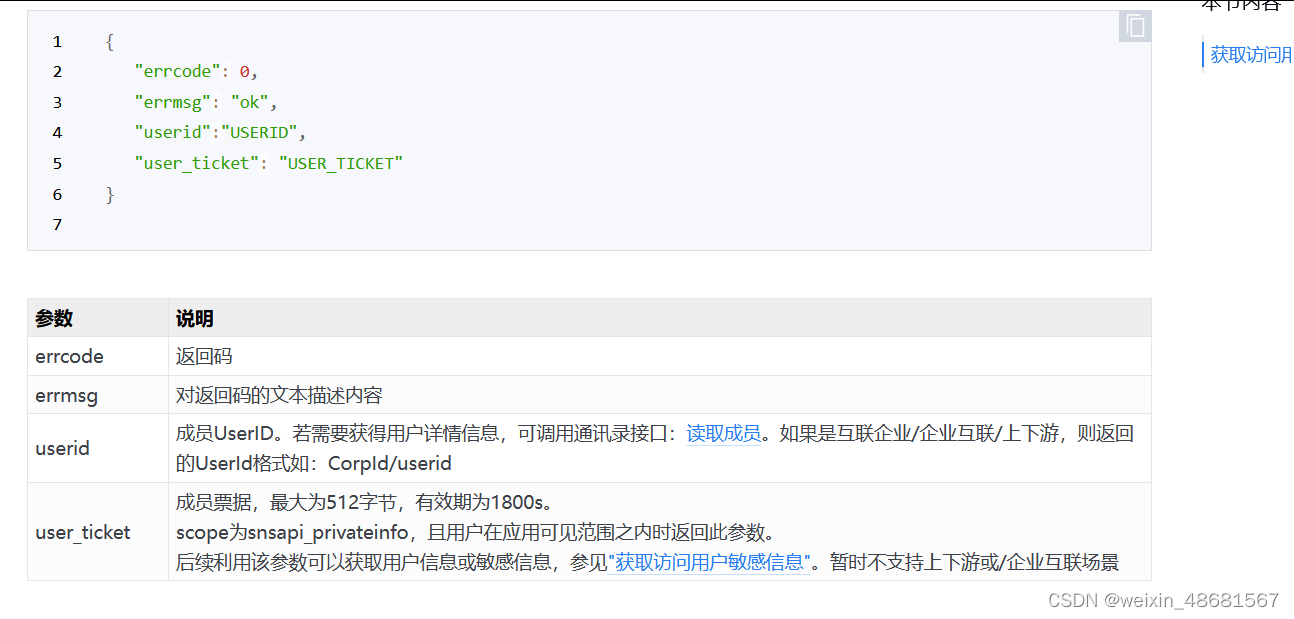

获取用户登陆身份

调用这个接口可以获取如下信息：

不过在发起请求之前，需要先获取当前登录企业微信用户的access_token,这个方法在工具类有。如果想进一步获取用户的敏感信息，比如性别、头像、员工个人二维码、手机、邮箱、企业邮箱、地址等，可以调用这个接口获取。

获取访问用户敏感信息

拿到用户信息后，可以用户换取第三方系统的token信息，然后返回给前端，就可以实现在企业微信自建应用里免密登录到第三方系统。以下是我的代码实现：

  /**
     * 单点登陆
     *
     * @param code
     * @return
     */
    @Override
    public AjaxResult loginPortal(String code) throws Exception {
        Map map = new HashMap();
        //获取当前登录企业微信用户token
        String token = getWeiXinToken();
        //根据code获取用户信息，url地址拼接参照官网地址
        // https://qyapi.weixin.qq.com/cgi-bin/auth/getuserinfo?access_token=ACCESS_TOKEN&code=CODE
        String url = "https://qyapi.weixin.qq.com/cgi-bin/auth/getuserinfo?access_token=" + token + "&code=" + code;
        JSONObject get = WeChatUtil.httpRequest(url, "GET", null);
        //获取当前登录用户的信息
        String userId = null;
        if (get.getString("errmsg").equals("ok")) {
            userId = get.getString("userid");
        }
        //获取用户详细信息
        //https://qyapi.weixin.qq.com/cgi-bin/auth/getuserdetail?access_token=ACCESS_TOKEN
        String userTicket = null;
        if (get.getString("errmsg").equals("ok")) {
            userTicket = get.getString("user_ticket");
        }
        String userInfoUrl = "https://qyapi.weixin.qq.com/cgi-bin/auth/getuserdetail?access_token=" + token;
        Map<String,String> param=new HashMap<>();
        param.put("user_ticket",userTicket);
        String json = HttpUtil.httpPostJson(userInfoUrl, null, param);
        JSONObject jsonObject = JSON.parseObject(json);

        map.put("username", userId);
        String token1 = JWTUtil.createToken(userId);
        map.put("token", token1);
        return AjaxResult.success(map);

    }

    public String getWeiXinToken() {
        return WeChatUtil.getAccessToken(corpId, coprsecret).getToken();
    }

    /**
     * 解析url字符串获取user_ticket
     *
     * @return
     */
    private String getUserTicket(String json) {
        JSONObject err = JSON.parseObject(json);
        if (err.getString("errmsg").equals("ok")) {
            return err.getString("user_ticket");
        }
        return null;
    }

    /**
     * 解析url字符串获取userid
     *
     * @param url
     * @return
     */
    private String getUserIdByCodeUrl(String url) {
        JSONObject err = JSON.parseObject(url);
        if (err.getString("errmsg").equals("ok")) {
            return err.getString("userid");
        }
        return null;
    }

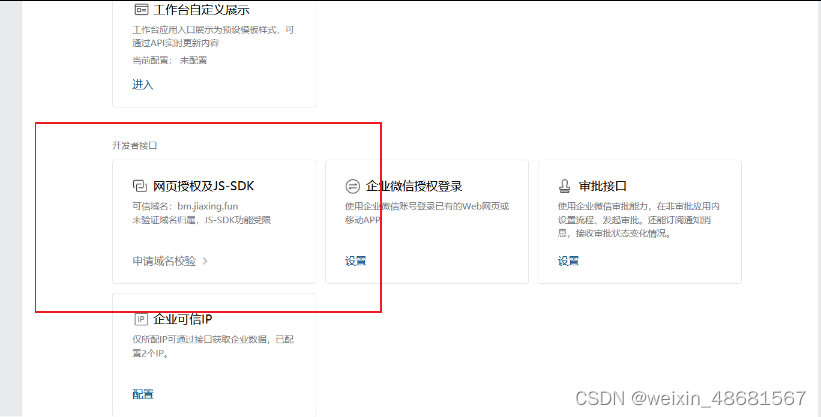

第三步、自建应用配置可信IP，可信域名，应用主页

1.配置应用主页

配置工作台主页，目的就是但企业微信用户在移动端或是网页端点击自建应用，自建应用将会跳转的目标网页链接地址，可以配置网页网址获是关联小程序，这样当你点击自建应用就可以实现跳转到第三方网页链接。

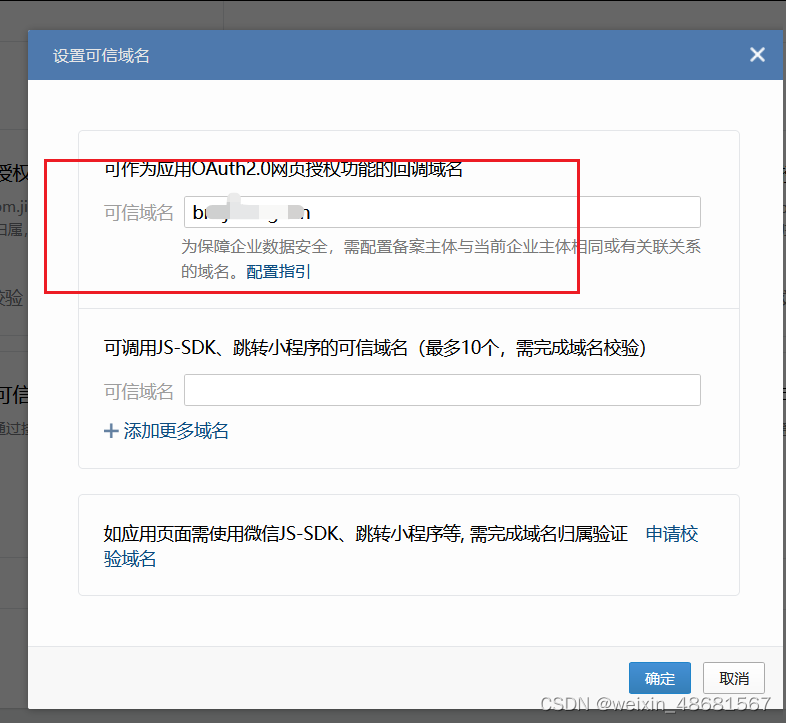

2.配置可信可信域名

就是客户公司的域名，不过在开始阶段可以先配置成自己公司的域名，这个可以向项目经理要。

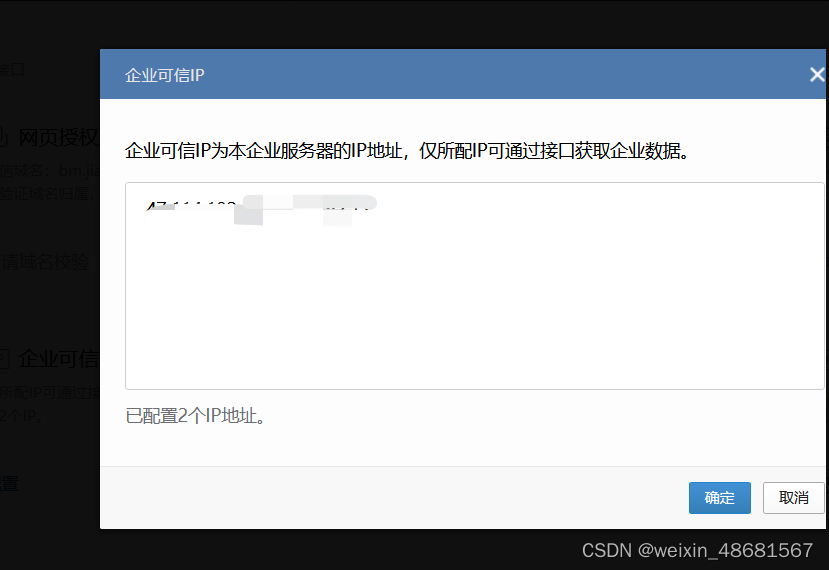

3.配置可信ip

客户公司的服务器ip

总结：

最后简单小节一下，要实现自建应用单点登录到第三方系统，需要获取corpId，coprsecret,agentId,发请求需要用到。然后拿前端传递过来的code去换取企业微信用户信息，再拿用户信息去换取第三方系统token信息，因为token里面包含了用户的一些基本信息，这样就可以实现免密登录到第三方系统了。

，
