计算机网络工程
作者:hingsmy
作者邮箱:hingsmy@gamail.com
本人代为发布,已征得原作者同意
2020 年 10 月 19 日 第6周

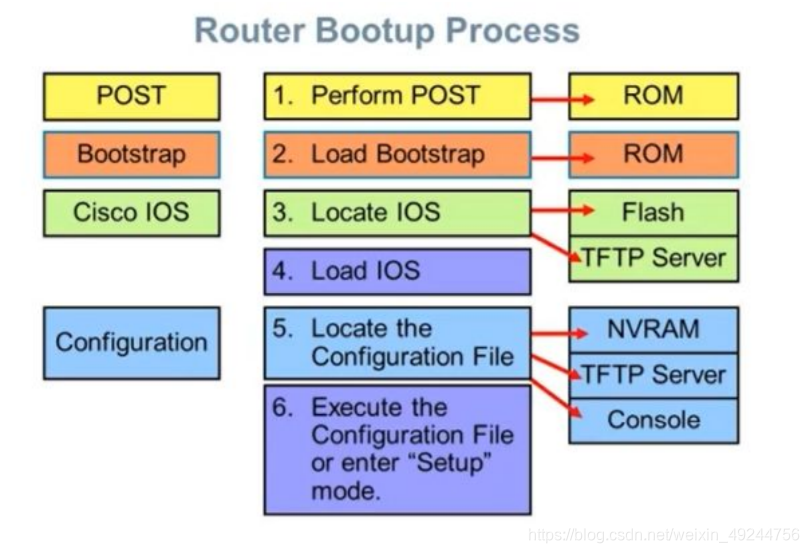

Bring Up a Device 启动设备
- Power-on Self-test (POST) 通电自检
- Load the Cisco IOS from flash memory (electronically erasable programmableread-only memory — an EEPROM) 从闪存(电子可擦可编程只读存储器-EEPROM)加载Cisco IOS
- Expand it into RAM 展开到RAM
- IOS locate and load a valid configuration known as the startup-config that will bestored in nonvolatile RAM (NVRAM) IOS定位并加载有效配置(这个配置被称为启动配置),该配置将存储在非易失性的RAM(NVRAM)中

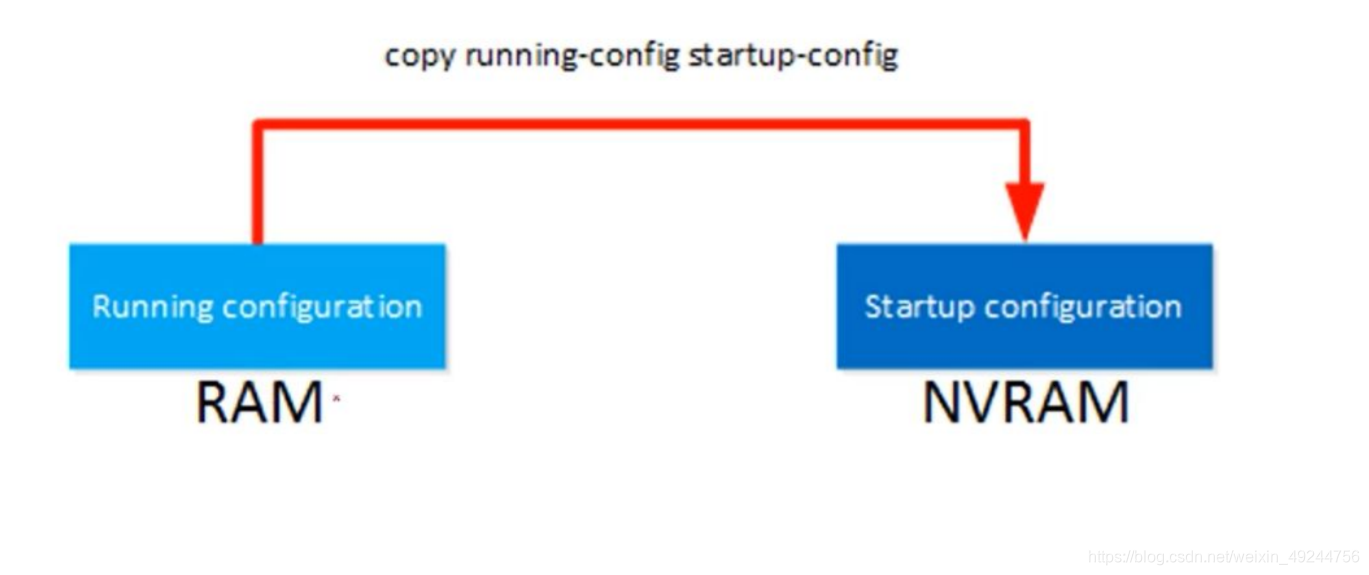

- Startup-config will be copied from NVRAM into RAM and from then on referred toas the running-config
