Prometheus监控TCP端口(blackbox-exporter)

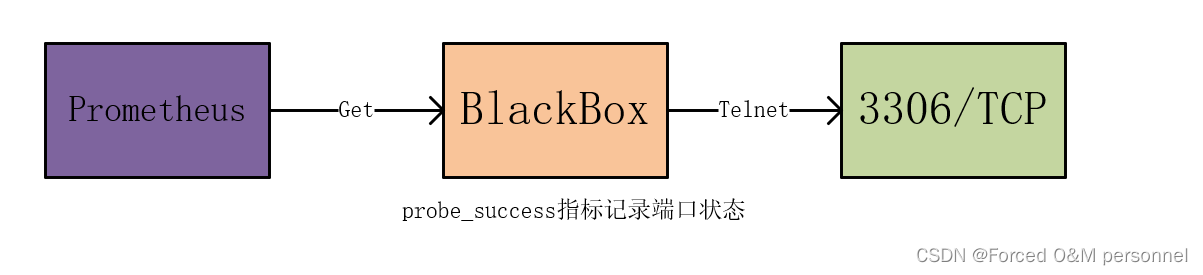

探测模式

prometheus判断probe_success的值（1正常，0异常）

启动 blackbox-exporter

1. 创建启动yml
   vim /data/monitor/docker-compose-blackbox.yml

version: '3.2'
services:
  blackbox-exporter:
    image: prom/blackbox-exporter:latest
    container_name: blackbox
    restart: always
    ports:
    - 39115:9115
    volumes:
    - /data/monitor/config/blackbox_exporter:/etc/blackbox_exporter
    environment:
    - TZ=Asia/Shanghai
    logging:
      options:
        max-size: '100m'
        max-file: '10'

2. 创建配置文件
   vim /data/monitor/config/blackbox_exporter/config.yml

modules:
  http_2xx:  #名称随便写与prometheus一致即可
    prober: http  #进行探测的协议，可以是 http、tcp、dns、icmp
    http:
  http_post_2xx: # http post 监测模块
    prober: http
    http:
      method: POST
  tcp_connect: # tcp 监测模块
    prober: tcp
  ping: # icmp 检测模块
    prober: icmp
    timeout: 5s
    icmp:
      preferred_ip_protocol: "ip4"

3. 启动模块

docker-compose -f  /data/monitor/docker-compose-blackbox.yml up -d

接入prometheus

1. 配置指标接入
   vim /data/monitor/config/prometheus/prometheus.yml

  - job_name: 'TCP-Connect'    #配置pro的job名称方便区分指标
    scrape_interval: 5s        #获取数据间隔
    metrics_path: '/probe'     #blackbox指标接口
    params:
      module: [tcp_connect]    #使用的监听协议，与blackbox配置文件中定义的名称一致
    file_sd_configs:           #配置节点（ip:port/TCP）也就是探测的tcp端口
    - files:
      - 'modules/tcp.yml'
      refresh_interval: 5s
    relabel_configs:
      - source_labels: [__address__]
        target_label: __param_target
      - source_labels: [__param_target]
        target_label: instance
      - target_label: __address__
        replacement: 192.168.0.136:39115  # blackbox安装在哪台机器

2. 接入tcp节点
   vim /data/monitor/config/prometheus/modules/tcp.yml

- labels:                    #标签方便区分节点
    service: "test"
    mokuai: "redis"          #用于区分模块
  targets:
  - 192.168.0.136:38080        #ip:port/TCP

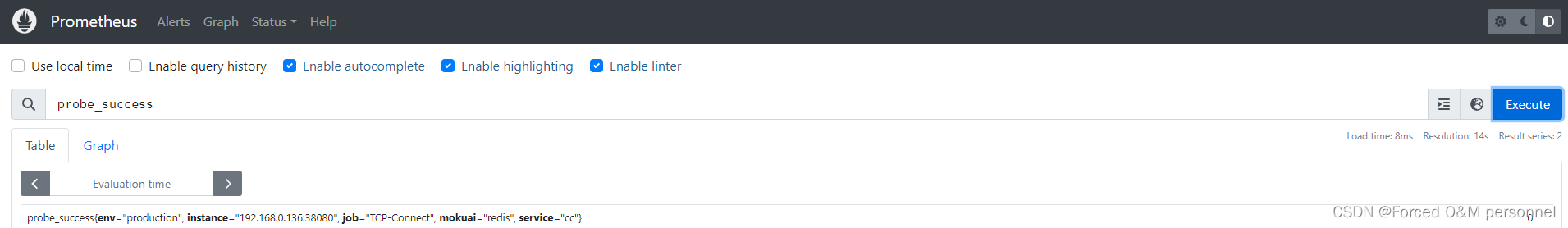

查看指标

添加prometheus告警

vim /data/monitor/config/prometheus/roles/tcp.yml

groups:
- name: TCP端口检测
  rules:
  - alert: TCP端口
    expr: probe_success == 0
    for: 5s
    labels:
      severity: ERROR
      service: "server-exception"
      pingtai: "测试平台"
    annotations:
      summary: "模块TCP端口"
      description: "{{ $labels.mokuai }} 模块TCP端口异常,异常地址: {{ $labels.instance }},请及时查看模块状态。"
      value: "{{ $value }}"

测试告警（停掉192.168.0.136的38080/TCP端口）

指标值：

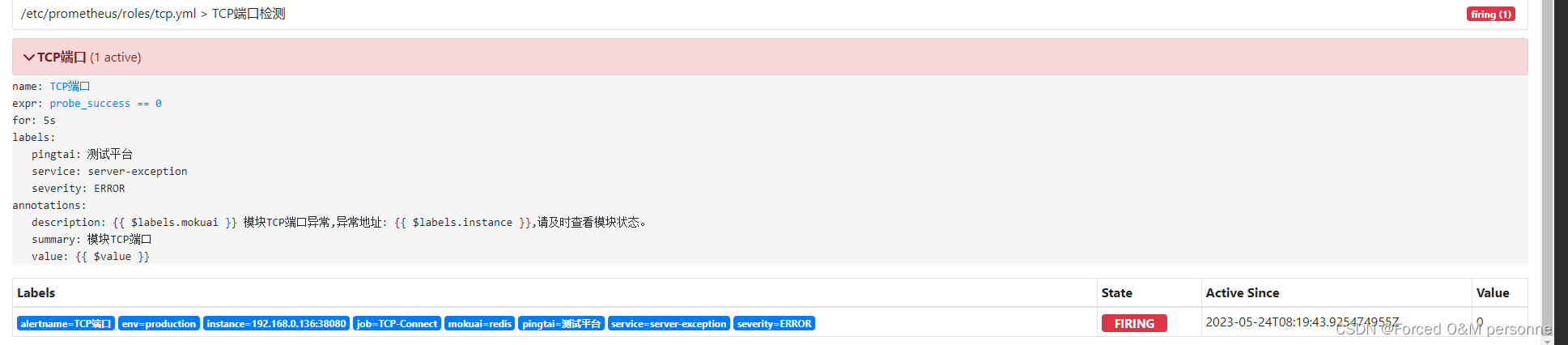

告警规则状态：
