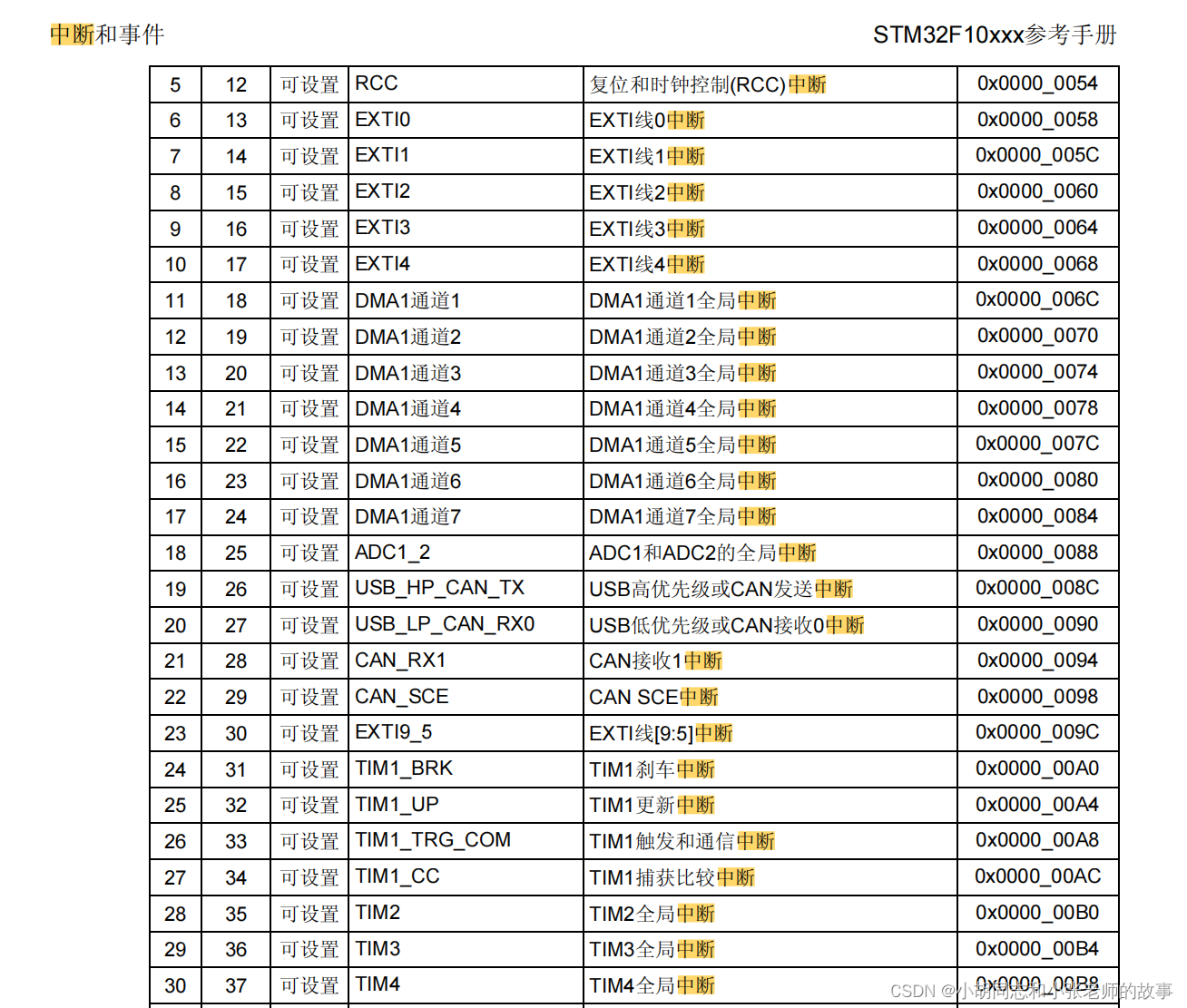

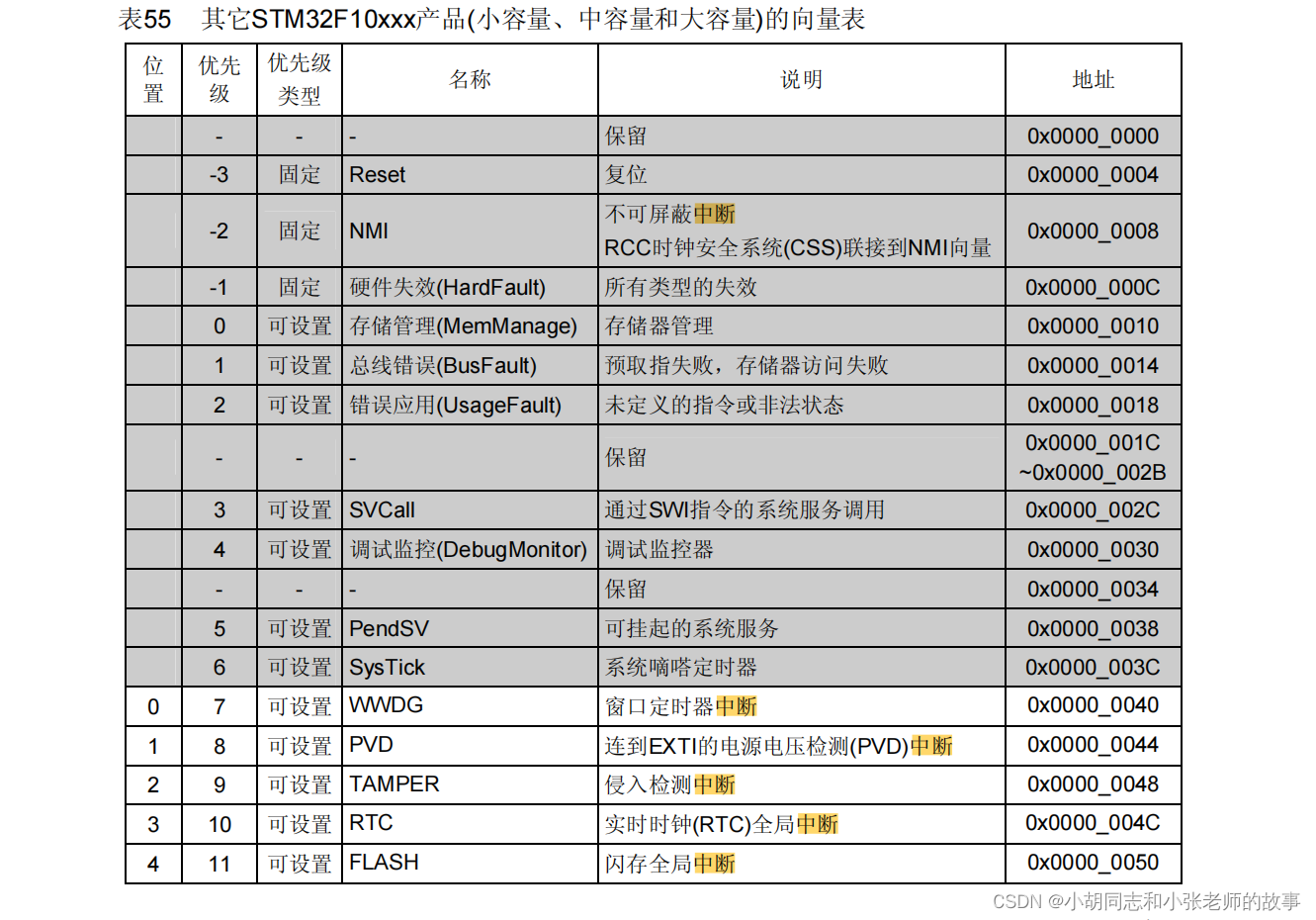

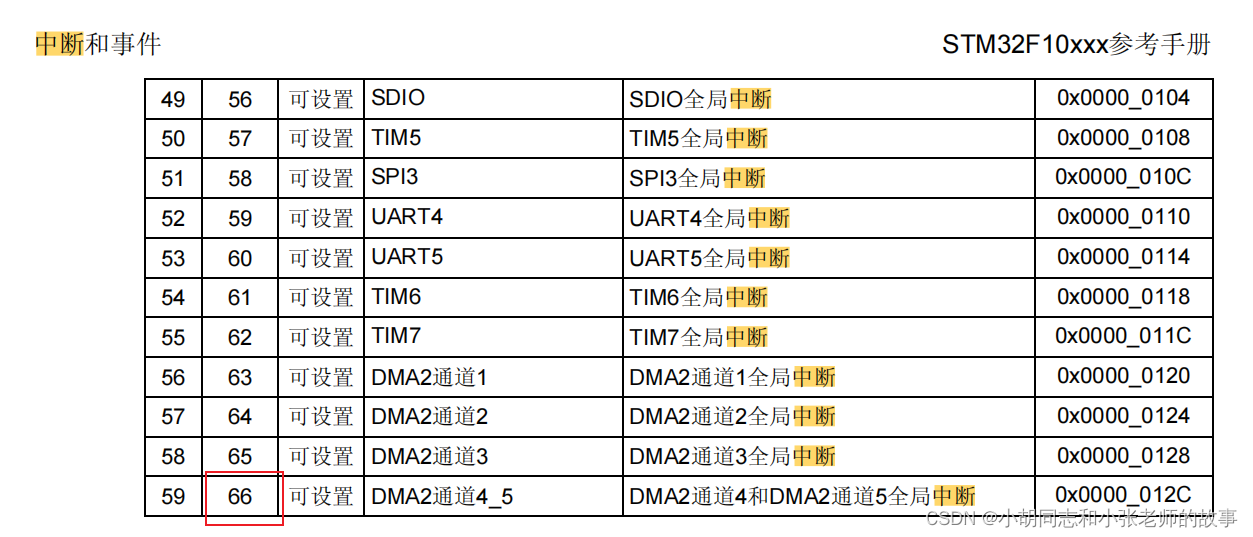

1、SCB_AIRCR 系统控制块之 – 中断和复位控制寄存器介绍

SCB_AIRCR（SCB -> AIRCR）：System Control Block — Application Interrupt and Reset Control Register

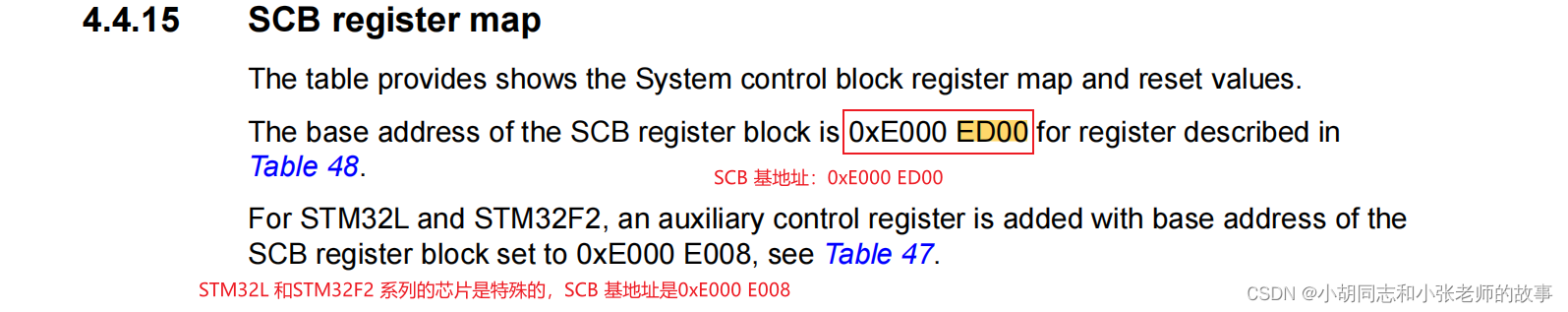

1.1 AIRCR 寄存器基地址：0x 0xE000 ED00

在这里插入图片描述

CMSIS\CM3\CoreSupport\core_cm3.h

#define SCS_BASE            (0xE000E000)                              /*!< System Control Space Base Address */
#define SCB_BASE            (SCS_BASE +  0x0D00)                      /*!< System Control Block Base Address */
#define SCB                 ((SCB_Type *)           SCB_BASE)         /*!< SCB configuration struct          */

void NVIC_PriorityGroupConfig(uint32_t NVIC_PriorityGroup)
{
  /* Check the parameters */
  assert_param(IS_NVIC_PRIORITY_GROUP(NVIC_PriorityGroup));

  /* Set the PRIGROUP[10:8] bits according to NVIC_PriorityGroup value */
  SCB->AIRCR = AIRCR_VECTKEY_MASK | NVIC_PriorityGroup;
}

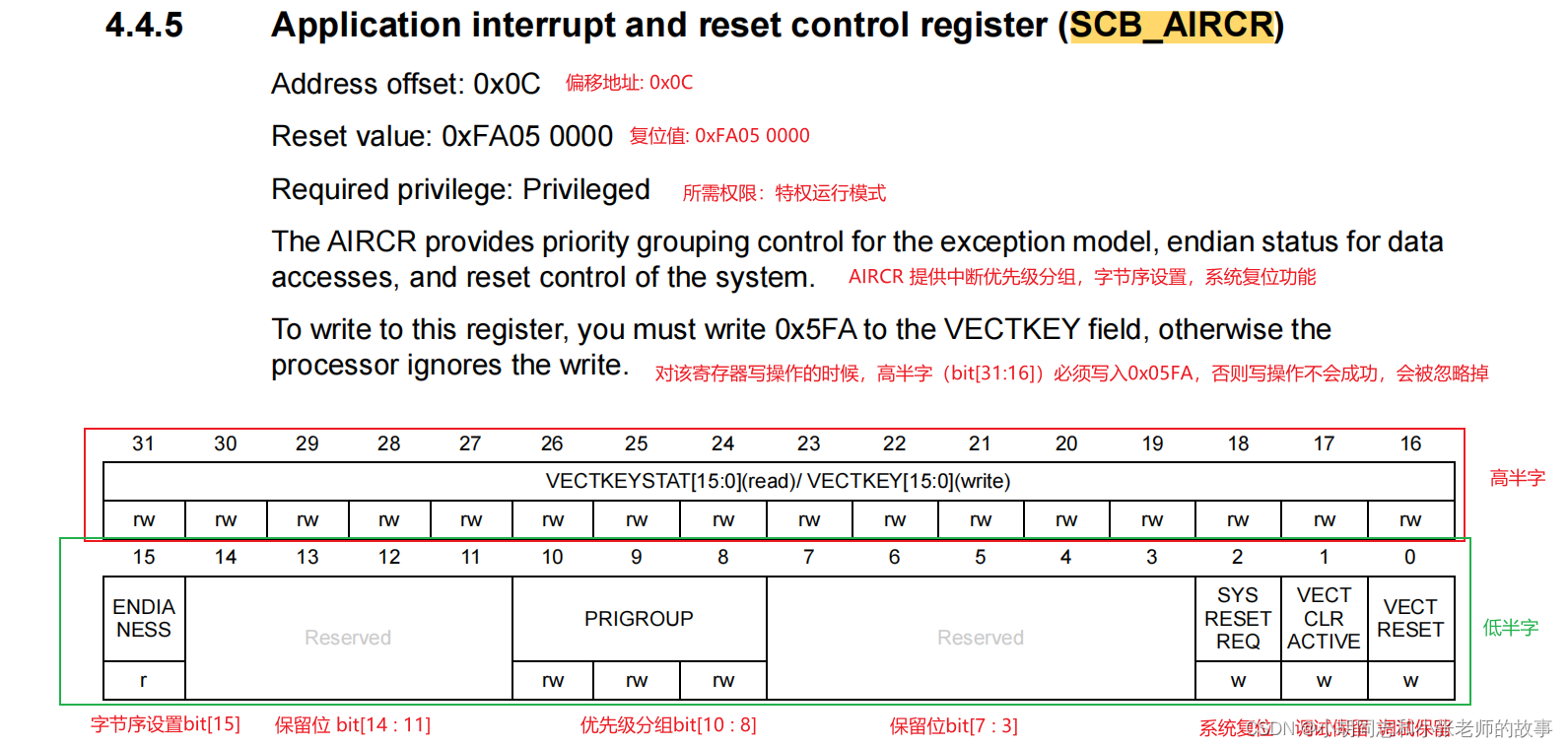

1.2、AIRCR 寄存器概览

在这里插入图片描述

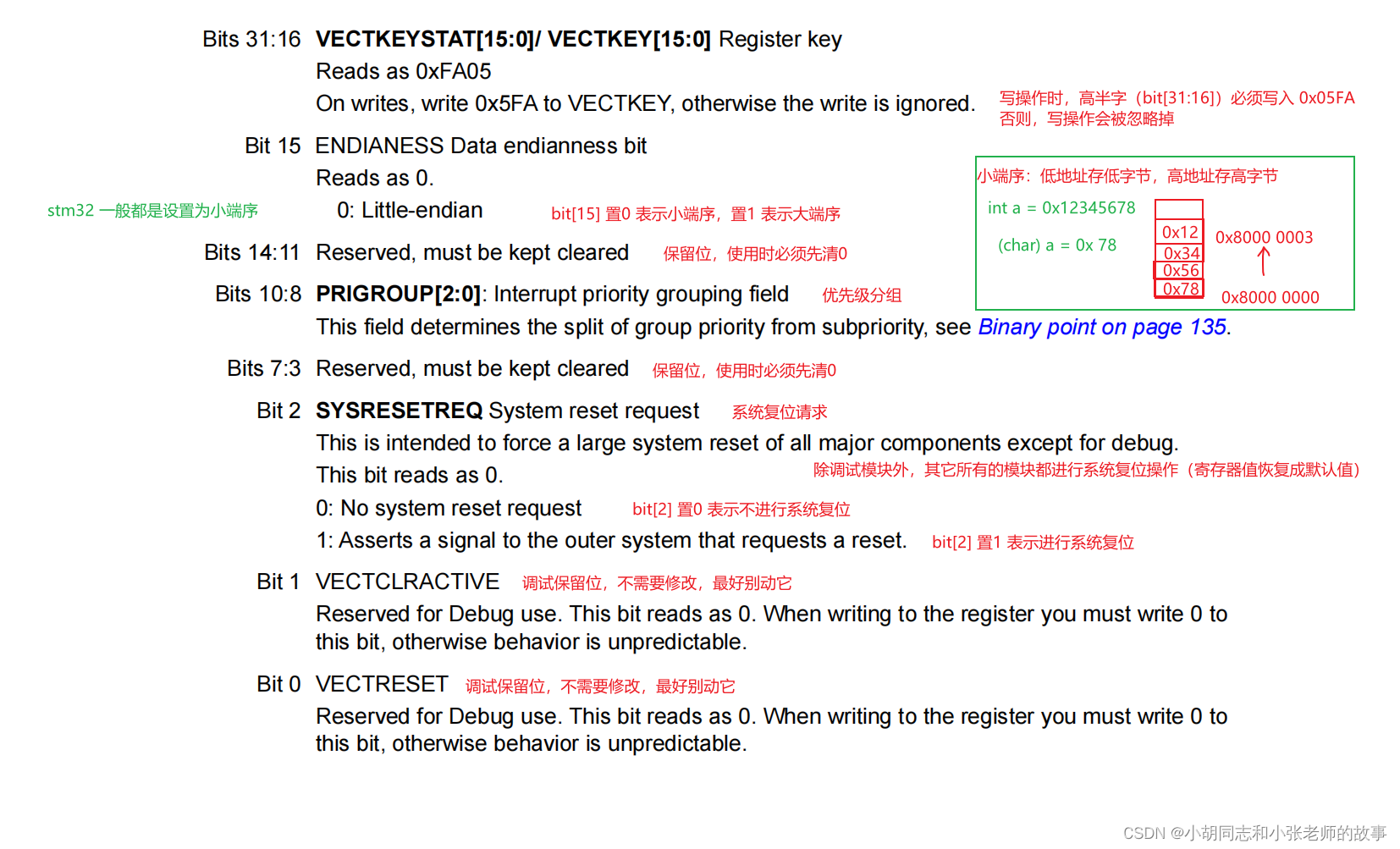

1.3、 AIRCR 寄存器各个bit 位介绍

在这里插入图片描述

1.4、寄存器优先级分组

在这里插入图片描述

/**
  * @brief  Configures the priority grouping: pre-emption priority and subpriority.
  * @param  NVIC_PriorityGroup: specifies the priority grouping bits length.
  *   This parameter can be one of the following values:
  *     @arg NVIC_PriorityGroup_0: 0 bits for pre-emption priority
  *                                4 bits for subpriority
  *     @arg NVIC_PriorityGroup_1: 1 bits for pre-emption priority
  *                                3 bits for subpriority
  *     @arg NVIC_PriorityGroup_2: 2 bits for pre-emption priority
  *                                2 bits for subpriority
  *     @arg NVIC_PriorityGroup_3: 3 bits for pre-emption priority
  *                                1 bits for subpriority
  *     @arg NVIC_PriorityGroup_4: 4 bits for pre-emption priority
  *                                0 bits for subpriority
  * @retval None
  */
void NVIC_PriorityGroupConfig(uint32_t NVIC_PriorityGroup)
{
  /* Check the parameters */
  assert_param(IS_NVIC_PRIORITY_GROUP(NVIC_PriorityGroup));

  /* Set the PRIGROUP[10:8] bits according to NVIC_PriorityGroup value */
  SCB->AIRCR = AIRCR_VECTKEY_MASK | NVIC_PriorityGroup;
}
