element-ui的upload如何在from中进行验证 以及 限制一张图片

子规**

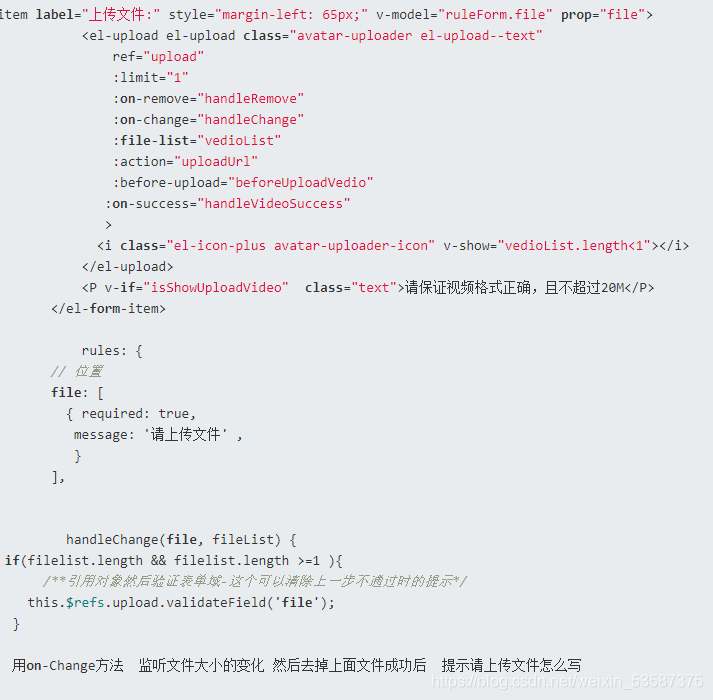

解决elementui里边upload上传图片组件在form表单中校验不消失问题：

![在这里插入图片描述](https://img-blog.csdnimg.cn/20210319113346202.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl81MzU4NzM3NQ==,size_16,color_FFFFFF,t_70)

项目中：

html部分

html代码

	 <el-form-item label="营业执照" prop="headImg">
                <el-upload
                    :action="uploadURL"
                    list-type="picture-card"
                    :class="{hide:hideUpload}"
                    name="files"
                    :before-upload="beforeAvatarUpload"
                    :on-preview="handlePreview"
                    :on-remove="remove"
                    :on-change="uploadChange"
                    :http-request="headUpload">
                    <i class="el-icon-plus"></i>
                <div slot="tip" class="el-upload__tip">只能上传jpg或png文件，且不超过500kb</div>
                </el-upload>
                <el-dialog :visible.sync="previewVisible" :append-to-body='true'>
                    <img width="100%" :src="previewPath" alt="">
                </el-dialog>
            </el-form-item>

js代码

js代码

// 营业执照上传
      headUpload(params) {
        let param = new FormData();
        param.append("files", params.file);
        axios({
            url: this.adminConfig.uploadPath+"upload/upload/",
            method: "post",
            data: param,
            headers: {
                "Content-Type": "multipart/form-data"
            }
        }).then(res => {
            this.headImg = [];
            this.headImg.push(res.data.data)
        })
    },

    // 处理图片预览效果
    handlePreview(file) {
        this.previewPath = file.url;
        this.previewVisible = true
    },
    remove(file, fileList) {
        if(fileList.length==0){
            this.rules.headImg = [{ required: true, message: '请营业执照', trigger: 'change'}];
        }
        this.hideUpload = fileList.length >= this.limitCount;
    },
    uploadChange(file, fileList) {
        this.headFile = file;
        this.headFileList = fileList;
        if(fileList.length==1) {
            let {headImg, ...data} = this.rules;
            this.rules = data;
        }
        this.$refs.form.clearValidate('headImg');
        this.hideUpload = fileList.length >= this.limitCount;
    },
     beforeAvatarUpload(file) {
            const isJPG = file.type === 'image/jpeg';
            const isPNG = file.type === 'image/png';
            const isLt2M = file.size / 1024 / 1024 < 2;

            if (!isJPG && !isPNG) {
              this.$message.error('上传营业执照图片只能是 JPG或png 格式!');
            }
            if (!isLt2M) {
              this.$message.error('上传营业执照图片大小不能超过 2MB!');
            }
            return (isJPG || isPNG) && isLt2M;
          }

css代码

.writeBox {
            display: flex;
            justify-content: space-between;
            flex-direction: row;
            flex-wrap: wrap;
            width: 100%;
            margin-bottom: 20px;
        }
        .el-row {
            width: 30%;
            margin-right: 10px;
            margin-bottom: 8px;
        }
        .el-col {
            white-space: nowrap;
        }
        .hide .el-upload--picture-card {
            width: 300px;
            height: 200px;
            line-height: 200px;
            display: none;
        }
        .el-form-item {
            .el-input {
                width:400px;
                margin-right: 10px;
            }
        }
    .el-form-item__content{
      width: 800px;
    }
    .el-upload-list__item{
      width: 300px;
      height: 200px;
    }
