前端播放在video标签rtsp,求指教(若解决问题很麻烦,可有偿)

有懂node、ffmpeg、html处理实时视频流,懂如何在前端html或vue项目中使用video直接播放rtsp流的大佬嘛,求指教

我根据一些网上的资料做了些许尝试,实现了以下效果:

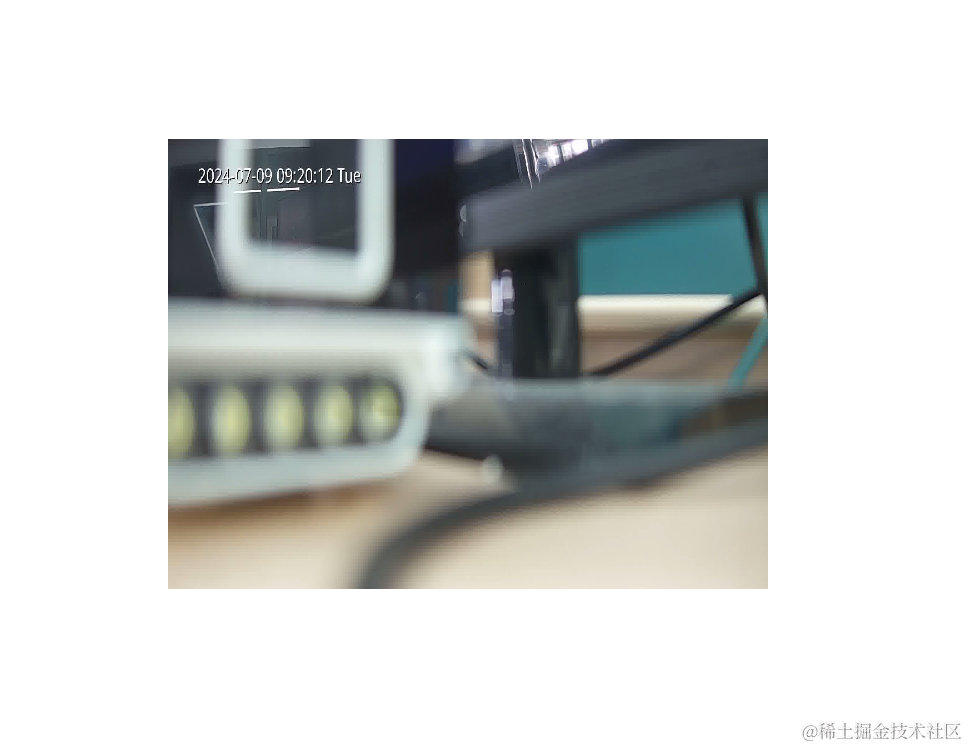

  1. 利用ffmpeg、JSFpeg、ws将视频帧渲染到canvas里面去展示,主要流程为从RTSP源获取视频流并将其转换为MPEG-1格式,然后通过WebSocket协议广播给客户端。
    出处链接

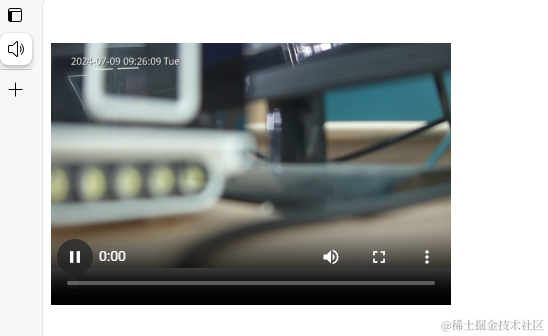

  2. 利用ffmpeg、flv.min.js、ws,将rtsp转成flv推到一个rtmp地址,最后用video标签展示最终视频。
    出处链接
  3. 自己尝试改写node-media-server中videoStream源码,将rtsp重新编码成了H264格式的mpegts,但是始终无法在html中的video标签正常播放。
// 重新改写过后的videoStream.js
const fs = require('fs');
const path = require('path');
const ws = require('ws');
const util = require('util');
const events = require('events');
const child_process = require('child_process');
class VideoStream extends events.EventEmitter {
  constructor(options) {
    super();

    this.options = options;
    this.name = options.name;
    this.streamUrl = options.streamUrl;
    this.width = options.width;
    this.height = options.height;
    this.wsPort = options.wsPort;
    this.inputStreamStarted = false;
    this.stream = undefined;
    this.ffmpegProcess = undefined;

    this.startH264Stream();
    this.pipeStreamToSocketServer();
  }

  startH264Stream() {
    const ffmpegPath = this.options.ffmpegPath || 'ffmpeg';
    const ffmpegArgs = [
      '-i', this.streamUrl,
      '-c:v', 'libx264',
      '-preset', 'ultrafast',
      '-tune', 'zerolatency',
      '-b:v', '1M',
      '-f', 'mpegts',
      '-'
    ];

    this.ffmpegProcess = child_process.spawn(ffmpegPath, ffmpegArgs);

    this.ffmpegProcess.stdout.on('data', (data) => {
      this.emit('camdata', data);
    });

    this.ffmpegProcess.stderr.on('data', (data) => {
      console.error(`FFmpeg stderr: ${data}`);
    });

    this.ffmpegProcess.on('close', (code) => {
      console.error(`FFmpeg process exited with code ${code}`);
      this.emit('exitWithError');
    });
  }

  pipeStreamToSocketServer() {
    this.wsServer = new ws.Server({ port: this.wsPort });

    this.wsServer.on("connection", (socket, request) => {
      this.onSocketConnect(socket, request);
    });

    this.wsServer.broadcast = function(data) {
      this.clients.forEach((client) => {
        if (client.readyState === ws.OPEN) {
          client.send(data, { binary: true });
        } else {
          console.log(`Error: Client from remoteAddress ${client._socket.remoteAddress} not connected.`);
        }
      });
    };

    this.on('camdata', (data) => {
      this.wsServer.broadcast(data);
    });
  }

  onSocketConnect(socket, request) {
    const streamHeader = Buffer.alloc(8);
    streamHeader.write('jsmp', 0, 4);
    streamHeader.writeUInt16BE(this.width, 4);
    streamHeader.writeUInt16BE(this.height, 6);

    socket.send(streamHeader, { binary: true });
    console.log(`${this.name}: New WebSocket Connection (${this.wsServer.clients.size} total)`);

    socket.remoteAddress = request.connection.remoteAddress;

    socket.on("close", (code, message) => {
      console.log(`${this.name}: Disconnected WebSocket (${this.wsServer.clients.size} total)`);
    });
  }

  stop() {
    if (this.ffmpegProcess) {
      this.ffmpegProcess.kill();
      this.ffmpegProcess = undefined;
    }
    if (this.wsServer) {
      this.wsServer.close();
    }
    this.inputStreamStarted = false;
    return this;
  }
}

module.exports = VideoStream
