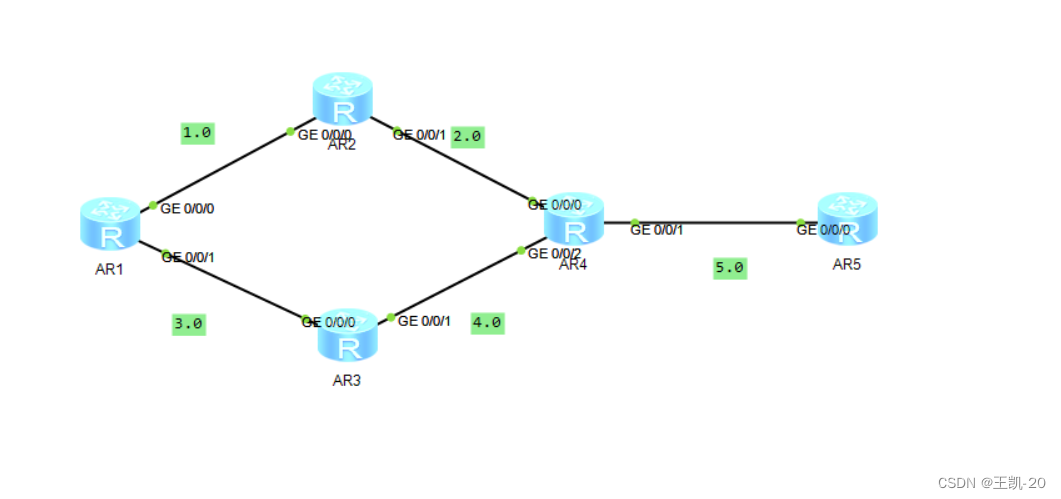

路由器配置实验--R1---R5

R1的路由表中默认存在:192.168.1.0192.168.3.0
需要添加:192.168.2.0 4.0 5.0
R2的路由表中默认存在:192.168.1.0192.168.2.0需要添加:192.168.3.0 4.0 5.0
R3的路由表中默认存在:192.168.3.0192.168.4.0需要添加: 1.0 2.0 5.0

R4的路由表中默认存在:192.168.2.0 192.168.4.0 192.168.5.0需要添加: 1.0 3.0

R5的路由表中默认存在:192.168.5.0需要添加: 1.0 3.0 2.0 4.0

R1配置：

[r1]interface GigabitEthernet 0/0/0

[r1-GigabitEthernet0/0/0]ip address 192.168.1.1 24

[r1]interface GigabitEthernet 0/0/1

[r1-GigabitEthernet0/0/1]ip address 192.168.3.1 24


添加的网段：
[r1]ip route-static 192.168.2.0 24 192.168.1.2
[r1]ip route-static 192.168.5.0 24 192.168.1.2
[r1]ip route-static 192.168.5.0 24 192.168.3.2
[r1]ip route-static 192.168.4.0 24 192.168.3.2

R2配置：

[r2]interface GigabitEthernet 0/0/0
[r2-GigabitEthernet0/0/0]ip address 192.168.1.2 24
[r2]interface GigabitEthernet 0/0/1
[r2-GigabitEthernet0/0/1]ip address 192.168.2.1 24
添加网段
[r2]ip route-static 192.168.3.0 24 192.168.1.1
[r2]ip route-static 192.168.4.0 24 192.168.1.1
[r2]ip route-static 192.168.5.0 24 192.168.2.2

 R3配置：

[r3]interface GigabitEthernet 0/0/0
[r3-GigabitEthernet0/0/0]ip address 192.168.3.2 24
[r3]interface  GigabitEthernet 0/0/1
[r3-GigabitEthernet0/0/1]ip address 192.168.4.1 24

添加网段

[r3]ip route-static 192.168.1.0 24 192.168.3.1
[r3]ip route-static 192.164.2.0 24 192.168.4.2
[r3]ip route-static 192.168.5.0 24 192.168.4.2

R4配置：

[r4]interface GigabitEthernet 0/0/0
[r4-GigabitEthernet0/0/0]ip address 192.168.2.2 24
[r4]interface GigabitEthernet 0/0/2
[r4-GigabitEthernet0/0/2]ip address 192.168.4.2 24
[r4]interface GigabitEthernet 0/0/1
[r4-GigabitEthernet0/0/1]ip address 192.168.5.1 24

添加网段

[r4]ip route-static 192.168.1.0 24 192.168.2.1
[r4]ip route-static 192.168.3.0 24 192.168.4.1

R5配置：

[r5]interface GigabitEthernet 0/0/0
[r5-GigabitEthernet0/0/0]ip address 192.168.5.2 24

添加网段
[r5]ip route-static 192.168.2.0 24 192.168.5.1
[r5]ip route-static 192.168.1.0 24 192.168.5.1
[r5]ip route-static 192.168.3.0 24 192.168.5.1
[r5]ip route-static 192.168.4.0 24 192.168.5.1

 R1pingR5

排错思路
1、排查IP地址是否正确，是否和接口对应 ---排查直连之间的通信

display ip interface brief

2、排路由--看路由表--看方向 ---看下一跳，
display ip routing-table
