华为配置交换机KPI信息上报分析器示例组网图形



配置交换机KPI信息上报分析器示例

组网图形

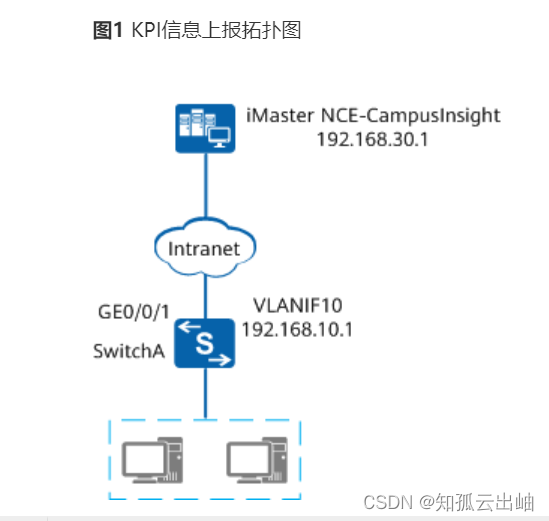

图1 KPI信息上报拓扑图

• 组网需求
• 操作步骤
• 配置文件

组网需求

如图1所示，某企业网络用一台华为公司iMaster NCE-CampusInsight作为分析器对交换机设备进行智能运维管理。iMaster NCE-CampusInsight与交换机之间已经实现路由可达。用户想要监控交换机设备状态和PoE供电信息。

操作步骤

1. 配置SwitchA的接口和VLAN。

   <span style="color:#333333"><span style="background-color:#dddddd"><HUAWEI> <strong id="ZH-CN_TASK_0273187916__b88985419183312">system-view</strong>
   [HUAWEI] <strong id="ZH-CN_TASK_0273187916__b1826637465183312">sysname SwitchA</strong>
   [SwitchA] <strong id="ZH-CN_TASK_0273187916__b590222415183312">vlan batch 10</strong>
   [SwitchA] <strong id="ZH-CN_TASK_0273187916__b113399189183312">interface gigabitethernet 0/0/1</strong>
   [SwitchA-GigabitEthernet0/0/1] <strong id="ZH-CN_TASK_0273187916__b722083976183312">port link-type trunk</strong>
   [SwitchA-GigabitEthernet0/0/1] <strong id="ZH-CN_TASK_0273187916__b1980817477183312">port trunk allow-pass vlan 10</strong>
   [SwitchA-GigabitEthernet0/0/1] <strong id="ZH-CN_TASK_0273187916__b1484819341183312">quit</strong>
   [SwitchA] <strong id="ZH-CN_TASK_0273187916__b1197698681183312">interface Vlanif10</strong>
   [SwitchA-Vlanif10] <strong id="ZH-CN_TASK_0273187916__b1609692154183312">ip address 192.168.10.1 24</strong>
   [SwitchA-Vlanif10] <strong id="ZH-CN_TASK_0273187916__b1413016416183312">quit</strong></span></span>

2. 配置SwitchA与iMaster NCE-CampusInsight对接。

   <span style="color:#333333"><span style="background-color:#dddddd">[SwitchA] <strong id="ZH-CN_TASK_0273187916__b0483103317148">snmp-agent</strong>
   [SwitchA] <strong id="ZH-CN_TASK_0273187916__b648393361414">snmp-agent sys-info version all</strong>
   [SwitchA] <strong id="ZH-CN_TASK_0273187916__b9483133311147">snmp-agent community write YsHsjx_202206 </strong>
   [SwitchA] <strong id="ZH-CN_TASK_0273187916__b19483133311411">snmp-agent community read YsHsjx_202206 </strong>
   [SwitchA] <strong>snmp-agent protocol source-status</strong> <strong>all-interface</strong>
   [SwitchA] <strong>snmp-agent protocol source-status</strong> <strong>ipv6</strong> <strong>all-interface</strong>
   [SwitchA] <strong id="ZH-CN_TASK_0273187916__b075612385217">smi-server</strong>
   [SwitchA-smi-server] <strong id="ZH-CN_TASK_0273187916__b114611410191519">source ip-address 192.168.10.1</strong>
   [SwitchA-smi-server] <strong id="ZH-CN_TASK_0273187916__b1548383321410">server ip-address 192.168.30.1 port 27371</strong>   //该端口号必须与iMaster NCE-CampusInsight使用的端口号一致
   [SwitchA-smi-server] <strong id="ZH-CN_TASK_0273187916__b13483333181415">quit</strong></span></span>

3. 配置iMaster NCE-CampusInsight。
   1. 登录iMaster NCE-CampusInsight。打开Internet Explorer浏览器，在地址栏输入iMaster NCE-CampusInsight的访问地址，输入用户名和密码登录iMaster NCE-CampusInsight。

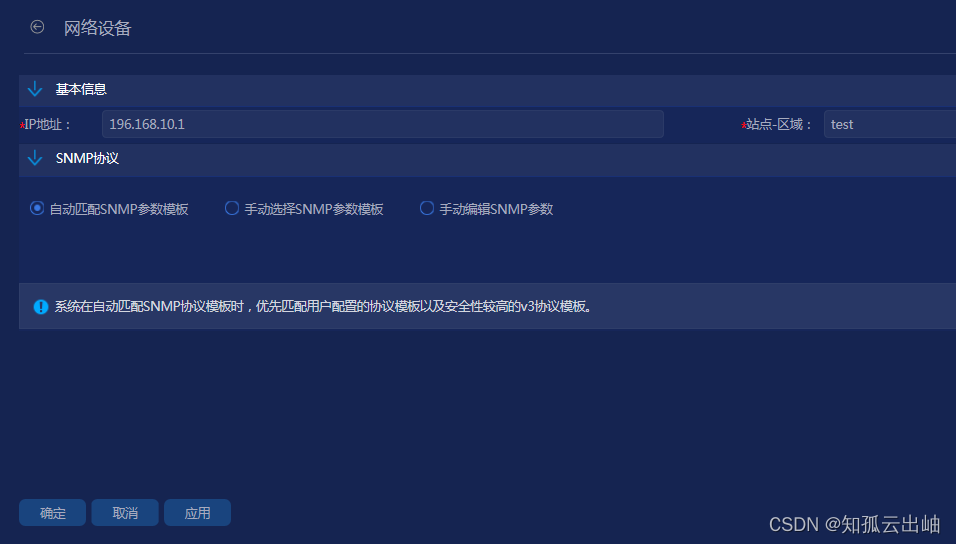

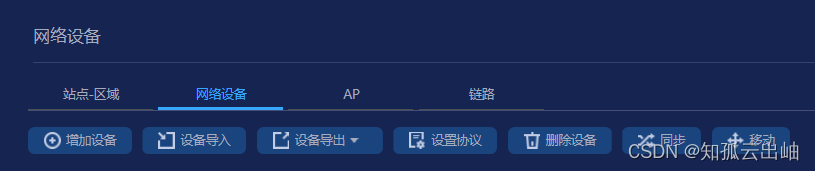

   2. 单击“资源 > 网络设备”，单击右侧“增加设备”，配置“IP地址”和“站点-区域”，单击“确定”，添加设备成功。
   3.
   4.
   5. 几秒钟之后刷新该页面，SwitchA的“状态”为“在线”，表示SwitchA与iMaster NCE-CampusInsight之间通信正常。
4. 配置SwitchA的设备信息和PoE信息定时上报iMaster NCE-CampusInsight。

   <span style="color:#333333"><span style="background-color:#dddddd">[SwitchA] <strong>smi-server</strong>
   [SwitchA-smi-server] <strong>collect-item device-data enable</strong>
   [SwitchA-smi-server] <strong>collect-item poe enable</strong></span></span>

配置文件

SwitchA的配置文件

<span style="color:#333333"><span style="background-color:#dddddd">#
sysname SwitchA
#
vlan batch 10
#
interface Vlanif10
 ip address 192.168.10.1 255.255.255.0
#
interface GigabitEthernet0/0/1
 port link-type trunk
 port trunk allow-pass vlan 10
#
snmp-agent
snmp-agent local-engineid 800007DB03B44326CA2A50
snmp-agent community write cipher %^%#-=lSXG\}7(Z1m6*Lg2R77[B,&")bNSE-!kJFF`A%j6OI.t{;u$)yb&$wAo$Q3*vuYcg(_S7$%AA:PsAS%^%#
snmp-agent community read cipher %^%#mhRe3(8!hK7X%;G+z#KR}n5SQ/1+>$h-#J4)Is4#f|Qi"39sx+(mer<F=V$-Nt*.Mec2dIl!:":#g]T~%^%#
snmp-agent sys-info version all
snmp-agent protocol source-status all-interface
snmp-agent protocol source-status ipv6 all-interface
#
smi-server
 source ip-address 192.168.10.1
 server ip-address 192.168.30.1 port 27371
 collect-item device-data enable
 collect-item poe enable
#
return</span></span>
